一、在springboot中引入rabbitmq的场景之后，并启动springboot主启动类，此时rabbitmq通过RabbitAutoConfiguration类自动装配了那些配置？

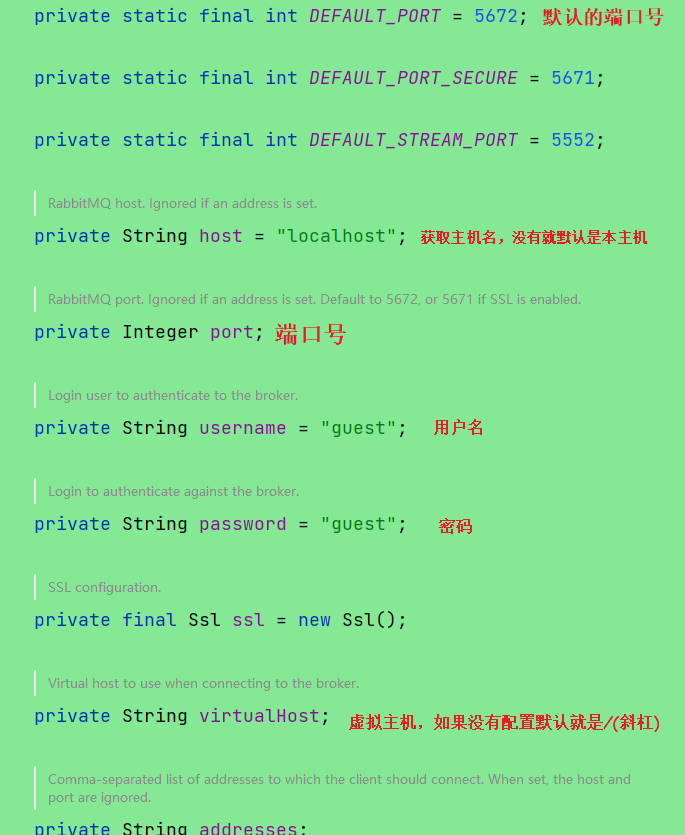

    1、创建连接并获取rabbitmq的服务，将springboot配置文件有关rabbitmq的配置封装到RabbitProperties中
    2、给spring容器中加入RabbitTemplate工具类

    1. @Bean
    2. @ConditionalOnSingleCandidate(ConnectionFactory.class)
    3. @ConditionalOnMissingBean(RabbitOperations.class)
    4. public RabbitTemplate rabbitTemplate(RabbitTemplateConfigurer configurer, ConnectionFactory connectionFactory) {
    5.     RabbitTemplate template = new RabbitTemplate();
    6.     configurer.configure(template, connectionFactory);
    7.     return template;
    8. }

    3、自动装配时给RabbitTemplate在springboot配置文件的配置

    1. @Bean
    2. @ConditionalOnMissingBean
    3. public RabbitTemplateConfigurer rabbitTemplateConfigurer(RabbitProperties properties,
    4.                                                          ObjectProvider<MessageConverter> messageConverter,
    5.                                                          ObjectProvider<RabbitRetryTemplateCustomizer> retryTemplateCustomizers) {
    6.     RabbitTemplateConfigurer configurer = new RabbitTemplateConfigurer(properties);
    7.     configurer.setMessageConverter(messageConverter.getIfUnique());
    8.     configurer
    9.         .setRetryTemplateCustomizers(retryTemplateCustomizers.orderedStream().collect(Collectors.toList()));
    10.     return configurer;
    11. }

    二、e6yun3.0 自己封装的rabbitmq
    1、配置类自动装配了连接rabbitmq服务时所需要的几大件

    1. @Configuration
    2. public class AmqpConfig {
    4.     @Bean
    5.     @Primary
    6.     public ConnectionFactory defaultConnectionFactory(
    7.         @Value("${spring.rabbitmq.default.host}") String host,
    8.         @Value("${spring.rabbitmq.default.port}") int port,
    9.         @Value("${spring.rabbitmq.default.username}") String username,
    10.         @Value("${spring.rabbitmq.default.password}") String password,
    11.         @Value("${spring.rabbitmq.default.virtual-host}") String virtualHost) {
    12.         CachingConnectionFactory connectionFactory = new CachingConnectionFactory();
    13.         connectionFactory.setHost(host);
    14.         connectionFactory.setPort(port);
    15.         connectionFactory.setUsername(username);
    16.         connectionFactory.setPassword(password);
    17.         connectionFactory.setVirtualHost(virtualHost);
    19.         return connectionFactory;
    20.     }

    2、专门对与消费者进行的配置

    1. @Bean
    2. public SimpleRabbitListenerContainerFactory defaultFactory(
    3.     SimpleRabbitListenerContainerFactoryConfigurer configurer,
    4.     @Qualifier("defaultConnectionFactory") ConnectionFactory connectionFactory) {
    5.     SimpleRabbitListenerContainerFactory factory = new SimpleRabbitListenerContainerFactory();
    6.     configurer.configure(factory, connectionFactory);
    7.     factory.setAcknowledgeMode(AcknowledgeMode.MANUAL);
    8.     return factory;
    9. }

    3、消费者

    1. public class TmsEventMessageReceiver {
    3.     private static Logger logger = LoggerFactory.getLogger(TmsEventMessageReceiver.class);
    5.     /**
    6.     消费者基于注解形式的创建和绑定
    7.     */
    8.     @RabbitListener(bindings = {@QueueBinding(
    9.         value = @Queue(value = "${e6yun3.event.receiver.queue.name}", // 给存放消息的队列起一个名字
    10.                        durable = "${e6yun3.event.receiver.queue.durable:true}", // 是否持久化
    11.                        autoDelete = "${e6yun3.event.receiver.queue.autoDelete:true}",// 消息消费了之后是否进行删除
    12.                        exclusive = "${e6yun3.event.receiver.queue.exclusive:false}"),// 是否具有排他性
    13.         exchange = @Exchange(value = "${e6yun3.event.receiver.exchange}", // 给交换机起一个名字
    14.                              type = "${e6yun3.event.receiver.exchange.type:topic}"), // 指定交换机类型
    15.         key = "${e6yun3.event.receiver.exchange.routing.key}")}, // 用来指定消费者和交换机中间的路由匹配规则
    16.                     containerFactory = "defaultFactory") // 一般使用默认的连接工厂
    17.     public void processor(Message message, Channel channel, @Header(name = "amqp_deliveryTag") long deliveryTag,
    18.                           @Header("amqp_redelivered") boolean redelivered) {
    20.         /**
    21.         消费者拿到消息之后，对该消息进行处理的业务
    22.         */
    23.         byte[] body = message.getBody();
    24.         String messageStr = "";
    25.         try {
    26.             messageStr = new String(body, "utf-8");
    27.         } catch (UnsupportedEncodingException e) {
    28.             e.printStackTrace();
    29.         }
    30.         //如果发送方有压缩，这里要解压
    31.         String msgInfo = GZipUtils.gunzip(messageStr, "GB2312");
    32.         //业务处理在这里
    33.         logger.info(msgInfo);
    35.         MqHandleUtils.handleReceiver(channel, deliveryTag);
    36.     }
    37. }

    4、生产者

    1. /**
    2. 该消息发送的类中，两个方法进行了重载，并重载的两个方法的区别就是多了一个文本类型
    4. 并且两个方法的发送机制都是调用rabbitTemplate.convertAndSend(exchangeName, routingKey, messageBean);这个方法，需要三个参数
    5. 1、交换机的名称
    6. 2、消息队列和交换机的匹配规则
    7. 3、所要发送的消息 （messageBean）
    8. */
    9. public void sendMessage(RabbitTemplateEnum rabbitTemplateEnum, String exchangeName, String routingKey, String message, boolean zip) {
    10.         //判断是否加密
    11.         if(zip) {
    12.             message = GZipUtils.gzip(message, GZipUtils.DEFAULT_CHARSET);
    13.         }
    15.         //构造mq template
    16.         RabbitTemplate rabbitTemplate = beanFactory.getBean(rabbitTemplateEnum.getBeanName(), RabbitTemplate.class);
    17.         Message messageBean = MessageBuilder.withBody(message.getBytes())
    18.                 .setHeader("routingKey",routingKey)
    19.                 .build();
    21.         //推送mq
    22.         rabbitTemplate.convertAndSend(exchangeName, routingKey, messageBean);
    23.         logger.info("推送mq消息routingKey:{}，内容：{}",routingKey, message);
    24.     }
