Finally Experiment

Step -1 ：创建存储路径

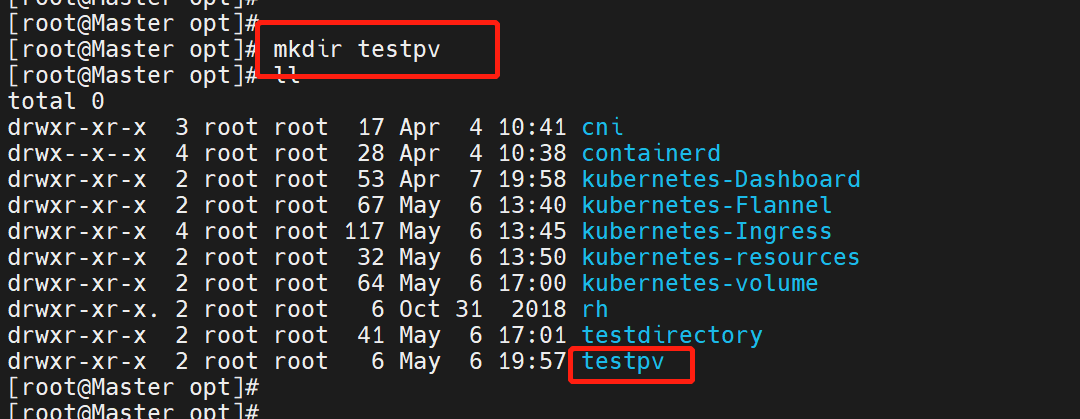

先创建一个目录用以存放PV/PVC的试验相关存储路径

“mkdir /opt/testpv”+“cd /opt/testpv”+“mkdir pv-1 pv-2 pv-3”

Step - 2：暴露存储路径：


增加暴露存储路径：

“vim /etc/exports”

/opt/testdirectory 10.1.10.0/24(rw,no_root_squash)

/opt/testpv/pv-1 10.1.10.0/24(rw,no_root_squash)
/opt/testpv/pv-2 10.1.10.0/24(rw,no_root_squash)
/opt/testpv/pv-3 10.1.10.0/24(rw,no_root_squash)

重启NFS服务以及查看状态：

“ systemctl restart nfs”

“ systemctl status nfs”

Step - 3：创建PV资源


编辑pv.yaml

“vim pv.yaml”

apiVersion: v1
kind: PersistentVolume
metadata:
name: pv-1
spec:
capacity:
storage: 1Gi #（明确申明，需要1G以上的存储空间作为存储卷）
accessModes:
- ReadWriteMany #（访问模式）
persistentVolumeReclaimPolicy: Retain #（回收策略）
nfs:
path: /opt/testpv/pv-1 #（指定存储路径）
server: 10.1.10.128 #（存储服务器节点）
—-
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv-2
spec:
capacity:
storage: 2Gi
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Retain
nfs:
path: /opt/testpv/pv-2
server: 10.1.10.128
—-
apiVersion: v1
kind: PersistentVolume
metadata:
name: pv-3
spec:
capacity:
storage: 3Gi
accessModes:
- ReadWriteMany
persistentVolumeReclaimPolicy: Retain
nfs:
path: /opt/testpv/pv-3
server: 10.1.10.128

声明式创建pv资源清单配置，并检查状态，结合dashboard辅证

“kubectl apply -f pv.yaml”

“ kubectl get pv -o wide”

NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS CLAIM STORAGECLASS REASON AGE VOLUMEMODE
pv-1 1Gi RWX Retain Available 14s Filesystem
pv-2 2Gi RWX Retain Available 14s Filesystem
pv-3 3Gi RWX Retain Available 14s Filesystem

Step - 4：创建PVC

编辑pvc.yaml

“vim pvc.yaml”

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: pvc-1
namespace: storage
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 1Gi（申明我需要对应多少大小的存储卷）
—-
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: pvc-2
namespace: storage
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 1Gi
—-
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
name: pvc-3
namespace: storage
spec:
accessModes:
- ReadWriteMany
resources:
requests:
storage: 1Gi

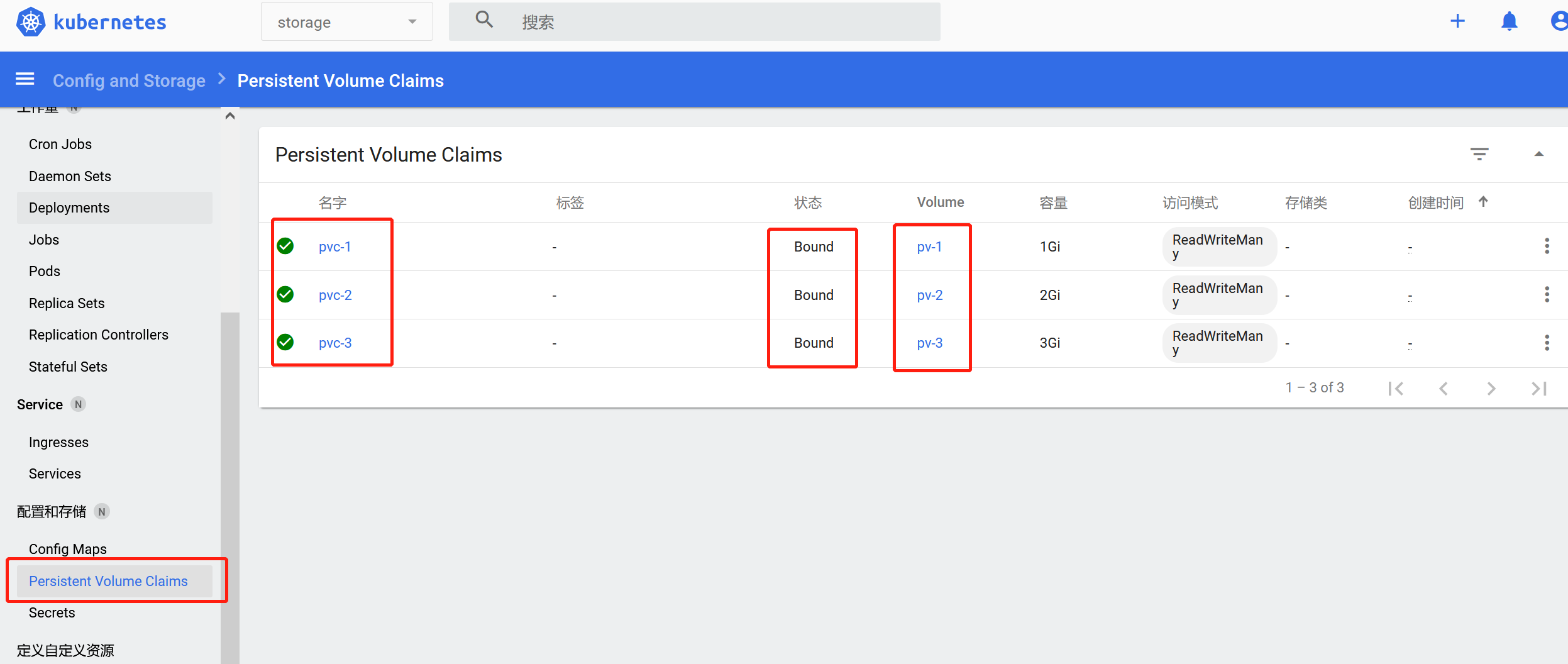

声明式创建pvc配置，并结合dashboard辅证，可以看到pvc创建完成，并自动完成与之对应的pv绑定

“kubectl apply -f pvc.yaml”

“ kubectl get pvc -n storage -o wide”

Step - 5：创建POD，并绑定PVC


编辑pvc-pod.yaml

“vim pvc-pod.yaml”

apiVersion: v1
kind: Pod
metadata:
name: pod-1
namespace: storage
spec:
containers:
- name: busybox
image: busybox:latest
command: [“/bin/sh”,”-c”,”while true;do echo pod1 >> /root/out.txt; sleep 10; done;”]
volumeMounts:
- name: volume
mountPath: /root/
volumes:
- name: volume
persistentVolumeClaim:
claimName: pvc-1
readOnly: false
—-
apiVersion: v1
kind: Pod
metadata:
name: pod-2
namespace: storage
spec:
containers:
- name: busybox
image: busybox:latest
command: [“/bin/sh”,”-c”,”while true;do echo pod2 >> /root/out.txt; sleep 10; done;”]
volumeMounts:
- name: volume
mountPath: /root/
volumes:
- name: volume
persistentVolumeClaim:
claimName: pvc-2
readOnly: false

声明式创建资源

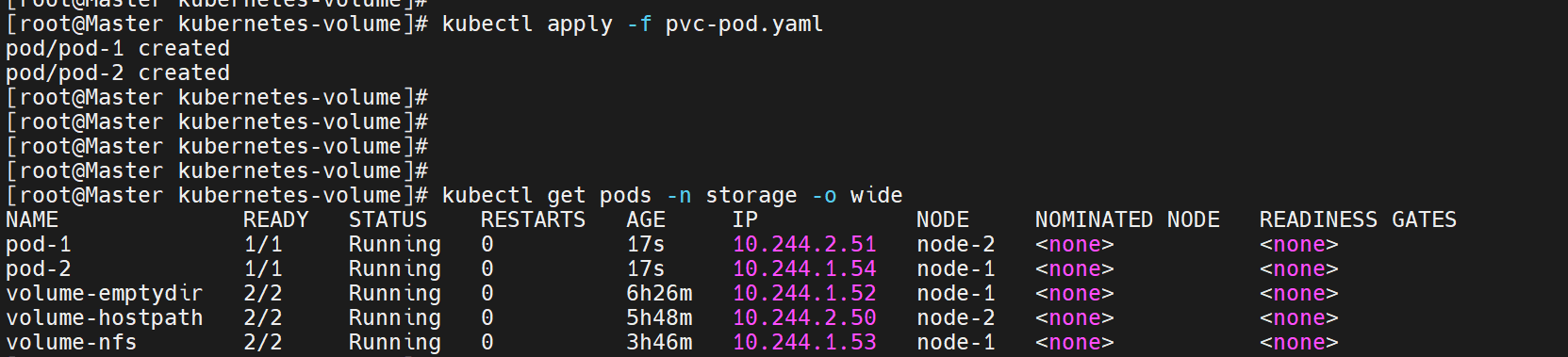

“ kubectl apply -f pvc-pod.yaml”

“kubectl get pods -n storage -o wide”

NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
pod-1 1/1 Running 0 17s 10.244.2.51 node-2
pod-2 1/1 Running 0 17s 10.244.1.54 node-1
volume-emptydir 2/2 Running 0 6h26m 10.244.1.52 node-1
volume-hostpath 2/2 Running 0 5h48m 10.244.2.50 node-2
volume-nfs 2/2 Running 0 3h46m 10.244.1.53 node-1

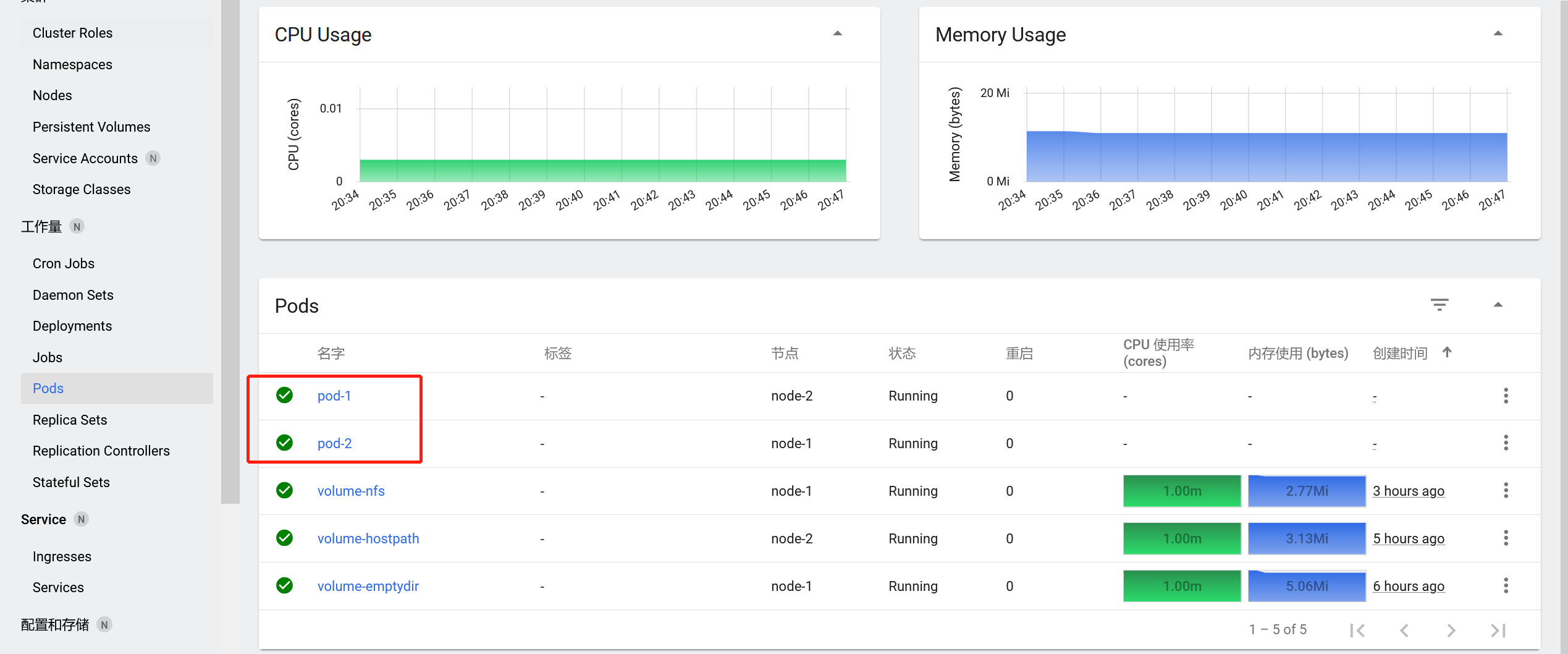

点击pod-1进去，可以看到，已经成功和pvc进行绑定

结合命令行，可以看到，存储路径已经出现了在创建pod时指定的命令，并成功创建出了文件

PS：注意完成这个时候之后可以把这两个pod给删了，因为我们之前的配置里面的命令，是每10s写个pod到out.txt这个文件里去，所以删了以免占用资源
