Harbor

Github地址https://github.com/goharbor/harbor
官方地址：https://github.com/goharbor/harbor/releases

安装

注意在安装之前 需要确保已经安装了docker 和docker-compose
安装docker

  1. # curl -fsSL https://get.docker.com | bash -s docker --mirror Aliyun
  2. # systemctl daemon-reload
  3. #  service docker restart
  4. # service docker status

可以设置开机自启动

  1. # systemctl enable docker
  2. Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service to /usr/lib/systemd/system/docker.service.
  1. # sudo curl -L https://github.com/docker/compose/releases/download/1.26.2/docker-compose-`uname -s`-`uname -m` -o /usr/local/bin/docker-compose

安装docker-compose

  1. # pip install -U docker-compose

SSL证书创建

官方文档：https://github.com/goharbor/harbor/blob/master/docs/install-config/configure-https.md

创建CA证书

  1. # openssl genrsa -out ca.key 2048
  2. Generating RSA private key, 2048 bit long modulus (2 primes)
  3. .......................+++++
  4. ................+++++
  5. e is 65537 (0x010001)
  6. openssl req -new -x509 -days 36500 -key ca.key -out ca.crt -subj "/C=CN/ST=BJ/L=BeiJing/O=BTC/OU=MOST/CN=harbor/emailAddress=ca@harbor.com"

选项参数说明：
genrsa 生成私钥
-out filename 标准输出到filename文件
req 生成证书请求
-new 生成新证书签署请求
-x509 专用于CA生成自签证书；不自签的时候不要加该选项
-days num 证书的有效期限
-key file 生成请求时用到的私钥文件
-out filename 标准输出到filename文件
subj内容详解：

  1. C             = 国家
  2. ST            = 省/州
  3. L             = 城市
  4. O             = Organization Name
  5. OU            = Organizational Unit Name
  6. CN            = Common Name
  7. emailAddress  = 注册邮箱

如果出现如下错误

  1. Can't load /root/.rnd into RNG
  2. 140012552131008:error:2406F079:random number generator:RAND_load_file:Cannot open file:../crypto/rand/randfile.c:88:Filename=/root/.rnd

执行如下

  1. # cd /root
  2. # openssl rand -writerand .rnd

创建服务器证书

创建私钥

  1. # openssl genrsa -out httpd.key 1024

生成签发请求

  1. # openssl req -new -key httpd.key -out httpd.csr -subj "/C=CN/ST=BJ/L=BeiJing/O=BTC/OU=OPS/CN=harbor/emailAddress=nlp@harbor.com"

使用CA证书进行签发

  1. # openssl x509 -req -sha256 -in httpd.csr -CA ca.crt -CAkey ca.key -CAcreateserial -days 36500 -out httpd.crt
  2. Signature ok
  3. subject=C = CN, ST = BJ, L = BeiJing, O = BTC, OU = OPS, CN = harbor, emailAddress = nlp@harbor.com
  4. Getting CA Private Key

验证签发证书是否有效

  1. # openssl verify -CAfile ca.crt httpd.crt
  2. httpd.crt: OK

其中将httpd.key和httpd.crt，放到/etc/harbor/cert/目录下，后面harbor配置https 需要
一件脚本：https://rancher2.docs.rancher.cn/docs/installation/options/self-signed-ssl/_index/

修改配置

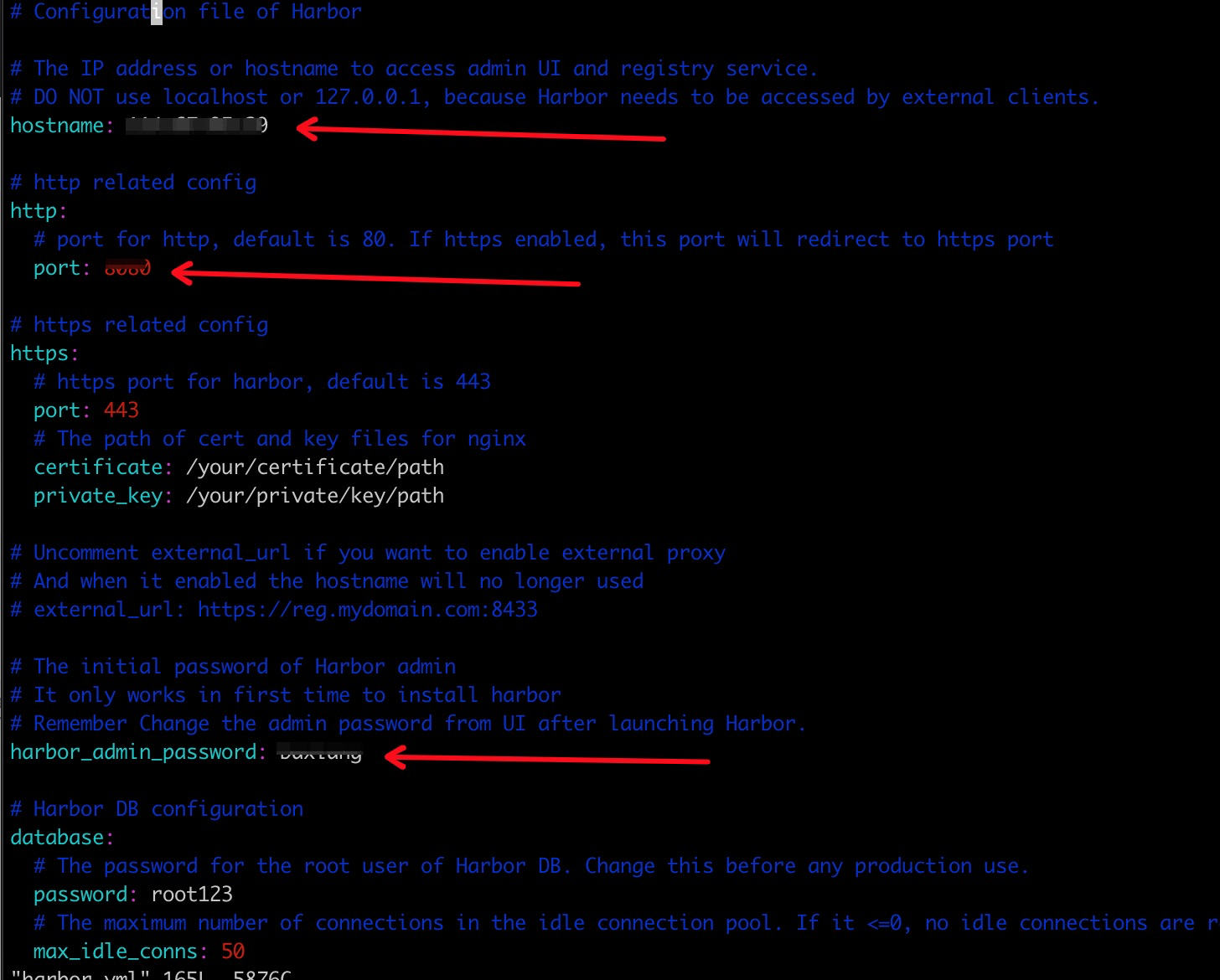

修改配置harbor.yml
hostname 这里设置本机的ip
harbor_admin_password 登录密码
port 端口号

安装

执行 ./prepare

  1. # ./prepare
  2. prepare base dir is set to /root/app/harbor
  3. Clearing the configuration file: /config/core/env
  4. Clearing the configuration file: /config/core/app.conf
  5. Clearing the configuration file: /config/nginx/nginx.conf
  6. Clearing the configuration file: /config/log/rsyslog_docker.conf
  7. Clearing the configuration file: /config/log/logrotate.conf
  8. Clearing the configuration file: /config/registry/config.yml
  9. Clearing the configuration file: /config/registry/root.crt
  10. Clearing the configuration file: /config/jobservice/env
  11. Clearing the configuration file: /config/jobservice/config.yml
  12. Clearing the configuration file: /config/registryctl/env
  13. Clearing the configuration file: /config/registryctl/config.yml
  14. Clearing the configuration file: /config/db/env
  15. Generated configuration file: /config/log/logrotate.conf
  16. Generated configuration file: /config/log/rsyslog_docker.conf
  17. Generated configuration file: /config/nginx/nginx.conf
  18. Generated configuration file: /config/core/env
  19. Generated configuration file: /config/core/app.conf
  20. Generated configuration file: /config/registry/config.yml
  21. Generated configuration file: /config/registryctl/env
  22. Generated configuration file: /config/db/env
  23. Generated configuration file: /config/jobservice/env
  24. Generated configuration file: /config/jobservice/config.yml
  25. loaded secret from file: /secret/keys/secretkey
  26. Generated configuration file: /compose_location/docker-compose.yml
  27. Clean up the input dir

执行./install.sh 安装命令

  1. ~/app/harbor# ./install.sh
  3. [Step 0]: checking if docker is installed ...
  5. Note: docker version: 19.03.12
  7. [Step 1]: checking docker-compose is installed ...
  9. Note: docker-compose version: 1.26.2

如果修改了Harbor的配置文件harbor.yml，因为Harbor是基于docker-compose服务编排的，我们可以使用docker-compose命令重启Harbor。
未修改配置文件，重启Harbor命令：docker-compose start | stop | restart

关于http

在docker.service文件中添加—insecure-registry参数指定仓库地址和端口。

  1. ExecStart=/usr/bin/dockerd --insecure-registry=192.168.1.191:8888

重启docker

  1. systemctl restart docker

镜像推送命令**

docker login 到镜像仓库服务器

  1. docker login --username=testuser --password=xxxx  harbor服务器地址

eg

  1. docker login -u baxiang -p BAxiang123456 https://192.168.1.51:443
  2. WARNING! Using --password via the CLI is insecure. Use --password-stdin.
  3. Login Succeeded

打docker tag docker tag 对本地镜像打tag标签到镜像仓库服务器

  1. docker tag hello-world:latest xxxx/project-test/hello-world:1.0

docker push 镜像到镜像仓库中

  1. docker push xxxx/project-test/hello-world:1.0

docker客户端配置免https

Docker 默认不允许非 HTTPS 方式推送镜像。我们可以通过 Docker 的配置选项来取消这个限制。否则会出现如下错误信息：
Error response from daemon: Get https:// 172.16.1.146:5000/v1/_ping: http: server gave HTTP response to HTTPS client

或者如下

  1. x509: certificate signed by unknown authority


需要添加
{ "insecure-registries":["host:port"] }
到
/etc/docker/daemon.json
例如直接 vim

  1. {
  2.   "insecure-registries": [
  3.     "IP:PORT"
  4.   ]
  5. }

eg:

  1. vim /etc/docker/daemon.json
  2. {
  3.    "insecure-registries": ["192.168.91.131:5000"]
  4. }

或者

  1. # echo '{ "insecure-registries":["172.16.1.146:8888"] }' > /etc/docker/daemon.json

然后需要重启

  2. systemctl daemon-reload
  3. systemctl restart docker

问题

denied: requested access to the resource is denied
需要登录harbor
