NTD TCNA DAY05

  1. 案例1：基于全局的DHCP配置
  2. 案例2：基于接口的DHCP配置
  3. 案例3：配置DHCP中继
  4. 案例4：交换机配置DHCP服务器

1 案例1：基于全局的DHCP配置

1.1 问题

基于全局配置DHCP，要求如下。

  • 地址池：192.168.1.0/24
  • 网 关：192.168.1.254
  • D N S：8.8.8.8
  • 租 约：3天

    1.2 方案

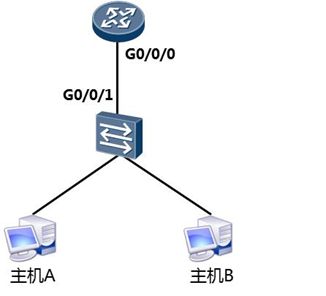

    使用eNSP搭建实验环境，如图-1所示。
    TCNA DAY05 - 图1
    图-1

    1.3 步骤

    实现此案例需要按照如下步骤进行。
    1）在路由器上配置DHCP
    [dhcp]ip pool pool_tedu //创建DHCP地址池
    [dhcp-ip-pool-pool_tedu]network 192.168.1.0 mask 24 //指定网段信息
    [dhcp-ip-pool-pool_tedu]gateway-list 192.168.1.254 //指定网关地址
    [dhcp-ip-pool-pool_tedu]dns-list 8.8.8.8 //指定DNS服务器地址
    [dhcp-ip-pool-pool_tedu]lease day 3 //指定租约

2）开启DHCP
[dhcp]dhcp enable //开启DHCP服务

3）在接口上启用DHCP
[dhcp]int g0/0/0
[dhcp-GigabitEthernet0/0/0]ip add 192.168.1.254 24
[dhcp-GigabitEthernet0/0/0]dhcp select global //启用DHCP全局模式

4）验证

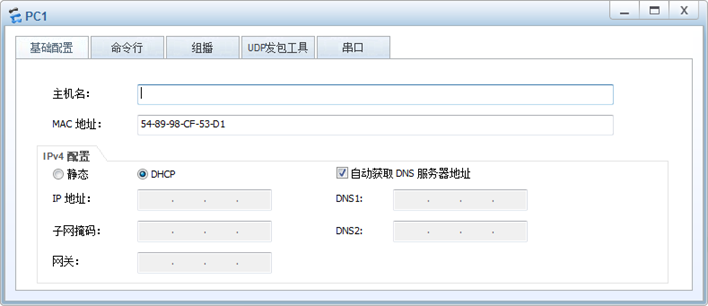

主机A的配置如图-2所示。
TCNA DAY05 - 图2
图-2

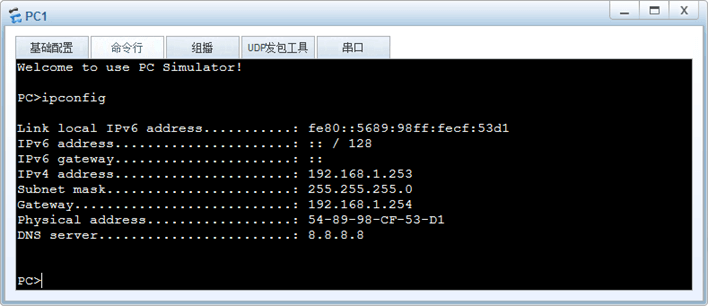

查看获取的IP如图-3所示。
TCNA DAY05 - 图3
图-3
同样查看主机B的配置，验证主机A可以ping通主机B。

2 案例2：基于接口的DHCP配置

2.1 问题

基于接口配置DHCP，要求如下。

  • 地址池：192.168.1.0/24
  • 网 关：192.168.1.254
  • D N S：8.8.8.8
  • 租 约：3天
  • 设置保留地址：192.168.1.200、192.168.1.253

    2.2 方案

    使用eNSP搭建实验环境，如图-4所示。
    TCNA DAY05 - 图4
    图-4

    2.3 步骤

    实现此案例需要按照如下步骤进行。
    1）开启DHCP
    [dhcp]dhcp enable //开启DHCP服务

2）在接口上启用DHCP
[dhcp]int g0/0/0
[dhcp-GigabitEthernet0/0/0]ip add 192.168.1.254 24
[dhcp-GigabitEthernet0/0/0]dhcp select interface //启用DHCP接口模式
[dhcp-GigabitEthernet0/0/0]dhcp server dns-list 8.8.8.8 //指定DNS服务器地址
[dhcp-GigabitEthernet0/0/0]dhcp server lease day 3 //指定租约时间
[dhcp-GigabitEthernet0/0/0]dhcp server excluded-ip-address 192.168.1.200 192.168
.1.253 //指定排除地址范围

3）验证
主机A获取的IP如图-5所示。
TCNA DAY05 - 图5
图-5
同样查看主机B的配置，验证主机A可以ping通主机B。

3 案例3：配置DHCP中继

3.1 问题

  1. 配置DHCP中继，让客户端从DHCP服务器获取地址。
  2. 客户机可以ping通R1。

    3.2 方案

    使用eNSP搭建实验环境，如图-6所示。
    TCNA DAY05 - 图6
    图-6

    3.3 步骤

    实现此案例需要按照如下步骤进行。
    1）配置R1
    [R1]dis cu
    [V200R003C00]
    #
    sysname R1
    #
    snmp-agent local-engineid 800007DB03000000000000
    snmp-agent
    #
    clock timezone China-Standard-Time minus 08:00:00
    #
    portal local-server load portalpage.zip
    #
    drop illegal-mac alarm
    #
    set cpu-usage threshold 80 restore 75
    #
    dhcp enable //启用了DHCP服务
    #
    ip pool pool_tedu //DHCP地址池信息
    gateway-list 192.168.1.254
    network 192.168.1.0 mask 255.255.255.0
    lease day 3 hour 0 minute 0
    dns-list 8.8.8.8
    #
    aaa
    authentication-scheme default
    authorization-scheme default
    accounting-scheme default
    domain default
    domain default_admin
    local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
    local-user admin service-type http
    #
    firewall zone Local
    priority 15
    #
    interface Ethernet0/0/0
    #
    interface Ethernet0/0/1
    #
    interface Ethernet0/0/2
    #
    interface Ethernet0/0/3
    #
    interface Ethernet0/0/4
    #
    interface Ethernet0/0/5
    #
    interface Ethernet0/0/6
    #
    interface Ethernet0/0/7
    #
    interface GigabitEthernet0/0/0 //此接口的DHCP配置信息
    ip address 10.10.10.1 255.255.255.0
    dhcp select global
    #
    interface GigabitEthernet0/0/1
    #
    interface NULL0
    #
    ip route-static 192.168.1.0 255.255.255.0 10.10.10.2
    #
    user-interface con 0
    authentication-mode password
    user-interface vty 0 4
    user-interface vty 16 20
    #
    wlan ac
    #
    return

2）配置R2
[R2]dis cu
[V200R003C00]
#
sysname R2
#
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
#
clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
drop illegal-mac alarm
#
set cpu-usage threshold 80 restore 75
#
dhcp enable
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
local-user admin service-type http
#
firewall zone Local
priority 15
#
interface Ethernet0/0/0
#
interface Ethernet0/0/1
#
interface Ethernet0/0/2
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface GigabitEthernet0/0/0
ip address 10.10.10.2 255.255.255.0
#
interface GigabitEthernet0/0/1
ip address 192.168.1.254 255.255.255.0
dhcp select relay //启用DHCP中继代理模式
dhcp relay server-ip 10.10.10.1 //指定DHCP服务器地址
#
interface NULL0
#
user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return

3）验证
主机获取的IP如图-7所示。
TCNA DAY05 - 图7
图-7
验证主机可以ping通R1，如图-8所示。
TCNA DAY05 - 图8
图-8

4 案例4：交换机配置DHCP服务器

4.1 问题

  1. 配置两个地址池：192.168.1.0/24和192.168.2.0/24
  2. 配置两个VLAN：VLAN 10和VLAN 20
  3. 将四台主机分别加入VLAN
  4. 自动获取IP地址，确保全网互通

    4.2 方案

    使用eNSP搭建实验环境，如图-9所示。
    TCNA DAY05 - 图9
    图-9

    4.3 步骤

    实现此案例需要按照如下步骤进行。
    1）配置DHCP服务器
    [SW3]dis cu
    #
    sysname SW3
    #
    vlan batch 10 20
    #
    cluster enable
    ntdp enable
    ndp enable
    #
    drop illegal-mac alarm
    #
    dhcp enable
    #
    diffserv domain default
    #
    drop-profile default
    #
    ip pool pool1 //DHCP地址池信息
    gateway-list 192.168.1.254
    network 192.168.1.0 mask 255.255.255.0
    lease day 7 hour 0 minute 0
    dns-list 8.8.8.8
    #
    ip pool pool2 //DHCP地址池信息
    gateway-list 192.168.2.254
    network 192.168.2.0 mask 255.255.255.0
    lease day 7 hour 0 minute 0
    dns-list 8.8.8.8
    #
    aaa
    authentication-scheme default
    authorization-scheme default
    accounting-scheme default
    domain default
    domain default_admin
    local-user admin password simple admin
    local-user admin service-type http
    #
    interface Vlanif1
    #
    interface Vlanif10
    ip address 192.168.1.254 255.255.255.0
    dhcp select global //启用DHCP全局模式
    #
    interface Vlanif20
    ip address 192.168.2.254 255.255.255.0
    dhcp select global //启用DHCP接口模式
    #
    interface MEth0/0/1
    #
    interface GigabitEthernet0/0/1 //此接口设置为trunk模式
    port link-type trunk
    port trunk allow-pass vlan 2 to 4094
    #
    interface GigabitEthernet0/0/2
    port link-type trunk
    port trunk allow-pass vlan 2 to 4094
    #
    interface GigabitEthernet0/0/3
    #
    interface GigabitEthernet0/0/4
    #
    interface GigabitEthernet0/0/5
    #
    interface GigabitEthernet0/0/6
    #
    interface GigabitEthernet0/0/7
    #
    interface GigabitEthernet0/0/8
    #
    interface GigabitEthernet0/0/9
    #
    interface GigabitEthernet0/0/10
    #
    interface GigabitEthernet0/0/11
    #
    interface GigabitEthernet0/0/12
    #
    interface GigabitEthernet0/0/13
    #
    interface GigabitEthernet0/0/14
    #
    interface GigabitEthernet0/0/15
    #
    interface GigabitEthernet0/0/16
    #
    interface GigabitEthernet0/0/17
    #
    interface GigabitEthernet0/0/18
    #
    interface GigabitEthernet0/0/19
    #
    interface GigabitEthernet0/0/20
    #
    interface GigabitEthernet0/0/21
    #
    interface GigabitEthernet0/0/22
    #
    interface GigabitEthernet0/0/23
    #
    interface GigabitEthernet0/0/24
    #
    interface NULL0
    #
    user-interface con 0
    user-interface vty 0 4
    #
    return

2）配置SW1
[SW1]dis cu
#
sysname SW1
#
vlan batch 10 20
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Ethernet0/0/1
port link-type access
port default vlan 10
#
interface Ethernet0/0/2
port link-type access
port default vlan 10
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return

3）配置SW2
[SW2]dis cu
#
sysname SW2
#
vlan batch 10 20
#
cluster enable
ntdp enable
ndp enable
#
drop illegal-mac alarm
#
diffserv domain default
#
drop-profile default
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface MEth0/0/1
#
interface Ethernet0/0/1
port link-type access
port default vlan 20
#
interface Ethernet0/0/2
port link-type access
port default vlan 20
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface Ethernet0/0/8
#
interface Ethernet0/0/9
#
interface Ethernet0/0/10
#
interface Ethernet0/0/11
#
interface Ethernet0/0/12
#
interface Ethernet0/0/13
#
interface Ethernet0/0/14
#
interface Ethernet0/0/15
#
interface Ethernet0/0/16
#
interface Ethernet0/0/17
#
interface Ethernet0/0/18
#
interface Ethernet0/0/19
#
interface Ethernet0/0/20
#
interface Ethernet0/0/21
#
interface Ethernet0/0/22
#
interface GigabitEthernet0/0/1
port link-type trunk
port trunk allow-pass vlan 2 to 4094
#
interface GigabitEthernet0/0/2
#
interface NULL0
#
user-interface con 0
user-interface vty 0 4
#
return

4）验证
四台主机获取的IP地址分别为：192.168.1.253、192.168.1.252、192.168.2.253、192.168.2.252。
四台主机均可以互相ping通。
