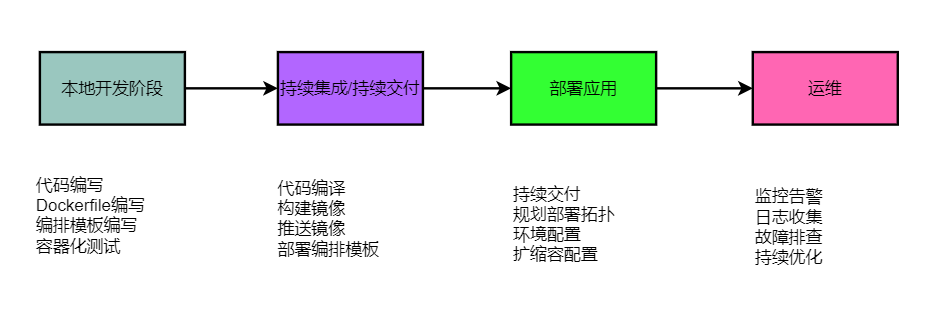

容器交付流程

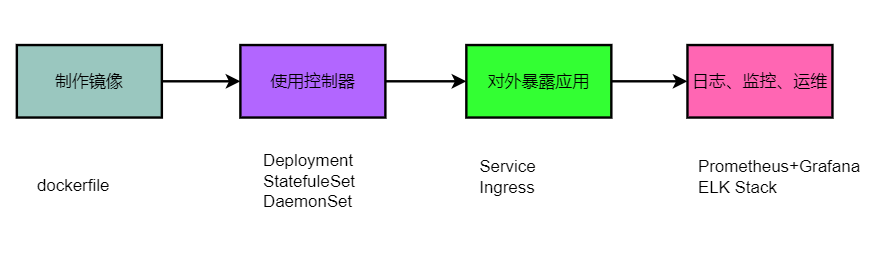

项目流程


部署JAVA项目


部署

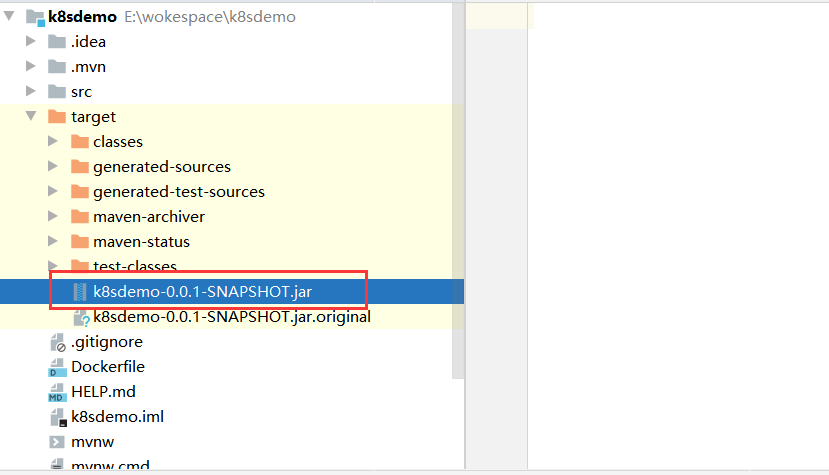

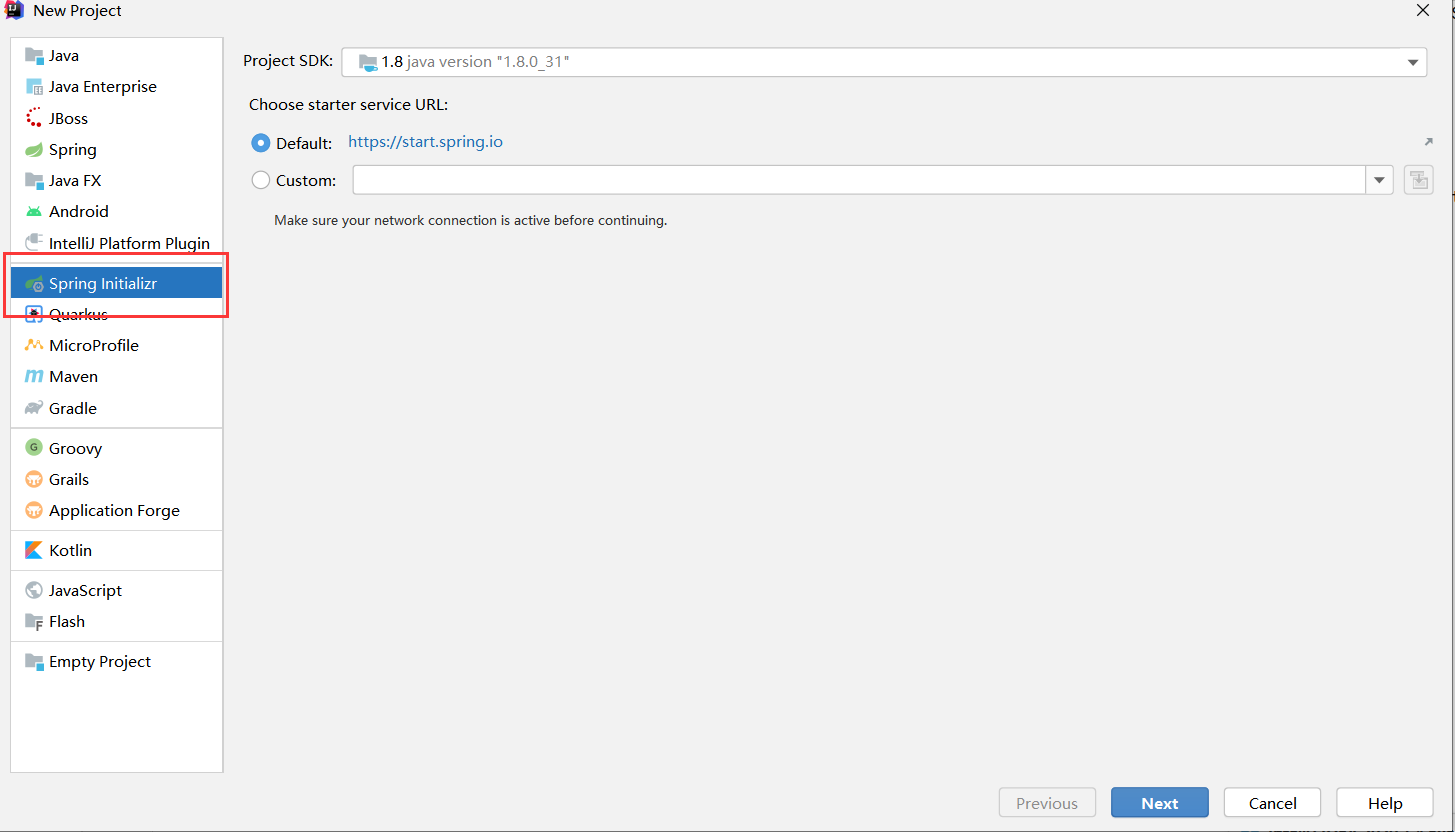

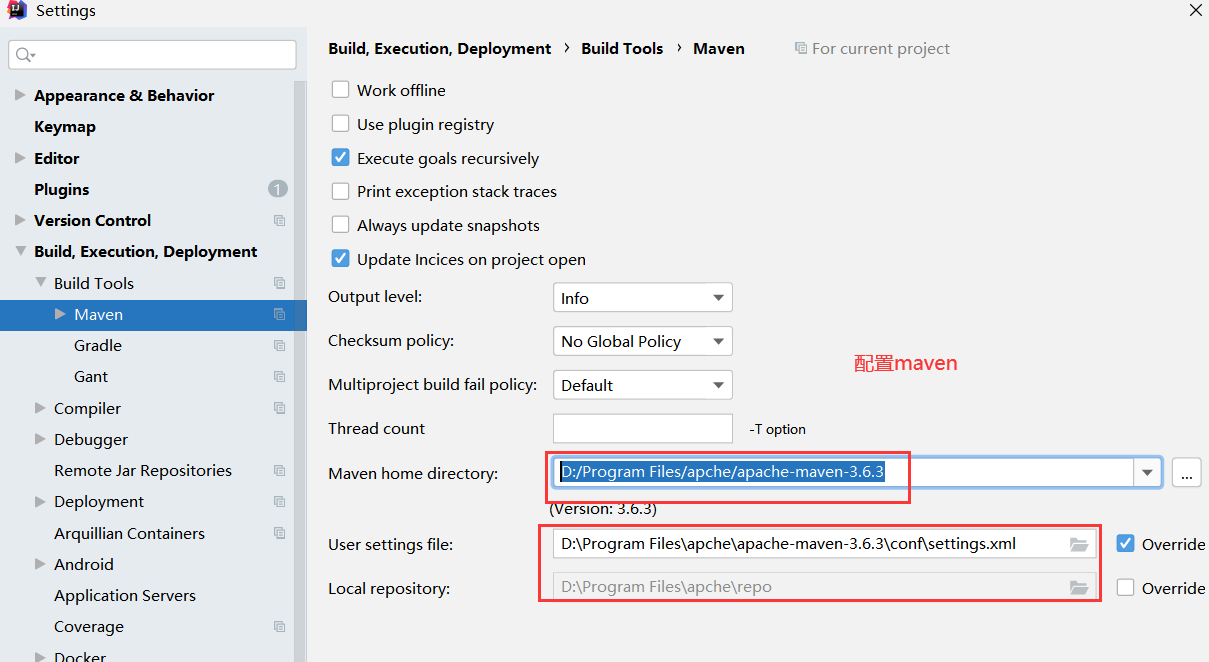

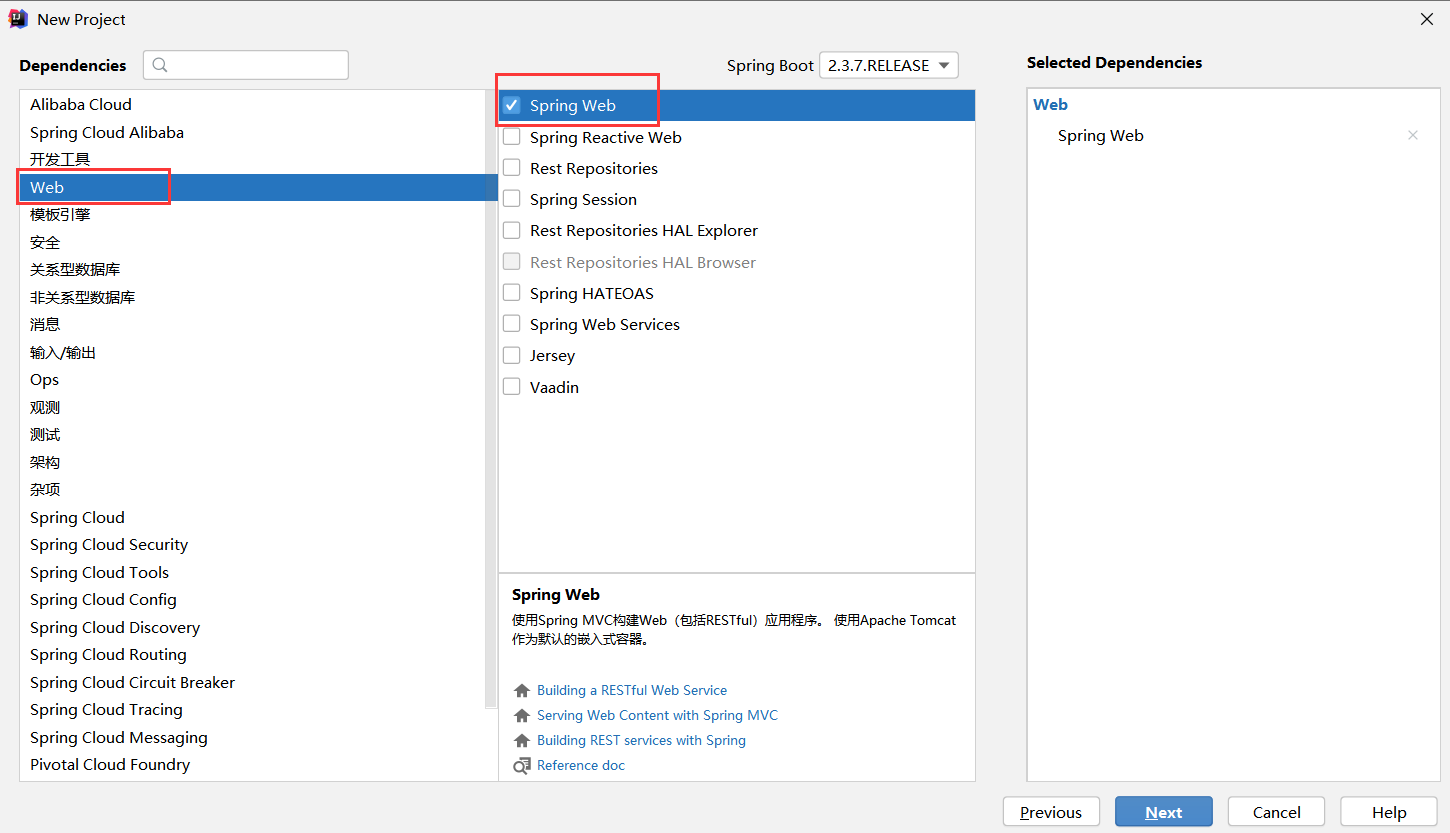

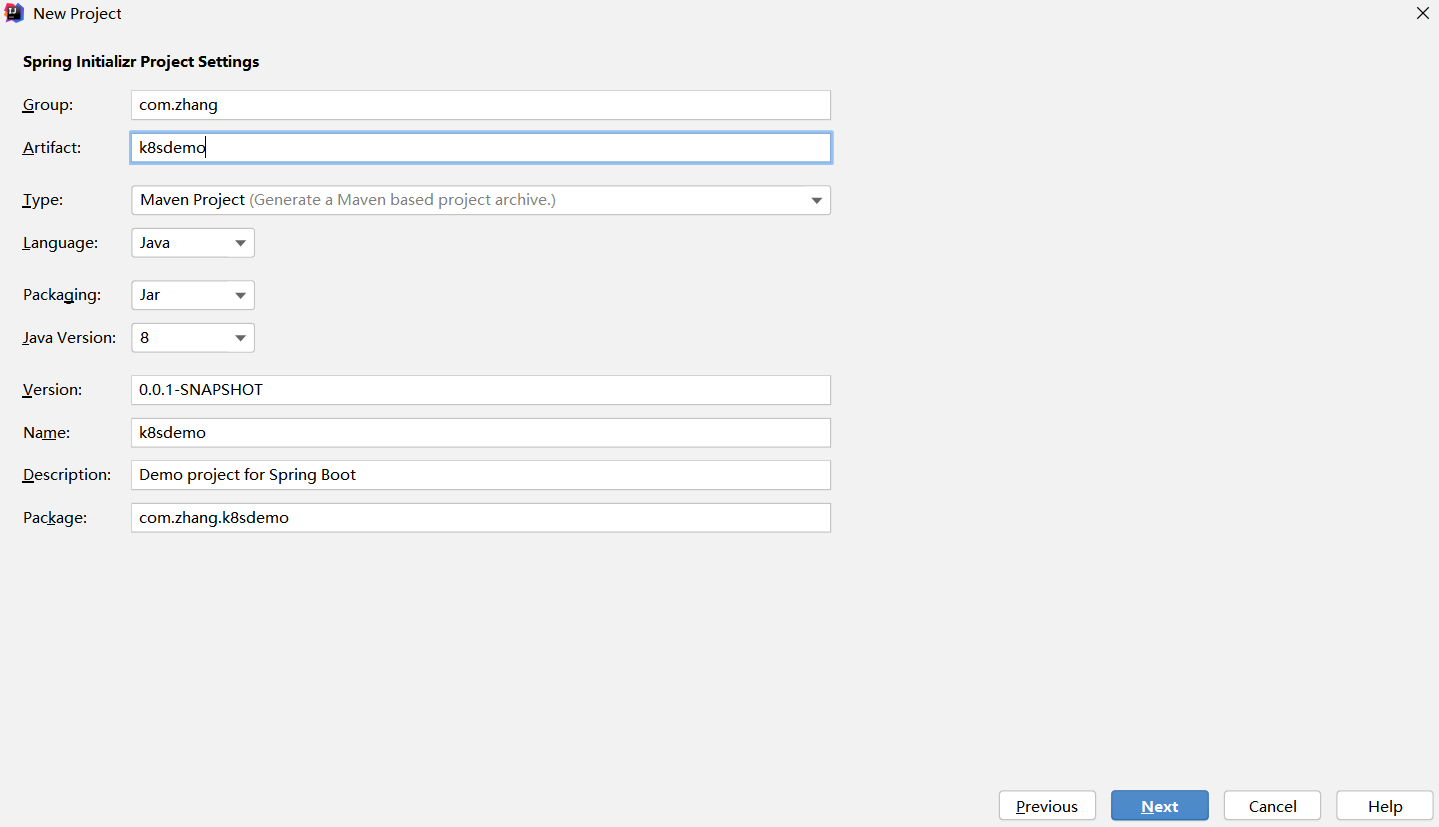

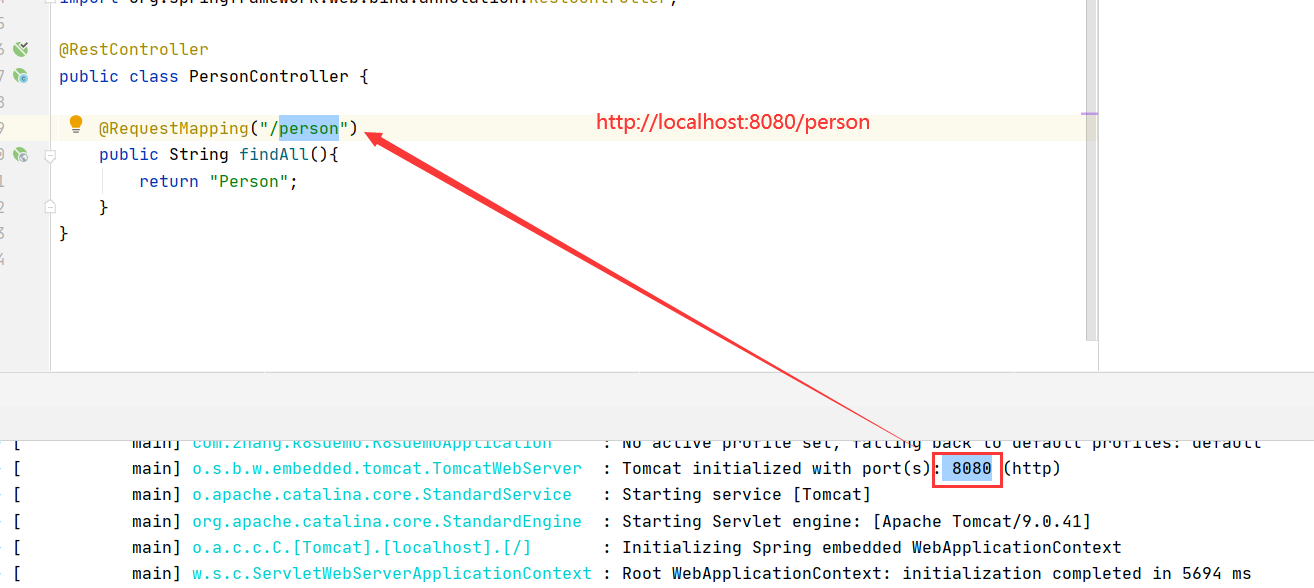

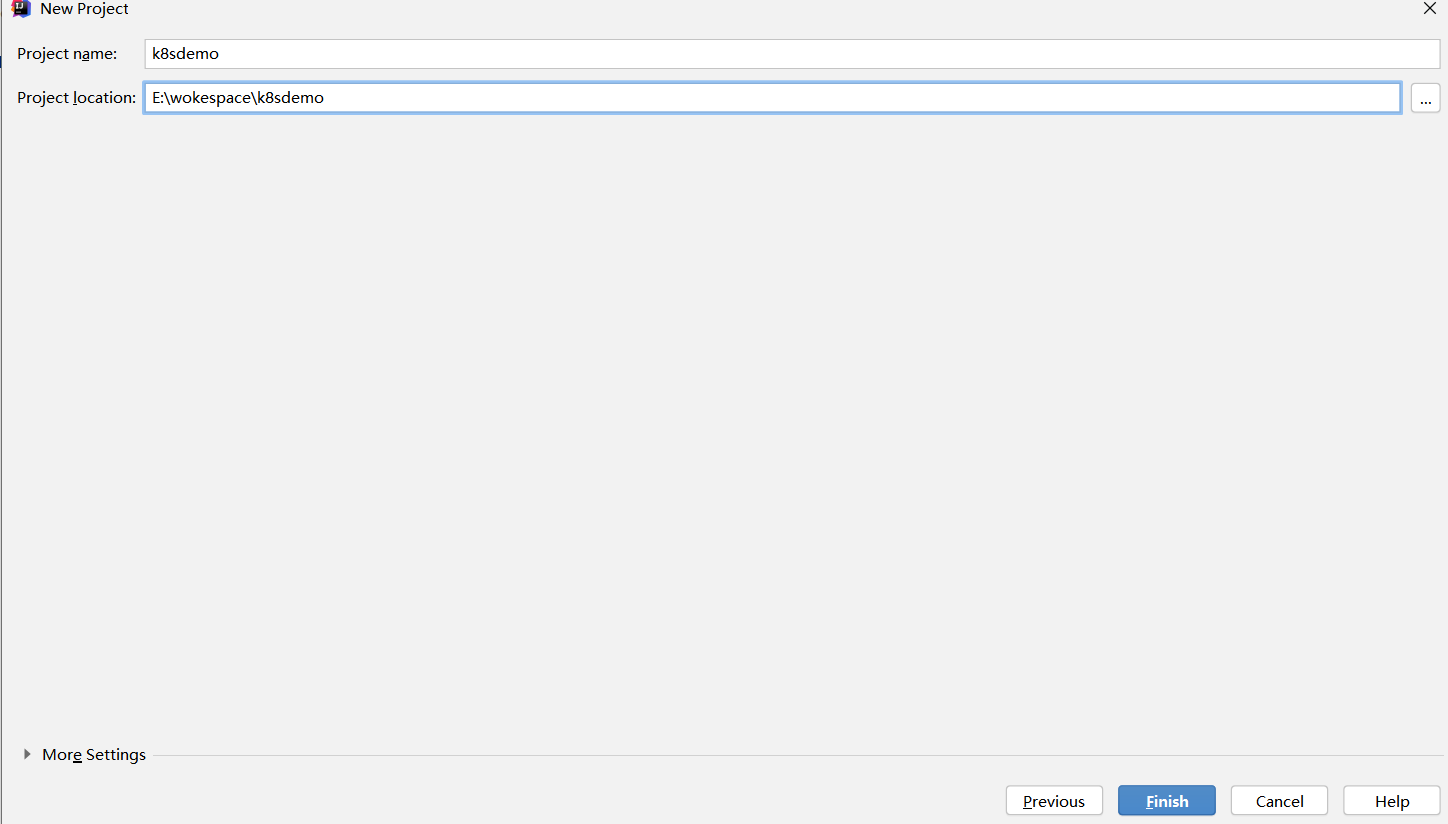

1、创建java项目

代码：

  1. package com.zhang.k8sdemo.controller;
  3. import org.springframework.web.bind.annotation.RequestMapping;
  4. import org.springframework.web.bind.annotation.RestController;
  6. @RestController
  7. public class PersonController {
  9.     @RequestMapping("/person")
  10.     public String findAll(){
  11.         return "Person";
  12.     }
  13. }

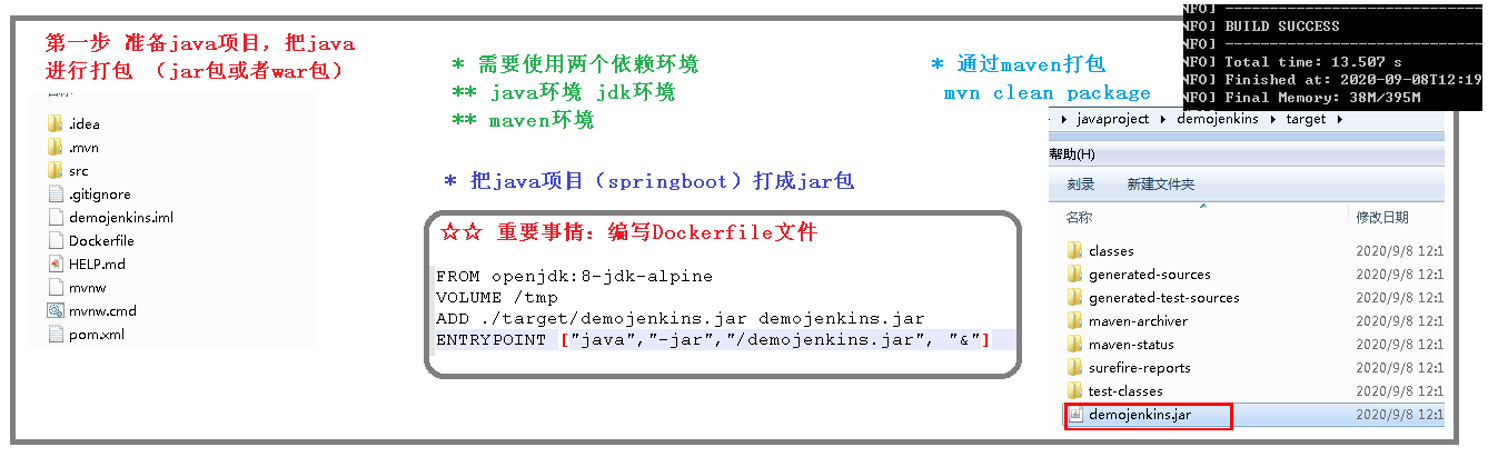

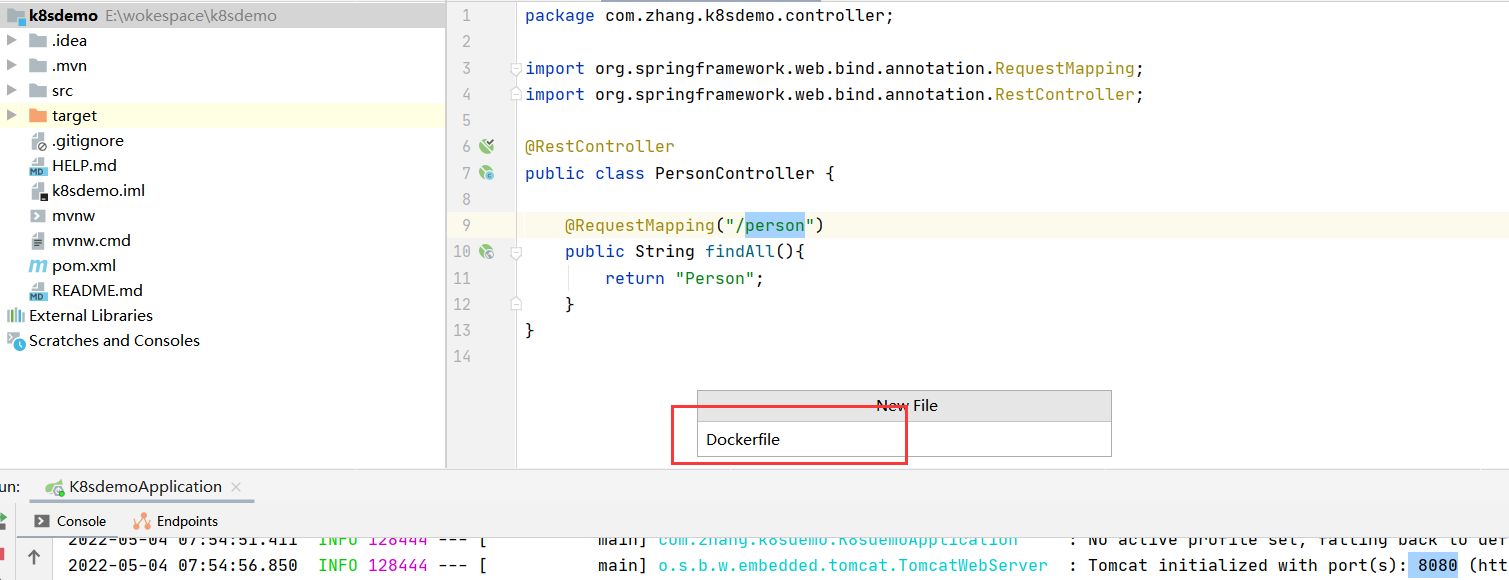

2、编写dockerfile


  1. FROM openjdk:8-jdk-alpine
  2. ADD ./target/k8sdemo-0.0.1-SNAPSHOT.jar k8sdemo-0.0.1-SNAPSHOT.jar
  3. ENTRYPOINT ["java","-jar","/k8sdemo-0.0.1-SNAPSHOT.jar", "&"]

3、安装docker

curl -sSL https://get.daocloud.io/docker | sh
验证 sudo docker run hello-world

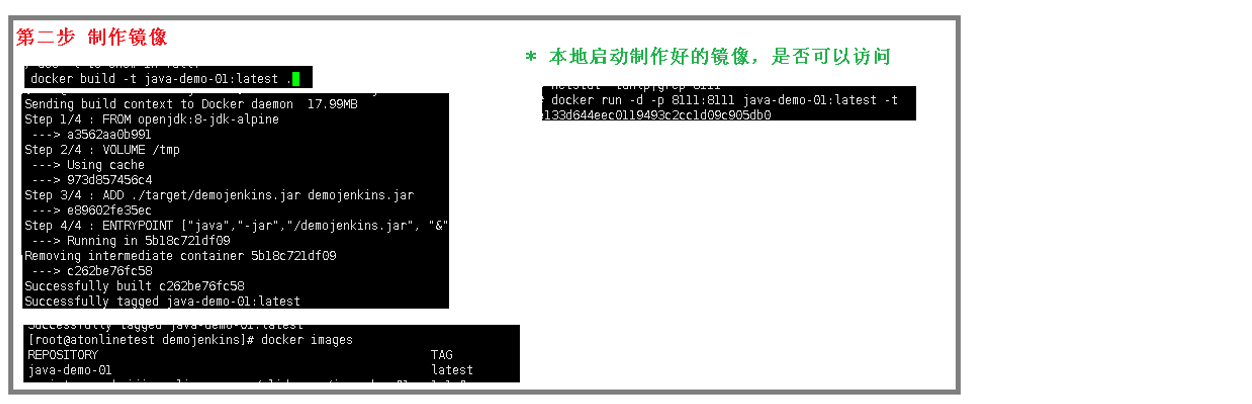

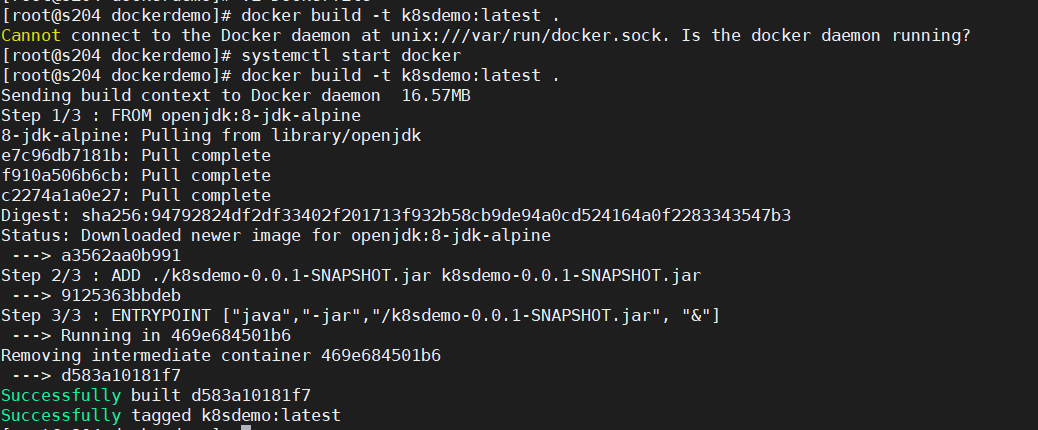

打包

docker build -t k8sdemo:latest .

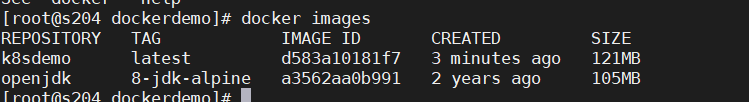

docker images


docker run -d -p 8011:8080 k8sdemo:latest

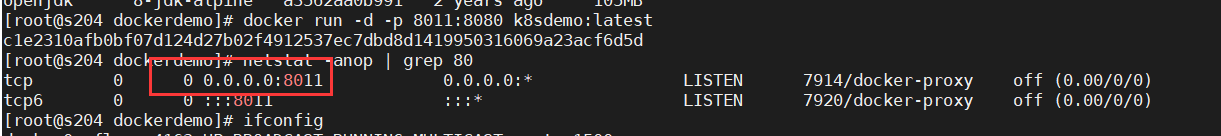

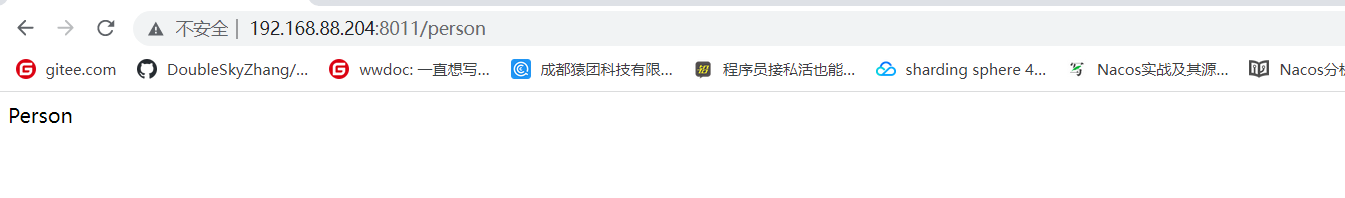

netstat -anop | grep 8011

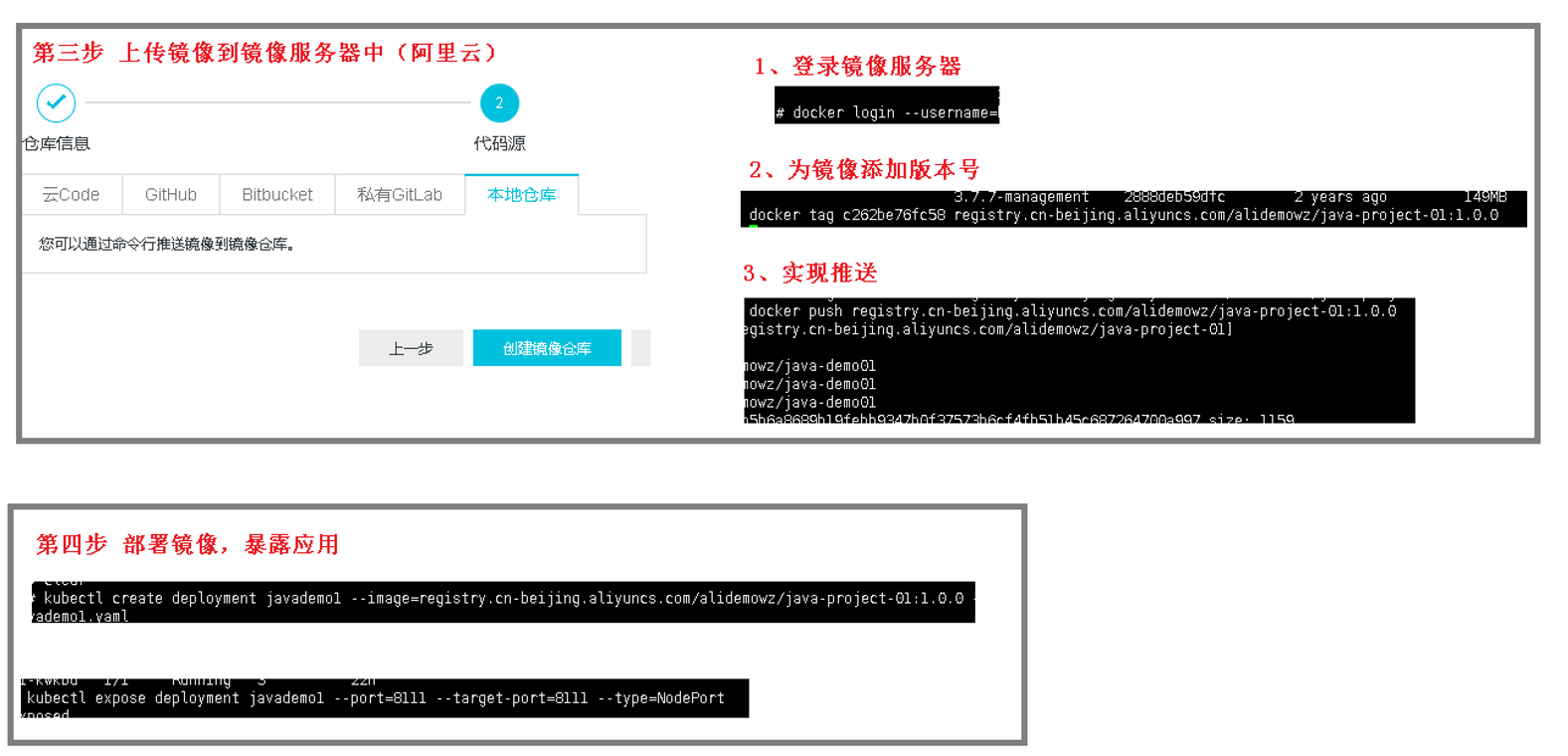

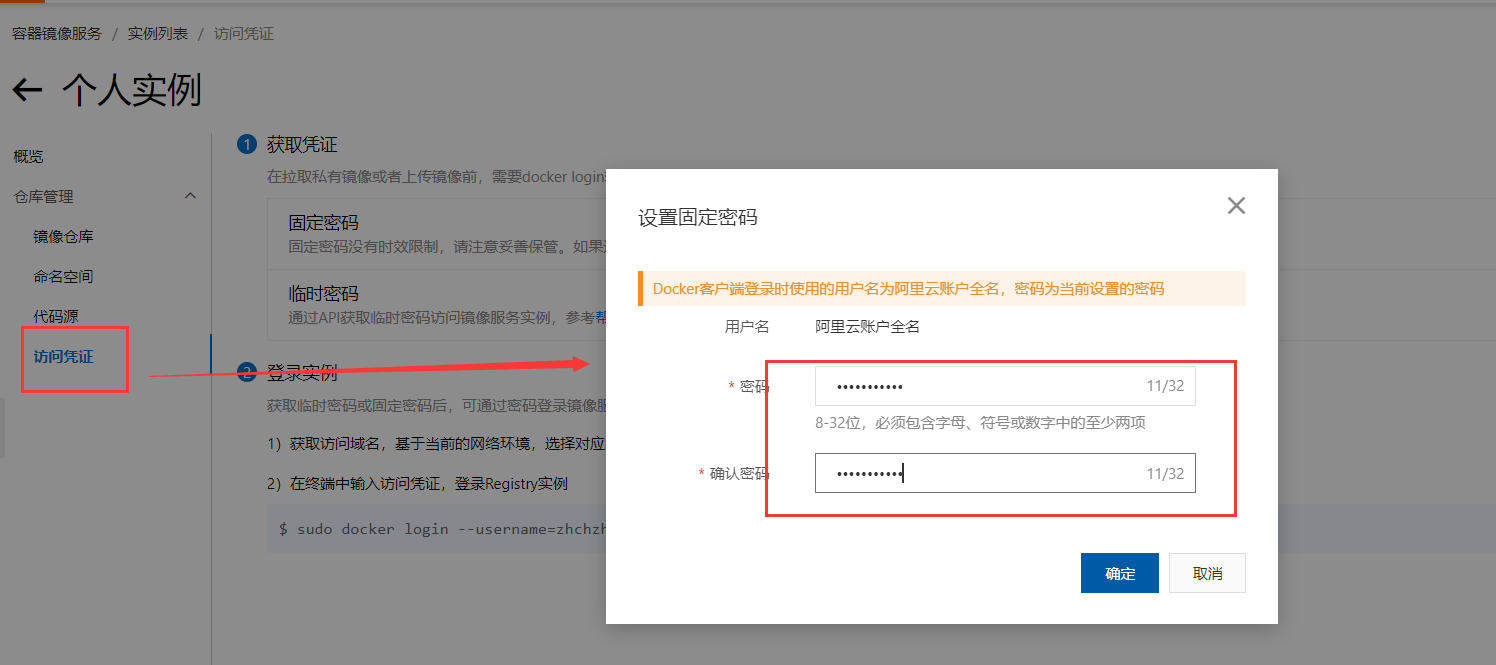

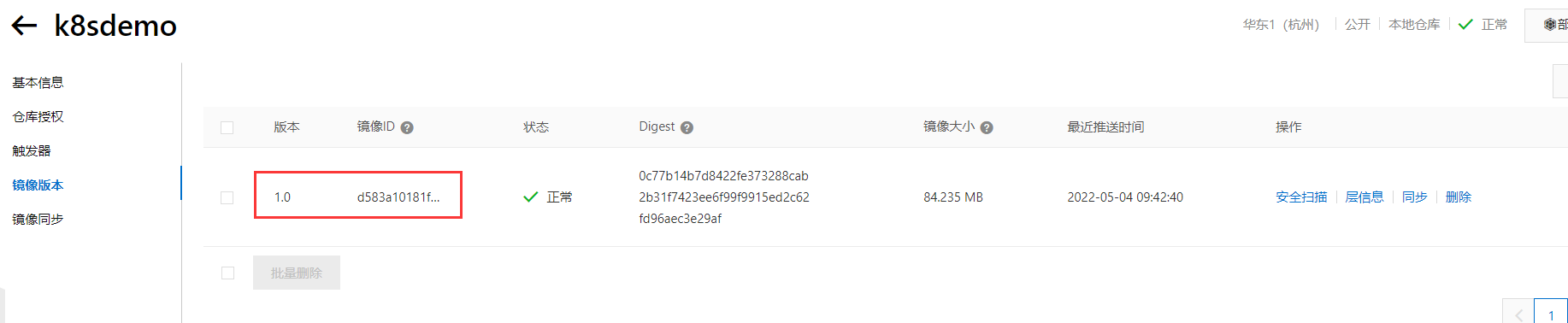

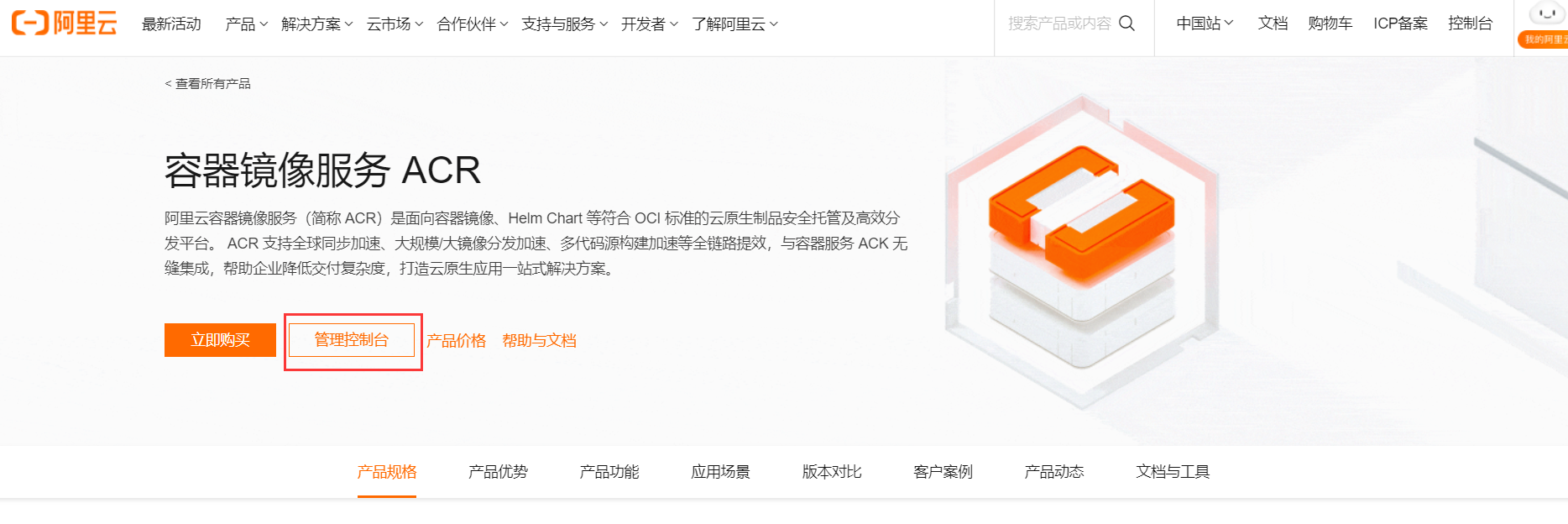

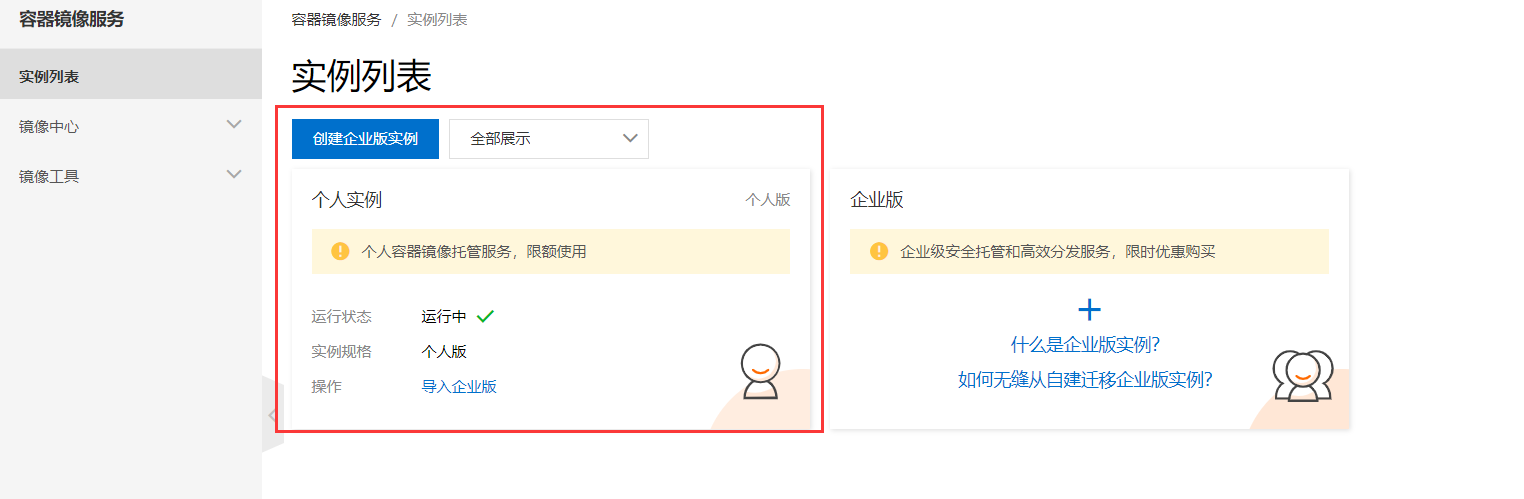

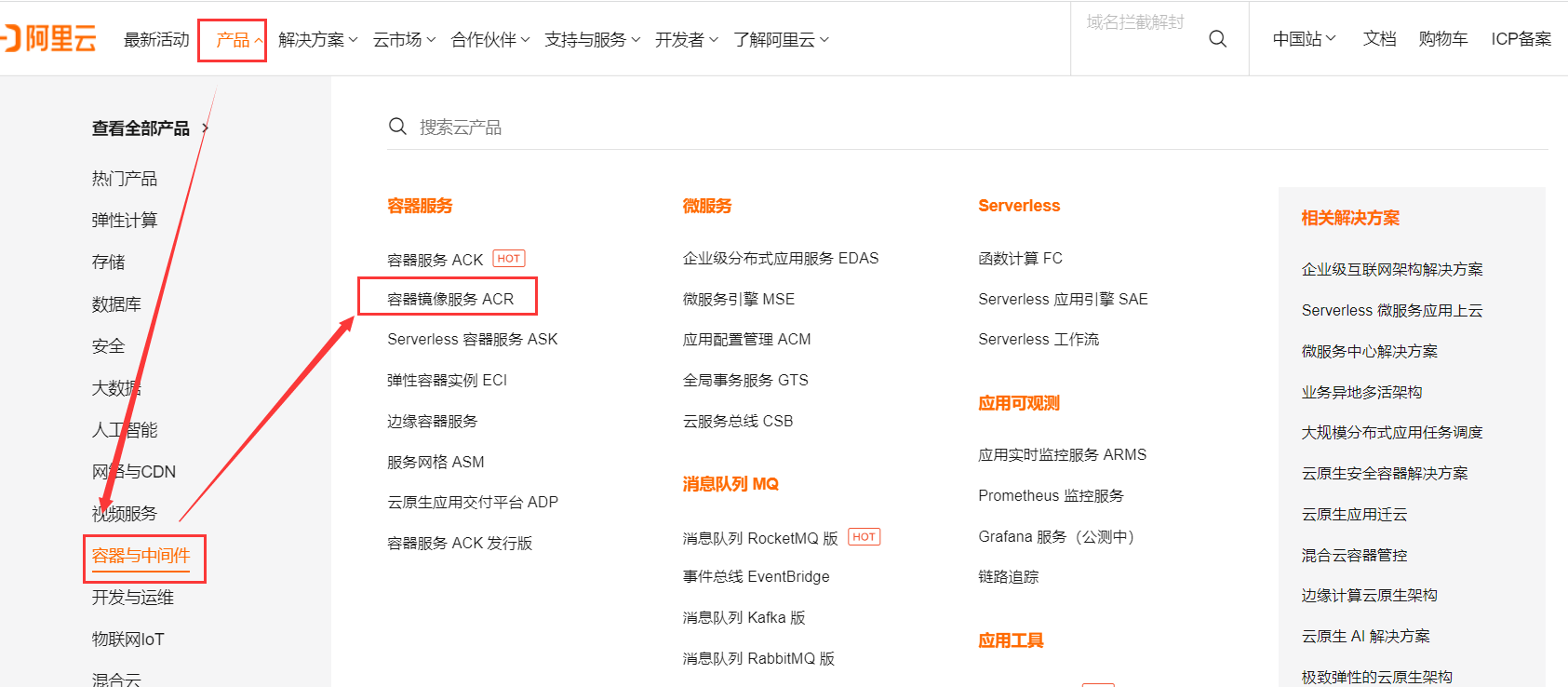

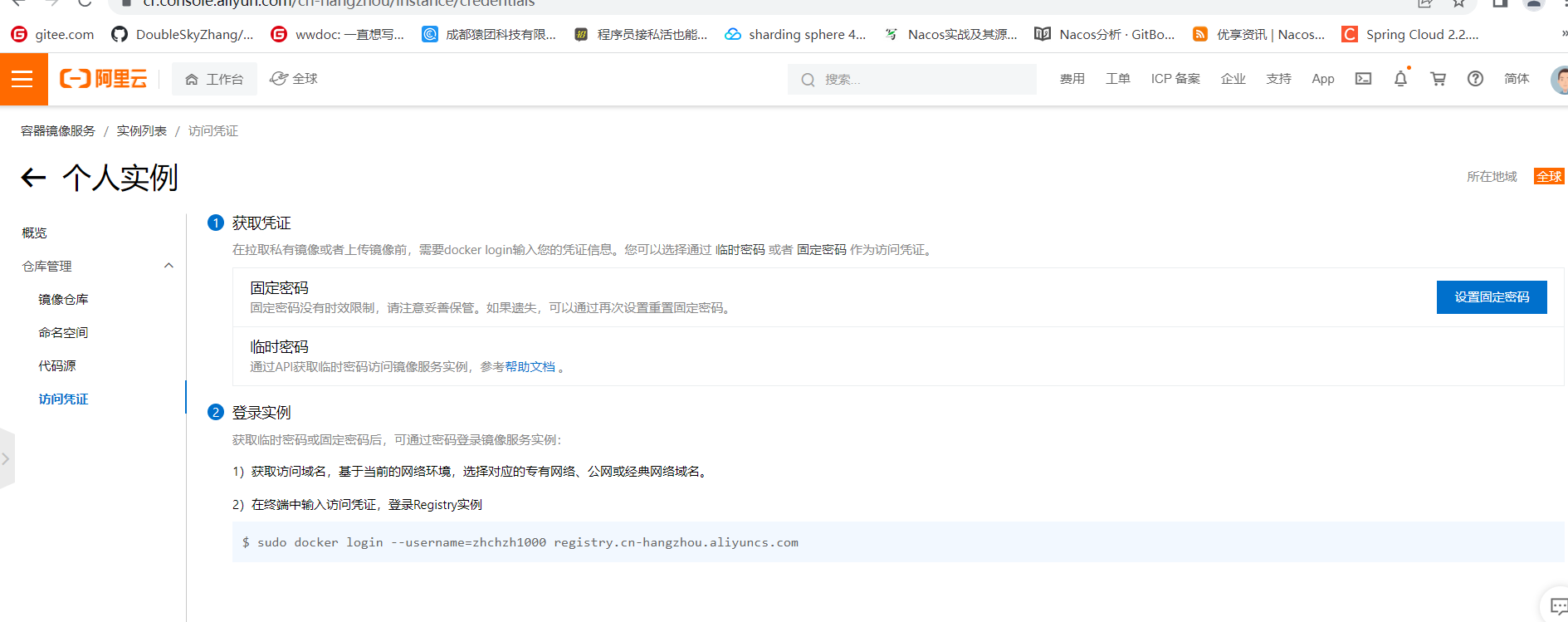

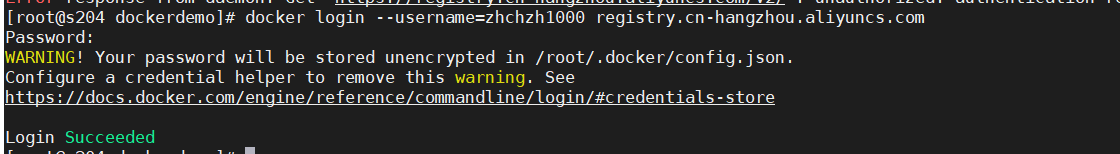

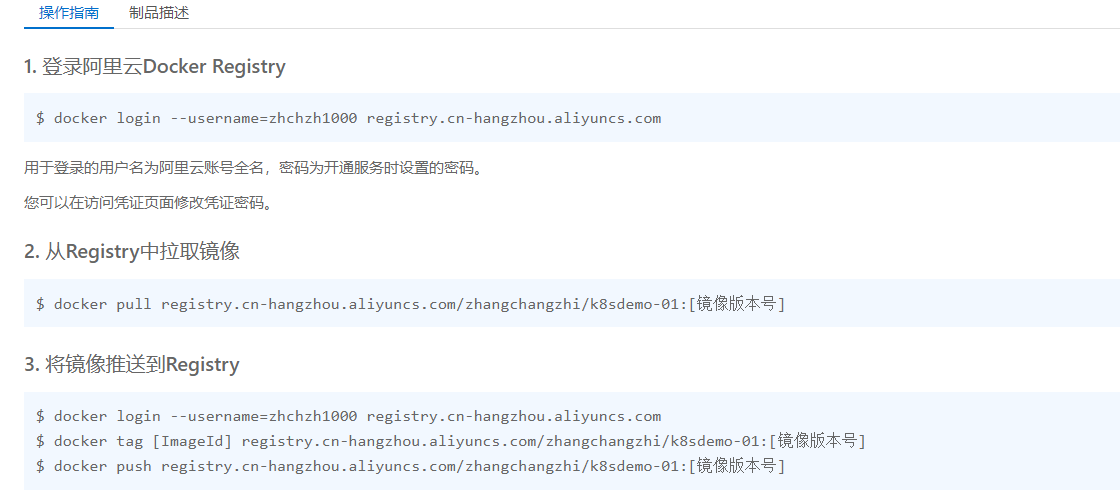

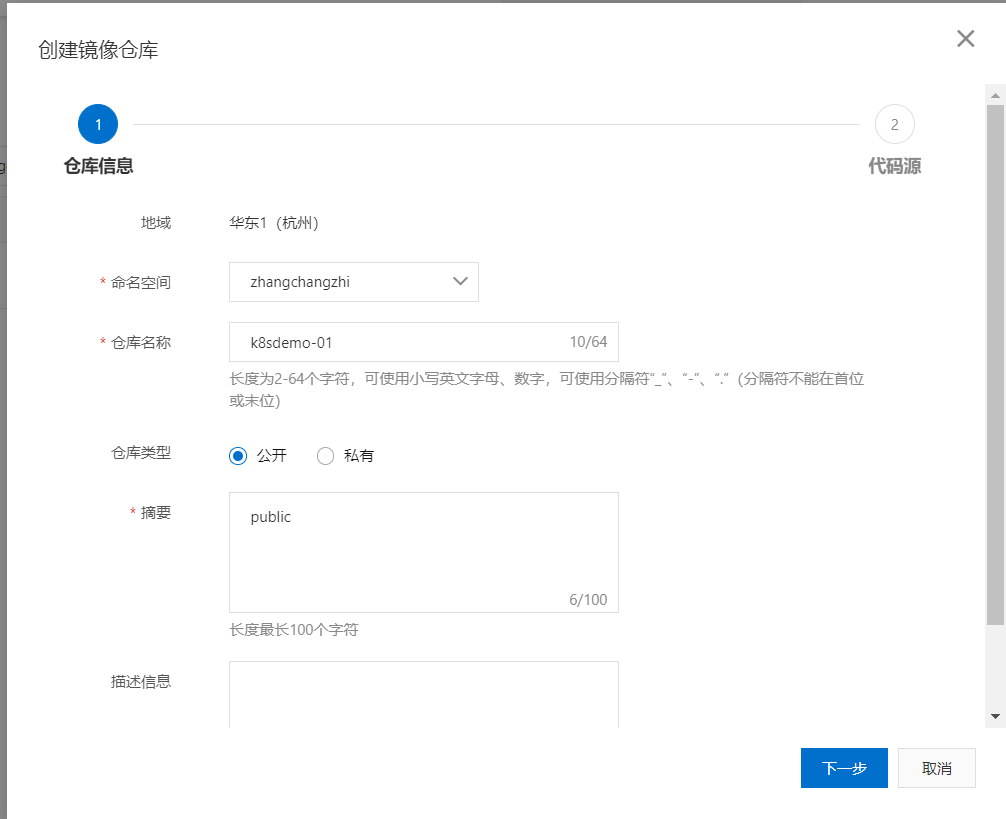

上传镜像到阿里云

https://cn.aliyun.com/

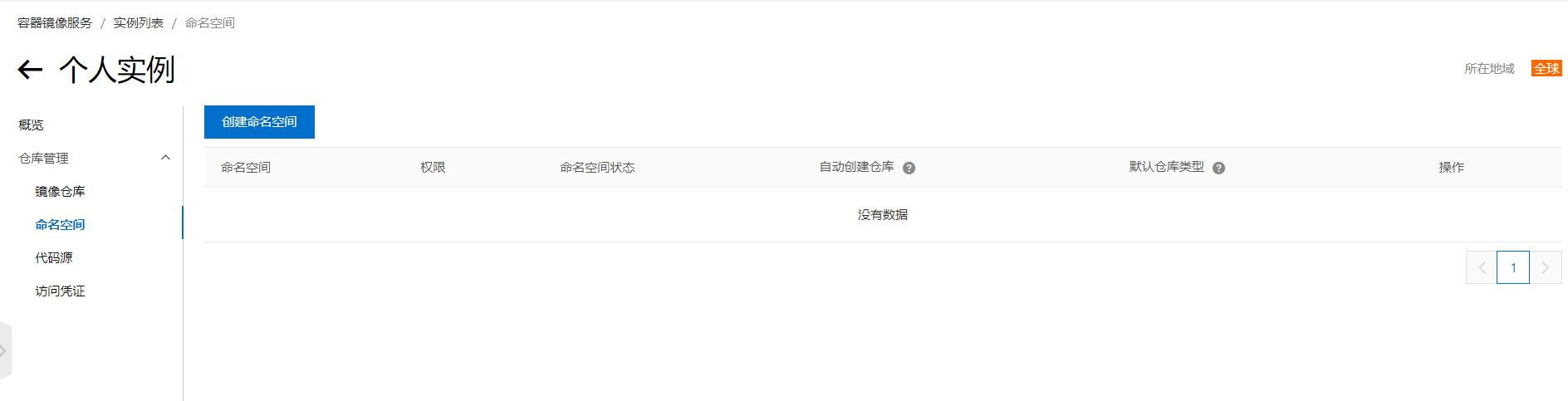

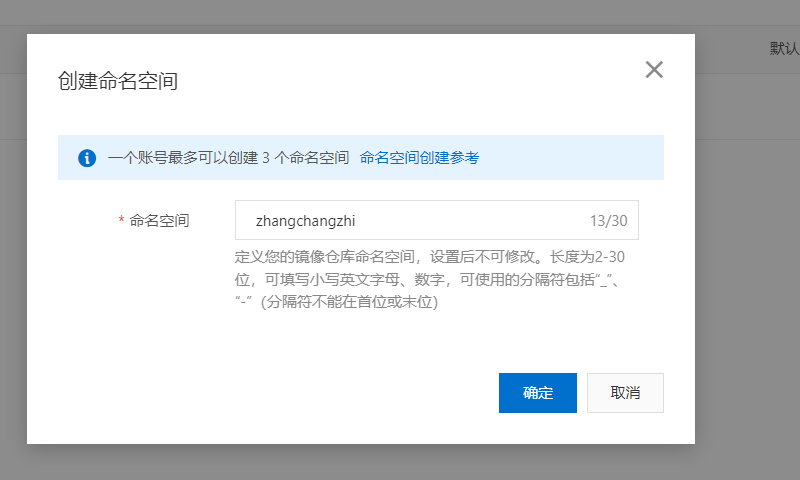

创建命名空间

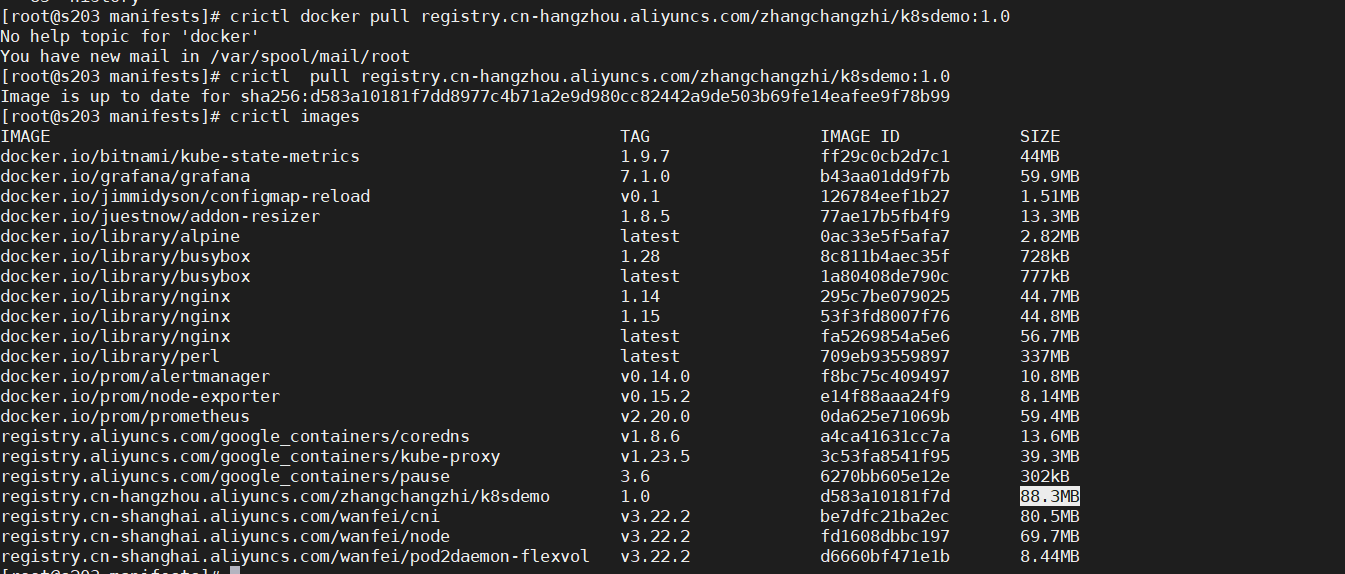

拉取镜像
crictl pull registry.cn-hangzhou.aliyuncs.com/zhangchangzhi/k8sdemo:1.0

部署

kubectl create deployment k8sdemo --image=registry.cn-hangzhou.aliyuncs.com/zhangchangzhi/k8sdemo:1.0 --dry-run -o yaml > k8sdemo.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  creationTimestamp: null
  labels:
    app: k8sdemo
  name: k8sdemo
spec:
  replicas: 1
  selector:
    matchLabels:
      app: k8sdemo
  strategy: {}
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: k8sdemo
    spec:
      containers:
      - image: registry.cn-hangzhou.aliyuncs.com/zhangchangzhi/k8sdemo:1.0
        name: k8sdemo
        resources: {}
status: {}

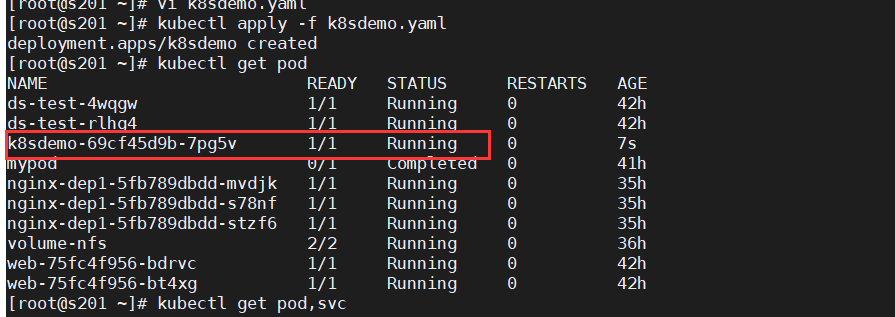

kubectl apply -f k8sdemo.yaml

kubectl get pods

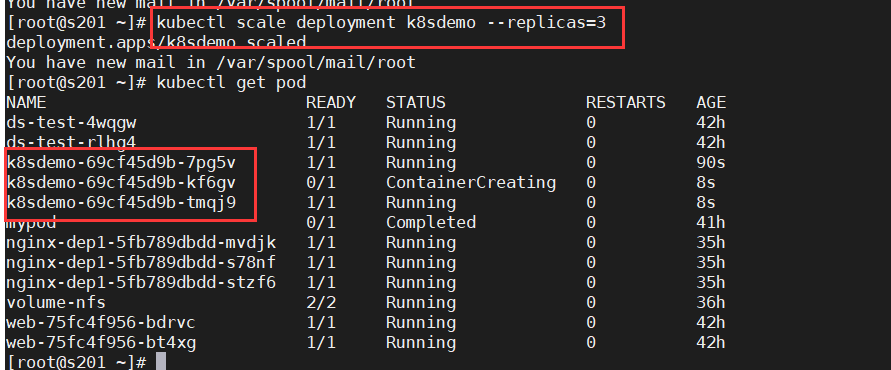

kubectl scale deployment k8sdemo --replicas=3

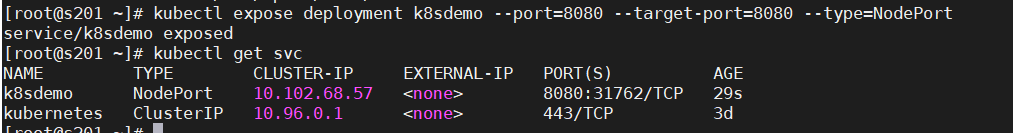

kubectl expose deployment k8sdemo --port=8080 --target-port=8080 --type=NodePort
kubectl get svc

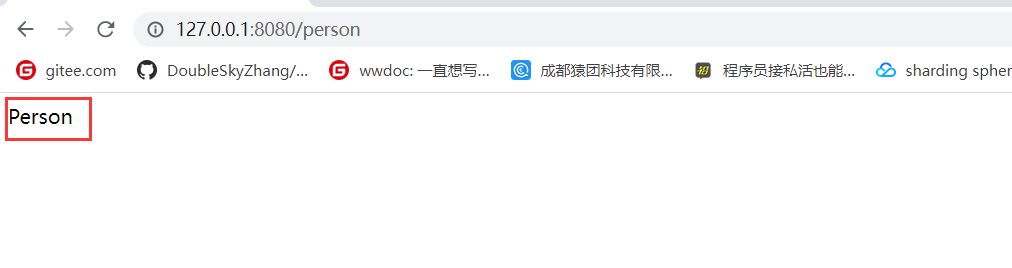

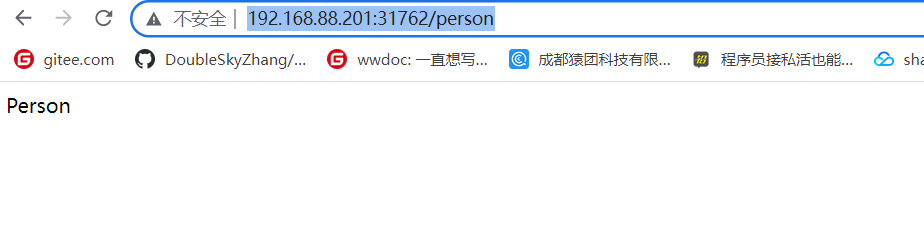

http://192.168.88.201:31762/person

Ingress

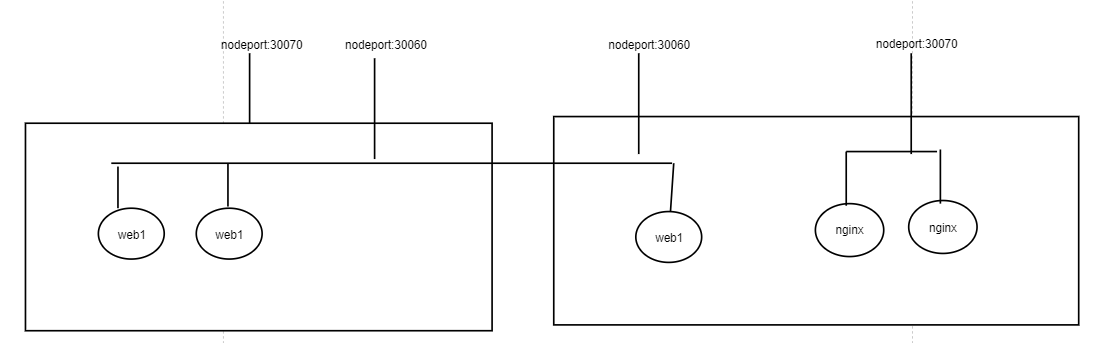

Nodeport缺陷：

  • 在每个节点都会起一个端口，在访问的时候通过任意节点+端口都可以访问，意味着每个端口只能使用一次，一个端口对应一个应用，如果k8s应用多了，管理端口比较麻烦。

解决方案：
实际访问通过域名访问，根据不同域名跳转到不同端口服务中。

介绍

Ingress：Ingress公开了从集群外部到集群内服务的HTTP和HTTPS路由的规则集合，而具体实现流量路 由则是由Ingress Controller负责。

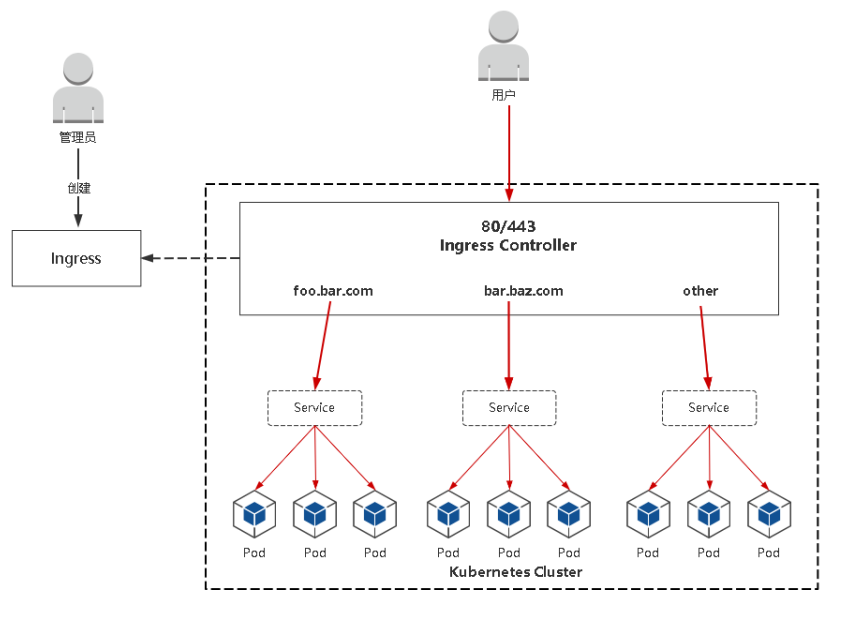

工作流程

ingress和pod关系

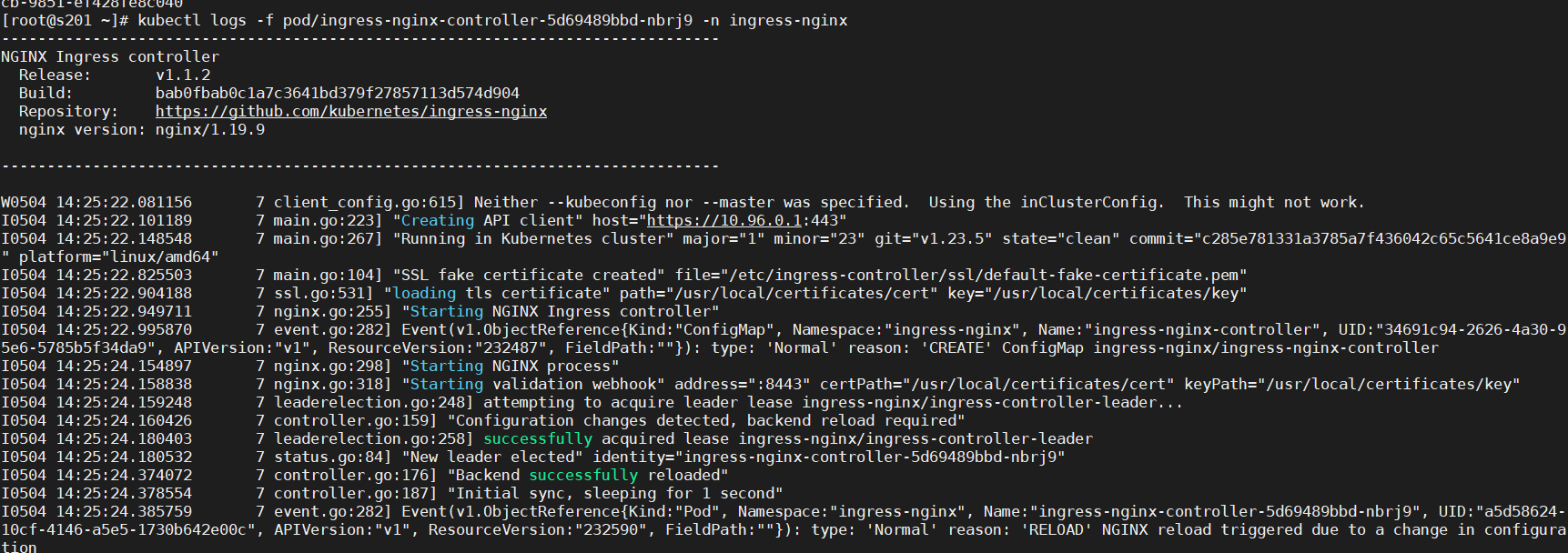

为了让 Ingress 资源工作，集群必须有一个正在运行的 Ingress 控制器。k8s官网维护了 3 个Ingress控制器
目前支持和维护 AWS、 GCE 和 Nginx Ingress 控制器 ， Ingress-nginx 作为控制器为例 讲解一下如何部署。

2、deploy.yaml 坑点
Ingress-nginx 官网 https://kubernetes.github.io/ingress-nginx/ 提到了 deploy.yaml 文件

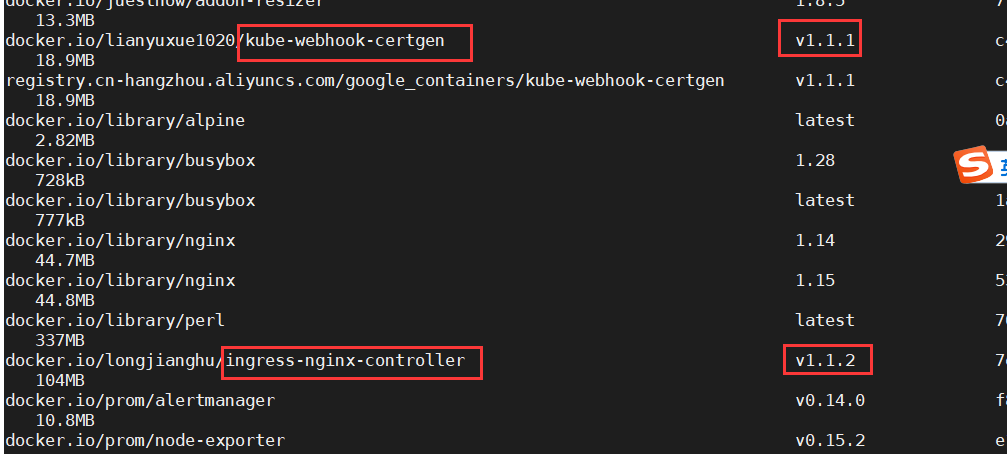

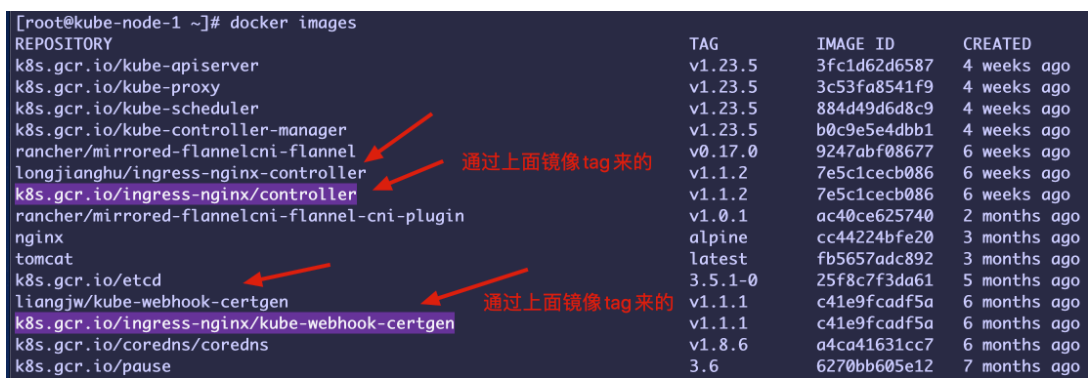

Ingress-nginx 新版本的 depoly.yaml 有些不同，需要拉取下面2个镜像
k8s.gcr.io/ingress-nginx/controller:v1.1.2
k8s.gcr.io/ingress-nginx/kube-webhook-certgen:v1.1.1

替换 docker.io/longjianghu/ingress-nginx-controller v1.1.2
crictl pull docker.io/lianyuxue1020/kube-webhook-certgen:v1.1.1
crictl pull docker.io/longjianghu/ingress-nginx-controller:v1.1.2
2、修改yaml文件内容
①新增hostNetwork: true +nodeSelector
②修改镜像地址，原文件是国外镜像，可能拉取失败
③如果是生产环境要求高可用，还可以把deployment修改为DaemonSet，去掉replica

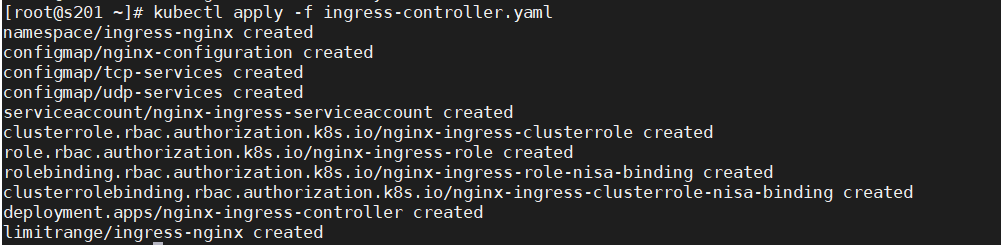

vi ingress-controller.yaml

#GENERATED FOR K8S 1.20
apiVersion: v1
kind: Namespace
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  name: ingress-nginx
---
apiVersion: v1
automountServiceAccountToken: true
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx
  namespace: ingress-nginx
---
apiVersion: v1
kind: ServiceAccount
metadata:
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-admission
  namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - namespaces
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - configmaps
      - pods
      - secrets
      - endpoints
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resourceNames:
      - ingress-controller-leader
    resources:
      - configmaps
    verbs:
      - get
      - update
  - apiGroups:
      - ""
    resources:
      - configmaps
    verbs:
      - create
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - create
      - patch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-admission
  namespace: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - secrets
    verbs:
      - get
      - create
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx
rules:
  - apiGroups:
      - ""
    resources:
      - configmaps
      - endpoints
      - nodes
      - pods
      - secrets
      - namespaces
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - services
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses
    verbs:
      - get
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - events
    verbs:
      - create
      - patch
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingresses/status
    verbs:
      - update
  - apiGroups:
      - networking.k8s.io
    resources:
      - ingressclasses
    verbs:
      - get
      - list
      - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-admission
rules:
  - apiGroups:
      - admissionregistration.k8s.io
    resources:
      - validatingwebhookconfigurations
    verbs:
      - get
      - update
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-admission
  namespace: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx
subjects:
  - kind: ServiceAccount
    name: ingress-nginx
    namespace: ingress-nginx
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
    helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-admission
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: ingress-nginx-admission
subjects:
  - kind: ServiceAccount
    name: ingress-nginx-admission
    namespace: ingress-nginx
---
apiVersion: v1
data:
  allow-snippet-annotations: "true"
kind: ConfigMap
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-controller
  namespace: ingress-nginx
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  externalTrafficPolicy: Local
  ipFamilies:
    - IPv4
  ipFamilyPolicy: SingleStack
  ports:
    - appProtocol: http
      name: http
      port: 80
      protocol: TCP
      targetPort: http
    - appProtocol: https
      name: https
      port: 443
      protocol: TCP
      targetPort: https
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: LoadBalancer
---
apiVersion: v1
kind: Service
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-controller-admission
  namespace: ingress-nginx
spec:
  ports:
    - appProtocol: https
      name: https-webhook
      port: 443
      targetPort: webhook
  selector:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/name: ingress-nginx
  type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-controller
  namespace: ingress-nginx
spec:
  minReadySeconds: 0
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      app.kubernetes.io/component: controller
      app.kubernetes.io/instance: ingress-nginx
      app.kubernetes.io/name: ingress-nginx
  template:
    metadata:
      labels:
        app.kubernetes.io/component: controller
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/name: ingress-nginx
    spec:
      hostNetwork: true #修改  ingress-nginx-controller 为 hostNetwork模式
      nodeSelector: #选择 node label 中有 app=ingress的节点进行部署
        app: ingress
      containers:
        - args:
            - /nginx-ingress-controller
            - --publish-service=$(POD_NAMESPACE)/ingress-nginx-controller
            - --election-id=ingress-controller-leader
            - --controller-class=k8s.io/ingress-nginx
            - --ingress-class=nginx
            - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
            - --validating-webhook=:8443
            - --validating-webhook-certificate=/usr/local/certificates/cert
            - --validating-webhook-key=/usr/local/certificates/key
          env:
            - name: POD_NAME
              valueFrom:
                fieldRef:
                  fieldPath: metadata.name
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
            - name: LD_PRELOAD
              value: /usr/local/lib/libmimalloc.so
          image: docker.io/longjianghu/ingress-nginx-controller:v1.1.2 #修改镜像地址
          imagePullPolicy: IfNotPresent
          lifecycle:
            preStop:
              exec:
                command:
                  - /wait-shutdown
          livenessProbe:
            failureThreshold: 5
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          name: controller
          ports:
            - containerPort: 80
              name: http
              protocol: TCP
            - containerPort: 443
              name: https
              protocol: TCP
            - containerPort: 8443
              name: webhook
              protocol: TCP
          readinessProbe:
            failureThreshold: 3
            httpGet:
              path: /healthz
              port: 10254
              scheme: HTTP
            initialDelaySeconds: 10
            periodSeconds: 10
            successThreshold: 1
            timeoutSeconds: 1
          resources:
            requests:
              cpu: 100m
              memory: 90Mi
          securityContext:
            allowPrivilegeEscalation: true
            capabilities:
              add:
                - NET_BIND_SERVICE
              drop:
                - ALL
            runAsUser: 101
          volumeMounts:
            - mountPath: /usr/local/certificates/
              name: webhook-cert
              readOnly: true
      dnsPolicy: ClusterFirst
      nodeSelector:
        kubernetes.io/os: linux
      serviceAccountName: ingress-nginx
      terminationGracePeriodSeconds: 300
      volumes:
        - name: webhook-cert
          secret:
            secretName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
  annotations:
    helm.sh/hook: pre-install,pre-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-admission-create
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-admission-create
    spec:
      containers:
        - args:
            - create
            - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
            - --namespace=$(POD_NAMESPACE)
            - --secret-name=ingress-nginx-admission
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          image: docker.io/lianyuxue1020/kube-webhook-certgen:v1.1.1 #修改镜像地址
          imagePullPolicy: IfNotPresent
          name: create
          securityContext:
            allowPrivilegeEscalation: false
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      securityContext:
        fsGroup: 2000
        runAsNonRoot: true
        runAsUser: 2000
      serviceAccountName: ingress-nginx-admission
---
apiVersion: batch/v1
kind: Job
metadata:
  annotations:
    helm.sh/hook: post-install,post-upgrade
    helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-admission-patch
  namespace: ingress-nginx
spec:
  template:
    metadata:
      labels:
        app.kubernetes.io/component: admission-webhook
        app.kubernetes.io/instance: ingress-nginx
        app.kubernetes.io/managed-by: Helm
        app.kubernetes.io/name: ingress-nginx
        app.kubernetes.io/part-of: ingress-nginx
        app.kubernetes.io/version: 1.1.2
        helm.sh/chart: ingress-nginx-4.0.18
      name: ingress-nginx-admission-patch
    spec:
      containers:
        - args:
            - patch
            - --webhook-name=ingress-nginx-admission
            - --namespace=$(POD_NAMESPACE)
            - --patch-mutating=false
            - --secret-name=ingress-nginx-admission
            - --patch-failure-policy=Fail
          env:
            - name: POD_NAMESPACE
              valueFrom:
                fieldRef:
                  fieldPath: metadata.namespace
          image: docker.io/lianyuxue1020/kube-webhook-certgen:v1.1.1 #修改镜像地址
          imagePullPolicy: IfNotPresent
          name: patch
          securityContext:
            allowPrivilegeEscalation: false
      nodeSelector:
        kubernetes.io/os: linux
      restartPolicy: OnFailure
      securityContext:
        fsGroup: 2000
        runAsNonRoot: true
        runAsUser: 2000
      serviceAccountName: ingress-nginx-admission
---
apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: nginx
spec:
  controller: k8s.io/ingress-nginx
---
apiVersion: admissionregistration.k8s.io/v1
kind: ValidatingWebhookConfiguration
metadata:
  labels:
    app.kubernetes.io/component: admission-webhook
    app.kubernetes.io/instance: ingress-nginx
    app.kubernetes.io/managed-by: Helm
    app.kubernetes.io/name: ingress-nginx
    app.kubernetes.io/part-of: ingress-nginx
    app.kubernetes.io/version: 1.1.2
    helm.sh/chart: ingress-nginx-4.0.18
  name: ingress-nginx-admission
webhooks:
  - admissionReviewVersions:
      - v1
    clientConfig:
      service:
        name: ingress-nginx-controller-admission
        namespace: ingress-nginx
        path: /networking/v1/ingresses
    failurePolicy: Fail
    matchPolicy: Equivalent
    name: validate.nginx.ingress.kubernetes.io
    rules:
      - apiGroups:
          - networking.k8s.io
        apiVersions:
          - v1
        operations:
          - CREATE
          - UPDATE
        resources:
          - ingresses
    sideEffects: None

3.部署ingress-controller
1)准备工作
给 node2 节点打了app=ingress标签，因为上面的ingress-nginx-controller 使用的是 hostNetwork 模式（只会放pod真实pod 的 端口） + nodeSelector

kubectl label node s202 app=ingress
kubectl get nodes --show-labels | grep app

2）部署
kubectl apply -f ingress-controller.yaml

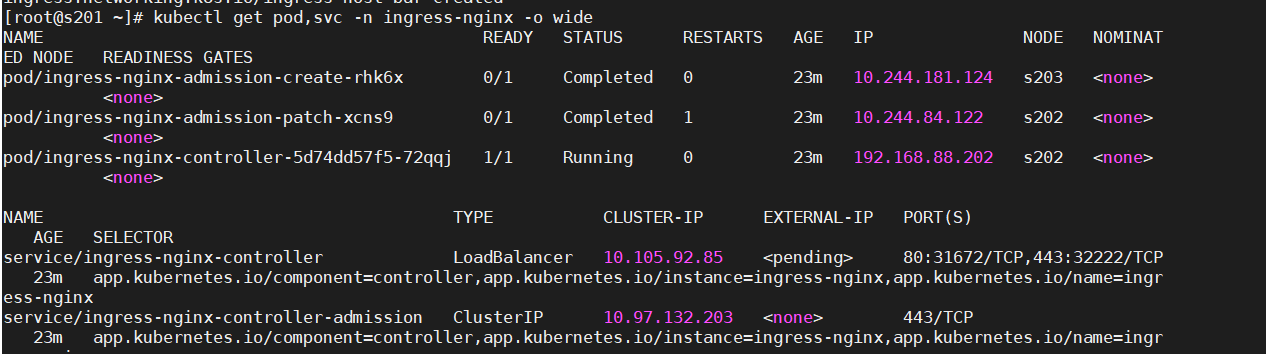

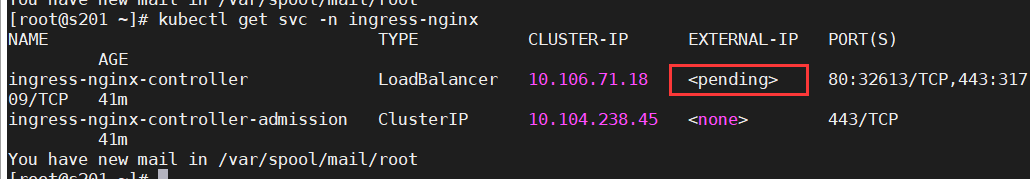

3.验证-等待运行
kubectl get pod,svc（all） -n ingress-nginx -o wide
netstat -anop | grep 80
4、查看状态

kubectl logs -f pod/ingress-nginx-controller-5d69489bbd-nbrj9 -n ingress-nginx # 查看 ingress-nginx-controller 的 日志情况

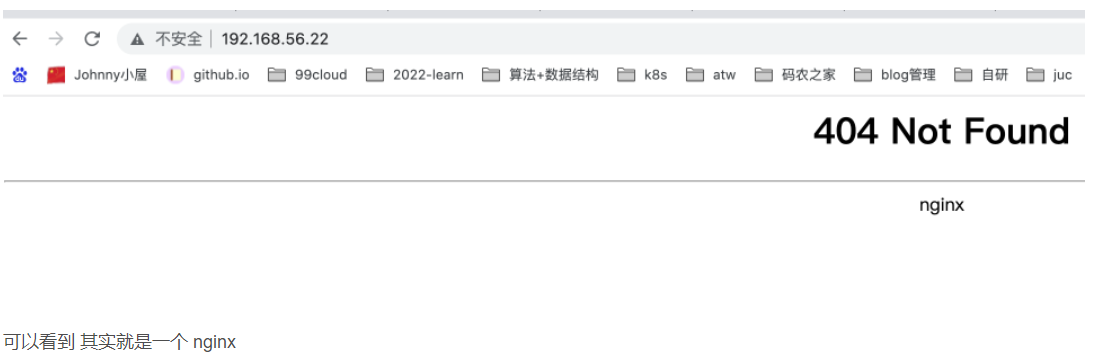

5、 测试访问
直接访问 s202的 ip 即可，因为 ingress-nginx-controller 默认是 监听 80端口，由于上面的 nodeSelector: #选择 node label 中有 app=ingress的节点进行部署 ,而 s202 是被打了标签的节点node.

部署一个 tomcat 测试 Ingress-nginx

通过部署一个tomcat ，测试Ingress-nginx的代理 是否生效
1、编写 deploy-tomcat.yaml
主要编写
Deployment 部署tomcat:8.0-alpine，
Service 暴露 tomcat pod
一个 Ingress 资源它规定 访问 tomcat.demo.com 这个域名的 所有请求 / 都转发到 tomcat-demo Service 上
IngressClass 新版本提供的资源 ，用于在定义 Ingress资源的时候 指定，在集群中有多个 Ingress controller 的时候很有用处

apiVersion: apps/v1
kind: Deployment
metadata:
  name: tomcat-demo
spec:
  selector:
    matchLabels:
      app: tomcat-demo
  replicas: 1
  template:
    metadata:
      labels:
        app: tomcat-demo
    spec:
      containers:
      - name: tomcat-demo
        image: tomcat:8.0-alpine
        ports:
        - containerPort: 8080
---

apiVersion: v1
kind: Service
metadata:
  name: tomcat-demo
spec:
  selector:
    app: tomcat-demo #选择 tomcat-demo pod
  ports:
  - port: 80 #对外暴露 80 端口
    protocol: TCP
    targetPort: 8080 # tomcat 端口


---

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: tomcat-demo
spec:
  defaultBackend:
    service:
      name: default-http-backend #！！！ 指定 默认的backend服务
      port:
          number: 80
  ingressClassName: nginx #！！！重点 需要指定 哪个 IngressClass 可以看上面的 deploy.yaml 最后定义的
  rules:
  - host: tomcat.demo.com #所有的  tomcat.demo.com请求都转发到  Service tomcat-demo
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: tomcat-demo
            port:
              number: 80

---
#定义一个 default-http-backend 当没有被Ingress规定的请求 负载给 它
apiVersion: apps/v1
kind: Deployment
metadata:
  name: default-http-backend
  labels:
    app: default-http-backend
spec:
  replicas: 1
  selector:
    matchLabels:
      app: default-http-backend
  template:
    metadata:
      labels:
        app: default-http-backend
    spec:
      terminationGracePeriodSeconds: 60
      containers:
      - name: default-http-backend
        # Any image is permissible as long as:
        # 1. It serves a 404 page at /
        # 2. It serves 200 on a /healthz endpoint
        image: registry.cn-hangzhou.aliyuncs.com/google_containers/defaultbackend:1.4
        livenessProbe:
          httpGet:
            path: /healthz
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 30
          timeoutSeconds: 5
        ports:
        - containerPort: 8080
        resources:
          limits:
            cpu: 10m
            memory: 20Mi
          requests:
            cpu: 10m
            memory: 20Mi
---

apiVersion: v1
kind: Service
metadata:
  name: default-http-backend
  labels:
    app: default-http-backend
spec:
  ports:
  - port: 80
    targetPort: 8080
  selector:
    app: default-http-backend

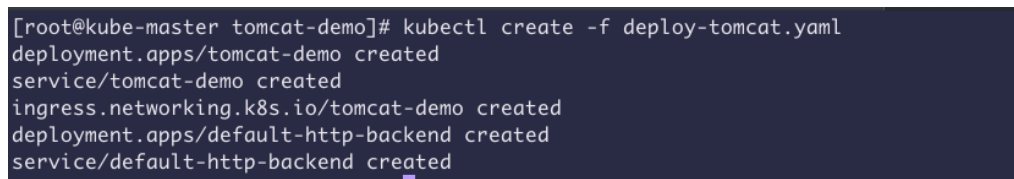

2、部署 tomcat + ingress + default-http-backend

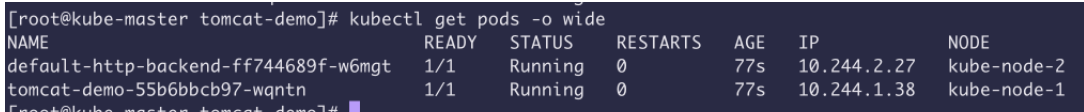

查看 部署情况 可以看到都是Running 了
3、测试 通过Ingress-nginx 能否访问到tomcat
由于我们 ingress 资源配置的 域名 是 tomcat.demo.com ，所以我需要把它添加到 宿主机的hosts 文件中，
echo “example.k8sdemo.com” >> /etc/hosts

  • window配置 C:\Windows\System32\drivers\etc

4、访问
那么按照预期，当我访问 tomcat.demo.com 的时候其实就是访问 192.168.88.202 上的 ingress-nginx-controller 这个nginx，那么根据 ingress 的 资源的设定 它会把请求 转发到 Service tomcat-demo 上，从而访问到 tomcat 界面
当我访问 api.demo.com 的时候 由于没有对这个域名进行处理 那么会默认把请求转发到 default-http-backend 上

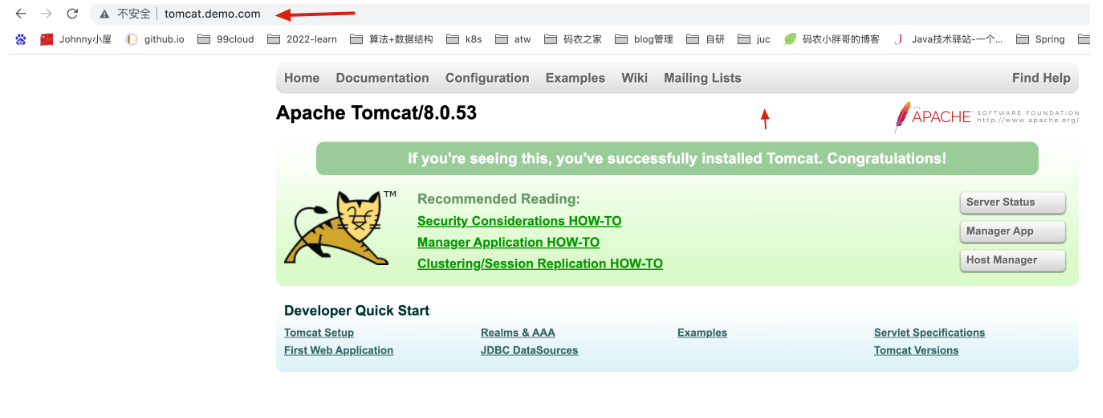

访问 tomcat.demo.com
访问 api.demo.com

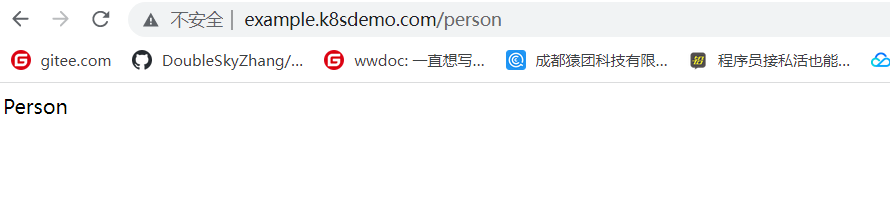

部署案例ingress
kubectl apply -f ingress_http_demo.yaml

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-host-bar
spec:
  ingressClassName: nginx
  rules:
  - host: "example.k8sdemo.com"
    http:
      paths:
      - pathType: Prefix
        path: "/"
        backend:
          service:
            name: k8sdemo
            port:
              number: 8080

networking.k8s.io/v1
注释:name可改可不改；namespace保持与要访问的应用在同一个namespace下；host填写你自定义的域名；serviceName是你要访问的应用服务名；servicePort则是服务的内部端口

参考：https://blog.csdn.net/qq_34285557/article/details/124254787
