prometheus介绍

Prometheus 是一款基于时序数据库的开源监控告警系统，非常适合Kubernetes集群的监控。Prometheus的基本原理是通过HTTP协议周期性抓取被监控组件的状态，任意组件只要提供对应的HTTP接口就可以接入监控。不需要任何SDK或者其他的集成过程。这样做非常适合做虚拟化环境监控系统，比如VM、Docker、Kubernetes等。输出被监控组件信息的HTTP接口被叫做exporter 。目前互联网公司常用的组件大部分都有exporter可以直接使用，比如Varnish、Haproxy、Nginx、MySQL、Linux系统信息(包括磁盘、内存、CPU、网络等等)。Promethus有以下特点：

  • 支持多维数据模型：由度量名和键值对组成的时间序列数据
  • 内置时间序列数据库TSDB
  • 支持PromQL查询语言，可以完成非常复杂的查询和分析，对图表展示和告警非常有意义
  • 支持HTTP的Pull方式采集时间序列数据
  • 支持PushGateway采集瞬时任务的数据
  • 支持服务发现和静态配置两种方式发现目标
  • 支持接入Grafana

Prometheus架构

集群监控 - 图4

Prometheus Server

主要负责数据采集和存储，提供PromQL查询语言的支持。包含了三个组件：

  • Retrieval: 获取监控数据
  • TSDB: 时间序列数据库(Time Series Database)，我们可以简单的理解为一个优化后用来处理时间序列数据的软件，并且数据中的数组是由时间进行索引的。具备以下特点：
    • 大部分时间都是顺序写入操作，很少涉及修改数据
    • 删除操作都是删除一段时间的数据，而不涉及到删除无规律数据
    • 读操作一般都是升序或者降序
  • HTTP Server: 为告警和出图提供查询接口

指标采集

  • Exporters: Prometheus的一类数据采集组件的总称。它负责从目标处搜集数据，并将其转化为Prometheus支持的格式。与传统的数据采集组件不同的是，它并不向中央服务器发送数据，而是等待中央服务器主动前来抓取
  • Pushgateway: 支持临时性Job主动推送指标的中间网关

服务发现

  • Kubernetes_sd: 支持从Kubernetes中自动发现服务和采集信息。而Zabbix监控项原型就不适合Kubernets，因为随着Pod的重启或者升级，Pod的名称是会随机变化的。
  • file_sd: 通过配置文件来实现服务的自动发现

告警管理

通过相关的告警配置，对触发阈值的告警通过页面展示、短信和邮件通知的方式告知运维人员。

图形化展示

通过ProQL语句查询指标信息，并在页面展示。虽然Prometheus自带UI界面，但是大部分都是使用Grafana出图。另外第三方也可以通过 API 接口来获取监控指标。

常用的几个Exporter

  1. Kube-state-metrics: 收集Kubernetes对象的基本信息，但是不涉及Pod中资源占用信息
  2. Node-exporter: 收集主机的基本信息，如CPU、内存、磁盘等
  3. Cadvisor: 容器顾问，用于采集Docker中运行的容器信息，如CPU、内存等
  4. Blackbox-exporter: 服务可用性探测，支持HTTP、HTTPS、TCP、ICMP等方式探测目标地址服务可用性
  5. 更多exporter参考官方：https://prometheus.io/docs/instrumenting/exporters/

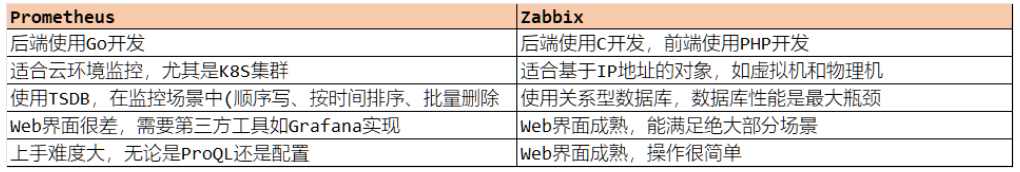

与zabbix相比


组件信息

名称 版本
kube-state-metrics v1.5.0
node-exporter v0.15.0
cadvisor v0.28.3
blackbox-exporte v0.15.1
prometheus 2.14.0
grafana 5.4.2 7.3.4
alertmanager v0.14.0

1. 镜像准备并上传至harbor

在hdss7-200主机上操作

docker pull quay.mirrors.ustc.edu.cn/coreos/kube-state-metrics:v1.5.0
docker pull prom/node-exporter:v0.15.0
docker pull google/cadvisor:v0.28.3
docker pull prom/blackbox-exporter:v0.15.1
docker pull prom/prometheus:v2.14.0
docker pull grafana/grafana:v5.4.2
docker pull docker.io/prom/alertmanager:v0.14.0

-------------------------------
docker tag quay.mirrors.ustc.edu.cn/coreos/kube-state-metrics:v1.5.0 harbor.odl.com/public/kube-state-metrics:v1.5.0
docker tag docker.io/prom/node-exporter:v0.15.0 harbor.odl.com/public/node-exporter:v0.15.0
docker tag docker.io/google/cadvisor:v0.28.3 harbor.odl.com/public/cadvisor:v0.28.3
docker tag docker.io/prom/blackbox-exporter:v0.15.1 harbor.odl.com/public/blackbox-exporter:v0.15.1
docker tag docker.io/prom/prometheus:v2.14.0 harbor.odl.com/public/prometheus:v2.14.0
docker tag docker.io/grafana/grafana:v5.4.2 harbor.odl.com/public/grafana:5.4.2
docker tag docker.io/prom/alertmanager:v0.14.0 harbor.odl.com/public/alertmanager:v0.14.0

----------------------------------

docker push harbor.odl.com/public/kube-state-metrics:v1.5.0
docker push harbor.odl.com/public/node-exporter:v0.15.0
docker push harbor.odl.com/public/cadvisor:v0.28.3
docker push harbor.odl.com/public/blackbox-exporter:v0.15.1
docker push harbor.odl.com/public/prometheus:v2.14.0
docker push harbor.odl.com/public/grafana:v5.4.2
docker push harbor.odl.com/public/alertmanager:v0.14.0


----------------------

创建服务目录

mkdir -p /data/k8s-yaml/devops/prometheus/{kube-state-metrics,blackbox-exporter,cadvisor,prometheus-server,node-exporter,prometheus-server,alertmanager}

[root@hdss7-200 ~]# ll /data/k8s-yaml/devops/prometheus/
总用量 0
drwxr-xr-x 2 root root 6 12月 11 16:59 alertmanager
drwxr-xr-x 2 root root 6 12月 11 16:59 blackbox-exporter
drwxr-xr-x 2 root root 6 12月 11 16:59 cadvisor
drwxr-xr-x 2 root root 6 12月 11 16:59 kube-state-metrics
drwxr-xr-x 2 root root 6 12月 11 16:59 node-exporter
drwxr-xr-x 2 root root 6 12月 11 16:59 prometheus-server

2. 交付Exporters

2.1 kube-state-metrics

2.1.1. 准备资源配置清单

2.1.1.1. rbac.yaml

vim /data/k8s-yaml/devops/prometheus/kube-state-metrics/rbac.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: kube-state-metrics
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: kube-state-metrics
rules:
- apiGroups:
  - ""
  resources:
  - configmaps
  - secrets
  - nodes
  - pods
  - services
  - resourcequotas
  - replicationcontrollers
  - limitranges
  - persistentvolumeclaims
  - persistentvolumes
  - namespaces
  - endpoints
  verbs:
  - list
  - watch
- apiGroups:
  - policy
  resources:
  - poddisruptionbudgets
  verbs:
  - list
  - watch
- apiGroups:
  - extensions
  resources:
  - daemonsets
  - deployments
  - replicasets
  verbs:
  - list
  - watch
- apiGroups:
  - apps
  resources:
  - statefulsets
  verbs:
  - list
  - watch
- apiGroups:
  - batch
  resources:
  - cronjobs
  - jobs
  verbs:
  - list
  - watch
- apiGroups:
  - autoscaling
  resources:
  - horizontalpodautoscalers
  verbs:
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: kube-state-metrics
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kube-state-metrics
subjects:
- kind: ServiceAccount
  name: kube-state-metrics
  namespace: kube-system

2.1.1.2. deployment.yaml

vim /data/k8s-yaml/devops/prometheus/kube-state-metrics/deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "2"
  labels:
    grafanak8sapp: "true"
    app: kube-state-metrics
  name: kube-state-metrics
  namespace: kube-system
spec:
  selector:
    matchLabels:
      grafanak8sapp: "true"
      app: kube-state-metrics
  strategy:
    rollingUpdate:
      maxSurge: 25%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        grafanak8sapp: "true"
        app: kube-state-metrics
    spec:
      containers:
      - name: kube-state-metrics
        image: harbor.odl.com/public/kube-state-metrics:v1.5.0
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8080
          name: http-metrics
          protocol: TCP
        readinessProbe:
          failureThreshold: 3
          httpGet:
            path: /healthz
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 5
          periodSeconds: 10
          successThreshold: 1
          timeoutSeconds: 5
      serviceAccountName: kube-state-metrics

2.1.2. 应用资源清单资源

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/kube-state-metrics/rbac.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/kube-state-metrics/deployment.yaml

2.2. node-exporter

2.2.1. 准备资源配置清单

2.2.1.1 daemonset.yaml

vi /data/k8s-yaml/devops/prometheus/node-exporter/daemonset.yaml

# node-exporter采用daemonset类型控制器，部署在所有Node节点，且共享了宿主机网络名称空间
# 通过挂载宿主机的/proc和/sys目录采集宿主机的系统信息
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: node-exporter
  namespace: kube-system
  labels:
    daemon: "node-exporter"
    grafanak8sapp: "true"
spec:
  selector:
    matchLabels:
      daemon: "node-exporter"
      grafanak8sapp: "true"
  template:
    metadata:
      name: node-exporter
      labels:
        daemon: "node-exporter"
        grafanak8sapp: "true"
    spec:
      volumes:
      - name: proc
        hostPath:
          path: /proc
          type: ""
      - name: sys
        hostPath:
          path: /sys
          type: ""
      containers:
      - name: node-exporter
        image: harbor.odl.com/public/node-exporter:v0.15.0
        args:
        - --path.procfs=/host_proc
        - --path.sysfs=/host_sys
        ports:
        - name: node-exporter
          hostPort: 9100
          containerPort: 9100
          protocol: TCP
        volumeMounts:
        - name: sys
          readOnly: true
          mountPath: /host_sys
        - name: proc
          readOnly: true
          mountPath: /host_proc
      hostNetwork: true

2.2.2. 应用资源配置清单

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/node-exporter/daemonset.yaml

[root@hdss7-21 ~]# kubectl get pods -n kube-system -l daemon="node-exporter" -o wide
NAME                  READY   STATUS    RESTARTS   AGE   IP          NODE                NOMINATED NODE   READINESS GATES
node-exporter-klnv9   1/1     Running   0          11s   10.4.7.22   hdss7-22.host.com   <none>           <none>
node-exporter-mhnz4   1/1     Running   0          11s   10.4.7.21   hdss7-21.host.com   <none>           <none>

[root@hdss7-21 ~]# curl -s 10.4.7.22:9100/metrics | head
# HELP go_gc_duration_seconds A summary of the GC invocation durations.
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 4.2979e-05
go_gc_duration_seconds{quantile="0.25"} 5.6268e-05
go_gc_duration_seconds{quantile="0.5"} 0.000295652
go_gc_duration_seconds{quantile="0.75"} 0.000940366
go_gc_duration_seconds{quantile="1"} 0.058892728
go_gc_duration_seconds_sum 0.076146362
go_gc_duration_seconds_count 11
# HELP go_goroutines Number of goroutines that currently exist.

2.3. cadvisor

该exporter是通过和kubelet交互，取到Pod运行时的资源消耗情况，并将接口暴露给 Prometheus。

2.3.1. 准备资源配置清单

2.3.1.1. daemonset.yaml

vi /data/k8s-yaml/devops/prometheus/cadvisor/daemonset.yaml

# cadvisor采用daemonset方式运行在node节点上，通过污点的方式排除master
# 同时将部分宿主机目录挂载到本地，如docker的数据目录
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: cadvisor
  namespace: kube-system
  labels:
    app: cadvisor
spec:
  selector:
    matchLabels:
      name: cadvisor
  template:
    metadata:
      labels:
        name: cadvisor
    spec:
      hostNetwork: true
      tolerations:
      - key: node-role.kubernetes.io/master
        effect: NoSchedule
      containers:
      - name: cadvisor
        image: harbor.odl.com/public/cadvisor:v0.28.3
        imagePullPolicy: IfNotPresent
        volumeMounts:
        - name: rootfs
          mountPath: /rootfs
          readOnly: true
        - name: var-run
          mountPath: /var/run
        - name: sys
          mountPath: /sys
          readOnly: true
        - name: docker
          mountPath: /var/lib/docker
          readOnly: true
        ports:
          - name: http
            containerPort: 4194
            protocol: TCP
        readinessProbe:
          tcpSocket:
            port: 4194
          initialDelaySeconds: 5
          periodSeconds: 10
        args:
          - --housekeeping_interval=10s
          - --port=4194
      terminationGracePeriodSeconds: 30
      volumes:
      - name: rootfs
        hostPath:
          path: /
      - name: var-run
        hostPath:
          path: /var/run
      - name: sys
        hostPath:
          path: /sys
      - name: docker
        hostPath:
          path: /data/docker

2.3.2. 应用资源配置清单

[root@hdss7-21 ~]# mount -o remount,rw /sys/fs/cgroup/  # 原本是只读，现在改为可读可写
[root@hdss7-21 ~]# ln -s /sys/fs/cgroup/cpu,cpuacct /sys/fs/cgroup/cpuacct,cpu

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/cadvisor/daemonset.yaml
[root@hdss7-21 ~]# kubectl get pod -n kube-system -l name=cadvisor -o wide
NAME             READY   STATUS    RESTARTS   AGE   IP          NODE                NOMINATED NODE   READINESS GATES
cadvisor-wnxfx   1/1     Running   0          34s   10.4.7.21   hdss7-21.host.com   <none>           <none>
cadvisor-xwrvq   1/1     Running   0          34s   10.4.7.22   hdss7-22.host.com   <none>           <none>
[root@hdss7-21 ~]# curl -s 10.4.7.21:4194/metrics | head -n 1
# HELP cadvisor_version_info A metric with a constant '1' value labeled by kernel version, OS version, docker version, cadvisor version & cadvisor revision.

2.4. blackbox-exporter

2.4.1. 准备资源配置清单

2.4.1.1. configmap.yaml

vim /data/k8s-yaml/devops/prometheus/blackbox-exporter/configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  labels:
    app: blackbox-exporter
  name: blackbox-exporter
  namespace: kube-system
data:
  blackbox.yml: |-
    modules:
      http_2xx:
        prober: http
        timeout: 2s
        http:
          valid_http_versions: ["HTTP/1.1", "HTTP/2"]
          valid_status_codes: [200,301,302]
          method: GET
          preferred_ip_protocol: "ip4"
      tcp_connect:
        prober: tcp
        timeout: 2s

2.4.1.2. deployment.yaml

vim /data/k8s-yaml/devops/prometheus/blackbox-exporter/deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: blackbox-exporter
  namespace: kube-system
  labels:
    app: blackbox-exporter
  annotations:
    deployment.kubernetes.io/revision: 1
spec:
  replicas: 1
  selector:
    matchLabels:
      app: blackbox-exporter
  template:
    metadata:
      labels:
        app: blackbox-exporter
    spec:
      volumes:
      - name: config
        configMap:
          name: blackbox-exporter
          defaultMode: 420
      containers:
      - name: blackbox-exporter
        image: harbor.odl.com/public/blackbox-exporter:v0.15.1
        imagePullPolicy: IfNotPresent
        args:
        - --config.file=/etc/blackbox_exporter/blackbox.yml
        - --log.level=info
        - --web.listen-address=:9115
        ports:
        - name: blackbox-port
          containerPort: 9115
          protocol: TCP
        resources:
          limits:
            cpu: 200m
            memory: 256Mi
          requests:
            cpu: 100m
            memory: 50Mi
        volumeMounts:
        - name: config
          mountPath: /etc/blackbox_exporter
        readinessProbe:
          tcpSocket:
            port: 9115
          initialDelaySeconds: 5
          timeoutSeconds: 5
          periodSeconds: 10
          successThreshold: 1
          failureThreshold: 3

2.4.1.3. service.yaml

vi /data/k8s-yaml/devops/prometheus/blackbox-exporter/service.yaml

# 没有指定targetPort是因为Pod中暴露端口名称为 blackbox-port
apiVersion: v1
kind: Service
metadata:
  name: blackbox-exporter
  namespace: kube-system
spec:
  selector:
    app: blackbox-exporter
  ports:
    - name: blackbox-port
      protocol: TCP
      port: 9115

2.4.1.4. ingress.yaml

vi /data/k8s-yaml/devops/prometheus/blackbox-exporter/ingress.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: blackbox-exporter
  namespace: kube-system
spec:
  rules:
  - host: blackbox.odl.com
    http:
      paths:
      - path: /
        backend:
          serviceName: blackbox-exporter
          servicePort: blackbox-port

2.4.2. 应用资源配置清单

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/blackbox-exporter/configmap.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/blackbox-exporter/deployment.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/blackbox-exporter/ingress.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/blackbox-exporter/service.yaml

DNS服务新增

[root@hdss7-11 ~]# vim /var/named/odl.com.zone
......
blackbox           A    10.4.7.10
[root@hdss7-11 ~]# systemctl restart named


3. 交付prometheus server服务

3.1. 准备资源配置清单

3.1.1. rbac.yaml

vi /data/k8s-yaml/devops/prometheus/prometheus-server/rbac.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: prometheus
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: prometheus
rules:
- apiGroups:
  - ""
  resources:
  - nodes
  - nodes/metrics
  - services
  - endpoints
  - pods
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - ""
  resources:
  - configmaps
  verbs:
  - get
- nonResourceURLs:
  - /metrics
  verbs:
  - get
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: prometheus
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: prometheus
subjects:
- kind: ServiceAccount
  name: prometheus
  namespace: kube-system

3.1.2. deployment.yaml

vi /data/k8s-yaml/devops/prometheus/prometheus-server/deployment.yaml

# Prometheus在生产环境中，一般采用一个单独的大内存node部署，采用污点让其它pod不会调度上来
# --storage.tsdb.min-block-duration 内存中缓存最新多少分钟的TSDB数据，生产中会缓存更多的数据
# --storage.tsdb.retention TSDB数据保留的时间，生产中会保留更多的数据
apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    deployment.kubernetes.io/revision: "5"
  labels:
    name: prometheus
  name: prometheus
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus
  template:
    metadata:
      labels:
        app: prometheus
    spec:
      nodeName: hdss7-22.host.com
      securityContext:
        runAsUser: 0
      containers:
      - name: prometheus
        image: harbor.odl.com/public/prometheus:v2.14.0
        command:
        - /bin/prometheus
        args:
        - --config.file=/data/etc/prometheus.yml
        - --storage.tsdb.path=/data/prom-db
        - --storage.tsdb.min-block-duration=10m
        - --storage.tsdb.retention=72h
        ports:
        - containerPort: 9090
          protocol: TCP
        volumeMounts:
        - mountPath: /data
          name: data
        resources:
          requests:
            cpu: "1000m"
            memory: "1.5Gi"
          limits:
            cpu: "2000m"
            memory: "3Gi"
      serviceAccountName: prometheus
      volumes:
      - name: data
        nfs:
          server: hdss7-200
          path: /data/nfs-volume/prometheus

3.1.3. service.yaml

vi /data/k8s-yaml/devops/prometheus/prometheus-server/service.yaml

apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: kube-system
spec:
  ports:
  - port: 9090
    protocol: TCP
    targetPort: 9090
  selector:
    app: prometheus

3.1.4. ingress.yaml

vi /data/k8s-yaml/devops/prometheus/prometheus-server/ingress.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  annotations:
    kubernetes.io/ingress.class: traefik
  name: prometheus
  namespace: kube-system
spec:
  rules:
  - host: prometheus.odl.com
    http:
      paths:
      - path: /
        backend:
          serviceName: prometheus
          servicePort: 9090

3.2. 准备prometheus配置

[root@hdss7-200 ~]# mkdir -p /data/nfs-volume/prometheus/{etc,prom-db}
[root@hdss7-200 ~]# cp /opt/certs/{ca.pem,client.pem,client-key.pem} /data/nfs-volume/prometheus/etc/

[root@hdss7-200 ~]# vim /data/nfs-volume/prometheus/etc/prometheus.yml

global:
  scrape_interval:     15s
  evaluation_interval: 15s
scrape_configs:
- job_name: 'etcd'
  tls_config:
    ca_file: /data/etc/ca.pem
    cert_file: /data/etc/client.pem
    key_file: /data/etc/client-key.pem
  scheme: https
  static_configs:
  - targets:
    - '10.4.7.12:2379'
    - '10.4.7.21:2379'
    - '10.4.7.22:2379'
- job_name: 'kubernetes-apiservers'
  kubernetes_sd_configs:
  - role: endpoints
  scheme: https
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token
  relabel_configs:
  - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
    action: keep
    regex: default;kubernetes;https
- job_name: 'kubernetes-pods'
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
    action: keep
    regex: true
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
    regex: (.+)
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    target_label: __address__
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
- job_name: 'kubernetes-kubelet'
  kubernetes_sd_configs:
  - role: node
  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_node_label_(.+)
  - source_labels: [__meta_kubernetes_node_name]
    regex: (.+)
    target_label: __address__
    replacement: ${1}:10255
- job_name: 'kubernetes-cadvisor'
  kubernetes_sd_configs:
  - role: node
  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_node_label_(.+)
  - source_labels: [__meta_kubernetes_node_name]
    regex: (.+)
    target_label: __address__
    replacement: ${1}:4194
- job_name: 'kubernetes-kube-state'
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
  - source_labels: [__meta_kubernetes_pod_label_grafanak8sapp]
    regex: .*true.*
    action: keep
  - source_labels: ['__meta_kubernetes_pod_label_daemon', '__meta_kubernetes_pod_node_name']
    regex: 'node-exporter;(.*)'
    action: replace
    target_label: nodename
- job_name: 'blackbox_http_pod_probe'
  metrics_path: /probe
  kubernetes_sd_configs:
  - role: pod
  params:
    module: [http_2xx]
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_blackbox_scheme]
    action: keep
    regex: http
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_blackbox_port,  __meta_kubernetes_pod_annotation_blackbox_path]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+);(.+)
    replacement: $1:$2$3
    target_label: __param_target
  - action: replace
    target_label: __address__
    replacement: blackbox-exporter.kube-system:9115
  - source_labels: [__param_target]
    target_label: instance
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
- job_name: 'blackbox_tcp_pod_probe'
  metrics_path: /probe
  kubernetes_sd_configs:
  - role: pod
  params:
    module: [tcp_connect]
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_blackbox_scheme]
    action: keep
    regex: tcp
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_blackbox_port]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    target_label: __param_target
  - action: replace
    target_label: __address__
    replacement: blackbox-exporter.kube-system:9115
  - source_labels: [__param_target]
    target_label: instance
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name
- job_name: 'traefik'
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scheme]
    action: keep
    regex: traefik
  - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
    action: replace
    target_label: __metrics_path__
    regex: (.+)
  - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
    action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    target_label: __address__
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - source_labels: [__meta_kubernetes_namespace]
    action: replace
    target_label: kubernetes_namespace
  - source_labels: [__meta_kubernetes_pod_name]
    action: replace
    target_label: kubernetes_pod_name

3.3. 应用资源配置清单

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/prometheus-server/rbac.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/prometheus-server/deployment.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/prometheus-server/service.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/prometheus-server/ingress.yaml

[root@hdss7-11 ~]# vim /var/named/odl.com.zone
......
prometheus         A    10.4.7.10
[root@hdss7-11 ~]# systemctl restart named


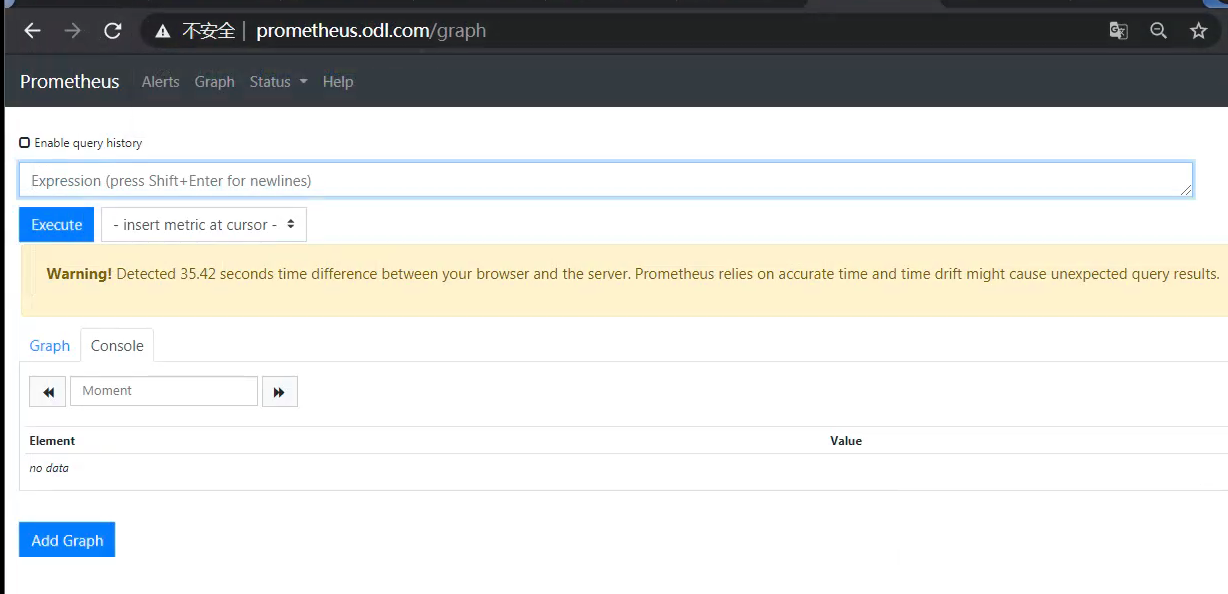

node_cpu{nodename=”hdss7-22.host.com”,mode=~”user|system”}


下载插件

wget -O grafana-kubernetes-app.zip https://grafana.com/api/plugins/grafana-kubernetes-app/versions/1.0.1/download
wget -O grafana-clock-panel.zip https://grafana.com/api/plugins/grafana-clock-panel/versions/1.0.1/download
wget -O grafana-piechart-panel.zip https://grafana.com/api/plugins/grafana-piechart-panel/versions/1.0.1/download
wget -O briangann-gauge-panel.zip https://grafana.com/api/plugins/briangann-gauge-panel/versions/0.0.8/download
wget -O natel-discrete-panel.zip https://grafana.com/api/plugins/natel-discrete-panel/versions/0.1.0/download

4. 交付Grafana服务

4.1. 准备资源配置清单

4.1.1. rbac.yaml

vi /data/k8s-yaml/devops/prometheus/grafana/rbac.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: grafana
rules:
- apiGroups:
  - "*"
  resources:
  - namespaces
  - deployments
  - pods
  verbs:
  - get
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
  name: grafana
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: grafana
subjects:
- kind: User
  name: k8s-node

4.1.2. deployment.yaml

vi /data/k8s-yaml/devops/prometheus/grafana/deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: grafana
    name: grafana
  name: grafana
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      name: grafana
  template:
    metadata:
      labels:
        app: grafana
        name: grafana
    spec:
      containers:
      - name: grafana
        image: harbor.odl.com/infra/grafana:v5.4.2
        ports:
        - containerPort: 3000
          protocol: TCP
        volumeMounts:
        - mountPath: /var/lib/grafana
          name: data
      imagePullSecrets:
      - name: harbor
      securityContext:
        runAsUser: 0
      volumes:
      - nfs:
          server: hdss7-200
          path: /data/nfs-volume/grafana
        name: data

4.1.3. service.yaml

vi /data/k8s-yaml/devops/prometheus/grafana/service.yaml

apiVersion: v1
kind: Service
metadata:
  name: grafana
  namespace: kube-system
spec:
  ports:
  - port: 3000
    protocol: TCP
    targetPort: 3000
  selector:
    app: grafana

4.1.4. ingress.yaml

vi /data/k8s-yaml/devops/prometheus/grafana/ingress.yaml

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: grafana
  namespace: kube-system
spec:
  rules:
  - host: grafana.odl.com
    http:
      paths:
      - path: /
        backend:
          serviceName: grafana
          servicePort: 3000

4.2. 应用资源配置清单

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/grafana/rbac.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/grafana/deployment.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/grafana/service.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/grafana/ingress.yaml

[root@hdss7-11 ~]# vim /var/named/odl.com.zone
......
grafana            A    10.4.7.10
[root@hdss7-11 ~]# systemctl restart named
[root@hdss7-11 ~]# dig -t A grafana.odl.com +short
10.4.7.10

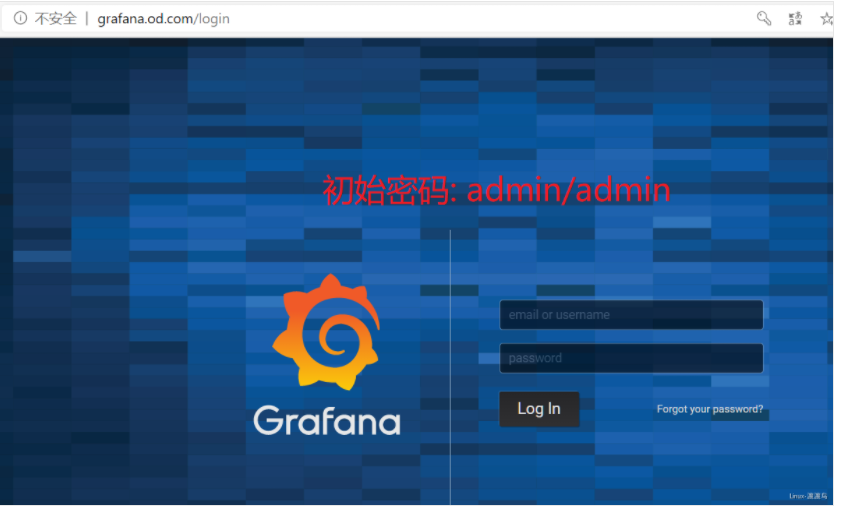

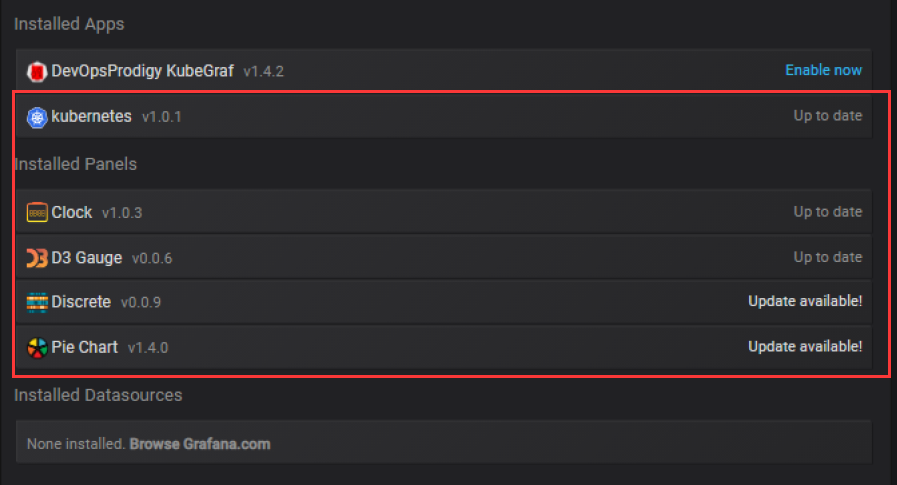

4.3. 安装插件

# 需要安装的插件
grafana-kubernetes-app
grafana-clock-panel
grafana-piechart-panel
briangann-gauge-panel
natel-discrete-panel

# 插件安装有两种方式：
# 1. 进入Container中，执行 grafana-cli plugins install $plugin_name
# 2. 手动下载插件zip包，访问 https://grafana.com/api/plugins/repo/$plugin_name 查询插件版本号 $version
#    通过 https://grafana.com/api/plugins/$plugin_name/versions/$version/download 下载zip包
#    将zip包解压到 /var/lib/grafana/plugins 下
# 插件安装完毕后，重启Grafana的Pod

# 方式一:
[root@hdss7-21 ~]# kubectl get pod -n kube-system -l name=grafana
NAME                       READY   STATUS    RESTARTS   AGE
grafana-596d8dbcd5-l2466   1/1     Running   0          3m45s
[root@hdss7-21 ~]# kubectl exec grafana-596d8dbcd5-l2466 -n kube-system -it -- /bin/bash
root@grafana-596d8dbcd5-l2466:/usr/share/grafana# grafana-cli plugins install grafana-kubernetes-app
root@grafana-596d8dbcd5-l2466:/usr/share/grafana# grafana-cli plugins install grafana-clock-panel
root@grafana-596d8dbcd5-l2466:/usr/share/grafana# grafana-cli plugins install grafana-piechart-panel
root@grafana-596d8dbcd5-l2466:/usr/share/grafana# grafana-cli plugins install briangann-gauge-panel
root@grafana-596d8dbcd5-l2466:/usr/share/grafana# grafana-cli plugins install natel-discrete-panel

# 方式二:
[root@hdss7-200 plugins]# wget -O grafana-kubernetes-app.zip https://grafana.com/api/plugins/grafana-kubernetes-app/versions/1.0.1/download
[root@hdss7-200 plugins]# ls *.zip | xargs -I {} unzip -q {}


4.4. 创建数据源

查看 ca.pem client.pem client-key.pem 证书, 将内容粘贴至对应地方


4.6. 配置kubernetes-app

集群监控 - 图12

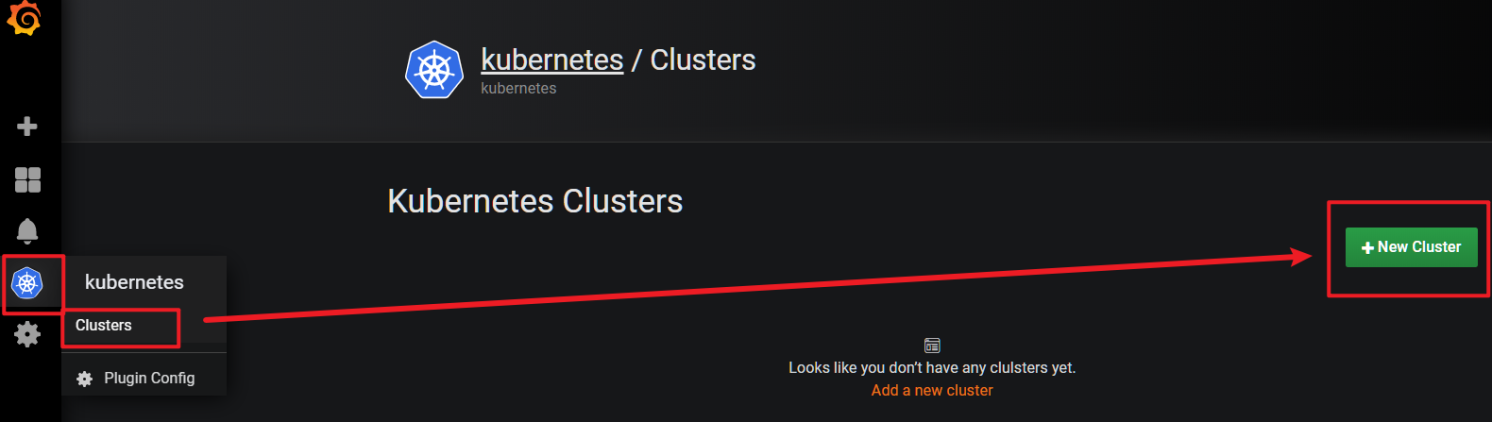

集群监控 - 图13

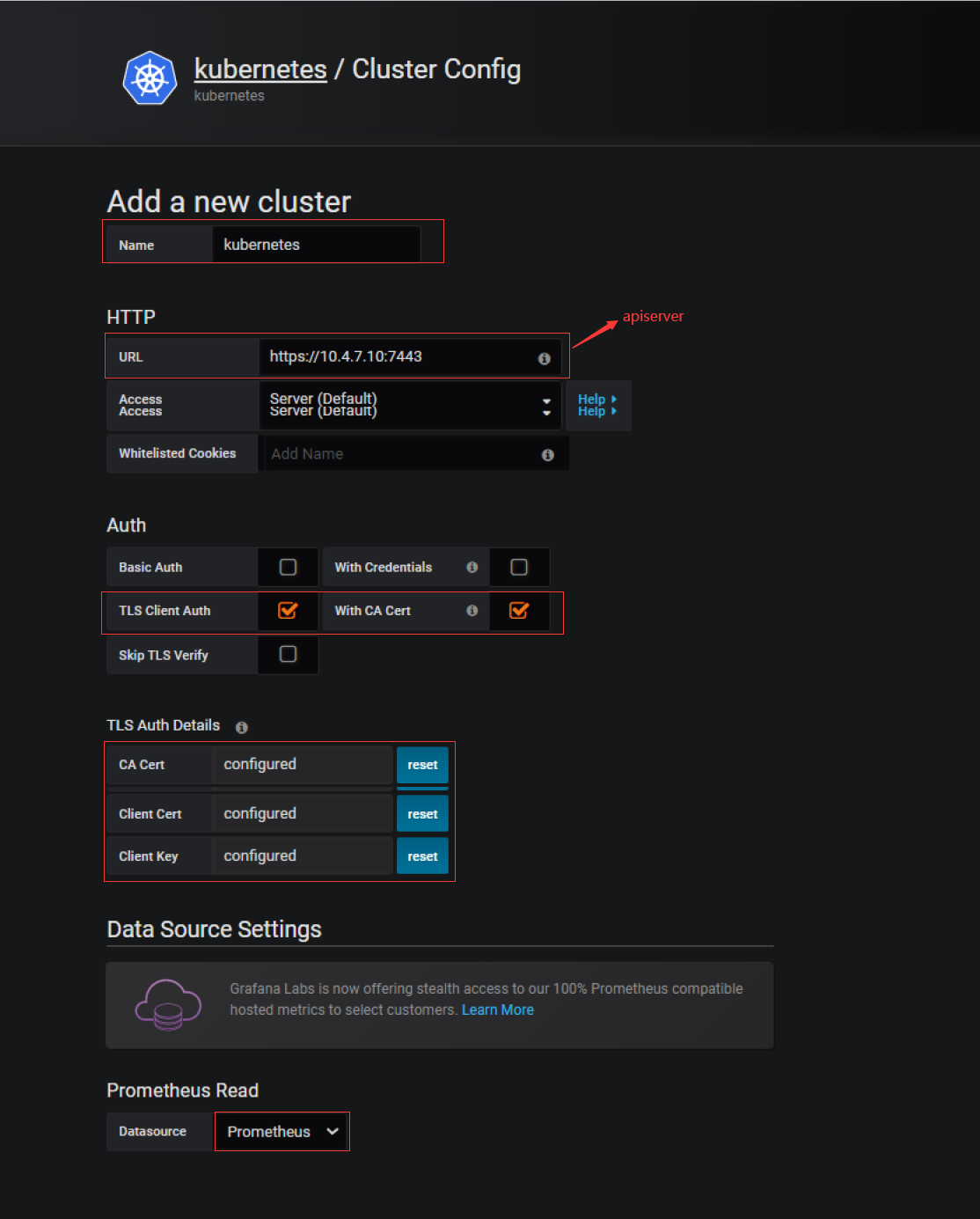

URL填写apiserver ca.pem client.pem client-key.pem 三个证书信息



4.7. grafana 面板报错

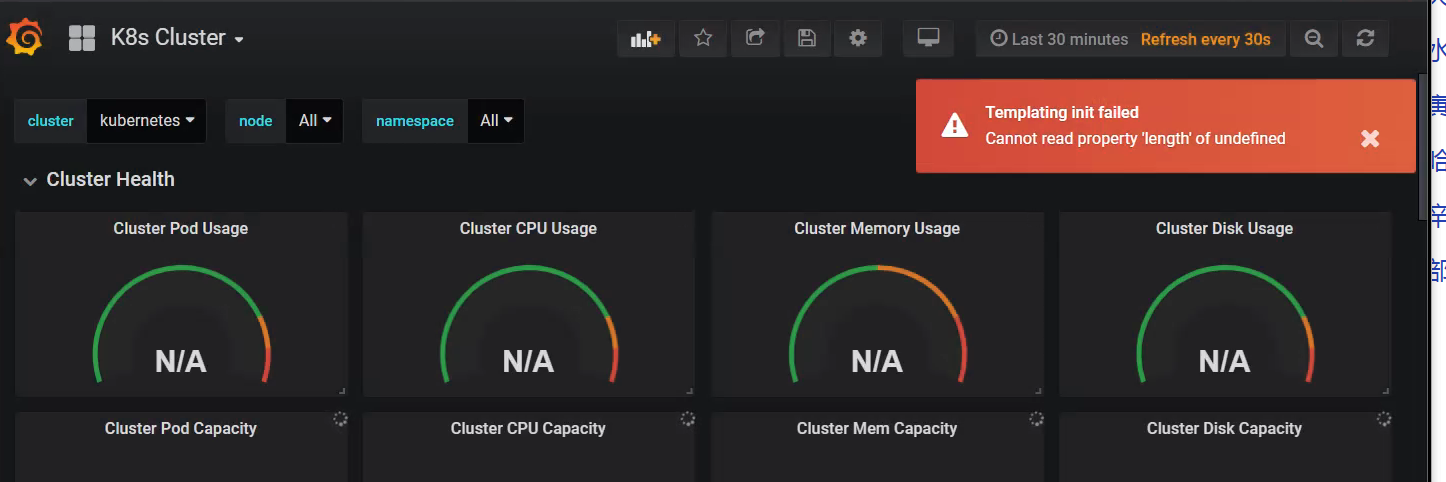

观察数据的时间精度，没有精确到毫秒。当我们取30分钟以内的数据时，数据散点不够用，因此产生了错误。

5. 部署alertmanager

5.1. 准备镜像

[root@hdss7-200 ~]# docker pull docker.io/prom/alertmanager:v0.14.0
[root@hdss7-200 ~]# docker image tag prom/alertmanager:v0.14.0 harbor.odl.com/public/alertmanager:v0.14.0
[root@hdss7-200 ~]# docker push harbor.odl.com/public/alertmanager:v0.14.0
# 新版本容器启动后可能会报错：
# couldn't deduce an advertise address: no private IP found, explicit advertise addr not provided

5.2. 准备资源配置清单

在hdss7-200目录 /data/k8s-yaml/devops/prometheus/alertmanager

5.2.1. configmap.yaml

需要修改的地方:

  • smtp_from 邮箱地址
  • smtp_auth_username 邮箱验证用户名
  • smtp_auth_password 邮箱验证密码
  • receivers.email_configs.to 收件人邮箱
apiVersion: v1
kind: ConfigMap
metadata:
  name: alertmanager-config
  namespace: kube-system
data:
  config.yml: |-
    global:
      # 在没有报警的情况下声明为已解决的时间
      resolve_timeout: 5m
      # 配置邮件发送信息
      smtp_smarthost: 'smtp.163.com:25'
      smtp_from: 'xxx@163.com'
      smtp_auth_username: 'xxx@163.com'
      smtp_auth_password: 'xxx'
      smtp_require_tls: false
    # 所有报警信息进入后的根路由，用来设置报警的分发策略
    route:
      # 这里的标签列表是接收到报警信息后的重新分组标签，例如，接收到的报警信息里面有许多具有 cluster=A 和 alertname=LatncyHigh 这样的标签的报警信息将会批量被聚合到一个分组里面
      group_by: ['alertname', 'cluster']
      # 当一个新的报警分组被创建后，需要等待至少group_wait时间来初始化通知，这种方式可以确保您能有足够的时间为同一分组来获取多个警报，然后一起触发这个报警信息。
      group_wait: 30s
      # 当第一个报警发送后，等待'group_interval'时间来发送新的一组报警信息。
      group_interval: 5m
      # 如果一个报警信息已经发送成功了，等待'repeat_interval'时间来重新发送他们
      repeat_interval: 5m
      # 默认的receiver：如果一个报警没有被一个route匹配，则发送给默认的接收器
      receiver: default
    receivers:
    - name: 'default'
      email_configs:
      - to: 'xxxx@qq.com'  # 收件人
        send_resolved: true

5.2.2. deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: alertmanager
  namespace: kube-system
spec:
  replicas: 1
  selector:
    matchLabels:
      app: alertmanager
  template:
    metadata:
      labels:
        app: alertmanager
    spec:
      containers:
      - name: alertmanager
        image: harbor.odl.com/public/alertmanager:v0.14.0
        args:
          - "--config.file=/etc/alertmanager/config.yml"
          - "--storage.path=/alertmanager"
        ports:
        - name: alertmanager
          containerPort: 9093
        volumeMounts:
        - name: alertmanager-cm
          mountPath: /etc/alertmanager
      volumes:
      - name: alertmanager-cm
        configMap:
          name: alertmanager-config

5.2.3. service.yaml

# Prometheus调用alert采用service name。不走ingress域名
apiVersion: v1
kind: Service
metadata:
  name: alertmanager
  namespace: kube-system
spec:
  selector:
    app: alertmanager
  ports:
    - port: 80
      targetPort: 9093

5.3. 应用资源配置清单

[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/alertmanager/configmap.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/alertmanager/deployment.yaml
[root@hdss7-21 ~]# kubectl apply -f http://k8s-yaml.odl.com/devops/prometheus/alertmanager/service.yaml

5.4. 添加告警规则

配置中prometheus目录下

[root@hdss7-200 ~]# cat /data/nfs-volume/prometheus/etc/rules.yml

groups:
- name: hostStatsAlert
  rules:
  - alert: hostCpuUsageAlert
    expr: sum(avg without (cpu)(irate(node_cpu{mode!='idle'}[5m]))) by (instance) > 0.85
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "{{ $labels.instance }} CPU usage above 85% (current value: {{ $value }}%)"
  - alert: hostMemUsageAlert
    expr: (node_memory_MemTotal - node_memory_MemAvailable)/node_memory_MemTotal > 0.85
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "{{ $labels.instance }} MEM usage above 85% (current value: {{ $value }}%)"
  - alert: OutOfInodes
    expr: node_filesystem_free{fstype="overlay",mountpoint ="/"} / node_filesystem_size{fstype="overlay",mountpoint ="/"} * 100 < 10
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Out of inodes (instance {{ $labels.instance }})"
      description: "Disk is almost running out of available inodes (< 10% left) (current value: {{ $value }})"
  - alert: OutOfDiskSpace
    expr: node_filesystem_free{fstype="overlay",mountpoint ="/rootfs"} / node_filesystem_size{fstype="overlay",mountpoint ="/rootfs"} * 100 < 10
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Out of disk space (instance {{ $labels.instance }})"
      description: "Disk is almost full (< 10% left) (current value: {{ $value }})"
  - alert: UnusualNetworkThroughputIn
    expr: sum by (instance) (irate(node_network_receive_bytes[2m])) / 1024 / 1024 > 100
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual network throughput in (instance {{ $labels.instance }})"
      description: "Host network interfaces are probably receiving too much data (> 100 MB/s) (current value: {{ $value }})"
  - alert: UnusualNetworkThroughputOut
    expr: sum by (instance) (irate(node_network_transmit_bytes[2m])) / 1024 / 1024 > 100
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual network throughput out (instance {{ $labels.instance }})"
      description: "Host network interfaces are probably sending too much data (> 100 MB/s) (current value: {{ $value }})"
  - alert: UnusualDiskReadRate
    expr: sum by (instance) (irate(node_disk_bytes_read[2m])) / 1024 / 1024 > 50
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual disk read rate (instance {{ $labels.instance }})"
      description: "Disk is probably reading too much data (> 50 MB/s) (current value: {{ $value }})"
  - alert: UnusualDiskWriteRate
    expr: sum by (instance) (irate(node_disk_bytes_written[2m])) / 1024 / 1024 > 50
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual disk write rate (instance {{ $labels.instance }})"
      description: "Disk is probably writing too much data (> 50 MB/s) (current value: {{ $value }})"
  - alert: UnusualDiskReadLatency
    expr: rate(node_disk_read_time_ms[1m]) / rate(node_disk_reads_completed[1m]) > 100
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual disk read latency (instance {{ $labels.instance }})"
      description: "Disk latency is growing (read operations > 100ms) (current value: {{ $value }})"
  - alert: UnusualDiskWriteLatency
    expr: rate(node_disk_write_time_ms[1m]) / rate(node_disk_writes_completedl[1m]) > 100
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Unusual disk write latency (instance {{ $labels.instance }})"
      description: "Disk latency is growing (write operations > 100ms) (current value: {{ $value }})"
- name: http_status
  rules:
  - alert: ProbeFailed
    expr: probe_success == 0
    for: 1m
    labels:
      severity: error
    annotations:
      summary: "Probe failed (instance {{ $labels.instance }})"
      description: "Probe failed (current value: {{ $value }})"
  - alert: StatusCode
    expr: probe_http_status_code <= 199 OR probe_http_status_code >= 400
    for: 1m
    labels:
      severity: error
    annotations:
      summary: "Status Code (instance {{ $labels.instance }})"
      description: "HTTP status code is not 200-399 (current value: {{ $value }})"
  - alert: SslCertificateWillExpireSoon
    expr: probe_ssl_earliest_cert_expiry - time() < 86400 * 30
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "SSL certificate will expire soon (instance {{ $labels.instance }})"
      description: "SSL certificate expires in 30 days (current value: {{ $value }})"
  - alert: SslCertificateHasExpired
    expr: probe_ssl_earliest_cert_expiry - time()  <= 0
    for: 5m
    labels:
      severity: error
    annotations:
      summary: "SSL certificate has expired (instance {{ $labels.instance }})"
      description: "SSL certificate has expired already (current value: {{ $value }})"
  - alert: BlackboxSlowPing
    expr: probe_icmp_duration_seconds > 2
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Blackbox slow ping (instance {{ $labels.instance }})"
      description: "Blackbox ping took more than 2s (current value: {{ $value }})"
  - alert: BlackboxSlowRequests
    expr: probe_http_duration_seconds > 2
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Blackbox slow requests (instance {{ $labels.instance }})"
      description: "Blackbox request took more than 2s (current value: {{ $value }})"
  - alert: PodCpuUsagePercent
    expr: sum(sum(label_replace(irate(container_cpu_usage_seconds_total[1m]),"pod","$1","container_label_io_kubernetes_pod_name", "(.*)"))by(pod) / on(pod) group_right kube_pod_container_resource_limits_cpu_cores *100 )by(container,namespace,node,pod,severity) > 80
    for: 5m
    labels:
      severity: warning
    annotations:
      summary: "Pod cpu usage percent has exceeded 80% (current value: {{ $value }}%)"
  • 在prometheus主配置文件末尾追加新生成的告警规则文件 ```yaml [root@hdss7-200 ~]# vim /data/nfs-volume/prometheus/etc/prometheus.yml …..
  • source_labels: [__meta_kubernetes_service_name] action: replace target_label: k8s_sname

    ====== 新增 ======

    alerting: alertmanagers:
    • static_configs:
      • targets: [“alertmanager”] rule_files:
        • “/data/etc/rules.yml”

          ===== 结束=========

          ```

5.5. prometheus重新加载配置文件

重新加载配置文件 即reload

[root@hdss7-21 ~]# kubectl exec -it  prometheus-74bf9b7d8-whkrx   -n kube-system  -- kill -HUP 1

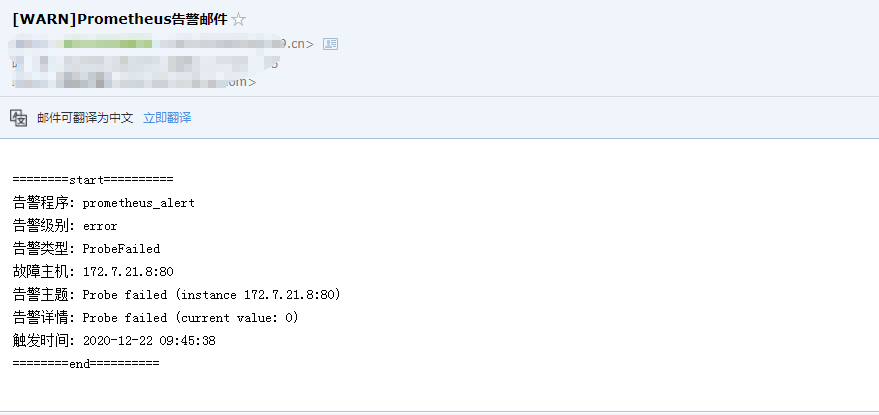

5.6. 自定义邮件告警模版(先测试默认模板,再修改此)

  • 此处只是示例

    创建configmap_tmpl.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: email-tmpl
  namespace: kube-system
data:
  email.tmpl: |+
    {{ define "email.html" }}
    {{ range .Alerts }}
    <pre>
    ========start==========
    告警程序: prometheus_alert
    告警级别: {{ .Labels.severity }}
    告警类型: {{ .Labels.alertname }}
    故障主机: {{ .Labels.instance }}
    告警主题: {{ .Annotations.summary }}
    告警详情: {{ .Annotations.description }}
    触发时间: {{ .StartsAt.Format "2006-01-02 15:04:05" }}
    ========end==========
    </pre>
    {{ end }}
    {{ end }}

[root@hdss7-21 alertmanager]# cat configmap.yaml # 修改

    ## ....省略
      group_wait: 30s
      # 当第一个报警发送后，等待'group_interval'时间来发送新的一组报警信息。
      group_interval: 5m
      # 如果一个报警信息已经发送成功了，等待'repeat_interval'时间来重新发送他们
      repeat_interval: 5m
      # 默认的receiver：如果一个报警没有被一个route匹配，则发送给默认的接收器
      #receiver: default
#### 修改######################
    templates:
    - "/etc/emailtmpl/email.tmpl"
    route:
      group_by: ['alertname']
      group_wait: 10s
      group_interval: 10s
      repeat_interval: 1h
      receiver: 'email'
    receivers:
    - name: 'email'
      email_configs:
      - to: '694188152@qq.com'  # 收件人
        send_resolved: true
        html: '{{ template "email.html" . }}'
        headers: { Subject: "[WARN]Prometheus告警邮件"}

[root@hdss7-21 alertmanager]# vim deployment.yaml

      containers:
      - name: alertmanager
        image: harbor.odl.com/public/alertmanager:v0.14.0
        args:
          - "--config.file=/etc/alertmanager/config.yml"
          - "--storage.path=/alertmanager"
        ports:
        - name: alertmanager
          containerPort: 9093
        volumeMounts:
        - name: alertmanager-cm
          mountPath: /etc/alertmanager
#### 新增#######################
        - name: emailtmpl
          mountPath: /etc/emailtmpl
      volumes:
      - name: alertmanager-cm
        configMap:
          name: alertmanager-config
### 新增 #####
      - name: emailtmpl
        configMap:
          name: email-tmpl
  • apply应用资源
    [root@hdss7-21 alertmanager]# kubectl apply -f .


5.7. 钉钉告警

https://www.cnblogs.com/wangxu01/articles/11654836.html#scroller-25
插件: https://github.com/cnych/alertmanager-dingtalk-hook

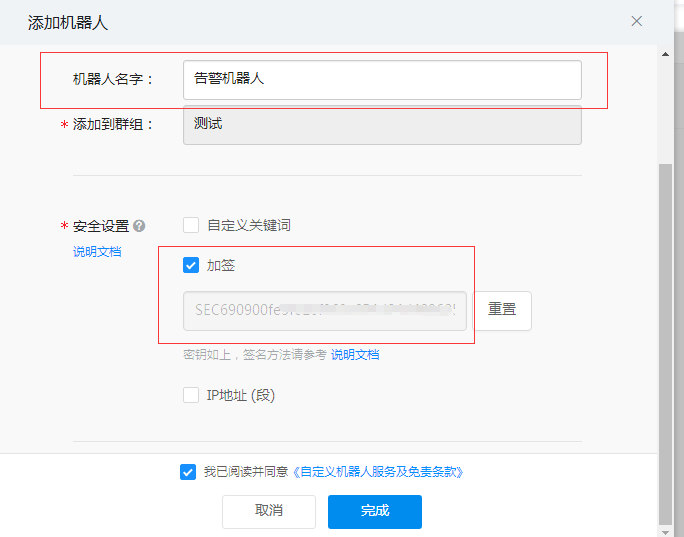

5.7.1. 创建钉钉机器人

记录钉钉机器人的secret(签名)和token



  • 测试钉钉是否能告警

    脚本可在任意地方创建,以下为python2.7. python3可自行到钉钉机器人官方查看 将secret加签复制粘贴至脚本中

#python 2.7
import time
import hmac
import hashlib
import base64
import urllib

timestamp = long(round(time.time() * 1000))
secret = 'SEC5f95628625eb47a874f37abe5e61d7d5252359ce257e2360ce6d0e1be5273afa'
secret_enc = bytes(secret).encode('utf-8')
string_to_sign = '{}\n{}'.format(timestamp, secret)
string_to_sign_enc = bytes(string_to_sign).encode('utf-8')
hmac_code = hmac.new(secret_enc, string_to_sign_enc, digestmod=hashlib.sha256).digest()
sign = urllib.quote_plus(base64.b64encode(hmac_code))
print(timestamp)
print(sign)

[root@hdss7-21 ~]# python secret.py
1608859055794
iemy1jVUyuCZOwLMRJab66H2O58WjP27ziFJNwLDQ1k%3D
# token替换
# 将获取的两个值替换至下列的timestamp和sign
[root@hdss7-21 ~]# curl 'https://oapi.dingtalk.com//robot/send?access_token=8cfxxx8299d8xx32xxx4c2c30dxx9dd1xxxxxxf7ee4c6&timestamp=1608859055794&sign=iemy1jVUyuCZOwLMRJab66H2O58WjP27ziFJNwLDQ1k%3D' \
-H 'Content-Type: application/json' \
-d '{"msgtype": "text","text": {"content": "测试"}}'

5.7.2. 准备镜像

docker pull cnych/alertmanager-dingtalk-hook:v0.3.6
docker tag docker.io/cnych/alertmanager-dingtalk-hook:v0.3.6 harbor.odl.com/public/alertmanager-dingtalk-hook:v0.3.6
docker push harbor.odl.com/public/alertmanager-dingtalk-hook:v0.3.6

5.7.3. 准备资源文件

创建secret资源, 记录了token(生成的webhook的token值)和secret(加签的值)

kubectl create secret generic dingtalk-secret \
--from-literal=token=8cfxxx8299d8xx32xxx4c2c30dxx9dd1xxxxxxf7ee4c6  \
--from-literal=secret=SEC5xxxxbe5e61d7d525235xxx57e23xxx5273afa -n kube-system

promethues rule.yaml添加新的规则 触发告警

[root@hdss7-200 ~]# vim /data/nfs-volume/prometheus/etc/rules.yml
...
...
  - alert: NodeFilesystemUsage
    expr: (node_filesystem_size{device="rootfs"} - node_filesystem_free{device="rootfs"}) / node_filesystem_size{device="rootfs"} * 100 > 10
    for: 2m
    labels:
      severity: warning
    annotations:
      summary: "{{$labels.instance}}: High Filesystem usage detected"
      description: "{{$labels.instance}}: Filesystem usage is above 10% (current value is: {{ $value }}"

修改alertmanager configmap.yaml

kind: ConfigMap
metadata:
  name: alertmanager-config
  namespace: kube-system
data:
  config.yml: |-
    global:
      resolve_timeout: 5m
    route:
      group_by: ['alertname', 'cluster', 'severity']
      group_wait: 30s
      group_interval: 5m
      repeat_interval: 5m
      receiver: webhookpriority
      - receiver: webhook
        match:
          alertname: NodeFilesystemUsage
    receivers:
    - name: 'webhook'
      webhook_configs:
      - url: 'http://dingtalk-hook.kube-system.svc.cluster.local:5000'
        send_resolved: true

新建dingtalk-hook.yaml 其中环境变量PROME_URL为告警模板 “完整告警”的链接域名URL

apiVersion: apps/v1
kind: Deployment
metadata:
  name: dingtalk-hook
  namespace: kube-system
spec:
  selector:
    matchLabels:
      app: dingtalk-hook
  template:
    metadata:
      labels:
        app: dingtalk-hook
    spec:
      containers:
      - name: dingtalk-hook
        image: harbor.odl.com/public/alertmanager-dingtalk-hook:v0.3.6
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 5000
          name: http
        env:
        - name: PROME_URL
          value: prometheus.odl.com
        - name: LOG_LEVEL
          value: debug
        - name: ROBOT_TOKEN
          valueFrom:
            secretKeyRef:
              name: dingtalk-secret
              key: token
        - name: ROBOT_SECRET
          valueFrom:
            secretKeyRef:
              name: dingtalk-secret
              key: secret
        resources:
          requests:
            cpu: 50m
            memory: 100Mi
          limits:
            cpu: 50m
            memory: 100Mi
---
apiVersion: v1
kind: Service
metadata:
  name: dingtalk-hook
  namespace: kube-system
spec:
  selector:
    app: dingtalk-hook
  ports:
  - name: hook
    port: 5000
    targetPort: http

5.7.4. 重新交付资源至k8s

# 重启promethues
kubectl delete pods prometheus-74bf9b7d8-ptgkk -n kube-system
# 重启alertmanager (一定要删除创建才生效)
kubectl delete -f alertmanager/.
kubectl apply -f  alertmanager/.
# 交付钉钉hook
kubectl apply -f dingtalk-hook/.

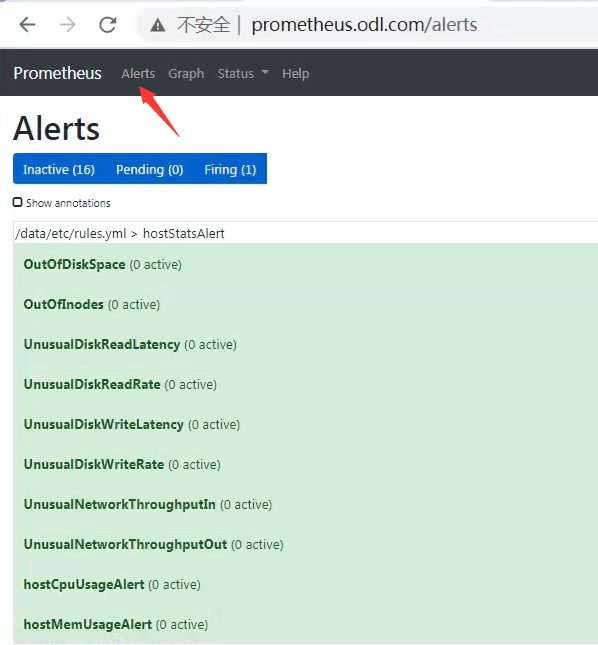

5.7.5. prometheus查看alert


等待一段时间后,告警会触发


  1. 该告警模板需要在dingtalk-hook的镜像app.py 修改, 有能力可将模板文件写成configmap资源
  2. “点击查看完成信息” 会指向dingtalk-hook.yaml文件定义的PROME_URL地址
  3. 图是假的, 默认获取的是某公网图片资源

6. prometheus的使用

6.1. pod接入exporter

当前实验部署的是通用的Exporter，其中Kube-state-metrics是通过Kubernetes API采集信息，Node-exporter用于收集主机信息，这两项与Pod无关，部署完毕后直接使用即可。
根据Prometheus配置文件，可以看出Pod监控信息获取是通过标签(注释)选择器来实现的，给资源添加对应的标签或者注释来实现数据的监控。

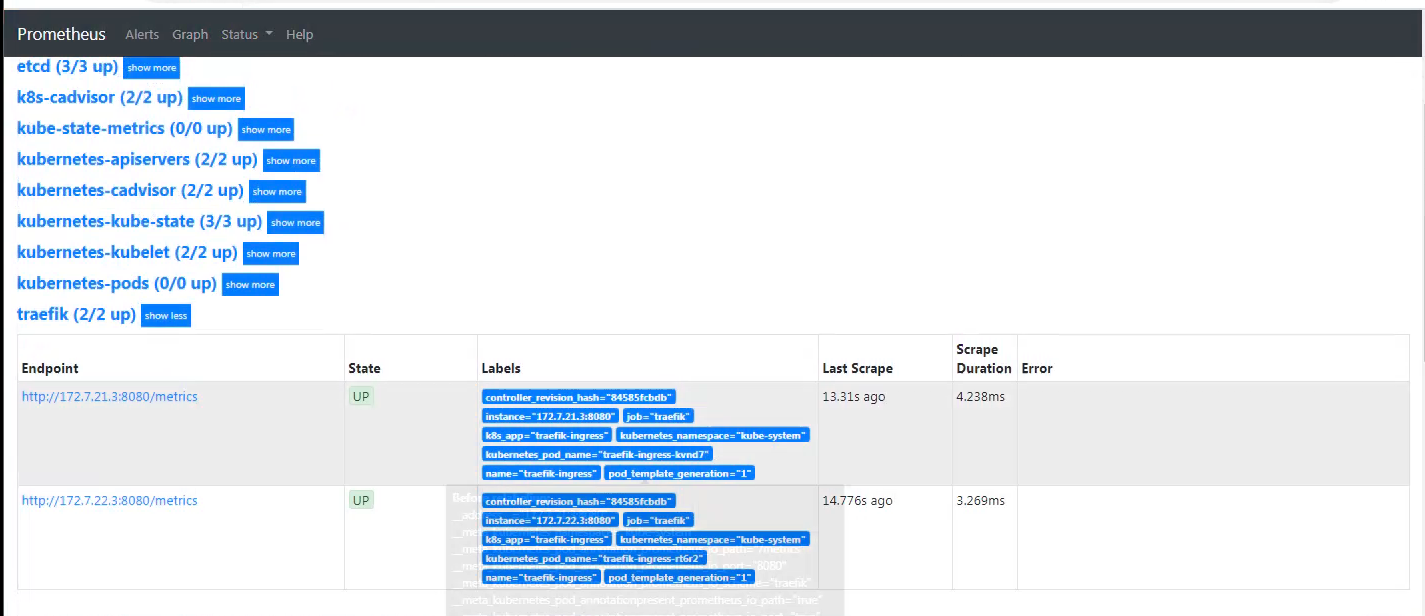

6.1.1. traefik接入

修改traefik资源配置清单daemonset.yaml 加入annotations (以下配置与promethus配置文件定义的job_name有关)

  • prometheus_io_scheme : traefik 对应着主配置prometheus.yml 的 job_name
  • prometheus_io_path : api接口的路径
  • prometheus_io_port: 当前容器traefik提供给集群的端口(非暴露端口)
[root@hdss7-200 ~]# vim /data/k8s-yaml/traefik/traefik_1.7.2/daemonset.yaml
apiVersion: extensions/v1beta1
kind: DaemonSet
metadata:
  name: traefik-ingress
  namespace: kube-system
  labels:
    k8s-app: traefik-ingress
spec:
  template:
    metadata:
#===== 新增 =======
      annotations:
        prometheus_io_scheme: traefik
        prometheus_io_path: /metrics
        prometheus_io_port: "8080"
#===== 结束 =======
      labels:
        k8s-app: traefik-ingress
        name: traefik-ingress
    spec:
  • 当前traefik的pod删除重启后 规则不生效, 只能直接删除资源重新交付
    kubectl delete -f http://k8s-yaml.odl.com/traefik/traefik_1.7.2/rbac.yaml
kubectl delete -f http://k8s-yaml.odl.com/traefik/traefik_1.7.2/daemonset.yaml
kubectl delete -f http://k8s-yaml.odl.com/traefik/traefik_1.7.2/service.yaml
kubectl delete -f http://k8s-yaml.odl.com/traefik/traefik_1.7.2/ingress.yaml
# --------
kubectl apply -f http://k8s-yaml.odl.com/traefik/traefik_1.7.2/rbac.yaml
kubectl apply -f http://k8s-yaml.odl.com/traefik/traefik_1.7.2/daemonset.yaml
kubectl apply -f http://k8s-yaml.odl.com/traefik/traefik_1.7.2/service.yaml
kubectl apply -f http://k8s-yaml.odl.com/traefik/traefik_1.7.2/ingress.yaml


6.1.2. pod接入blackbox监控

在对应pod的注释中添加，以下分别是TCP探测和HTTP探测，Prometheus中没有定义其它协议的探测

  • blackbox_port 指的是pod的端口 并非是固定端口
# tcp探测端口存活性,
annotations:
  blackbox_port: "20880"
  blackbox_scheme: tcp

# http  http://xxx:8080/hello?name=healt 在此处并未使用 dubbo有相关接口参考
annotations:
  blackbox_port: "8080"
  blackbox_scheme: http
  blackbox_path: /hello?name=health
  • 示例

    新增nginx.yaml资源清单

apiVersion: extensions/v1beta1
kind: DaemonSet
metadata:
  name: nginx-ds
  namespace: default
spec:
  template:
    metadata:
      labels:
        app: nginx-ds
#===== 新增=============
      annotations:
        blackbox_port: "80"
        blackbox_scheme: tcp
#===== 结束=============
    spec:
      containers:
      - name: my-nginx
        image: harbor.odl.com/public/nginx:v1.18.0
        ports:
        - containerPort: 80
  • 交付nginx
    kubectl apply -f nginx.yaml

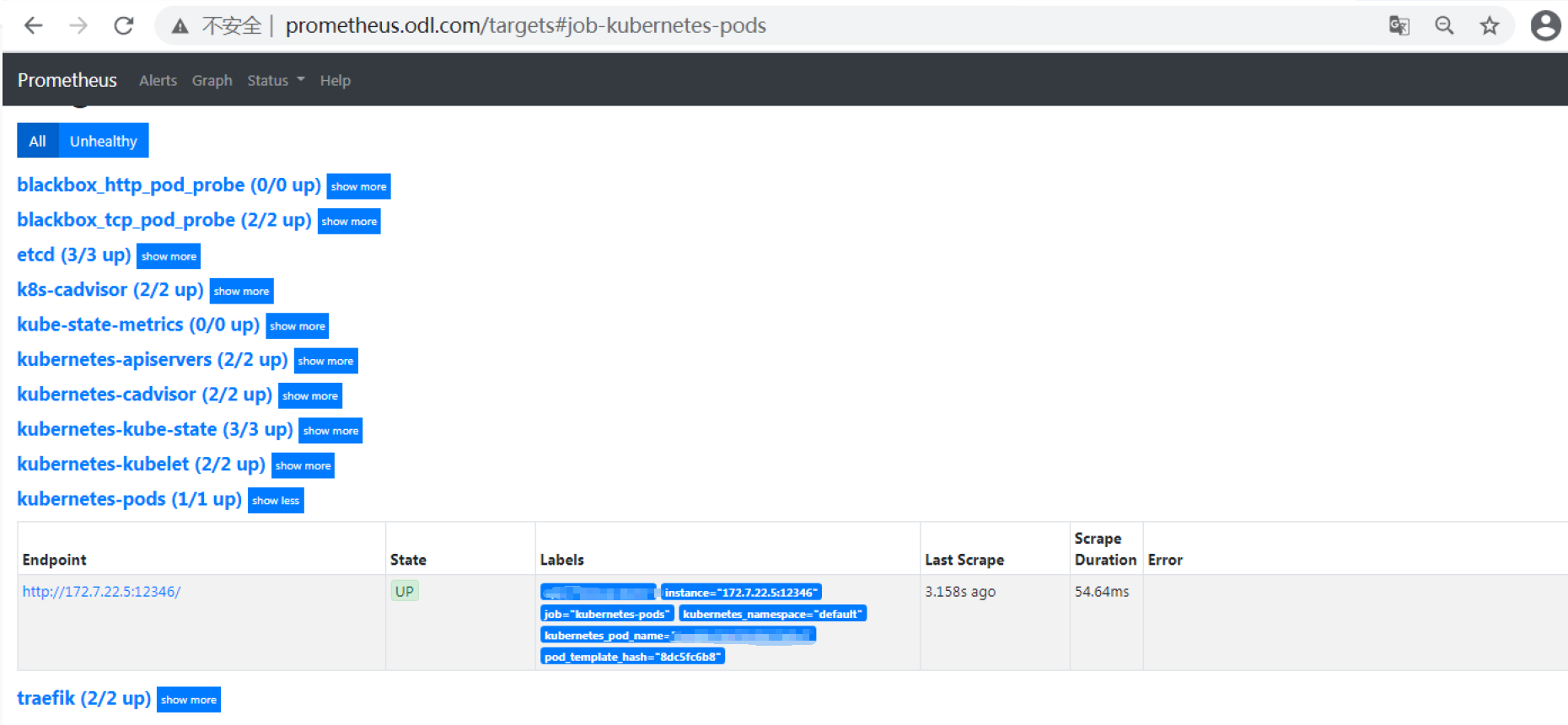

6.1.3. pod接入blackbox-jvm监控

# 在对应pod的注释中添加，该信息是jmx_javaagent-0.3.1.jar收集的，开的端口是12346。true是字符串！
annotations:
  prometheus_io_scrape: "true"
  prometheus_io_port: "12346"
  prometheus_io_path: /

6.1.3.1. 准备启动镜像

准备一个示例jar包

[root@hdss7-200 ~]# mkdir /opt/dockfile ; cd /opt/dockfile

[root@hdss7-200 dockfile]# docker pull docker.io/stanleyws/jre8:8u112
[root@hdss7-200 dockfile]# docker tag docker.io/stanleyws/jre8:8u112 harbor.odl.com/public/jre8:8u112
[root@hdss7-200 dockfile]# docker push harbor.odl.com/public/jre8:8u112
[root@hdss7-200 dockfile]# wget https://repo1.maven.org/maven2/io/prometheus/jmx/jmx_prometheus_javaagent/0.3.1/jmx_prometheus_javaagent-0.3.1.jar -O jmx_javaagent-0.3.1.jar

[root@hdss7-200 dockfile]# cat config.yml
rules:
  - pattern: '.*'

[root@hdss7-200 dockfile]# cat config.yml
rules:
  - pattern: '.*'

# 12346端口并非固定 可自定义
[root@hdss7-200 jvm_dockerfile]# cat entrypoint.sh
#!/bin/sh
# C_OPTS 和 JAR_BALL 由环境变量注入
M_OPTS="-Duser.timezone=Asia/Shanghai -javaagent:/opt/prom/jmx_javaagent-0.3.1.jar=$(hostname -i):${M_PORT:-"12346"}:/opt/prom/config.yml"
exec java -jar ${M_OPTS} ${C_OPTS} ${JAR_BALL}

[root@hdss7-200 dockfile]# cat Dockerfile
FROM harbor.odl.com/public/jre:8u112
ADD config.yml /opt/prom/config.yml
ADD jmx_javaagent-0.3.1.jar  /opt/prom/
ADD entrypoint.sh /entrypoint.sh
RUN /bin/cp /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo 'Asia/Shanghai' >/etc/timezone
WORKDIR /opt/project_dir
ADD example-0.0.1.jar /opt/project_dir
CMD ["/entrypoint.sh"]

[root@hdss7-200 dockfile]# ll
总用量 102712
-rw-r--r-- 1 root root        25 12月 22 15:27 config.yml
-rw-r--r-- 1 root root       338 12月 22 16:14 Dockerfile
-rwxr-xr-x 1 root root       240 12月 22 15:27 entrypoint.sh
-rw-r--r-- 1 root root    367417 12月 22 15:27 jmx_javaagent-0.3.1.jar
-rw-r--r-- 1 root root 104795046 12月 22 16:09 example-0.0.1.jar

[root@hdss7-200 dockfile]# docker image build -t harbor.odl.com/public/example:v1.0
[root@hdss7-200 dockfile]# docker image push harbor.odl.com/public/example:v1.0
  • 编写yaml应用资源文件

    [root@hdss7-21 ~]# cat example-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: example
  labels:
    app: example
spec:
  replicas: 1
  selector:
    matchLabels:
      app: example
  template:
    metadata:
      labels:
        app: example
      annotations:
        prometheus_io_scrape: "true"
        prometheus_io_port: "12346"
        prometheus_io_path: /
    spec:
      containers:
      - name: jmxjkh
        image: harbor.odl.com/public/example:v1.0
        imagePullPolicy: IfNotPresent
        env:
        - name: JAR_BALL
          value: example-0.0.1.jar
        ports:
        #- containerPort: 8443
        - containerPort: 8080
        - containerPort: 12346

[root@hdss7-21 ~]# kubectl apply -f example.com

查看promethus targets —-> kubernetes-pods


  • grafana可以导入面板 查看更多信息

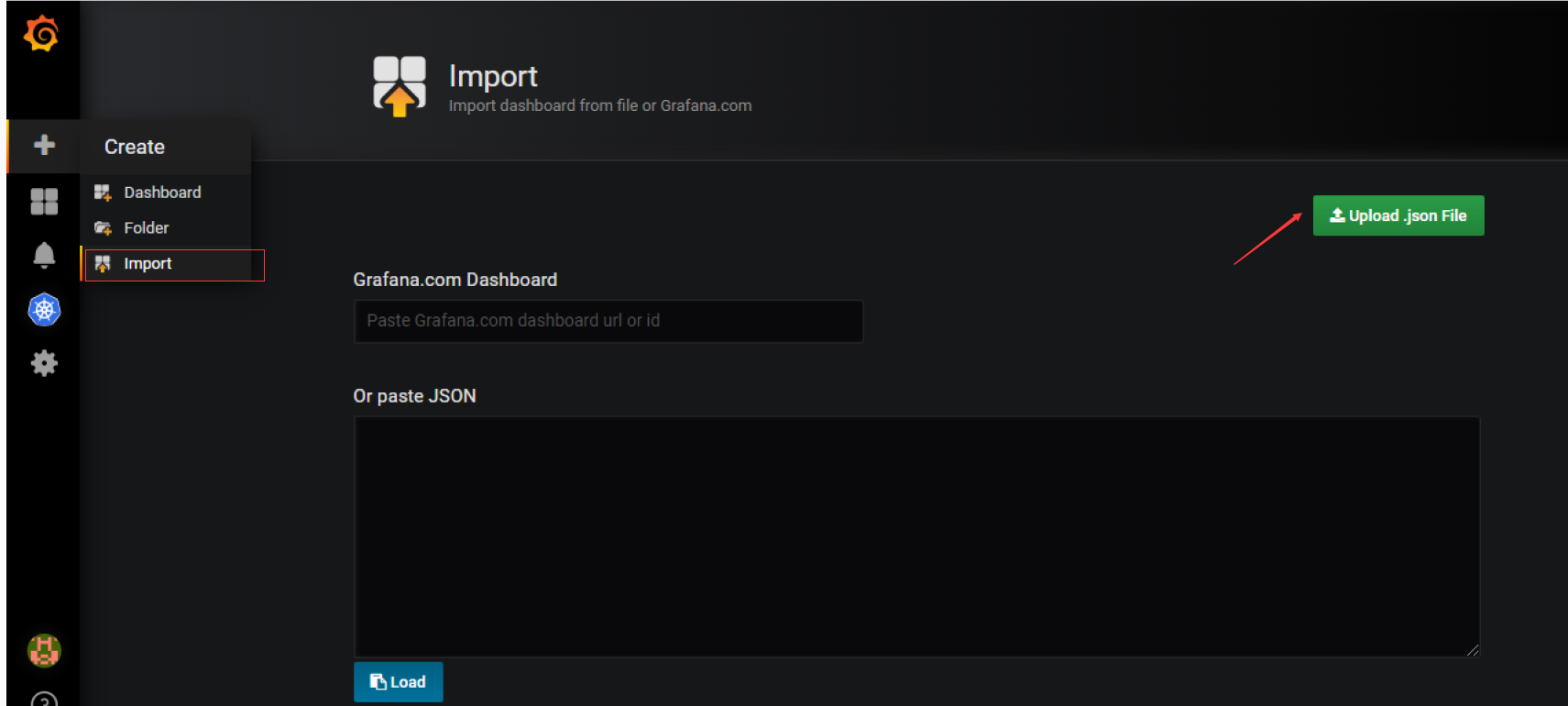

JMX Dashboard.json


6.1.4. 测试alertmanager告警

将一个在监控的pod镜像修改成不存在的镜像标签, 使得pod报错
