前言

Kubernetes1.12+版本弃用了Heapster,通过metrics-server来提供服务采集数据,但dashboardv2.0.0以前要想在UI界面中提供数据的图形化,还是需要Heapster来提供.

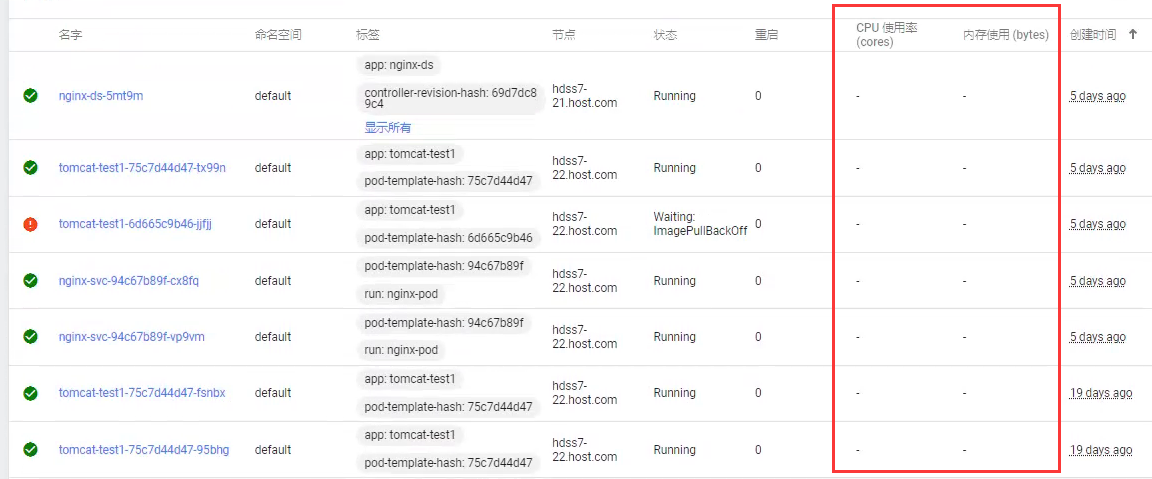

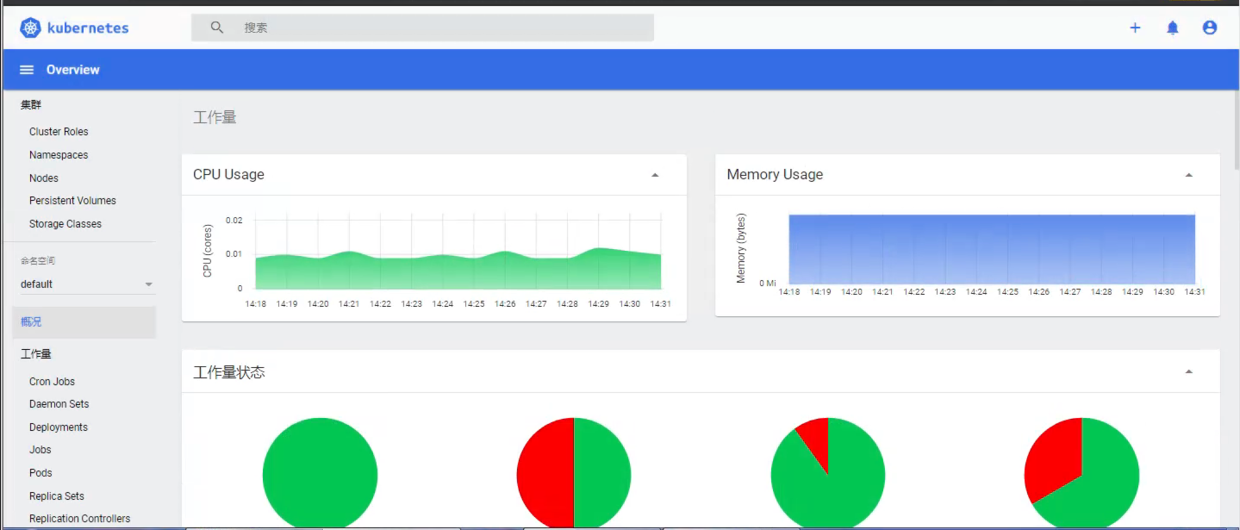

dashboard版本更新为v2.0.1并且集成了metrics-scraper来获取metrics-server采集的数据展示在dashboard的UI界面中,正式将heapster剔除.

1. 环境准备

二进制安装Kubernets1.15.2: https://www.yuque.com/duduniao/k8s/tr3hch
dashboard版本: 2.0.1
metrics-server: 0.3.3

2. 部署dashboard

2.1. 准备资源配置清单

[root@hdss7-21 ~]#  mkdir ~/dashboard
[root@hdss7-21 ~]#  cd ~/dashboard

yaml文件下载: https://github.com/kubernetes/kubernetes/blob/v1.19.0/cluster/addons/dashboard/dashboard.yaml

2.1.1. dashboard.yaml

apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: Reconcile
---
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: Reconcile
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
---
kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 443
      targetPort: 8443
  selector:
    k8s-app: kubernetes-dashboard
---
apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: EnsureExists
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque
---
apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: EnsureExists
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""
---
apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: EnsureExists
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque
---
kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: EnsureExists
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: Reconcile
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: Reconcile
  name: kubernetes-dashboard
rules:
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: Reconcile
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
  labels:
    k8s-app: kubernetes-dashboard
    addonmanager.kubernetes.io/mode: Reconcile
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard
---
kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.0.1
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      tolerations:
        - key: "CriticalAddonsOnly"
          operator: "Exists"
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
---
kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper
---
kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
      annotations:
        seccomp.security.alpha.kubernetes.io/pod: 'runtime/default'
    spec:
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.4
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
          securityContext:
            allowPrivilegeEscalation: false
            readOnlyRootFilesystem: true
            runAsUser: 1001
            runAsGroup: 2001
      serviceAccountName: kubernetes-dashboard
      nodeSelector:
        "kubernetes.io/os": linux
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

2.1.2 user.yaml 创建管理员用户资源

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: dashboard-admin-sa
  namespace: kubernetes-dashboard
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: dashboard-admin-sa
  namespace: kubernetes-dashboard
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: dashboard-admin-sa
  namespace: kubernetes-dashboard

2.1.3. ingress.yaml 创建ingress资源

如果当前没有使用ingress来提供服务, 可在dashboard的资源清单service资源指定NodePort提供服务

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
  annotations:
    kubernetes.io/ingress.class: traefik
spec:
  rules:
  - host: dashboard.odl.com
    http:
      paths:
      - backend:
          serviceName: kubernetes-dashboard
          servicePort: 443

2.2. dashboard交付至K8s

[root@hdss7-21 dashboard ]# ll  ~/dashboard
总用量 16
-rw-r--r-- 1 root root 6887 12月  7 10:42 dashboard.yaml
-rw-r--r-- 1 root root  328 12月  7 10:44 ingress.yaml
-rw-r--r-- 1 root root  605 12月  7 10:17 user.yaml
[root@hdss7-21 dashboard ]# kubectl apply -f .
namespace/kubernetes-dashboard created
serviceaccount/kubernetes-dashboard created
service/kubernetes-dashboard created
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-csrf created
secret/kubernetes-dashboard-key-holder created
configmap/kubernetes-dashboard-settings created
role.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrole.rbac.authorization.k8s.io/kubernetes-dashboard created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
clusterrolebinding.rbac.authorization.k8s.io/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created
service/dashboard-metrics-scraper created
deployment.apps/dashboard-metrics-scraper created
ingress.extensions/kubernetes-dashboard created
serviceaccount/dashboard-admin-sa created
clusterrolebinding.rbac.authorization.k8s.io/dashboard-admin-sa created

2.3. 修改DNS配置

如果使用NodePort映射端口, 可忽略此步骤

[root@hdss7-11 ~]# vim /var/named/odl.com.zone
$ORIGIN odl.com.
$TTL 600  ; 10 minutes
@       IN SOA  dns.odl.com. dnsadmin.odl.com. (
        2020091712 ; serial
        10800      ; refresh (3 hours)
        900        ; retry (15 minutes)
        604800     ; expire (1 week)
        86400      ; minimum (1 day)
        )
        NS   dns.odl.com.
$TTL 60 ; 1 minute
dns                A    10.4.7.11
harbor             A    10.4.7.200
k8s-yaml           A    10.4.7.200
traefik            A    10.4.7.10
dashboard          A    10.4.7.10

2.4. 登录dashboard界面

2.4.1. 查看secret资源token

[root@hdss7-21 ~]# kubectl get secret -n kubernetes-dashboard
NAME                               TYPE                                  DATA   AGE
dashboard-admin-sa-token-qrkdl     kubernetes.io/service-account-token   3      30m
default-token-h4p79                kubernetes.io/service-account-token   3      37m
kubernetes-dashboard-certs         Opaque                                0      37m
kubernetes-dashboard-csrf          Opaque                                1      37m
kubernetes-dashboard-key-holder    Opaque                                2      37m
kubernetes-dashboard-token-n8t4c   kubernetes.io/service-account-token   3      37m
[root@hdss7-21 ~]# kubectl describe secret dashboard-admin-sa-token-qrkdl  -n kubernetes-dashboard
Name:         dashboard-admin-sa-token-qrkdl
Namespace:    kubernetes-dashboard
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: dashboard-admin-sa
              kubernetes.io/service-account.uid: 661f4adb-b51b-46d5-b9f8-966c91161f20
Type:  kubernetes.io/service-account-token
Data
====
ca.crt:     1346 bytes
namespace:  20 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9......(省略)

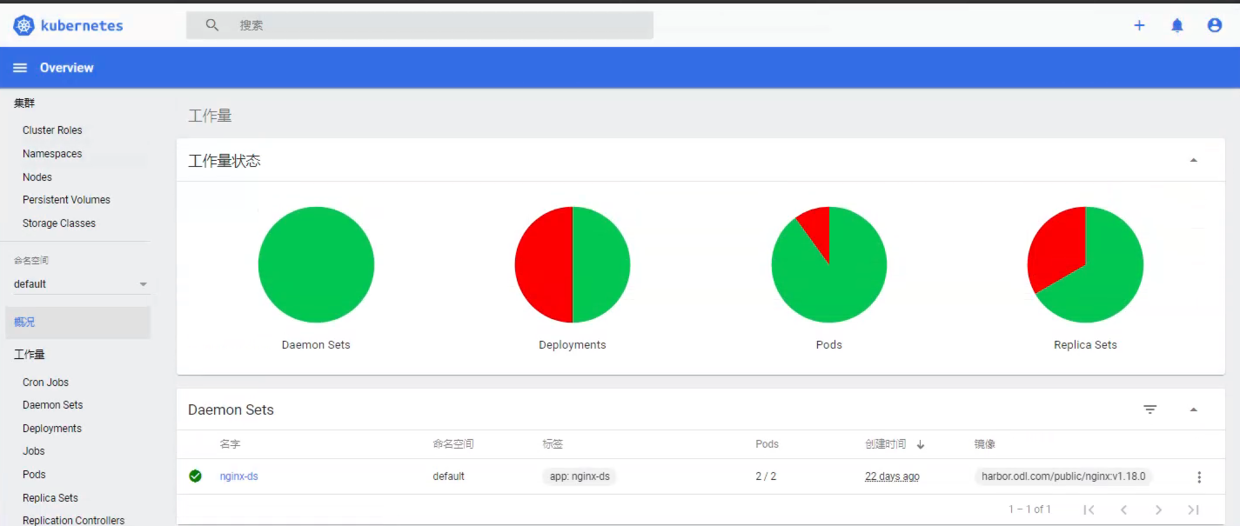

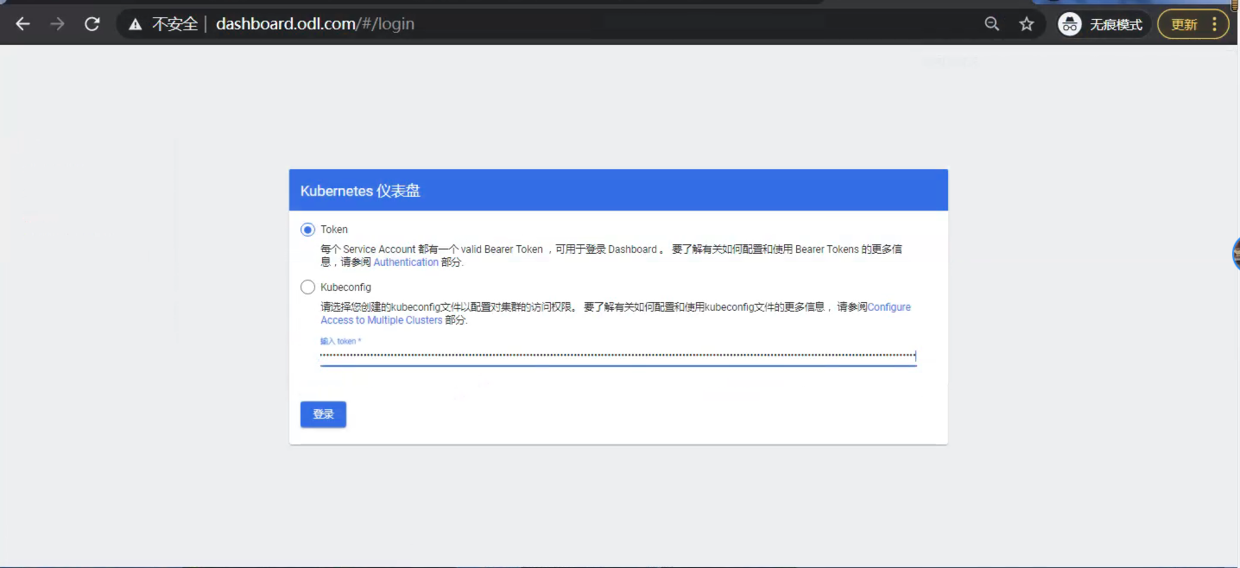

2.4.2. 使用token登录界面

3. 安装metrics-server

yaml文件: https://github.com/kubernetes/kubernetes/tree/v1.15.12/cluster/addons/metrics-server

当前metrics-server的版本为0.3.3
当前addon-resizer的版本为1.8.5 镜像的下载需要科学上网

3.1 准备资源配置清单

3.1.1. auth-delegator.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: metrics-server:system:auth-delegator
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:auth-delegator
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system

3.1.2. auth-reader.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: metrics-server-auth-reader
  namespace: kube-system
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system

3.1.3. auth-reader.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: metrics-server-auth-reader
  namespace: kube-system
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system

3.1.4. metrics-apiservice.yaml

apiVersion: apiregistration.k8s.io/v1beta1
kind: APIService
metadata:
  name: v1beta1.metrics.k8s.io
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
spec:
  service:
    name: metrics-server
    namespace: kube-system
  group: metrics.k8s.io
  version: v1beta1
  insecureSkipTLSVerify: true
  groupPriorityMinimum: 100
  versionPriority: 100

3.1.5. metrics-server-deployment.yaml

metrics-server

1. 启动command新增参数 - —kubelet-insecure-tls
2. 启动command注释参数 —kubelet-port=10250
3. 启动command注释参数 - —deprecated-kubelet-completely-insecure=true

addon-resizer

1. 修改 - —cpu={{ base_metrics_server_cpu }} ==> - —cpu=80m
2. 修改 - —memory={{ base_metrics_server_memory }} ==> - —extra-memory=80Mi
3. 修改 —extra-memory={{ metrics_server_memory_per_node }}Mi ==> —extra-memory=8Mi
4. 注释 - —minClusterSize={{ metrics_server_min_cluster_size }} ```yaml apiVersion: v1 kind: ServiceAccount metadata: name: metrics-server namespace: kube-system labels: kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile

apiVersion: v1 kind: ConfigMap metadata: name: metrics-server-config namespace: kube-system labels: kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: EnsureExists data: NannyConfiguration: |- apiVersion: nannyconfig/v1alpha1

kind: NannyConfiguration

apiVersion: apps/v1 kind: Deployment metadata: name: metrics-server-v0.3.3 namespace: kube-system labels: k8s-app: metrics-server kubernetes.io/cluster-service: “true” addonmanager.kubernetes.io/mode: Reconcile version: v0.3.3 spec: selector: matchLabels: k8s-app: metrics-server version: v0.3.3 template: metadata: name: metrics-server labels: k8s-app: metrics-server version: v0.3.3 annotations: scheduler.alpha.kubernetes.io/critical-pod: ‘’ seccomp.security.alpha.kubernetes.io/pod: ‘docker/default’ spec: priorityClassName: system-cluster-critical serviceAccountName: metrics-server containers:

  - name: metrics-server
    image: k8s.gcr.io/metrics-server-amd64:v0.3.3
    command:
    - /metrics-server
    - --metric-resolution=30s
    # These are needed for GKE, which doesn't support secure communication yet.
    # Remove these lines for non-GKE clusters, and when GKE supports token-based auth.
    #- --kubelet-port=10255
    #- --deprecated-kubelet-completely-insecure=true
    - --kubelet-preferred-address-types=InternalIP,Hostname,InternalDNS,ExternalDNS,ExternalIP
    - --kubelet-insecure-tls
    ports:
    - containerPort: 443
      name: https
      protocol: TCP
  - name: metrics-server-nanny
    image: k8s.gcr.io/addon-resizer:1.8.5
    resources:
      limits:
        cpu: 100m
        memory: 300Mi
      requests:
        cpu: 5m
        memory: 50Mi
    env:
      - name: MY_POD_NAME
        valueFrom:
          fieldRef:
            fieldPath: metadata.name
      - name: MY_POD_NAMESPACE
        valueFrom:
          fieldRef:
            fieldPath: metadata.namespace
    volumeMounts:
    - name: metrics-server-config-volume
      mountPath: /etc/config
    command:
      - /pod_nanny
      - --config-dir=/etc/config
      #- --cpu={{ base_metrics_server_cpu }}
      - --cpu=80m
      - --extra-cpu=0.5m
      #- --memory={{ base_metrics_server_memory }}
      - --memory=80Mi
      #- --extra-memory={{ metrics_server_memory_per_node }}Mi
      - --extra-memory=8Mi
      - --threshold=5
      - --deployment=metrics-server-v0.3.3
      - --container=metrics-server
      - --poll-period=300000
      - --estimator=exponential
      # Specifies the smallest cluster (defined in number of nodes)
      # resources will be scaled to.
      # 注释
      # - --minClusterSize={{ metrics_server_min_cluster_size }}
  volumes:
    - name: metrics-server-config-volume
      configMap:
        name: metrics-server-config
  tolerations:
    - key: "CriticalAddonsOnly"
      operator: "Exists"

<a name="W3mlL"></a>
### 3.1.6. [metrics-server-service.yaml](https://github.com/kubernetes/kubernetes/blob/v1.15.12/cluster/addons/metrics-server/metrics-server-service.yaml)
```yaml
apiVersion: v1
kind: Service
metadata:
  name: metrics-server
  namespace: kube-system
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
    kubernetes.io/name: "Metrics-server"
spec:
  selector:
    k8s-app: metrics-server
  ports:
  - port: 443
    protocol: TCP
    targetPort: https

3.1.7. resource-reader.yaml

rules.resources 添加资源 - nodes/stats参数

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: system:metrics-server
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
rules:
- apiGroups:
  - ""
  resources:
  - pods
  - nodes
  - namespaces
  # 添加
  - nodes/stats
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - "extensions"
  resources:
  - deployments
  verbs:
  - get
  - list
  - update
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: system:metrics-server
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:metrics-server
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system

3.2. 开启apiserver聚合层

1. 在master节点要能访问metrics server pod ip（kubeadm部署默认已经满足该条件，二进制部署需注意要在master节点也部署node组件）
2. 二进制安装需要开启聚合层（kubeadm默认已经启用，二进制部署需自己启用）
3. 如果您未在 master 节点上运行 kube-proxy，则必须确保 kube-apiserver 启动参数中包含—enable-aggregator-routing=true

   3.2.1. cfssl生成证书

   涉及到hdss7-200签发证书服务器

[root@hdss7-200 certs]# vim metrics-server-csr.json
{
  "CN": "aggregator",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "BeiJing",
      "L": "BeiJing",
      "O": "odl",
      "OU": "System"
    }
  ]
[root@hdss7-200 certs]# cfssl gencert \
-ca=/opt/certs/ca.pem \
-ca-key=/opt/certs/ca-key.pem \
-config=/opt/certs/ca-config.json \
-profile=clent metrics-server-csr.json | cfssl-json -bare metrics-server

报错: {“code”:5100,”message”:”Invalid policy: no key usage available”} -profile=kubernetes metrics-server-csr.json 的kubernetes 在ca-config.json文件中不存在 ca-config.json添加 ``` “kubernetes”: { “expiry”: “175200h”, “usages”: [ “signing”, “key encipherment”, “client auth” ] },

3.2.2. 将证书复制至所有master节点

[root@hdss7-200 cert]# ll metrics-server*
-rw-r--r-- 1 root root  997 12月  7 16:38 metrics-server.csr
-rw-r--r-- 1 root root  220 12月  7 16:19 metrics-server-csr.json
-rw------- 1 root root 1675 12月  7 16:38 metrics-server-key.pem
-rw-r--r-- 1 root root 1371 12月  7 16:38 metrics-server.pem
[root@hdss7-200 certs]# scp metrics-server.pem metrics-server-key.pem hdss7-21:/opt/kubernetes/server/bin/certs
[root@hdss7-200 certs]# scp metrics-server.pem metrics-server-key.pem hdss7-22:/opt/kubernetes/server/bin/certs

3.2.3. 所有apiserver启动文件添加参数

[root@hdss7-21 ~]# vim /opt/kubernetes/server/bin/kube-apiserver-startup.sh
/opt/kubernetes/server/bin/kube-apiserver
    .....
    .....
    --requestheader-client-ca-file=./certs/ca.pem \
    --requestheader-allowed-names="aggregator" \
    --requestheader-extra-headers-prefix=X-Remote-Extra- \
    --requestheader-group-headers=X-Remote-Group \
    --requestheader-username-headers=X-Remote-User \
    --proxy-client-cert-file=./certs/metrics-server.pem \
    --proxy-client-key-file=./certs/metrics-server-key.pem

3.2.4. 所有kubelet添加authentication-token-webhook参数

[root@hdss7-21 ~]# vim /opt/kubernetes/server/bin/kubelet-startup.sh
/opt/kubernetes/server/bin/kubelet \
          ...
          ...
          --authentication-token-webhook=true

3.2.5. 重启apiserver和kubelet

supervisor是用Python开发的一个client/server服务，是Linux/Unix系统下的一个进程管理工具

[root@hdss7-21 ~]# supervisorctl restart kube-apiserver-7-21 kube-kubelet-7-21
[root@hdss7-22 ~]# supervisorctl restart kube-apiserver-7-22 kube-kubelet-7-22

3.3. metrics-server交付至k8s

[root@hdss7-21 metrics-server]# ll
总用量 24
-rw-r--r-- 1 root root  398 11月 27 17:16 auth-delegator.yaml
-rw-r--r-- 1 root root  420 11月 27 17:16 auth-reader.yaml
-rw-r--r-- 1 root root  393 11月 27 17:18 metrics-apiservice.yaml
-rw-r--r-- 1 root root 3220 12月  7 10:02 metrics-server-deployment.yaml
-rw-r--r-- 1 root root  336 11月 27 17:19 metrics-server-service.yaml
-rw-r--r-- 1 root root  817 12月  1 17:26 resource-reader.yaml
[root@hdss7-21 metrics-server]# kubectl apply -f .
horization.k8s.io/metrics-server:system:auth-delegator created
rolebinding.rbac.authorization.k8s.io/metrics-server-auth-reader created
apiservice.apiregistration.k8s.io/v1beta1.metrics.k8s.io created
clusterrole.rbac.authorization.k8s.io/system:metrics-server created
clusterrolebinding.rbac.authorization.k8s.io/system:metrics-server created
serviceaccount/metrics-server created
configmap/metrics-server-config created
deployment.apps/metrics-server-v0.3.3 created
service/metrics-server created

3.4. 查看kubectl top是否有信息

等待几分钟后查看

[root@hdss7-21 ~]#  kubectl top nodes
NAME                STATUS   ROLES         AGE     VERSION
hdss7-21.host.com   Ready    master,node   5d21h   v1.15.12
hdss7-22.host.com   Ready    master,node   22d     v1.15.12

3.5. 登录dashboard界面查看

至此,Kubernetes-dashboard安装metrics-server实现完整的性能数据采集和监控功能
如有疑问,可留下评论.
