大数剧-flink-高级编程A

  • flink开发source、operator、sink、状态与容错

一、flink开发source、operator、sink

1. 计算模型


2.DataSource

输入Controlling Latency （控制延迟）
默认情况下，流中的元素并不会一个一个的在网络中传输(这会导致不必要的网络流量消耗) ，而是缓存起来，缓存的大小可以在Flink的配置文件、 ExecutionEnvironment、在某个算子上进行配置（默认100ms）
· 好处:提高吞吐
· 坏处:增加了延迟
· 如何把握平衡

  • 为了最大吞吐量，可以设置setBufferTimeout(-1)，这会移除timeout机制，缓存中的数据一满就会被发送
  • 为了最小的延迟，可以将超时设置为接近0的数（例如5或者10ms）
  • 缓存的超时不要设置为0，因为设置为0会带来一些性能的损耗

内置数据源

  1. 基于文件

env**.**readTextFile**(**"file:///path"**)** env**.**readFile**(**inputFormat**,** "file:///path"**);**

  1. 基于Socket
    env**.**socketTextStream**(**"localhost"**,** 6666**,** '\n'**)**
  1. 基于Collection
  1. env.socketTextStream("localhost", 6666, '\n')import org.apache.flink.api.scala._
  2. env.fromCollection(List(1,2,3))
  3. env.fromElements(1,2,3)
  4. env.generateSequence(0, 1000)       #不需要隐式转换

自定义数据源

  1. 实现SourceFunction（非并行的）

示例代码：
function：

  1. package cn.zhanghub.source;
  2. import org.apache.flink.streaming.api.functions.source.SourceFunction;
  3. import org.apache.hadoop.conf.Configuration;
  4. import org.apache.hadoop.fs.FSDataInputStream;
  5. import org.apache.hadoop.fs.FileChecksum;
  6. import org.apache.hadoop.fs.FileSystem;
  7. import org.apache.hadoop.fs.Path;
  8. import java.io.BufferedReader;
  9. import java.io.InputStreamReader;
  10. public class FileCountryDictSourceFunction implements SourceFunction<String> {
  11.     private String md5 = null;
  12.     private Boolean isCancel = true;
  13.     private Integer interval = 10000;
  14.     @Override
  15.     public void run(SourceContext<String> ctx) throws Exception {
  16.         Path pathString = new Path("hdfs://ns1/user/qingniu/country_data");
  17.         Configuration hadoopConf = new Configuration();
  18.         FileSystem fs = FileSystem.get(hadoopConf);
  19.         while (isCancel) {
  20.             if(!fs.exists(pathString)){
  21.                 Thread.sleep(interval);
  22.                 continue;
  23.             }
  24.             FileChecksum fileChecksum = fs.getFileChecksum(pathString);
  25.             String md5Str = fileChecksum.toString();
  26.             String currentMd5 = md5Str.substring(md5Str.indexOf(":") + 1);
  27.             if (!currentMd5.equals(md5)) {
  28.                 FSDataInputStream open = fs.open(pathString);
  29.                 BufferedReader reader = new BufferedReader(new InputStreamReader(open));
  30.                 String line = reader.readLine();
  31.                 while (line != null) {
  32.                     ctx.collect(line);
  33.                     line = reader.readLine();
  34.                 }
  35.                 reader.close();
  36.                 md5 = currentMd5;
  37.             }
  38.             Thread.sleep(interval);
  39.         }
  40.     }
  41.     @Override
  42.     public void cancel() {
  43.         isCancel = false;
  44.     }
  45. }

运行时：

  1. package cn.zhanghub.source;
  2. import org.apache.flink.streaming.api.datastream.DataStreamSource;
  3. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  4. public class FileSource {
  5.     public static void main(String[] args) throws Exception {
  6.         StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  7.         DataStreamSource<String> stringDataStreamSource = env.addSource(new FileCountryDictSourceFunction());
  8.         stringDataStreamSource.print();
  9.         env.execute();
  10.     }
  11. }
  1. 实现ParallelSourceFunction与RichParallelSourceFunction（并行的）

以Kafka-connector-source为代表
· 基于Kafka 的partition 机制，Flink实现了并行化数据切分
· Flink 可以消费Kafka的topic，和sink数据到Kafka
· 出现失败时，flink通过checkpoint机制来协调Kafka来恢复应用（通过设置kafka的offset）
引入依赖：
flink支持的kafka版本对比：

  1. <dependency>
  2.     <groupId>org.apache.flink</groupId>
  3.     <artifactId>flink-connector-kafka-0.10_2.11</artifactId>
  4.     <version>1.9.3</version>
  5.     <scope>compile</scope>
  6. </dependency>

flink支持的kafka版本对比：

| Maven Dependency | 支持自 | Class name | Kafka版本 | 说明 | | —- | —- | —- | —- | —- |

| flink-connector-kafka- 0.8_2.11 | 1.0.0 | FlinkKafkaConsumer08 FlinkKafkaProducer08 | 0.8.x | 内部使用kakfa的 SimpleConsumer API 。 Flink把Offset提交给Zookeeper |

| flink-connector-kafka- 0.9_2.11 | 1.0.0 | FlinkKafkaConsumer09 FlinkKafkaProducer09 | 0.9.x | 使用kafka的new Consumer API Kafka. |

| flink-connector-kafka- 0.10_2.11 | 1.2.0 | FlinkKafkaConsumer010 FlinkKafkaProducer010 | 0.10.x | 生产和消费支持 Kafka messages with timestamps |

1).Flink KafkaConsumer 的 Source API
1.FlinkKafkaConsumer010创建方式：

  1. FlinkKafkaConsumer010(String topic, KeyedDeserializationSchema<T> deserializer, Properties props)
  2. FlinkKafkaConsumer010(List<String> topics, DeserializationSchema<T> deserializer, Properties props)
  3. FlinkKafkaConsumer010(List<String> topics, KeyedDeserializationSchema<T> deserializer, Properties props)
  4. FlinkKafkaConsumer010(Pattern subscriptionPattern, KeyedDeserializationSchema<T> deserializer, Properties props)
  • 三个构造参数:
  • 要消费的topic（topic name / topic names/正表达式）
  • DeserializationSchema / KeyedDeserializationSchema（反序列化Kafka中的数据)）
  • Kafka consumer的属性，其中三个属性必须提供:
  • bootstrap.servers（逗号分隔的Kafka broker列表）
  • zookeeper.connect（逗号分隔的Zookeeper server列表，仅Kafka 0.8需要)）
  • group.id（consumer group id）

2.反序列化Schema类型

  • 作用:对kafka里获取的二进制数据进行反序列化
  • FlinkKafkaConsumer需要知道如何将Kafka中的二进制数据转换成Java/Scala对象，DeserializationSchema定义了该转换模式，通过T deserialize(byte[] message)
  • FlinkKafkaConsumer从kafka获取的每条消息都会通过DeserializationSchema的T deserialize(byte[] message)反序列化处理
  • 反序列化Schema类型（接口）:
  • DeserializationSchema(只反序列化value)
  • KeyedDeserializationSchema

3.常见反序列化Schema

  • SimpleStringSchema
  • JSONDeserializationSchema / JSONKeyValueDeserializationSchema
  • TypeInformationSerializationSchema / TypeInformationKeyValueSerializationSchema
  • AvroDeserializationSchema

4.自定义反序列化Schema：

  • 实现DeserializationSchema与KeyedDeserializationSchema接口

DeserializationSchema：

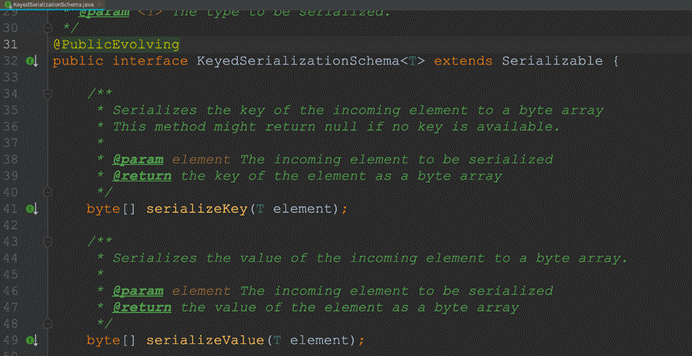

KeyedDeserializationSchema：
bean:

  1. package cn.zhanghub.source;
  2. public class HainiuKafkaRecord {
  3.     private String record;
  4.     public HainiuKafkaRecord(String record) {
  5.         this.record = record;
  6.     }
  7.     public String getRecord() {
  8.         return record;
  9.     }
  10.     public void setRecord(String record) {
  11.         this.record = record;
  12.     }
  13. }

schema：

  1. package cn.zhanghub.source;
  2. import org.apache.flink.api.common.serialization.DeserializationSchema;
  3. import org.apache.flink.api.common.typeinfo.TypeInformation;
  4. import java.io.IOException;
  5. public class HainiuKafkaRecordSchema implements DeserializationSchema<HainiuKafkaRecord> {
  6.    @Override
  7.    public HainiuKafkaRecord deserialize(byte[] message) throws IOException {
  8.        HainiuKafkaRecord hainiuKafkaRecord = new HainiuKafkaRecord(new String(message));
  9.        return hainiuKafkaRecord;
  10.    }
  11.    @Override
  12.    public boolean isEndOfStream(HainiuKafkaRecord nextElement) {
  13.        return false;
  14.    }
  15.    @Override
  16.    public TypeInformation<HainiuKafkaRecord> getProducedType() {
  17.        return TypeInformation.of(HainiuKafkaRecord.class);
  18.    }
  19. }

5.FlinkKafkaConsumer010最简样版代码
6.FlinkKafkaConsumer消费

| 消费模式 | 说明 | | | —- | —- | —- |

| setStartFromEarliest | 从队头开始，最早的记录 | 内部的Consumer提交到Kafka/zk中的偏移量将被忽略 |

| setStartFromLatest | 从队尾开始，最新的记录 | |

| setStartFromGroupOffsets() | 默认值，从当前消费组记录的偏移量开始，接着上次的偏移量消费 | 以Consumer提交到Kafka/zk中的偏移量最为起始位置开始消费, group.id设置在consumer的properties里; 如果没找到记录的偏移量，则使用consumer的properties的 auto.offset.reset设置的策略 |

| setStartFromSpecificOffsets(Map的参数) | 从指定的具体位置开始消费 | |

| setStartFromTimestamp(long) | 从指定的时间戳开始消费 | 对于每个分区，时间戳大于或等于指定时间戳的记录将用作起始位 置。如果一个分区的最新记录早于时间戳，那么只需要从最新记录 中读取该分区。在此模式下，Kafka/zk中提交的偏移量将被忽略 |

注意

  1. kafka 0.8版本， consumer提交偏移量到zookeeper，后续版本提交到kafka（一个特殊的topic: __consumer_offsets）

7.动态Partition discovery

  • Flink Kafka Consumer支持动态发现Kafka分区，且能保证exactly-once
  • 默认禁止动态发现分区，把flink.partition-discovery.interval-millis设置大于0即可启用:

properties.setProperty(“flink.partition-discovery.interval-millis”, “30000”)
8.动态Topic discovery

  • Flink Kafka Consumer支持动态发现Kafka Topic，仅限通过正则表达式指定topic的方式
  • 默认禁止动态发现topic，把flink.partition-discovery.interval-millis设置大于0即可启用

示例代码：

  1. package cn.zhanghub.source;
  2. import org.apache.flink.api.common.serialization.SimpleStringSchema;
  3. import org.apache.flink.streaming.api.datastream.DataStreamSource;
  4. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  5. import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
  6. import java.util.Properties;
  7. import java.util.regex.Pattern;
  8. public class KafkaRichParallelSource {
  9.     public static void main(String[] args) throws Exception {
  10.         StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  11.         Properties kafkaConsumerProps = new Properties();
  12.         kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  13.         kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  14.         kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  15.         FlinkKafkaConsumer010<String> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new SimpleStringSchema(), kafkaConsumerProps);
  16. //        FlinkKafkaConsumer010<String> kafkaSource = new FlinkKafkaConsumer010<>(Pattern.compile("flink_event_[0-9]"), new SimpleStringSchema(), kafkaConsumerProps);
  17.         //    kafkaSource.setStartFromEarliest()
  18.         //    kafkaSource.setStartFromGroupOffsets()
  19.         kafkaSource.setStartFromLatest();
  20.         DataStreamSource<String> kafkaInput = env.addSource(kafkaSource);
  21.         kafkaInput.print();
  22.         FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaBeanSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  23.         DataStreamSource<HainiuKafkaRecord> kafkaBeanInput = env.addSource(kafkaBeanSource);
  24.         kafkaBeanInput.print();
  26.         env.execute();
  27.     }
  28. }

3.transformations

下图展示了 Flink 中目前支持的主要几种流的类型，以及它们之间的转换关系。
DataStream
DataStream 是 Flink 流处理 API 中最核心的数据结构。它代表了一个运行在多个分区上的并行流。一个 DataStream 可以从 StreamExecutionEnvironment 通过env.addSource(SourceFunction) 获得。
DataStream 上的转换操作都是逐条的，比如 map()，flatMap()，filter()
自定义转换函数
1.函数
scala函数
data.flatMap(f => f.split(“ “))
java的lambda
data.flatMap(f -> f.split(“ “));
2.实现接口

  1. text.flatMap(new FlatMapFunction[String,String] {
  2.       override def flatMap(value: String, out: Collector[String]) = {
  3.         val strings: Array[String] = value.split(" ")
  4.         for(s <- strings){
  5.          out.collect(s)
  6.         }
  7.       }
  8. })data.flatMap(f -> f.split(" "));

3.Rich Functions
Rich Function中有非常有用的四个方法:open，close，getRuntimeContext和setRuntimecontext 这些功能在创建本地状态、获取广播变量、获取运行时信息（例如累加器和计数器）和迭代信息时非常有帮助。
示例代码：

  1. import java.util.Properties
  2. import org.apache.flink.api.common.functions.RichFlatMapFunction
  3. import org.apache.flink.configuration.Configuration
  4. import org.apache.flink.util.Collector
  5. import org.apache.kafka.clients.producer.{KafkaProducer, Producer, ProducerRecord}
  6. class HainiuRichFlatMapFunction(topic:String,props:Properties) extends RichFlatMapFunction[String,Int]{
  7.   var producer:Producer[String,String] = _
  8.   override def open(parameters: Configuration): Unit = {
  9.     //创建kafka生产者
  10.     producer = new KafkaProducer[String,String](props)
  11.   }
  12.   override def close(): Unit = {
  13.     //关闭kafka生产者
  14.     producer.close()
  15.   }
  16.   override def flatMap(value: String, out: Collector[Int]): Unit = {
  17.     //使用RuntimeContext得到子线程ID，比如可以用于多线程写文件
  18.     println(getRuntimeContext.getIndexOfThisSubtask)
  19.     //发送数据到kafka
  20.     producer.send(new ProducerRecord[String,String](topic,value))
  21.   }
  22. }

operators
1.connect 与 union (合并流)

  • connect之后生成ConnectedStreams，会对两个流的数据应用不同的处理方法，并且双流之间可以共享状态（比如计数）。这在第一个流的输入会影响第二个流时, 会非常有用。union 合并多个流，新的流包含所有流的数据。
  • union是DataStream → DataStream
  • connect只能连接两个流，而union可以连接多于两个流
  • connect连接的两个流类型可以不一致，而union连接的流的类型必须一致

示例代码：
union:

  1. package cn.zhanghub.operator;
  3. import cn.zhanghub.source.FileCountryDictSourceFunction;
  4. import org.apache.flink.api.common.serialization.SimpleStringSchema;
  5. import org.apache.flink.streaming.api.datastream.DataStream;
  6. import org.apache.flink.streaming.api.datastream.DataStreamSource;
  7. import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
  8. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  9. import org.apache.flink.streaming.api.functions.ProcessFunction;
  10. import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
  11. import org.apache.flink.util.Collector;
  13. import java.util.HashMap;
  14. import java.util.Map;
  15. import java.util.Properties;
  17. public class CountryCodeUnion {
  18.     public static void main(String[] args) throws Exception {
  19.         StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  20.         env.setParallelism(1);
  22.         DataStreamSource<String> countryDictSource = env.addSource(new FileCountryDictSourceFunction());
  24.         Properties kafkaConsumerProps = new Properties();
  25.         kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  26.         kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  27.         kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  28.         FlinkKafkaConsumer010<String> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new SimpleStringSchema(), kafkaConsumerProps);
  29.         //    kafkaSource.setStartFromEarliest()
  30.         //    kafkaSource.setStartFromGroupOffsets()
  31.         kafkaSource.setStartFromLatest();
  33.         DataStreamSource<String> kafkainput = env.addSource(kafkaSource);
  35.         DataStream<String> union = countryDictSource.union(kafkainput);
  37.         SingleOutputStreamOperator<String> process = union.process(new ProcessFunction<String, String>() {
  39.             private Map<String, String> map = new HashMap<>();
  41.             @Override
  42.             public void processElement(String value, Context ctx, Collector<String> out) throws Exception {
  43.                 String[] split = value.split("\t");
  44.                 if (split.length > 1) {
  45.                     map.put(split[0], split[1]);
  46.                     out.collect(value);
  47.                 } else {
  48.                     String countryName = map.get(value);
  49.                     String outStr = countryName == null ? "no match" : countryName;
  50.                     out.collect(outStr);
  51.                 }
  52.             }
  53.         });
  55.         process.print();
  57.         env.execute();
  58.     }
  60. }

connect:

  1. package cn.zhanghub.operator;
  2. import cn.zhanghub.source.FileCountryDictSourceFunction;
  3. import cn.zhanghub.source.HainiuKafkaRecord;
  4. import cn.zhanghub.source.HainiuKafkaRecordSchema;
  5. import org.apache.flink.streaming.api.datastream.ConnectedStreams;
  6. import org.apache.flink.streaming.api.datastream.DataStreamSource;
  7. import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
  8. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  9. import org.apache.flink.streaming.api.functions.co.CoProcessFunction;
  10. import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
  11. import org.apache.flink.util.Collector;
  12. import java.util.HashMap;
  13. import java.util.Map;
  14. import java.util.Properties;
  15. public class CountryCodeConnect {
  16.    public static void main(String[] args) throws Exception {
  17.        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  18.        env.setParallelism(1);
  19.        DataStreamSource<String> countryDictSource = env.addSource(new FileCountryDictSourceFunction());
  20.        Properties kafkaConsumerProps = new Properties();
  21.        kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  22.        kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  23.        kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  24.        FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  25.        //    kafkaSource.setStartFromEarliest()
  26.        //    kafkaSource.setStartFromGroupOffsets()
  27.        kafkaSource.setStartFromLatest();
  28.        DataStreamSource<HainiuKafkaRecord> kafkainput = env.addSource(kafkaSource);
  29.        ConnectedStreams<String, HainiuKafkaRecord> connect = countryDictSource.connect(kafkainput);
  30.        SingleOutputStreamOperator<String> connectInput = connect.process(new CoProcessFunction<String, HainiuKafkaRecord, String>() {
  31.            private Map<String, String> map = new HashMap<String, String>();
  32.            @Override
  33.            public void processElement1(String value, Context ctx, Collector<String> out) throws Exception {
  34.                String[] split = value.split("\t");
  35.                map.put(split[0], split[1]);
  36.                out.collect(value);
  37.            }
  38.            @Override
  39.            public void processElement2(HainiuKafkaRecord value, Context ctx, Collector<String> out) throws Exception {
  40.                String countryCode = value.getRecord();
  41.                String countryName = map.get(countryCode);
  42.                String outStr = countryName == null ? "no match" : countryName;
  43.                out.collect(outStr);
  44.            }
  45.        });
  46.        connectInput.print();
  47.        env.execute();
  48.    }
  49. }

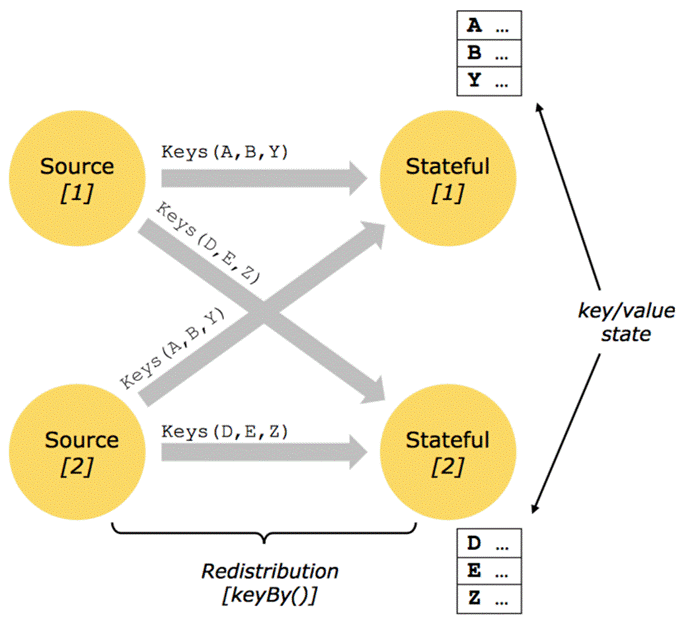

2.keyBy

  • 含义: 根据指定的key进行分组（逻辑上把DataStream分成若干不相交的分区，key一样的event会 被划分到相同的partition，内部采用类似于hash分区来实现）
  • 转换关系: DataStream → KeyedStream
  • 使用场景: 分组（类比SQL中的分组）比如join，coGroup，keyBy，groupBy，Reduce，GroupReduce，Aggregate，Windows

KeyedStream

  • KeyedStream用来表示根据指定的key进行分组的数据流。
  • 一个KeyedStream可以通过调用DataStream.keyBy()来获得。
  • 在KeyedStream上进行任何transformation都将转变回DataStream。
  • 在实现中，KeyedStream会把key的信息传入到算子的函数中。

示例代码：

  1. package cn.zhanghub.operator;
  3. import cn.zhanghub.source.FileCountryDictSourceFunction;
  4. import cn.zhanghub.source.HainiuKafkaRecord;
  5. import cn.zhanghub.source.HainiuKafkaRecordSchema;
  6. import org.apache.flink.api.common.functions.MapFunction;
  7. import org.apache.flink.api.java.functions.KeySelector;
  8. import org.apache.flink.api.java.tuple.Tuple2;
  9. import org.apache.flink.streaming.api.datastream.ConnectedStreams;
  10. import org.apache.flink.streaming.api.datastream.DataStreamSource;
  11. import org.apache.flink.streaming.api.datastream.KeyedStream;
  12. import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
  13. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  14. import org.apache.flink.streaming.api.functions.co.KeyedCoProcessFunction;
  15. import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
  16. import org.apache.flink.util.Collector;
  18. import java.util.HashMap;
  19. import java.util.Map;
  20. import java.util.Properties;
  22. public class CountryCodeConnectKeyBy {
  24.     public static void main(String[] args) throws Exception {
  25.         StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  27.         DataStreamSource<String> countryDictSource = env.addSource(new FileCountryDictSourceFunction());
  29.         Properties kafkaConsumerProps = new Properties();
  30.         kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  31.         kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  32.         kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  33.         FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  34.         //    kafkaSource.setStartFromEarliest()
  35.         //    kafkaSource.setStartFromGroupOffsets()
  36.         kafkaSource.setStartFromLatest();
  38.         DataStreamSource<HainiuKafkaRecord> kafkainput = env.addSource(kafkaSource);
  40.         KeyedStream<Tuple2<String, String>, String> countryDictKeyBy = countryDictSource.map(new MapFunction<String, Tuple2<String, String>>() {
  41.             @Override
  42.             public Tuple2<String, String> map(String value) throws Exception {
  43.                 String[] split = value.split("\t");
  44.                 return Tuple2.of(split[0], split[1]);
  45.             }
  46.         }).keyBy(new KeySelector<Tuple2<String, String>, String>() {
  47.             @Override
  48.             public String getKey(Tuple2<String, String> value) throws Exception {
  49.                 return value.f0;
  50.             }
  51.         });
  53.         KeyedStream<HainiuKafkaRecord, String> record = kafkainput.keyBy(new KeySelector<HainiuKafkaRecord, String>() {
  54.             @Override
  55.             public String getKey(HainiuKafkaRecord value) throws Exception {
  56.                 return value.getRecord();
  57.             }
  58.         });
  60.         ConnectedStreams<Tuple2<String, String>, HainiuKafkaRecord> connect = countryDictKeyBy.connect(record);
  62.         SingleOutputStreamOperator<String> connectInput = connect.process(new KeyedCoProcessFunction<String, Tuple2<String, String>, HainiuKafkaRecord, String>() {
  64.             private Map<String, String> map = new HashMap<String, String>();
  66.             @Override
  67.             public void processElement1(Tuple2<String, String> value, Context ctx, Collector<String> out) throws Exception {
  68.                 map.put(ctx.getCurrentKey(), value.f1);
  69.                 out.collect(value.toString());
  70.             }
  72.             @Override
  73.             public void processElement2(HainiuKafkaRecord value, Context ctx, Collector<String> out) throws Exception {
  74.                 String countryCode = ctx.getCurrentKey();
  75.                 String countryName = map.get(countryCode);
  76.                 String outStr = countryName == null ? "no match" : countryName;
  77.                 out.collect(outStr);
  78.             }
  79.         });
  81.         connectInput.print();
  83.         env.execute();
  85.     }
  86. }

Key的类型限制:

  • 不能是没有覆盖hashCode方法的POJO（也就是bean）
  • 不能是数组

POJO:

  1. package cn.zhanghub.source;
  3. public class HainiuKafkaRecord {
  5.     private String record;
  7.     public HainiuKafkaRecord(String record) {
  8.         this.record = record;
  9.     }
  11.     public String getRecord() {
  12.         return record;
  13.     }
  15.     public void setRecord(String record) {
  16.         this.record = record;
  17.     }
  19.     @Override
  20.     public int hashCode() {
  21.         final int prime = 31;
  22.         int result = 1;
  23.         result = prime * result + ((record == null) ? 0 : record.hashCode());
  24.         return result;
  25.     }
  26. }

示例代码：

  1. package cn.zhanghub.operator;
  3. import cn.zhanghub.source.FileCountryDictSourceFunction;
  4. import cn.zhanghub.source.HainiuKafkaRecord;
  5. import cn.zhanghub.source.HainiuKafkaRecordSchema;
  6. import org.apache.flink.api.common.functions.MapFunction;
  7. import org.apache.flink.api.java.functions.KeySelector;
  8. import org.apache.flink.api.java.tuple.Tuple2;
  9. import org.apache.flink.streaming.api.datastream.ConnectedStreams;
  10. import org.apache.flink.streaming.api.datastream.DataStreamSource;
  11. import org.apache.flink.streaming.api.datastream.KeyedStream;
  12. import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
  13. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  14. import org.apache.flink.streaming.api.functions.co.KeyedCoProcessFunction;
  15. import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
  16. import org.apache.flink.util.Collector;
  18. import java.util.HashMap;
  19. import java.util.Map;
  20. import java.util.Properties;
  22. public class CountryCodeConnectKeyByObject {
  24.     public static void main(String[] args) throws Exception {
  25.         StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  27.         DataStreamSource<String> countryDictSource = env.addSource(new FileCountryDictSourceFunction());
  29.         Properties kafkaConsumerProps = new Properties();
  30.         kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  31.         kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  32.         kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  33.         FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  34.         //    kafkaSource.setStartFromEarliest()
  35.         //    kafkaSource.setStartFromGroupOffsets()
  36.         kafkaSource.setStartFromLatest();
  38.         DataStreamSource<HainiuKafkaRecord> kafkainput = env.addSource(kafkaSource);
  40.         KeyedStream<Tuple2<HainiuKafkaRecord, String>, HainiuKafkaRecord> countryDictKeyBy = countryDictSource.map(new MapFunction<String, Tuple2<HainiuKafkaRecord, String>>() {
  41.             @Override
  42.             public Tuple2<HainiuKafkaRecord, String> map(String value) throws Exception {
  43.                 String[] split = value.split("\t");
  44.                 return Tuple2.of(new HainiuKafkaRecord(new String(split[0])), split[1]);
  45.             }
  46.         }).keyBy(new KeySelector<Tuple2<HainiuKafkaRecord, String>, HainiuKafkaRecord>() {
  47.             @Override
  48.             public HainiuKafkaRecord getKey(Tuple2<HainiuKafkaRecord, String> value) throws Exception {
  49.                 return value.f0;
  50.             }
  51.         });
  53.         KeyedStream<HainiuKafkaRecord, HainiuKafkaRecord> record = kafkainput.keyBy(new KeySelector<HainiuKafkaRecord, HainiuKafkaRecord>() {
  54.             @Override
  55.             public HainiuKafkaRecord getKey(HainiuKafkaRecord value) throws Exception {
  56.                 return value;
  57.             }
  58.         });
  60.         ConnectedStreams<Tuple2<HainiuKafkaRecord, String>, HainiuKafkaRecord> connect = countryDictKeyBy.connect(record);
  62.         SingleOutputStreamOperator<String> connectInput = connect.process(new KeyedCoProcessFunction<HainiuKafkaRecord, Tuple2<HainiuKafkaRecord, String>, HainiuKafkaRecord, String>() {
  64.             private Map<String, String> map = new HashMap<String, String>();
  66.             @Override
  67.             public void processElement1(Tuple2<HainiuKafkaRecord, String> value, Context ctx, Collector<String> out) throws Exception {
  68.                 String currentKey = ctx.getCurrentKey().getRecord();
  69.                 map.put(currentKey, value.f1);
  70.                 out.collect(value.toString());
  71.             }
  73.             @Override
  74.             public void processElement2(HainiuKafkaRecord value, Context ctx, Collector<String> out) throws Exception {
  75.                 HainiuKafkaRecord currentKey = ctx.getCurrentKey();
  76.                 String countryName = map.get(currentKey.getRecord());
  77.                 String outStr = countryName == null ? "no match" : countryName;
  78.                 out.collect(currentKey.toString() + "--" + outStr);
  79.             }
  80.         });
  82.         connectInput.print();
  84.         env.execute();
  86.     }
  87. }

*可能会出现数据倾斜，可根据实际情况结合物理分区来解决
3.物理分区
算子间数据传递模式

  • One-to-one streams 保持元素的分区和顺序
  • Redistributing streams

改变流的分区策略取决于使用的算子

  • keyBy()（re-partitions by hashing the key）
  • broadcast()
  • rebalance()（which re-partitions randomly）

都是Transformation，都可以改变分区

| 分区Transformation | 说明 | | —- | —- |

| Random partitioning | 按均匀分布随机划分元素，网络开销往往比较大 dataStream.shuffle() |

| Round-robin partitioning | 循环对元素进行分区，为每一个分区创建相等的负载，这在数据倾斜时非常有用的: dataStream.rebalance() |

| Rescaling | 跟rebalance有点类似，但不是全局的，通过轮询调度将元素从上游的task一个子 集发送到下游task的一个子集: dataStream.rescale(); |

| Broadcasting | 将元素广播到每个分区上 dataStream.broadcast(); |

| Custom partitioning | dataStream.partitionCustom(partitioner, “someKey”) 或 dataStream.partitionCustom(partitioner, 0) |

4.解决数据倾斜
1).One-to-one streams 解决数据倾斜的方法：
rebalance

  • 含义：再平衡，用来减轻数据倾斜
  • 转换关系: DataStream → DataStream
  • 使用场景：处理数据倾斜，比如某个kafka的partition的数据比较多

示例代码：

  1. val stream: DataStream[MyType] = env.addSource(new FlinkKafkaConsumer08[String](...))
  2. val str1: DataStream[(String, MyType)] = stream.flatMap { ... }
  3. val str2: DataStream[(String, MyType)] = str1.rebalance()
  4. val str3: DataStream[AnotherType] = str2.map { ... }

上述 DataStream 上的转换在运行时会转换成如下的执行图：
如上图的执行图所示，DataStream 各个算子会并行运行，算子之间是数据流分区。如 Source 的第一个并行实例（S1）和 flatMap() 的第一个并行实例（m1）之间就是一个数据流分区。而在 flatMap() 和 map() 之间由于加了 rebalance()，它们之间的数据流分区就有3个子分区（m1的数据流向3个map()实例）。
rescale

  • 原理：通过轮询调度将元素从上游的task一个子集发送到下游task的一个子集
  • 转换关系：DataStream → DataStream
  • 使用场景：数据传输都在一个TaskManager内，不需要通过网络。

原理：
第一个task并行度为2，第二个task并行度为6，第三个task并行度为2。从第一个task到第二个task，Src的 子集Src1 和 Map的子集Map1，2，3对应起来，Src1会以轮询调度的方式分别向Map1，2，3发送记录。 从第二个task到第三个task，Map的子集1，2，3对应Sink的子集1，这三个流的元素只会发送到Sink1。 假设我们每个TaskManager有三个Slot，并且我们开了SlotSharingGroup，那么通过rescale，所有的数据传输都在一个TaskManager内，不需要通过网络。
2).Redistributing streams 解决数据倾斜的方法：
自定义partitioner

  • 转换关系：DataStream → DataStream
  • 使用场景：自定义数据处理负载
  • 实现方法：
  • 实现org.apache.flink.api.common.functions.Partitioner接口
  • 覆盖partition方法
  • 设计算法返回partitionId

示例代码：

  1. package cn.zhanghub.operator;
  3. import cn.zhanghub.source.FileCountryDictSourceFunction;
  4. import cn.zhanghub.source.HainiuKafkaRecord;
  5. import cn.zhanghub.source.HainiuKafkaRecordSchema;
  6. import org.apache.flink.api.common.functions.MapFunction;
  7. import org.apache.flink.api.common.functions.Partitioner;
  8. import org.apache.flink.api.java.functions.KeySelector;
  9. import org.apache.flink.api.java.tuple.Tuple2;
  10. import org.apache.flink.streaming.api.datastream.ConnectedStreams;
  11. import org.apache.flink.streaming.api.datastream.DataStream;
  12. import org.apache.flink.streaming.api.datastream.DataStreamSource;
  13. import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
  14. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  15. import org.apache.flink.streaming.api.functions.co.CoProcessFunction;
  16. import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
  17. import org.apache.flink.util.Collector;
  19. import java.util.HashMap;
  20. import java.util.Map;
  21. import java.util.Properties;
  23. public class CountryCodeConnectCustomPartitioner {
  25.     public static void main(String[] args) throws Exception {
  26.         StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  28.         DataStreamSource<String> countryDictSource = env.addSource(new FileCountryDictSourceFunction());
  30.         Properties kafkaConsumerProps = new Properties();
  31.         kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  32.         kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  33.         kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  34.         FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  35.         //    kafkaSource.setStartFromEarliest()
  36.         //    kafkaSource.setStartFromGroupOffsets()
  37.         kafkaSource.setStartFromLatest();
  39.         DataStreamSource<HainiuKafkaRecord> kafkainput = env.addSource(kafkaSource);
  41.         DataStream<Tuple2<String, String>> countryDictPartition = countryDictSource.map(new MapFunction<String, Tuple2<String, String>>() {
  42.             @Override
  43.             public Tuple2<String, String> map(String value) throws Exception {
  44.                 String[] split = value.split("\t");
  45.                 return Tuple2.of(split[0], split[1]);
  46.             }
  47.         }).partitionCustom(new Partitioner<String>() {
  48.             @Override
  49.             public int partition(String key, int numPartitions) {
  50.                 if (key.contains("CN")) {
  51.                     return 0;
  52.                 } else {
  53.                     return 1;
  54.                 }
  55.             }
  56.         }, new KeySelector<Tuple2<String, String>, String>() {
  57.             @Override
  58.             public String getKey(Tuple2<String, String> value) throws Exception {
  59.                 return value.f0;
  60.             }
  61.         });
  64.         DataStream<HainiuKafkaRecord> recordPartition = kafkainput.partitionCustom(new Partitioner<String>() {
  65.             @Override
  66.             public int partition(String key, int numPartitions) {
  67.                 if (key.contains("CN")) {
  68.                     return 0;
  69.                 } else {
  70.                     return 1;
  71.                 }
  72.             }
  73.         }, new KeySelector<HainiuKafkaRecord, String>() {
  74.             @Override
  75.             public String getKey(HainiuKafkaRecord value) throws Exception {
  76.                 return value.getRecord();
  77.             }
  78.         });
  80.         ConnectedStreams<Tuple2<String, String>, HainiuKafkaRecord> connect = countryDictPartition.connect(recordPartition);
  82.         SingleOutputStreamOperator<String> connectInput = connect.process(new CoProcessFunction<Tuple2<String, String>, HainiuKafkaRecord, String>() {
  84.             private Map<String, String> map = new HashMap<String, String>();
  86.             @Override
  87.             public void processElement1(Tuple2<String, String> value, Context ctx, Collector<String> out) throws Exception {
  88.                 map.put(value.f0, value.f1);
  89.                 out.collect(value.toString());
  90.             }
  92.             @Override
  93.             public void processElement2(HainiuKafkaRecord value, Context ctx, Collector<String> out) throws Exception {
  94.                 String countryCode = value.getRecord();
  95.                 String countryName = map.get(countryCode);
  96.                 String outStr = countryName == null ? "no match" : countryName;
  97.                 out.collect(outStr);
  98.             }
  99.         });
  101.         connectInput.print();
  103.         env.execute();
  105.     }
  106. }

使用parititoner解决数据倾斜

  1. package cn.zhanghub.flink.operator;
  3. import cn.zhanghub.flink.source.FileCountryDictSourceFunction;
  4. import cn.zhanghub.flink.source.HainiuKafkaRecord;
  5. import cn.zhanghub.flink.source.HainiuKafkaRecordSchema;
  6. import org.apache.flink.api.common.functions.FlatMapFunction;
  7. import org.apache.flink.api.common.functions.MapFunction;
  8. import org.apache.flink.api.common.functions.Partitioner;
  9. import org.apache.flink.api.java.functions.KeySelector;
  10. import org.apache.flink.api.java.tuple.Tuple2;
  11. import org.apache.flink.configuration.Configuration;
  12. import org.apache.flink.streaming.api.datastream.ConnectedStreams;
  13. import org.apache.flink.streaming.api.datastream.DataStream;
  14. import org.apache.flink.streaming.api.datastream.DataStreamSource;
  15. import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
  16. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  17. import org.apache.flink.streaming.api.functions.co.CoProcessFunction;
  18. import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
  19. import org.apache.flink.util.Collector;
  21. import java.util.HashMap;
  22. import java.util.Map;
  23. import java.util.Properties;
  24. import java.util.Random;
  26. public class CountryCodeConnectCustomPartitioner {
  28.     public static void main(String[] args) throws Exception {
  29.         StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(new Configuration());
  31.         Properties kafkaConsumerProps = new Properties();
  32.         kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  33.         kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  34.         kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  36.         FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  37.         kafkaSource.setStartFromLatest();
  39.         DataStreamSource<HainiuKafkaRecord> kafkaInput = env.addSource(kafkaSource);
  40.         DataStream<HainiuKafkaRecord> kafka = kafkaInput.map(new MapFunction<HainiuKafkaRecord, HainiuKafkaRecord>() {
  41.             @Override
  42.             public HainiuKafkaRecord map(HainiuKafkaRecord value) throws Exception {
  43.                 String record = value.getRecord();
  44.                 Random random = new Random();
  45.                 int i = random.nextInt(10);
  46.                 return new HainiuKafkaRecord(i + "_" + record);
  47.             }
  48.         }).partitionCustom(new Partitioner<HainiuKafkaRecord>() {
  49.                                @Override
  50.                                public int partition(HainiuKafkaRecord key, int numPartitions) {
  51.                                    String[] s = key.getRecord().split("_");
  52.                                    String randomId = s[0];
  53.                                    return new Integer(randomId);
  54.                                }
  55.                            },
  56.                 new KeySelector<HainiuKafkaRecord, HainiuKafkaRecord>() {
  57.                     @Override
  58.                     public HainiuKafkaRecord getKey(HainiuKafkaRecord value) throws Exception {
  59.                         return value;
  60.                     }
  61.                 });
  63.         DataStreamSource<String> countryDictSource = env.addSource(new FileCountryDictSourceFunction());
  65.         DataStream<Tuple2<HainiuKafkaRecord, String>> countryDict = countryDictSource.flatMap(new FlatMapFunction<String, Tuple2<HainiuKafkaRecord, String>>() {
  66.             @Override
  67.             public void flatMap(String value, Collector<Tuple2<HainiuKafkaRecord, String>> out) throws Exception {
  68.                 String[] split = value.split("\t");
  69.                 String key = split[0];
  70.                 String values = split[1];
  71.                 for (int i = 0; i < 10; i++) {
  72.                     String randomKey = i + "_" + key;
  73.                     Tuple2<HainiuKafkaRecord, String> t2 = Tuple2.of(new HainiuKafkaRecord(randomKey), values);
  74.                     out.collect(t2);
  75.                 }
  76.             }
  77.         }).partitionCustom(new Partitioner<HainiuKafkaRecord>() {
  78.             @Override
  79.             public int partition(HainiuKafkaRecord key, int numPartitions) {
  80.                 String[] s = key.getRecord().split("_");
  81.                 String randomId = s[0];
  82.                 return new Integer(randomId);
  83.             }
  84.         }, new KeySelector<Tuple2<HainiuKafkaRecord, String>, HainiuKafkaRecord>() {
  85.             @Override
  86.             public HainiuKafkaRecord getKey(Tuple2<HainiuKafkaRecord, String> value) throws Exception {
  87.                 return value.f0;
  88.             }
  89.         });
  92.         ConnectedStreams<Tuple2<HainiuKafkaRecord, String>, HainiuKafkaRecord> connect = countryDict.connect(kafka);
  94.         SingleOutputStreamOperator<String> connectInput = connect.process(new CoProcessFunction<Tuple2<HainiuKafkaRecord, String>, HainiuKafkaRecord, String>() {
  95.             private Map<String, String> map = new HashMap<String, String>();
  97.             @Override
  98.             public void processElement1(Tuple2<HainiuKafkaRecord, String> value, Context ctx, Collector<String> out) throws Exception {
  99.                 map.put(value.f0.getRecord(), value.f1);
  100.                 out.collect(value.toString());
  101.             }
  103.             @Override
  104.             public void processElement2(HainiuKafkaRecord value, Context ctx, Collector<String> out) throws Exception {
  105.                 String countryName = map.get(value.getRecord());
  106.                 String outStr = countryName == null ? "no match" : countryName;
  107.                 out.collect(outStr);
  108.             }
  109.         });
  111.         connectInput.print();
  113.         env.execute();
  115.     }
  116. }

5.reduce 与 fold

  • 分组之后当然要对分组之后的数据也就是KeyedStream进行各种聚合操作啦
  • KeyedStream → DataStream
  • 对于KeyedStream的聚合操作都是滚动的（rolling，在前面的状态基础上继续聚合），千万不要理解为批处理时的聚合操作（DataSet，其实也是滚动聚合，只不过他只把最后的结果给了我们）
  • | 聚合操作 | 意义 | | —- | —- |

| reduce | KeyedStream流上，将上一次reduce的结果和本次的进行操作 |

| fold | 对keyedStream流上的event进行连接操作 |

| sum/min/minBy/max/maxBy | reduce的特例，min和minBy的区别是min返回的是一个最小值，而minBy返回的是其字段中包含最小值的元素(同样原理适用于max和maxBy) |

| process | 底层的聚合操作 |

示例代码：

  1. package cn.zhanghub.operator;
  3. import cn.zhanghub.source.FileCountryDictSourceFunction;
  4. import cn.zhanghub.source.HainiuKafkaRecord;
  5. import cn.zhanghub.source.HainiuKafkaRecordSchema;
  6. import org.apache.flink.api.common.functions.MapFunction;
  7. import org.apache.flink.api.common.functions.ReduceFunction;
  8. import org.apache.flink.api.java.functions.KeySelector;
  9. import org.apache.flink.api.java.tuple.Tuple2;
  10. import org.apache.flink.streaming.api.datastream.ConnectedStreams;
  11. import org.apache.flink.streaming.api.datastream.DataStreamSource;
  12. import org.apache.flink.streaming.api.datastream.KeyedStream;
  13. import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
  14. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  15. import org.apache.flink.streaming.api.functions.co.KeyedCoProcessFunction;
  16. import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
  17. import org.apache.flink.util.Collector;
  18. import org.apache.flink.util.OutputTag;
  20. import java.util.HashMap;
  21. import java.util.Map;
  22. import java.util.Properties;
  24. public class CountryCodeConnectKeyByCountryCount {
  26.     public static void main(String[] args) throws Exception {
  27.         StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  29.         DataStreamSource<String> countryDictSource = env.addSource(new FileCountryDictSourceFunction());
  31.         Properties kafkaConsumerProps = new Properties();
  32.         kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  33.         kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  34.         kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  35.         FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  36.         //    kafkaSource.setStartFromEarliest()
  37.         //    kafkaSource.setStartFromGroupOffsets()
  38.         kafkaSource.setStartFromLatest();
  40.         DataStreamSource<HainiuKafkaRecord> kafkainput = env.addSource(kafkaSource);
  42.         KeyedStream<Tuple2<String, String>, String> countryDictKeyBy = countryDictSource.map(new MapFunction<String, Tuple2<String, String>>() {
  43.             @Override
  44.             public Tuple2<String, String> map(String value) throws Exception {
  45.                 String[] split = value.split("\t");
  46.                 return Tuple2.of(split[0], split[1]);
  47.             }
  48.         }).keyBy(new KeySelector<Tuple2<String, String>, String>() {
  49.             @Override
  50.             public String getKey(Tuple2<String, String> value) throws Exception {
  51.                 return value.f0;
  52.             }
  53.         });
  55.         KeyedStream<HainiuKafkaRecord, String> record = kafkainput.keyBy(new KeySelector<HainiuKafkaRecord, String>() {
  56.             @Override
  57.             public String getKey(HainiuKafkaRecord value) throws Exception {
  58.                 return value.getRecord();
  59.             }
  60.         });
  62.         ConnectedStreams<Tuple2<String, String>, HainiuKafkaRecord> connect = countryDictKeyBy.connect(record);
  64.         SingleOutputStreamOperator<Tuple2<String, Integer>> connectInput = connect.process(new KeyedCoProcessFunction<String, Tuple2<String, String>, HainiuKafkaRecord, Tuple2<String, Integer>>() {
  66.             private Map<String, String> map = new HashMap<String, String>();
  68.             @Override
  69.             public void processElement1(Tuple2<String, String> value, Context ctx, Collector<Tuple2<String, Integer>> out) throws Exception {
  70.                 map.put(ctx.getCurrentKey(), value.f1);
  71.                 out.collect(Tuple2.of(value.f0, 1));
  72.             }
  74.             @Override
  75.             public void processElement2(HainiuKafkaRecord value, Context ctx, Collector<Tuple2<String, Integer>> out) throws Exception {
  76.                 String countryCode = ctx.getCurrentKey();
  77.                 String countryName = map.get(countryCode);
  78.                 String outStr = countryName == null ? "no match" : countryName;
  79.                 out.collect(Tuple2.of(countryName.substring(0, countryName.indexOf(" ")), 1));
  80.             }
  81.         });
  83.         SingleOutputStreamOperator<Tuple2<String, Integer>> reduce = connectInput.keyBy(0).reduce(new ReduceFunction<Tuple2<String, Integer>>() {
  84.             @Override
  85.             public Tuple2<String, Integer> reduce(Tuple2<String, Integer> value1, Tuple2<String, Integer> value2) throws Exception {
  86.                 return Tuple2.of(value1.f0, value1.f1 + value2.f1);
  87.             }
  88.         });
  90.         reduce.print();
  92.         env.execute();
  93.     }
  94. }

6.OutputTab（拆分流）

  • 只能在processFunction中使用
  • 根据条件输出不同类型的数据

示例代码：

  1. package cn.zhanghub.operator;
  3. import cn.zhanghub.source.FileCountryDictSourceFunction;
  4. import cn.zhanghub.source.HainiuKafkaRecord;
  5. import cn.zhanghub.source.HainiuKafkaRecordSchema;
  6. import org.apache.flink.api.common.functions.MapFunction;
  7. import org.apache.flink.api.common.functions.ReduceFunction;
  8. import org.apache.flink.api.java.functions.KeySelector;
  9. import org.apache.flink.api.java.tuple.Tuple2;
  10. import org.apache.flink.streaming.api.datastream.ConnectedStreams;
  11. import org.apache.flink.streaming.api.datastream.DataStreamSource;
  12. import org.apache.flink.streaming.api.datastream.KeyedStream;
  13. import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
  14. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  15. import org.apache.flink.streaming.api.functions.co.KeyedCoProcessFunction;
  16. import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010;
  17. import org.apache.flink.util.Collector;
  18. import org.apache.flink.util.OutputTag;
  20. import java.util.HashMap;
  21. import java.util.Map;
  22. import java.util.Properties;
  24. public class CountryCodeConnectKeyByCountryCountOutputTag {
  26.     private static final OutputTag<String> ot = new OutputTag<String>("china") {
  27.     };
  29.     public static void main(String[] args) throws Exception {
  30.         StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  32.         DataStreamSource<String> countryDictSource = env.addSource(new FileCountryDictSourceFunction());
  34.         Properties kafkaConsumerProps = new Properties();
  35.         kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  36.         kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  37.         kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  38.         FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  39.         //    kafkaSource.setStartFromEarliest()
  40.         //    kafkaSource.setStartFromGroupOffsets()
  41.         kafkaSource.setStartFromLatest();
  43.         DataStreamSource<HainiuKafkaRecord> kafkainput = env.addSource(kafkaSource);
  45.         KeyedStream<Tuple2<String, String>, String> countryDictKeyBy = countryDictSource.map(new MapFunction<String, Tuple2<String, String>>() {
  46.             @Override
  47.             public Tuple2<String, String> map(String value) throws Exception {
  48.                 String[] split = value.split("\t");
  49.                 return Tuple2.of(split[0], split[1]);
  50.             }
  51.         }).keyBy(new KeySelector<Tuple2<String, String>, String>() {
  52.             @Override
  53.             public String getKey(Tuple2<String, String> value) throws Exception {
  54.                 return value.f0;
  55.             }
  56.         });
  58.         KeyedStream<HainiuKafkaRecord, String> record = kafkainput.keyBy(new KeySelector<HainiuKafkaRecord, String>() {
  59.             @Override
  60.             public String getKey(HainiuKafkaRecord value) throws Exception {
  61.                 return value.getRecord();
  62.             }
  63.         });
  65.         ConnectedStreams<Tuple2<String, String>, HainiuKafkaRecord> connect = countryDictKeyBy.connect(record);
  67.         SingleOutputStreamOperator<Tuple2<String, Integer>> connectInput = connect.process(new KeyedCoProcessFunction<String, Tuple2<String, String>, HainiuKafkaRecord, Tuple2<String, Integer>>() {
  69.             private Map<String, String> map = new HashMap<String, String>();
  71.             @Override
  72.             public void processElement1(Tuple2<String, String> value, Context ctx, Collector<Tuple2<String, Integer>> out) throws Exception {
  73.                 map.put(ctx.getCurrentKey(), value.f1);
  74.                 out.collect(Tuple2.of(value.f0, 1));
  75.             }
  77.             @Override
  78.             public void processElement2(HainiuKafkaRecord value, Context ctx, Collector<Tuple2<String, Integer>> out) throws Exception {
  79.                 String countryCode = ctx.getCurrentKey();
  80.                 String countryName = map.get(countryCode);
  81.                 String outStr = countryName == null ? "no match" : countryName;
  82.                 if (outStr.contains("中国")) {
  83.                     ctx.output(ot, outStr);
  84.                 }
  85.                 out.collect(Tuple2.of(countryName.substring(0, countryName.indexOf(" ")), 1));
  86.             }
  87.         });
  89.         SingleOutputStreamOperator<Tuple2<String, Integer>> reduce = connectInput.keyBy(1).reduce(new ReduceFunction<Tuple2<String, Integer>>() {
  90.             @Override
  91.             public Tuple2<String, Integer> reduce(Tuple2<String, Integer> value1, Tuple2<String, Integer> value2) throws Exception {
  92.                 return Tuple2.of(value1.f0, value1.f1 + value2.f1);
  93.             }
  94.         });
  95.         reduce.print();
  96.         connectInput.getSideOutput(ot).print();
  98.         env.execute();
  99.     }
  100. }

4.sink

内置数据输出

  1. 基于文件 ```

    使用TextOutputFormat

    stream.writeAsText(“/path/to/file”)

    使用CsvOutputFormat

    stream.writeAsCsv(“/path/to/file”)
  2. 2. 基于Socket
  4. stream.writeToSocket(host, port, SerializationSchema)
  6. 3.
  7. 基于标准/错误输出

stream.writeToSocket(host, port, SerializationSchema)#注: 线上应用杜绝使用，采用抽样打印或者日志的方式 stream.print() stream.printToErr()

  4. 自定义数据输出
  6. - 实现SinkFunction     或 继承RichSinkFunction（在没有自行改变并行度的情况下，是否并行取决其父operator）
  8. 1.实现RichSinkFunction
  10. - 实现写入文件写入文件到HDFS
  12. 示例代码：<br />function：

package cn.zhanghub.sink;

import org.apache.flink.configuration.Configuration; import org.apache.flink.streaming.api.functions.sink.RichSinkFunction; import org.apache.hadoop.fs.FSDataOutputStream; import org.apache.hadoop.fs.FileSystem; import org.apache.hadoop.fs.Path;

import java.text.SimpleDateFormat; import java.util.Date;

public class HDFSSinkFunction extends RichSinkFunction {

  1. private FileSystem fs = null;
  2. private SimpleDateFormat sf = null;
  3. private String pathStr = null;
  5. @Override
  6. public void open(Configuration parameters) throws Exception {
  7.     org.apache.hadoop.conf.Configuration conf = new org.apache.hadoop.conf.Configuration();
  8.     fs = FileSystem.get(conf);
  9.     sf = new SimpleDateFormat("yyyyMMddHH");
  10.     pathStr = "hdfs://ns1/user/qingniu/flinkstreaminghdfs";
  11. }
  13. @Override
  14. public void close() throws Exception {
  15.     fs.close();
  16. }
  18. @Override
  19. public void invoke(String value, Context context) throws Exception {
  20.     if (null != value) {
  21.         String format = sf.format(new Date());
  22.         int indexOfThisSubtask = getRuntimeContext().getIndexOfThisSubtask();
  23.         StringBuilder sb = new StringBuilder();
  24.         sb.append(pathStr).append("/").append(indexOfThisSubtask).append("_").append(format);
  25.         Path path = new Path(sb.toString());
  26.         FSDataOutputStream fsd = null;
  27.         if (fs.exists(path)) {
  28.             fsd = fs.append(path);
  29.         } else {
  30.             fsd = fs.create(path);
  31.         }
  33.         fsd.write((value + "\n").getBytes("UTF-8"));
  34.         fsd.close();
  35.     }
  36. }

}

  1. 运行类：

package cn.zhanghub.sink;

import org.apache.flink.streaming.api.datastream.DataStreamSource; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

public class HDFSFile { public static void main(String[] args) throws Exception { StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment(); DataStreamSource source = env.socketTextStream(“localhost”, 6666); source.addSink(new HDFSSinkFunction()); env.execute(); } }

  1. 2.以Kafka-connector-sink<br />![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702040043.gif)<br />1.FlinkFlinkKafkaProducer创建方式：

FlinkKafkaProducer010(String brokerList, String topicId, SerializationSchema serializationSchema) FlinkKafkaProducer010(String topicId, SerializationSchema serializationSchema, Properties producerConfig) FlinkKafkaProducer010(String brokerList, String topicId, KeyedSerializationSchema serializationSchema) FlinkKafkaProducer010(String topicId, KeyedSerializationSchema serializationSchema, Properties producerConfig) FlinkKafkaProducer010(String topicId,SerializationSchema serializationSchema,Properties producerConfig,@Nullable FlinkKafkaPartitioner customPartitioner) FlinkKafkaProducer010(String topicId,KeyedSerializationSchema serializationSchema,Properties producerConfig,@Nullable FlinkKafkaPartitioner customPartitioner)

  1. 2.常见序列化Schema<br />·    TypeInformationKeyValueSerializationSchema<br />·    SimpleStringSchema<br />4.自定义序列化Schema：
  3. - 实现KeyedSerializationSchema接口
  5. **![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702040040.gif)**<br />示例代码：

case class KafkaEventP(message: String, eventTime: Long) //自定义Serializer用来进行对象序列化到kafka中 class KafkaEventPKeyedSerializationSchema extends KeyedSerializationSchema[KafkaEventP] { //序列化到kafka的key override def serializeKey(element: KafkaEventP): Array[Byte] = { element.message.getBytes() }

//序列化到kafka的value override def serializeValue(element: KafkaEventP): Array[Byte] = { s”hainiuprocessed${element.message}”.getBytes() }

//得到目标topic可以不指定，因为在创建sink的时候已经指定 override def getTargetTopic(element: KafkaEventP): String = { null } }

  1. 4.producerConfig<br />FlinkKafkaProducer内部KafkaProducer的配置<br />[https://kafka.apache.org/documentation.html ](https:_kafka.apache.org_documentation)<br />示例代码：

Properties producerPropsSns = new Properties(); producerPropsSns.setProperty(“bootstrap.servers”, “s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092”); producerPropsSns.setProperty(“retries”, “3”);

  1. 5.FlinkKafkaPartitioner
  3. - 默认使用FlinkFixedPartitioner，即每个subtask的数据写到同一个Kafka partition中
  4. - 自定义分区器：继承FlinkKafkaPartitioner
  6. 示例代码：<br />Partitioner：

package cn.zhanghub.sink;

import org.apache.flink.streaming.connectors.kafka.partitioner.FlinkKafkaPartitioner;

public class HainiuFlinkPartitioner extends FlinkKafkaPartitioner { @Override public int partition(Object record, byte[] key, byte[] value, String targetTopic, int[] partitions) { return 1; } }

  1. 运行类：

package cn.zhanghub.sink;

import org.apache.flink.api.common.serialization.SimpleStringSchema; import org.apache.flink.streaming.api.datastream.DataStreamSource; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment; import org.apache.flink.streaming.connectors.kafka.FlinkKafkaProducer010;

import java.util.Properties;

public class KafkaRichParallelSink { public static void main(String[] args) throws Exception {

  1.    StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  2.    DataStreamSource<String> source = env.socketTextStream("localhost", 6666);
  4.    Properties producerPropsSns = new Properties();
  5.    producerPropsSns.setProperty("bootstrap.servers", "s1.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  6.    producerPropsSns.setProperty("retries", "3");
  7.    //FlinkKafkaProducer010类的构造函数支持自定义kafka的partitioner，
  8.    FlinkKafkaProducer010 kafkaOut = new FlinkKafkaProducer010<String>("flink_event_result",
  9.            new SimpleStringSchema(),
  10.            producerPropsSns,new HainiuFlinkPartitioner());
  12.    source.addSink(kafkaOut);
  14.    env.execute();

} }

  1. ## 二、状态与容错
  2. ## 1.Flink恢复机制
  3. **1.** **通过配置重生策略进行容错**<br />·    Flink支持不同的重启策略，这些策略控制在出现故障时如何重新启动job
  5. |
  6. Restart Strategy
  7.  | 配置项
  8.  | 默认值
  9.  | 说明
  10.  |
  11. | --- | --- | --- | --- |
  13. |
  14. 固定延迟（Fixed delay）
  15.  | restart-strategy:fixed-delay
  16.  |
  17.  | 如果超过最大尝试次数，作业最终会失败。在连续两次重启尝试之间等待固定的时间。
  18.  |
  20. |
  21. restart-strategy.fixed-delay.attempts:3
  22.  | 1或者Integer.MAX_VALUE(启用checkpoint但未指定重启策略时)
  23.  |
  24.  |
  25.  |
  27. |
  28. restart-strategy.fixed-delay.delay:10s
  29.  | akka.ask.timeout或者10s(启用checkpoint但未指定重启策略时)
  30.  |
  31.  |
  32.  |
  34. |
  35. 失败率（Failure rate）
  36.  | restart-strategy:failure-rate
  37.  |
  38.  | 在失败后重新启动作业，但是当超过故障率（每个时间间隔的故障）时，作业最终会失败。在连续两次重启尝试之间等待固定的时间。
  39.  |
  41. |
  42. restart-strategy:failure-rate.max-failures-per-interval:3
  43.  | 1
  44.  |
  45.  |
  46.  |
  48. |
  49. restart-strategy.failure-rate.failure-rateinterval:5min
  50.  | 1 minute
  51.  |
  52.  |
  53.  |
  55. |
  56. restart-strategy:failure-rate.delay:10s
  57.  | akka.ask.timeout
  58.  |
  59.  |
  60.  |
  62. |
  63. 不恢复（No restart）
  64.  | restart-strategy:none
  65.  |
  66.  | 如果没有启用checkpointing，则使用无重启（no restart）策略。
  67.  |
  70. ·    重启策略可以在flink-conf.yaml中配置，表示全局的配置。也可以在应用代码中动态指定，会覆盖全局配置<br />固定延迟的代码

env.setRestartStrategy( RestartStrategies.fixedDelayRestart( 3, Time.of(0,TimeUnit.SECONDS) ) )

  1. 示例代码：

package cn.zhanghub.state;

import cn.zhanghub.source.FileCountryDictSourceFunction; import org.apache.flink.api.common.functions.MapFunction; import org.apache.flink.api.common.restartstrategy.RestartStrategies; import org.apache.flink.api.common.time.Time; import org.apache.flink.streaming.api.datastream.DataStreamSource; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

import java.util.concurrent.TimeUnit;

public class FileSourceRestart {

  1. public static void main(String[] args) throws Exception {
  2.     StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  4.     //恢复策略
  5.     env.setRestartStrategy(
  6.             RestartStrategies.fixedDelayRestart(
  7.                     3, // number of restart attempts
  8.                     Time.of(0, TimeUnit.SECONDS) // delay
  9.             )
  10.     );
  12.     DataStreamSource<String> stringDataStreamSource = env.addSource(new FileCountryDictSourceFunction());
  13.     stringDataStreamSource.map(new MapFunction<String, String>() {
  14.         @Override
  15.         public String map(String value) throws Exception {
  16.             System.out.println(value);
  17.             if(value.contains("中国")){
  18.                 int a = 1/0;
  19.             }
  20.             return value;
  21.         }
  22.     }).print();
  24.     env.execute();
  25. }

}

  1. 通过以上配置可以给你的程序增加生命条数，但是有个问题？能不能不仅增加生命条件，还能帮我存档？通过checkpoint加上state进行数据存档
  2. ## 2.Flink的state
  3. ### 1.什么是状态（State）
  4. ·    Flink中的状态：一般指一个具体的task/operator某时刻在内存中的状态（例如某属性的值）
  5. ### 2.状态的作用
  7. -
  8. 增量计算
  11. -
  12. - 聚合操作
  13. - 机器学习训练模式
  14. - 等等
  17. -
  18. 容错
  21. 1.
  22. - Job故障重启
  23. - 升级
  26. ### 3.没有状态的日子如何度过
  28. -
  29. Storm+Hbase，把这状态数据存放在Hbase中，计算的时候再次从Hbase读取状态数据，做更新在写入进去。这样就会有如下几个问题：
  32. -
  33. - 流计算任务和Hbase的数据存储有可能不在同一台机器上，导致性能会很差。这样经常会做远端的访问，走网络和存储
  34. - 备份和恢复是比较困难，因为Hbase是没有回滚的，要做到Exactly onces很困难。在分布式环境下，如果程序出现故障，只能重启Storm，那么Hbase的数据也就无法回滚到之前的状态。比如广告计费的这种场景，Storm+Hbase是行不通的，出现的问题是钱可能就会多算，解决以上的办法是Storm+mysql，通过mysql的回滚解决一致性的问题。但是架构会变得非常复杂。性能也会很差，要commit确保数据的一致
  35. - 对于storm而言状态数据的划分和动态扩容也是非常难做的，一个很严重的问题是所有用户都会strom上重复的做这些工作，比如搜索，广告都要在做一遍，由此限制了部门的业务发展
  38. ### 4.Flink有状态的计算
  39. ![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702040034.jpg)
  40. ### 5.Flink丰富的状态访问和高效的容错机制
  41. ![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702040032.jpg)
  42. ### 6.状态分类
  44. - Operator State
  45. - Keyed State
  46. - 特殊的：Broadcast State（1.5开始）
  47. #### 1).Operator State
  49. -
  50. 绑定到特定operator并行实例，每个operator的并行实例维护一个状态
  53. -
  54. 与key无关
  57. -
  58. 思考：一个并行度为3的source有几个状态（只考虑一个算子需要一个逻辑状态的情形）
  61. -
  62. 支持的数据类型
  65. -
  66. - ListState
  69. -
  70. 例子：FlinkKafkaConsumer
  73. -
  74. - 每个Kafka Consumer实例都维护一个topic分区和偏移量的映射作为其操作状态。
  78. ![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702040030.jpg)
  79. #### 2).Keyed State
  81. - 基于KeyedStream之上的状态，dataStream.keyBy()，只能在作用于KeyedStrem上的function/Operator里使用
  82. - KeyBy之后的Operator     State，可理解为分区过的Operator State
  83. - 每个并行keyed Operator的每个实例的每个key有一个Keyed State：即<parallel-operator-instance,key>就是一个唯一的状态，由于每个key属于一个keyed operator的并行实例，因此我们可以将其简单地理解为<operator,key>
  84. - 思考：一个并行度为2的keyed     Operator有多少个状态（只考虑一个算子需要一个逻辑状态的情形）
  86. ![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702040027.gif)
  88. -
  89. 支持的数据结构
  92. -
  93. -
  94. ValueState：保留一个可以更新和检索的值
  97. -
  98. - update(T)
  99. - value()
  102. -
  103. ListState：保存一个元素列表
  106. -
  107. - add(T)
  108. - addAll(List)
  109. - get(T)
  110. - clear()
  113. -
  114. ReducingState：保存一个值，该值表示添加到该状态所有值的聚合。
  117. -
  118. - add(T)
  121. -
  122. AggregatingState<IN,OUT>：保存一个值，该值表示添加到该状态的所有值的聚合。（与ReducingState相反，聚合类型添加到该状态的元素可以有不同类型）
  125. -
  126. - add(T)
  129. -
  130. FoldingState<T,ACC>：不推荐使用
  133. -
  134. - add(T)
  137. -
  138. MapState<UK,UV>：保存一个映射列表
  141. -
  142. - put(UK,UV)
  143. - putAll(Map<UK,UV>)
  144. - get(UK)
  150. ![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702040024.jpg)
  151. #### 3).注意：
  153. - 状态不一定存储在内存，可能驻留在磁盘或其他地方
  154. - 状态是使用RuntimeContext访问的，因此只能在Rich函数或process函数中访问
  155. #### 4).状态的表现形式
  157. -
  158. Keyed State和Operator     State，可以以两种形式存在：原始状态和托管状态。
  161. -
  162. managed（托管状态）：
  165. -
  166. - 托管状态是指Flink框架管理的状态，如ValueState，ListState，MapState等。
  167. - 通过框架提供的接口来更新和管理状态的值
  168. - 不需要序列化
  171. -
  172. raw（原始状态）
  175. -
  176. - 原始状态是由用户自行管理的具体的数据结构，Flink在做checkpoint的时候，使用byte[]来读写状态内容，对其内部数据结构一无所知
  177. - 需要序列化
  180. -
  181. 通常在DataStream上的状态推荐使用托管的状态，当用户自定义operator时，会使用到原始状态。
  184. -
  185. 大多数都是托管状态，除非自定义实现。
  188. ## 3.Flink的checkpoint
  189. ### 1).状态容错
  191. - 有了状态自然需要状态容错，否则状态就失去意义了
  192. - Flink状态容错的机制就是checkpoint
  193. ### 2).状态容错示意图
  195. ![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702040021.jpg)
  196. ### 3).状态容错示意图（checkpoint）
  197. ![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702040019.jpg)
  198. ### 4).状态容错示意图（Restore）
  200. - 恢复所有状态
  201. - 设置source的位置（例如：Kafka的offset）
  203. ![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702040017.jpg)
  204. ### 5).Checkpointing是什么
  206. -
  207. 概念
  210. -
  211. - 所谓checkpoint，就是在某一时刻，将所有task的状态做一个快照(snapshot)，然后存储到State Backend
  212. - 一种连续性绘制数据流状态的机制（周期性的），该机制确保即使出现故障，程序的状态最终也将为数据流中的每一条记录提供exactly once的语意保证（只能保证flink系统内，对于sink和source需要依赖的外部的组件一同保证）
  213. - 全局快照，持久化保存所有的task / operator的State
  214. - 序列化数据集合
  215. - 注意：可以通过开关使用at      least once语意保证
  216. - 注意：Checkpoint是通过分布式snapshot实现的，没有特殊说明时snapshot和checkpoint和back-up是一个意思
  217. - 注意：State和Checkpointing不要搞混
  220. -
  221. 特点：
  224. -
  225. - 轻量级容错机制
  226. - 可异步
  227. - 全量 vs 增量
  228. - 失败情况可回滚至最近一次成功的checkpoint（自动）
  229. - 周期性（无需人工干预）
  232. ## 4.Checkpointing与State的使用
  233. **启用Checkpointing**
  234. ### 1).如何开启Checkpointing
  236. - Checkpointing默认是禁用的
  237. - 注意：迭代job目前不支持Checkpoint

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

//start a checkpoint every 1000 ms env.enableCheckpointing(1000);

//advanced options:

//set mode to exactly-once (this is the default) env.getCheckpointConfig().setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);

//make sure 500 ms of progress happen between checkpoints env.getCheckpointConfig().setMinPauseBetweenCheckpoints(500);

//checkpoints have to complete within one minute,or are discarded env.getCheckpointConfig().setCheckpointTimeout(60000);

//allow only one checkpoint to be in progress at the same time env.getCheckpointConfig().setMaxConcurrentCheckpoints(1);

//enable externalized checkpoints which are retained after job cancellation env.getCheckpointConfig().enableExternalizedCheckpoints(ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);

env.getCheckpointConfig().setFailOnCheckpointingErrors(true);

  1. ### 2).Checkpointing高级选项之checkpointMode
  2. ·    CheckpointingMode.EXACTLY_ONCE<br />·    CheckpointingMode.AT_LEAST_ONCE<br />·    如何选择：一般情况下选择EXACTLY_ONCE，除非场景要求极低的延迟（几毫秒）<br />·    注意：要想整个EXACTLY_ONCE，source和sink也要同时保证EXACTLY_ONCE<br />//set mode to exactly-once (this is the  default)  env**.**getCheckpointConfig**().**setCheckpointingMode**(**CheckpointingMode**.**EXACTLY_ONCE**);**
  3. ### 3).Checkpointing高级选项之保留策略
  5. -
  6. 默认情况下，检查点不被保留，仅用于从故障中恢复作业。可以启用外部持久化检查点，同时指定保留策略
  9. -
  10. - ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION：在作业取消时保留检查点。注意，在这种情况系，必须在取消后手动清理检查点状态。
  11. - ExternalizedCheckpointCleanup.DELETE_ON_CANCELLATION当作业被cancel时，删除检查点。检查点状态仅在作业失败时可用。

//enable externalized checkpoints which are retained after cancellation env.getCheckpointConfig().enableExternalizedCheckpoints(ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);

  1. ### 4).Checkpointing其他高级选项
  3. -
  4. checkpointing的超时时间：超过时间没有完成则会被终止
  5. <br />//checkpoints have to complete within  one minute, or are discarded
  9. env**.**getCheckpointConfig**().**setCheckpointTimeout**(**60000**);**
  11. -
  12. checkpointing最小间隔：用于指定上一个checkpoint完成之后最小等多久可以出发另一个checkpoint，当指定这个参数时，maxConcurrentCheckpoints的值为1
  13. <br />//make sure 500 ms of progress happen  between checkpoints
  17. env**.**getCheckpointConfig**().**setMinPauseBetweenCheckpoints**(**500**);**
  19. -
  20. maxConcurrentCheckpoints：指定运行中的checkpoint最多可以有多少个（设定checkpointing最小间隔时本参数即为1）
  21. <br />//allow only one checkpoint to be in  progress at the same time
  25. env**.**getCheckpointConfig**().**setMaxConcurrentCheckpoints**(**1**);**
  27. - failOnCheckpointingErrors用于指定在checkpoint发生异常的时候，是否应该fail该task，默认为true，如果设置为false，则task会拒绝checkpoint然后继续运行
  29. env**.**getCheckpointConfig**().**setFailOnCheckpointingErrors**(true);**<br />注意，当开启checkpointing对重启（no restart）策略的影响：
  31. - 如果没有启用checkpointing，就是不恢复数据。
  32. - 如果启用了checkpointing，但没有配置重启策略，则使用固定延迟（fixed-delay）策略，其中尝试重启次数是Integer>MAX_VALUE
  33. #### 1.使用Operator State方式1：实现CheckpointedFunction
  35. -
  36. Stateful function（RichFunction）实现CheckpointedFunction接口，必须实现两个方法:
  39. -
  40. - Void      snapshotState(FunctionSnapshotContext context) throws Exception
  44.         Checkpoint执行时调用<br />        一般用于原始状态与托管状态进行交换
  46. -
  47. - Void      initializeState(FunctionlnitializationContext context) throws Exception;（初始化以及恢复逻辑）
  51.         Stateful function第一次初始化时调用<br />
  52.          Stateful function从较早的checkpoint恢复时调用<br />示例代码：<br />checkpointFunction：

package cn.zhanghub.state;

import org.apache.flink.api.common.state.ListState; import org.apache.flink.api.common.state.ListStateDescriptor; import org.apache.flink.api.common.state.ValueState; import org.apache.flink.runtime.state.FunctionInitializationContext; import org.apache.flink.runtime.state.FunctionSnapshotContext; import org.apache.flink.streaming.api.checkpoint.CheckpointedFunction; import org.apache.flink.streaming.api.functions.source.RichSourceFunction; import org.apache.flink.streaming.api.functions.source.SourceFunction; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.FSDataInputStream; import org.apache.hadoop.fs.FileChecksum; import org.apache.hadoop.fs.FileSystem; import org.apache.hadoop.fs.Path;

import java.io.BufferedReader; import java.io.InputStreamReader; import java.util.List;

public class FileCountryDictSourceOperatorStateCheckpointedFunction implements SourceFunction,CheckpointedFunction {

  1. private String md5 = null;
  2. private ListState<String> ls = null;
  4. private Boolean isCancel = true;
  6. private Integer interval = 1000;
  8. @Override
  9. public void run(SourceContext<String> ctx) throws Exception {
  10.     Path pathString = new Path("hdfs://ns1/user/qingniu/country_data");
  11.     Configuration hadoopConf = new Configuration();
  12.     FileSystem fs = FileSystem.get(hadoopConf);
  13.     while (isCancel) {
  14.         if(!fs.exists(pathString)){
  15.             Thread.sleep(interval);
  16.             continue;
  17.         }
  18.         System.out.println(md5);
  19.         FileChecksum fileChecksum = fs.getFileChecksum(pathString);
  20.         String md5Str = fileChecksum.toString();
  21.         String currentMd5 = md5Str.substring(md5Str.indexOf(":") + 1);
  22.         if (!currentMd5.equals(md5)) {
  23.             FSDataInputStream open = fs.open(pathString);
  24.             BufferedReader reader = new BufferedReader(new InputStreamReader(open));
  25.             String line = reader.readLine();
  26.             while (line != null) {
  27.                 ctx.collect(line);
  28.                 line = reader.readLine();
  29.             }
  30.             reader.close();
  31.             md5 = currentMd5;
  32.         }
  33.         Thread.sleep(interval);
  34.     }
  35. }
  37. @Override
  38. public void cancel() {
  39.     isCancel = false;
  40. }
  42. @Override
  43. public void snapshotState(FunctionSnapshotContext context) throws Exception {
  44.     ls.clear();
  45.     ls.add(md5);
  46.     System.out.println("snapshotState");
  47. }
  49. @Override
  50. public void initializeState(FunctionInitializationContext context) throws Exception {
  51.     ListStateDescriptor<String> lsd = new ListStateDescriptor<String>("md5",String.class);
  52.     ls = context.getOperatorStateStore().getListState(lsd);
  53.     if (context.isRestored()){
  54.         Iterable<String> strings = ls.get();
  55.         String next = strings.iterator().next();
  56.         md5 = next;
  57.     }
  58. }

}

  1. 运行程序：

package cn.zhanghub.state;

import org.apache.flink.api.common.functions.MapFunction; import org.apache.flink.api.common.restartstrategy.RestartStrategies; import org.apache.flink.api.common.time.Time; import org.apache.flink.streaming.api.CheckpointingMode; import org.apache.flink.streaming.api.datastream.DataStreamSource; import org.apache.flink.streaming.api.environment.CheckpointConfig; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

import java.util.concurrent.TimeUnit;

public class FileSourceOperatorStateCheckpointed {

  1. public static void main(String[] args) throws Exception {
  2.     StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  4.     env.enableCheckpointing(1000);
  5.     CheckpointConfig checkpointConfig = env.getCheckpointConfig();
  6.     //保存EXACTLY_ONCE
  7.     checkpointConfig.setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);
  8.     //每次ck之间的间隔，不会重叠
  9.     checkpointConfig.setMinPauseBetweenCheckpoints(2000L);
  10.     //每次ck的超时时间
  11.     checkpointConfig.setCheckpointTimeout(20000L);
  12.     //如果ck执行失败，程序是否停止
  13.     checkpointConfig.setFailOnCheckpointingErrors(true);
  14.     //job在执行CANCE的时候是否删除ck数据
  15.     checkpointConfig.enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
  17.     //恢复策略
  18.     env.setRestartStrategy(
  19.             RestartStrategies.fixedDelayRestart(
  20.                     3, // number of restart attempts
  21.                     Time.of(0, TimeUnit.SECONDS) // delay
  22.             )
  23.     );
  25.     DataStreamSource<String> stringDataStreamSource = env.addSource(new FileCountryDictSourceOperatorStateCheckpointedFunction());
  26.     stringDataStreamSource.map(new MapFunction<String, String>() {
  27.         @Override
  28.         public String map(String value) throws Exception {
  29.             if(value.contains("中国")){
  30.                  int a = 1/0;
  31.             }
  32.             return value;
  33.         }
  34.     }).print();
  35.     env.execute();
  36. }

}

  1. 使用Operator State方式
  2. #### 2：实现ListCheckpointed
  3. （这个接口自己本身就带了一个ListState）
  5. -
  6. Stateful function（RichFunction）实现ListCheckpointed接口，只用ListState的重分配方式
  9. -
  10. 必须实现两个方法
  13. -
  14. - ListsnapshotState(long      checkpointld,long timestamp) throws Exception;
  18.         Checkpoint执行时调用<br />        这个方法的返回值，会被当成一个listState ，util.List->listState
  20. -
  21. - void      restoreState(Liststate) throws Exception;
  25.         这个方法的传入参数，实际上snapshotState返回的listState -> util.List，所以在这个方法面能直接得到listState恢复的数据。<br />        Stateful function从较早的checkpoint恢复时调用<br />示例代码：<br />ListCheckpointed：

package cn.zhanghub.state;

import org.apache.flink.streaming.api.checkpoint.ListCheckpointed; import org.apache.flink.streaming.api.functions.source.SourceFunction; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.FSDataInputStream; import org.apache.hadoop.fs.FileChecksum; import org.apache.hadoop.fs.FileSystem; import org.apache.hadoop.fs.Path;

import java.io.BufferedReader; import java.io.InputStreamReader; import java.util.ArrayList; import java.util.List;

public class FileCountryDictSourceOperatorStateListCheckpointedFunction implements SourceFunction, ListCheckpointed {

  1. private String md5 = null;
  3. private Boolean isCancel = true;
  5. private Integer interval = 1000;
  7. @Override
  8. public void run(SourceContext<String> ctx) throws Exception {
  9.     Path pathString = new Path("hdfs://ns1/user/qingniu/country_data");
  10.     Configuration hadoopConf = new Configuration();
  11.     FileSystem fs = FileSystem.get(hadoopConf);
  12.     while (isCancel) {
  13.         if (!fs.exists(pathString)) {
  14.             Thread.sleep(interval);
  15.             continue;
  16.         }
  17.         System.out.println(md5);
  18.         FileChecksum fileChecksum = fs.getFileChecksum(pathString);
  19.         String md5Str = fileChecksum.toString();
  20.         String currentMd5 = md5Str.substring(md5Str.indexOf(":") + 1);
  21.         if (!currentMd5.equals(md5)) {
  22.             FSDataInputStream open = fs.open(pathString);
  23.             BufferedReader reader = new BufferedReader(new InputStreamReader(open));
  24.             String line = reader.readLine();
  25.             while (line != null) {
  26.                 ctx.collect(line);
  27.                 line = reader.readLine();
  28.             }
  29.             reader.close();
  30.             md5 = currentMd5;
  31.         }
  32.         Thread.sleep(interval);
  33.     }
  34. }
  36. @Override
  37. public void cancel() {
  38.     isCancel = false;
  39. }
  41. @Override
  42. public List<String> snapshotState(long checkpointId, long timestamp) throws Exception {
  43.     List<String> list = new ArrayList<>();
  44.     list.add(md5);
  45.     System.out.println("snapshotState");
  46.     return list;
  47. }
  49. @Override
  50. public void restoreState(List<String> state) throws Exception {
  51.     md5 = state.get(0);
  52. }

}

  1. 运行程序：

package cn.zhanghub.state;

import org.apache.flink.api.common.functions.MapFunction; import org.apache.flink.api.common.restartstrategy.RestartStrategies; import org.apache.flink.api.common.time.Time; import org.apache.flink.streaming.api.CheckpointingMode; import org.apache.flink.streaming.api.datastream.DataStreamSource; import org.apache.flink.streaming.api.environment.CheckpointConfig; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

import java.util.concurrent.TimeUnit;

public class FileSourceOperatorStateListCheckpointed {

  1. public static void main(String[] args) throws Exception {
  2.     StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  4.     env.enableCheckpointing(1000);
  5.     CheckpointConfig checkpointConfig = env.getCheckpointConfig();
  6.     //保存EXACTLY_ONCE
  7.     checkpointConfig.setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);
  8.     //每次ck之间的间隔，不会重叠
  9.     checkpointConfig.setMinPauseBetweenCheckpoints(2000L);
  10.     //每次ck的超时时间
  11.     checkpointConfig.setCheckpointTimeout(20000L);
  12.     //如果ck执行失败，程序是否停止
  13.     checkpointConfig.setFailOnCheckpointingErrors(true);
  14.     //job在执行CANCE的时候是否删除ck数据
  15.     checkpointConfig.enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);

// //恢复策略 env.setRestartStrategy( RestartStrategies.fixedDelayRestart( 3, // number of restart attempts Time.of(0, TimeUnit.SECONDS) // delay ) );

  1.     DataStreamSource<String> stringDataStreamSource = env.addSource(new FileCountryDictSourceOperatorStateListCheckpointedFunction());
  2.     stringDataStreamSource.map(new MapFunction<String, String>() {
  3.         @Override
  4.         public String map(String value) throws Exception {
  5.             if(value.contains("中国")){
  6.                  int a = 1/0;
  7.             }
  8.             return value;
  9.         }
  10.     }).print();
  11.     env.execute();
  12. }

}

  1. **2.** **使用** **KeyedState ** **：**
  2. ##### 1.Keyed State之过期超时策略
  4. -
  5. 由于Keyed State太多，所以flink提供了针对Keyed State TTL的设置
  8. -
  9. 任何类型的keyed State都可以设置TTL。如果TTL已配置，且状态已过期，则将以最佳方式处理
  12. -
  13. 所有State collection都支持条目级别的TTL，即list、map中的条目独立expire
  16. -
  17. 用法：

StateTtlConfig ttlConfig = StateTtlConfig .newBuilder(Time.seconds(1)) .setUpdateType(StateTtlConfig.UpdateType.OnCreateAndWrite) .setStateVisibility(StateTtlConfig.StateVisibility.NeverReturnExpired) .build(); ValueStateDescriptor stateDescriptor = new ValueStateDescriptor<>(“text state”, String.class); stateDescriptor.enableTimeToLive(ttlConfig);

  2. -
  3. Refresh策略（默认是OnCreateAndWrite）：设置如何更新keyedState的最后访问时间
  6. -
  7. -
  8. StateTtlConfig.UpdateType.Disabled      - 禁用TTL，永不过期
  11. -
  12. StateTtlConfig.UpdateType.OnCreateAndWrite      - 每次写操作均更新State的最后访问时间(Create、Update)
  15. -
  16. StateTtlConfig.UpdateType.OnReadAndWrite      - 每次读写操作均更新State的最后访问时间
  21. -
  22. 状态可见性（默认是NeverReturnExpired)：设置是否返回过期的值（过期尚未清理，此时正好被访问）
  25. -
  26. - StateTtlConfig.StateVisibility.NeverReturnExpired      - 永不返回过期状态
  27. - StateTtlConfig.StateVisibility.ReturnExpiredlfNotCleanedUp      - 可以返回过期但尚未清理的状态值
  30. -
  31. TTL time等级
  34. -
  35. - setTimeCharacteristic(TimeCharacteristic      timeCharacteristic)
  36. - 目前只支持ProcessingTime
  39. ##### 2.Keyed State之过期状态清理
  41. -
  42. 清理策略
  45. -
  46. -
  47. 默认：已经过期的数据被显示读取时才会清理（可能会导致状态越来越大，后续版本会改进）
  50. -
  51. FULL_STATE_SCAN_SNAPSHOT：在checkpoint时清理full snapshot中的expired state
  54. -
  55. - CleanupFullSnapshot()
  56. - 不适用于在RocksDB state       backend上的incremental checkpointing
  61. ##### 3.Keyed State TTL的注意事项
  63. - 启用TTL增加后端状态存储的消耗
  64. - 原来没启用TTL，后来启用TTL做恢复会将导致兼容性失败和StatmigrationException(反之也一样)
  65. - TTL配置不是检查或保存点的一部分
  67. 示例代码：

package cn.zhanghub.state;

import cn.zhanghub.source.FileCountryDictSourceFunction; import cn.zhanghub.source.HainiuKafkaRecord; import cn.zhanghub.source.HainiuKafkaRecordSchema; import org.apache.flink.api.common.functions.MapFunction; import org.apache.flink.api.common.restartstrategy.RestartStrategies; import org.apache.flink.api.common.state.MapState; import org.apache.flink.api.common.state.MapStateDescriptor; import org.apache.flink.api.common.state.StateTtlConfig; import org.apache.flink.api.common.time.Time; import org.apache.flink.api.java.functions.KeySelector; import org.apache.flink.api.java.tuple.Tuple2; import org.apache.flink.configuration.Configuration; import org.apache.flink.streaming.api.CheckpointingMode; import org.apache.flink.streaming.api.datastream.ConnectedStreams; import org.apache.flink.streaming.api.datastream.DataStreamSource; import org.apache.flink.streaming.api.datastream.KeyedStream; import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator; import org.apache.flink.streaming.api.environment.CheckpointConfig; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment; import org.apache.flink.streaming.api.functions.co.KeyedCoProcessFunction; import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010; import org.apache.flink.util.Collector;

import java.util.Map; import java.util.Properties; import java.util.concurrent.TimeUnit;

public class CountryCodeConnectKeyByKeyedState {

  1. public static void main(String[] args) throws Exception {
  2.     StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  4.     env.enableCheckpointing(1000);
  5.     CheckpointConfig checkpointConfig = env.getCheckpointConfig();
  6.     //保存EXACTLY_ONCE
  7.     checkpointConfig.setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);
  8.     //每次ck之间的间隔，不会重叠
  9.     checkpointConfig.setMinPauseBetweenCheckpoints(2000L);
  10.     //每次ck的超时时间
  11.     checkpointConfig.setCheckpointTimeout(20000L);
  12.     //如果ck执行失败，程序是否停止
  13.     checkpointConfig.setFailOnCheckpointingErrors(true);
  14.     //job在执行CANCE的时候是否删除ck数据
  15.     checkpointConfig.enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
  17.     //恢复策略
  18.     env.setRestartStrategy(
  19.             RestartStrategies.fixedDelayRestart(
  20.                     3, // number of restart attempts
  21.                     Time.of(0, TimeUnit.SECONDS) // delay
  22.             )
  23.     );
  26.     DataStreamSource<String> countryDictSource = env.addSource(new FileCountryDictSourceFunction());
  28.     Properties kafkaConsumerProps = new Properties();
  29.     kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  30.     kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  31.     kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  32.     FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  33.     //    kafkaSource.setStartFromEarliest()
  34.     //    kafkaSource.setStartFromGroupOffsets()
  35.     kafkaSource.setStartFromLatest();
  37.     DataStreamSource<HainiuKafkaRecord> kafkainput = env.addSource(kafkaSource);
  39.     KeyedStream<Tuple2<String, String>, String> countryDictKeyBy = countryDictSource.map(new MapFunction<String, Tuple2<String, String>>() {
  40.         @Override
  41.         public Tuple2<String, String> map(String value) throws Exception {
  42.             String[] split = value.split("\t");
  43.             return Tuple2.of(split[0], split[1]);
  44.         }
  45.     }).keyBy(new KeySelector<Tuple2<String, String>, String>() {
  46.         @Override
  47.         public String getKey(Tuple2<String, String> value) throws Exception {
  48.             return value.f0;
  49.         }
  50.     });
  52.     KeyedStream<HainiuKafkaRecord, String> record = kafkainput.keyBy(new KeySelector<HainiuKafkaRecord, String>() {
  53.         @Override
  54.         public String getKey(HainiuKafkaRecord value) throws Exception {
  55.             return value.getRecord();
  56.         }
  57.     });
  59.     ConnectedStreams<Tuple2<String, String>, HainiuKafkaRecord> connect = countryDictKeyBy.connect(record);
  61.     SingleOutputStreamOperator<String> connectInput = connect.process(new KeyedCoProcessFunction<String, Tuple2<String, String>, HainiuKafkaRecord, String>() {
  63.         private MapState<String,String> map = null;
  65.         @Override
  66.         public void open(Configuration parameters) throws Exception {
  68.             //keyState的TTL策略
  69.             StateTtlConfig ttlConfig = StateTtlConfig
  70.                     //keyState的超时时间为100秒
  71.                     .newBuilder(Time.seconds(100))
  72.                     //当创建和更新时，重新计时超时时间
  73.                     .setUpdateType(StateTtlConfig.UpdateType.OnCreateAndWrite)
  74.                     //失败时不返回keyState的值
  75.                     //.setStateVisibility(StateTtlConfig.StateVisibility.NeverReturnExpired)
  76.                     //失败时返回keyState的值
  77.                     .setStateVisibility(StateTtlConfig.StateVisibility.ReturnExpiredIfNotCleanedUp)
  78.                     //ttl的时间处理等级目前只支持ProcessingTime
  79.                     .setTimeCharacteristic(StateTtlConfig.TimeCharacteristic.ProcessingTime)
  80.                     .build();
  82.             //从runtimeContext中获得ck时保存的状态
  83.             MapStateDescriptor<String,String> msd = new MapStateDescriptor<String, String>("map",String.class,String.class);
  84.             msd.enableTimeToLive(ttlConfig);
  85.             map = getRuntimeContext().getMapState(msd);
  86.         }
  88.         @Override
  89.         public void processElement1(Tuple2<String, String> value, Context ctx, Collector<String> out) throws Exception {
  90.             map.put(ctx.getCurrentKey(), value.f1);
  91.             out.collect(value.toString());
  92.         }
  94.         @Override
  95.         public void processElement2(HainiuKafkaRecord value, Context ctx, Collector<String> out) throws Exception {
  96.             for(Map.Entry<String,String> m:map.entries()){
  97.                 System.out.println(m.getKey());
  98.                 System.out.println(m.getValue());
  99.             }
  100.             if(value.getRecord().equals("CN")){
  101.                 int a = 1/0;
  102.             }
  103.             String countryCode = ctx.getCurrentKey();
  104.             String countryName = map.get(countryCode);
  105.             String outStr = countryName == null ? "no match" : countryName;
  106.             out.collect(outStr);
  107.         }
  108.     });
  110.     connectInput.print();
  112.     env.execute();
  113. }

}

  1. **3.使用BroadcastState：**<br />**之前的程序是使用Distribute（keyBy）的方式让数据进行shuffle完成数据的join的，那shuffle可能会带来数据倾斜的问题，那怎么能不shuffle完成数据的join呢？使用广播状态，相当于spark的广播变量的作用。**<br />1).为特殊场景而生
  3. -
  4. 特殊场景：来自一个流的一些数据需要广播到所有下游任务，在这些任务中，这些数据被本地存储并用于处理另一个流上的所有传入元素。例如：一个低吞吐量流，其中包含一组规则，我们希望对来自另一个流的所有元素按规则进行计算。
  7. -
  8. 典型应用：
  11. -
  12. - 常规事件流.connect(事件流)
  13. - 常规配置流.connect(配置流)
  17. 2).Broadcast State使用套路（三步）
  19. - 创建常规事件流DataStream /     KeyedDataStream
  20. - 创建BroadcastedStream：创建规则流 / 配置流（低吞吐）并广播
  21. - 连接两个Stream，生成BroadcastConnectedStream并实现计算处理
  22. - proccess(BroadcastProcessFunction     and KeyedBroadcastProcessFunction)
  24. 3).BroadcastProcessFunction

public abstract class BroadcastProcessFunction extends BaseBroadcastProcessFunction { public abstract void processElement(IN1 value,ReadOnlyContext ctx,Collector out) throws Exception; public abstract void processBroadcastElement(IN2 value,Context ctx,Collector out) throws Exception; }

  2. -
  3. processElement(...)：负责处理非广播流中的传入元素，他可以使用与广播状态进行匹配
  6. -
  7. processBroadcastElement(...)：负责处理广播流中的传入元素（例如规则），一般把广播流的元素添加到状态（MapState）里去备用，processElement处理业务数据时就可以使用（规则）
  10. -
  11. ReadOnlyContext和Context的不同
  14. -
  15. - ReadOnlyContext对Broadcast      State有只读权限
  16. - Context有读写权限
  20. 首先来个badCase<br />示例代码：<br />发射map类型的sourceFunction

package cn.zhanghub.source;

import org.apache.flink.streaming.api.functions.source.SourceFunction; import org.apache.hadoop.conf.Configuration; import org.apache.hadoop.fs.FSDataInputStream; import org.apache.hadoop.fs.FileChecksum; import org.apache.hadoop.fs.FileSystem; import org.apache.hadoop.fs.Path;

import java.io.BufferedReader; import java.io.InputStreamReader; import java.util.HashMap; import java.util.Map;

public class FileCountryDictSourceMapFunction implements SourceFunction> {

  1. private String md5 = null;
  3. private Boolean isCancel = true;
  5. private Integer interval = 10000;
  7. @Override
  8. public void run(SourceContext<Map<String,String>> ctx) throws Exception {
  9.     Path pathString = new Path("hdfs://ns1/user/qingniu/country_data");
  10.     Configuration hadoopConf = new Configuration();
  11.     FileSystem fs = FileSystem.get(hadoopConf);
  12.     while (isCancel) {
  13.         if(!fs.exists(pathString)){
  14.             Thread.sleep(interval);
  15.             continue;
  16.         }
  17.         FileChecksum fileChecksum = fs.getFileChecksum(pathString);
  18.         String md5Str = fileChecksum.toString();
  19.         String currentMd5 = md5Str.substring(md5Str.indexOf(":") + 1);
  20.         if (!currentMd5.equals(md5)) {
  21.             FSDataInputStream open = fs.open(pathString);
  22.             BufferedReader reader = new BufferedReader(new InputStreamReader(open));
  23.             String line = reader.readLine();
  24.             Map<String,String> map = new HashMap<>();
  25.             while (line != null) {
  26.                 String[] split = line.split("\t");
  27.                 map.put(split[0],split[1]);
  28.                 line = reader.readLine();
  29.             }
  30.             ctx.collect(map);
  31.             reader.close();
  32.             md5 = currentMd5;
  33.         }
  34.         Thread.sleep(interval);
  35.     }
  36. }
  38. @Override
  39. public void cancel() {
  40.     isCancel = false;
  41. }

}

  1. 运行类：

package cn.zhanghub.operator;

import cn.zhanghub.source.FileCountryDictSourceMapFunction; import cn.zhanghub.source.HainiuKafkaRecord; import cn.zhanghub.source.HainiuKafkaRecordSchema; import org.apache.flink.streaming.api.datastream.ConnectedStreams; import org.apache.flink.streaming.api.datastream.DataStreamSource; import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment; import org.apache.flink.streaming.api.functions.co.CoProcessFunction; import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010; import org.apache.flink.util.Collector;

import java.util.HashMap; import java.util.Map; import java.util.Properties;

public class CountryCodeConnectMap {

  1. public static void main(String[] args) throws Exception {
  2.     StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  3.     //必须设置不然匹配不上
  4.     env.setParallelism(1);
  6.     DataStreamSource<Map<String, String>> countryDictSource = env.addSource(new FileCountryDictSourceMapFunction());
  8.     Properties kafkaConsumerProps = new Properties();
  9.     kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  10.     kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  11.     kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  12.     FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  13.     //    kafkaSource.setStartFromEarliest()
  14.     //    kafkaSource.setStartFromGroupOffsets()
  15.     kafkaSource.setStartFromLatest();
  17.     DataStreamSource<HainiuKafkaRecord> kafkainput = env.addSource(kafkaSource);
  19.     ConnectedStreams<Map<String, String>, HainiuKafkaRecord> connect = countryDictSource.connect(kafkainput);
  20.     SingleOutputStreamOperator<String> connectInput = connect.process(new CoProcessFunction<Map<String, String>, HainiuKafkaRecord, String>() {
  22.         private Map<String, String> map = new HashMap<String, String>();
  24.         @Override
  25.         public void processElement1(Map<String, String> value, Context ctx, Collector<String> out) throws Exception {
  26.             for (Map.Entry<String, String> entry : value.entrySet()) {
  27.                 map.put(entry.getKey(), entry.getValue());
  28.             }
  29.             out.collect(value.toString());
  30.         }
  32.         @Override
  33.         public void processElement2(HainiuKafkaRecord value, Context ctx, Collector<String> out) throws Exception {
  34.             String countryCode = value.getRecord();
  35.             String countryName = map.get(countryCode);
  36.             String outStr = countryName == null ? "no match" : countryName;
  37.             out.collect(outStr);
  38.         }
  39.     });
  41.     connectInput.print();
  43.     env.execute();
  44. }

}

  1. 使用广播状态进行优化：

public abstract class BroadcastProcessFunction extends BaseBroadcastProcessFunction { public abstract void processElement(IN1 value,ReadOnlyContext ctx,Collector out) throws Exception; public abstract void processBroadcastElement(IN2 value,Context ctx,Collector out) throws Exception; }

  2. -
  3. processElement(...)：负责处理非广播流中的传入元素，他可以使用与广播状态进行匹配
  6. -
  7. processBroadcastElement(...)：负责处理广播流中的传入元素（例如规则），一般把广播流的元素添加到状态（MapState）里去备用，processElement处理业务数据时就可以使用（规则）
  10. -
  11. ReadOnlyContext和Context的不同
  14. -
  15. - ReadOnlyContext对Broadcast      State有只读权限
  16. - Context有读写权限
  20. 示例代码：

package cn.zhanghub.state;

import cn.zhanghub.source.FileCountryDictSourceMapFunction; import cn.zhanghub.source.HainiuKafkaRecord; import cn.zhanghub.source.HainiuKafkaRecordSchema; import org.apache.flink.api.common.restartstrategy.RestartStrategies; import org.apache.flink.api.common.state.BroadcastState; import org.apache.flink.api.common.state.MapStateDescriptor; import org.apache.flink.api.common.state.ReadOnlyBroadcastState; import org.apache.flink.api.common.time.Time; import org.apache.flink.runtime.state.memory.MemoryStateBackend; import org.apache.flink.streaming.api.CheckpointingMode; import org.apache.flink.streaming.api.datastream.BroadcastConnectedStream; import org.apache.flink.streaming.api.datastream.BroadcastStream; import org.apache.flink.streaming.api.datastream.DataStreamSource; import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator; import org.apache.flink.streaming.api.environment.CheckpointConfig; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment; import org.apache.flink.streaming.api.functions.co.BroadcastProcessFunction; import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010; import org.apache.flink.util.Collector;

import java.util.HashMap; import java.util.Map; import java.util.Properties; import java.util.concurrent.TimeUnit;

public class CountryCodeConnectMapBroadCast {

  1. private static final MapStateDescriptor<String, String> msd = new MapStateDescriptor<>("countryCodeMap", String.class, String.class);
  3. public static void main(String[] args) throws Exception {
  4.     StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  6.     env.enableCheckpointing(1000);
  7.     CheckpointConfig checkpointConfig = env.getCheckpointConfig();
  8.     //保存EXACTLY_ONCE
  9.     checkpointConfig.setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);
  10.     //每次ck之间的间隔，不会重叠
  11.     checkpointConfig.setMinPauseBetweenCheckpoints(2000L);
  12.     //每次ck的超时时间
  13.     checkpointConfig.setCheckpointTimeout(20000L);
  14.     //如果ck执行失败，程序是否停止
  15.     checkpointConfig.setFailOnCheckpointingErrors(true);
  16.     //job在执行CANCE的时候是否删除ck数据
  17.     checkpointConfig.enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
  19.     //指定保存ck的存储模式，这个是默认的
  20.     MemoryStateBackend stateBackend = new MemoryStateBackend(10 * 1024 * 1024, false);
  21.     //指定保存ck的存储模式

// FsStateBackend stateBackend = new FsStateBackend(“file:///Users/leohe/Data/output/flink/checkpoints”, true);

// RocksDBStateBackend stateBackend = new RocksDBStateBackend(“file:///Users/leohe/Data/output/flink/checkpoints”, true); env.setStateBackend(stateBackend);

  1.     //恢复策略
  2.     env.setRestartStrategy(
  3.             RestartStrategies.fixedDelayRestart(
  4.                     3, // number of restart attempts
  5.                     Time.of(0, TimeUnit.SECONDS) // delay
  6.             )
  7.     );
  10.     DataStreamSource<Map<String, String>> countryDictSource = env.addSource(new FileCountryDictSourceMapFunction());
  12.     Properties kafkaConsumerProps = new Properties();
  13.     kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  14.     kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  15.     kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  16.     FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  17.     //    kafkaSource.setStartFromEarliest()
  18.     //    kafkaSource.setStartFromGroupOffsets()
  19.     kafkaSource.setStartFromLatest();
  21.     DataStreamSource<HainiuKafkaRecord> kafkainput = env.addSource(kafkaSource);
  23.     BroadcastStream<Map<String, String>> broadcastinput = countryDictSource.broadcast(msd);
  25.     BroadcastConnectedStream<HainiuKafkaRecord, Map<String, String>> broadcastConnect = kafkainput.connect(broadcastinput);
  27.     SingleOutputStreamOperator<String> broadcastConnectInput = broadcastConnect.process(new BroadcastProcessFunction<HainiuKafkaRecord, Map<String, String>, String>() {
  29.         //private Map<String, String> map = new HashMap<String, String>();
  31.         @Override
  32.         public void processElement(HainiuKafkaRecord value, ReadOnlyContext ctx, Collector<String> out) throws Exception {
  33.             String countryCode = value.getRecord();
  34.             ReadOnlyBroadcastState<String, String> broadcastState = ctx.getBroadcastState(msd);
  35.             String countryName = broadcastState.get(countryCode);

// String countryName = map.get(countryCode); String outStr = countryName == null ? “no match” : countryName; out.collect(outStr); }

  1.         @Override
  2.         public void processBroadcastElement(Map<String, String> value, Context ctx, Collector<String> out) throws Exception {
  3.             BroadcastState<String, String> broadcastState = ctx.getBroadcastState(msd);
  4.             for (Map.Entry<String, String> entry : value.entrySet()) {
  5.                 broadcastState.put(entry.getKey(), entry.getValue());
  6.             }

// for (Map.Entry entry : value.entrySet()) { // map.put(entry.getKey(), entry.getValue()); // } out.collect(value.toString()); } });

  1.     broadcastConnectInput.print();
  3.     env.execute();
  4. }

}

  1. 广播状态的别一种使用方法，keyBy之后的：
  2. ##### 4. KeyedBroadcastProcessFunction
  4. -
  5. processElement(...)：负责处理非广播流中的传入元素
  8. -
  9. processBroadcastElement(...)：负责处理广播流中的传入元素（例如规则），一般把广播流的元素添加到状态里去备用，processElement处理业务数据时就可以使用（规则）
  12. -
  13. ReadOnlyContext和Context的不同
  16. -
  17. - ReadOnlyContext对Broadcast State有只读权限
  18. - Context有读写权限
  22. 示例代码：

package cn.zhanghub.state;

import cn.zhanghub.source.FileCountryDictSourceMapFunction; import cn.zhanghub.source.HainiuKafkaRecord; import cn.zhanghub.source.HainiuKafkaRecordSchema; import org.apache.flink.api.common.restartstrategy.RestartStrategies; import org.apache.flink.api.common.state.BroadcastState; import org.apache.flink.api.common.state.MapStateDescriptor; import org.apache.flink.api.common.state.ReadOnlyBroadcastState; import org.apache.flink.api.common.time.Time; import org.apache.flink.api.java.functions.KeySelector; import org.apache.flink.runtime.state.memory.MemoryStateBackend; import org.apache.flink.streaming.api.CheckpointingMode; import org.apache.flink.streaming.api.datastream.*; import org.apache.flink.streaming.api.environment.CheckpointConfig; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment; import org.apache.flink.streaming.api.functions.co.BroadcastProcessFunction; import org.apache.flink.streaming.api.functions.co.KeyedBroadcastProcessFunction; import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer010; import org.apache.flink.util.Collector;

import java.util.HashMap; import java.util.Map; import java.util.Properties; import java.util.concurrent.TimeUnit;

public class CountryCodeConnectMapKeyedBroadCast {

  1. private static final MapStateDescriptor<String, String> msd = new MapStateDescriptor<>("countryCodeMap", String.class, String.class);
  3. public static void main(String[] args) throws Exception {
  4.     StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  6.     env.enableCheckpointing(1000);
  7.     CheckpointConfig checkpointConfig = env.getCheckpointConfig();
  8.     //保存EXACTLY_ONCE
  9.     checkpointConfig.setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);
  10.     //每次ck之间的间隔，不会重叠
  11.     checkpointConfig.setMinPauseBetweenCheckpoints(2000L);
  12.     //每次ck的超时时间
  13.     checkpointConfig.setCheckpointTimeout(20000L);
  14.     //如果ck执行失败，程序是否停止
  15.     checkpointConfig.setFailOnCheckpointingErrors(true);
  16.     //job在执行CANCE的时候是否删除ck数据
  17.     checkpointConfig.enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
  19.     //指定保存ck的存储模式，这个是默认的
  20.     MemoryStateBackend stateBackend = new MemoryStateBackend(10 * 1024 * 1024, false);
  21.     //指定保存ck的存储模式

// FsStateBackend stateBackend = new FsStateBackend(“file:///Users/leohe/Data/output/flink/checkpoints”, true);

// RocksDBStateBackend stateBackend = new RocksDBStateBackend(“file:///Users/leohe/Data/output/flink/checkpoints”, true); env.setStateBackend(stateBackend);

  1.     //恢复策略
  2.     env.setRestartStrategy(
  3.             RestartStrategies.fixedDelayRestart(
  4.                     3, // number of restart attempts
  5.                     Time.of(0, TimeUnit.SECONDS) // delay
  6.             )
  7.     );
  9.     DataStreamSource<Map<String, String>> countryDictSource = env.addSource(new FileCountryDictSourceMapFunction());
  11.     Properties kafkaConsumerProps = new Properties();
  12.     kafkaConsumerProps.setProperty("bootstrap.servers", "s1.hadoop:9092,s2.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092");
  13.     kafkaConsumerProps.setProperty("group.id", "qingniuflink");
  14.     kafkaConsumerProps.setProperty("flink.partition-discovery.interval-millis", "30000");
  15.     FlinkKafkaConsumer010<HainiuKafkaRecord> kafkaSource = new FlinkKafkaConsumer010<>("flink_event", new HainiuKafkaRecordSchema(), kafkaConsumerProps);
  16.     //    kafkaSource.setStartFromEarliest()
  17.     //    kafkaSource.setStartFromGroupOffsets()
  18.     kafkaSource.setStartFromLatest();
  20.     DataStreamSource<HainiuKafkaRecord> kafkainput = env.addSource(kafkaSource);
  21.     KeyedStream<HainiuKafkaRecord, String> record = kafkainput.keyBy(new KeySelector<HainiuKafkaRecord, String>() {
  22.         @Override
  23.         public String getKey(HainiuKafkaRecord value) throws Exception {
  24.             return value.getRecord();
  25.         }
  26.     });
  28.     BroadcastStream<Map<String, String>> broadcastinput = countryDictSource.broadcast(msd);
  30.     BroadcastConnectedStream<HainiuKafkaRecord, Map<String, String>> broadcastConnect = record.connect(broadcastinput);
  32.     SingleOutputStreamOperator<String> broadcastConnectInput = broadcastConnect.process(new KeyedBroadcastProcessFunction<String, HainiuKafkaRecord, Map<String, String>, String>(){
  34.         //private Map<String, String> map = new HashMap<String, String>();
  36.         @Override
  37.         public void processElement(HainiuKafkaRecord value, ReadOnlyContext ctx, Collector<String> out) throws Exception {
  38.             String countryCode = ctx.getCurrentKey();
  39.             ReadOnlyBroadcastState<String, String> broadcastState = ctx.getBroadcastState(msd);
  40.             String countryName = broadcastState.get(countryCode);

// String countryName = map.get(countryCode); String outStr = countryName == null ? “no match” : countryName; out.collect(outStr); }

  1.         @Override
  2.         public void processBroadcastElement(Map<String, String> value, Context ctx, Collector<String> out) throws Exception {
  3.             BroadcastState<String, String> broadcastState = ctx.getBroadcastState(msd);
  4.             for (Map.Entry<String, String> entry : value.entrySet()) {
  5.                 broadcastState.put(entry.getKey(), entry.getValue());
  6.             }

// for (Map.Entry entry : value.entrySet()) { // map.put(entry.getKey(), entry.getValue()); // } out.collect(value.toString()); } });

  1.     broadcastConnectInput.print();
  3.     env.execute();
  4. }

}

  1. ```
  2. public class MyReduceFunctionWithKeyedState extends RichReduceFunction<Tuple2<String, Integer>> {
  3.     private ValueState<Integer> count;
  5.     @Override
  6.     public Tuple2<String, Integer> reduce(Tuple2<String, Integer> t1, Tuple2<String, Integer> t2) throws Exception {
  7.         count.update(t1.f1 + t2.f1);
  8.         return Tuple2.of(t1.f0, count.value());
  9.     }
  11.     @Override
  12.     public void open(Configuration parameters) throws Exception {
  13.         final ValueStateDescriptor<Integer> cs = new ValueStateDescriptor<>("cs", Integer.class);
  14.         /** 超时时间设置*/
  15.         StateTtlConfig ttlConfig = StateTtlConfig
  16.                 .newBuilder(Time.seconds(1))
  17.                 .setUpdateType(StateTtlConfig.UpdateType.OnCreateAndWrite)
  18.                 .setStateVisibility(StateTtlConfig.StateVisibility.NeverReturnExpired)
  19.                 .build();
  20.         cs.enableTimeToLive(ttlConfig);
  22.         count = getRuntimeContext().getState(cs);
  24.     }
  25. }

注意事项

  • 每个任务的广播状态的元素顺序有可能不一样
  • Broadcast State 保存在内存中（并不在 RocksDB ）

5.CheckPoint 原理（面试经常问）

  • 通过往source 注入barrier

  • barrier作为checkpoint的标志

    1.Barrier

  • 全局异步化是snapshot的核心机制

  • Flink分布式快照的核心概念之一就是数据栅栏（barrier）。这些barrier被插入到数据流中，作为数据流的一部分和数据一起向下流动。Barrier不会干扰正常数据，数据严格有序。一个barrier把数据流分割成两部分：一部分进入到当前快照，另一部分进入下一个快照。每一个barrier都带有快照ID，并且barrier之前的数据都进入了此快照。Barrier不会干扰数据流处理，所以非常轻量。多个不同快照的多个barrier会在流中同时出现，即多个快照可能同时创建。


  • Barrier在数据源端插入，当snapshot n的barrier插入后，系统会记录当前snapshot位置值 n（用Sn表示）。
  • 例如，在Apache Kafka中，这个变量表示某个分区中最后一条数据的偏移量。这个位置值 Sn 会被发送到一个称为checkpoint cordinator的模块。（即Flink 的 JobManager）

2. 分布式环境下的 ck 原理：
在分布式情况下：

  • operator在收到所有输入数据流中的barrier之后，在发射barrier到其输出流之前对其状态进行快照。此时，在barrier之前的数据对状态的更新已经完成，不会再依赖barrier之前数据。
  • 然后它会向其所有输出流插入一个标识 snapshot n 的barrier。当sink operator （DAG流的终点）从其输入流接收到所有barrier n时，它向checkpoint coordinator 确认 snapshot n 已完成当，所有sink 都确认了这个快照，代表快照在分布式的情况被标识为整体完成。

由于快照可能非常大，所以后端存储系统可配置。默认是存储到JobManager的内存中，但是对于生产系统，需要配置成一个可靠的分布式存储系统（例如HDFS）。状态存储完成后，operator会确认其checkpoint完成，发射出barrier到后续输出流。
快照现在包含了：

  • 对于并行输入数据源：快照创建时数据流中的位置偏移
  • 对于operator：存储在快照中的状态指针

3.Barrier 多并行度（对齐）， flink 怎么保证 Exactly Once
接收超过一个输入流的operator需要基于barrier对齐（align）输入。参见上图：

  • operator 只要一接收到某个输入流的barrier n，它就不能继续处理此数据流后续的数据，直到operator接收到其余流的barrier n。否则会将属于snapshot n 的数据和snapshot n+1的搞混
  • barrier n 所属的数据流先不处理，从这些数据流中接收到数据被放入接收缓存里（input buffer）
  • 当从最后一个流中提取到barrier n 时，operator 会发射出所有等待向后发送的数据，然后发射snapshot n 所属的barrier

  • 经过以上步骤，operator 恢复所有输入流数据的处理，优先处理输入缓存中的数据

    4.Exactly Once vs. At Least Once

  • 对齐就Exactly Once（两个Barrier之间的数据就像在一个事务里一样，sink收到所有barrier n 时提交任务），不对齐就At Least Once

  • Flink提供了在 checkpoint 时关闭对齐的方法，当 operator 接收到一个 barrier 时，就会打一个快照，而不会等待其他 barrier。
  • 跳过对齐操作使得即使在 barrier 到达时，Operator 依然继续处理输入。这就是说：operator 在 checkpoint n 创建之前，继续处理属于 checkpoint n+1 的数据。所以当异常恢复时，这部分数据就会重复，因为它们被包含在了 checkpoint n 中，同时也会在之后再次被处理。

  • 注意：对齐操作只会发生在拥有多输入运算（join）或者多个输出的 operator（重分区、分流）的场景下。所以，对于 map(), flatmap(), fliter() 等的并行操作即使在至少一次的模式中仍然会保证严格一次。

    5.使用Checkpointing的前提条件

  • 在一定时间内可回溯的datasource（故障时可以回溯数据），常见的：

  • 一般是可持久化的消息队列：例如Kafka、RabbitMQ、Amazon Kinesis、Google PubSub
  • 也可以是文件系统：HDFS、S3、GFS、NFS、Ceph
  • 可持久化存储State的存储系统，通常使用分布式文件系统（Checkpointing就是把job的所有状态都周期性持久化到存储里）
  • 一般是HDFS、S3、GFS、NFS、Ceph
  • 注意：如果想保存checkpointing的时候是exactly-once的，那也需要你的存储端支持幂特性/事务
  • 一般是hbase的rowkey，redies的key或者mysql的事务

帮我把档存到那里？

6.State Backend

选择合适的State Backend

1.什么是State Backend

  • State Backend就是用来保存快照的地方
  • 用来在Checkpointing机制中持久化所有状态的一致性快照，这些状态包括：
  • 非用户定义的状态：例如，timers、非用户自定义的stateful operators（connectors,windows）
  • 用户定义的状态：就是前面讲的用户自定义的stateful operato所使用的Keyed State and Operator State

2.目前Flink自带三个开箱即用State Backend：

1).MemoryStateBackend（默认）

  • MemoryStateBackend在Java堆上维护状态。Key/value状态和窗口运算符使用哈希表存储值和计时器等
  • Checkpoint时，MemoryStateBackend对State做一次快照，并在向JobManager发送Checkpoint确认完成的消息中带上此快照数据，然后快照就会存储在JobManager的堆内存中
  • MemoryStateBackend可以使用异步的方式进行快照（默认开启），推荐使用异步的方式避免阻塞。如果不希望异步，可以在构造的时候传入false（也可以通过全局配置文件指定），如下

StateBackend backend = new MemoryStateBackend(10_1024_1024,false); env.setStateBackend(backend);

  • 限制
  • 单个State的大小默认限制为5MB，可以在MemoryStateBackend的构造函数中增加
  • 不论如何配置，State大小都无法大于akka.framesize（JobManager和TaskManager之间发送的最大消息的大小默认是10MB）
  • JobManager必须有足够的内存大小
  • 适用场景
  • 本地开发和调试
  • 小状态job，如只使用Map、FlatMap、Filter…或Kafka Consumer

2).FsStateBackend

  • FsStateBackend在TaskManager的内存中持有正在处理的数据。Checkpoint时将state snapshot 写入文件系统目录下的文件中。文件的路径等元数据会传递给JobManager，存在其内存中 （或者在HA模式下，存储在元数据checkpoint中）。
  • FsStateBackend可以使用异步的方式进行快照（默认开启），推荐使用异步的方式避免阻塞。如果不希望异步可以在构造的时候传入false(也可以通过全局配置文件指定)，如下：
    StateBackend backend = new FsStateBackend(“hdfs://namenode:40010/flink/checkpoints”,false); env.setStateBackend(backend);
  • 适用场景
  • 大状态、长窗口、大键/值状态的job
  • 所有高可用性的情况

3).RocksDBStateBackend

  • RocksDBStateBackend将运行中的数据保存在RocksDB数据库中，（默认情况下）存储在TaskManager数据目录中，在Checkpoint时，整个RocksDB数据库将被Checkpointed到配置的文件系统和目录中。文件的路径等元数据会传递给JobManager，存在其内存中（或者在HA模式下，存储在元数据checkpoint中）。
  • RocksDBStateBackend总是执行异步快照
    StateBackend backend = new RocksDBStateBackend(“hdfs://namenode:40010/flink/checkpoints”); env.setStateBackend(backend);
  • 限制
  • RocksDB JNI API是基于byte[]，因此key和value最大支持大小为2^31个字节（2GB）。RocksDB自身在支持较大value时候有问题（merge operations in RocksDB(e.g.ListState)）
  • 适用场景
  • 超大状态，超长窗口、大键/值状态的job
  • 所有高可用性的情况
  • 与前两种状态后端对比：
  • 目前只有RocksDBStateBackend支持增量checkpoint（默认全量）
  • 状态保存在数据库中，即使用RockDB可以保存的状态量仅受可用磁盘空间量的限制，相比其他的状态后端可保存更大的状态，但开销更大（读/写需要反序列化/序列化去检索/存储状态），吞吐受到限制
· 使用RocksDBStateBackend特有配置

| 配置项 | 默认值 | 说明 | | —- | —- | —- |

| state.backend.rocksdb.localdir | （none） | |

| state.backend.rocksdb.timer-service.factory | “HEAP” | 指定timer service状态存储在哪里， HEAP/ROCKSDB |

· 代码中配置RocksDBStateBackend（可覆盖全局配置）

  1. StateBackend backend = new RocksDBStateBackend("hdfs://namenode:40010/flink/checkpoints",true);
  2. env.setStateBackend(backend);

· 需要单独引入POM依赖

  1. <dependency>
  2.     <groupId>org.apache.flink</groupId>
  3.     <artifactId>flink-statebackend-rocksdb_${scala.binary.version}</artifactId>
  4.     <version>${flink.version}</version>
  5. </dependency>

  • 默认情况下（MemoryStateBackend）：State保存在taskmanager的内存中，checkpoint存储在JobManager的内存中

    4).StateBackend总结


    1).配置StateBackend

  • 全局配置（配置文件conf/flink-conf.yaml） ```

    The backend that will be used to store operator state checkpoints

    state.backend: filesystem

Directory.for storing checkpoints

state.checkpoints.dir: hdfs:namenode:40010/flink/checkpoints

  2. - 每个job单独配置State Backend（可覆盖全局配置）

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment(); env.setStateBackend(new FsStateBackend(“hdfs://namenode:40010/flink/checkpoints”));

  1. 示例代码：

package cn.zhanghub.state;

import org.apache.flink.api.common.functions.MapFunction; import org.apache.flink.api.common.restartstrategy.RestartStrategies; import org.apache.flink.api.common.time.Time; import org.apache.flink.runtime.state.memory.MemoryStateBackend; import org.apache.flink.streaming.api.CheckpointingMode; import org.apache.flink.streaming.api.datastream.DataStreamSource; import org.apache.flink.streaming.api.environment.CheckpointConfig; import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

import java.util.concurrent.TimeUnit;

public class FileSourceOperatorStateListCheckpointedStateBackend {

  1. public static void main(String[] args) throws Exception {
  2.     StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
  4.     env.enableCheckpointing(1000);
  5.     CheckpointConfig checkpointConfig = env.getCheckpointConfig();
  6.     //保存EXACTLY_ONCE
  7.     checkpointConfig.setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);
  8.     //每次ck之间的间隔，不会重叠
  9.     checkpointConfig.setMinPauseBetweenCheckpoints(2000L);
  10.     //每次ck的超时时间
  11.     checkpointConfig.setCheckpointTimeout(20000L);
  12.     //如果ck执行失败，程序是否停止
  13.     checkpointConfig.setFailOnCheckpointingErrors(true);
  14.     //job在执行CANCE的时候是否删除ck数据
  15.     checkpointConfig.enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);
  17.     //指定保存ck的存储模式，这个是默认的
  18.     MemoryStateBackend stateBackend = new MemoryStateBackend(10 * 1024 * 1024, false);
  19.     //指定保存ck的存储模式

// FsStateBackend stateBackend = new FsStateBackend(“file:///Users/leohe/Data/output/flink/checkpoints”, true);

// RocksDBStateBackend stateBackend = new RocksDBStateBackend(“file:///Users/leohe/Data/output/flink/checkpoints”, true); env.setStateBackend(stateBackend);

  1.     //恢复策略
  2.     env.setRestartStrategy(
  3.             RestartStrategies.fixedDelayRestart(
  4.                     3, // number of restart attempts
  5.                     Time.of(0, TimeUnit.SECONDS) // delay
  6.             )
  7.     );
  9.     DataStreamSource<String> stringDataStreamSource = env.addSource(new FileCountryDictSourceOperatorStateListCheckpointedFunction());
  10.     stringDataStreamSource.map(new MapFunction<String, String>() {
  11.         @Override
  12.         public String map(String value) throws Exception {
  13.             if (value.contains("中国")) {
  14.                 int a = 1 / 0;
  15.             }
  16.             return value;
  17.         }
  18.     }).print();
  19.     env.execute();
  20. }

}

  1. ##### Checkpointing的默认全局配置（conf/flink-conf.yaml）
  2. ## 7.Savepoint
  3. |
  4. 配置项
  5.  | 默认值
  6.  | 说明
  7.  |
  8. | --- | --- | --- |
  10. |
  11. state.backend
  12.  | (none)
  13.  | • 用于指定checkpoint state存储的backend, 默认为none;   • 目前支持的backends是'jobmanager','filesystem','rocksdb'   • 也可以使用它们的工厂类的全限定名：  例如org.apache.flink.runtime.state.filesystem.  FsStateBackendFactory   • 如果没指定，  默认使用jobmanager, 即MemoryStateBackend
  14.  |
  16. |
  17. state.backend.async
  18.  | true
  19.  | 用于指定backend是否使用异步，  有些不支持async或者只支持async的state backend可能会忽略这个参数
  20.  |
  22. |
  23. state.backend.fs.memory-­threshold
  24.  | 1024
  25.  | 用于指定存储state的files大小阈值， 如果小于该值则会存储在root  checkpoint metadata file
  26.  |
  28. |
  29. state.backend.incremental
  30.  | false
  31.  | 用于指定是否采用增量checkpoint, 有些不支持增量checkpoint的backend会忽略该配置；  目前只有rocksdb支持
  32.  |
  34. |
  35. state.backend.local-recovery
  36.  | false
  37.  |
  38.  |
  40. |
  41. state.checkpoints.dir
  42.  | (none)
  43.  | • 用于指定checkpoint的data files和meta data存储的目录，  该目录必须对所有参与的TaskManagers及JobManagers可见（有读写权限）   • 例如： hdfs://namenode-host:port/flink-checkpoints
  44.  |
  46. |
  47. state.checkpoints.num-retained
  48.  | 1
  49.  | 用于指定保留的已完成的checkpoints最大个数
  50.  |
  52. |
  53. state.savepoints.dir
  54.  | (none)
  55.  | • 用于指定savepoints的默认目录   • 例如： hdfs://namenode-host:port/flink-checkpoints
  56.  |
  58. |
  59. taskmanager.state.local.root-dirs
  60.  | (none)
  61.  |
  62.  |
  65. #### 1).Savepoint概念
  67. -
  68. 概念
  71. -
  72. - savepoint可以理解为是一种特殊的checkpoint，savepoint就是指向checkpoint的一个指针，实际上也是使用通过checkpointing机制创建的streaming job的一致性快照，可以保存数据源的offset、并行操作状态也就是流处理过程中的状态历史版本。需要手动触发，而且不会过期，不会被覆盖，除非手动删除。正常情况下的线上环境是不需要设置savepoint的。除非对job或集群做出重大改动的时候， 需要进行测试运行。
  75. -
  76. - 可以从应用在过去的任意做了savepoint的时刻开始继续消费，具有可以replay的功能
  79. -
  80. Savepoint由两部分组成：
  83. -
  84. - 数据目录：稳定存储上的目录，里面的二进制文件是streaming job状态的快照
  85. - 元数据文件：指向数据目录中属于当前Savepoint的数据文件的指针（绝对路径）
  88. -
  89. 与Checkpoint的区别：Savepoint相当于备份（类比数据库备份）、Checkpoint相当于recovery log
  92. -
  93. - Checkpoint是Flink自动创建的"recovery      log"用于故障自动恢复，由Flink创建，不需要用户交互。用户cancel作业时就删除，除非启动了保留机制（External Checkpoint）
  94. - Savepoint由用户创建，拥有和删除，保存点在作业终止后仍然存在。
  97. -
  98. 作用
  101. -
  102. - job开发新版本（更改job graph、更改并行度等等），应用重新发布
  103. - Flink版本的更新
  104. - 业务迁移，集群需要迁移，不容许数据丢失
  107. #### 2).区分Checkpoint、External Checkpoint、Savepoint
  108. |
  109. 概念
  110.  | 描述
  111.  | 使用场景
  112.  |
  113. | --- | --- | --- |
  115. |
  116. Checkpoint
  117.  | 定期、自动的对job下的所有状态多快照并存储，会过期，仅用于从故障中恢复（重启策略）。当job cancel之后会被删除。
  118.  | 应用内部restarting时使用
  119.  |
  121. |
  122. External Checkpoint
  123.  | 一旦Flink处理程序被cancel后，会保留Checkpoint数据，以便根据实际需要恢复到指定的Checkpoint处理；属于checkpoint的范畴
  124.  |
  125.  |
  127. |
  128. Savepoint
  129.  | 用于创建的job state的“备份”，是一种特殊的checkpoint，只不过不像checkpoint定期的从系统中去触发的，它是用户通过命令触发，存储格式和checkpoint一样（代码都一样）；   注意：当Checkpoint使用RocksDBStateBackend并使用增量Checkpoint时会使用RocksDB内部格式，就跟Savepoint格式不一样了
  130.  | job开发新版本（更改job graph、更改并行度等等），应用重新发布  Flink版本的更新  业务迁移，集群需要迁移，不容许数据丢失
  131.  |
  134. #### 3).assigning Operator ID
  136. - 为了便于未来升级job程序，建议为operator分配ID，例如：

DataStream stream = env. //Stateful source(e.g. Kafka) with ID .addSource(new StatefulSource()) .uid(“source-id”) //ID for the source operator .shuffle() // Stateful mapper with ID .map(new StatefulMapper()) .name(“mapper-id”) //ID for the mapper //Stateless printing sink .print(); // Auto-generated ID

  2. - 如果不指定ID会自动生成，只要ID不变就能从指定的Savepoint恢复。自动生成ID依赖于结构，代码会变更会导致ID改变，所以手工分配ID是推荐的做法
  3. - 设置ID之后，Savepoint可以想象为一个map映射（Operator ID ->     State）
  4. #### 4).触发Savepoint
  6. -
  7. 直接触发Savepoint（想象你要为数据库做个备份）
  8. <br />$ bin**/**flink savepoint **:**jobId **[:**targetDirectory**]**
  12. ·    直接触发Savepoint（Flink on yarn）：<br />$ bin**/**flink savepoint **:**jobId **[:**targetDirectory**]** **-**yid **:**yarnAppId<br />·    Cancel Job with Savepoint：<br />$ bin**/**flink cancel **-**s **[:**targetDirectory**]** **:**jobId
  13. #### 5).从Savepoint恢复job
  15. -
  16. 从指定Savepoint恢复job
  17. <br />$ bin**/**flink run **-**s **:**savepointPath **[:**runArgs**]**
  21. ·    从指定Savepoint恢复job（允许跳过不能映射的状态，例如删除了一个operator）<br />$ bin**/**flink run **-**s **:**savepointPath **-**n **[:**runArgs**]**
  22. #### 6).删除Savepoint
  23. ·    删除Savepoint<br />$ bin**/**flink savepoint **-**d **:**savepointPath<br />·    注意：还可以通过常规的文件系统操作手动删除Savepoint（不影响其他Savepoint或Checkpoint）
  24. ## 8.状态的重新分配
  25. **Operator State** **与Keyed State** **的Redistribute** **（重新分配）**
  26. ### 1).Operator State Redistribute
  27. ·    Redistribute：当Operator改变并发度的时候（Rescale），会触发状态的Redistribute，即Operator State里的数据会重新分配到Operator的Task实例<br />·    举例：某Operator的并行度由3改为2<br />![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702035937.jpg)
  29. -
  30. 不同数据结构的动态扩展方式不一样：
  33. -
  34. - ListState：并发度在改变的时候，会将并发上的每个List都取出，然后把这些List合并到一个新的List，然后根据元素的个数在均匀分配给新的Task
  35. - UnionListState：相比于ListState更加灵活，把划分的方式交给用户去做，当改变并发的时候，会将原来的List拼接起来。然后不做划分，直接交给用户（每个Task给全量的状态，用户自己划分）
  36. - BroadcastState：如大表和小表做Join时，小表可以直接广播给大表的分区，在每个并发上的数据都是完全一致的。做的更新也相同，当改变并发的时候，把这些数据COPY到新的Task即可，以上是Flink Operator States提供的3种扩展方式，用户可以根据自己的需求做选择。
  39. ### 2).Keyed State的Redistribute（重新分配）
  41. -
  42. Keyed State Redistribute
  45. -
  46. -
  47. Key被Redistribute哪个task，他对应的Keyed State就被Redistribute到哪个Task
  50. -
  51. Keyed State Redistribute是基于Key Group来做分配的：
  54. -
  55. - 将key分为group
  56. - 每个key分配到唯一的group
  57. - 将group分配给task实例
  58. - Keyed State最终分配到哪个Task：group ID和taskID是从0开始算的
  64.             - hash=hash(key)<br />            - KG=hash % numOfKeyGroups<br />            - Subtask=KG* taskNum / numOfKeyGroups<br />            numOfKeyGroups是有多少个组，taskNum有多少个任务，KG是组ID从0开始算，Subtask是任务ID从0开始算<br />![img](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702035932.jpg)<br />CheckpointedFunction如何选择重分配策略<br />CheckpointedFunction接口通过不同的Redistribute方案提供对Operator State的访问<br />获取状态时指定：getListState/getUnionListState（注意：ListState的不同分配策略，自己要根据不同的分配策略写对应拿取数据的逻辑）
  65. ## 9.kafka的source与sink的容错
  66. ### 1.FlinkKafkaConsumer容错
  67. #### 1).理解FlinkKafkaSource的容错性 (影响出错时数据消费的位置)
  68. ![img](../images/%E5%A4%A7%E6%95%B0%E5%89%A7-flink-%E9%AB%98%E7%BA%A7%E7%BC%96%E7%A8%8BA/clip_image006-1610996283405.gif)
  70. - 如果Flink启用了检查点，Flink Kafka Consumer将会周期性的checkpoint其Kafka偏移量到快照。
  71. - 通过实现CheckpointedFunction
  72. - ListState<Tuple2<KafkaTopicPartition,     Long>>
  73. - 保证仅一次消费
  74. - 如果作业失败，Flink将流程序恢复到最新检查点的状态，并从检查点中存储的偏移量开始重新消费Kafka中的记录。（此时前面所讲的消费策略就不能决定消费起始位置了，因为出故障了）
  75. #### 2).Flink Kafka Consumer Offset提交行为
  76. |
  77. 情形
  78.  | 谁决定消费起始位置
  79.  |
  80. | --- | --- |
  82. |
  83. 禁用Checkpoint
  84.  | Flink Kafka Consumer依赖于内部使用的Kafka客户端的自动定期偏移提交功能。因此，要禁用或启用偏移量提交，只需将enable.auto.commit(或auto.commit.enable for Kafka 0.8) / auto.commit.interval.ms设置设置到Kafka客户端的Properties
  85.  |
  87. |
  88. 启用Checkpoint
  89.  | Checkpoint时会保存Offset到snapshot  当一次Checkpoint完成时，Flink Kafka Consumer将snapshot中的偏移量提交给  kafka/zookeeper。这确保Kafka Consumer中提交的偏移量与检查点状态中的偏移量一致。  用户可以通过调用Flink Kafka Consumer的setCommitOffsetsOnCheckpoints(boolean) ，方法来禁用或启用偏移提交到kafka/zookeeper  (默认情况下，行为为true)。  在此场景中，Properties中的自动定期偏移量提交设置将被完全忽略。
  90.  |
  93. #### 3).不同情况下消费起始位置的分析
  94. |
  95. 情形
  96.  | 谁决定消费起始位置
  97.  |
  98. | --- | --- |
  100. |
  101. 第一次启动，  无savepoint（常规情况）
  102.  | 由消费模式决定
  103.  |
  105. |
  106. 通过savepoint启动（应用升级，比如加  大并行度）
  107.  | 由savepoint记录的offset决定
  108.  |
  110. |
  111. 有checkpoint，失败后，job恢复的情况
  112.  | 由checkpoint的snapshoot中记录的offset决定
  113.  |
  115. |
  116. 无checkpoint，失败后，job恢复的情况
  117.  | 由消费模式决定
  118.  |
  121. ### 2.FlinkKafkaProducer容错
  122. |
  123. 版本
  124.  | 容错性保证
  125.  |
  126. | --- | --- |
  128. |
  129. Kafka 0.8
  130.  | at most once(有可能丢数据)
  131.  |
  133. |
  134. Kafka 0.9/0.10
  135.  | 启动checkpoint时默认保证at-least-once（有可能重复）   setLogFailuresOnly(boolean) 默认是false（false保证at-least-once）往kafka发送数据失败了是否打日志:         False：不打日志，直接抛异常，导致应用重启（at-least-once）       True：打日志（丢数据）           setFlushOnCheckpoint(boolean)       默认是true（true保证at_least_once）Flink checkpoint时是否等待正在写往kafka的数据返回ack
  136.  |
  138. |
  139. Kafka 0.11
  140.  | 必须启动checkpoint   可以通过构造参数选择容错性语意：          Semantic.NONE：可能丢失也可能重复      Semantic.AT_LEAST_ONCE：不会丢失，但可能重复（默认）      Semantic.EXACTLY_ONCE：使用Kafka事务提供exactly-once语义
  141.  |

Properties producerPropsSns = new Properties(); producerPropsSns.setProperty(“bootstrap.servers”, “s1.hadoop:9092,s3.hadoop:9092,s4.hadoop:9092,s5.hadoop:9092,s6.hadoop:9092,s7.hadoop:9092,s8.hadoop:9092”); producerPropsSns.setProperty(“retries”, “3”); //FlinkKafkaProducer010类的构造函数支持自定义kafka的partitioner， FlinkKafkaProducer010 kafkaOut = new FlinkKafkaProducer010(“flink_event_result”,new SimpleStringSchema(),producerPropsSns,new HainiuFlinkPartitioner()); kafkaOut.setLogFailuresOnly(false); kafkaOut.setFlushOnCheckpoint(true);

```
