四. 优化与源码

1. 优化

1.1 扩展序列化算法

序列化，反序列化主要用在消息正文的转换上

  • 序列化时，需要将 Java 对象变为要传输的数据（可以是 byte[]，或 json 等，最终都需要变成 byte[]）
  • 反序列化时，需要将传入的正文数据还原成 Java 对象，便于处理

目前的代码仅支持 Java 自带的序列化，反序列化机制，核心代码如下

  1. // 反序列化
  2. byte[] body = new byte[bodyLength];
  3. byteByf.readBytes(body);
  4. ObjectInputStream in = new ObjectInputStream(new ByteArrayInputStream(body));
  5. Message message = (Message) in.readObject();
  6. message.setSequenceId(sequenceId);
  8. // 序列化
  9. ByteArrayOutputStream out = new ByteArrayOutputStream();
  10. new ObjectOutputStream(out).writeObject(message);
  11. byte[] bytes = out.toByteArray();

为了支持更多序列化算法，抽象一个 Serializer 接口

  1. public interface Serializer {
  3.     // 反序列化方法
  4.     <T> T deserialize(Class<T> clazz, byte[] bytes);
  6.     // 序列化方法
  7.     <T> byte[] serialize(T object);
  9. }

提供两个实现，我这里直接将实现加入了枚举类 Serializer.Algorithm 中

  1. enum SerializerAlgorithm implements Serializer {
  2.     // Java 实现
  3.     Java {
  4.         @Override
  5.         public <T> T deserialize(Class<T> clazz, byte[] bytes) {
  6.             try {
  7.                 ObjectInputStream in =
  8.                     new ObjectInputStream(new ByteArrayInputStream(bytes));
  9.                 Object object = in.readObject();
  10.                 return (T) object;
  11.             } catch (IOException | ClassNotFoundException e) {
  12.                 throw new RuntimeException("SerializerAlgorithm.Java 反序列化错误", e);
  13.             }
  14.         }
  16.         @Override
  17.         public <T> byte[] serialize(T object) {
  18.             try {
  19.                 ByteArrayOutputStream out = new ByteArrayOutputStream();
  20.                 new ObjectOutputStream(out).writeObject(object);
  21.                 return out.toByteArray();
  22.             } catch (IOException e) {
  23.                 throw new RuntimeException("SerializerAlgorithm.Java 序列化错误", e);
  24.             }
  25.         }
  26.     },
  27.     // Json 实现(引入了 Gson 依赖)
  28.     Json {
  29.         @Override
  30.         public <T> T deserialize(Class<T> clazz, byte[] bytes) {
  31.             return new Gson().fromJson(new String(bytes, StandardCharsets.UTF_8), clazz);
  32.         }
  34.         @Override
  35.         public <T> byte[] serialize(T object) {
  36.             return new Gson().toJson(object).getBytes(StandardCharsets.UTF_8);
  37.         }
  38.     };
  40.     // 需要从协议的字节中得到是哪种序列化算法
  41.     public static SerializerAlgorithm getByInt(int type) {
  42.         SerializerAlgorithm[] array = SerializerAlgorithm.values();
  43.         if (type < 0 || type > array.length - 1) {
  44.             throw new IllegalArgumentException("超过 SerializerAlgorithm 范围");
  45.         }
  46.         return array[type];
  47.     }
  48. }

增加配置类和配置文件

  1. public abstract class Config {
  2.     static Properties properties;
  3.     static {
  4.         try (InputStream in = Config.class.getResourceAsStream("/application.properties")) {
  5.             properties = new Properties();
  6.             properties.load(in);
  7.         } catch (IOException e) {
  8.             throw new ExceptionInInitializerError(e);
  9.         }
  10.     }
  11.     public static int getServerPort() {
  12.         String value = properties.getProperty("server.port");
  13.         if(value == null) {
  14.             return 8080;
  15.         } else {
  16.             return Integer.parseInt(value);
  17.         }
  18.     }
  19.     public static Serializer.Algorithm getSerializerAlgorithm() {
  20.         String value = properties.getProperty("serializer.algorithm");
  21.         if(value == null) {
  22.             return Serializer.Algorithm.Java;
  23.         } else {
  24.             return Serializer.Algorithm.valueOf(value);
  25.         }
  26.     }
  27. }

配置文件

  1. serializer.algorithm=Json

修改编解码器

  1. /**
  2.  * 必须和 LengthFieldBasedFrameDecoder 一起使用，确保接到的 ByteBuf 消息是完整的
  3.  */
  4. public class MessageCodecSharable extends MessageToMessageCodec<ByteBuf, Message> {
  5.     @Override
  6.     public void encode(ChannelHandlerContext ctx, Message msg, List<Object> outList) throws Exception {
  7.         ByteBuf out = ctx.alloc().buffer();
  8.         // 1. 4 字节的魔数
  9.         out.writeBytes(new byte[]{1, 2, 3, 4});
  10.         // 2. 1 字节的版本,
  11.         out.writeByte(1);
  12.         // 3. 1 字节的序列化方式 jdk 0 , json 1
  13.         out.writeByte(Config.getSerializerAlgorithm().ordinal());
  14.         // 4. 1 字节的指令类型
  15.         out.writeByte(msg.getMessageType());
  16.         // 5. 4 个字节
  17.         out.writeInt(msg.getSequenceId());
  18.         // 无意义，对齐填充
  19.         out.writeByte(0xff);
  20.         // 6. 获取内容的字节数组
  21.         byte[] bytes = Config.getSerializerAlgorithm().serialize(msg);
  22.         // 7. 长度
  23.         out.writeInt(bytes.length);
  24.         // 8. 写入内容
  25.         out.writeBytes(bytes);
  26.         outList.add(out);
  27.     }
  29.     @Override
  30.     protected void decode(ChannelHandlerContext ctx, ByteBuf in, List<Object> out) throws Exception {
  31.         int magicNum = in.readInt();
  32.         byte version = in.readByte();
  33.         byte serializerAlgorithm = in.readByte(); // 0 或 1
  34.         byte messageType = in.readByte(); // 0,1,2...
  35.         int sequenceId = in.readInt();
  36.         in.readByte();
  37.         int length = in.readInt();
  38.         byte[] bytes = new byte[length];
  39.         in.readBytes(bytes, 0, length);
  41.         // 找到反序列化算法
  42.         Serializer.Algorithm algorithm = Serializer.Algorithm.values()[serializerAlgorithm];
  43.         // 确定具体消息类型
  44.         Class<? extends Message> messageClass = Message.getMessageClass(messageType);
  45.         Message message = algorithm.deserialize(messageClass, bytes);
  46. //        log.debug("{}, {}, {}, {}, {}, {}", magicNum, version, serializerType, messageType, sequenceId, length);
  47. //        log.debug("{}", message);
  48.         out.add(message);
  49.     }
  50. }

其中确定具体消息类型，可以根据 消息类型字节 获取到对应的 消息 class

  1. @Data
  2. public abstract class Message implements Serializable {
  4.     /**
  5.      * 根据消息类型字节，获得对应的消息 class
  6.      * @param messageType 消息类型字节
  7.      * @return 消息 class
  8.      */
  9.     public static Class<? extends Message> getMessageClass(int messageType) {
  10.         return messageClasses.get(messageType);
  11.     }
  13.     private int sequenceId;
  15.     private int messageType;
  17.     public abstract int getMessageType();
  19.     public static final int LoginRequestMessage = 0;
  20.     public static final int LoginResponseMessage = 1;
  21.     public static final int ChatRequestMessage = 2;
  22.     public static final int ChatResponseMessage = 3;
  23.     public static final int GroupCreateRequestMessage = 4;
  24.     public static final int GroupCreateResponseMessage = 5;
  25.     public static final int GroupJoinRequestMessage = 6;
  26.     public static final int GroupJoinResponseMessage = 7;
  27.     public static final int GroupQuitRequestMessage = 8;
  28.     public static final int GroupQuitResponseMessage = 9;
  29.     public static final int GroupChatRequestMessage = 10;
  30.     public static final int GroupChatResponseMessage = 11;
  31.     public static final int GroupMembersRequestMessage = 12;
  32.     public static final int GroupMembersResponseMessage = 13;
  33.     public static final int PingMessage = 14;
  34.     public static final int PongMessage = 15;
  35.     private static final Map<Integer, Class<? extends Message>> messageClasses = new HashMap<>();
  37.     static {
  38.         messageClasses.put(LoginRequestMessage, LoginRequestMessage.class);
  39.         messageClasses.put(LoginResponseMessage, LoginResponseMessage.class);
  40.         messageClasses.put(ChatRequestMessage, ChatRequestMessage.class);
  41.         messageClasses.put(ChatResponseMessage, ChatResponseMessage.class);
  42.         messageClasses.put(GroupCreateRequestMessage, GroupCreateRequestMessage.class);
  43.         messageClasses.put(GroupCreateResponseMessage, GroupCreateResponseMessage.class);
  44.         messageClasses.put(GroupJoinRequestMessage, GroupJoinRequestMessage.class);
  45.         messageClasses.put(GroupJoinResponseMessage, GroupJoinResponseMessage.class);
  46.         messageClasses.put(GroupQuitRequestMessage, GroupQuitRequestMessage.class);
  47.         messageClasses.put(GroupQuitResponseMessage, GroupQuitResponseMessage.class);
  48.         messageClasses.put(GroupChatRequestMessage, GroupChatRequestMessage.class);
  49.         messageClasses.put(GroupChatResponseMessage, GroupChatResponseMessage.class);
  50.         messageClasses.put(GroupMembersRequestMessage, GroupMembersRequestMessage.class);
  51.         messageClasses.put(GroupMembersResponseMessage, GroupMembersResponseMessage.class);
  52.     }
  53. }

1.2 参数调优

1）CONNECT_TIMEOUT_MILLIS

  • 属于 SocketChannal 参数
  • 用在客户端建立连接时，如果在指定毫秒内无法连接，会抛出 timeout 异常
  • SO_TIMEOUT 主要用在阻塞 IO，阻塞 IO 中 accept，read 等都是无限等待的，如果不希望永远阻塞，使用它调整超时时间
  1. @Slf4j
  2. public class TestConnectionTimeout {
  3.     public static void main(String[] args) {
  4.         NioEventLoopGroup group = new NioEventLoopGroup();
  5.         try {
  6.             Bootstrap bootstrap = new Bootstrap()
  7.                     .group(group)
  8.                     .option(ChannelOption.CONNECT_TIMEOUT_MILLIS, 300)
  9.                     .channel(NioSocketChannel.class)
  10.                     .handler(new LoggingHandler());
  11.             ChannelFuture future = bootstrap.connect("127.0.0.1", 8080);
  12.             future.sync().channel().closeFuture().sync(); // 断点1
  13.         } catch (Exception e) {
  14.             e.printStackTrace();
  15.             log.debug("timeout");
  16.         } finally {
  17.             group.shutdownGracefully();
  18.         }
  19.     }
  20. }

另外源码部分 io.netty.channel.nio.AbstractNioChannel.AbstractNioUnsafe#connect

  1. @Override
  2. public final void connect(
  3.         final SocketAddress remoteAddress, final SocketAddress localAddress, final ChannelPromise promise) {
  4.     // ...
  5.     // Schedule connect timeout.
  6.     int connectTimeoutMillis = config().getConnectTimeoutMillis();
  7.     if (connectTimeoutMillis > 0) {
  8.         connectTimeoutFuture = eventLoop().schedule(new Runnable() {
  9.             @Override
  10.             public void run() {
  11.                 ChannelPromise connectPromise = AbstractNioChannel.this.connectPromise;
  12.                 ConnectTimeoutException cause =
  13.                     new ConnectTimeoutException("connection timed out: " + remoteAddress); // 断点2
  14.                 if (connectPromise != null && connectPromise.tryFailure(cause)) {
  15.                     close(voidPromise());
  16.                 }
  17.             }
  18.         }, connectTimeoutMillis, TimeUnit.MILLISECONDS);
  19.     }
  20.     // ...
  21. }

2）SO_BACKLOG

  • 属于 ServerSocketChannal 参数 ``` sequenceDiagram

participant c as client participant s as server participant sq as syns queue participant aq as accept queue

s ->> s : bind() s ->> s : listen() c ->> c : connect() c ->> s : 1. SYN Note left of c : SYN_SEND s ->> sq : put Note right of s : SYN_RCVD s ->> c : 2. SYN + ACK Note left of c : ESTABLISHED c ->> s : 3. ACK sq ->> aq : put Note right of s : ESTABLISHED aq —>> s : s ->> s : accept()

  2. 1. 第一次握手，client 发送 SYN 到 server，状态修改为 SYN_SEND，server 收到，状态改变为 SYN_REVD，并将该请求放入 sync queue 队列
  3. 1. 第二次握手，server 回复 SYN + ACK 给 client，client 收到，状态改变为 ESTABLISHED，并发送 ACK 给 server
  4. 1. 第三次握手，server 收到 ACK，状态改变为 ESTABLISHED，将该请求从 sync queue 放入 accept queue
  6. 其中
  8. -
  9. 在 linux 2.2 之前，backlog 大小包括了两个队列的大小，在 2.2 之后，分别用下面两个参数来控制
  12. -
  13. sync queue - 半连接队列
  15. - 大小通过 /proc/sys/net/ipv4/tcp_max_syn_backlog 指定，在 `syncookies` 启用的情况下，逻辑上没有最大值限制，这个设置便被忽略
  18. -
  19. accept queue - 全连接队列
  21. - 其大小通过 /proc/sys/net/core/somaxconn 指定，在使用 listen 函数时，内核会根据传入的 backlog 参数与系统参数，取二者的较小值
  22. - 如果 accpet queue 队列满了，server 将发送一个拒绝连接的错误信息到 client
  26. netty 中<br />可以通过  option(ChannelOption.SO_BACKLOG, 值) 来设置大小<br />可以通过下面源码查看默认大小

public class DefaultServerSocketChannelConfig extends DefaultChannelConfig implements ServerSocketChannelConfig {

  1. private volatile int backlog = NetUtil.SOMAXCONN;
  2. // ...

}

  1. 课堂调试关键断点为：`io.netty.channel.nio.NioEventLoop#processSelectedKey`<br />oio 中更容易说明，不用 debug 模式

public class Server { public static void main(String[] args) throws IOException { ServerSocket ss = new ServerSocket(8888, 2); Socket accept = ss.accept(); System.out.println(accept); System.in.read(); } }

  1. 客户端启动 4 个

public class Client { public static void main(String[] args) throws IOException { try { Socket s = new Socket(); System.out.println(new Date()+” connecting…”); s.connect(new InetSocketAddress(“localhost”, 8888),1000); System.out.println(new Date()+” connected…”); s.getOutputStream().write(1); System.in.read(); } catch (IOException e) { System.out.println(new Date()+” connecting timeout…”); e.printStackTrace(); } } }

  1. 第 1，2，3 个客户端都打印，但除了第一个处于 accpet 外，其它两个都处于 accept queue 中

Tue Apr 21 20:30:28 CST 2020 connecting… Tue Apr 21 20:30:28 CST 2020 connected…

  1. 第 4 个客户端连接时

Tue Apr 21 20:53:58 CST 2020 connecting… Tue Apr 21 20:53:59 CST 2020 connecting timeout… java.net.SocketTimeoutException: connect timed out

  1. #### 3）ulimit -n
  3. - 属于操作系统参数
  4. #### 4）TCP_NODELAY
  6. - 属于 SocketChannal 参数
  7. #### 5）SO_SNDBUF & SO_RCVBUF
  9. - SO_SNDBUF 属于 SocketChannal 参数
  10. - SO_RCVBUF 既可用于 SocketChannal 参数，也可以用于 ServerSocketChannal 参数（建议设置到 ServerSocketChannal 上）
  11. #### 6）ALLOCATOR
  13. - 属于 SocketChannal 参数
  14. - 用来分配 ByteBuf， ctx.alloc()
  15. #### 7）RCVBUF_ALLOCATOR
  17. - 属于 SocketChannal 参数
  18. - 控制 netty 接收缓冲区大小
  19. - 负责入站数据的分配，决定入站缓冲区的大小（并可动态调整），统一采用 direct 直接内存，具体池化还是非池化由 allocator 决定
  20. ### 1.3 RPC 框架
  21. #### 1）准备工作
  22. 这些代码可以认为是现成的，无需从头编写练习<br />为了简化起见，在原来聊天项目的基础上新增 Rpc 请求和响应消息

@Data public abstract class Message implements Serializable {

  1. // 省略旧的代码
  3. public static final int RPC_MESSAGE_TYPE_REQUEST = 101;
  4. public static final int  RPC_MESSAGE_TYPE_RESPONSE = 102;
  6. static {
  7.     // ...
  8.     messageClasses.put(RPC_MESSAGE_TYPE_REQUEST, RpcRequestMessage.class);
  9.     messageClasses.put(RPC_MESSAGE_TYPE_RESPONSE, RpcResponseMessage.class);
  10. }

}

  1. 请求消息

@Getter @ToString(callSuper = true) public class RpcRequestMessage extends Message {

  1. /**
  2.  * 调用的接口全限定名，服务端根据它找到实现
  3.  */
  4. private String interfaceName;
  5. /**
  6.  * 调用接口中的方法名
  7.  */
  8. private String methodName;
  9. /**
  10.  * 方法返回类型
  11.  */
  12. private Class<?> returnType;
  13. /**
  14.  * 方法参数类型数组
  15.  */
  16. private Class[] parameterTypes;
  17. /**
  18.  * 方法参数值数组
  19.  */
  20. private Object[] parameterValue;
  22. public RpcRequestMessage(int sequenceId, String interfaceName, String methodName, Class<?> returnType, Class[] parameterTypes, Object[] parameterValue) {
  23.     super.setSequenceId(sequenceId);
  24.     this.interfaceName = interfaceName;
  25.     this.methodName = methodName;
  26.     this.returnType = returnType;
  27.     this.parameterTypes = parameterTypes;
  28.     this.parameterValue = parameterValue;
  29. }
  31. @Override
  32. public int getMessageType() {
  33.     return RPC_MESSAGE_TYPE_REQUEST;
  34. }

}

  1. 响应消息

@Data @ToString(callSuper = true) public class RpcResponseMessage extends Message { /**

  1.  * 返回值
  2.  */
  3. private Object returnValue;
  4. /**
  5.  * 异常值
  6.  */
  7. private Exception exceptionValue;
  9. @Override
  10. public int getMessageType() {
  11.     return RPC_MESSAGE_TYPE_RESPONSE;
  12. }

}

  1. 服务器架子

@Slf4j public class RpcServer { public static void main(String[] args) { NioEventLoopGroup boss = new NioEventLoopGroup(); NioEventLoopGroup worker = new NioEventLoopGroup(); LoggingHandler LOGGING_HANDLER = new LoggingHandler(LogLevel.DEBUG); MessageCodecSharable MESSAGE_CODEC = new MessageCodecSharable();

  1.     // rpc 请求消息处理器，待实现
  2.     RpcRequestMessageHandler RPC_HANDLER = new RpcRequestMessageHandler();
  3.     try {
  4.         ServerBootstrap serverBootstrap = new ServerBootstrap();
  5.         serverBootstrap.channel(NioServerSocketChannel.class);
  6.         serverBootstrap.group(boss, worker);
  7.         serverBootstrap.childHandler(new ChannelInitializer<SocketChannel>() {
  8.             @Override
  9.             protected void initChannel(SocketChannel ch) throws Exception {
  10.                 ch.pipeline().addLast(new ProcotolFrameDecoder());
  11.                 ch.pipeline().addLast(LOGGING_HANDLER);
  12.                 ch.pipeline().addLast(MESSAGE_CODEC);
  13.                 ch.pipeline().addLast(RPC_HANDLER);
  14.             }
  15.         });
  16.         Channel channel = serverBootstrap.bind(8080).sync().channel();
  17.         channel.closeFuture().sync();
  18.     } catch (InterruptedException e) {
  19.         log.error("server error", e);
  20.     } finally {
  21.         boss.shutdownGracefully();
  22.         worker.shutdownGracefully();
  23.     }
  24. }

}

  1. 客户端架子

public class RpcClient { public static void main(String[] args) { NioEventLoopGroup group = new NioEventLoopGroup(); LoggingHandler LOGGING_HANDLER = new LoggingHandler(LogLevel.DEBUG); MessageCodecSharable MESSAGE_CODEC = new MessageCodecSharable();

  1.     // rpc 响应消息处理器，待实现
  2.     RpcResponseMessageHandler RPC_HANDLER = new RpcResponseMessageHandler();
  3.     try {
  4.         Bootstrap bootstrap = new Bootstrap();
  5.         bootstrap.channel(NioSocketChannel.class);
  6.         bootstrap.group(group);
  7.         bootstrap.handler(new ChannelInitializer<SocketChannel>() {
  8.             @Override
  9.             protected void initChannel(SocketChannel ch) throws Exception {
  10.                 ch.pipeline().addLast(new ProcotolFrameDecoder());
  11.                 ch.pipeline().addLast(LOGGING_HANDLER);
  12.                 ch.pipeline().addLast(MESSAGE_CODEC);
  13.                 ch.pipeline().addLast(RPC_HANDLER);
  14.             }
  15.         });
  16.         Channel channel = bootstrap.connect("localhost", 8080).sync().channel();
  17.         channel.closeFuture().sync();
  18.     } catch (Exception e) {
  19.         log.error("client error", e);
  20.     } finally {
  21.         group.shutdownGracefully();
  22.     }
  23. }

}

  1. 服务器端的 service 获取

public class ServicesFactory {

  1. static Properties properties;
  2. static Map<Class<?>, Object> map = new ConcurrentHashMap<>();
  4. static {
  5.     try (InputStream in = Config.class.getResourceAsStream("/application.properties")) {
  6.         properties = new Properties();
  7.         properties.load(in);
  8.         Set<String> names = properties.stringPropertyNames();
  9.         for (String name : names) {
  10.             if (name.endsWith("Service")) {
  11.                 Class<?> interfaceClass = Class.forName(name);
  12.                 Class<?> instanceClass = Class.forName(properties.getProperty(name));
  13.                 map.put(interfaceClass, instanceClass.newInstance());
  14.             }
  15.         }
  16.     } catch (IOException | ClassNotFoundException | InstantiationException | IllegalAccessException e) {
  17.         throw new ExceptionInInitializerError(e);
  18.     }
  19. }
  21. public static <T> T getService(Class<T> interfaceClass) {
  22.     return (T) map.get(interfaceClass);
  23. }

}

  1. 相关配置 application.properties

serializer.algorithm=Json cn.itcast.server.service.HelloService=cn.itcast.server.service.HelloServiceImpl

  1. #### 2）服务器 handler

@Slf4j @ChannelHandler.Sharable public class RpcRequestMessageHandler extends SimpleChannelInboundHandler {

  1. @Override
  2. protected void channelRead0(ChannelHandlerContext ctx, RpcRequestMessage message) {
  3.     RpcResponseMessage response = new RpcResponseMessage();
  4.     response.setSequenceId(message.getSequenceId());
  5.     try {
  6.         // 获取真正的实现对象
  7.         HelloService service = (HelloService)
  8.                 ServicesFactory.getService(Class.forName(message.getInterfaceName()));
  10.         // 获取要调用的方法
  11.         Method method = service.getClass().getMethod(message.getMethodName(), message.getParameterTypes());
  13.         // 调用方法
  14.         Object invoke = method.invoke(service, message.getParameterValue());
  15.         // 调用成功
  16.         response.setReturnValue(invoke);
  17.     } catch (Exception e) {
  18.         e.printStackTrace();
  19.         // 调用异常
  20.         response.setExceptionValue(e);
  21.     }
  22.     // 返回结果
  23.     ctx.writeAndFlush(response);
  24. }

}

  1. #### 3）客户端代码第一版
  2. 只发消息

@Slf4j public class RpcClient { public static void main(String[] args) { NioEventLoopGroup group = new NioEventLoopGroup(); LoggingHandler LOGGING_HANDLER = new LoggingHandler(LogLevel.DEBUG); MessageCodecSharable MESSAGE_CODEC = new MessageCodecSharable(); RpcResponseMessageHandler RPC_HANDLER = new RpcResponseMessageHandler(); try { Bootstrap bootstrap = new Bootstrap(); bootstrap.channel(NioSocketChannel.class); bootstrap.group(group); bootstrap.handler(new ChannelInitializer() { @Override protected void initChannel(SocketChannel ch) throws Exception { ch.pipeline().addLast(new ProcotolFrameDecoder()); ch.pipeline().addLast(LOGGING_HANDLER); ch.pipeline().addLast(MESSAGE_CODEC); ch.pipeline().addLast(RPC_HANDLER); } }); Channel channel = bootstrap.connect(“localhost”, 8080).sync().channel();

  1.         ChannelFuture future = channel.writeAndFlush(new RpcRequestMessage(
  2.                 1,
  3.                 "cn.itcast.server.service.HelloService",
  4.                 "sayHello",
  5.                 String.class,
  6.                 new Class[]{String.class},
  7.                 new Object[]{"张三"}
  8.         )).addListener(promise -> {
  9.             if (!promise.isSuccess()) {
  10.                 Throwable cause = promise.cause();
  11.                 log.error("error", cause);
  12.             }
  13.         });
  15.         channel.closeFuture().sync();
  16.     } catch (Exception e) {
  17.         log.error("client error", e);
  18.     } finally {
  19.         group.shutdownGracefully();
  20.     }
  21. }

}

  1. #### 4）客户端 handler 第一版

@Slf4j @ChannelHandler.Sharable public class RpcResponseMessageHandler extends SimpleChannelInboundHandler { @Override protected void channelRead0(ChannelHandlerContext ctx, RpcResponseMessage msg) throws Exception { log.debug(“{}”, msg); } }

  1. #### 5）客户端代码 第二版
  2. 包括 channel 管理，代理，接收结果

@Slf4j public class RpcClientManager {

  1. public static void main(String[] args) {
  2.     HelloService service = getProxyService(HelloService.class);
  3.     System.out.println(service.sayHello("zhangsan"));

// System.out.println(service.sayHello(“lisi”)); // System.out.println(service.sayHello(“wangwu”)); }

  1. // 创建代理类
  2. public static <T> T getProxyService(Class<T> serviceClass) {
  3.     ClassLoader loader = serviceClass.getClassLoader();
  4.     Class<?>[] interfaces = new Class[]{serviceClass};
  5.     //                                                            sayHello  "张三"
  6.     Object o = Proxy.newProxyInstance(loader, interfaces, (proxy, method, args) -> {
  7.         // 1. 将方法调用转换为 消息对象
  8.         int sequenceId = SequenceIdGenerator.nextId();
  9.         RpcRequestMessage msg = new RpcRequestMessage(
  10.                 sequenceId,
  11.                 serviceClass.getName(),
  12.                 method.getName(),
  13.                 method.getReturnType(),
  14.                 method.getParameterTypes(),
  15.                 args
  16.         );
  17.         // 2. 将消息对象发送出去
  18.         getChannel().writeAndFlush(msg);
  20.         // 3. 准备一个空 Promise 对象，来接收结果             指定 promise 对象异步接收结果线程
  21.         DefaultPromise<Object> promise = new DefaultPromise<>(getChannel().eventLoop());
  22.         RpcResponseMessageHandler.PROMISES.put(sequenceId, promise);

// promise.addListener(future -> { // // 线程 // });

  1.         // 4. 等待 promise 结果
  2.         promise.await();
  3.         if(promise.isSuccess()) {
  4.             // 调用正常
  5.             return promise.getNow();
  6.         } else {
  7.             // 调用失败
  8.             throw new RuntimeException(promise.cause());
  9.         }
  10.     });
  11.     return (T) o;
  12. }
  14. private static Channel channel = null;
  15. private static final Object LOCK = new Object();
  17. // 获取唯一的 channel 对象
  18. public static Channel getChannel() {
  19.     if (channel != null) {
  20.         return channel;
  21.     }
  22.     synchronized (LOCK) { //  t2
  23.         if (channel != null) { // t1
  24.             return channel;
  25.         }
  26.         initChannel();
  27.         return channel;
  28.     }
  29. }
  31. // 初始化 channel 方法
  32. private static void initChannel() {
  33.     NioEventLoopGroup group = new NioEventLoopGroup();
  34.     LoggingHandler LOGGING_HANDLER = new LoggingHandler(LogLevel.DEBUG);
  35.     MessageCodecSharable MESSAGE_CODEC = new MessageCodecSharable();
  36.     RpcResponseMessageHandler RPC_HANDLER = new RpcResponseMessageHandler();
  37.     Bootstrap bootstrap = new Bootstrap();
  38.     bootstrap.channel(NioSocketChannel.class);
  39.     bootstrap.group(group);
  40.     bootstrap.handler(new ChannelInitializer<SocketChannel>() {
  41.         @Override
  42.         protected void initChannel(SocketChannel ch) throws Exception {
  43.             ch.pipeline().addLast(new ProcotolFrameDecoder());
  44.             ch.pipeline().addLast(LOGGING_HANDLER);
  45.             ch.pipeline().addLast(MESSAGE_CODEC);
  46.             ch.pipeline().addLast(RPC_HANDLER);
  47.         }
  48.     });
  49.     try {
  50.         channel = bootstrap.connect("localhost", 8080).sync().channel();
  51.         channel.closeFuture().addListener(future -> {
  52.             group.shutdownGracefully();
  53.         });
  54.     } catch (Exception e) {
  55.         log.error("client error", e);
  56.     }
  57. }

}

  1. #### 6）客户端 handler 第二版

@Slf4j @ChannelHandler.Sharable public class RpcResponseMessageHandler extends SimpleChannelInboundHandler {

  1. //                       序号      用来接收结果的 promise 对象
  2. public static final Map<Integer, Promise<Object>> PROMISES = new ConcurrentHashMap<>();
  4. @Override
  6. protected void channelRead0(ChannelHandlerContext ctx, RpcResponseMessage msg) throws Exception {
  7.     log.debug("{}", msg);
  8.     // 拿到空的 promise
  9.     Promise<Object> promise = PROMISES.remove(msg.getSequenceId());
  10.     if (promise != null) {
  11.         Object returnValue = msg.getReturnValue();
  12.         Exception exceptionValue = msg.getExceptionValue();
  13.         if(exceptionValue != null) {
  14.             promise.setFailure(exceptionValue);
  15.         } else {
  16.             promise.setSuccess(returnValue);
  17.         }
  18.     }
  19. }

}

  1. ## 2. 源码分析
  2. ### 2.1 启动剖析

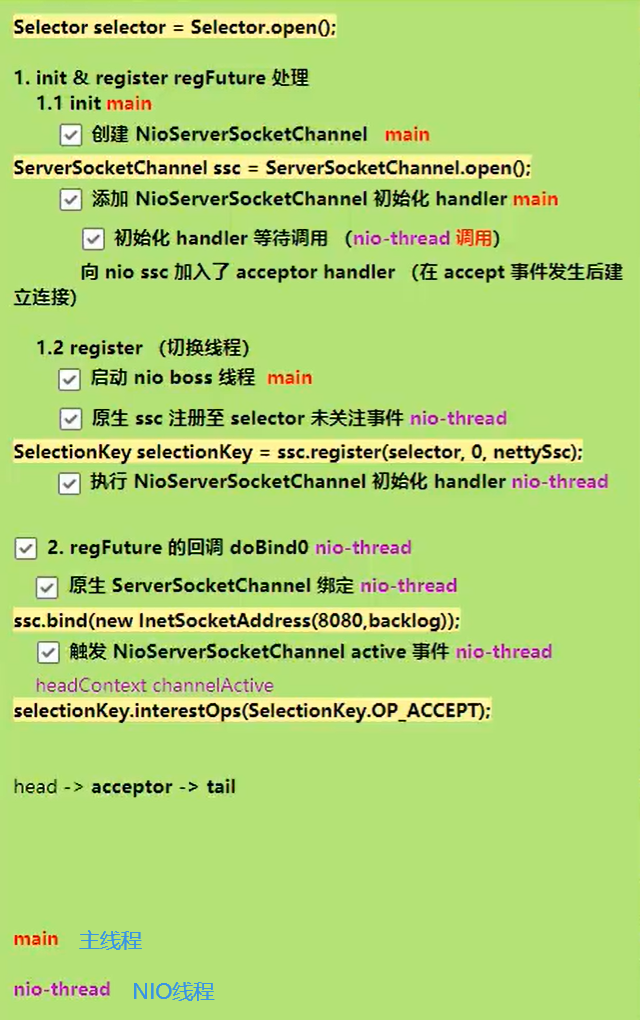

  3. ![image-20210417010353009](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702025800.png)<br />![image-20210417011111756](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702025801.png)<br />我们就来看看 netty 中对下面的代码是怎样进行处理的

//1 netty 中使用 NioEventLoopGroup （简称 nio boss 线程）来封装线程和 selector Selector selector = Selector.open();

//2 创建 NioServerSocketChannel，同时会初始化它关联的 handler，以及为原生 ssc 存储 config NioServerSocketChannel attachment = new NioServerSocketChannel();

//3 创建 NioServerSocketChannel 时，创建了 java 原生的 ServerSocketChannel ServerSocketChannel serverSocketChannel = ServerSocketChannel.open(); serverSocketChannel.configureBlocking(false);

//4 启动 nio boss 线程执行接下来的操作

//5 注册（仅关联 selector 和 NioServerSocketChannel），未关注事件 SelectionKey selectionKey = serverSocketChannel.register(selector, 0, attachment);

//6 head -> 初始化器 -> ServerBootstrapAcceptor -> tail，初始化器是一次性的，只为添加 acceptor

//7 绑定端口 serverSocketChannel.bind(new InetSocketAddress(8080));

//8 触发 channel active 事件，在 head 中关注 op_accept 事件 selectionKey.interestOps(SelectionKey.OP_ACCEPT);

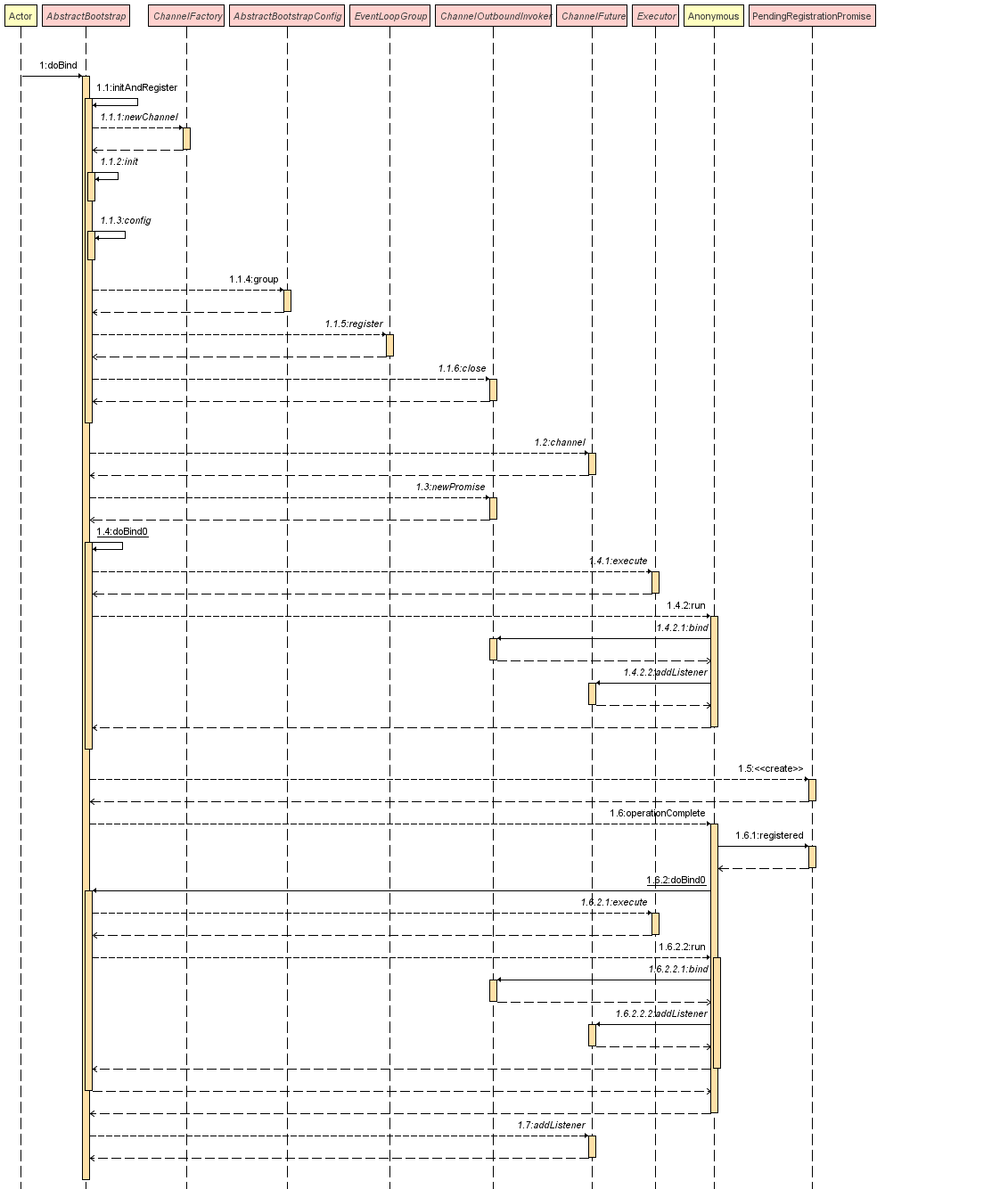

  1. 入口 `io.netty.bootstrap.ServerBootstrap#bind`<br />关键代码 `io.netty.bootstrap.AbstractBootstrap#doBind`

private ChannelFuture doBind(final SocketAddress localAddress) { // 1. 执行初始化和注册 regFuture 会由 initAndRegister 设置其是否完成，从而回调 3.2 处代码 final ChannelFuture regFuture = initAndRegister(); final Channel channel = regFuture.channel(); if (regFuture.cause() != null) { return regFuture; }

  1. // 2. 因为是 initAndRegister 异步执行，需要分两种情况来看，调试时也需要通过 suspend 断点类型加以区分
  2. // 2.1 如果已经完成
  3. if (regFuture.isDone()) {
  4.     ChannelPromise promise = channel.newPromise();
  5.     // 3.1 立刻调用 doBind0
  6.     doBind0(regFuture, channel, localAddress, promise);
  7.     return promise;
  8. }
  9. // 2.2 还没有完成
  10. else {
  11.     final PendingRegistrationPromise promise = new PendingRegistrationPromise(channel);
  12.     // 3.2 回调 doBind0
  13.     regFuture.addListener(new ChannelFutureListener() {
  14.         @Override
  15.         public void operationComplete(ChannelFuture future) throws Exception {
  16.             Throwable cause = future.cause();
  17.             if (cause != null) {
  18.                 // 处理异常...
  19.                 promise.setFailure(cause);
  20.             } else {
  21.                 promise.registered();
  22.                 // 3. 由注册线程去执行 doBind0
  23.                 doBind0(regFuture, channel, localAddress, promise);
  24.             }
  25.         }
  26.     });
  27.     return promise;
  28. }

}

  1. 关键代码 `io.netty.bootstrap.AbstractBootstrap#initAndRegister`

final ChannelFuture initAndRegister() { Channel channel = null; try { channel = channelFactory.newChannel(); // 1.1 初始化 - 做的事就是添加一个初始化器 ChannelInitializer init(channel); } catch (Throwable t) { // 处理异常… return new DefaultChannelPromise(new FailedChannel(), GlobalEventExecutor.INSTANCE).setFailure(t); }

  1. // 1.2 注册 - 做的事就是将原生 channel 注册到 selector 上
  2. ChannelFuture regFuture = config().group().register(channel);
  3. if (regFuture.cause() != null) {
  4.     // 处理异常...
  5. }
  6. return regFuture;

}

  1. 关键代码 `io.netty.bootstrap.ServerBootstrap#init`

// 这里 channel 实际上是 NioServerSocketChannel void init(Channel channel) throws Exception { final Map, Object> options = options0(); synchronized (options) { setChannelOptions(channel, options, logger); }

  1. final Map<AttributeKey<?>, Object> attrs = attrs0();
  2. synchronized (attrs) {
  3.     for (Entry<AttributeKey<?>, Object> e: attrs.entrySet()) {
  4.         @SuppressWarnings("unchecked")
  5.         AttributeKey<Object> key = (AttributeKey<Object>) e.getKey();
  6.         channel.attr(key).set(e.getValue());
  7.     }
  8. }
  10. ChannelPipeline p = channel.pipeline();
  12. final EventLoopGroup currentChildGroup = childGroup;
  13. final ChannelHandler currentChildHandler = childHandler;
  14. final Entry<ChannelOption<?>, Object>[] currentChildOptions;
  15. final Entry<AttributeKey<?>, Object>[] currentChildAttrs;
  16. synchronized (childOptions) {
  17.     currentChildOptions = childOptions.entrySet().toArray(newOptionArray(0));
  18. }
  19. synchronized (childAttrs) {
  20.     currentChildAttrs = childAttrs.entrySet().toArray(newAttrArray(0));
  21. }
  23. // 为 NioServerSocketChannel 添加初始化器
  24. p.addLast(new ChannelInitializer<Channel>() {
  25.     @Override
  26.     public void initChannel(final Channel ch) throws Exception {
  27.         final ChannelPipeline pipeline = ch.pipeline();
  28.         ChannelHandler handler = config.handler();
  29.         if (handler != null) {
  30.             pipeline.addLast(handler);
  31.         }
  33.         // 初始化器的职责是将 ServerBootstrapAcceptor 加入至 NioServerSocketChannel
  34.         ch.eventLoop().execute(new Runnable() {
  35.             @Override
  36.             public void run() {
  37.                 pipeline.addLast(new ServerBootstrapAcceptor(
  38.                         ch, currentChildGroup, currentChildHandler, currentChildOptions, currentChildAttrs));
  39.             }
  40.         });
  41.     }
  42. });

}

  1. 关键代码 `io.netty.channel.AbstractChannel.AbstractUnsafe#register`

public final void register(EventLoop eventLoop, final ChannelPromise promise) { // 一些检查，略…

  1. AbstractChannel.this.eventLoop = eventLoop;
  3. if (eventLoop.inEventLoop()) {
  4.     register0(promise);
  5. } else {
  6.     try {
  7.         // 首次执行 execute 方法时，会启动 nio 线程，之后注册等操作在 nio 线程上执行
  8.         // 因为只有一个 NioServerSocketChannel 因此，也只会有一个 boss nio 线程
  9.         // 这行代码完成的事实是 main -> nio boss 线程的切换
  10.         eventLoop.execute(new Runnable() {
  11.             @Override
  12.             public void run() {
  13.                 register0(promise);
  14.             }
  15.         });
  16.     } catch (Throwable t) {
  17.         // 日志记录...
  18.         closeForcibly();
  19.         closeFuture.setClosed();
  20.         safeSetFailure(promise, t);
  21.     }
  22. }

}

  1. `io.netty.channel.AbstractChannel.AbstractUnsafe#register0`

private void register0(ChannelPromise promise) { try { if (!promise.setUncancellable() || !ensureOpen(promise)) { return; } boolean firstRegistration = neverRegistered; // 1.2.1 原生的 nio channel 绑定到 selector 上，注意此时没有注册 selector 关注事件，附件为 NioServerSocketChannel doRegister(); neverRegistered = false; registered = true;

  1.     // 1.2.2 执行 NioServerSocketChannel 初始化器的 initChannel
  2.     pipeline.invokeHandlerAddedIfNeeded();
  4.     // 回调 3.2 io.netty.bootstrap.AbstractBootstrap#doBind0
  5.     safeSetSuccess(promise);
  6.     pipeline.fireChannelRegistered();
  8.     // 对应 server socket channel 还未绑定，isActive 为 false
  9.     if (isActive()) {
  10.         if (firstRegistration) {
  11.             pipeline.fireChannelActive();
  12.         } else if (config().isAutoRead()) {
  13.             beginRead();
  14.         }
  15.     }
  16. } catch (Throwable t) {
  17.     // Close the channel directly to avoid FD leak.
  18.     closeForcibly();
  19.     closeFuture.setClosed();
  20.     safeSetFailure(promise, t);
  21. }

}

  1. 关键代码 `io.netty.channel.ChannelInitializer#initChannel`

private boolean initChannel(ChannelHandlerContext ctx) throws Exception { if (initMap.add(ctx)) { // Guard against re-entrance. try { // 1.2.2.1 执行初始化 initChannel((C) ctx.channel()); } catch (Throwable cause) { exceptionCaught(ctx, cause); } finally { // 1.2.2.2 移除初始化器 ChannelPipeline pipeline = ctx.pipeline(); if (pipeline.context(this) != null) { pipeline.remove(this); } } return true; } return false; }

  1. 关键代码 `io.netty.bootstrap.AbstractBootstrap#doBind0`

// 3.1 或 3.2 执行 doBind0 private static void doBind0( final ChannelFuture regFuture, final Channel channel, final SocketAddress localAddress, final ChannelPromise promise) {

  1. channel.eventLoop().execute(new Runnable() {
  2.     @Override
  3.     public void run() {
  4.         if (regFuture.isSuccess()) {
  5.             channel.bind(localAddress, promise).addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
  6.         } else {
  7.             promise.setFailure(regFuture.cause());
  8.         }
  9.     }
  10. });

}

  1. 关键代码 `io.netty.channel.AbstractChannel.AbstractUnsafe#bind`

public final void bind(final SocketAddress localAddress, final ChannelPromise promise) { assertEventLoop();

  1. if (!promise.setUncancellable() || !ensureOpen(promise)) {
  2.     return;
  3. }
  5. if (Boolean.TRUE.equals(config().getOption(ChannelOption.SO_BROADCAST)) &&
  6.     localAddress instanceof InetSocketAddress &&
  7.     !((InetSocketAddress) localAddress).getAddress().isAnyLocalAddress() &&
  8.     !PlatformDependent.isWindows() && !PlatformDependent.maybeSuperUser()) {
  9.     // 记录日志...
  10. }
  12. boolean wasActive = isActive();
  13. try {
  14.     // 3.3 执行端口绑定
  15.     doBind(localAddress);
  16. } catch (Throwable t) {
  17.     safeSetFailure(promise, t);
  18.     closeIfClosed();
  19.     return;
  20. }
  22. if (!wasActive && isActive()) {
  23.     invokeLater(new Runnable() {
  24.         @Override
  25.         public void run() {
  26.             // 3.4 触发 active 事件
  27.             pipeline.fireChannelActive();
  28.         }
  29.     });
  30. }
  32. safeSetSuccess(promise);

}

  1. 3.3 关键代码 `io.netty.channel.socket.nio.NioServerSocketChannel#doBind`

protected void doBind(SocketAddress localAddress) throws Exception { if (PlatformDependent.javaVersion() >= 7) { javaChannel().bind(localAddress, config.getBacklog()); } else { javaChannel().socket().bind(localAddress, config.getBacklog()); } }

  1. 3.4 关键代码 `io.netty.channel.DefaultChannelPipeline.HeadContext#channelActive`

public void channelActive(ChannelHandlerContext ctx) { ctx.fireChannelActive(); // 触发 read (NioServerSocketChannel 上的 read 不是读取数据，只是为了触发 channel 的事件注册) readIfIsAutoRead(); }

  1. 关键代码 `io.netty.channel.nio.AbstractNioChannel#doBeginRead`

protected void doBeginRead() throws Exception { // Channel.read() or ChannelHandlerContext.read() was called final SelectionKey selectionKey = this.selectionKey; if (!selectionKey.isValid()) { return; }

  1. readPending = true;
  3. final int interestOps = selectionKey.interestOps();
  4. // readInterestOp 取值是 16，在 NioServerSocketChannel 创建时初始化好，代表关注 accept 事件
  5. if ((interestOps & readInterestOp) == 0) {
  6.     selectionKey.interestOps(interestOps | readInterestOp);
  7. }

}

  1. ### 2.2 NioEventLoop 剖析

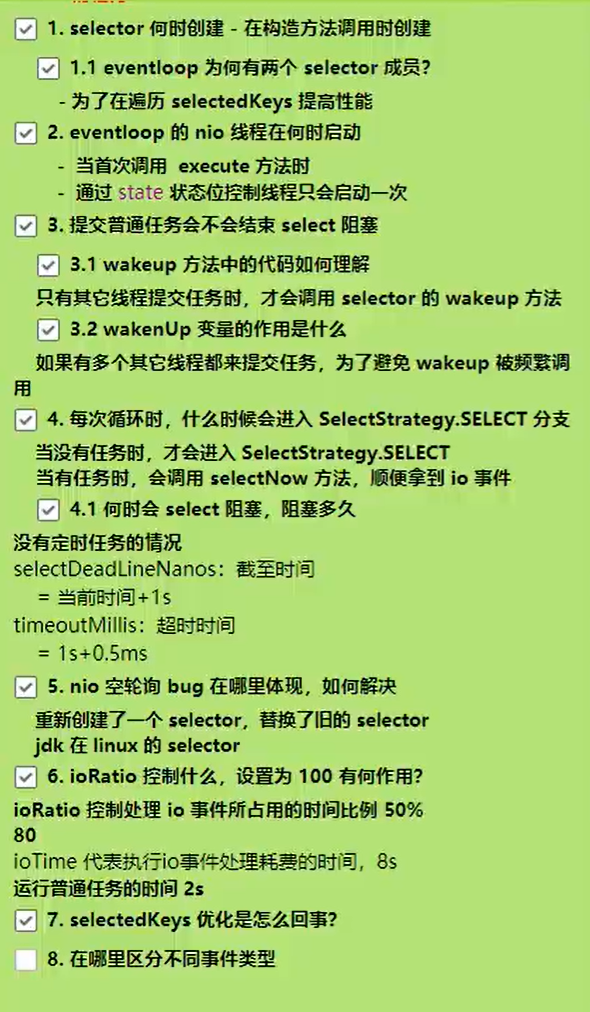

  2. ![image-20210417104638916](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702025802.png)<br />NioEventLoop 线程不仅要处理 IO 事件，还要处理 Task（包括普通任务和定时任务），<br />提交任务代码 `io.netty.util.concurrent.SingleThreadEventExecutor#execute`

public void execute(Runnable task) { if (task == null) { throw new NullPointerException(“task”); }

  1. boolean inEventLoop = inEventLoop();
  2. // 添加任务，其中队列使用了 jctools 提供的 mpsc 无锁队列
  3. addTask(task);
  4. if (!inEventLoop) {
  5.     // inEventLoop 如果为 false 表示由其它线程来调用 execute，即首次调用，这时需要向 eventLoop 提交首个任务，启动死循环，会执行到下面的 doStartThread
  6.     startThread();
  7.     if (isShutdown()) {
  8.         // 如果已经 shutdown，做拒绝逻辑，代码略...
  9.     }
  10. }
  12. if (!addTaskWakesUp && wakesUpForTask(task)) {
  13.     // 如果线程由于 IO select 阻塞了，添加的任务的线程需要负责唤醒 NioEventLoop 线程
  14.     wakeup(inEventLoop);
  15. }

}

  1. 唤醒 select 阻塞线程`io.netty.channel.nio.NioEventLoop#wakeup`

@Override protected void wakeup(boolean inEventLoop) { if (!inEventLoop && wakenUp.compareAndSet(false, true)) { selector.wakeup(); } }

  1. 启动 EventLoop 主循环 `io.netty.util.concurrent.SingleThreadEventExecutor#doStartThread`

private void doStartThread() { assert thread == null; executor.execute(new Runnable() { @Override public void run() { // 将线程池的当前线程保存在成员变量中，以便后续使用 thread = Thread.currentThread(); if (interrupted) { thread.interrupt(); }

  1.         boolean success = false;
  2.         updateLastExecutionTime();
  3.         try {
  4.             // 调用外部类 SingleThreadEventExecutor 的 run 方法，进入死循环，run 方法见下
  5.             SingleThreadEventExecutor.this.run();
  6.             success = true;
  7.         } catch (Throwable t) {
  8.             logger.warn("Unexpected exception from an event executor: ", t);
  9.         } finally {
  10.             // 清理工作，代码略...
  11.         }
  12.     }
  13. });

}

  1. `io.netty.channel.nio.NioEventLoop#run` 主要任务是执行死循环，不断看有没有新任务，有没有 IO 事件

protected void run() { for (;;) { try { try { // calculateStrategy 的逻辑如下： // 有任务，会执行一次 selectNow，清除上一次的 wakeup 结果，无论有没有 IO 事件，都会跳过 switch // 没有任务，会匹配 SelectStrategy.SELECT，看是否应当阻塞 switch (selectStrategy.calculateStrategy(selectNowSupplier, hasTasks())) { case SelectStrategy.CONTINUE: continue;

  1.                 case SelectStrategy.BUSY_WAIT:
  3.                 case SelectStrategy.SELECT:
  4.                     // 因为 IO 线程和提交任务线程都有可能执行 wakeup，而 wakeup 属于比较昂贵的操作，因此使用了一个原子布尔对象 wakenUp，它取值为 true 时，表示该由当前线程唤醒
  5.                     // 进行 select 阻塞，并设置唤醒状态为 false
  6.                     boolean oldWakenUp = wakenUp.getAndSet(false);
  8.                     // 如果在这个位置，非 EventLoop 线程抢先将 wakenUp 置为 true，并 wakeup
  9.                     // 下面的 select 方法不会阻塞
  10.                     // 等 runAllTasks 处理完成后，到再循环进来这个阶段新增的任务会不会及时执行呢?
  11.                     // 因为 oldWakenUp 为 true，因此下面的 select 方法就会阻塞，直到超时
  12.                     // 才能执行，让 select 方法无谓阻塞
  13.                     select(oldWakenUp);
  15.                     if (wakenUp.get()) {
  16.                         selector.wakeup();
  17.                     }
  18.                 default:
  19.             }
  20.         } catch (IOException e) {
  21.             rebuildSelector0();
  22.             handleLoopException(e);
  23.             continue;
  24.         }
  26.         cancelledKeys = 0;
  27.         needsToSelectAgain = false;
  28.         // ioRatio 默认是 50
  29.         final int ioRatio = this.ioRatio;
  30.         if (ioRatio == 100) {
  31.             try {
  32.                 processSelectedKeys();
  33.             } finally {
  34.                 // ioRatio 为 100 时，总是运行完所有非 IO 任务
  35.                 runAllTasks();
  36.             }
  37.         } else {
  38.             final long ioStartTime = System.nanoTime();
  39.             try {
  40.                 processSelectedKeys();
  41.             } finally {
  42.                 // 记录 io 事件处理耗时
  43.                 final long ioTime = System.nanoTime() - ioStartTime;
  44.                 // 运行非 IO 任务，一旦超时会退出 runAllTasks
  45.                 runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
  46.             }
  47.         }
  48.     } catch (Throwable t) {
  49.         handleLoopException(t);
  50.     }
  51.     try {
  52.         if (isShuttingDown()) {
  53.             closeAll();
  54.             if (confirmShutdown()) {
  55.                 return;
  56.             }
  57.         }
  58.     } catch (Throwable t) {
  59.         handleLoopException(t);
  60.     }
  61. }

}

  1. #### ⚠️ 注意
  3. > 这里有个费解的地方就是 wakeup，它既可以由提交任务的线程来调用（比较好理解），也可以由 EventLoop 线程来调用（比较费解），这里要知道 wakeup 方法的效果：
  5. > - 由非 EventLoop 线程调用，会唤醒当前在执行 select 阻塞的 EventLoop 线程
  6. > - 由 EventLoop 自己调用，会本次的 wakeup 会取消下一次的 select 操作
  9. 参考下图
  10. ![](../../../../JAVA_STUDY_FILES/百度网盘/Netty教程源码资料/讲义/Netty-讲义/img/0032.png)`io.netty.channel.nio.NioEventLoop#select`

private void select(boolean oldWakenUp) throws IOException { Selector selector = this.selector; try { int selectCnt = 0; long currentTimeNanos = System.nanoTime(); // 计算等待时间 // 没有 scheduledTask，超时时间为 1s // 有 scheduledTask，超时时间为 下一个定时任务执行时间 - 当前时间 long selectDeadLineNanos = currentTimeNanos + delayNanos(currentTimeNanos);

  1.     for (;;) {
  2.         long timeoutMillis = (selectDeadLineNanos - currentTimeNanos + 500000L) / 1000000L;
  3.         // 如果超时，退出循环
  4.         if (timeoutMillis <= 0) {
  5.             if (selectCnt == 0) {
  6.                 selector.selectNow();
  7.                 selectCnt = 1;
  8.             }
  9.             break;
  10.         }
  12.         // 如果期间又有 task 退出循环，如果没这个判断，那么任务就会等到下次 select 超时时才能被执行
  13.         // wakenUp.compareAndSet(false, true) 是让非 NioEventLoop 不必再执行 wakeup
  14.         if (hasTasks() && wakenUp.compareAndSet(false, true)) {
  15.             selector.selectNow();
  16.             selectCnt = 1;
  17.             break;
  18.         }
  20.         // select 有限时阻塞
  21.         // 注意 nio 有 bug，当 bug 出现时，select 方法即使没有时间发生，也不会阻塞住，导致不断空轮询，cpu 占用 100%
  22.         int selectedKeys = selector.select(timeoutMillis);
  23.         // 计数加 1
  24.         selectCnt ++;
  26.         // 醒来后，如果有 IO 事件、或是由非 EventLoop 线程唤醒，或者有任务，退出循环
  27.         if (selectedKeys != 0 || oldWakenUp || wakenUp.get() || hasTasks() || hasScheduledTasks()) {
  28.             break;
  29.         }
  30.         if (Thread.interrupted()) {
  31.                // 线程被打断，退出循环
  32.             // 记录日志
  33.             selectCnt = 1;
  34.             break;
  35.         }
  37.         long time = System.nanoTime();
  38.         if (time - TimeUnit.MILLISECONDS.toNanos(timeoutMillis) >= currentTimeNanos) {
  39.             // 如果超时，计数重置为 1，下次循环就会 break
  40.             selectCnt = 1;
  41.         }
  42.         // 计数超过阈值，由 io.netty.selectorAutoRebuildThreshold 指定，默认 512
  43.         // 这是为了解决 nio 空轮询 bug
  44.         else if (SELECTOR_AUTO_REBUILD_THRESHOLD > 0 &&
  45.                 selectCnt >= SELECTOR_AUTO_REBUILD_THRESHOLD) {
  46.             // 重建 selector
  47.             selector = selectRebuildSelector(selectCnt);
  48.             selectCnt = 1;
  49.             break;
  50.         }
  52.         currentTimeNanos = time;
  53.     }
  55.     if (selectCnt > MIN_PREMATURE_SELECTOR_RETURNS) {
  56.         // 记录日志
  57.     }
  58. } catch (CancelledKeyException e) {
  59.     // 记录日志
  60. }

}

  1. 处理 keys `io.netty.channel.nio.NioEventLoop#processSelectedKeys`

private void processSelectedKeys() { if (selectedKeys != null) { // 通过反射将 Selector 实现类中的就绪事件集合替换为 SelectedSelectionKeySet // SelectedSelectionKeySet 底层为数组实现，可以提高遍历性能（原本为 HashSet） processSelectedKeysOptimized(); } else { processSelectedKeysPlain(selector.selectedKeys()); } }

  1. `io.netty.channel.nio.NioEventLoop#processSelectedKey`

private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) { final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe(); // 当 key 取消或关闭时会导致这个 key 无效 if (!k.isValid()) { // 无效时处理… return; }

  1. try {
  2.     int readyOps = k.readyOps();
  3.     // 连接事件
  4.     if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
  5.         int ops = k.interestOps();
  6.         ops &= ~SelectionKey.OP_CONNECT;
  7.         k.interestOps(ops);
  9.         unsafe.finishConnect();
  10.     }
  12.     // 可写事件
  13.     if ((readyOps & SelectionKey.OP_WRITE) != 0) {
  14.         ch.unsafe().forceFlush();
  15.     }
  17.     // 可读或可接入事件
  18.     if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
  19.         // 如果是可接入 io.netty.channel.nio.AbstractNioMessageChannel.NioMessageUnsafe#read
  20.         // 如果是可读 io.netty.channel.nio.AbstractNioByteChannel.NioByteUnsafe#read
  21.         unsafe.read();
  22.     }
  23. } catch (CancelledKeyException ignored) {
  24.     unsafe.close(unsafe.voidPromise());
  25. }

}

  1. ![image-20210417111246131](https://myblog-1258908231.cos.ap-shanghai.myqcloud.com/hexo/20210702025803.png)

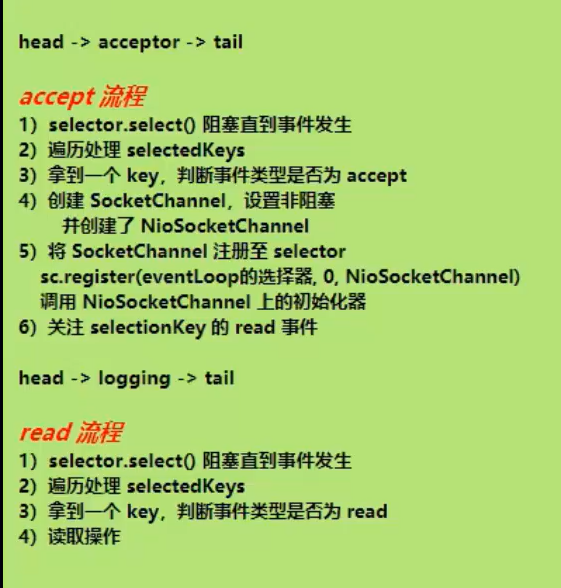

  2. ### 2.3 accept 剖析
  3. nio 中如下代码，在 netty 中的流程

//1 阻塞直到事件发生 selector.select();

Iterator iter = selector.selectedKeys().iterator(); while (iter.hasNext()) {
//2 拿到一个事件 SelectionKey key = iter.next();

  1. //3 如果是 accept 事件
  2. if (key.isAcceptable()) {
  4.     //4 执行 accept
  5.     SocketChannel channel = serverSocketChannel.accept();
  6.     channel.configureBlocking(false);
  8.     //5 关注 read 事件
  9.     channel.register(selector, SelectionKey.OP_READ);
  10. }
  11. // ...

}

  1. 先来看可接入事件处理（accept）<br />`io.netty.channel.nio.AbstractNioMessageChannel.NioMessageUnsafe#read`

public void read() { assert eventLoop().inEventLoop(); final ChannelConfig config = config(); final ChannelPipeline pipeline = pipeline();
final RecvByteBufAllocator.Handle allocHandle = unsafe().recvBufAllocHandle(); allocHandle.reset(config);

  1. boolean closed = false;
  2. Throwable exception = null;
  3. try {
  4.     try {
  5.         do {
  6.             // doReadMessages 中执行了 accept 并创建 NioSocketChannel 作为消息放入 readBuf
  7.             // readBuf 是一个 ArrayList 用来缓存消息
  8.             int localRead = doReadMessages(readBuf);
  9.             if (localRead == 0) {
  10.                 break;
  11.             }
  12.             if (localRead < 0) {
  13.                 closed = true;
  14.                 break;
  15.             }
  16.             // localRead 为 1，就一条消息，即接收一个客户端连接
  17.             allocHandle.incMessagesRead(localRead);
  18.         } while (allocHandle.continueReading());
  19.     } catch (Throwable t) {
  20.         exception = t;
  21.     }
  23.     int size = readBuf.size();
  24.     for (int i = 0; i < size; i ++) {
  25.         readPending = false;
  26.         // 触发 read 事件，让 pipeline 上的 handler 处理，这时是处理
  27.         // io.netty.bootstrap.ServerBootstrap.ServerBootstrapAcceptor#channelRead
  28.         pipeline.fireChannelRead(readBuf.get(i));
  29.     }
  30.     readBuf.clear();
  31.     allocHandle.readComplete();
  32.     pipeline.fireChannelReadComplete();
  34.     if (exception != null) {
  35.         closed = closeOnReadError(exception);
  37.         pipeline.fireExceptionCaught(exception);
  38.     }
  40.     if (closed) {
  41.         inputShutdown = true;
  42.         if (isOpen()) {
  43.             close(voidPromise());
  44.         }
  45.     }
  46. } finally {
  47.     if (!readPending && !config.isAutoRead()) {
  48.         removeReadOp();
  49.     }
  50. }

}

  1. 关键代码 `io.netty.bootstrap.ServerBootstrap.ServerBootstrapAcceptor#channelRead`

public void channelRead(ChannelHandlerContext ctx, Object msg) { // 这时的 msg 是 NioSocketChannel final Channel child = (Channel) msg;

  1. // NioSocketChannel 添加  childHandler 即初始化器
  2. child.pipeline().addLast(childHandler);
  4. // 设置选项
  5. setChannelOptions(child, childOptions, logger);
  7. for (Entry<AttributeKey<?>, Object> e: childAttrs) {
  8.     child.attr((AttributeKey<Object>) e.getKey()).set(e.getValue());
  9. }
  11. try {
  12.     // 注册 NioSocketChannel 到 nio worker 线程，接下来的处理也移交至 nio worker 线程
  13.     childGroup.register(child).addListener(new ChannelFutureListener() {
  14.         @Override
  15.         public void operationComplete(ChannelFuture future) throws Exception {
  16.             if (!future.isSuccess()) {
  17.                 forceClose(child, future.cause());
  18.             }
  19.         }
  20.     });
  21. } catch (Throwable t) {
  22.     forceClose(child, t);
  23. }

}

  1. 又回到了熟悉的 `io.netty.channel.AbstractChannel.AbstractUnsafe#register`  方法

public final void register(EventLoop eventLoop, final ChannelPromise promise) { // 一些检查，略…

  1. AbstractChannel.this.eventLoop = eventLoop;
  3. if (eventLoop.inEventLoop()) {
  4.     register0(promise);
  5. } else {
  6.     try {
  7.         // 这行代码完成的事实是 nio boss -> nio worker 线程的切换
  8.         eventLoop.execute(new Runnable() {
  9.             @Override
  10.             public void run() {
  11.                 register0(promise);
  12.             }
  13.         });
  14.     } catch (Throwable t) {
  15.         // 日志记录...
  16.         closeForcibly();
  17.         closeFuture.setClosed();
  18.         safeSetFailure(promise, t);
  19.     }
  20. }

}

  1. `io.netty.channel.AbstractChannel.AbstractUnsafe#register0`

private void register0(ChannelPromise promise) { try { if (!promise.setUncancellable() || !ensureOpen(promise)) { return; } boolean firstRegistration = neverRegistered; doRegister(); neverRegistered = false; registered = true;

  1.     // 执行初始化器，执行前 pipeline 中只有 head -> 初始化器 -> tail
  2.     pipeline.invokeHandlerAddedIfNeeded();
  3.     // 执行后就是 head -> logging handler -> my handler -> tail
  5.     safeSetSuccess(promise);
  6.     pipeline.fireChannelRegistered();
  8.     if (isActive()) {
  9.         if (firstRegistration) {
  10.             // 触发 pipeline 上 active 事件
  11.             pipeline.fireChannelActive();
  12.         } else if (config().isAutoRead()) {
  13.             beginRead();
  14.         }
  15.     }
  16. } catch (Throwable t) {
  17.     closeForcibly();
  18.     closeFuture.setClosed();
  19.     safeSetFailure(promise, t);
  20. }

}

  1. 回到了熟悉的代码 `io.netty.channel.DefaultChannelPipeline.HeadContext#channelActive`

public void channelActive(ChannelHandlerContext ctx) { ctx.fireChannelActive(); // 触发 read (NioSocketChannel 这里 read，只是为了触发 channel 的事件注册，还未涉及数据读取) readIfIsAutoRead(); }

  1. `io.netty.channel.nio.AbstractNioChannel#doBeginRead`

protected void doBeginRead() throws Exception { // Channel.read() or ChannelHandlerContext.read() was called final SelectionKey selectionKey = this.selectionKey; if (!selectionKey.isValid()) { return; }

  1. readPending = true;
  2. // 这时候 interestOps 是 0
  3. final int interestOps = selectionKey.interestOps();
  4. if ((interestOps & readInterestOp) == 0) {
  5.     // 关注 read 事件
  6.     selectionKey.interestOps(interestOps | readInterestOp);
  7. }

}

  1. ### 2.4 read 剖析
  2. 再来看可读事件 `io.netty.channel.nio.AbstractNioByteChannel.NioByteUnsafe#read`，注意发送的数据未必能够一次读完，因此会触发多次 nio read 事件，一次事件内会触发多次 pipeline read，一次事件会触发一次 pipeline read complete

public final void read() { final ChannelConfig config = config(); if (shouldBreakReadReady(config)) { clearReadPending(); return; } final ChannelPipeline pipeline = pipeline(); // io.netty.allocator.type 决定 allocator 的实现 final ByteBufAllocator allocator = config.getAllocator(); // 用来分配 byteBuf，确定单次读取大小 final RecvByteBufAllocator.Handle allocHandle = recvBufAllocHandle(); allocHandle.reset(config);

  1. ByteBuf byteBuf = null;
  2. boolean close = false;
  3. try {
  4.     do {
  5.         byteBuf = allocHandle.allocate(allocator);
  6.         // 读取
  7.         allocHandle.lastBytesRead(doReadBytes(byteBuf));
  8.         if (allocHandle.lastBytesRead() <= 0) {
  9.             byteBuf.release();
  10.             byteBuf = null;
  11.             close = allocHandle.lastBytesRead() < 0;
  12.             if (close) {
  13.                 readPending = false;
  14.             }
  15.             break;
  16.         }
  18.         allocHandle.incMessagesRead(1);
  19.         readPending = false;
  20.         // 触发 read 事件，让 pipeline 上的 handler 处理，这时是处理 NioSocketChannel 上的 handler
  21.         pipeline.fireChannelRead(byteBuf);
  22.         byteBuf = null;
  23.     }
  24.     // 是否要继续循环
  25.     while (allocHandle.continueReading());
  27.     allocHandle.readComplete();
  28.     // 触发 read complete 事件
  29.     pipeline.fireChannelReadComplete();
  31.     if (close) {
  32.         closeOnRead(pipeline);
  33.     }
  34. } catch (Throwable t) {
  35.     handleReadException(pipeline, byteBuf, t, close, allocHandle);
  36. } finally {
  37.     if (!readPending && !config.isAutoRead()) {
  38.         removeReadOp();
  39.     }
  40. }

}

  1. `io.netty.channel.DefaultMaxMessagesRecvByteBufAllocator.MaxMessageHandle#continueReading(io.netty.util.UncheckedBooleanSupplier)`

public boolean continueReading(UncheckedBooleanSupplier maybeMoreDataSupplier) { return // 一般为 true config.isAutoRead() && // respectMaybeMoreData 默认为 true // maybeMoreDataSupplier 的逻辑是如果预期读取字节与实际读取字节相等，返回 true (!respectMaybeMoreData || maybeMoreDataSupplier.get()) && // 小于最大次数，maxMessagePerRead 默认 16 totalMessages < maxMessagePerRead && // 实际读到了数据 totalBytesRead > 0; }

```
