Debezium 介绍


Debezium 是一个分布式平台，它将现有的数据库转换为事件流，应用程序消费事件流，就可以知道数据库中的每一个行级更改，并立即做出响应。

Debezium 构建在 Apache Kafka 之上，并提供 Kafka 连接器来监视特定的数据库。

Kafka Connect 介绍

一般情况下，读写 Kafka 数据，都是用 Consumer 和 Producer Api 来完成，但是自己实现这些需要去考虑很多额外的东西，比如管理 Schema，容错，并行化，数据延迟，监控等等问题。

而在 0.9.0.0 版本之后，官方推出了 Kafka Connect ，大大减少了程序员的工作量，它有下面的特性：

  • 统一而通用的框架
  • 支持分布式模式和单机模式
  • REST 接口，用来查看和管理 Kafka connectors
  • 自动化的 offset 管理，开发人员不必担心错误处理的影响
  • 分布式、可扩展
  • 流/批处理集成

Kafka Connect 有两个核心的概念：Source 和 Sink，Source 负责导入数据到 Kafka，Sink 负责从 Kafka 导出数据，它们都被称为是 Connector。

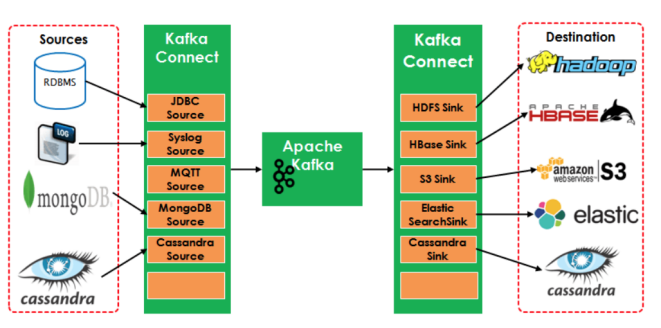

如下图，左边的 Source 负责从源数据（RDBMS，File 等）读数据到 Kafka，右边的 Sinks 负责从 Kafka 消费到其他系统。

Debezium 架构和实现原理

Debezium 有三种方式可以实现变化数据的捕获

以插件的形式，部署在 Kafka Connect 上

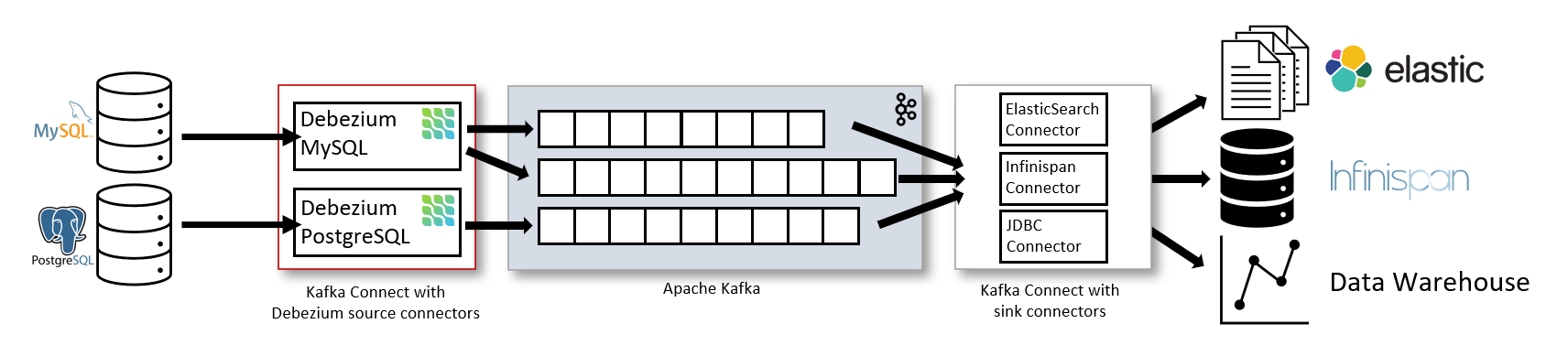

在上图中，中间的部分是 Kafka Broker，而 Kafka Connect 是单独的服务，需要下载 debezium-connector-mysql 连接器，解压到服务器指定的地方，然后在 connect-distribute.properties 中指定连接器的根路径，即可使用。

Debezium Server

这种模式中，需要配置不同的连接器，从源头处捕获数据的变化，序列化成指定的格式，发送到指定的系统中。

内嵌在应用程序里

内嵌模式，既不依赖 Kafka，也不依赖 Debezium Server，用户可以在自己的应用程序中，依赖 Debezium 的 api 自行处理获取到的数据，并同步到其他源上。

使用 Debezium 同步 MySQL 到 Kafka

docker run 参数详解 -it 交互式运行 —rm 表示容器停止后删除本地数据 -d 表示在后台运行容器 —name 指定容器名字 -p 指定容器暴露的端口 -e 指定环境变量 —link 指定容器间的关联，使用其他容器的 IP、env等信息

启动 ZooKeeper

  1. docker run -d -it --rm --name zookeeper -p 2181:2181 -p 2888:2888 -p 3888:3888 debezium/zookeeper:1.8

启动 Kafka

  1. docker run -d -it --rm --name kafka -p 9092:9092 --link zookeeper:zookeeper debezium/kafka:1.8

启动 MySQL 数据库

  1. docker run -d -it --rm --name mysql -p 3306:3306 -e MYSQL_ROOT_PASSWORD=debezium -e MYSQL_USER=mysqluser -e MYSQL_PASSWORD=mysqlpw debezium/example-mysql:1.8

启动 MySQL 命令行客户端

  • 启动 MySQL 命令行客户端

    1. docker run -it --rm --name mysqlterm --link mysql --rm mysql:8.0 sh -c 'exec mysql -h"$MYSQL_PORT_3306_TCP_ADDR" -P"$MYSQL_PORT_3306_TCP_PORT" -uroot -p"$MYSQL_ENV_MYSQL_ROOT_PASSWORD"'

  • 切换到 inventory 数据库

    1. mysql> use inventory;

  • 列出数据库中的表

    1. mysql> show tables;
    2. +---------------------+
    3. | Tables_in_inventory |
    4. +---------------------+
    5. | addresses           |
    6. | customers           |
    7. | geom                |
    8. | orders              |
    9. | products            |
    10. | products_on_hand    |
    11. +---------------------+
    12. 6 rows in set (0.00 sec)

  • 查看 customers 表中的数据

    1. mysql> SELECT * FROM customers;
    2. +------+------------+-----------+-----------------------+
    3. | id   | first_name | last_name | email                 |
    4. +------+------------+-----------+-----------------------+
    5. | 1001 | Sally      | Thomas    | sally.thomas@acme.com |
    6. | 1002 | George     | Bailey    | gbailey@foobar.com    |
    7. | 1003 | Edward     | Walker    | ed@walker.com         |
    8. | 1004 | Anne       | Kretchmar | annek@noanswer.org    |
    9. +------+------------+-----------+-----------------------+
    10. 4 rows in set (0.00 sec)

    启动 Kafka Connect

  • 启动 Kafka Connect

    1. docker run -d -it --rm --name connect -p 8083:8083 -e GROUP_ID=1 -e CONFIG_STORAGE_TOPIC=my_connect_configs -e OFFSET_STORAGE_TOPIC=my_connect_offsets -e STATUS_STORAGE_TOPIC=my_connect_statuses --link zookeeper:zookeeper --link kafka:kafka --link mysql:mysql debezium/connect:1.8

  • 使用 Kafka Connect REST API 查看 Kafka Connect 状态

    1. curl -H "Accept:application/json" localhost:8083/
    2. {"version":"3.0.0","commit":"8cb0a5e9d3441962","kafka_cluster_id":"EKcq3XCAT_umWw7ZS0qx_w"}

  • 查看连接器列表

    1. curl -H "Accept:application/json" localhost:8083/connectors/
    2. []

    注册 MySQL connector

  • 需要往 Kafka Connect 的 rest api 发送一个 Post 请求，请求内容如下

    1. {
    2. "name": "inventory-connector",
    3. "config": {
    4.   "connector.class": "io.debezium.connector.mysql.MySqlConnector",
    5.   "tasks.max": "1",
    6.   "database.hostname": "mysql",
    7.   "database.port": "3306",
    8.   "database.user": "debezium",
    9.   "database.password": "dbz",
    10.   "database.server.id": "184054",
    11.   "database.server.name": "dbserver1",
    12.   "database.include.list": "inventory",
    13.   "database.history.kafka.bootstrap.servers": "kafka:9092",
    14.   "database.history.kafka.topic": "schema-changes.inventory"
    15. }
    16. }

    name：是连接器的名字 config：是连接器的配置 tasks.max：task 最大数量，应该配置成 1，因为 MySQL的 Connector 会读取 MySQL 的 binlog，使用单一的任务才能保证合理的顺序 database.hostname：这里配置的是 MySQL，其实是一个 host，如果非 docker 环境，则要配置成 ip 地址或者可以解析的域名； database.server.id：唯一的 serverId，会被作为 Kafka Topic 的前缀； database.include.list：是需要监听的数据库 database.history.kafka.topic：存放所有历史变更的 topic

  • 注册 MySQL connector 到 Kafka Connect 上

    1. curl -i -X POST -H "Accept:application/json" -H "Content-Type:application/json" localhost:8083/connectors/ -d '{ "name": "inventory-connector", "config": { "connector.class": "io.debezium.connector.mysql.MySqlConnector", "tasks.max": "1", "database.hostname": "mysql", "database.port": "3306", "database.user": "debezium", "database.password": "dbz", "database.server.id": "184054", "database.server.name": "dbserver1", "database.include.list": "inventory", "database.history.kafka.bootstrap.servers": "kafka:9092", "database.history.kafka.topic": "dbhistory.inventory" } }'

  • 查看连接器列表

    1. curl -H "Accept:application/json" localhost:8083/connectors/
    2. ["inventory-connector"]

  • 查看连接器详情 ```bash curl -i -X GET -H “Accept:application/json” localhost:8083/connectors/inventory-connector

HTTP/1.1 200 OK Date: Wed, 16 Mar 2022 10:00:19 GMT Content-Type: application/json Content-Length: 534 Server: Jetty(9.4.43.v20210629)

{“name”:”inventory-connector”,”config”:{“connector.class”:”io.debezium.connector.mysql.MySqlConnector”,”database.user”:”debezium”,”database.server.id”:”184054”,”tasks.max”:”1”,”database.hostname”:”mysql”,”database.password”:”dbz”,”database.history.kafka.bootstrap.servers”:”kafka:9092”,”database.history.kafka.topic”:”dbhistory.inventory”,”name”:”inventory-connector”,”database.server.name”:”dbserver1”,”database.port”:”3306”,”database.include.list”:”inventory”},”tasks”:[{“connector”:”inventory-connector”,”task”:0}],”type”:”source”}

  1. <a name="RQ2cY"></a>
  2. ## 运行 watch-topic，查看 Debezium 发送过来的事件
  3. 总共有五个 topic
  5. - dbserver1
  6. - dbserver1.inventory.products
  7. - dbserver1.inventory.products_on_hand
  8. - dbserver1.inventory.customers
  9. - dbserver1.inventory.orders
  11. 这里我们查看 customers topic
  12. ```json
  13. docker run -it --rm --name watcher --link zookeeper:zookeeper --link kafka:kafka debezium/kafka:1.8 watch-topic -a -k dbserver1.inventory.customers

以下是最后一个事件的键的详细信息（为便于阅读已经格式化）

  1. {
  2.   "schema":{
  3.     "type":"struct",
  4.       "fields":[
  5.         {
  6.           "type":"int32",
  7.           "optional":false,
  8.           "field":"id"
  9.         }
  10.       ],
  11.     "optional":false,
  12.     "name":"dbserver1.inventory.customers.Key"
  13.   },
  14.   "payload":{
  15.     "id":1004
  16.   }
  17. }

以下是最后一个事件的值的详细信息（为便于阅读已经格式化）

  1. {
  2.   "schema": {
  3.     "type": "struct",
  4.     "fields": [
  5.       {
  6.         "type": "struct",
  7.         "fields": [
  8.           {
  9.             "type": "int32",
  10.             "optional": false,
  11.             "field": "id"
  12.           },
  13.           {
  14.             "type": "string",
  15.             "optional": false,
  16.             "field": "first_name"
  17.           },
  18.           {
  19.             "type": "string",
  20.             "optional": false,
  21.             "field": "last_name"
  22.           },
  23.           {
  24.             "type": "string",
  25.             "optional": false,
  26.             "field": "email"
  27.           }
  28.         ],
  29.         "optional": true,
  30.         "name": "dbserver1.inventory.customers.Value",
  31.         "field": "before"
  32.       },
  33.       {
  34.         "type": "struct",
  35.         "fields": [
  36.           {
  37.             "type": "int32",
  38.             "optional": false,
  39.             "field": "id"
  40.           },
  41.           {
  42.             "type": "string",
  43.             "optional": false,
  44.             "field": "first_name"
  45.           },
  46.           {
  47.             "type": "string",
  48.             "optional": false,
  49.             "field": "last_name"
  50.           },
  51.           {
  52.             "type": "string",
  53.             "optional": false,
  54.             "field": "email"
  55.           }
  56.         ],
  57.         "optional": true,
  58.         "name": "dbserver1.inventory.customers.Value",
  59.         "field": "after"
  60.       },
  61.       {
  62.         "type": "struct",
  63.         "fields": [
  64.           {
  65.             "type": "string",
  66.             "optional": true,
  67.             "field": "version"
  68.           },
  69.           {
  70.             "type": "string",
  71.             "optional": false,
  72.             "field": "name"
  73.           },
  74.           {
  75.             "type": "int64",
  76.             "optional": false,
  77.             "field": "server_id"
  78.           },
  79.           {
  80.             "type": "int64",
  81.             "optional": false,
  82.             "field": "ts_sec"
  83.           },
  84.           {
  85.             "type": "string",
  86.             "optional": true,
  87.             "field": "gtid"
  88.           },
  89.           {
  90.             "type": "string",
  91.             "optional": false,
  92.             "field": "file"
  93.           },
  94.           {
  95.             "type": "int64",
  96.             "optional": false,
  97.             "field": "pos"
  98.           },
  99.           {
  100.             "type": "int32",
  101.             "optional": false,
  102.             "field": "row"
  103.           },
  104.           {
  105.             "type": "boolean",
  106.             "optional": true,
  107.             "field": "snapshot"
  108.           },
  109.           {
  110.             "type": "int64",
  111.             "optional": true,
  112.             "field": "thread"
  113.           },
  114.           {
  115.             "type": "string",
  116.             "optional": true,
  117.             "field": "db"
  118.           },
  119.           {
  120.             "type": "string",
  121.             "optional": true,
  122.             "field": "table"
  123.           }
  124.         ],
  125.         "optional": false,
  126.         "name": "io.debezium.connector.mysql.Source",
  127.         "field": "source"
  128.       },
  129.       {
  130.         "type": "string",
  131.         "optional": false,
  132.         "field": "op"
  133.       },
  134.       {
  135.         "type": "int64",
  136.         "optional": true,
  137.         "field": "ts_ms"
  138.       }
  139.     ],
  140.     "optional": false,
  141.     "name": "dbserver1.inventory.customers.Envelope",
  142.     "version": 1
  143.   },
  144.   "payload": {
  145.     "before": null,
  146.     "after": {
  147.       "id": 1004,
  148.       "first_name": "Anne",
  149.       "last_name": "Kretchmar",
  150.       "email": "annek@noanswer.org"
  151.     },
  152.     "source": {
  153.       "version": "1.8.1.Final",
  154.       "name": "dbserver1",
  155.       "server_id": 0,
  156.       "ts_sec": 0,
  157.       "gtid": null,
  158.       "file": "mysql-bin.000003",
  159.       "pos": 154,
  160.       "row": 0,
  161.       "snapshot": true,
  162.       "thread": null,
  163.       "db": "inventory",
  164.       "table": "customers"
  165.     },
  166.     "op": "r",
  167.     "ts_ms": 1486500577691
  168.   }
  169. }

包含了 schema和 payload。schema 包含一个名为 dbserver1.inventory.customers.Envelope（版本1）的 schema，该 schema 可以包含5个字段：

  • op 是必填字段，其中包含描述操作类型的字符串值。MySQL 连接器的值 c 用于创建（或插入），u用于更新，d 用于删除和 r 用于读取（在非初始快照的情况下）
  • before 是一个可选字段，如果存在，则包含事件发生之前行的状态。该结构将由dbserver1.inventory.customers.Value schema 描述，dbserver1 连接器将其用于inventory.customers 表中的所有行
  • after 是一个可选字段，如果存在，则包含事件发生后行的状态。该结构由中使用与 before 相同的dbserver1.inventory.customers.Value schema 描述
  • source 是必填字段，包含描述事件源元数据的结构，在 MySQL 中，该字段包含多个字段：连接器名称，记录事件的 binlog 文件的名称，事件出现在 binlog 文件中的位置，事件中的行（可能有多个），受影响的数据库和表的名称，进行更改的 MySQL 线程 ID，此事件是否是快照的一部分以及 MySQL 服务器（如果有） ID，以及以秒为单位的时间戳
  • ts_ms 是可选的，如果存在，则包含连接器处理事件的时间（使用运行 Kafka Connect 任务的 JVM 中的系统时钟）

更新数据并查看更新事件

  • 更新数据 ```json mysql> UPDATE customers SET first_name=’Anne Marie’ WHERE id=1004; Query OK, 1 row affected (0.05 sec) Rows matched: 1 Changed: 1 Warnings: 0

mysql> SELECT * FROM customers; +———+——————+—————-+———————————-+ | id | first_name | last_name | email | +———+——————+—————-+———————————-+ | 1001 | Sally | Thomas | sally.thomas@acme.com | | 1002 | George | Bailey | gbailey@foobar.com | | 1003 | Edward | Walker | ed@walker.com | | 1004 | Anne Marie | Kretchmar | annek@noanswer.org | +———+——————+—————-+———————————-+ 4 rows in set (0.00 sec)

  2. - 这是更新事件的键的详细信息（为便于阅读已经格式化）
  3. ```json
  4.  {
  5.     "schema": {
  6.       "type": "struct",
  7.       "name": "dbserver1.inventory.customers.Key"
  8.       "optional": false,
  9.       "fields": [
  10.         {
  11.           "field": "id",
  12.           "type": "int32",
  13.           "optional": false
  14.         }
  15.       ]
  16.     },
  17.     "payload": {
  18.       "id": 1004
  19.     }
  20.   }

  • 这是更新事件的值的详细信息（为便于阅读已经格式化）

    1. {
    2. "schema": {...},
    3. "payload": {
    4.   "before": {
    5.     "id": 1004,
    6.     "first_name": "Anne",
    7.     "last_name": "Kretchmar",
    8.     "email": "annek@noanswer.org"
    9.   },
    10.   "after": {
    11.     "id": 1004,
    12.     "first_name": "Anne Marie",
    13.     "last_name": "Kretchmar",
    14.     "email": "annek@noanswer.org"
    15.   },
    16.   "source": {
    17.     "name": "1.8.1.Final",
    18.     "name": "dbserver1",
    19.     "server_id": 223344,
    20.     "ts_sec": 1486501486,
    21.     "gtid": null,
    22.     "file": "mysql-bin.000003",
    23.     "pos": 364,
    24.     "row": 0,
    25.     "snapshot": null,
    26.     "thread": 3,
    27.     "db": "inventory",
    28.     "table": "customers"
    29.   },
    30.   "op": "u",
    31.   "ts_ms": 1486501486308
    32. }
    33. }

  • op 字段的值是现在 u，表示此行被更改，因为更新

  • before 字段现在具有行状态以及数据库提交前的值
  • after 现在字段具有该行的更新状态，在这里可以看到该 first_name 值现在是 Anne Marie
  • source字段具有许多与以前相同的值，除了 ts_sec 和 pos 字段已更改（文件在其他情况下可能已更改）
  • op 字段值现在是 u，表示该行更新
  • ts_ms 字段显示 Debezium 处理此事件的时间戳

删除数据并查看删除事件

  • 删除数据库 ```json mysql> DELETE FROM addresses WHERE customer_id=1004;

mysql> DELETE FROM customers WHERE id=1004; Query OK, 1 row affected (0.00 sec)

  2. - 这是删除事件的键的详细信息（为便于阅读已经格式化）
  3. ```json
  4. {
  5.   "schema": {
  6.     "type": "struct",
  7.     "name": "dbserver1.inventory.customers.Key"
  8.     "optional": false,
  9.     "fields": [
  10.       {
  11.         "field": "id",
  12.         "type": "int32",
  13.         "optional": false
  14.       }
  15.     ]
  16.   },
  17.   "payload": {
  18.     "id": 1004
  19.   }
  20. }
  • 这是删除事件的值的详细信息（为便于阅读已经格式化） ```json { “schema”: {…}, “payload”: { “before”: {
    1. "id": 1004,
    2. "first_name": "Anne Marie",
    3. "last_name": "Kretchmar",
    4. "email": "annek@noanswer.org"
    }, “after”: null,
    “source”: {
    1. "name": "1.8.1.Final",
    2. "name": "dbserver1",
    3. "server_id": 223344,
    4. "ts_sec": 1486501558,
    5. "gtid": null,
    6. "file": "mysql-bin.000003",
    7. "pos": 725,
    8. "row": 0,
    9. "snapshot": null,
    10. "thread": 3,
    11. "db": "inventory",
    12. "table": "customers"
    }, “op”: “d”,
    “ts_ms”: 1486501558315
    } }
  2. - `before` 字段删除之前行的状态
  3. - `after` 字段为空，因为该行不再存在
  4. - `source` 字段结构具有许多与以前相同的值，除了 `ts_sec` 和 `pos` 字段已更改（文件在其他情况下可能已更改）
  5. - `op` 字段的值现在是 `d`，表示该行已被删除
  6. - `ts_ms` 字段显示 Debezium 处理此事件的时间戳
  7. <a name="NYQDM"></a>
  8. ## 重启 Kafka Connect 服务
  10. - 停止运行 Kafka Connect 服务的容器
  11. ```json
  12. docker stop connect

  • 服务关闭后，切换到 MySQL 命令行客户端的终端，并添加几条记录

    1. mysql> INSERT INTO customers VALUES (default, "Sarah", "Thompson", "kitt@acme.com");
    2. mysql> INSERT INTO customers VALUES (default, "Kenneth", "Anderson", "kander@acme.com");

    记录被添加到数据库中。 但是，由于 Kafka Connect 未运行，因此 watch-topic 不会记录任何更新

  • 重启运行 Kafka Connect 服务的容器

    1. docker run -d -it --rm --name connect -p 8083:8083 -e GROUP_ID=1 -e CONFIG_STORAGE_TOPIC=my_connect_configs -e OFFSET_STORAGE_TOPIC=my_connect_offsets -e STATUS_STORAGE_TOPIC=my_connect_statuses --link zookeeper:zookeeper --link kafka:kafka --link mysql:mysql debezium/connect:1.8

  • 切换到运行 watch-topic 的终端，查看在 Kafka Connect 离线时创建的两条新记录的事件

    1. {"schema":{"type":"struct","fields":[{"type":"int32","optional":false,"field":"id"}],"optional":false,"name":"dbserver1.inventory.customers.Key"},"payload":{"id":1005}}    {"schema":{"type":"struct","fields":[{"type":"struct","fields":[{"type":"int32","optional":false,"field":"id"},{"type":"string","optional":false,"field":"first_name"},{"type":"string","optional":false,"field":"last_name"},{"type":"string","optional":false,"field":"email"}],"optional":true,"name":"dbserver1.inventory.customers.Value","field":"before"},{"type":"struct","fields":[{"type":"int32","optional":false,"field":"id"},{"type":"string","optional":false,"field":"first_name"},{"type":"string","optional":false,"field":"last_name"},{"type":"string","optional":false,"field":"email"}],"optional":true,"name":"dbserver1.inventory.customers.Value","field":"after"},{"type":"struct","fields":[{"type":"string","optional":true,"field":"version"},{"type":"string","optional":false,"field":"name"},{"type":"int64","optional":false,"field":"server_id"},{"type":"int64","optional":false,"field":"ts_sec"},{"type":"string","optional":true,"field":"gtid"},{"type":"string","optional":false,"field":"file"},{"type":"int64","optional":false,"field":"pos"},{"type":"int32","optional":false,"field":"row"},{"type":"boolean","optional":true,"field":"snapshot"},{"type":"int64","optional":true,"field":"thread"},{"type":"string","optional":true,"field":"db"},{"type":"string","optional":true,"field":"table"}],"optional":false,"name":"io.debezium.connector.mysql.Source","field":"source"},{"type":"string","optional":false,"field":"op"},{"type":"int64","optional":true,"field":"ts_ms"}],"optional":false,"name":"dbserver1.inventory.customers.Envelope","version":1},"payload":{"before":null,"after":{"id":1005,"first_name":"Sarah","last_name":"Thompson","email":"kitt@acme.com"},"source":{"version":"1.8.1.Final","name":"dbserver1","server_id":223344,"ts_sec":1490635153,"gtid":null,"file":"mysql-bin.000003","pos":1046,"row":0,"snapshot":null,"thread":3,"db":"inventory","table":"customers"},"op":"c","ts_ms":1490635181455}}
    2. {"schema":{"type":"struct","fields":[{"type":"int32","optional":false,"field":"id"}],"optional":false,"name":"dbserver1.inventory.customers.Key"},"payload":{"id":1006}}    {"schema":{"type":"struct","fields":[{"type":"struct","fields":[{"type":"int32","optional":false,"field":"id"},{"type":"string","optional":false,"field":"first_name"},{"type":"string","optional":false,"field":"last_name"},{"type":"string","optional":false,"field":"email"}],"optional":true,"name":"dbserver1.inventory.customers.Value","field":"before"},{"type":"struct","fields":[{"type":"int32","optional":false,"field":"id"},{"type":"string","optional":false,"field":"first_name"},{"type":"string","optional":false,"field":"last_name"},{"type":"string","optional":false,"field":"email"}],"optional":true,"name":"dbserver1.inventory.customers.Value","field":"after"},{"type":"struct","fields":[{"type":"string","optional":true,"field":"version"},{"type":"string","optional":false,"field":"name"},{"type":"int64","optional":false,"field":"server_id"},{"type":"int64","optional":false,"field":"ts_sec"},{"type":"string","optional":true,"field":"gtid"},{"type":"string","optional":false,"field":"file"},{"type":"int64","optional":false,"field":"pos"},{"type":"int32","optional":false,"field":"row"},{"type":"boolean","optional":true,"field":"snapshot"},{"type":"int64","optional":true,"field":"thread"},{"type":"string","optional":true,"field":"db"},{"type":"string","optional":true,"field":"table"}],"optional":false,"name":"io.debezium.connector.mysql.Source","field":"source"},{"type":"string","optional":false,"field":"op"},{"type":"int64","optional":true,"field":"ts_ms"}],"optional":false,"name":"dbserver1.inventory.customers.Envelope","version":1},"payload":{"before":null,"after":{"id":1006,"first_name":"Kenneth","last_name":"Anderson","email":"kander@acme.com"},"source":{"version":"1.8.1.Final","name":"dbserver1","server_id":223344,"ts_sec":1490635160,"gtid":null,"file":"mysql-bin.000003","pos":1356,"row":0,"snapshot":null,"thread":3,"db":"inventory","table":"customers"},"op":"c","ts_ms":1490635181456}}

参考 Debezium Tutorial Flink+Debezium 实现 CDC 原理及代码实战
