下载：

elasticsearch-7.9.1-x86_64.rpm 上传到home目录下，安装好jdk；

安装：

  1. rpm -ivh elasticsearch-7.9.1-x86_64.rpm


  1. [root@node02 home]# whereis elasticsearch
  2. elasticsearch: /etc/elasticsearch /usr/share/elasticsearch
  3. [root@node02 home]
  6. ##
  7. /usr/share/elasticsearch

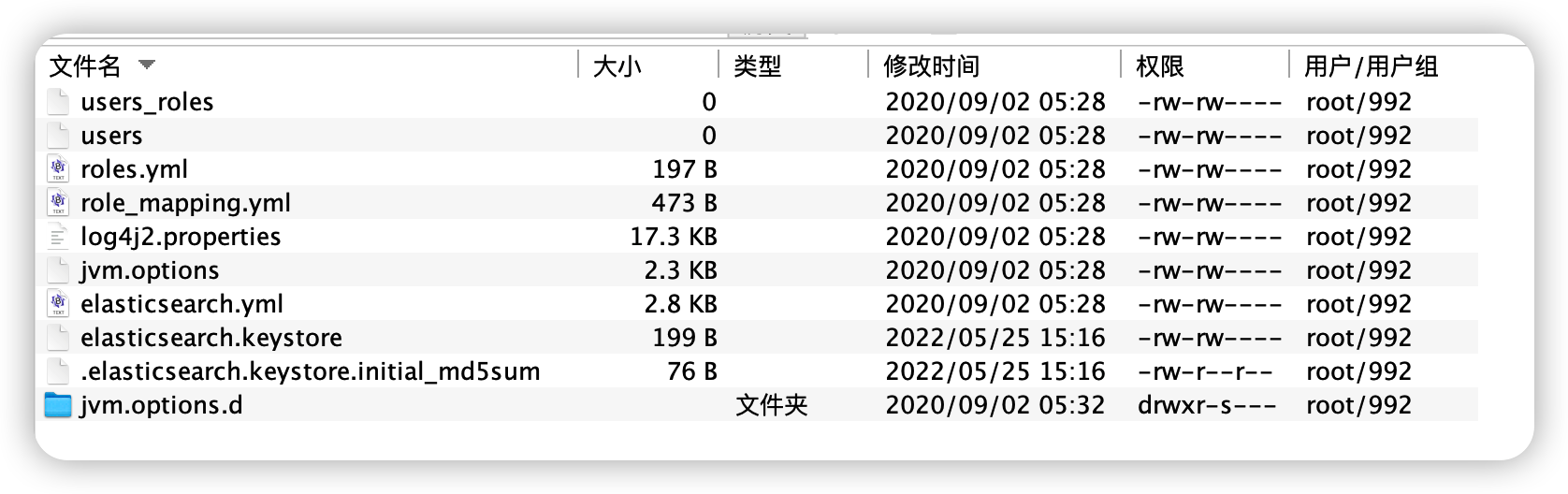

配置目录

/etc/elasticsearch

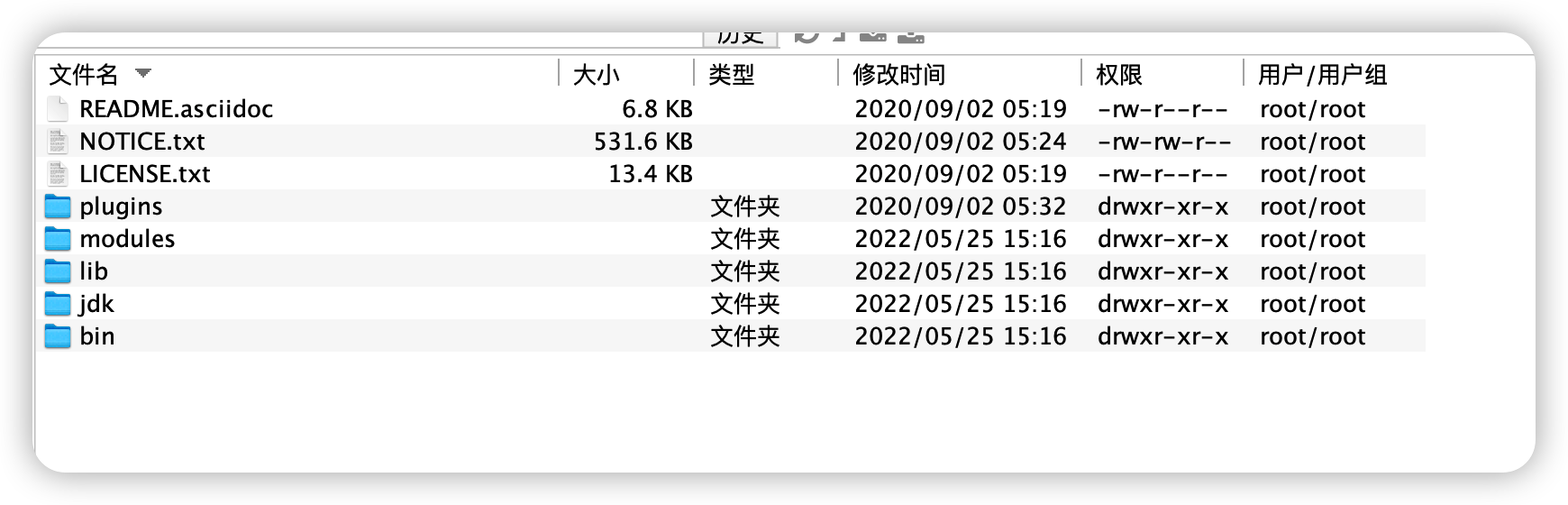

软件安装目录：

/usr/share/elasticsearch

修改配置文件：

jvm.options修改jvm的参数：

jvm.options

设置堆内存大小
-Xms8g
-Xmx8g
jvm heap分配：es7.6版本默认1GB，这个值太小，很容易导致OOM。Jvm heap大小不要超过物理内存的50%，最大也不要超过32GB（compressed oop），它可用于其内部缓存的内存就越多，但可供操作系统用于文件系统缓存的内存就越少，heap过大会导致GC时间过长。

elasticsearch.yml

单机配置：

  1. cluster.name: es-cluster
  2. node.name: node-1
  3. path.data: /var/lib/elasticsearch
  4. path.logs: /var/log/elasticsearch
  5. network.host: 0.0.0.0
  6. http.port: 9200
  7. http.cors.enabled: true
  8. http.cors.allow-origin: "*"
  9. http.cors.allow-headers: Authorization,X-Requested-With,Content-Length,Content-Type
  10. discovery.seed_hosts: ["172.16.4.200"]
  11. cluster.initial_master_nodes: ["node-1"]
  12. node.master: true
  13. node.data: true
  14. node.ingest: true

集群配置：

172.16.4.200:

  1. cluster.name: es-cluster
  2. node.name: node-1
  3. path.data: /var/lib/elasticsearch
  4. path.logs: /var/log/elasticsearch
  5. network.host: 0.0.0.0
  6. network.publish_host: 172.16.4.200
  7. http.port: 9200
  8. transport.tcp.port: 9300
  9. http.cors.enabled: true
  10. http.cors.allow-origin: "*"
  11. http.cors.allow-headers: Authorization,X-Requested-With,Content-Length,Content-Type
  12. discovery.seed_hosts: ["172.16.4.200:9300","172.16.4.212:9300","172.16.4.211:9300"]
  13. cluster.initial_master_nodes: ["node-1","node-2","node-3"]
  14. node.master: true
  15. node.data: true
  16. node.ingest: true
  17. #只要此许多数据或主节点已加入集群，即可恢复。
  18. gateway.recover_after_nodes: 3
  19. #预期在集群中的（数据或主）节点数。只要预期的节点数已加入集群，就会启动本地分片的恢复。默认为0
  20. gateway.expected_nodes: 3
  21. #如果未达到预期的节点数，则恢复过程将等待配置的时间量，然后再尝试恢复。如果只要配置了expected_nodes，则默认这个参数值为5m
  22. gateway.recover_after_time: 60m

172.16.4.212:

  1. cluster.name: es-cluster
  2. node.name: node-2
  3. path.data: /var/lib/elasticsearch
  4. path.logs: /var/log/elasticsearch
  5. network.host: 0.0.0.0
  6. network.publish_host: 172.16.4.212
  7. http.port: 9200
  8. transport.tcp.port: 9300
  9. http.cors.enabled: true
  10. http.cors.allow-origin: "*"
  11. http.cors.allow-headers: Authorization,X-Requested-With,Content-Length,Content-Type
  12. discovery.seed_hosts: ["172.16.4.200:9300","172.16.4.212:9300","172.16.4.211:9300"]
  13. cluster.initial_master_nodes: ["node-1","node-2","node-3"]
  14. node.master: true
  15. node.data: true
  16. node.ingest: true
  17. #只要此许多数据或主节点已加入集群，即可恢复。
  18. gateway.recover_after_nodes: 3
  19. #预期在集群中的（数据或主）节点数。只要预期的节点数已加入集群，就会启动本地分片的恢复。默认为0
  20. gateway.expected_nodes: 3
  21. #如果未达到预期的节点数，则恢复过程将等待配置的时间量，然后再尝试恢复。如果只要配置了expected_nodes，则默认这个参数值为5m
  22. gateway.recover_after_time: 60m

172.16.4.211:

  1. cluster.name: es-cluster
  2. node.name: node-3
  3. path.data: /var/lib/elasticsearch
  4. path.logs: /var/log/elasticsearch
  5. network.host: 0.0.0.0
  6. network.publish_host: 172.16.4.211
  7. http.port: 9200
  8. transport.tcp.port: 9300
  9. http.cors.enabled: true
  10. http.cors.allow-origin: "*"
  11. http.cors.allow-headers: Authorization,X-Requested-With,Content-Length,Content-Type
  12. discovery.seed_hosts: ["172.16.4.200:9300","172.16.4.212:9300","172.16.4.211:9300"]
  13. cluster.initial_master_nodes: ["node-1","node-2","node-3"]
  14. node.master: true
  15. node.data: true
  16. node.ingest: true
  17. #只要此许多数据或主节点已加入集群，即可恢复。
  18. gateway.recover_after_nodes: 3
  19. #预期在集群中的（数据或主）节点数。只要预期的节点数已加入集群，就会启动本地分片的恢复。默认为0
  20. gateway.expected_nodes: 3
  21. #如果未达到预期的节点数，则恢复过程将等待配置的时间量，然后再尝试恢复。如果只要配置了expected_nodes，则默认这个参数值为5m
  22. gateway.recover_after_time: 60m

查询集群状态：

curl -XGET http://172.16.4.200:9200/_cat/health?v

  1. [root@node01 elasticsearch]# curl -XGET http://172.16.4.200:9200/_cat/health?v
  2. epoch      timestamp cluster    status node.total node.data shards pri relo init unassign pending_tasks max_task_wait_time active_shards_percent
  3. 1653531856 02:24:16  es-cluster green           3         3      0   0    0    0        0             0                  -                100.0%

报错可以查询/var/log/elasticsearch日志：

[root@node01 elasticsearch]# curl -XGET http://172.16.4.200:9200/_cat/health?v
{“error”:{“root_cause”:[{“type”:”master_not_discovered_exception”,”reason”:null}],”type”:”master_not_discovered_exception”,”reason”:null},”status”:503}[root@node01 elasticsearch]#
当报集群错误，检查防火墙是否关闭，检查9300端口是否开放；
若是删除过/var/log/elasticsearch下面的日志，请同时删除/var/lib/elasticsearch下面数据，否则集群会报2个两个独立的集群 没法加入一个集群 应该删除对应的data数据：

[2022-05-25T18:13:51,901][WARN ][o.e.c.c.Coordinator ] [node-1] failed to validate incoming join request from node [{node-3}{ed3fBg7oQHmv0LbCpyfyog}{O5fqWOrESuapHnoGG9lpuA}{172.16.4.211}{172.16.4.211:9300}{dilmrt}{ml.machine_memory=1041264640, ml.max_open_jobs=20, xpack.installed=true, transform.node=true}]
org.elasticsearch.transport.RemoteTransportException: [node-3][172.16.4.211:9300][internal:cluster/coordination/join/validate]
Caused by: org.elasticsearch.cluster.coordination.CoordinationStateRejectedException: join validation on cluster state with a different cluster uuid HH03-Wx0R5mF40D1rqa9gA than local cluster uuid D91REAJbT4K5dQwdCFXqpw, rejecting
