QA

  1. Q:修改配置/etc/my.cnf.d/mysql-server.cnf后重启失败
  2. [root@cent-8 /var/lib/mysql]$ systemctl status mysqld
  3. mysqld.service - MySQL 8.0 database server
  4. Loaded: loaded (/usr/lib/systemd/system/mysqld.service; enabled; vendor preset: disabled)
  5. Active: failed (Result: exit-code) since Wed 2021-11-03 20:27:11 CST; 32s ago
  6. Process: 2008 ExecStopPost=/usr/libexec/mysql-wait-stop (code=exited, status=0/SUCCESS)
  7. Process: 1659 ExecStartPost=/usr/libexec/mysql-check-upgrade (code=exited, status=0/SUCCESS)
  8. Process: 2005 ExecStart=/usr/libexec/mysqld --basedir=/usr (code=exited, status=1/FAILURE)
  9. Process: 1969 ExecStartPre=/usr/libexec/mysql-prepare-db-dir mysqld.service (code=exited, status=0/SUCCESS)
  10. Process: 1944 ExecStartPre=/usr/libexec/mysql-check-socket (code=exited, status=0/SUCCESS)
  11. Main PID: 2005 (code=exited, status=1/FAILURE)
  12. Status: "Server startup in progress"
  13. Error: 13 (Permission denied)
  14. Nov 03 20:27:11 cent-8 systemd[1]: Starting MySQL 8.0 database server...
  15. Nov 03 20:27:11 cent-8 systemd[1]: mysqld.service: Main process exited, code=exited, status=1/FAILURE
  16. Nov 03 20:27:11 cent-8 systemd[1]: mysqld.service: Failed with result 'exit-code'.
  17. Nov 03 20:27:11 cent-8 systemd[1]: Failed to start MySQL 8.0 database server.
  18. A:配置文件中指定的目录并不存在!
  19. Qmysql启动异常报错:
  20. Process: 5461 ExecStartPre=/usr/libexec/mysql-check-socket (code=exited, status=1/FAILURE)
  21. Process: 5597 ExecStart=/usr/libexec/mysqld --basedir=/usr (code=exited, status=1/FAILURE)
  22. A:①产生的原因可能是mysql异常停止,导致/var/lib/mysql/mysql.sock的文件没有及时清除。解决方案为:rm -rf /var/lib/mysql/mysql.sock 重启mysql即可;
  23. ②根据日志信息知道了是 ibdata1 数据文件必须是可写的,所以更改权限即可输入chmod -R 777 /var/lib/mysql

安装

  1. [root@cent-8 ~]$ dnf install mysql-server
  2. [root@cent-8 ~]$ systemctl enable --now mysqld
  3. [root@cent-8 ~]$ mysql -V (#查看客户端版本)
  4. [root@cent-8 /var/log/mysql]$ mysql (#在这里可以看到服务端版本)
  5. grep password /var/log/mysql/mysqld.log
  6. mysqladmin -uroot password root
  7. mysql -uroot -proot
  8. mysql> status
  9. mysql> show databases;
  10. [root@cent-8 ~]$ mysql_secure_installation 初始化脚本提高安全性
  11. 设置数据库管理员root口令
  12. 禁止root远程登录
  13. 删除anonymous用户帐号
  14. 删除test数据库
  15. [root@centos8 ~]#export MYSQL_PS1="\\r:\\m:\\s(\\u@\\h) [\\d]>\\_" (#临时修改mysql提示符)
  16. [root@centos8 ~]#mysql -uroot -pcentos --prompt="\\r:\\m:\\s(\\u@\\h) [\\d]>\\_"
  17. [root@centos8 ~]#cat /etc/my.cnf.d/mysql-clients.cnf (#持久修改mysql提示符)
  18. [mysql]
  19. prompt="\\r:\\m:\\s(\\u@\\h) [\\d]>\\_"
  20. user=root
  21. password=root
  22. (root@localhost) [(none)]> use mysql
  23. (root@localhost) [mysql]>


创建数据库(create database)

show databases;
create database db2;
show create database db2;

alter database db2 character set utf8;
drop database db2;

1.创建定义表(DDL)

直接创建

create table student;

(root@localhost) [mysql]> create table db1(id tinyint UNSIGNED AUTO_INCREMENT PRIMARY KEY,
    -> name VARCHAR(20) NOT NULL,
    -> age tinyint UNSIGNED ,
    -> gender ENUM ("m","f") DEFAULT "M")
    -> ENGINE=InnoDB AUTO_INCREMENT=1 DEFAULT CHARSET=utf8;

show create table student;
desc db1;
show table status from db1\G

set @@auto_increment_offset=3;(初始值)
set @@auto_increment_increment=1;(步进值)
show variables like 'auto_inc%';
删表    drop table stu;
修改表名    alter table student rename students;
增加字段    alter table student add age tinyint after name;
删除字段    alter table student drop column age;
修改字段类型    alter table student modify age int;
修改字段名称    alter table students change column name mingzi char(8);

添加主键    alter table teacher add primary key (id);
删除主键    alter table teacher drop primary key;

通过查询现存表创建

create table stu select id,name,gender from student;

通过复制现存表结构创建

create table teacher like stu;

2.表数据操作(DML)

insert 插入数据

insert students (mingzi,age,gender) values ('zhao',23,'F');

update 修改数据

update students set age=21 **where** id < 3;(要有条件限制,否则将修改所有该字段内容!可利用—safe-updates避免)

delete 删除数据

delete from students **where** id=6;(要有条件限制,否则将清空所有内容!)

清空表保留表结构    truncate table students;
缩减表大小    optimize table students;

3.表数据查询(DQL)

select ***** from students;

字段和表可以使用别名:select mingzi name,age nianling from students;

用where语句过滤选择    select * from students WHERE id <=4;    比较
                                        select * from students WHERE id between 1 and 5;     范例
                    select * from students WHERE id in (1,3,5);     不连续
                    select * from students WHERE age IS NULL;    空查询
                    select * from students WHERE mingzi LIKE 'z%'; 模糊查询

对结果排序    select * from students where id IS NOT NULL order by age DESC; 倒序
                    select * from students where id IS NOT NULL order by age ASC;  正序

对结果输出行数设限    select * from students limit 1,3;  第1行开始,显示3行

去除重复行    select distinct  mingzi from students;
对结果分组 select gender,count(*) from students where id >1 group by gender;
                    select gender,count(*) from students where id >1 group by gender with rollup; 对分组结果汇总
                    select gender,count(*) from students where id >1 group by gender having count(*) >1;

子查询

select name,age from student **where** age **>** (select avg(age) from teacher);
select name,age from student **where** age **in** (select age from teacher);

联合查询(纵向合并)

select name,age,gender from teacher **union** select name,age,gender from student;

交叉连接(笛卡尔乘积)

select * from student **cross join** teacher;
select * from student**,**teacher;

select * from student cross join teacher;
+----+-------+------+--------+----+-------+------+--------+
| id | name  | age  | gender | id | name  | age  | gender |
+----+-------+------+--------+----+-------+------+--------+
|  1 | zyy   |   21 | M      |  4 | baoyu |   25 | M      |
|  1 | zyy   |   21 | M      |  2 | daiyu |   23 | M      |
|  1 | zyy   |   21 | M      |  1 | hanlu |   25 | M      |
|  3 | yuany | NULL | M      |  4 | baoyu |   25 | M      |
|  3 | yuany | NULL | M      |  2 | daiyu |   23 | M      |
|  3 | yuany | NULL | M      |  1 | hanlu |   25 | M      |


select student.name sname,teacher.name tname from student cross join teacher;
+-------+-------+
| sname | tname |
+-------+-------+
| zyy   | baoyu |
| zyy   | daiyu |
| zyy   | hanlu |
| yuany | baoyu |
| yuany | daiyu |
| yuany | hanlu |

内连接★(共同部分)

select * from student **inner join** teacher **on** student**.**age =teacher**.**age;
select * from **student s** inner join **teacher t** on **s.age =t.age**;
select * from student s inner join teacher t on s.age =t.age where s.gender='F';

select * from student**,**teacher **where** student.age =teacher.age;
select * from student**,**teacher **where** student.age =teacher.age **and** s.gender<>t.gender;

左/右外连接

select * from student s **left outer join** teacher t **on** s.age = t.age;
select * from student s **left outer join** teacher t **on** s.age = t.age **where** s.id>1;
select * from student s **left outer join** teacher t **on** s.age = t.age **and** s.id>1;

select * from student s **right outer join** teacher t **on** s.age = t.age;

完全外连接

MySQL不支持,但可以利用左/右外连接和联合查询实现
select * from student s left outer join teacher t on s.age=t.age **union**
select * from student s right outer join teacher t on s.age=t.age;

自连接—别名

select m.name,n.name from **student m** inner join **student n** on m.id=n.tid;
select name,course,score from students st **inner join** scores sc on st.stuid=sc.stuid **inner join** courses co on sc.courseid=co.CourseID;三表连接

03:19:11(root@localhost) [db1]> select * from student;
+----+-------+------+--------+------+
| id | name  | age  | gender | tid  |
+----+-------+------+--------+------+
|  1 | zyy   |   21 | M      | NULL |
|  3 | yuany | NULL | M      |    1 |
|  5 | zhao  |   23 | F      |    7 |
|  7 | sha   |   30 | M      |    5 |
|  8 | zhao  |   30 | M      |    7 |
+----+-------+------+--------+------+
5 rows in set (0.00 sec)

03:19:13(root@localhost) [db1]> select m.name,n.name from student m inner join student n on m.id=n.tid;
+------+-------+
| name | name  |
+------+-------+
| zyy  | yuany |
| sha  | zhao  |
| zhao | sha   |
| sha  | zhao  |
+------+-------+
4 rows in set (0.00 sec)

4.视图 view

保存实表的查询结果,相当于别名
create view s_t as select m.name s_name,n.name t_name from student m inner join student n on m.id=n.tid;
how create view s_t;show create table s_t;

5.函数、变量

函数:分为系统内置函数和自定义函数UDF( 保存在mysql.proc表 )
create function hello() returns varchar(20) return "hello word";
select hello(); 调用函数
show function status;
show create function hello;
drop function hello;


set global log_bin_trust_function_creators=ON;
create function hello()  returns varchar(20) return "hello word";

(root@localhost) [db1]> select hello();
+------------+
| hello()    |
+------------+
| hello word |
+------------+
1 row in set (0.01 sec)

系统变量:MySQL数据库中内置的变量,可用@@var_name引用
普通变量:在当前会话中有效,可用@var_name引用
局部变量:在函数或存储过程内才有效,需要用delare声明,之后直接用var_name引用
set parameter_name = value
select into parameter_name

MariaDB [hellodb]> select count(*) from students into @num;
MariaDB [hellodb]> select count(*) into @num from students;
MariaDB [hellodb]> select @num;

6.存储过程 procedure

存储过程把经常使用的SQL语句或业务逻辑封装起来,预编译保存在数据库中,当需要时从数据库中直接调用,省去了编译的过程,提高了运行速度,同时降低网络数据传输量(存储过程保存在mysql.proc表中)

7.触发器 trigger

create trigger tri_ins after insert on student for each row
update total_stu set total_atudent=total_atudent-1;

6.事件 event

create event test on schedule every 1 second do insert into event_list values(do_insert_time,now());

select @@event_scheduler;    默认值为off
set global event_scheduler=1;    临时开启事件调度功能
show processlist;

create table events_list (event_test varchar(20) not null,event_start timestamp not null);
create event test on schedule every 1 second do insert into events_list values('test_start',now());
select * from event_list;

alter event event_every_second disable;
show events\G
drop event test;

8.用户管理

create user 'zhuyuany'@'10.0.0.%' identified by 'zhuyuany';
mysql -uzhuyuany -pzhuyuany -h10.0.0.18

zhuyuanyuan520hxhyn520

RENAME USER old_user_name TO new_user_name;
DROP USER 'USERNAME'@'HOST;
ALTER  USER test@'%' IDENTIFIED BY 'centos';  通用改密码方法, 用户可以也可通过此方式修改自已的密码,MySQL8 版本修改密码

9.权限

grant all on *.* to 'zhuyuany'@'10.0.0.%';

REVOKE DELETE ON testdb.* FROM 'testuser'@172.16.0.%’;

Help SHOW GRANTS
SHOW GRANTS FOR 'user'@'host';
SHOW GRANTS FOR CURRENT_USER[()];

架构及性能优化

服务器-选项

获取当前启动选项 mysqld --print-defaults

mysqld --verbose  --help

# 在命令行设置
/usr/bin/mysqld_safe --skip-name-resolve=1
/usr/libexec/mysqld --basedir=/usr

# 在配置文件中设置
vim /etc/my.cnf
[mysqld]
skip_name_resolve=1
skip-grant-tables

服务器-系统变量

show global variables;  全局 → set global character_set_results=utf8mb4;
show session variables; 会话   set @@global.character_set_results=utf8mb4;

#有的系统变量不是服务器选项,写入配置文件将导致无法启动!

show variables like 'max_co%';
select @@max_connections;

服务器-状态变量

show global status;  全局
show session status; 会话

show status like "innodb_page_size";
select @@max_connections;

服务器变量SQL_MODE

show variables like 'sql_mode';
set sql_mode="ONLY_FULL_GROUP_BY";

B+Tree索引

show index from student;
create index indexname on student(name);
explain select * from student where name like 'daiyu';

#创建复合索引--跳过查询复合索引的前面字段,后续字段的条件查询无法利用复合索引
create index idx_name_age on students(name,age);

profile工具

#打开后,会显示语句执行详细的过程 set profiling=ON;
                                                             select @@profiling;

#查看语句结果中的query_id值  show profiles;
#显示语句详细执行步骤及时长   show profile for query 2;
#显示cpu使用情况                       show profile cpu for query 2;

锁机制

lock tables students read ;
unlock tables ;

事务

ACID特性: atomicity原子性 consistency一致性 Isolation隔离性 durability持久性

begin;
insert student (name,age) values('xuepan',18);
rollback;

begin;
insert student(name,age) values('jialian',28);
commit;

死锁:两个或多个事务在同一资源相互占用,并请求锁定对方占用的资源的状态

#查看正在进行的事务    show processlist;
#杀掉正在进行的事务    kill 16
#查看事务锁的超时时长 show global variables like 'innodb_lock_wait_timeout';


  • READ UNCOMMITTED
  • READ COMMITTED
  • REPEATABLE READ
  • SERIALIZABLE

    #MySQL8.0之前    set tx_isolation='READ-UNCOMMITTED'
    #MySQL8.0     set transaction_isolation='READ-UNCOMMITTED'


    日志管理

  • 事务日志:transaction log 事务日志的写入类型为“追加”,因此其操作为“顺序IO”;

通常也被称为:预写式日志 write ahead logging
事务日志文件: ib_logfile0, ib_logfile1

  • 错误日志 error log
  • 通用日志 general log
  • 慢查询日志 slow query log
  • 二进制日志 binary log
  • 中继日志 reley log,在主从复制架构中,从服务器用于保存从主服务器的二进制日志中读取的事件

    数据备份

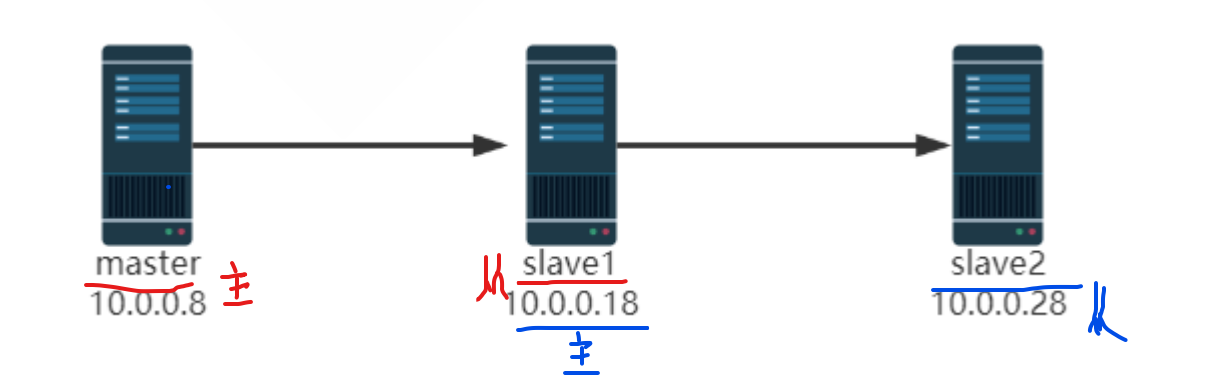

    一、主从复制

    ```bash yum install -y mariadb-server;systemctl enable —now mariadb;systemctl status mariadb mysqladmin -uroot password root

[root@rs1 /etc/my.cnf.d]$ vim mysqld.cnf [mysqld] server-id=8 log-bin MariaDB [(none)]> show master status; +——————————+—————+———————+—————————+ | File | Position | Binlog_Do_DB | Binlog_Ignore_DB | +——————————+—————+———————+—————————+ | mariadb-bin.000001 | 245 | | | +——————————+—————+———————+—————————+ MariaDB [(none)]> grant replication slave on . to repluser@’10.0.0.%’ identified by ‘repluser’;

[root@rs2 /etc/my.cnf.d]$ vim mysqld.cnf [mysqld] log_bin server-id=17

MariaDB [mysql]> help change master to; MariaDB [mysql]> CHANGE MASTER TO MASTER_HOST=’10.0.0.7’,
-> MASTER_USER=’repluser’,
-> MASTER_PASSWORD=’repluser’,
-> MASTER_PORT=3306, -> MASTER_LOG_FILE=’mariadb-bin.000001’,
-> MASTER_LOG_POS=245; MariaDB [mysql]> start slave; MariaDB [mysql]> show slave status\G

主服务器非新建时,主服务器运行一段时间后,新增从节点服务器 mysqldump -uroot -proot -A -F —single-transaction —master-data=1 >/root/fullbackup`date +%F%T`.sql

MariaDB [(none)]> set global innodb_flush_log_at_trx_commit=2; #建议优化主和从节点服务器的性能 MariaDB [(none)]> set global sync_binlog=0; MariaDB [(none)]> show variables like ‘sync_binlog’;

新增节点 yum install -y mariadb-server;systemctl enable —now mariadb;systemctl status mariadb mysqladmin -uroot password root vim /etc/my.cnf.d/mariadb-server.cnf [mysqld] server-id=27 read-only

grep ‘^CHANGE MASTER’ fullbackup_2021-12-04_18\:45\:35.sql CHANGE MASTER TO MASTER_LOG_FILE=’mariadb-bin.000002’, MASTER_LOG_POS=245; vim fullbackup_2021-12-04_18\:45\:35.sql CHANGE MASTER TO MASTER_HOST=’10.0.0.7’,
MASTER_USER=’repluser’,
MASTER_PASSWORD=’repluser’,
MASTER_PORT=3306, MASTER_LOG_FILE=’mariadb-bin.000002’,
MASTER_LOG_POS=245;

show slave status\G;

<a name="pyHW8"></a>
##  级联复制
![image.png](https://cdn.nlark.com/yuque/0/2021/png/12467445/1638691572486-07d8d52f-0497-4ccd-a9ed-66b6f9d0f4f7.png#clientId=u046461a8-3a9e-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=194&id=u43f9ad50&margin=%5Bobject%20Object%5D&name=image.png&originHeight=387&originWidth=1224&originalType=binary&ratio=1&rotation=0&showTitle=false&size=63207&status=done&style=none&taskId=uc43058a0-4cf7-49eb-b88d-339acb35ddc&title=&width=612)

<a name="xG1yk"></a>
##  主主复制
 容易产生的问题:数据不一致;因此慎用
<a name="rsbYd"></a>
## 半同步复制
<a name="Nd3uo"></a>

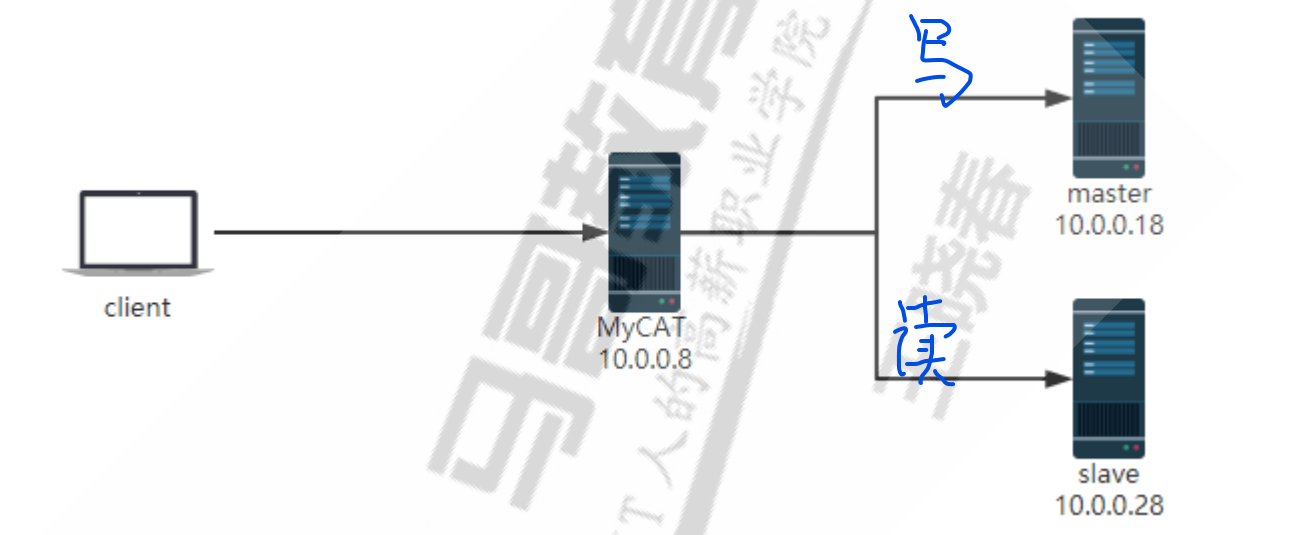

#  二、中间件代理服务器MyCat  (读写分离)
![image.png](https://cdn.nlark.com/yuque/0/2021/png/12467445/1638698522729-c157ab51-7f00-417f-a31f-f203364c2a43.png#clientId=u046461a8-3a9e-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=268&id=u3e386fe7&margin=%5Bobject%20Object%5D&name=image.png&originHeight=535&originWidth=1311&originalType=binary&ratio=1&rotation=0&showTitle=false&size=200208&status=done&style=none&taskId=u3215b0f6-1538-406c-97bb-8ca92a180f2&title=&width=655.5)<br /> 1、创建 MySQL 主从数据库  <br /> 2、在10.0.0.8安装mycat并启动  <br /> 3、在mycat 服务器上修改server.xml文件配置Mycat的连接信息  <br /> 4、修改schema.xml实现读写分离策略  <br /> 5、在后端主服务器创建用户并对mycat授权  <br /> 6、在Mycat服务器上连接并测试  <br /> 7、通过通用日志确认实现读写分离  <br /> 8、停止从节点,MyCAT自动调度读请求至主节点  <br /> 9、MyCAT对后端服务器的健康性检查方法 select user()
<a name="VQc6s"></a>
#  三、MySQL高可用MHA,PXC
<a name="HCEsG"></a>

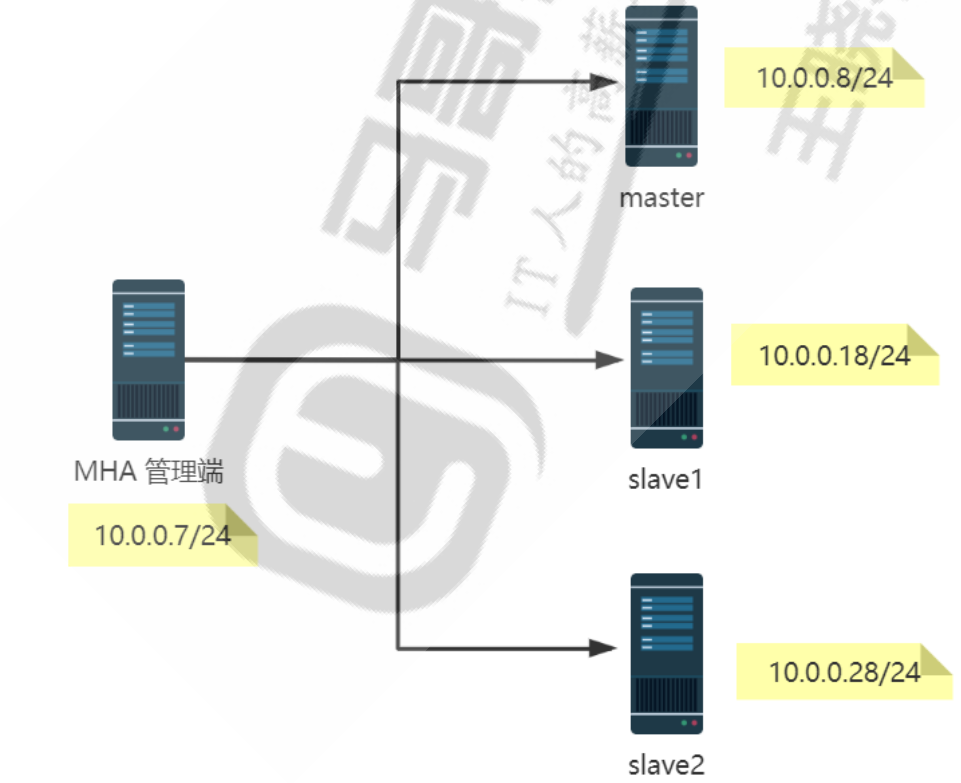

## MHA
![image.png](https://cdn.nlark.com/yuque/0/2021/png/12467445/1638708351688-7778350c-c47e-47d7-aeba-537558c801a7.png#clientId=u046461a8-3a9e-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=392&id=ufb0fadc2&margin=%5Bobject%20Object%5D&name=image.png&originHeight=783&originWidth=961&originalType=binary&ratio=1&rotation=0&showTitle=false&size=181039&status=done&style=none&taskId=uf96893fb-5672-485d-9f71-54e1deffbe7&title=&width=480.5)<br />1. MHA利用 SELECT 1 As Value 指令判断master服务器的健康性,一旦宕机,从宕机的master保存二进制日志事件(binlog events)<br />2. 识别含有最新更新的slave<br />3. 应用差异的中继日志(relay log)到其他的slave<br />4. 应用从master保存的二进制日志事件(binlog events)<br />5. 提升一个slave为新的master<br />6. 使其他的slave连接新的master进行复制
```bash
1. 在管理节点上安装两个包mha4mysql-manager和mha4mysql-node (不支持CentOS8,只支持CentOS7 以下版本)
2. 在所有MySQL服务器上安装(支持CentOS 8,7,6)
3. 在所有节点实现相互之间ssh key验证
4. 在管理节点建立配置文件--/etc/mastermha/app1.cnf
5. 实现Master
6. 实现 slave
7. 检查Mha的环境--masterha_check_ssh
8. 启动MHA--nohup masterha_manager
9. 排错日志--/data/mastermha/app1/manager.log
10 故障,当 master down机后,mha自动退出
11. 如果再次运行MHA,需要先删除下面文件--/data/mastermha/app1/

Galera Cluster——-PXC

1 环境准备
pxc1:10.0.0.7
pxc2:10.0.0.17
pxc3:10.0.0.27
pxc4:10.0.0.37
2 在三个节点都安装好PXC 5.7
3 在各个节点上分别配置mysql及集群配置文件
4 启动PXC集群中第一个节点
5 启动PXC集群中其它所有节点
6 查看集群状态,验证集群是否成功
7 在PXC集群中加入节点
8 在PXC集群中修复故障节点

Galera Cluster——- MariaDB

在三个节点上都实现并配置dnf install mariadb-server-galera -y
启动第一节点
再启动其它节点
