在mysql的机器上部署 mysql_exporter

使用ansible部署 mysql_exporter

  1. ansible-playbook -i host_file  service_deploy.yaml  -e "tgz=mysqld_exporter-0.12.1.linux-amd64.tar.gz" -e "app=mysqld_exporter"

创建采集用户，并授权

  1. mysql -uroot -p123123
  3. CREATE USER 'exporter'@'%' IDENTIFIED BY '123123' ;
  4. GRANT PROCESS, REPLICATION CLIENT, SELECT ON *.* TO 'exporter'@'%';
  5. FLUSH PRIVILEGES;

方式一：在mysqld_exporter的service 文件中使用环境变量 DATA_SOURCE_NAME

  1. # 代表localhost
  2. Environment=DATA_SOURCE_NAME=exporter:123123@tcp/

方式二：使用my.cnf启动服务

  1. Environment=DATA_SOURCE_NAME='exporter:123123@(localhost:3306)/'

重启mysqld_exporter服务

  1. systemctl daemon-reload
  2. systemctl restart mysqld_exporter

将mysqld_exporter 采集加入的采集池中

  1. [root@prome-master01 prometheus]# cat prometheus.yml
  3. - job_name: mysqld_exporter
  4.     honor_timestamps: true
  5.     scrape_interval: 15s
  6.     scrape_timeout: 10s
  7.     metrics_path: /metrics
  8.     scheme: http
  9.     static_configs:
  10.     - targets:
  11.       - 127.0.0.1:9104

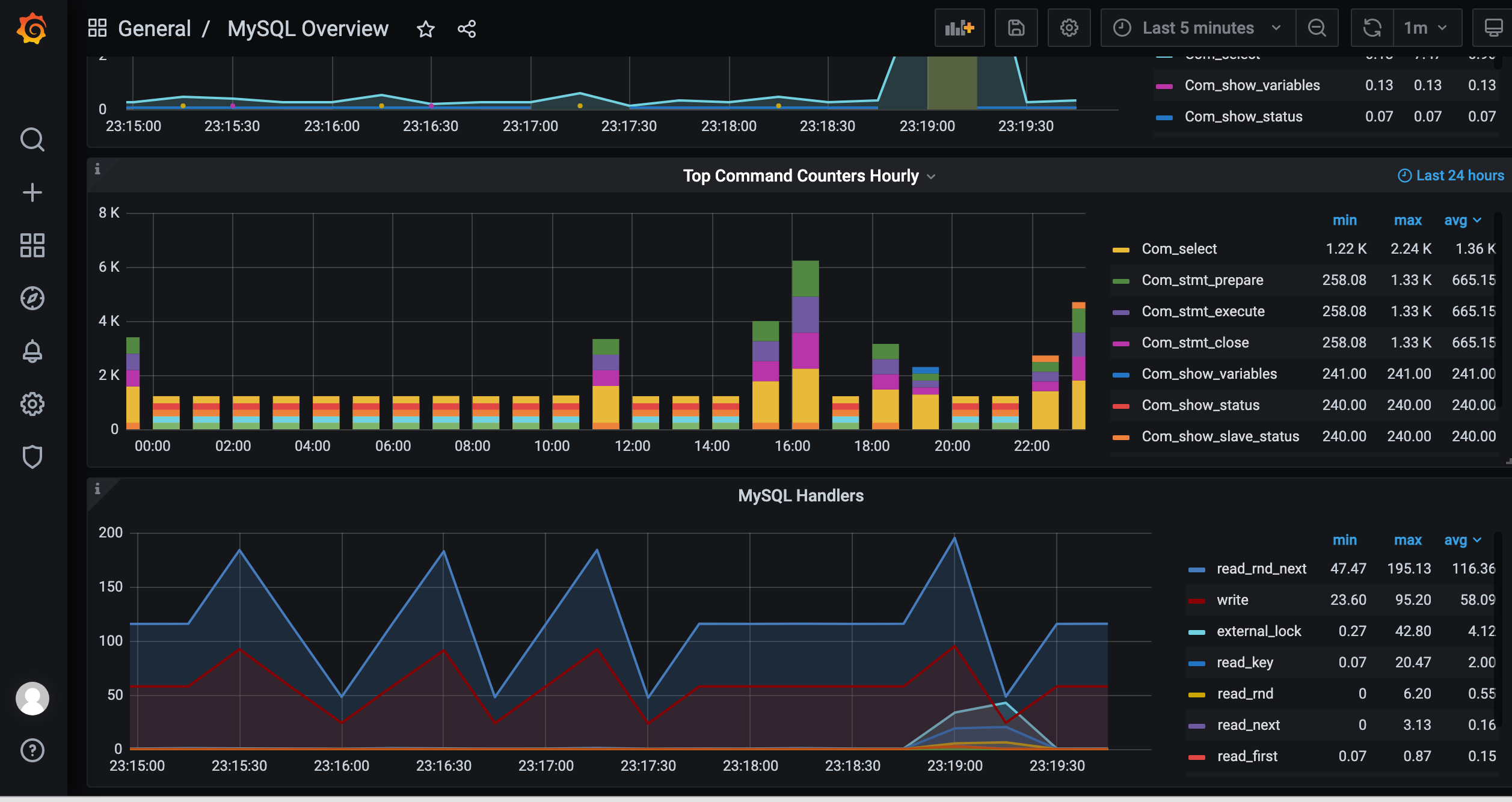

grafana 上导入mysqld-dashboard
