Grafana 初始化配置挂载出来

    1. kind: Deployment
    2. apiVersion: apps/v1
    3. metadata:
    4.   name: grafana
    5.   namespace: kubesphere-monitoring-system
    6.   labels:
    7.     app.kubernetes.io/component: grafana
    8.     app.kubernetes.io/name: grafana
    9.     app.kubernetes.io/part-of: kube-prometheus
    10.     app.kubernetes.io/version: 7.4.3
    11.   annotations:
    12.     deployment.kubernetes.io/revision: '30'
    13.     kubectl.kubernetes.io/last-applied-configuration: >
    14.       {"apiVersion":"apps/v1","kind":"Deployment","metadata":{"annotations":{},"labels":{"app.kubernetes.io/component":"grafana","app.kubernetes.io/name":"grafana","app.kubernetes.io/part-of":"kube-prometheus","app.kubernetes.io/version":"7.4.3"},"name":"grafana","namespace":"kubesphere-monitoring-system"},"spec":{"replicas":1,"selector":{"matchLabels":{"app.kubernetes.io/component":"grafana","app.kubernetes.io/name":"grafana","app.kubernetes.io/part-of":"kube-prometheus"}},"template":{"metadata":{"annotations":{"checksum/grafana-datasources":"bff02b6fd55e414ce7cf08a5ea2a85e3"},"labels":{"app.kubernetes.io/component":"grafana","app.kubernetes.io/name":"grafana","app.kubernetes.io/part-of":"kube-prometheus","app.kubernetes.io/version":"7.4.3"}},"spec":{"containers":[{"env":[],"image":"hw-harbor.ur.com.cn/grafana/grafana:7.4.3","name":"grafana","ports":[{"containerPort":3000,"name":"http"}],"readinessProbe":{"httpGet":{"path":"/api/health","port":"http"}},"resources":{"limits":{"cpu":"200m","memory":"200Mi"},"requests":{"cpu":"100m","memory":"100Mi"}},"volumeMounts":[{"mountPath":"/var/lib/grafana","name":"grafana-storage","readOnly":false},{"mountPath":"/etc/grafana/provisioning/datasources","name":"grafana-datasources","readOnly":false},{"mountPath":"/etc/grafana/provisioning/dashboards","name":"grafana-dashboards","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/apiserver","name":"grafana-dashboard-apiserver","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/cluster-total","name":"grafana-dashboard-cluster-total","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/controller-manager","name":"grafana-dashboard-controller-manager","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/k8s-resources-cluster","name":"grafana-dashboard-k8s-resources-cluster","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/k8s-resources-namespace","name":"grafana-dashboard-k8s-resources-namespace","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/k8s-resources-node","name":"grafana-dashboard-k8s-resources-node","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/k8s-resources-pod","name":"grafana-dashboard-k8s-resources-pod","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/k8s-resources-workload","name":"grafana-dashboard-k8s-resources-workload","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/k8s-resources-workloads-namespace","name":"grafana-dashboard-k8s-resources-workloads-namespace","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/kubelet","name":"grafana-dashboard-kubelet","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/namespace-by-pod","name":"grafana-dashboard-namespace-by-pod","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/namespace-by-workload","name":"grafana-dashboard-namespace-by-workload","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/node-cluster-rsrc-use","name":"grafana-dashboard-node-cluster-rsrc-use","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/node-rsrc-use","name":"grafana-dashboard-node-rsrc-use","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/nodes","name":"grafana-dashboard-nodes","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/persistentvolumesusage","name":"grafana-dashboard-persistentvolumesusage","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/pod-total","name":"grafana-dashboard-pod-total","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/prometheus-remote-write","name":"grafana-dashboard-prometheus-remote-write","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/prometheus","name":"grafana-dashboard-prometheus","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/proxy","name":"grafana-dashboard-proxy","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/scheduler","name":"grafana-dashboard-scheduler","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/statefulset","name":"grafana-dashboard-statefulset","readOnly":false},{"mountPath":"/grafana-dashboard-definitions/0/workload-total","name":"grafana-dashboard-workload-total","readOnly":false}]}],"nodeSelector":{"beta.kubernetes.io/os":"linux"},"securityContext":{"fsGroup":65534,"runAsNonRoot":true,"runAsUser":65534},"serviceAccountName":"grafana","volumes":[{"name":"grafana-storage","persistentVolumeClaim":{"claimName":"csi-nas"}},{"name":"grafana-datasources","secret":{"secretName":"grafana-datasources"}},{"configMap":{"name":"grafana-dashboards"},"name":"grafana-dashboards"},{"configMap":{"name":"grafana-dashboard-apiserver"},"name":"grafana-dashboard-apiserver"},{"configMap":{"name":"grafana-dashboard-cluster-total"},"name":"grafana-dashboard-cluster-total"},{"configMap":{"name":"grafana-dashboard-controller-manager"},"name":"grafana-dashboard-controller-manager"},{"configMap":{"name":"grafana-dashboard-k8s-resources-cluster"},"name":"grafana-dashboard-k8s-resources-cluster"},{"configMap":{"name":"grafana-dashboard-k8s-resources-namespace"},"name":"grafana-dashboard-k8s-resources-namespace"},{"configMap":{"name":"grafana-dashboard-k8s-resources-node"},"name":"grafana-dashboard-k8s-resources-node"},{"configMap":{"name":"grafana-dashboard-k8s-resources-pod"},"name":"grafana-dashboard-k8s-resources-pod"},{"configMap":{"name":"grafana-dashboard-k8s-resources-workload"},"name":"grafana-dashboard-k8s-resources-workload"},{"configMap":{"name":"grafana-dashboard-k8s-resources-workloads-namespace"},"name":"grafana-dashboard-k8s-resources-workloads-namespace"},{"configMap":{"name":"grafana-dashboard-kubelet"},"name":"grafana-dashboard-kubelet"},{"configMap":{"name":"grafana-dashboard-namespace-by-pod"},"name":"grafana-dashboard-namespace-by-pod"},{"configMap":{"name":"grafana-dashboard-namespace-by-workload"},"name":"grafana-dashboard-namespace-by-workload"},{"configMap":{"name":"grafana-dashboard-node-cluster-rsrc-use"},"name":"grafana-dashboard-node-cluster-rsrc-use"},{"configMap":{"name":"grafana-dashboard-node-rsrc-use"},"name":"grafana-dashboard-node-rsrc-use"},{"configMap":{"name":"grafana-dashboard-nodes"},"name":"grafana-dashboard-nodes"},{"configMap":{"name":"grafana-dashboard-persistentvolumesusage"},"name":"grafana-dashboard-persistentvolumesusage"},{"configMap":{"name":"grafana-dashboard-pod-total"},"name":"grafana-dashboard-pod-total"},{"configMap":{"name":"grafana-dashboard-prometheus-remote-write"},"name":"grafana-dashboard-prometheus-remote-write"},{"configMap":{"name":"grafana-dashboard-prometheus"},"name":"grafana-dashboard-prometheus"},{"configMap":{"name":"grafana-dashboard-proxy"},"name":"grafana-dashboard-proxy"},{"configMap":{"name":"grafana-dashboard-scheduler"},"name":"grafana-dashboard-scheduler"},{"configMap":{"name":"grafana-dashboard-statefulset"},"name":"grafana-dashboard-statefulset"},{"configMap":{"name":"grafana-dashboard-workload-total"},"name":"grafana-dashboard-workload-total"}]}}}}
    15. spec:
    16.   replicas: 1
    17.   selector:
    18.     matchLabels:
    19.       app.kubernetes.io/component: grafana
    20.       app.kubernetes.io/name: grafana
    21.       app.kubernetes.io/part-of: kube-prometheus
    22.   template:
    23.     metadata:
    24.       creationTimestamp: null
    25.       labels:
    26.         app.kubernetes.io/component: grafana
    27.         app.kubernetes.io/name: grafana
    28.         app.kubernetes.io/part-of: kube-prometheus
    29.         app.kubernetes.io/version: 7.5.4
    30.         pod-template-hash: 65b64c79c6
    31.       annotations:
    32.         checksum/grafana-datasources: bff02b6fd55e414ce7cf08a5ea2a85e3
    33.         kubesphere.io/restartedAt: '2022-09-28T05:39:39.838Z'
    34.         logging.kubesphere.io/logsidecar-config: '{}'
    35.     spec:
    36.       volumes:
    37.         - name: grafana-storage
    38.           persistentVolumeClaim:
    39.             claimName: grafana-storage
    40.         - name: grafana-datasources
    41.           secret:
    42.             secretName: grafana-datasources
    43.             defaultMode: 420
    44.         - name: grafana-dashboards
    45.           configMap:
    46.             name: grafana-dashboards
    47.             defaultMode: 420
    48.         - name: grafana-dashboard-apiserver
    49.           configMap:
    50.             name: grafana-dashboard-apiserver
    51.             defaultMode: 420
    52.         - name: grafana-dashboard-cluster-total
    53.           configMap:
    54.             name: grafana-dashboard-cluster-total
    55.             defaultMode: 420
    56.         - name: grafana-dashboard-controller-manager
    57.           configMap:
    58.             name: grafana-dashboard-controller-manager
    59.             defaultMode: 420
    60.         - name: grafana-dashboard-k8s-resources-cluster
    61.           configMap:
    62.             name: grafana-dashboard-k8s-resources-cluster
    63.             defaultMode: 420
    64.         - name: grafana-dashboard-k8s-resources-namespace
    65.           configMap:
    66.             name: grafana-dashboard-k8s-resources-namespace
    67.             defaultMode: 420
    68.         - name: grafana-dashboard-k8s-resources-node
    69.           configMap:
    70.             name: grafana-dashboard-k8s-resources-node
    71.             defaultMode: 420
    72.         - name: grafana-dashboard-k8s-resources-pod
    73.           configMap:
    74.             name: grafana-dashboard-k8s-resources-pod
    75.             defaultMode: 420
    76.         - name: grafana-dashboard-k8s-resources-workload
    77.           configMap:
    78.             name: grafana-dashboard-k8s-resources-workload
    79.             defaultMode: 420
    80.         - name: grafana-dashboard-k8s-resources-workloads-namespace
    81.           configMap:
    82.             name: grafana-dashboard-k8s-resources-workloads-namespace
    83.             defaultMode: 420
    84.         - name: grafana-dashboard-kubelet
    85.           configMap:
    86.             name: grafana-dashboard-kubelet
    87.             defaultMode: 420
    88.         - name: grafana-dashboard-namespace-by-pod
    89.           configMap:
    90.             name: grafana-dashboard-namespace-by-pod
    91.             defaultMode: 420
    92.         - name: grafana-dashboard-namespace-by-workload
    93.           configMap:
    94.             name: grafana-dashboard-namespace-by-workload
    95.             defaultMode: 420
    96.         - name: grafana-dashboard-node-cluster-rsrc-use
    97.           configMap:
    98.             name: grafana-dashboard-node-cluster-rsrc-use
    99.             defaultMode: 420
    100.         - name: grafana-dashboard-node-rsrc-use
    101.           configMap:
    102.             name: grafana-dashboard-node-rsrc-use
    103.             defaultMode: 420
    104.         - name: grafana-dashboard-nodes
    105.           configMap:
    106.             name: grafana-dashboard-nodes
    107.             defaultMode: 420
    108.         - name: grafana-dashboard-persistentvolumesusage
    109.           configMap:
    110.             name: grafana-dashboard-persistentvolumesusage
    111.             defaultMode: 420
    112.         - name: grafana-dashboard-pod-total
    113.           configMap:
    114.             name: grafana-dashboard-pod-total
    115.             defaultMode: 420
    116.         - name: grafana-dashboard-prometheus-remote-write
    117.           configMap:
    118.             name: grafana-dashboard-prometheus-remote-write
    119.             defaultMode: 420
    120.         - name: grafana-dashboard-prometheus
    121.           configMap:
    122.             name: grafana-dashboard-prometheus
    123.             defaultMode: 420
    124.         - name: grafana-dashboard-proxy
    125.           configMap:
    126.             name: grafana-dashboard-proxy
    127.             defaultMode: 420
    128.         - name: grafana-dashboard-scheduler
    129.           configMap:
    130.             name: grafana-dashboard-scheduler
    131.             defaultMode: 420
    132.         - name: grafana-dashboard-statefulset
    133.           configMap:
    134.             name: grafana-dashboard-statefulset
    135.             defaultMode: 420
    136.         - name: grafana-dashboard-workload-total
    137.           configMap:
    138.             name: grafana-dashboard-workload-total
    139.             defaultMode: 420
    140.         - name: grafana-defaults-ini
    141.           configMap:
    142.             name: grafana-defaults-ini
    143.             defaultMode: 420
    144.       containers:
    145.         - name: grafana
    146.           image: 'bytest-harbor.ur.com.cn/grafana/grafana:7.4.3'
    147.           ports:
    148.             - name: http
    149.               containerPort: 3000
    150.               protocol: TCP
    151.           resources:
    152.             limits:
    153.               cpu: 400m
    154.               memory: 200Mi
    155.             requests:
    156.               cpu: 100m
    157.               memory: 100Mi
    158.           volumeMounts:
    159.             - name: grafana-storage
    160.               mountPath: /var/lib/grafana
    161.             - name: grafana-datasources
    162.               mountPath: /etc/grafana/provisioning/datasources
    163.             - name: grafana-dashboards
    164.               mountPath: /etc/grafana/provisioning/dashboards
    165.             - name: grafana-dashboard-apiserver
    166.               mountPath: /grafana-dashboard-definitions/0/apiserver
    167.             - name: grafana-dashboard-cluster-total
    168.               mountPath: /grafana-dashboard-definitions/0/cluster-total
    169.             - name: grafana-dashboard-controller-manager
    170.               mountPath: /grafana-dashboard-definitions/0/controller-manager
    171.             - name: grafana-dashboard-k8s-resources-cluster
    172.               mountPath: /grafana-dashboard-definitions/0/k8s-resources-cluster
    173.             - name: grafana-dashboard-k8s-resources-namespace
    174.               mountPath: /grafana-dashboard-definitions/0/k8s-resources-namespace
    175.             - name: grafana-dashboard-k8s-resources-node
    176.               mountPath: /grafana-dashboard-definitions/0/k8s-resources-node
    177.             - name: grafana-dashboard-k8s-resources-pod
    178.               mountPath: /grafana-dashboard-definitions/0/k8s-resources-pod
    179.             - name: grafana-dashboard-k8s-resources-workload
    180.               mountPath: /grafana-dashboard-definitions/0/k8s-resources-workload
    181.             - name: grafana-dashboard-k8s-resources-workloads-namespace
    182.               mountPath: >-
    183.                 /grafana-dashboard-definitions/0/k8s-resources-workloads-namespace
    184.             - name: grafana-dashboard-kubelet
    185.               mountPath: /grafana-dashboard-definitions/0/kubelet
    186.             - name: grafana-dashboard-namespace-by-pod
    187.               mountPath: /grafana-dashboard-definitions/0/namespace-by-pod
    188.             - name: grafana-dashboard-namespace-by-workload
    189.               mountPath: /grafana-dashboard-definitions/0/namespace-by-workload
    190.             - name: grafana-dashboard-node-cluster-rsrc-use
    191.               mountPath: /grafana-dashboard-definitions/0/node-cluster-rsrc-use
    192.             - name: grafana-dashboard-node-rsrc-use
    193.               mountPath: /grafana-dashboard-definitions/0/node-rsrc-use
    194.             - name: grafana-dashboard-nodes
    195.               mountPath: /grafana-dashboard-definitions/0/nodes
    196.             - name: grafana-dashboard-persistentvolumesusage
    197.               mountPath: /grafana-dashboard-definitions/0/persistentvolumesusage
    198.             - name: grafana-dashboard-pod-total
    199.               mountPath: /grafana-dashboard-definitions/0/pod-total
    200.             - name: grafana-dashboard-prometheus-remote-write
    201.               mountPath: /grafana-dashboard-definitions/0/prometheus-remote-write
    202.             - name: grafana-dashboard-prometheus
    203.               mountPath: /grafana-dashboard-definitions/0/prometheus
    204.             - name: grafana-dashboard-proxy
    205.               mountPath: /grafana-dashboard-definitions/0/proxy
    206.             - name: grafana-dashboard-scheduler
    207.               mountPath: /grafana-dashboard-definitions/0/scheduler
    208.             - name: grafana-dashboard-statefulset
    209.               mountPath: /grafana-dashboard-definitions/0/statefulset
    210.             - name: grafana-dashboard-workload-total
    211.               mountPath: /grafana-dashboard-definitions/0/workload-total
    212.             - name: grafana-defaults-ini
    213.               mountPath: /usr/share/grafana/conf
    214.           readinessProbe:
    215.             httpGet:
    216.               path: /api/health
    217.               port: http
    218.               scheme: HTTP
    219.             timeoutSeconds: 1
    220.             periodSeconds: 10
    221.             successThreshold: 1
    222.             failureThreshold: 3
    223.           terminationMessagePath: /dev/termination-log
    224.           terminationMessagePolicy: File
    225.           imagePullPolicy: IfNotPresent
    226.       restartPolicy: Always
    227.       terminationGracePeriodSeconds: 30
    228.       dnsPolicy: ClusterFirst
    229.       nodeSelector:
    230.         beta.kubernetes.io/os: linux
    231.       serviceAccountName: grafana
    232.       serviceAccount: grafana
    233.       securityContext:
    234.         runAsUser: 65534
    235.         runAsNonRoot: true
    236.         fsGroup: 65534
    237.       schedulerName: default-scheduler
    238.   strategy:
    239.     type: RollingUpdate
    240.     rollingUpdate:
    241.       maxUnavailable: 25%
    242.       maxSurge: 25%
    243.   revisionHistoryLimit: 10
    244.   progressDeadlineSeconds: 600

    kubesphere 模板配置

    Gitlab 添加应用
    填写回调地址：
    http://grafana-k8s-test.ur.com.cn/login/gitlab

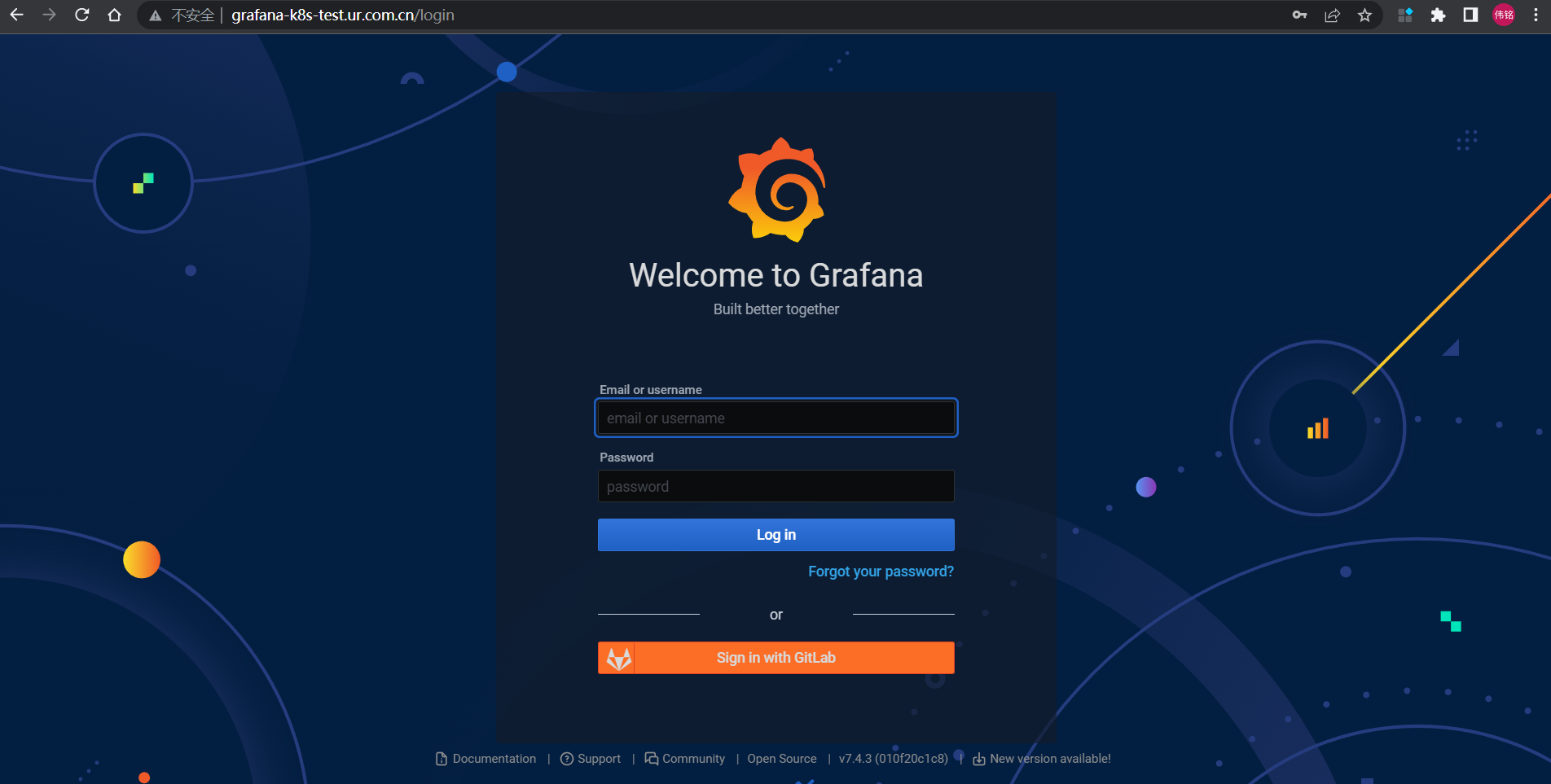

    修改Grafana配置，启用Gitlab认证
    默认配置文件里添加回调地址

    1. [server]
    2. protocol = http
    3. root_url = http://grafana-k8s-test.ur.com.cn
    1. #################################### GitLab Auth #########################
    2. [auth.gitlab]
    3. enabled = true
    4. allow_sign_up = true
    5. client_id = 73ccfdd396582e5f0f2dd2b0dc72c1a5b52bdeea814dc2e01a9e1ca06db91387
    6. client_secret = b0ec91792c29ff74dbd70280c0968b2b293288a71db8c9d113b8964ecb465cca
    7. scopes = api
    8. auth_url = http://192.168.13.78/oauth/authorize
    9. token_url = http://192.168.13.78/oauth/token
    10. api_url = http://192.168.13.78/api/v4
    11. allowed_domains =
    12. allowed_groups =
    13. [server]
    14. protocol = http
    15. root_url = http://grafana-k8s-test.ur.com.cn
