@SpringBootApplication
有趣的自动配置MultipartResolver
配置文件参数默认映射
- @EnableConfigurationProperties
- @ConfigurationProperties
允许用户可以定制化组件

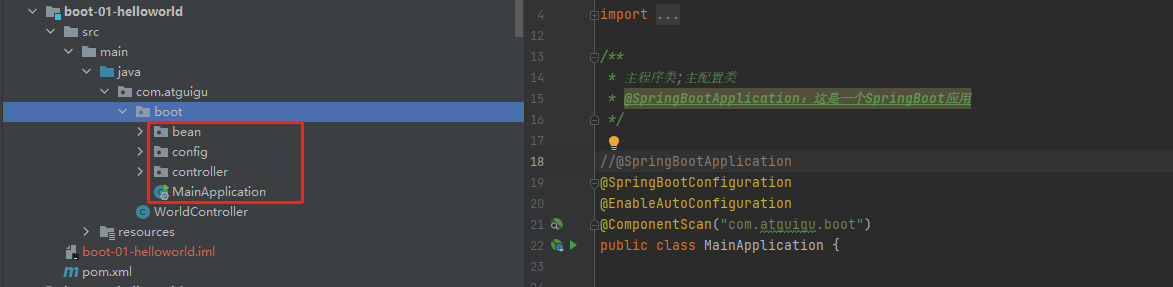

@SpringBootApplication

@SpringBootApplication是一个3合一注解：

//@SpringBootApplication
@SpringBootConfiguration
@EnableAutoConfiguration
@ComponentScan("com.atguigu.boot")
public class MainApplication {
...
}

@SpringBootConfiguration

//
// Source code recreated from a .class file by IntelliJ IDEA
// (powered by Fernflower decompiler)
//
package org.springframework.boot;
import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.annotation.AliasFor;
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Configuration
public @interface SpringBootConfiguration {
    @AliasFor(
        annotation = Configuration.class
    )
    boolean proxyBeanMethods() default true;
}

@Configuration。代表当前是一个配置类

@ComponentScan

指定扫描哪些包，Spring注解；

@EnableAutoConfiguration

@AutoConfigurationPackage
@Import(AutoConfigurationImportSelector.class)
public @interface EnableAutoConfiguration {

导入主程序类所在的包及其子包@AutoConfigurationPackage

翻译过来叫自动配置包？指定了默认的包规则，看源码

@Import(AutoConfigurationPackages.Registrar.class)
public @interface AutoConfigurationPackage {

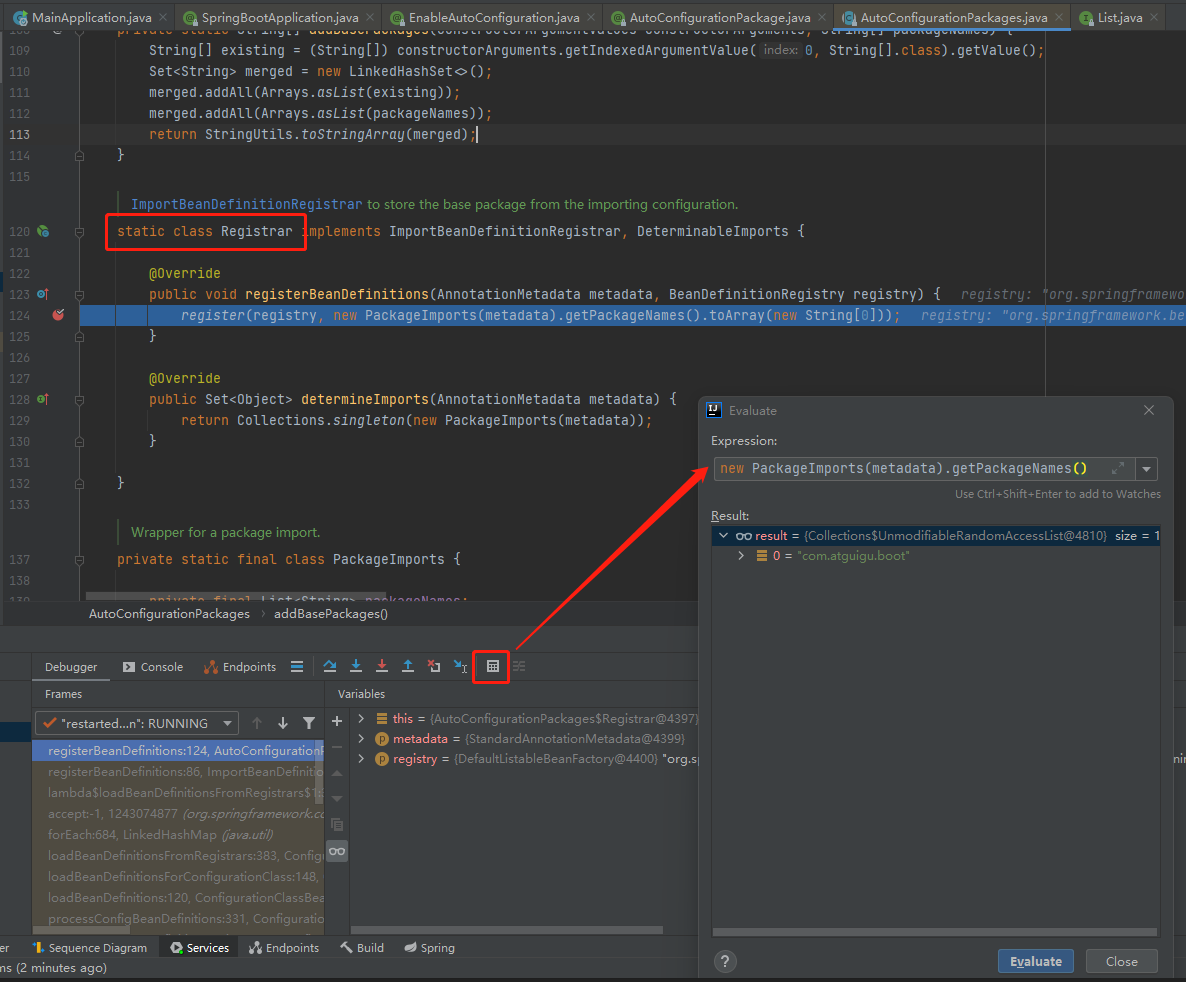

它导入了一个Registrar，这是个内部类，点进去看源码，debug调试

利用Registrar给容器中导入一系列组件，将指定的一个包com.atguigu.boot下的所有组件导入进来
默认是主程序类MainApplication 所在包下。

导入spring.factories当中的配置类@Import(AutoConfigurationImportSelector.class)

利用getAutoConfigurationEntry(annotationMetadata);给容器中批量导入一些组件
- 调用List
  configurations = getCandidateConfigurations(annotationMetadata, attributes)获取到所有需要导入到容器中的配置类 130个
  - 利用工厂加载 Map
    > loadSpringFactories(@Nullable ClassLoader classLoader)；得到所有的组件

    从META-INF/spring.factories位置来加载一个文件。默认扫描我们当前系统里面所有META-INF/spring.factories位置的文件，META-INF/spring.factories，位于spring-boot-autoconfigure-2.3.4.RELEASE.jar包当中META-INF/spring.factories

点进AutoConfigurationImportSelector去看源码selectImports方法

    @Override
    public String[] selectImports(AnnotationMetadata annotationMetadata) {
        if (!isEnabled(annotationMetadata)) {
            return NO_IMPORTS;
        }
        AutoConfigurationEntry autoConfigurationEntry = getAutoConfigurationEntry(annotationMetadata);
        return StringUtils.toStringArray(autoConfigurationEntry.getConfigurations());
    }

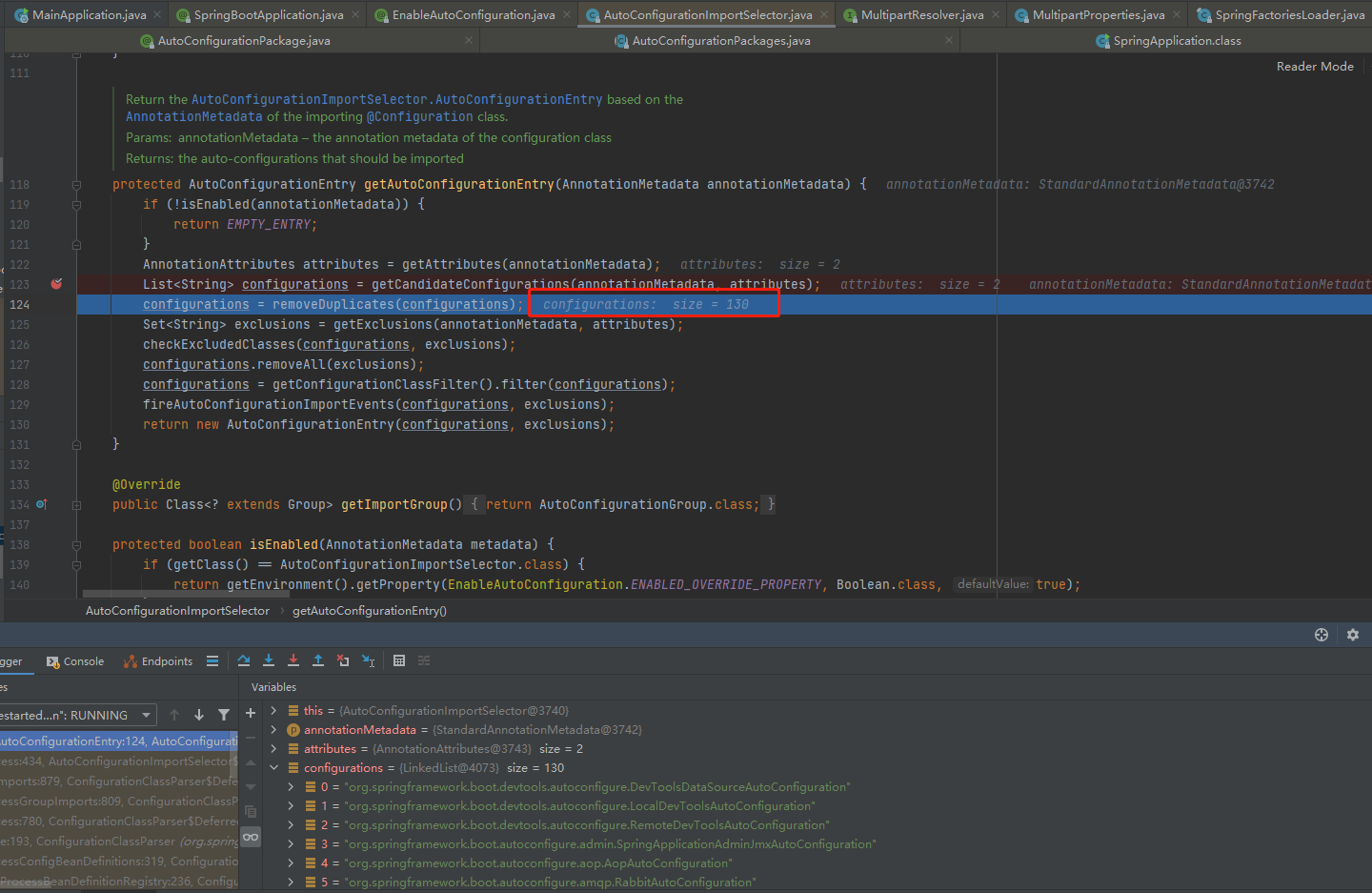

getAutoConfigurationEntry方法

    protected AutoConfigurationEntry getAutoConfigurationEntry(AnnotationMetadata annotationMetadata) {
        if (!isEnabled(annotationMetadata)) {
            return EMPTY_ENTRY;
        }
        AnnotationAttributes attributes = getAttributes(annotationMetadata);
        List<String> configurations = getCandidateConfigurations(annotationMetadata, attributes);
        configurations = removeDuplicates(configurations);
        Set<String> exclusions = getExclusions(annotationMetadata, attributes);
        checkExcludedClasses(configurations, exclusions);
        configurations.removeAll(exclusions);
        configurations = getConfigurationClassFilter().filter(configurations);
        fireAutoConfigurationImportEvents(configurations, exclusions);
        return new AutoConfigurationEntry(configurations, exclusions);
    }

getCandidateConfigurations方法

    protected List<String> getCandidateConfigurations(AnnotationMetadata metadata, AnnotationAttributes attributes) {
        List<String> configurations = SpringFactoriesLoader.loadFactoryNames(getSpringFactoriesLoaderFactoryClass(),
                getBeanClassLoader());
        Assert.notEmpty(configurations, "No auto configuration classes found in META-INF/spring.factories. If you "
                + "are using a custom packaging, make sure that file is correct.");
        return configurations;
    }

loadFactoryNames方法

    public static List<String> loadFactoryNames(Class<?> factoryType, @Nullable ClassLoader classLoader) {
        String factoryTypeName = factoryType.getName();
        return (List)loadSpringFactories(classLoader).getOrDefault(factoryTypeName, Collections.emptyList());
    }

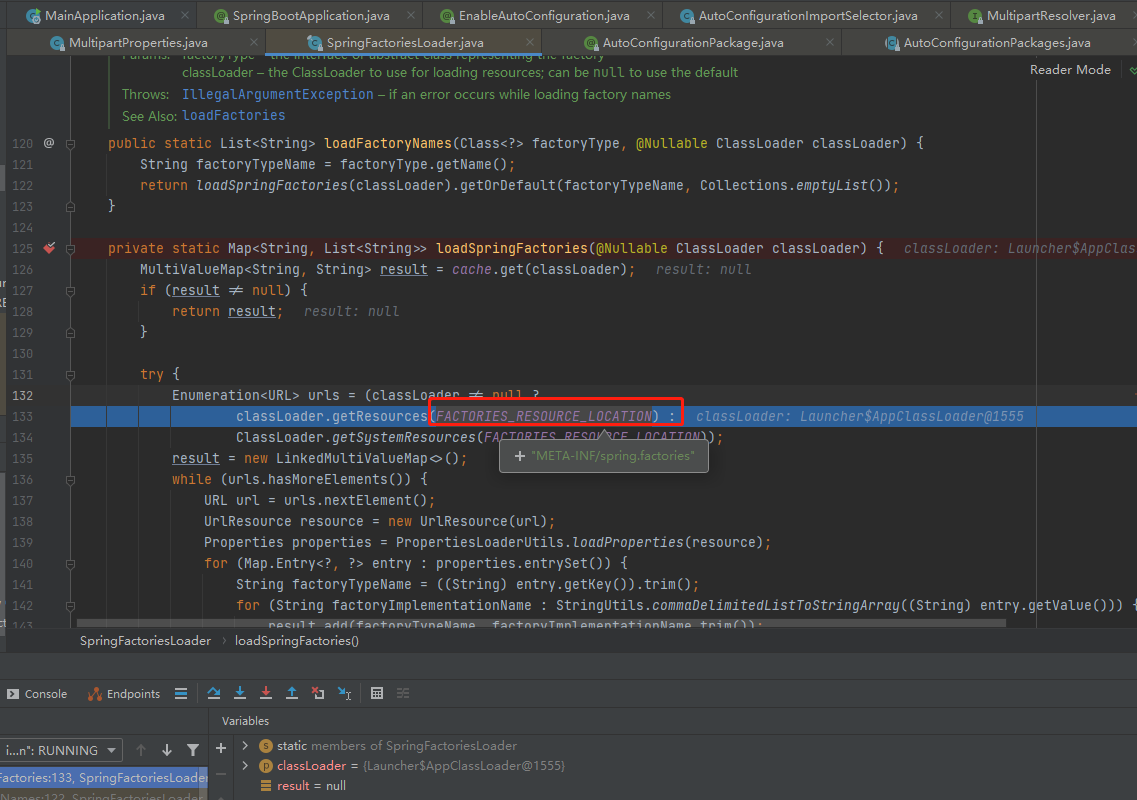

loadSpringFactories方法

    private static Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader) {
        MultiValueMap<String, String> result = cache.get(classLoader);
        if (result != null) {
            return result;
        }
        try {
            Enumeration<URL> urls = (classLoader != null ?
                    classLoader.getResources(FACTORIES_RESOURCE_LOCATION) :
                    ClassLoader.getSystemResources(FACTORIES_RESOURCE_LOCATION));
            result = new LinkedMultiValueMap<>();
            while (urls.hasMoreElements()) {
                URL url = urls.nextElement();
                UrlResource resource = new UrlResource(url);
                Properties properties = PropertiesLoaderUtils.loadProperties(resource);
                for (Map.Entry<?, ?> entry : properties.entrySet()) {
                    String factoryTypeName = ((String) entry.getKey()).trim();
                    for (String factoryImplementationName : StringUtils.commaDelimitedListToStringArray((String) entry.getValue())) {
                        result.add(factoryTypeName, factoryImplementationName.trim());
                    }
                }
            }
            cache.put(classLoader, result);
            return result;
        }
        catch (IOException ex) {
            throw new IllegalArgumentException("Unable to load factories from location [" +
                    FACTORIES_RESOURCE_LOCATION + "]", ex);
        }
    }

加载了一个配置文件叫“META-INF/spring.factories”

在这一步拿到所有的配置，返回上层我们看一共有130个

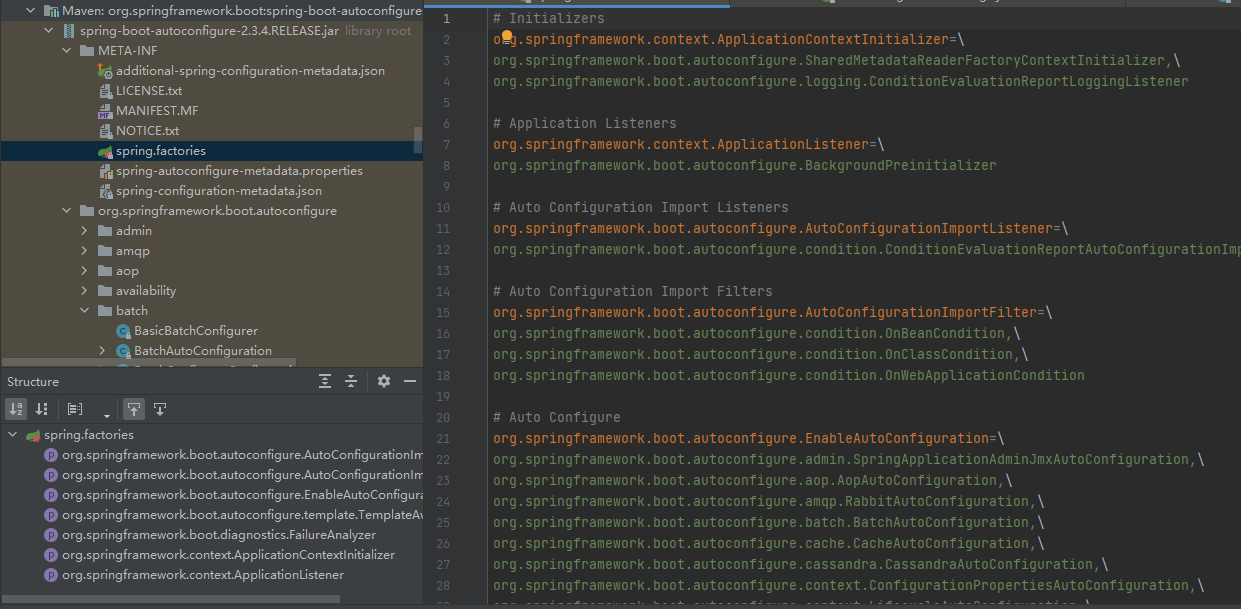

默认扫描我们当前系统里面所有spring.factories位置的文件，spring.factories位于spring-boot-autoconfigure-2.3.4.RELEASE.jar包当中META-INF/spring.factories，spring.factories文件里面写死了spring-boot一启动就要给容器中加载的所有配置类

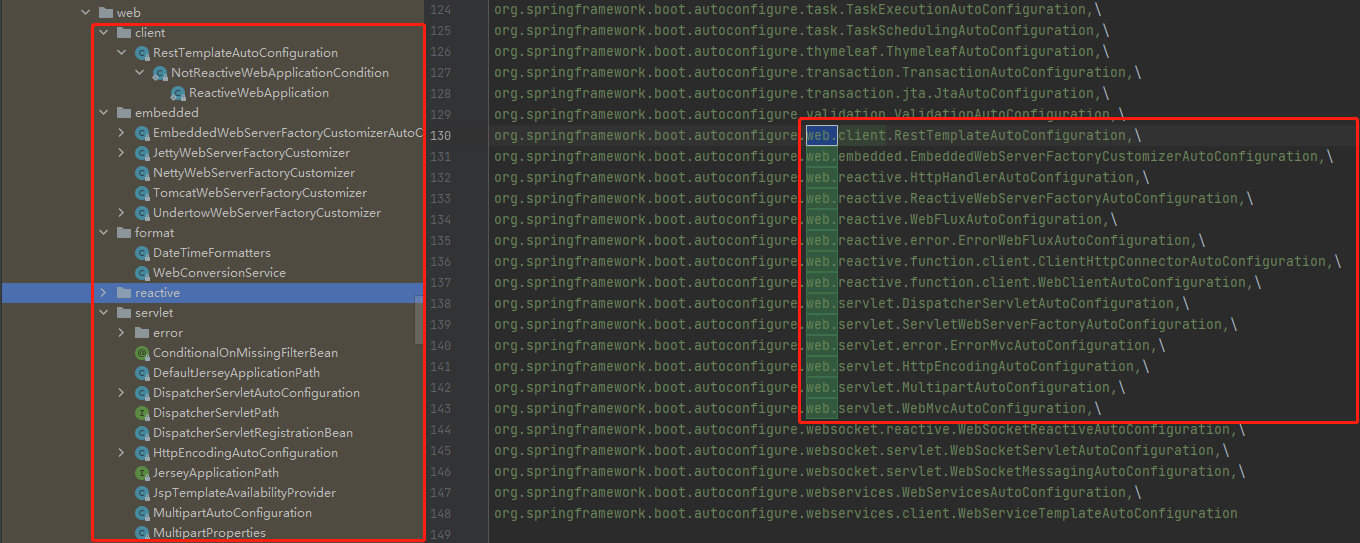

spring.factories，这里当然也包括我们熟悉的伙伴spring-boot-starter-web的自动配置类包

总结以下，SpringBoot先加载所有的自动配置类 xxxxxAutoConfiguration

每个自动配置类是个配置类@Configuration
每个自动配置类按照条件进行生效@ConditionalOnXXXX
生效的配置类就会给容器中装配很多组件@Bean，容器放了这些组件，相当于这些功能就有了

更激动人心的是，自动配置类会为我们绑定参数配置文件，类注解@EnableConfigurationProperties(ServerProperties.class)

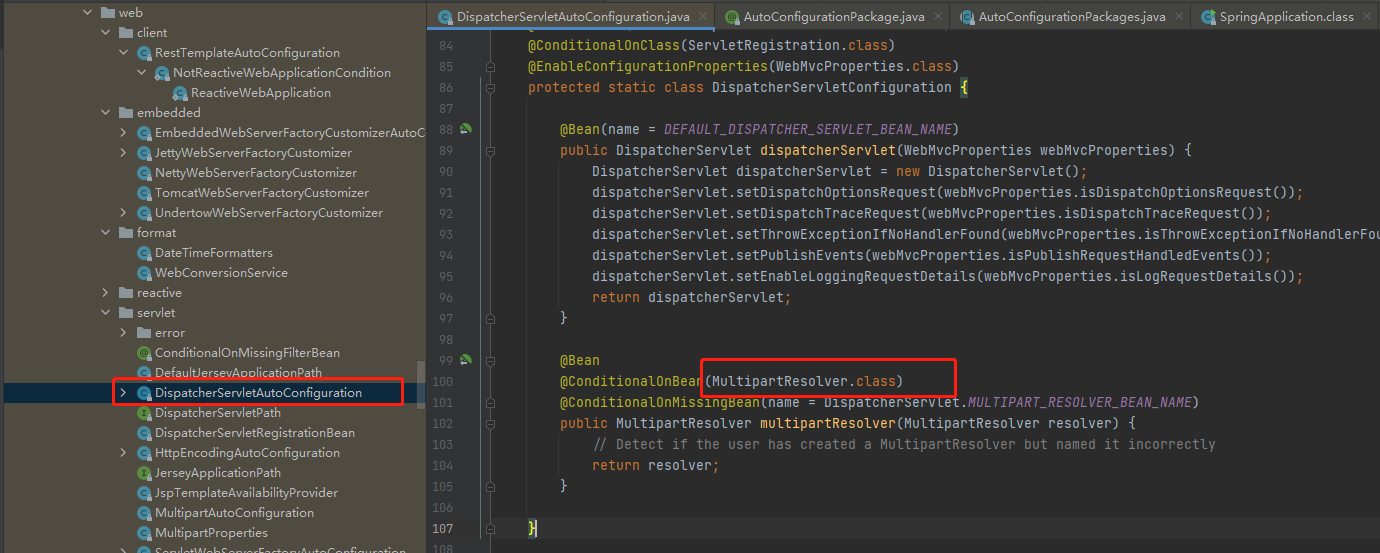

有趣的自动配置MultipartResolver

源码解读：

  @Bean
  //容器中有这个类型组件
  @ConditionalOnBean(MultipartResolver.class)
  //容器中没有这个名字 multipartResolver 的组件
  @ConditionalOnMissingBean(name = DispatcherServlet.MULTIPART_RESOLVER_BEAN_NAME)
  //给@Bean标注的方法传入了对象参数，这个参数的值就会从容器中找。
  public MultipartResolver multipartResolver(MultipartResolver resolver) {
    //SpringMVC multipartResolver。防止有些用户配置的文件上传解析器名字不叫multipartResolver，不符合规范
    // Detect if the user has created a MultipartResolver but named it incorrectly
    return resolver;
  }
给容器中加入了文件上传解析器；并且返回的resolver叫multipartResolver，因为我们的bean方法名叫multipartResolver
相当于强制的给用户配置的视图解析器重命名为multipartResolver

配置文件参数默认映射

@EnableConfigurationProperties

@EnableConfigurationProperties(ServerProperties.class)标注在类上

@ConfigurationProperties

@ConfigurationProperties(prefix = “server”)标注在参数类上
所以用户还可以去看这个组件是获取的yaml/properties配置文件什么值，prefix是什么，就去修改

@ConfigurationProperties(prefix = "server", ignoreUnknownFields = true)
public class ServerProperties {
  /**
   * Server HTTP port.
   */
  private Integer port;
  /**
   * Network address to which the server should bind.
   */
  private InetAddress address;
  @NestedConfigurationProperty
  private final ErrorProperties error = new ErrorProperties();
  ...
}

允许用户可以定制化组件

用户可以直接自己@Bean替换底层Spring默认的组件

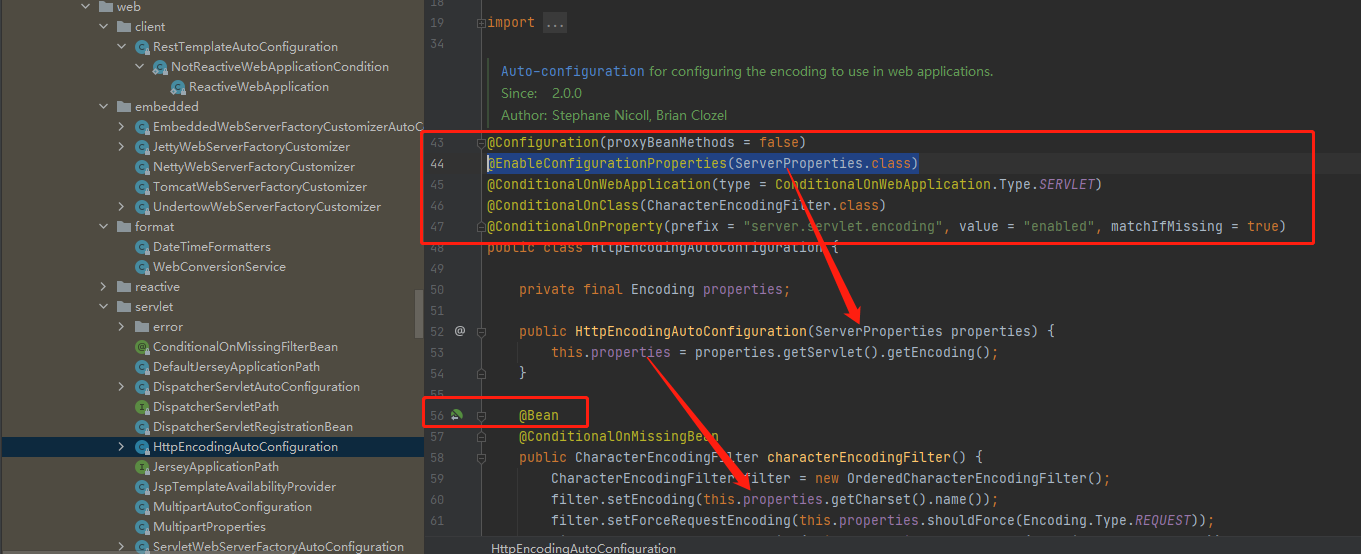

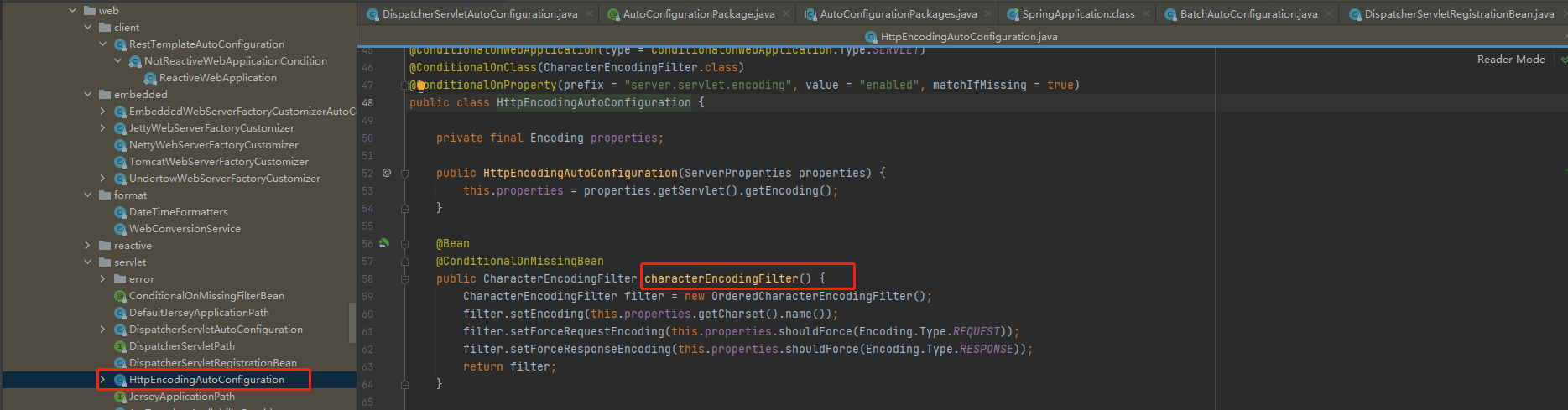

有趣的组件CharacterEncodingFilter

底层的ConditionalOnMissingBean意味着Spring的一种设计模式：条件装载，当此Bean，CharacterEncodingFilter不存在时才生效，意味着会向容器当中放置一个Spring默认的CharacterEncodingFilter。SpringBoot默认会在底层配好所有的组件。但是如果用户自己配置了以用户的优先

    @Bean
    @ConditionalOnMissingBean
    public CharacterEncodingFilter characterEncodingFilter() {
        CharacterEncodingFilter filter = new OrderedCharacterEncodingFilter();
        filter.setEncoding(this.properties.getCharset().name());
        filter.setForceRequestEncoding(this.properties.shouldForce(Encoding.Type.REQUEST));
        filter.setForceResponseEncoding(this.properties.shouldForce(Encoding.Type.RESPONSE));
        return filter;
    }
