测试环境
- Aliyun EMR:
- 5.2.0版本;
- hadoop各组件版本参考文档;
- Apache Iceberg:
- https://github.com/apache/iceberg 仓库的master分支;
- 对应的commit id: 40e626a168a3137b42d023fb8f8f3835f3cd0a78
- Spark: 3.1.1
- Hive: 3.1.2
- Hadoop: 3.2.1
第一步:用社区master版本编译iceberg-spark3-runtime-*.jar
为何需要用master分支来编译?
因为Aliyun EMR 5.2.0版本的Spark版本对应社区的 3.1.1 版本,而Apache Iceberg 最近发布的 0.11.1 版本只支持 Spark 3.0.1 版本,和 Spark 3.1.1版本的兼容性有些问题。要想在Aliyun EMR 5.2.0版本上运行 Iceberg,那么至少需要用 0.12.0 (包含)及以上的版本。目前iceberg尚未发布0.12.0版本,那么选择用master分支来自己build一个iceberg-spark3-runtime-*.jar将是正确的选择。
$ git clone git@github.com:apache/iceberg.git
$ cd iceberg
$ ./gradlew build -x test
...
$ ls -atlr spark3-runtime/build/libs/iceberg-spark3-runtime-*.jar
-rw-r--r-- 1 openinx staff 26679923 Jul 12 17:42 spark3-runtime/build/libs/iceberg-spark3-runtime-25eaeba.jar
-rw-r--r-- 1 openinx staff 5660 Jul 12 17:42 spark3-runtime/build/libs/iceberg-spark3-runtime-25eaeba-javadoc.jar
-rw-r--r-- 1 openinx staff 5660 Jul 12 17:42 spark3-runtime/build/libs/iceberg-spark3-runtime-25eaeba-sources.jar
-rw-r--r-- 1 openinx staff 5660 Jul 12 17:42 spark3-runtime/build/libs/iceberg-spark3-runtime-25eaeba-tests.jar
第二步: 启动配置命令行,启动spark-sql客户端
将编译好的 iceberg-spark3-runtime-xx.jar 上传到spark的master节点上(需要提前创建~/jars目录):
scp spark3-runtime/build/libs/iceberg-spark3-runtime-25eaeba.jar root@114.55.65.83:~/jars
通过如下命令启动 spark-sql:
#!/bin/bash
spark-sql --jars /root/jars/iceberg-spark3-runtime*.jar \
--conf spark.sql.extensions=org.apache.iceberg.spark.extensions.IcebergSparkSessionExtensions \
--conf spark.sql.catalog.hive_prod=org.apache.iceberg.spark.SparkCatalog \
--conf spark.sql.catalog.hive_prod.type=hive \
--conf spark.sql.catalog.hive_prod.uri=thrift://emr-header-1.cluster-236286:9083 \
--conf spark.sql.catalog.hive_prod.warehouse=oss://emr-iceberg/warehouse \
--conf spark.sql.shuffle.partitions=2000
配置说明:
- spark.sql.catalog.hive_prod: 这里hive_prod表示hive catalog的名字,用户也可以指定其他名字。
- spark.sql.catalog.hive_prod.type: 表示catalog的类型,目前iceberg支持hive、hadoop、custom三种类型。

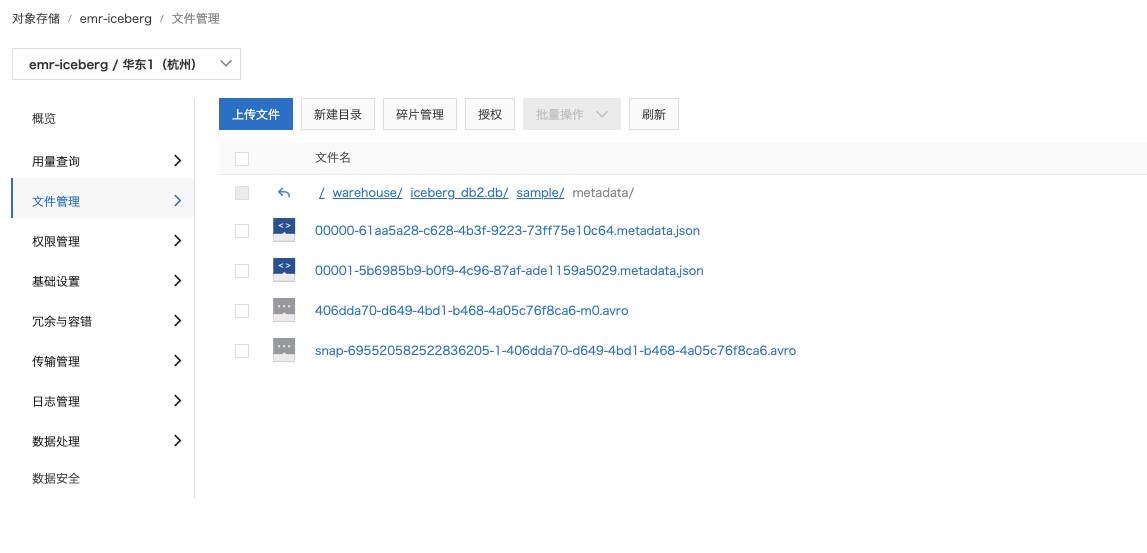

- spark.sql.catalog.hive_prod.warehouse: 表示iceberg数据存放的oss位置,注意选择的bucket必须是EMR设定oss区域对应的bucket,例如我创建的EMR集群在【杭州】区域,同时我的bucket=emr-iceberg也落在杭州区域。(如果bucket区域和EMR区域不相同,则可能会碰到无法正确访问oss路径的问题)
spark.sql.catalog.hive_prod.uri: 表示hive-metastore的thrift uri地址。通过如下命令获取到hive-metastore的thrift uri地址:
[root@emr-header-1 ~]# cat /etc/ecm/hive-conf/hive-site.xml | grep -1 hive.metastore.uris
<property>
<name>hive.metastore.uris</name>
<value>thrift://emr-header-1.cluster-236286:9083</value>
</property>
spark.sql.shuffle.partitions: 表示spark做shuffle时的分区数。
第三步:创建数据库
CREATE DATABASE hive_prod.iceberg_db2;
第三步:创建测试表
CREATE TABLE hive_prod.iceberg_db2.sample
(
id BIGINT,
data STRING
)
USING iceberg;
第四步:插入测试记录
INSERT INTO hive_prod.iceberg_db2.sample VALUES (1, 'aaa'), (2, 'bbb');
第五步:查询测试数据
SELECT data, count(id)
FROM hive_prod.iceberg_db2.sample
GROUP BY data ;
