前言
随着大数据时代的到来，我们常常需要对高纬度数据进行降维处理后再对数据整体结构进行可视化，进而发现数据内在的区别，为后续数据分析提供初步的参考。更多知识分享请到 https://zouhua.top/。
这里主要介绍三类数据分析方法的R实现过程：
1.PCA主成分分析；
2.tSNE，基于概率密度分布计算能保留更多组间和个体差异的方法；
3.UMAP，非线性降维方法。
导入数据
options(warn = 0)library(dplyr)library(tibble)library(ggplot2)options(warn = 0)ExprSet_LOG2Impute <- readRDS("Mass_Proteins_filtered_Normal_LOG2Impute.RDS")subgrp <- c("NC", "PC", "PT")grp.col <- c("#568875", "#73FAFC", "#EE853D")

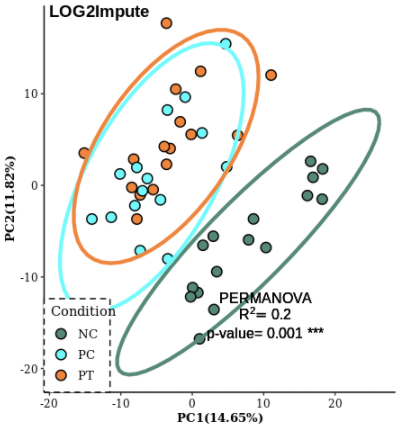

Principal Component Analysis
PCAFun <- function(dataset = ExprSet_LOG2Impute ){# dataset = ExprSet_LOG2Imputerequire(convert)metadata <- pData(dataset)profile <- exprs(dataset)# pcapca <- prcomp(scale(t(profile), center = T, scale = T))require(factoextra)eig <- get_eig(pca)# explains variableexplains <- paste0(paste0("PC", seq(2)), "(", paste0(round(eig[1:2, 2], 2), "%"), ")")# principal component score of each samplescore <- inner_join(pca$x %>% data.frame() %>%dplyr::select(c(1:2)) %>%rownames_to_column("SampleID"),metadata %>% rownames_to_column("SampleID"),by = "SampleID") %>%mutate(Group=factor(Group, levels = grp))# PERMANOVArequire(vegan)set.seed(123)if(any(profile < 0)){res_adonis <- adonis(vegdist(t(profile), method = "manhattan") ~ metadata$SubGroup, permutations = 999)}else{res_adonis <- adonis(vegdist(t(profile), method = "bray") ~ metadata$SubGroup, permutations = 999)}adn_pvalue <- res_adonis[[1]][["Pr(>F)"]][1]adn_rsquared <- round(res_adonis[[1]][["R2"]][1],3)#use the bquote function to format adonis results to be annotated on the ordination plot.signi_label <- paste(cut(adn_pvalue,breaks=c(-Inf, 0.001, 0.01, 0.05, Inf), label=c("***", "**", "*", ".")))adn_res_format <- bquote(atop(atop("PERMANOVA",R^2==~.(adn_rsquared)),atop("p-value="~.(adn_pvalue)~.(signi_label), phantom())))pl <- ggplot(score, aes(x=PC1, y=PC2))+geom_point(aes(fill=SubGroup), size=3.5, shape=21, stroke = .8, color = "black")+stat_ellipse(aes(color=SubGroup), level = 0.95, linetype = 1, size = 1.5)+labs(x=explains[1], y=explains[2])+scale_color_manual(values = grp.col)+scale_fill_manual(name = "Condition",values = grp.col)+annotate("text", x = max(score$PC1) - 8,y = min(score$PC1),label = adn_res_format,size = 6)+guides(color=F)+theme_classic()+theme(axis.title = element_text(size = 10, color = "black", face = "bold"),axis.text = element_text(size = 9, color = "black"),text = element_text(size = 8, color = "black", family = "serif"),strip.text = element_text(size = 9, color = "black", face = "bold"),panel.grid = element_blank(),legend.title = element_text(size = 11, color = "black", family = "serif"),legend.text = element_text(size = 10, color = "black", family = "serif"),legend.position = c(0, 0),legend.justification = c(0, 0),legend.background = element_rect(color = "black", fill = "white", linetype = 2, size = 0.5))return(pl)}PCA_LOG2Impute <- PCAFun(dataset = ExprSet_LOG2Impute)PCA_LOG2Imputeggsave("Mass_ProteinsLOG2Impute_PCA.pdf", PCA_LOG2Impute, width = 5, height = 5, dpi = 300)

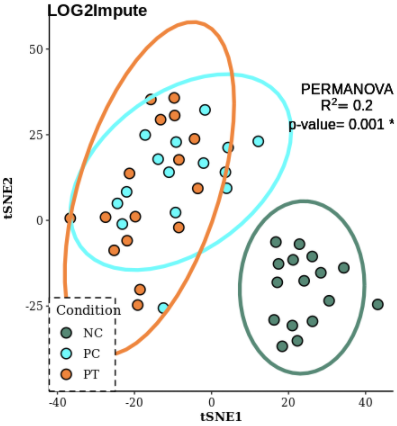

Rtsne
RtsneFun <- function(dataset = ExprSet_LOG2Impute,
perpl = 10){
# dataset = ExprSet_LOG2Impute
# perpl = 10
require(convert)
metadata <- pData(dataset)
profile <- t(exprs(dataset))
# Rtsne
require(Rtsne)
#set.seed(123)
Rtsne <- Rtsne(profile,
dims=2,
perplexity=perpl,
verbose=TRUE,
max_iter=500,
eta=200)
point <- Rtsne$Y %>% data.frame() %>%
dplyr::select(c(1:2)) %>%
setNames(c("tSNE1", "tSNE2"))
rownames(point) <- rownames(profile)
score <- inner_join(point %>% rownames_to_column("SampleID"),
metadata %>% rownames_to_column("SampleID"),
by = "SampleID") %>%
mutate(Group=factor(Group, levels = grp))
# PERMANOVA
require(vegan)
set.seed(123)
if(any(profile < 0)){
res_adonis <- adonis(vegdist(profile, method = "manhattan") ~ metadata$SubGroup, permutations = 999)
}else{
res_adonis <- adonis(vegdist(profile, method = "bray") ~ metadata$SubGroup, permutations = 999)
}
adn_pvalue <- res_adonis[[1]][["Pr(>F)"]][1]
adn_rsquared <- round(res_adonis[[1]][["R2"]][1],3)
#use the bquote function to format adonis results to be annotated on the ordination plot.
signi_label <- paste(cut(adn_pvalue,breaks=c(-Inf, 0.001, 0.01, 0.05, Inf), label=c("***", "**", "*", ".")))
adn_res_format <- bquote(atop(atop("PERMANOVA",R^2==~.(adn_rsquared)),
atop("p-value="~.(adn_pvalue)~.(signi_label), phantom())))
pl <- ggplot(score, aes(x=tSNE1, y=tSNE2))+
geom_point(aes(fill=SubGroup), size=3.5, shape=21, stroke = .8, color = "black")+
stat_ellipse(aes(color=SubGroup), level = 0.95, linetype = 1, size = 1.5)+
scale_color_manual(values = grp.col)+
scale_fill_manual(name = "Condition",
values = grp.col)+
annotate("text", x = max(score$tSNE1) - 8,
y = max(score$tSNE2)-5,
label = adn_res_format,
size = 6)+
guides(color=F)+
theme_classic()+
theme(axis.title = element_text(size = 10, color = "black", face = "bold"),
axis.text = element_text(size = 9, color = "black"),
text = element_text(size = 8, color = "black", family = "serif"),
strip.text = element_text(size = 9, color = "black", face = "bold"),
panel.grid = element_blank(),
legend.title = element_text(size = 11, color = "black", family = "serif"),
legend.text = element_text(size = 10, color = "black", family = "serif"),
legend.position = c(0, 0),
legend.justification = c(0, 0),
legend.background = element_rect(color = "black", fill = "white", linetype = 2, size = 0.5))
return(pl)
}
Rtsne_LOG2Impute <- RtsneFun(dataset = ExprSet_LOG2Impute, perpl = 10)
Rtsne_LOG2Impute
ggsave("Mass_ProteinsLOG2Impute_Rtsne.pdf", Rtsne_LOG2Impute, width = 5, height = 5, dpi = 300)

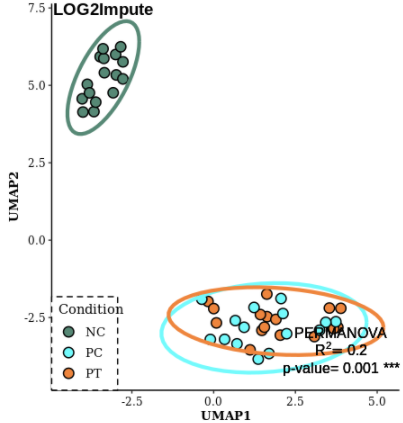

UMAP: a non-linear dimensionality reduction algorithm
UMAPFun <- function(dataset = ExprSet_LOG2Impute){
# dataset = ExprSet_LOG2Impute
require(convert)
metadata <- pData(dataset)
profile <- t(exprs(dataset))
# umap
require(umap)
umap <- umap::umap(profile)
point <- umap$layout %>% data.frame() %>%
setNames(c("UMAP1", "UMAP2"))
rownames(point) <- rownames(profile)
score <- inner_join(point %>% rownames_to_column("SampleID"),
metadata %>% rownames_to_column("SampleID"),
by = "SampleID") %>%
mutate(Group=factor(Group, levels = grp))
# PERMANOVA
require(vegan)
set.seed(123)
if(any(profile < 0)){
res_adonis <- adonis(vegdist(profile, method = "manhattan") ~ metadata$SubGroup, permutations = 999)
}else{
res_adonis <- adonis(vegdist(profile, method = "bray") ~ metadata$SubGroup, permutations = 999)
}
adn_pvalue <- res_adonis[[1]][["Pr(>F)"]][1]
adn_rsquared <- round(res_adonis[[1]][["R2"]][1],3)
#use the bquote function to format adonis results to be annotated on the ordination plot.
signi_label <- paste(cut(adn_pvalue,breaks=c(-Inf, 0.001, 0.01, 0.05, Inf), label=c("***", "**", "*", ".")))
adn_res_format <- bquote(atop(atop("PERMANOVA",R^2==~.(adn_rsquared)),
atop("p-value="~.(adn_pvalue)~.(signi_label), phantom())))
pl <- ggplot(score, aes(x=UMAP1, y=UMAP2))+
geom_point(aes(fill=SubGroup), size=3.5, shape=21, stroke = .8, color = "black")+
stat_ellipse(aes(color=SubGroup), level = 0.95, linetype = 1, size = 1.5)+
scale_color_manual(values = grp.col)+
scale_fill_manual(name = "Condition",
values = grp.col)+
annotate("text", x = max(score$UMAP1),
y = min(score$UMAP2),
label = adn_res_format,
size = 6)+
guides(color=F)+
theme_classic()+
theme(axis.title = element_text(size = 10, color = "black", face = "bold"),
axis.text = element_text(size = 9, color = "black"),
text = element_text(size = 8, color = "black", family = "serif"),
strip.text = element_text(size = 9, color = "black", face = "bold"),
panel.grid = element_blank(),
legend.title = element_text(size = 11, color = "black", family = "serif"),
legend.text = element_text(size = 10, color = "black", family = "serif"),
legend.position = c(0, 0),
legend.justification = c(0, 0),
legend.background = element_rect(color = "black", fill = "white", linetype = 2, size = 0.5))
return(pl)
}
UMAP_LOG2Impute <- UMAPFun(dataset = ExprSet_LOG2Impute)
UMAP_LOG2Impute
ggsave("Mass_ProteinsLOG2Impute_UMAP.pdf", UMAP_LOG2Impute, width = 5, height = 5, dpi = 300)
Notes: 三组数据的整体性差异如果较为明显，一般可以在不同的降维方法上都有所体现。从分组看，NC组和PC、PT组均存在明显的差异，后续数据分析应该着重关注 NC vs PC, NC vs PT，但也可以对PC vs PT做比较分析。
