一、准备工作

  1. root用户连接数据库

controller ~# mysql -u root -p

  1. 创建keystone数据库

MariaDB [(none)]> CREATE DATABASE keystone;

  1. 对keystone数据库授权

MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone. TO ‘keystone’@’localhost’ IDENTIFIED BY ‘1111’;
MariaDB [(none)]> GRANT ALL PRIVILEGES ON keystone. TO ‘keystone’@’%’ IDENTIFIED BY ‘1111’;

二、安装并配置组件

  1. 安装软件包

controller ~# yum -y install openstack-keystone httpd mod_wsgi

  1. 编辑/etc/keystone/keystone.conf 配置文件

controller ~# vim /etc/keystone/keystone.conf

  • 在 [database] 部分，配置数据库访问：

[database]
# …
connection = mysql+pymysql://keystone:1111@controller/keystone

  • 在[token]部分，配置Fernet UUID令牌的提供者。
    [token]
    …
    provider = fernet
  1. 初始化身份认证服务的数据库

controller ~# su -s /bin/sh -c “keystone-manage db_sync” keystone

  1. 初始化fernet keys：

controller ~# keystone-manage fernet_setup —keystone-user keystone —keystone-group keystone
controller ~# keystone-manage credential_setup —keystone-user keystone —keystone-group keystone

  1. 引导认证服务

controller ~# keystone-manage bootstrap —bootstrap-password 1111—bootstrap-admin-url http://controller:35357/v3/—bootstrap-internal-url http://controller:5000/v3/—bootstrap-public-url http://controller:5000/v3/—bootstrap-region-id RegionOne

三、配置Apache服务器

编辑/etc/httpd/conf/httpd.conf文件，配置ServerName选项为控制节点：
controller ~# vim /etc/httpd/conf/httpd.conf
ServerName controller

  1. 给/usr/share/keystone/wsgi-keystone.conf文件创建链接

controller ~# ln -s /usr/share/keystone/wsgi-keystone.conf /etc/httpd/conf.d/

  1. 启动Apache服务

controller~# systemctl enable httpd.service
controller~# systemctl start httpd.service

  • 在启动时遇到错误

检查mod_wsgi是否成功安装
检查selinux是否关闭

  1. 配置管理账户

controller~# export OS_USERNAME=admin
controller~# export OS_PASSWORD=1111
controller~# export OS_PROJECT_NAME=admin
controller~# export OS_USER_DOMAIN_NAME=Default
controller~# export OS_PROJECT_DOMAIN_NAME=Default
controller~# export OS_AUTH_URL=http://controller:35357/v3
controller~# export OS_IDENTITY_API_VERSION=3
四、创建域、项目、用户和角色

  1. 创建service项目，添加用户

controller ~# openstack project create —domain default —description “Service Project” service

  1. 创建demo项目

controller ~# openstack project create —domain default —description “Demo Project” demo

  1. 创建demo用户

controller ~# openstack user create —domain default —password-prompt demo

  1. 创建user角色

controller ~# openstack role create user

  1. 将user角色添加到demo项目和用户中

controller ~# openstack role add —project demo —user demo user

五、验证操作

  1. 禁用认证令牌机制

controller ~# vim /etc/keystone/keystone-paste.ini
从[pipeline:public_api], [pipeline:admin_api], 和[pipeline:api_v3]选项中删除admin_token_auth

  1. 取消设置临时的OS_AUTH_URL和OS_PASSWORD环境变量：

controller ~# unset OS_AUTH_URL OS_PASSWORD

  1. 使用admin用户，请求一个认证令牌

controller ~# openstack —os-auth-url http://controller:35357/v3 —os-project-domain-name default —os-user-domain-name default —os-project-name admin —os-username admin token issue

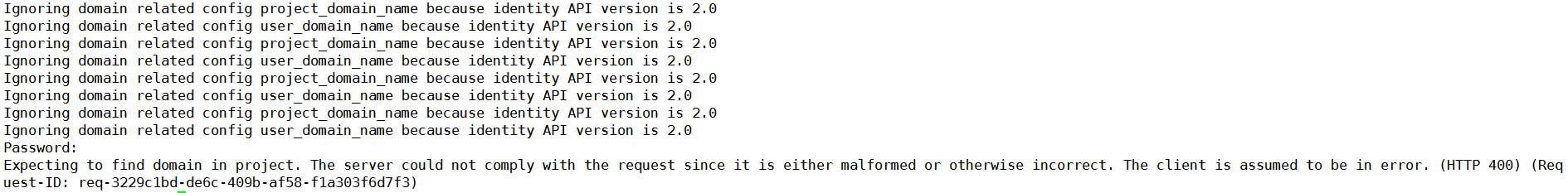

  • 这里遇到错误

由于是Http错误，所以返回Apache HTTP 服务配置的地方，重启Apache 服务，并重新设置管理账户：
# systemctlrestart httpd.service
$ export OS_USERNAME=admin
$ export OS_PASSWORD=1111
$ export OS_PROJECT_NAME=admin
$ export OS_USER_DOMAIN_NAME=Default
$ export OS_PROJECT_DOMAIN_NAME=Default
$ export OS_AUTH_URL=http://controller:35357/v3
$ export OS_IDENTITY_API_VERSION=3

  1. 使用demo用户，请求认证令牌：

controller ~# openstack —os-auth-url http://controller:5000/v3 —os-project-domain-name default —os-user-domain-name default —os-project-name demo —os-username demo token issue

  • 密码为创建demo用户时的密码。

    五、创建OpenStack客户端环境脚本

  1. 创建admin-openrc脚本，添加一下内容

controller ~# vim admin-openrc.sh
export OS_PROJECT_DOMAIN_NAME=Default
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_NAME=admin
export OS_USERNAME=admin
export OS_PASSWORD=1111
export OS_AUTH_URL=http://controller:35357/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
controller ~# . admin-openrc.sh

  1. 创建demo-openrc.sh文件，并添加以下内容

controller ~# vim demo-openrc.sh
export OS_PROJECT_DOMAIN_NAME=Default
export OS_USER_DOMAIN_NAME=Default
export OS_PROJECT_NAME=demo
export OS_USERNAME=demo
export OS_PASSWORD=1111
export OS_AUTH_URL=http://controller:5000/v3
export OS_IDENTITY_API_VERSION=3
export OS_IMAGE_API_VERSION=2
controller ~# . demo-openrc.sh

  1. 请求一个认证令牌；

controller ~# openstack token issue
