Spring MVC - 一个简单例子 - 《编程相关-学习笔记》

一、tomcat
二、代码

一、tomcat

1、去官网下载，http://tomcat.apache.org/。
2、解压缩压缩包

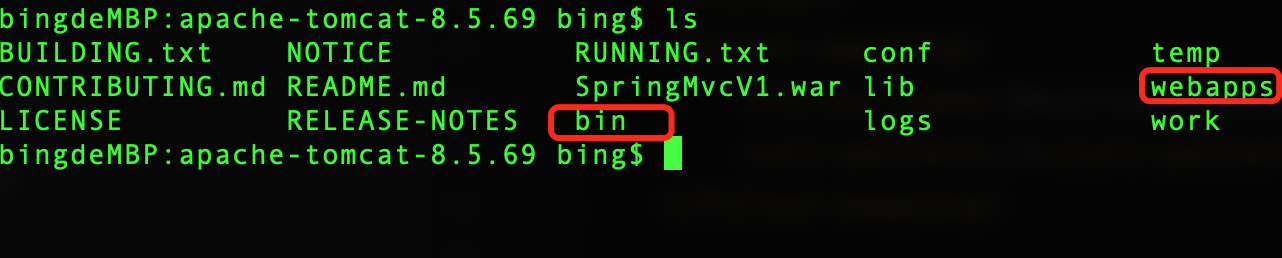

3、将Spring Web程序的 war包，复制到webapp目录下，启动服务器。

bash startup.sh   # 启动服务
bash shutdown.sh  # 关闭服务

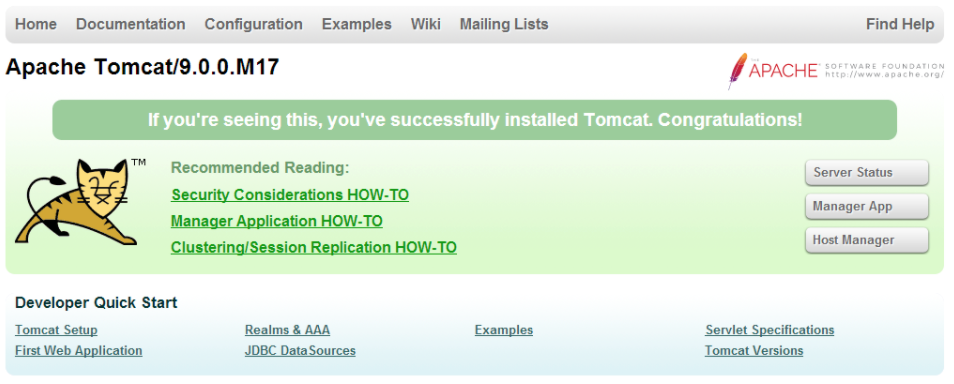

4、打开浏览器键入 http://localhost:8080 进入如下页面则表示安装成功。进入相应的路径，看代码是否是对的。

二、代码

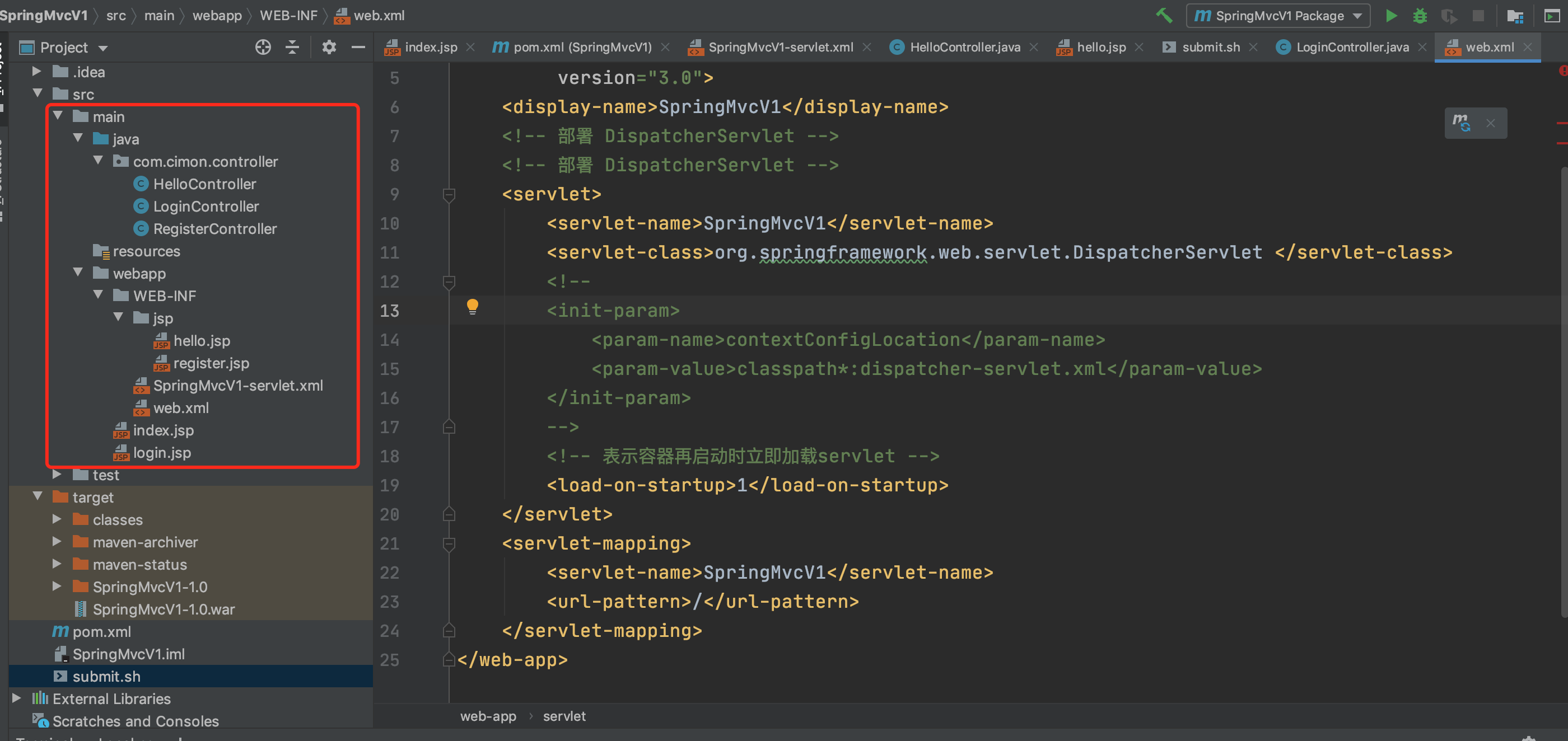

1、目录结构

2、基本的xml配置

web.xml

<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd"
         xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd"
         version="3.0">
    <display-name>SpringMvcV1</display-name>
    <!-- 部署 DispatcherServlet -->
    <!-- 部署 DispatcherServlet -->
    <servlet>
        <servlet-name>SpringMvcV1</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet </servlet-class>
        <!--
        <init-param>
            <param-name>contextConfigLocation</param-name>
            <param-value>classpath*:dispatcher-servlet.xml</param-value>
        </init-param>
        -->
        <!-- 表示容器再启动时立即加载servlet -->
        <load-on-startup>1</load-on-startup>
    </servlet>
    <servlet-mapping>
        <servlet-name>SpringMvcV1</servlet-name>
        <url-pattern>/</url-pattern>
    </servlet-mapping>
</web-app>

servlet.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
                        http://www.springframework.org/schema/beans/spring-beans-3.2.xsd
                         http://www.springframework.org/schema/context
                        http://www.springframework.org/schema/context/spring-context-3.2.xsd
                        http://www.springframework.org/schema/mvc
                        http://www.springframework.org/schema/mvc/spring-mvc.xsd">
    <!--
    <context:component-scan base-package="com.cimon.controller" />
    <mvc:annotation-driven/>
    <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/jsp/" />
        <property name="suffix" value=".jsp" />
    </bean>
    -->
    <!-- LoginController控制器类，映射到"/login"-->
    <bean id="login" name="/login"
          class="com.cimon.controller.LoginController"/>
    <bean id="register" name="/register"
          class="com.cimon.controller.RegisterController"/>
</beans>

index.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
    未注册的用户，请
    <a href="${pageContext.request.contextPath }/register"> 注册</a>！
    <br /> 已注册的用户，去
    <a href="${pageContext.request.contextPath }/login"> 登录</a>！
    <br /> Say Hello
    <a href="${pageContext.request.contextPath }/hello">hello</a>！
</body>
</html>

hello.jsp

<%@ page contentType="text/html; charset=UTF-8" %>
<html>
<head>
<title>Hello World</title>
</head>
<body>
   <h2>Hello, ${message}</h2>
</body>
</html>

login.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>Insert title here</title>
</head>
<body>
    登录页面！
</body>
</html>

register.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
         pageEncoding="UTF-8" %>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
    <meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
    <title>Insert title here</title>
<body>
    注册页面！
</body>
</html>
</head>

Controller

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.ui.ModelMap;
@Controller
@RequestMapping("/hello")
public class HelloController{
    @RequestMapping(method = RequestMethod.GET)
    public String printHello(ModelMap model) {
        model.addAttribute("message", "Hello Spring MVC Framework!");
        return "hello";
    }
}

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.Controller;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
public class LoginController implements Controller {
    public ModelAndView handleRequest(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse) throws Exception {
        return new ModelAndView("login.jsp");
    }
}

import org.springframework.web.servlet.ModelAndView;
import org.springframework.web.servlet.mvc.Controller;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
public class RegisterController implements Controller {
    public ModelAndView handleRequest(HttpServletRequest httpServletRequest, HttpServletResponse httpServletResponse) throws Exception {
        return new ModelAndView("./WEB-INF/jsp/register.jsp");
    }
}

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.cimon</groupId>
    <artifactId>SpringMvcV1</artifactId>
    <version>1.0</version>
    <packaging>war</packaging>  <!-- 定义打包形式 -->
    <dependencies>
        <!--测试-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.11</version>
            <scope>test</scope>
        </dependency>
        <!--日志-->
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.21</version>
        </dependency>
        <!--J2EE-->
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>javax.servlet-api</artifactId>
            <version>3.1.0</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet.jsp</groupId>
            <artifactId>jsp-api</artifactId>
            <version>2.2</version>
        </dependency>
        <dependency>
            <groupId>javax.servlet</groupId>
            <artifactId>jstl</artifactId>
            <version>1.2</version>
        </dependency>
        <!--springframework-->
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-web</artifactId>
            <version>5.2.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-webmvc</artifactId>
            <version>5.2.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.2.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-test</artifactId>
            <version>5.2.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-jdbc</artifactId>
            <version>5.2.3.RELEASE</version>
        </dependency>
    </dependencies>
    <build>
        <plugins>
            <plugin>
                 <!-- 定义web.xml 路径 -->
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-war-plugin</artifactId>
                <version>2.2</version>
                <configuration>
                    <webXml>src/main/webapp/WEB-INF/web.xml</webXml>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

三、访问

需要加上项目名
1、http://localhost:8080/SpringMvcV1/index.jsp
