准备
分片集群搭建
分片集群常用管理命令

准备

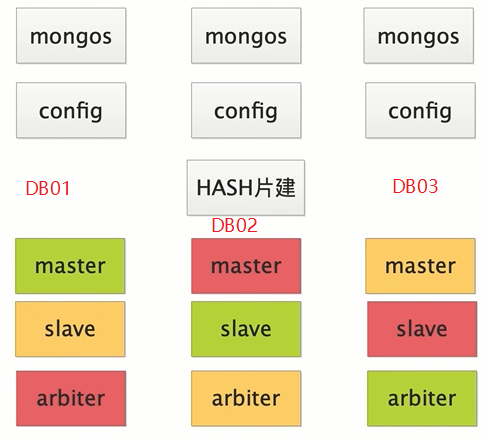

IP端口规划

db01:
shard1_master        db01:28100
shard3_slave        db03:28200
shard2_arbiter        db02:28300
congfig server        db01:40000
mongos  server        db01:60000
db02:
shard2_master        db02:28100
shard1_slave        db01:28200
shard3_arbiter        db03:28300
congfig server        db02:40000
mongos  server        db02:60000
db03:
shard3_master        db03:28100
shard2_slave        db02:28200
shard1_arbiter        db01:28300
congfig server        db03:40000
mongos  server        db03:60000

目录规划

#服务目录
/opt/master/{conf,log,pid}
/opt/slave/{conf,log,pid}
/opt/arbiter/{conf,log,pid}
/data/config/{conf,log,pid}
/data/mongos/{conf,log,pid}
#数据目录
/data/master/
/data/slave/
/data/arbiter/
/data/config/

分片集群搭建

1.搭建副本集

配置文件

DB01:

#MASTER配置
cat >/opt/master/conf/mongod.conf <<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/master/log/mongodb.log
storage:
  journal:
    enabled: true
  dbPath: /data/master/
  directoryPerDB: true
  wiredTiger:
    engineConfig:
      cacheSizeGB: 0.5
      directoryForIndexes: true
    collectionConfig:
      blockCompressor: zlib
    indexConfig:
      prefixCompression: true
processManagement:
  fork: true
  pidFilePath: /opt/master/pid/mongodb.pid
  timeZoneInfo: /usr/share/zoneinfo
net:
  port: 28100
  bindIp: 127.0.0.1,10.0.0.51
replication:
  oplogSizeMB: 1024
  replSetName: shard1
sharding:
  clusterRole: shardsvr
EOF
#SLAVE配置
cat >/opt/slave/conf/mongod.conf<<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/slave/log/mongodb.log
storage:
  journal:
    enabled: true
  dbPath: /data/slave/
  directoryPerDB: true
  wiredTiger:
    engineConfig:
      cacheSizeGB: 0.5
      directoryForIndexes: true
    collectionConfig:
      blockCompressor: zlib
    indexConfig:
      prefixCompression: true
processManagement:
  fork: true
  pidFilePath: /opt/slave/pid/mongodb.pid
  timeZoneInfo: /usr/share/zoneinfo
net:
  port: 28200
  bindIp: 127.0.0.1,10.0.0.51
replication:
  oplogSizeMB: 1024
  replSetName: shard3
sharding:
  clusterRole: shardsvr
EOF
#Arbiter配置
cat >/opt/arbiter/conf/mongod.conf<<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/arbiter/log/mongodb.log
storage:
  journal:
    enabled: true
  dbPath: /data/arbiter/
  directoryPerDB: true
  wiredTiger:
    engineConfig:
      cacheSizeGB: 0.5
      directoryForIndexes: true
    collectionConfig:
      blockCompressor: zlib
    indexConfig:
      prefixCompression: true
processManagement:
  fork: true
  pidFilePath: /opt/arbiter/pid/mongodb.pid
  timeZoneInfo: /usr/share/zoneinfo
net:
  port: 28300
  bindIp: 127.0.0.1,10.0.0.51
replication:
  oplogSizeMB: 1024
  replSetName: shard2
sharding:
  clusterRole: shardsvr
EOF

DB02:

#MASTER配置文件:
cat >/opt/master/conf/mongod.conf<<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/master/log/mongodb.log

storage:
  journal:
    enabled: true
  dbPath: /data/master/
  directoryPerDB: true

  wiredTiger:
    engineConfig:
      cacheSizeGB: 0.5
      directoryForIndexes: true
    collectionConfig:
      blockCompressor: zlib
    indexConfig:
      prefixCompression: true

processManagement:
  fork: true
  pidFilePath: /opt/master/pid/mongodb.pid
  timeZoneInfo: /usr/share/zoneinfo

net:
  port: 28100
  bindIp: 127.0.0.1,10.0.0.52

replication:
  oplogSizeMB: 1024
  replSetName: shard2

sharding:
  clusterRole: shardsvr
EOF

#SLAVE配置文件:
cat >/opt/slave/conf/mongod.conf<<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/slave/log/mongodb.log

storage:
  journal:
    enabled: true
  dbPath: /data/slave/
  directoryPerDB: true

  wiredTiger:
    engineConfig:
      cacheSizeGB: 0.5
      directoryForIndexes: true
    collectionConfig:
      blockCompressor: zlib
    indexConfig:
      prefixCompression: true

processManagement:
  fork: true
  pidFilePath: /opt/slave/pid/mongodb.pid
  timeZoneInfo: /usr/share/zoneinfo

net:
  port: 28200
  bindIp: 127.0.0.1,10.0.0.52

replication:
  oplogSizeMB: 1024
  replSetName: shard1

sharding:
  clusterRole: shardsvr
EOF


#Arbiter配置文件
cat >/opt/arbiter/conf/mongod.conf<<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/arbiter/log/mongodb.log

storage:
  journal:
    enabled: true
  dbPath: /data/arbiter/
  directoryPerDB: true

  wiredTiger:
    engineConfig:
      cacheSizeGB: 0.5
      directoryForIndexes: true
    collectionConfig:
      blockCompressor: zlib
    indexConfig:
      prefixCompression: true

processManagement:
  fork: true
  pidFilePath: /opt/arbiter/pid/mongodb.pid
  timeZoneInfo: /usr/share/zoneinfo

net:
  port: 28300
  bindIp: 127.0.0.1,10.0.0.52

replication:
  oplogSizeMB: 1024
  replSetName: shard3

sharding:
  clusterRole: shardsvr
EOF

DB03:

#MASTER配置文件:
cat >/opt/master/conf/mongod.conf<<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/master/log/mongodb.log

storage:
  journal:
    enabled: true
  dbPath: /data/master/
  directoryPerDB: true

  wiredTiger:
    engineConfig:
      cacheSizeGB: 0.5
      directoryForIndexes: true
    collectionConfig:
      blockCompressor: zlib
    indexConfig:
      prefixCompression: true

processManagement:
  fork: true
  pidFilePath: /opt/master/pid/mongodb.pid
  timeZoneInfo: /usr/share/zoneinfo

net:
  port: 28100
  bindIp: 127.0.0.1,10.0.0.53

replication:
  oplogSizeMB: 1024
  replSetName: shard3

sharding:
  clusterRole: shardsvr
EOF

#SLAVE配置文件:
cat >/opt/slave/conf/mongod.conf<<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/slave/log/mongodb.log

storage:
  journal:
    enabled: true
  dbPath: /data/slave/
  directoryPerDB: true

  wiredTiger:
    engineConfig:
      cacheSizeGB: 0.5
      directoryForIndexes: true
    collectionConfig:
      blockCompressor: zlib
    indexConfig:
      prefixCompression: true

processManagement:
  fork: true
  pidFilePath: /opt/slave/pid/mongodb.pid
  timeZoneInfo: /usr/share/zoneinfo

net:
  port: 28200
  bindIp: 127.0.0.1,10.0.0.53

replication:
  oplogSizeMB: 1024
  replSetName: shard2

sharding:
  clusterRole: shardsvr
EOF


#Arbiter配置文件
cat >/opt/arbiter/conf/mongod.conf<<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/arbiter/log/mongodb.log

storage:
  journal:
    enabled: true
  dbPath: /data/arbiter/
  directoryPerDB: true

  wiredTiger:
    engineConfig:
      cacheSizeGB: 0.5
      directoryForIndexes: true
    collectionConfig:
      blockCompressor: zlib
    indexConfig:
      prefixCompression: true

processManagement:
  fork: true
  pidFilePath: /opt/arbiter/pid/mongodb.pid
  timeZoneInfo: /usr/share/zoneinfo

net:
  port: 28300
  bindIp: 127.0.0.1,10.0.0.53

replication:
  oplogSizeMB: 1024
  replSetName: shard1

sharding:
  clusterRole: shardsvr
EOF

启动

mongod -f /opt/master/conf/mongod.conf
mongod -f /opt/slave/conf/mongod.conf
mongod -f /opt/arbiter/conf/mongod.conf

#检查
netstat -lntup|grep mongod

初始化副本集

#db01节点创建shard1副本集：
mongo --port 28100
rs.initiate()
rs.add("10.0.0.52:28200")
rs.addArb("10.0.0.53:28300")

#db02节点创建shard2副本集：
mongo --port 28100
rs.initiate()
rs.add("10.0.0.53:28200")
rs.addArb("10.0.0.51:28300")

#db03节点创建shard3副本集：
mongo --port 28100
rs.initiate()
rs.add("10.0.0.51:28200")
rs.addArb("10.0.0.52:28300")

2.搭建config副本集

配置文件

DB01、DB02、DB03

cat >/opt/config/conf/mongod.conf<<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/config/log/mongodb.log

storage:
  journal:
    enabled: true
  dbPath: /data/config/
  directoryPerDB: true

  wiredTiger:
    engineConfig:
      cacheSizeGB: 0.5
      directoryForIndexes: true
    collectionConfig:
      blockCompressor: zlib
    indexConfig:
      prefixCompression: true

processManagement:
  fork: true
  pidFilePath: /opt/config/pid/mongod.pid
  timeZoneInfo: /usr/share/zoneinfo

net:
  port: 40000
  bindIp: 127.0.0.1,$(ifconfig eth0|awk 'NR==2{print $2}')

replication:
  replSetName: configset

sharding:
  clusterRole: configsvr
EOF

启动服务

mongod -f /opt/config/conf/mongod.conf

初始化config副本集

mongo --port 40000
rs.initiate()
rs.add("10.0.0.52:40000")
rs.add("10.0.0.53:40000")
rs.status()

3.搭建mongos副本集

配置文件

cat >/opt/mongos/conf/mongos.conf  <<EOF
systemLog:
  destination: file
  logAppend: true
  path: /opt/mongos/log/mongos.log

processManagement:
  fork: true
  pidFilePath: /opt/mongos/pid/mongos.pid
  timeZoneInfo: /usr/share/zoneinfo

net:
  port: 60000
  bindIp: 127.0.0.1,$(ifconfig eth0|awk 'NR==2{print $2}')

sharding:
  configDB:
    configset/10.0.0.51:40000,10.0.0.52:40000,10.0.0.53:40000
EOF

启动

mongos -f /opt/mongos/conf/mongos.conf

初始化

#登录到mongos
mongo --port 60000

#添加分片成员信息
use admin
db.runCommand({addShard:'shard1/10.0.0.51:28100,10.0.0.52:28200,10.0.0.53:28300'})
db.runCommand({addShard:'shard2/10.0.0.52:28100,10.0.0.53:28200,10.0.0.51:28300'})
db.runCommand({addShard:'shard3/10.0.0.53:28100,10.0.0.51:28200,10.0.0.52:28300'})

#查看分片信息
db.runCommand( { listshards : 1 } )

4.测试分片集群

#开启分片
mongo --port 60000
use admin
db.runCommand( { enablesharding : "database_name" } )

#创建索引
use database_name
db.hash_table.ensureIndex( {id: "hashed"} )

#集合开启哈希分片
use admin
sh.shardCollection( "database_name.hash_table", {id: "hashed" } )

#生成数据
use database_name
for(i=1;i<10000;i++){db.hash.insert({"id":i,"name":"rocket","age":i});}

#检查
shard1:
mongo db01:28100
use database_name
db.hash_table.count()
3349

shard2:
mongo db02:28100
use database_name
db.hash_table.count()
3366

shard3:
mongo db03:28100
use database_name
db.hash_table.count()
3284

分片集群常用管理命令

#1.列出分片所有详细信息
db.printShardingStatus()
sh.status()

#2.列出所有分片成员信息
use admin
db.runCommand({ listshards : 1})

#3.列出开启分片的数据库
use config
db.databases.find({"partitioned": true })

#4.查看分片的片键
use confige
db.collections.find().pretty()

#5.查看集合的分片信息
db.getCollection('range').getShardDistribution()
db.getCollection('hash_table').getShardDistribution()
