Prometheus监控部署

metrics server

部署代码托管于github仓库 https://github.com/kubernetes/kubernetes/tree/master/cluster/addons/metrics-server
部署所需镜像提前准备好，加快部署速度

1. 创建apiserver

vi metrics-apiservice.yaml

apiVersion: apiregistration.k8s.io/v1
kind: APIService
metadata:
  name: v1beta1.metrics.k8s.io
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
spec:
  service:
    name: metrics-server
    namespace: kube-system
  group: metrics.k8s.io
  version: v1beta1
  insecureSkipTLSVerify: true
  groupPriorityMinimum: 100
  versionPriority: 100

2. 创建部署所需资源

vi metrics-server-sa-cfg.yaml

apiVersion: v1
kind: ServiceAccount
metadata:
  name: metrics-server
  namespace: kube-system
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: metrics-server-config
  namespace: kube-system
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: EnsureExists
data:
  NannyConfiguration: |-
    apiVersion: nannyconfig/v1alpha1
    kind: NannyConfiguration

3. 部署

1. 创建deployment

---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: metrics-server-v0.3.6
  namespace: kube-system
  labels:
    k8s-app: metrics-server
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
    version: v0.3.6
spec:
  selector:
    matchLabels:
      k8s-app: metrics-server
      version: v0.3.6
  template:
    metadata:
      name: metrics-server
      labels:
        k8s-app: metrics-server
        version: v0.3.6
      annotations:
        seccomp.security.alpha.kubernetes.io/pod: 'docker/default'
    spec:
      priorityClassName: system-cluster-critical
      serviceAccountName: metrics-server
      containers:
      - name: metrics-server
        image: k8s.gcr.io/metrics-server-amd64:v0.3.6
        command:
        - /metrics-server
        - --kubelet-insecure-tls
        - --metric-resolution=30s
        - --kubelet-preferred-address-types=InternalIP,Hostname,InternalDNS,ExternalDNS,ExternalIP
        ports:
        - containerPort: 443
          name: https
          protocol: TCP
      - name: metrics-server-nanny
        image: k8s.gcr.io/addon-resizer:1.8.6
        resources:
          limits:
            cpu: 100m
            memory: 300Mi
          requests:
            cpu: 5m
            memory: 50Mi
        env:
          - name: MY_POD_NAME
            valueFrom:
              fieldRef:
                fieldPath: metadata.name
          - name: MY_POD_NAMESPACE
            valueFrom:
              fieldRef:
                fieldPath: metadata.namespace
        volumeMounts:
        - name: metrics-server-config-volume
          mountPath: /etc/config
        command:
          - /pod_nanny
          - --config-dir=/etc/config
          - --cpu=80m
          - --extra-cpu=0.5m
          - --memory=80Mi
          - --extra-memory=8Mi
          - --threshold=5
          - --deployment=metrics-server-v0.3.6
          - --container=metrics-server
          - --poll-period=300000
          - --estimator=exponential
      volumes:
        - name: metrics-server-config-volume
          configMap:
            name: metrics-server-config
      tolerations:
        - key: "CriticalAddonsOnly"
          operator: "Exists"

2. 创建service

apiVersion: v1
kind: Service
metadata:
  name: metrics-server
  namespace: kube-system
  labels:
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/cluster-service: "true"
    kubernetes.io/name: "Metrics-server"
spec:
  selector:
    k8s-app: metrics-server
  ports:
  - port: 443
    protocol: TCP
    targetPort: https

4. 创建权限资源

1. 创建rolebinding-extension-apiserver-authentication-reader

vi rolebinding-auth-reader.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: metrics-server-auth-reader
  namespace: kube-system
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system

2. 创建clusterrolebinding-system:auth-delegator

vi clusterrolebinding-auth-delegator.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: metrics-server:system:auth-delegator
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:auth-delegator
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system

3. 创建clusterrolebinding-system:metrics-server

vi clusterrolebinding-resource-reader.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: system:metrics-server
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
rules:
- apiGroups:
  - ""
  resources:
  - pods
  - nodes
  - nodes/stats
  - namespaces
  verbs:
  - get
  - list
  - watch
- apiGroups:
  - "apps"
  resources:
  - deployments
  verbs:
  - get
  - list
  - update
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: system:metrics-server
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:metrics-server
subjects:
- kind: ServiceAccount
  name: metrics-server
  namespace: kube-system

5. 测试

1. 检查部署情况

kubectl get all -n prom

2. 检查能否获取到数据

kubectl top nodes
kubectl top pods -A

3. 检查网页端是否正常

http://10.0.0.70:9100

node-exporter

1. 创建名命空间

vi ns-prom.yaml

apiVersion: v1
kind: Namespace
metadata:
  creationTimestamp: null
  name: prom
spec: {}
status: {}

2. 部署

1. deamon-set

vi node-exporter-ds.yaml

apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: prometheus-node-exporter
  namespace: prom
  labels:
    app: prometheus
    component: node-exporter
spec:
  selector:
    matchLabels:
      app: prometheus
      component: node-exporter
  template:
    metadata:
      name: prometheus-node-exporter
      labels:
        app: prometheus
        component: node-exporter
    spec:
      tolerations:
      - effect: NoSchedule
        key: node-role.kubernetes.io/master
      containers:
      - image: prom/node-exporter:v0.15.2
        name: prometheus-node-exporter
        ports:
        - name: prom-node-exp
          containerPort: 9100
          hostPort: 9100
      hostNetwork: true
      hostPID: true

2. service

vi node-exporter-svc.yaml

apiVersion: v1
kind: Service
metadata:
  annotations:
    prometheus.io/scrape: 'true'
  name: prometheus-node-exporter
  namespace: prom
  labels:
    app: prometheus
    component: node-exporter
spec:
  clusterIP: None
  ports:
    - name: prometheus-node-exporter
      port: 9100
      protocol: TCP
  selector:
    app: prometheus
    component: node-exporter
  type: ClusterIP

3. 检查

kubectl get all -n prom

Prometheus

1. 创建RBAC授权文件

vi prometheus-rbac.yaml

apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRole
metadata:
  name: prometheus
rules:
- apiGroups: [""]
  resources:
  - nodes
  - nodes/proxy
  - services
  - endpoints
  - pods
  verbs: ["get", "list", "watch"]
- apiGroups:
  - extensions
  resources:
  - ingresses
  verbs: ["get", "list", "watch"]
- nonResourceURLs: ["/metrics"]
  verbs: ["get"]
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: prometheus
  namespace: prom
---
apiVersion: rbac.authorization.k8s.io/v1beta1
kind: ClusterRoleBinding
metadata:
  name: prometheus
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: prometheus
subjects:
- kind: ServiceAccount
  name: prometheus
  namespace: prom

2. 部署

1. pv-pvc

vi pv-pvc.yaml

apiVersion: v1
kind: PersistentVolume
metadata:
  name: prometheus
spec:
  capacity:
    storage: 10Gi
  accessModes:
  - ReadWriteMany
  persistentVolumeReclaimPolicy: Recycle
  nfs:
    server: 10.0.0.67
    path: /vol/vol01

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: pvc-prometheus
  namespace: prom
spec:
  accessModes:
  - ReadWriteMany
  resources:
    requests:
      storage: 10Gi

2. configmap

vi prometheus-cfg.yaml

---
kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    app: prometheus
  name: prometheus-config
  namespace: prom
data:
  prometheus.yml: |

    global:
      scrape_interval: 15s
      scrape_timeout: 10s
      evaluation_interval: 1m

    scrape_configs:
    - job_name: 'kubernetes-apiservers'

      kubernetes_sd_configs:
      - role: endpoints

      scheme: https

      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt

      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token

      relabel_configs:
      - source_labels: [__meta_kubernetes_namespace, __meta_kubernetes_service_name, __meta_kubernetes_endpoint_port_name]
        action: keep
        regex: default;kubernetes;https

    - job_name: 'kubernetes-nodes'

      scheme: https

      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token

      kubernetes_sd_configs:
      - role: node

      relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
      - target_label: __address__
        replacement: kubernetes.default.svc:443
      - source_labels: [__meta_kubernetes_node_name]
        regex: (.+)
        target_label: __metrics_path__
        replacement: /api/v1/nodes/${1}/proxy/metrics


    - job_name: 'kubernetes-cadvisor'

      scheme: https

      tls_config:
        ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
      bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token

      kubernetes_sd_configs:
      - role: node

      relabel_configs:
      - action: labelmap
        regex: __meta_kubernetes_node_label_(.+)
      - target_label: __address__
        replacement: kubernetes.default.svc:443
      - source_labels: [__meta_kubernetes_node_name]
        regex: (.+)
        target_label: __metrics_path__
        replacement: /api/v1/nodes/${1}/proxy/metrics/cadvisor

    - job_name: 'kubernetes-service-endpoints'

      kubernetes_sd_configs:
      - role: endpoints

      relabel_configs:
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scrape]
        action: keep
        regex: true
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_scheme]
        action: replace
        target_label: __scheme__
        regex: (https?)
      - source_labels: [__meta_kubernetes_service_annotation_prometheus_io_path]
        action: replace
        target_label: __metrics_path__
        regex: (.+)
      - source_labels: [__address__, __meta_kubernetes_service_annotation_prometheus_io_port]
        action: replace
        target_label: __address__
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
      - action: labelmap
        regex: __meta_kubernetes_service_label_(.+)
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: kubernetes_namespace
      - source_labels: [__meta_kubernetes_service_name]
        action: replace
        target_label: kubernetes_name

    - job_name: 'kubernetes-pods'

      honor_labels: false
      kubernetes_sd_configs:
      - role: pod
      tls_config:
        insecure_skip_verify: true

      relabel_configs:
      - source_labels: [__meta_kubernetes_namespace]
        action: replace
        target_label: namespace
      - source_labels: [__meta_kubernetes_pod_name]
        action: replace
        target_label: pod
      - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scrape]
        action: keep
        regex: true
      - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_path]
        action: replace
        target_label: __metrics_path__
        regex: (.+)
      - source_labels: [__address__, __meta_kubernetes_pod_annotation_prometheus_io_port]
        action: replace
        regex: ([^:]+)(?::\d+)?;(\d+)
        replacement: $1:$2
        target_label: __address__
      - source_labels: [__meta_kubernetes_pod_annotation_prometheus_io_scheme]
        action: replace
        target_label: __scheme__
        regex: (.+)

3. deployment

vi prometheus-deploy-vol.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: prometheus-server
  namespace: prom
  labels:
    app: prometheus
spec:
  replicas: 1
  selector:
    matchLabels:
      app: prometheus
      component: server
  template:
    metadata:
      labels:
        app: prometheus
        component: server
    spec:
      serviceAccountName: prometheus
      containers:
      - image: prom/prometheus:v2.2.1
        name: prometheus
        command:
        - "/bin/prometheus"
        args:
        - "--config.file=/etc/prometheus/prometheus.yml"
        - "--storage.tsdb.path=/prometheus"
        - "--storage.tsdb.retention=24h"
        - "--web.enable-admin-api"
        - "--web.enable-lifecycle"
        ports:
        - containerPort: 9090
          protocol: TCP
          name: http
        volumeMounts:
        - mountPath: "/prometheus"
          subPath: prometheus
          name: data
        - mountPath: "/etc/prometheus"
          name: config-volume
        resources:
          requests:
            cpu: 100m
            memory: 512Mi
          limits:
            cpu: 100m
            memory: 512Gi
      securityContext:
        runAsUser: 0
      volumes:
      - name: data
        persistentVolumeClaim:
          claimName: pvc-prometheus
      - configMap:
          name: prometheus-config
        name: config-volume

2. service

vi prometheus-svc.yaml

apiVersion: v1
kind: Service
metadata:
  name: prometheus
  namespace: prom
  labels:
    app: prometheus
spec:
  type: NodePort
  ports:
    - port: 9090
      targetPort: 9090
      nodePort: 30090
      protocol: TCP
  selector:
    app: prometheus
    component: server

3. 测试

1. 检查部署情况

kubecel get all -n prom

2. 查看网页端

http://10.0.0.70:30090

kube-state-metrics

1. 创建RBAC授权文件

vi kube-state-metrics-rbac.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: kube-state-metrics
rules:
- apiGroups: [""]
  resources: ["nodes", "pods", "services", "resourcequotas", "replicationcontrollers", "limitranges", "persistentvolumeclaims", "persistentvolumes", "namespaces", "endpoints"]
  verbs: ["list", "watch"]
- apiGroups: ["extensions"]
  resources: ["daemonsets", "deployments", "replicasets"]
  verbs: ["list", "watch"]
- apiGroups: ["apps"]
  resources: ["statefulsets"]
  verbs: ["list", "watch"]
- apiGroups: ["batch"]
  resources: ["cronjobs", "jobs"]
  verbs: ["list", "watch"]
- apiGroups: ["autoscaling"]
  resources: ["horizontalpodautoscalers"]
  verbs: ["list", "watch"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kube-state-metrics
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kube-state-metrics
subjects:
- kind: ServiceAccount
  name: kube-state-metrics
  namespace: prom

2. 部署

1. deployment

vi kube-state-metrics-deploy.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kube-state-metrics
  namespace: prom
spec:
  replicas: 1
  selector:
    matchLabels:
      app: kube-state-metrics
  template:
    metadata:
      labels:
        app: kube-state-metrics
    spec:
      serviceAccountName: kube-state-metrics
      containers:
      - name: kube-state-metrics
        image: gcr.io/google_containers/kube-state-metrics-amd64:v1.3.1
        ports:
        - containerPort: 8080

2. service

vi kube-state-metrics-svc.yaml

apiVersion: v1
kind: Service
metadata:
  annotations:
    prometheus.io/scrape: 'true'
  name: kube-state-metrics
  namespace: prom
  labels:
    app: kube-state-metrics
spec:
  ports:
  - name: kube-state-metrics
    port: 8080
    protocol: TCP
  selector:
    app: kube-state-metrics

3. 创建资源并检查

kubectl get all -n prom

k8s-prometheus-adapter

1. 创建证书

cd /etc/kubernetes/pki
umask 077;openssl genrsa -out serving.key 2048
openssl req -new -key serving.key -out serving.csr -subj "/CN=serving"
openssl x509 -req -in serving.csr -CA ./ca.crt -CAkey ./ca.key -CAcreateserial -out serving.crt -days 3650
kubectl create secret generic cm-adapter-serving-certs --from-file=serving.crt=./serving.crt --from-file=serving.key=./serving.key -n prom

2. 创建apiservice

vi adapter-apiservice.yaml

apiVersion: apiregistration.k8s.io/v1beta1
kind: APIService
metadata:
  name: v1beta1.custom.metrics.k8s.io
spec:
  service:
    name: custom-metrics-apiserver
    namespace: prom
  group: custom.metrics.k8s.io
  version: v1beta1
  insecureSkipTLSVerify: true
  groupPriorityMinimum: 100
  versionPriority: 100

3. 创建一个serviceAccount

vi adapter-serviceaccount.yaml

kind: ServiceAccount
apiVersion: v1
metadata:
  name: custom-metrics-apiserver
  namespace: prom

4. 授权

1. system:auth-delegator

vi adapter-auth-dalegator-clusterrolebinding.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: custom-metrics:system:auth-delegator
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:auth-delegator
subjects:
- kind: ServiceAccount
  name: custom-metrics-apiserver
  namespace: prom

2. extension-apiserver-authentication-reader

vi adapter-auth-reader-rolebinding.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: custom-metrics-auth-reader
  namespace: kube-system
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: extension-apiserver-authentication-reader
subjects:
- kind: ServiceAccount
  name: custom-metrics-apiserver
  namespace: prom

3. 创建clusterrole

vi adapter-clusterrole-resource-reader.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: custom-metrics-server-resources
rules:
- apiGroups:
  - custom.metrics.k8s.io
  resources: ["*"]
  verbs: ["*"]

4. custom-metrics-resource-reader

vi adapter-clutserrolebinding-resource-reader.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: custom-metrics-resource-reader
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: custom-metrics-resource-reader
subjects:
- kind: ServiceAccount
  name: custom-metrics-apiserver
  namespace: prom

5. 部署

1. deployment

vi adapter-deploy.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: custom-metrics-apiserver
  name: custom-metrics-apiserver
  namespace: prom
spec:
  replicas: 1
  selector:
    matchLabels:
      app: custom-metrics-apiserver
  template:
    metadata:
      labels:
        app: custom-metrics-apiserver
      name: custom-metrics-apiserver
    spec:
      serviceAccountName: custom-metrics-apiserver
      containers:
      - name: custom-metrics-apiserver
        image: directxman12/k8s-prometheus-adapter-amd64:latest
        imagePullPolicy: IfNotPresent
        args:
        - --secure-port=6443
        - --tls-cert-file=/var/run/serving-cert/serving.crt
        - --tls-private-key-file=/var/run/serving-cert/serving.key
        - --logtostderr=true
        - --prometheus-url=http://prometheus.prom.svc:9090/
        - --metrics-relist-interval=1m
        - --v=10
        - --config=/etc/adapter/config.yaml
        ports:
        - containerPort: 6443
        volumeMounts:
        - mountPath: /var/run/serving-cert
          name: volume-serving-cert
          readOnly: true
        - mountPath: /etc/adapter/
          name: config
          readOnly: true
        - mountPath: /tmp
          name: tmp-vol
      volumes:
      - name: volume-serving-cert
        secret:
          secretName: cm-adapter-serving-certs
      - name: config
        configMap:
          name: adapter-config
      - name: tmp-vol
        emptyDir: {}

2. service

vi adapter-svc.yaml

apiVersion: v1
kind: Service
metadata:
  name: custom-metrics-apiserver
  namespace: prom
  labels:
    app: custom-metrics-apiserver
spec:
  ports:
  - port: 443
    targetPort: 6443
  selector:
    app: custom-metrics-apiserver

Grafana

1. 部署

1. deployment

vi grafana-deploy.yaml

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
  name: monitoring-grafana
  namespace: prom
spec:
  replicas: 1
  template:
    metadata:
      labels:
        task: monitoring
        k8s-app: grafana
    spec:
      containers:
      - name: grafana
        image: k8s.gcr.io/heapster-grafana-amd64:v5.0.4
        ports:
        - containerPort: 3000
          protocol: TCP
        volumeMounts:
        - mountPath: /etc/ssl/certs
          name: ca-certificates
          readOnly: true
        - mountPath: /var
          name: grafana-storage
        env:
       # - name: INFLUXDB_HOST
       #   value: monitoring-influxdb
        - name: GF_SERVER_HTTP_PORT
          value: "3000"
          # The following env variables are required to make Grafana accessible via
          # the kubernetes api-server proxy. On production clusters, we recommend
          # removing these env variables, setup auth for grafana, and expose the grafana
          # service using a LoadBalancer or a public IP.
        - name: GF_AUTH_BASIC_ENABLED
          value: "false"
        - name: GF_AUTH_ANONYMOUS_ENABLED
          value: "true"
        - name: GF_AUTH_ANONYMOUS_ORG_ROLE
          value: Admin
        - name: GF_SERVER_ROOT_URL
          # If you're only using the API Server proxy, set this value instead:
          # value: /api/v1/namespaces/kube-system/services/monitoring-grafana/proxy
          value: /
      volumes:
      - name: ca-certificates
        hostPath:
          path: /etc/ssl/certs
      - name: grafana-storage
        emptyDir: {}

2. service

vi grafana-svc.yaml

apiVersion: v1
kind: Service
metadata:
  labels:
    # For use as a Cluster add-on (https://github.com/kubernetes/kubernetes/tree/master/cluster/addons)
    # If you are NOT using this as an addon, you should comment out this line.
    kubernetes.io/cluster-service: 'true'
    kubernetes.io/name: monitoring-grafana
  name: monitoring-grafana
  namespace: prom
spec:
  # In a production setup, we recommend accessing Grafana through an external Loadbalancer
  # or through a public IP.
  # type: LoadBalancer
  # You could also use NodePort to expose the service at a randomly-generated port
  # type: NodePort
  ports:
  - port: 80
    nodePort: 300233
    targetPort: 3000
  selector:
    k8s-app: grafana
  type: NodePort

2. 检查

kubectl get all -n prom

打开网页端
http://10.0.0.70:30233

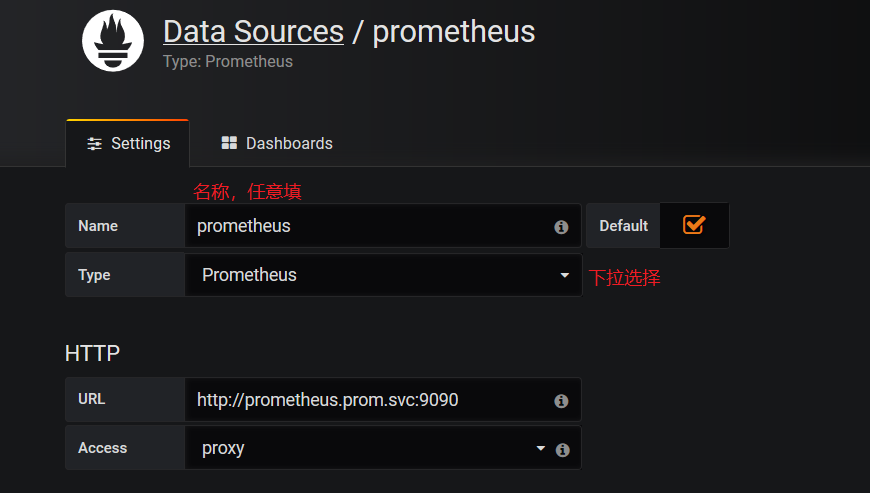

3. 添加数据源

4. 添加dashboard

提供两个地址，下载json文件后后在grafana面板import导入json文件即可
https://grafana.com/grafana/dashboards/8588
https://grafana.com/grafana/dashboards/11455
更多的可以在官方网站搜索到
https://grafana.com/grafana/dashboards?search=kubernetes
