3.1 导读

单细胞降维聚类之后需要重要的几个步骤

  • 自定义marker基因 可视化
  • 借助Marker基因，定型细胞类型
  • 细胞比例的差异分析

3.2 自定义Marker基因可视化

  • 定义maker基因list

    1. # 参考文献https://www.nature.com/articles/s41591-018-0096-5#Ack1
    2. maker_gene = {"endothelial_cells":[ "CLDN18", "FOLR1", "AQP4" , "PEBP4"],
    3. "endothilial":["CLDN5", "FLT1", "CDH5 ","RAMP2"],
    4. "epithelial_cells": ["CAPS", "TMEM190", "PIFO","SNTN"],
    5. "fibroblasts":["COL1A1", "DCNCOL1A2","C1R9"] ,
    6. "B_cells":["CD79A","IGKC", "IGLC3","IGHG3","LYZ", "MARCO", "CD68" ,"CD16a", "FCGR3A"],
    7. "T_cells":["CD3D","TRAC", "TRBC1" , "TRBC"]}

  • 堆积小提琴图

    1. sc.pl.stacked_violin(adata_all,
    2.                             maker_gene, groupby="louvain_2",
    3.                             use_raw=False, dendrogram=True,    standard_scale ='var',
    4.                             row_palette = 'Set2',scale='count'
    5.                   )

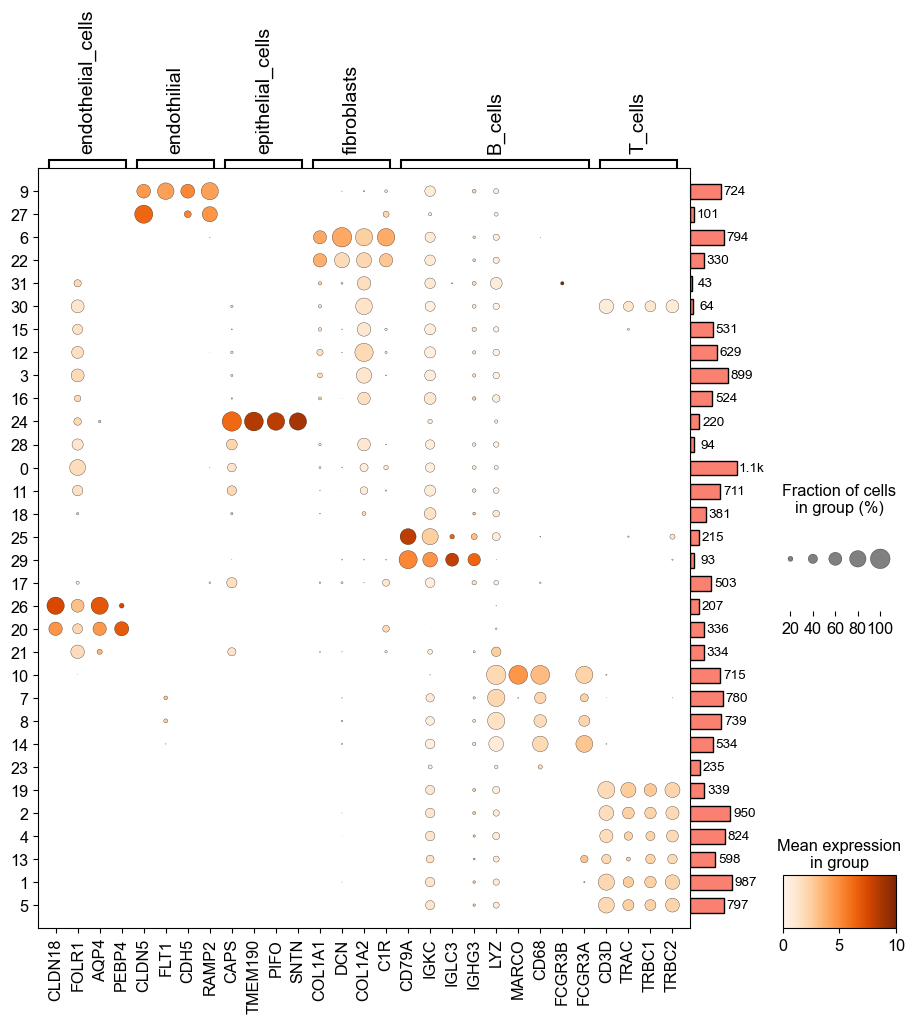

  • 气泡图

    1. sc.settings.set_figure_params(dpi=50, facecolor='white', dpi_save =100)
    2. myplot = sc.pl.dotplot(adata_all, maker_gene, groupby='louvain_2',dendrogram=True,
    3.                      color_map='Oranges', mean_only_expressed=True,return_fig=True,
    4.                      dot_max=1,dot_min=0.05,
    5.                     figsize=(11,10))
    6. myplot.add_totals().show()

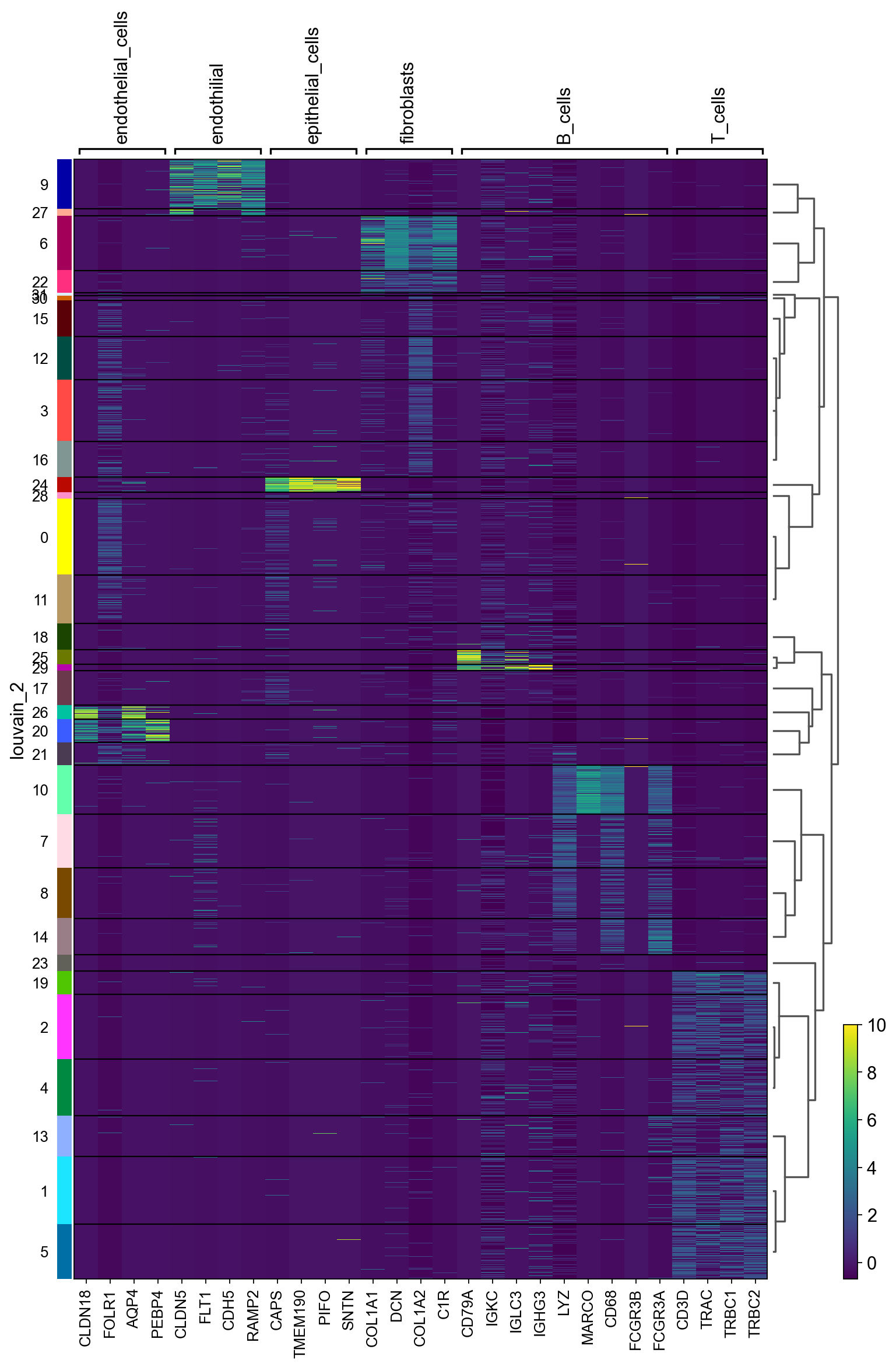

  • 聚类热图

    1. sc.pl.heatmap(adata_all, maker_gene, groupby='louvain_2',dendrogram=True,figsize=(11,16))


    可调节figsize 显示整体图形大小

3.3 未知Marker基因定型

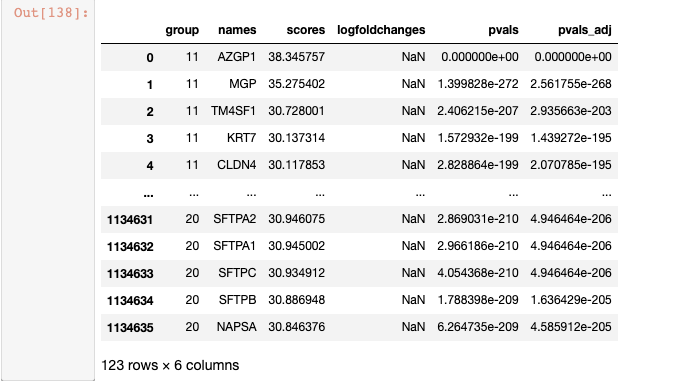

  • 取出所有cluster中 Marker基因top=5 进行去重。然后可视化小提琴图或者点图

    1. df_markergene_all = sc.get.rank_genes_groups_df(adata_all, group=list(adata_all.obs.louvain_2.unique()),key= "louvain_2_rankgenes")
    2. marke_list = list(df_markergene_all.groupby(['group']).head(5).drop_duplicates(subset='names')['names'])

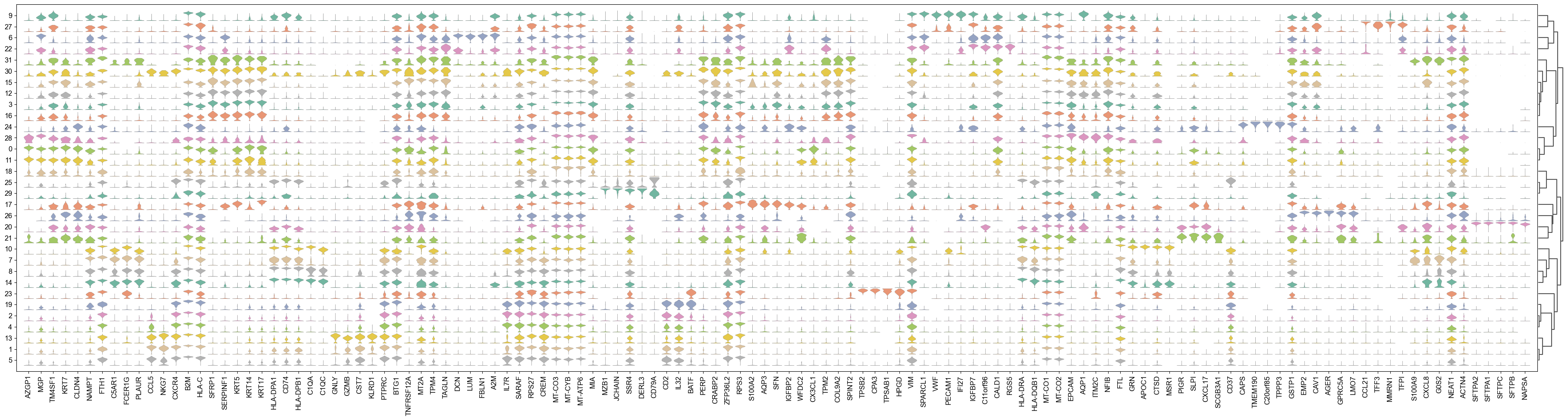

  • 可视化画图

    1. sc.settings.set_figure_params(dpi=50, facecolor='white', dpi_save =100)
    2. sc.pl.stacked_violin(adata_all,
    3.                             maker_list, groupby="louvain_2",
    4.                             use_raw=False, dendrogram=True,    standard_scale ='var',
    5.                             row_palette = 'Set2',scale='count'
    6.                   )


    查找相关基因进行定型 如果找不到相关信息，后续通过GO/KEGG 富集进行定位基因功能。后续会有相关分析。

  • 定型细胞注释

    通过自定义细胞已知细胞类型定义,如果想定义更详细的细胞类型可查找相关的Marker 进行注释。大体分为一下格式

  1. cell_type = {"T_cells":[5,1,13,4,2,19],
  2.              "B_cells":[14,8,7,10,29,25,18,23],
  3.              "endothelial_cells":[20,26,21,0,11],
  4.              "fibroblasts":[28,6,22,31,30,15,12,3,16,28],
  5.              "endothilial":[9,27],
  6.              "epithelial_cells":[24,17]
  8.             }

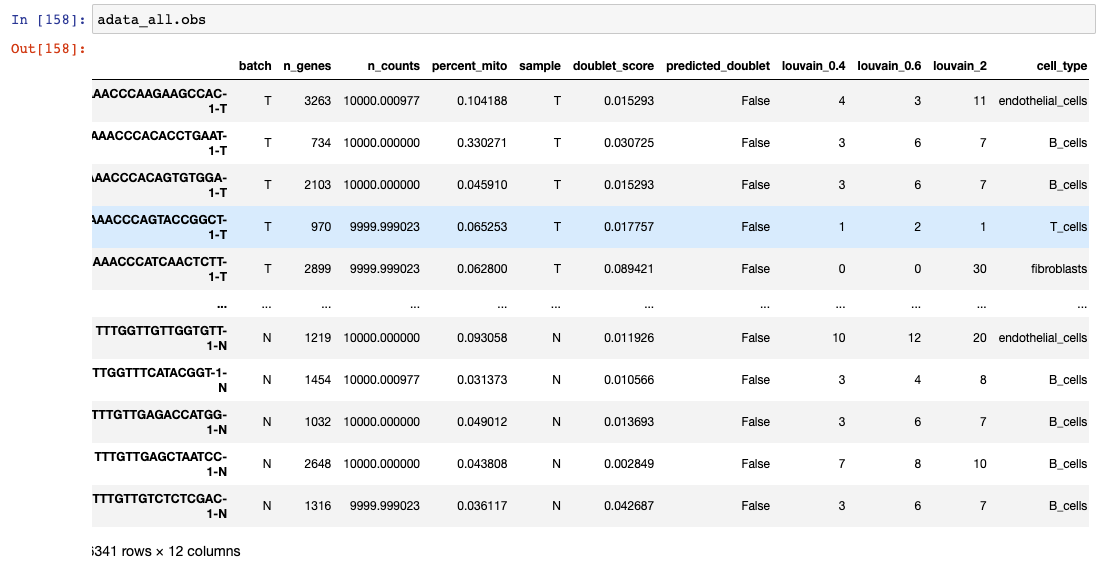

  10. adata_all.obs['cell_type'] = adata_all.obs['louvain_2'].astype(str) ## 赋值类型
  11. for key in cell_type:
  12.     mask = adata_all.obs['cell_type'].isin(map(str,cell_type[key]))
  13.     adata_all.obs.loc[mask,"cell_type"] = key

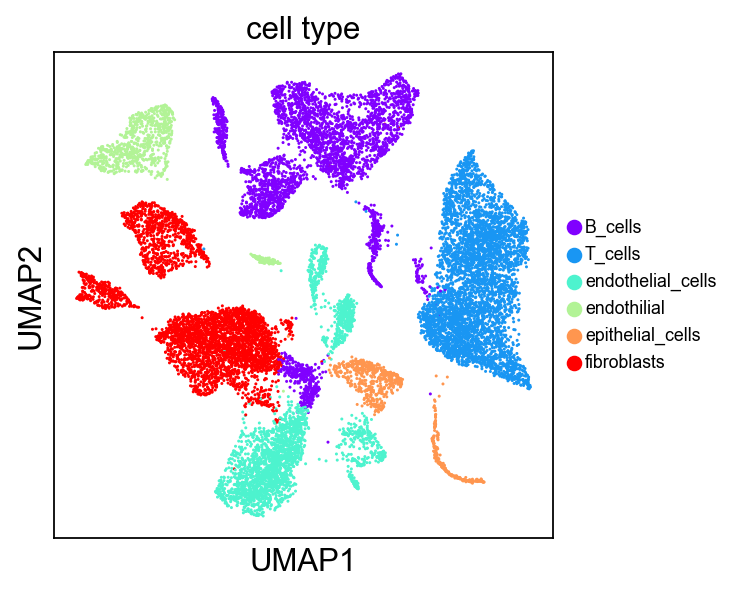

  • 可视化umap 按照新的赋值

    1. sc.settings.set_figure_params(dpi=80, facecolor='white', dpi_save =100)
    2. sc.pl.umap(adata_all, title="cell type", color = "cell_type", legend_fontsize = 8,
    3.          frameon = True, wspace =0.3, color_map='Blues', palette='rainbow', use_raw =False)


  • 总结

    细胞定型是一个技术活。需要读取文献进行注释分析，细胞定型完毕。后续的分析就可以简单进行了。
