一、创建TV版的页面：

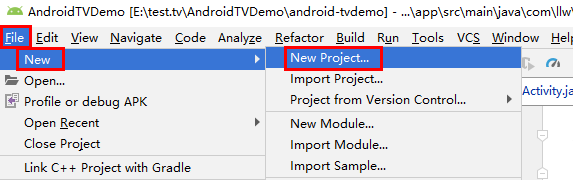

1.新建一个项目：

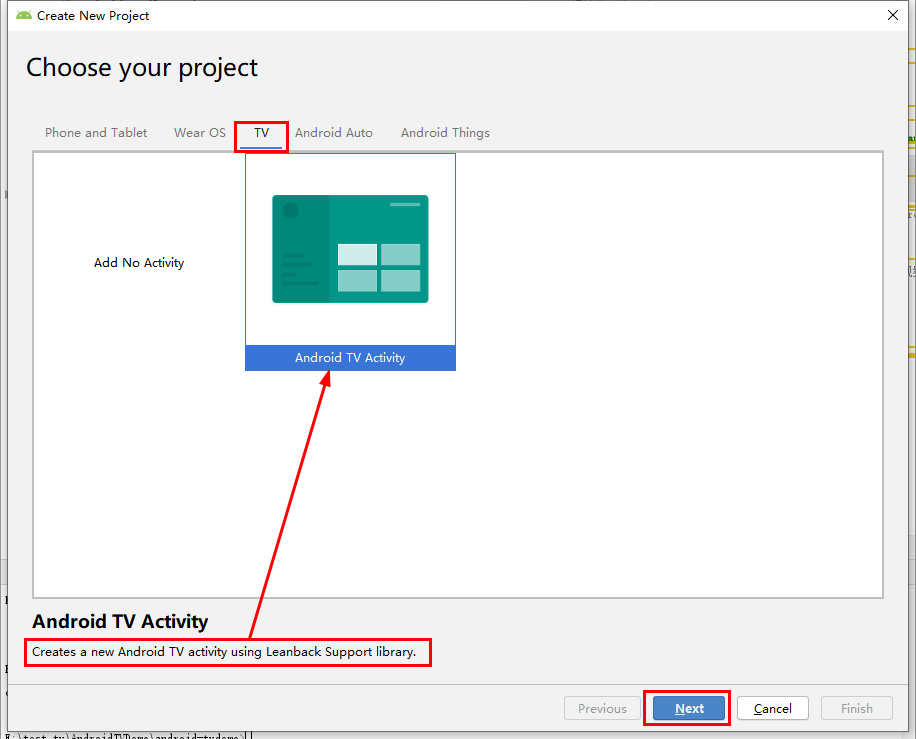

2.在TV中选择Android TV Activity的项目：

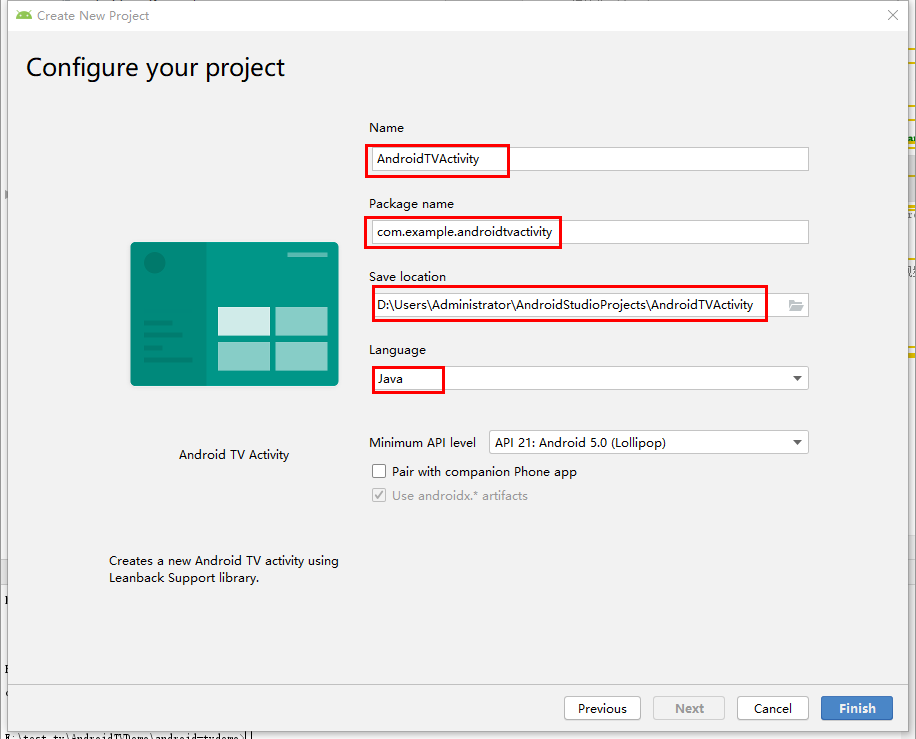

3.给TV设置名称，包名，项目所在位置，语言，选择最低版本的api：

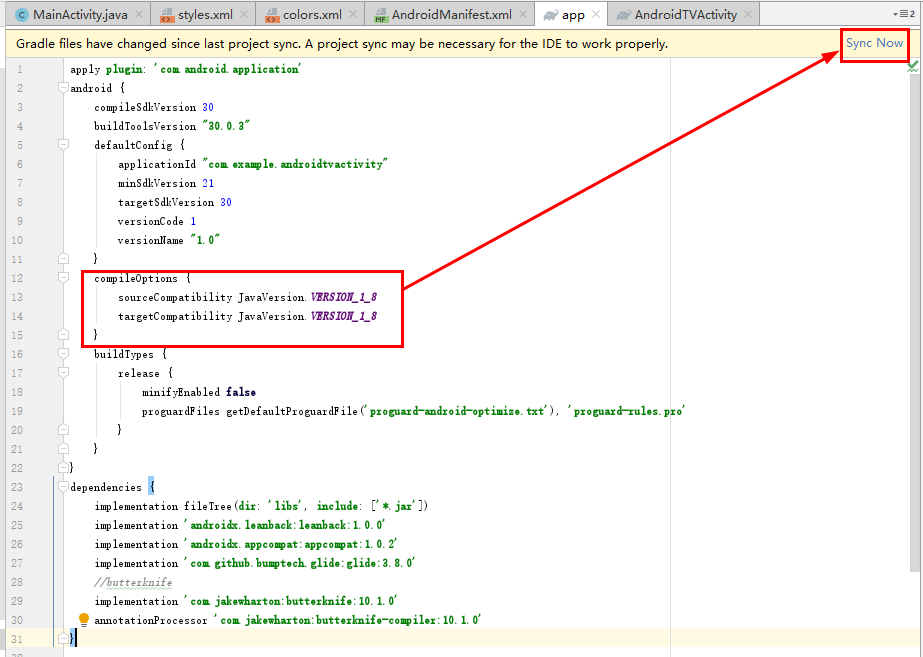

4.在grable里面给java配置为1.8版本，因为能接受的最低版本不能小于1.8：

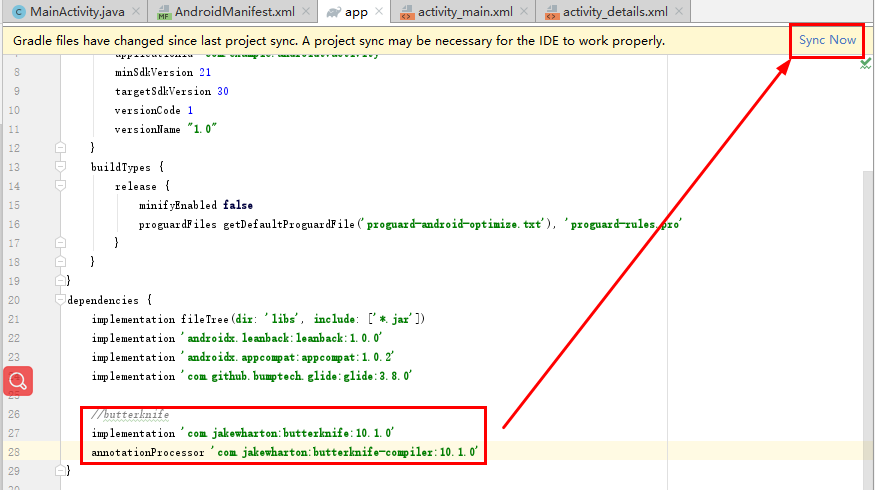

5.写上butterknife相关配置语句（目前我也还不太懂这个是什么）：

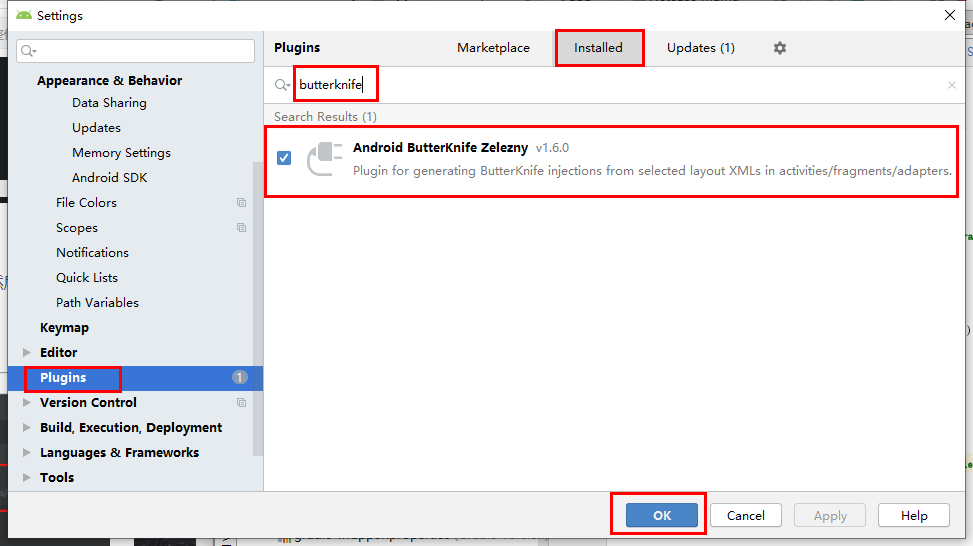

6.file→setting，在setting里面寻找这个配置，选中，点击OK安装：

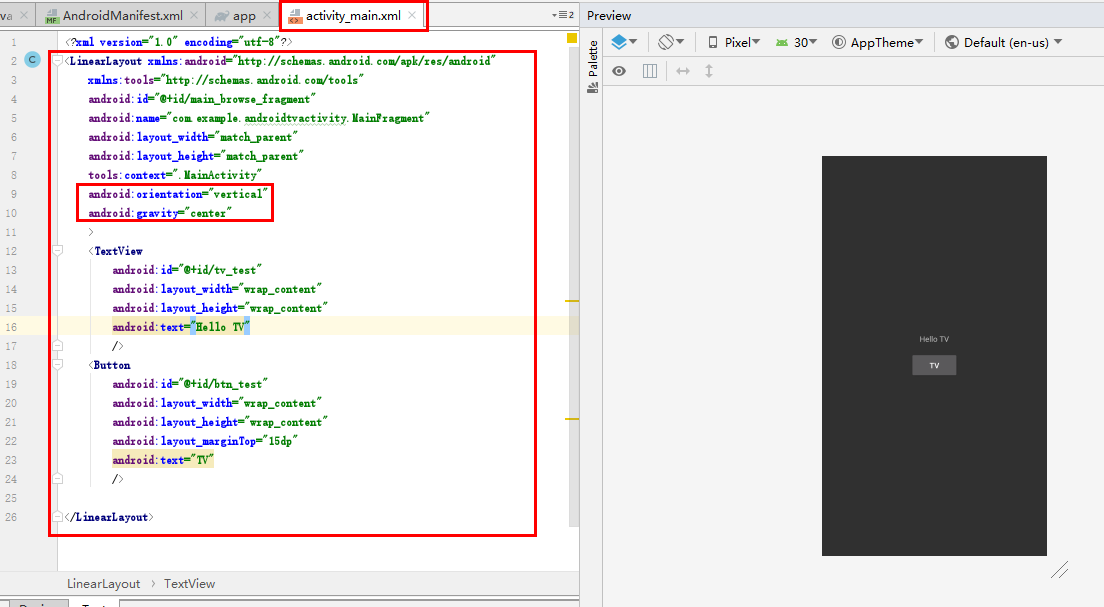

7.在TV里面加入语句（你想怎么设置就怎么设置，这里我只是随便写一下，主要是测试他的功能）：

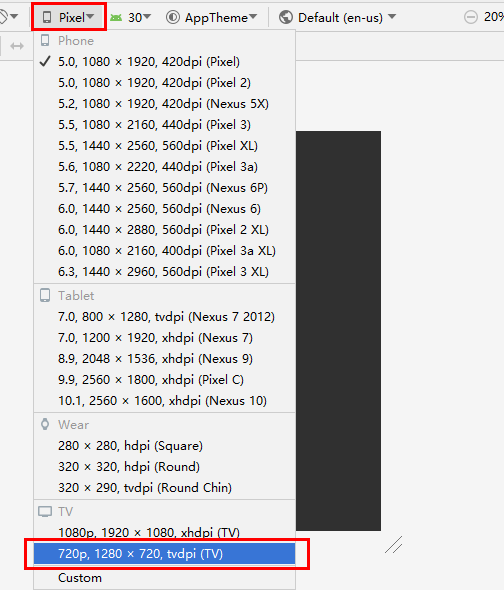

8.在手机型号里面找到TV版的页面，这里两个，看你需要的选择）：

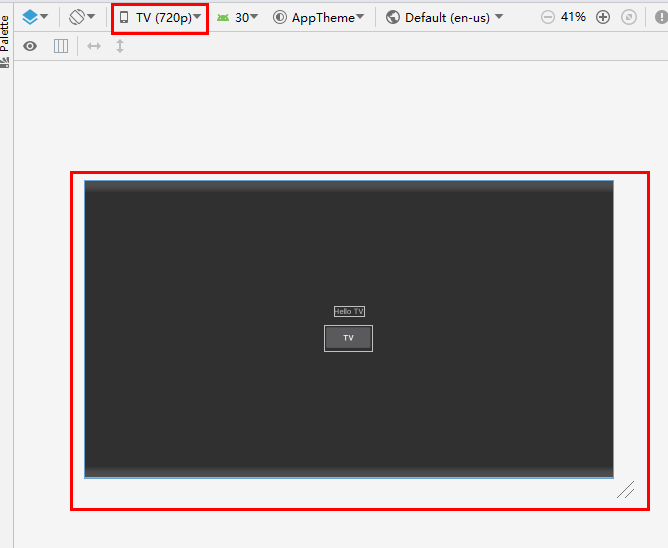

9.TV版选择之后的页面如下：

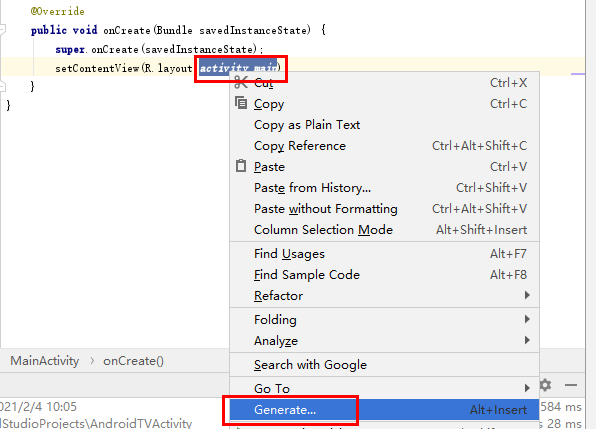

10.在主要的main.java里面找到绑定的布局，然后右击，选择Generate：

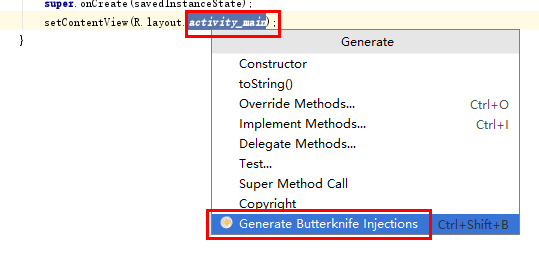

11.再选择Generate Butterknife lnjections：

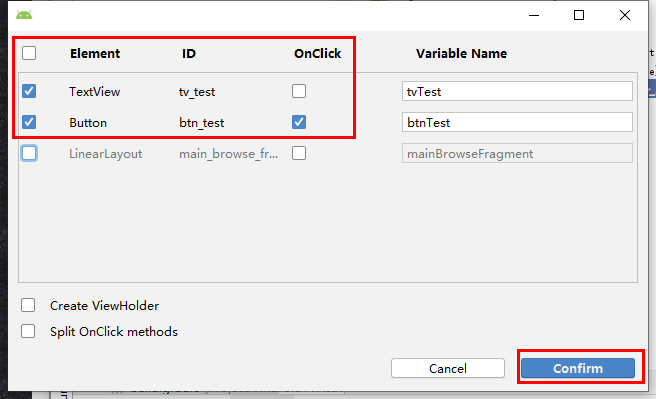

12.选择你要绑定的控件的定义和后面绑定按钮需要的点击事件，然后confirm（这里是快捷键导出的控件绑定和点击事件，初学者建议手写，熟练之后，再用这种操作）：

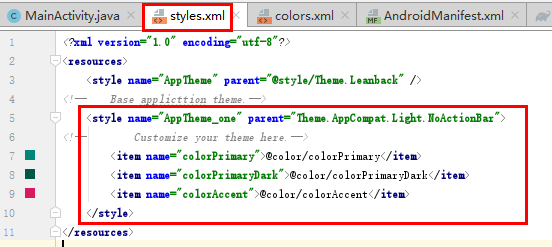

13.打开values下的styles.xml，给需要的颜色命名：

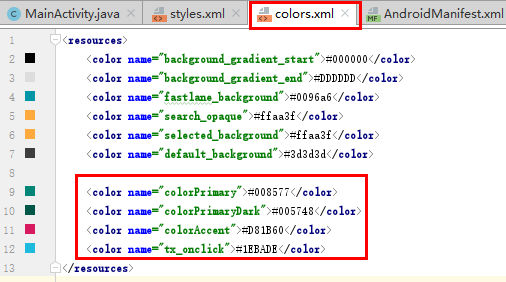

14.在colors.xml下给命名添加你所需要的颜色值，然后在布局页面中调用即可：

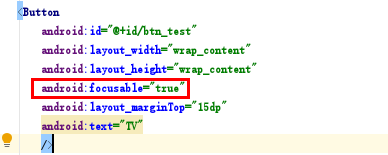

15.电视上需要用到焦点，电视上都是通过控件获取焦点来实现点击效果的：

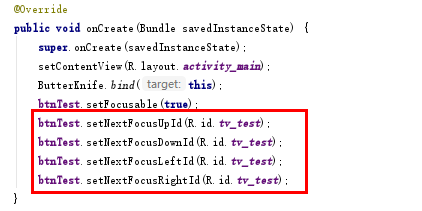

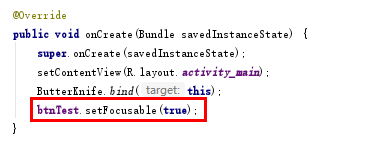

16.在java中绑定：

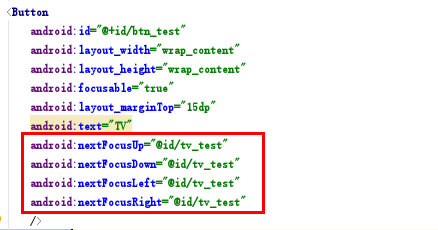

17.在已知控件ID的情况下我们可以设置上下左右的移动控件


18.在java中绑定：

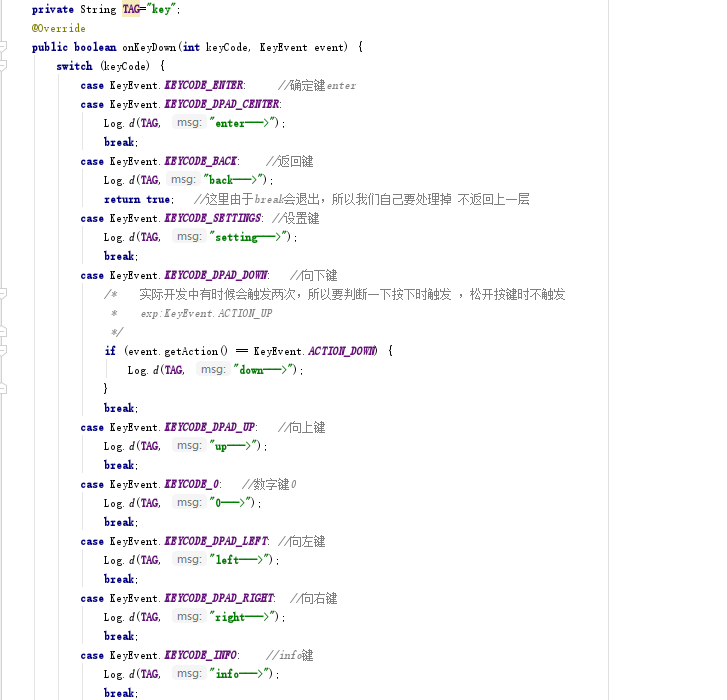

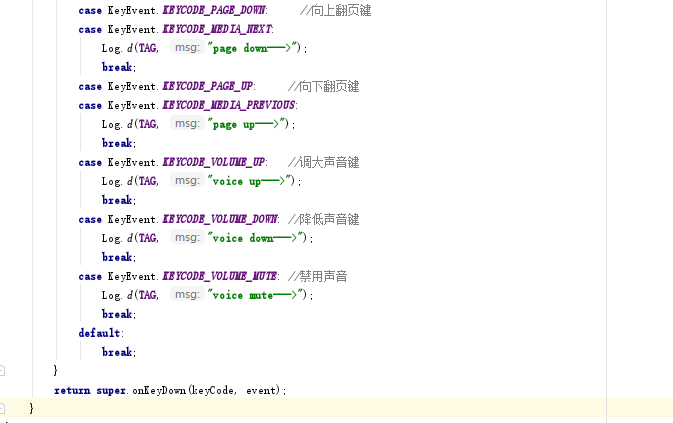

19.遥控器的按键监听,毕竟是用遥控器来操作的啊,按键监听代码如下：

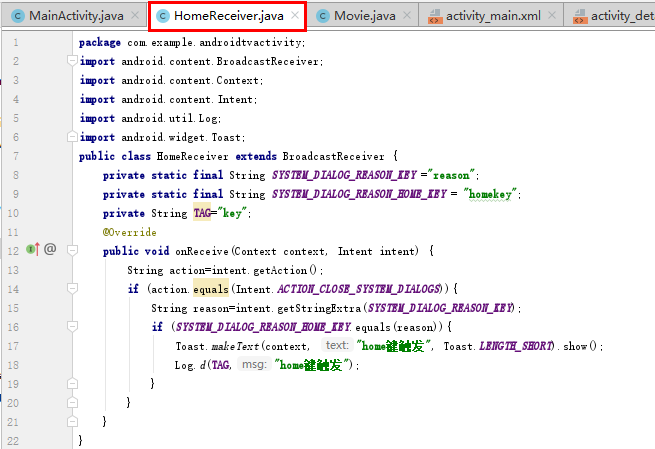

20.如果要监听Home键的话，就需要通过广播来，在MainActivity中创建一个class：

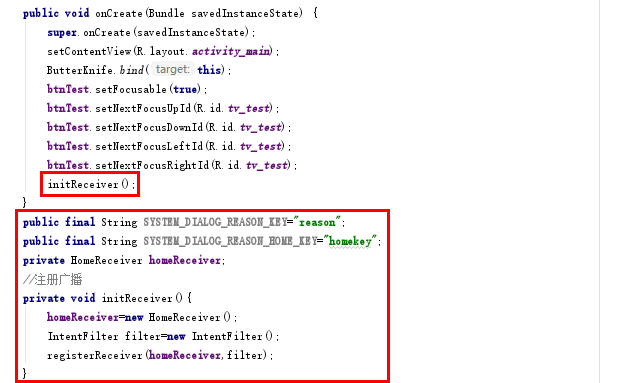

21.在onCreate()方法中注册广播，只要调用initReceiver()方法即可：


22.页面销毁时，注销掉广播：


23.在确定键的遥控器按键监听代码中加入弹窗显示：


二、整体代码：

  1. <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
  2.     xmlns:app="http://schemas.android.com/apk/res-auto"
  3.     xmlns:tools="http://schemas.android.com/tools"
  4.     android:layout_width="match_parent"
  5.     android:layout_height="match_parent"
  6.     android:orientation="vertical"
  7.     android:gravity="center"
  8.     tools:context=".MainActivity">
  9.     <LinearLayout
  10.         android:layout_width="match_parent"
  11.         android:layout_height="match_parent"
  12.         android:orientation="vertical">
  13.         <!--自定义的VideoView  做了绘制改变，和网络地址许可-->
  14.         <com.llw.androidtvdemo.view.MyVideoView
  15.             android:id="@+id/video_view"
  16.             android:layout_width="match_parent"
  17.             android:layout_height="match_parent"
  18.             android:layout_gravity="center" />
  19.     </LinearLayout>
  20.     <!--底部控制栏  开始时间 进度条 结束时间-->
  21.     <RelativeLayout
  22.         android:layout_width="match_parent"
  23.         android:layout_height="@dimen/dp_100"
  24.         android:layout_alignParentBottom="true"
  25.         android:background="@drawable/shape_gradual_change">
  26.         <LinearLayout
  27.             android:layout_width="match_parent"
  28.             android:layout_height="wrap_content"
  29.             android:layout_alignParentBottom="true"
  30.             android:layout_margin="@dimen/dp_10"
  31.             android:gravity="center_vertical"
  32.             android:orientation="horizontal">
  33.             <TextView
  34.                 android:id="@+id/tv_play_time"
  35.                 android:layout_width="wrap_content"
  36.                 android:layout_height="wrap_content"
  37.                 android:text="00:00"
  38.                 android:textColor="@color/white"
  39.                 android:textSize="@dimen/sp_24" />
  40.             <SeekBar
  41.                 android:id="@+id/time_seekBar"
  42.                 android:layout_width="0dp"
  43.                 android:layout_height="wrap_content"
  44.                 android:layout_centerInParent="true"
  45.                 android:layout_marginLeft="@dimen/dp_20"
  46.                 android:layout_marginRight="@dimen/dp_20"
  47.                 android:layout_weight="1"
  48.                 android:max="100"
  49.                 android:maxHeight="3dp"
  50.                 android:minHeight="3dp"
  51.                 android:progress="0"
  52.                 android:progressDrawable="@drawable/seekbar_style"
  53.                 android:thumb="@drawable/thumb" />
  54.             <TextView
  55.                 android:id="@+id/tv_total_time"
  56.                 android:layout_width="wrap_content"
  57.                 android:layout_height="wrap_content"
  58.                 android:text="00:00"
  59.                 android:textColor="@color/white"
  60.                 android:textSize="@dimen/sp_24" />
  61.         </LinearLayout>
  62.     </RelativeLayout>
  63.     <!--视频结束时 显示黑色背景-->
  64.     <RelativeLayout
  65.         android:visibility="gone"
  66.         android:id="@+id/lay_finish_bg"
  67.         android:background="#000"
  68.         android:layout_width="match_parent"
  69.         android:layout_height="match_parent"/>
  70.     <!--视频播放中 控制暂停和播放的按钮-->
  71.     <ImageButton
  72.         android:visibility="gone"
  73.         android:focusable="true"
  74.         android:layout_centerInParent="true"
  75.         android:id="@+id/btn_play_or_pause"
  76.         android:background="@mipmap/icon_pause"
  77.         android:layout_width="@dimen/dp_100"
  78.         android:layout_height="@dimen/dp_100"/>
  79.     <!--视频结束时 显示重播图标-->
  80.     <ImageButton
  81.         android:visibility="gone"
  82.         android:layout_centerInParent="true"
  83.         android:id="@+id/btn_restart_play"
  84.         android:background="@mipmap/icon_restart_play"
  85.         android:layout_width="@dimen/dp_100"
  86.         android:layout_height="@dimen/dp_100"/>
  87.     <LinearLayout
  88.         android:layout_width="match_parent"
  89.         android:layout_height="match_parent"
  90.         android:orientation="vertical"
  91.         android:gravity="center">
  92.         <TextView
  93.             android:id="@+id/tv_test"
  94.             android:layout_width="wrap_content"
  95.             android:layout_height="wrap_content"
  96.             android:text="Hello TV"
  97.             />
  98.         <Button
  99.             android:layout_width="wrap_content"
  100.             android:layout_height="wrap_content"
  101.             android:id="@+id/btn_test"
  102.             android:text="TV"
  103.             android:layout_marginTop="20dp"
  104.             android:focusable="true"
  105.             android:nextFocusDown="@id/tv_test"
  106.             android:nextFocusUp="@id/tv_test"
  107.             android:nextFocusLeft="@id/tv_test"
  108.             android:nextFocusRight="@id/tv_test"
  109.             />
  110.     </LinearLayout>
  111. </RelativeLayout>
  1. package com.llw.androidtvdemo;
  2. import android.content.BroadcastReceiver;
  3. import android.content.Context;
  4. import android.content.Intent;
  5. import android.util.Log;
  6. import android.widget.Toast;
  7. import static androidx.constraintlayout.widget.Constraints.TAG;
  8. public class HomeReceiver extends BroadcastReceiver {
  9.     public final String SYSTEM_DIALOG_REASON_KEY="reason";
  10.     public final String SYSTEM_DIALOG_REASON_HOME_KEY="homekey";
  11.     @Override
  12.     public void onReceive(Context context, Intent intent) {
  13.         String action=intent.getAction();
  14.         if (action.equals(Intent.ACTION_CLOSE_SYSTEM_DIALOGS)){
  15.             String reason=intent.getStringExtra(SYSTEM_DIALOG_REASON_KEY);
  16.             if (SYSTEM_DIALOG_REASON_HOME_KEY.equals(reason)){
  17.                 Toast.makeText(context, "home键触发", Toast.LENGTH_SHORT).show();
  18.                 Log.d(TAG,"home键触发");
  19.             }
  20.         }
  21.     }
  22. }
  1. package com.llw.androidtvdemo;
  2. import android.content.Intent;
  3. import android.content.IntentFilter;
  4. import android.media.MediaPlayer;
  5. import android.net.Uri;
  6. import android.os.Bundle;
  7. import android.os.Handler;
  8. import android.util.Log;
  9. import android.view.KeyEvent;
  10. import android.view.View;
  11. import android.widget.Button;
  12. import android.widget.ImageButton;
  13. import android.widget.RelativeLayout;
  14. import android.widget.SeekBar;
  15. import android.widget.TextView;
  16. import android.widget.Toast;
  17. import androidx.appcompat.app.AppCompatActivity;
  18. import com.llw.androidtvdemo.view.MyVideoView;
  19. import java.text.SimpleDateFormat;
  20. import java.util.Calendar;
  21. import java.util.Formatter;
  22. import java.util.Locale;
  23. import butterknife.BindView;
  24. import butterknife.ButterKnife;
  25. import butterknife.OnClick;
  26. public class MainActivity extends AppCompatActivity {
  27.     @BindView(R.id.video_view)
  28.     MyVideoView videoView;
  29.     @BindView(R.id.tv_play_time)
  30.     TextView tvPlayTime;
  31.     @BindView(R.id.time_seekBar)
  32.     SeekBar timeSeekBar;
  33.     @BindView(R.id.tv_total_time)
  34.     TextView tvTotalTime;
  35.     @BindView(R.id.lay_finish_bg)
  36.     RelativeLayout layFinishBg;
  37.     @BindView(R.id.btn_play_or_pause)
  38.     ImageButton btnPlayOrPause;
  39.     @BindView(R.id.btn_restart_play)
  40.     ImageButton btnRestartPlay;
  41.     @BindView(R.id.tv_test)
  42.     TextView tvTest;
  43.     @BindView(R.id.btn_test)
  44.     Button btnTest;
  45.     private HomeReceiver homeReceiver;
  46.     private void initReceiver(){
  47.         homeReceiver=new HomeReceiver();
  48.         IntentFilter filter=new IntentFilter(Intent.ACTION_CLOSE_SYSTEM_DIALOGS);
  49.         registerReceiver(homeReceiver,filter);
  50.     }
  51.     private int key = 0;
  52.     private Handler handler = new Handler();
  53.     private Runnable runnable = new Runnable() {
  54.         public void run() {
  55.             if (videoView.isPlaying()) {
  56.                 int current = videoView.getCurrentPosition();
  57.                 timeSeekBar.setProgress(current);
  58.                 tvPlayTime.setText(time(videoView.getCurrentPosition()));
  59.             }
  60.             handler.postDelayed(runnable, 500);
  61.         }
  62.     };
  63.     @Override
  64.     protected void onCreate(Bundle savedInstanceState) {
  65.         super.onCreate(savedInstanceState);
  66.         setContentView(R.layout.activity_main);
  67.         ButterKnife.bind(this);
  68.         btnTest.setFocusable(true);
  69.         btnTest.setNextFocusUpId(R.id.tv_test);
  70.         btnTest.setNextFocusDownId(R.id.tv_test);
  71.         btnTest.setNextFocusLeftId(R.id.tv_test);
  72.         btnTest.setNextFocusRightId(R.id.tv_test);
  73.         timeSeekBar.setOnSeekBarChangeListener(onSeekBarChangeListener);
  74.         initVideo();
  75.         videoView.setOnCompletionListener(new MediaPlayer.OnCompletionListener() {
  76.             @Override
  77.             public void onCompletion(MediaPlayer mp) {
  78.                 key = 1;
  79.                 btnRestartPlay.setVisibility(View.VISIBLE);
  80.                 layFinishBg.setVisibility(View.VISIBLE);
  81.             }
  82.         });
  83.         videoView.setOnErrorListener(new MediaPlayer.OnErrorListener() {
  85.             @Override
  86.             public boolean onError(MediaPlayer mp, int what, int extra) {
  87.                 Toast.makeText(MainActivity.this, "播放出错", Toast.LENGTH_SHORT).show();
  88.                 return false;
  89.             }
  90.         });
  91.     }
  92.     /**
  93.      * 时间转换方法
  94.      *
  95.      * @param millionSeconds
  96.      * @return
  97.      */
  98.     protected String time(long millionSeconds) {
  99.         SimpleDateFormat simpleDateFormat = new SimpleDateFormat("mm:ss");
  100.         Calendar c = Calendar.getInstance();
  101.         c.setTimeInMillis(millionSeconds);
  102.         return simpleDateFormat.format(c.getTime());
  103.     }
  104.     /**
  105.      * 初始化VideoView
  106.      */
  107.     private void initVideo() {
  108.         //本地视频
  109.       //videoView.setVideoURI(Uri.parse("android.resource://" + getPackageName() + "/raw/test"));
  110.         //网络视频
  111.         final Uri uri = Uri.parse("http://gslb.miaopai.com/stream/ed5HCfnhovu3tyIQAiv60Q__.mp4");
  112.         videoView.setVideoURI(uri);
  113.         videoView.requestFocus();
  114.         videoView.setOnPreparedListener(new MediaPlayer.OnPreparedListener() {
  115.             @Override
  116.             public void onPrepared(MediaPlayer mp) {
  117.                 int totalTime = videoView.getDuration();//获取视频的总时长
  118.                 tvTotalTime.setText(stringForTime(totalTime));
  119.                 // 开始线程，更新进度条的刻度
  120.                 handler.postDelayed(runnable, 0);
  121.                 timeSeekBar.setMax(videoView.getDuration());
  122.                 //视频加载完成,准备好播放视频的回调
  123.                 videoView.start();
  124.             }
  125.         });
  126.     }
  127.     /**
  128.      * 控制视频是  播放还是暂停  或者是重播
  129.      *
  130.      * @param isPlay
  131.      * @param keys
  132.      */
  133.     private void isVideoPlay(boolean isPlay, int keys) {
  134.         switch (keys) {
  135.             case 0:
  136.                 if (isPlay) {//暂停
  137.                     btnPlayOrPause.setBackground(getResources().getDrawable(R.mipmap.icon_player));
  138.                     btnPlayOrPause.setVisibility(View.VISIBLE);
  139.                     videoView.pause();
  140.                 } else {//继续播放
  141.                     btnPlayOrPause.setBackground(getResources().getDrawable(R.mipmap.icon_pause));
  142.                     btnPlayOrPause.setVisibility(View.VISIBLE);
  143.                     // 开始线程，更新进度条的刻度
  144.                     handler.postDelayed(runnable, 0);
  145.                     videoView.start();
  146.                     timeSeekBar.setMax(videoView.getDuration());
  147.                     timeGone();
  148.                 }
  149.                 break;
  150.             case 1://重新播放
  151.                 initVideo();
  152.                 btnRestartPlay.setVisibility(View.GONE);
  153.                 layFinishBg.setVisibility(View.GONE);
  154.                 key = 0;
  155.                 break;
  156.         }
  157.     }
  158.     /**
  159.      * 延时隐藏
  160.      */
  161.     private void timeGone() {
  162.         new Handler().postDelayed(new Runnable() {
  163.             @Override
  164.             public void run() {
  165.                 btnPlayOrPause.setVisibility(View.INVISIBLE);
  166.             }
  167.         }, 1500);
  168.     }
  169.     /**
  170.      * 进度条监听
  171.      */
  172.     private SeekBar.OnSeekBarChangeListener onSeekBarChangeListener = new SeekBar.OnSeekBarChangeListener() {
  173.         // 当进度条停止修改的时候触发
  174.         @Override
  175.         public void onStopTrackingTouch(SeekBar seekBar) {
  176.             // 取得当前进度条的刻度
  177.             int progress = seekBar.getProgress();
  178.             if (videoView.isPlaying()) {
  179.                 // 设置当前播放的位置
  180.                 videoView.seekTo(progress);
  181.             }
  182.         }
  183.         @Override
  184.         public void onStartTrackingTouch(SeekBar seekBar) {
  185.         }
  186.         @Override
  187.         public void onProgressChanged(SeekBar seekBar, int progress,
  188.                                       boolean fromUser) {
  189.         }
  190.     };
  191.     //将长度转换为时间
  192.     StringBuilder mFormatBuilder = new StringBuilder();
  193.     Formatter mFormatter = new Formatter(mFormatBuilder, Locale.getDefault());
  194.     private String stringForTime(int timeMs) {
  195.         int totalSeconds = timeMs / 1000;
  196.         int seconds = totalSeconds % 60;
  197.         int minutes = (totalSeconds / 60) % 60;
  198.         int hours = totalSeconds / 3600;
  199.         mFormatBuilder.setLength(0);
  200.         if (hours > 0) {
  201.             return mFormatter.format("%d:%02d:%02d", hours, minutes, seconds).toString();
  202.         } else {
  203.             return mFormatter.format("%02d:%02d", minutes, seconds).toString();
  204.         }
  205.     }
  206.     private String TAG = "key";
  207.     /**
  208.      * 遥控器按键监听
  209.      *
  210.      * @param keyCode
  211.      * @param event
  212.      * @return
  213.      */
  214.     @Override
  215.     public boolean onKeyDown(int keyCode, KeyEvent event) {
  216.         switch (keyCode) {
  217.             case KeyEvent.KEYCODE_ENTER:     //确定键enter
  218.             case KeyEvent.KEYCODE_DPAD_CENTER:
  219.                 Log.d(TAG, "enter--->");
  220.                 Toast.makeText(this,"确定", Toast.LENGTH_SHORT).show();
  221.                 //如果是播放中则暂停、如果是暂停则继续播放
  222.                 //isVideoPlay(videoView.isPlaying(), key);
  223.                 break;
  224.             case KeyEvent.KEYCODE_BACK:    //返回键
  225.                 Toast.makeText(this,"返回键", Toast.LENGTH_SHORT).show();
  226.                 Log.d(TAG, "back--->");
  227.                 return true;   //这里由于break会退出，所以我们自己要处理掉 不返回上一层
  228.             case KeyEvent.KEYCODE_SETTINGS: //设置键
  229.                 Log.d(TAG, "setting--->");
  230.                 break;
  231.             case KeyEvent.KEYCODE_DPAD_DOWN:   //向下键
  232.                 /*    实际开发中有时候会触发两次，所以要判断一下按下时触发 ，松开按键时不触发
  233.                  *    exp:KeyEvent.ACTION_UP
  234.                  */
  235.                 if (event.getAction() == KeyEvent.ACTION_DOWN) {
  236.                     Log.d(TAG, "down--->");
  237.                 }
  238.                 break;
  239.             case KeyEvent.KEYCODE_DPAD_UP:   //向上键
  240.                 Log.d(TAG, "up--->");
  241.                 break;
  242.             case KeyEvent.KEYCODE_0:
  243.                 Log.d(TAG,"0--->");
  244.             case KeyEvent.KEYCODE_DPAD_LEFT: //向左键
  245.                 Log.d(TAG, "left--->");
  246.                 if (videoView.getCurrentPosition() > 4) {
  247.                     videoView.seekTo(videoView.getCurrentPosition() - 5 * 1000);
  248.                 }
  249.                 break;
  250.             case KeyEvent.KEYCODE_DPAD_RIGHT:  //向右键
  251.                 Log.d(TAG, "right--->");
  252.                 videoView.seekTo(videoView.getCurrentPosition() + 5 * 1000);
  253.                 break;
  254.                 //info键
  255.             case KeyEvent.KEYCODE_INFO:
  256.                 Log.d(TAG,"info--->");
  257.                 break;
  258.                 //向上翻页键
  259.             case KeyEvent.KEYCODE_PAGE_DOWN:
  260.             case KeyEvent.KEYCODE_MEDIA_NEXT:
  261.                 Log.d(TAG,"page down--->");
  262.                 break;
  263.                 //向下翻页键
  264.             case KeyEvent.KEYCODE_PAGE_UP:
  265.             case KeyEvent.KEYCODE_MEDIA_PREVIOUS:
  266.                 Log.d(TAG,"page up--->");
  267.                 break;
  268.             case KeyEvent.KEYCODE_VOLUME_UP:   //调大声音键
  269.                 Log.d(TAG, "voice up--->");
  270.                 break;
  271.             case KeyEvent.KEYCODE_VOLUME_DOWN: //降低声音键
  272.                 Log.d(TAG, "voice down--->");
  273.                 break;
  274.             case KeyEvent.KEYCODE_VOLUME_MUTE: //禁用声音
  275.                 Log.d(TAG, "voice mute--->");
  276.                 break;
  277.             default:
  278.                 break;
  279.         }
  280.         return super.onKeyDown(keyCode, event);
  281.     }
  282.     @OnClick(R.id.btn_test)
  283.     public void onViewClicked() {
  284.         //Toast 提示
  285.         Toast.makeText(this,tvTest.getText().toString(), Toast.LENGTH_SHORT).show();
  286.     }
  287. protected void onDestroy(){
  288.     super.onDestroy();
  289.     if (homeReceiver!=null){
  290.         unregisterReceiver(homeReceiver);
  291.     }
  292. }
  293. }
