参考：https://developer.aliyun.com/article/716134
#参考：https://juejin.im/entry/6844903829624848398
镜像：

  1. docker pull dockerkafka/zookeeper
  2. docker pull dockerkafka/kafka
  3. docker pull dockerkafka/kafka-manager
  1. 先搭建zookeeper集群，并创建一个网络

  2. 再搭建kafka集群，直接利用zookeeper的网络

    docker-compose 搭建zookeeper集群

    执行，即获得一个zookeeper集群：

    1. sudo docker-compose -f docker-compose.yml.zookeeper -p zookeeper up -d
    2. >>
    3. Creating network "zookeeper" with the default driver
    4. Creating zoo2 ... done
    5. Creating zoo3 ... done
    6. Creating zoo1 ... done

    docker-compose.yml.zookeeper文件 ```yaml version: ‘2’ services: zoo1: image: wurstmeister/zookeeper restart: always hostname: zoo1 container_name: zoo1 privileged: true ports: # 端口

    • 2181:2181 environment: TZ: Asia/Shanghai ZOO_MY_ID: 1 # 节点ID ZOO_PORT: 2181 # zookeeper端口号 ZOO_SERVERS: server.1=zoo1:2888:3888 server.2=zoo2:2888:3888 server.3=zoo3:2888:3888 # zookeeper节点列表 networks: zookeeper: ipv4_address: 172.25.0.11

    zoo2: image: wurstmeister/zookeeper restart: always hostname: zoo2 container_name: zoo2 privileged: true ports:

    • 2182:2181 environment: TZ: Asia/Shanghai ZOO_MY_ID: 2 ZOO_PORT: 2181 ZOO_SERVERS: server.1=zoo1:2888:3888 server.2=zoo2:2888:3888 server.3=zoo3:2888:3888 networks: zookeeper: ipv4_address: 172.25.0.12

    zoo3: image: wurstmeister/zookeeper restart: always hostname: zoo3 container_name: zoo3 privileged: true ports:

    • 2183:2181 environment: TZ: Asia/Shanghai ZOO_MY_ID: 3 ZOO_PORT: 2181 ZOO_SERVERS: server.1=zoo1:2888:3888 server.2=zoo2:2888:3888 server.3=zoo3:2888:3888 networks: zookeeper: ipv4_address: 172.25.0.13

networks: zookeeper: ipam: config:

  1.   - subnet: 172.25.0.0/16
  2.     gateway: 172.25.0.1
  1. <a name="dXJO3"></a>
  2. ### docker-compose搭建kafka集群
  3. Kafka部分名词解释如下：
  5. - Broker：消息中间件处理结点，一个Kafka节点就是一个broker，多个broker可以组成一个Kafka集群。
  6. - Topic：一类消息，例如page view日志、click日志等都可以以topic的形式存在，Kafka集群能够同时负责多个topic的分发。
  7. - Partition：topic物理上的分组，一个topic可以分为多个partition，每个partition是一个有序的队列。
  8. - Segment：partition物理上由多个segment组成，下面有详细说明。
  9. - offset：每个partition都由一系列有序的、不可变的消息组成，这些消息被连续的追加到partition中。partition中的每个消息都有一个连续的序列号叫做offset,用于partition唯一标识一条消息.每个partition中的消息都由offset=0开始记录消息。
  11. 基于zookeeper集群网络，需要修改不同的ip<br />执行命令即获得kafka集群<br />`sudo docker-compose -f docker-compose.yml.kafka up -d`<br />docker-compose.yml.kafka文件
  12. ```yaml
  13. version: '2'
  15. services:
  16.   broker1:
  17.     image: wurstmeister/kafka
  18.     restart: always
  19.     hostname: broker1
  20.     container_name: broker1
  21.     privileged: true
  22.     ports:
  23.       - "9091:9092"
  24.     environment:
  25.       TZ: Asia/Shanghai
  26.       KAFKA_BROKER_ID: 1
  27.       KAFKA_LISTENERS: PLAINTEXT://broker1:9092
  28.       KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://broker1:9092
  29.       KAFKA_ADVERTISED_HOST_NAME: broker1
  30.       KAFKA_ADVERTISED_PORT: 9092
  31.       KAFKA_ZOOKEEPER_CONNECT: zoo1:2181/kafka,zoo2:2181/kafka,zoo3:2181/kafka
  32.       JMX_PORT: 9988
  33.     external_links: # 连接本compose文件以外的container
  34.     - zoo1
  35.     - zoo2
  36.     - zoo3
  37.     working_dir: /opt/kafka
  38.     networks:
  39.       default:
  40.         ipv4_address: 172.25.0.14
  42.   broker2:
  43.     image: wurstmeister/kafka
  44.     restart: always
  45.     hostname: broker2
  46.     container_name: broker2
  47.     privileged: true
  48.     ports:
  49.       - "9092:9092"
  50.     environment:
  51.       TZ: Asia/Shanghai
  52.       KAFKA_BROKER_ID: 2
  53.       KAFKA_LISTENERS: PLAINTEXT://broker2:9092
  54.       KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://broker2:9092
  55.       KAFKA_ADVERTISED_HOST_NAME: broker2
  56.       KAFKA_ADVERTISED_PORT: 9092
  57.       KAFKA_ZOOKEEPER_CONNECT: zoo1:2181/kafka,zoo2:2181/kafka,zoo3:2181/kafka
  58.       JMX_PORT: 9988
  59.     external_links:
  60.     - zoo1
  61.     - zoo2
  62.     - zoo3
  63.     working_dir: /opt/kafka
  64.     networks:
  65.       default:
  66.         ipv4_address: 172.25.0.15
  68.   broker3:
  69.     image: wurstmeister/kafka
  70.     restart: always
  71.     hostname: broker3
  72.     container_name: broker3
  73.     privileged: true
  74.     ports:
  75.       - "9093:9092"
  76.     environment:
  77.       TZ: Asia/Shanghai
  78.       KAFKA_BROKER_ID: 3
  79.       KAFKA_LISTENERS: PLAINTEXT://broker3:9092
  80.       KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://broker3:9092
  81.       KAFKA_ADVERTISED_HOST_NAME: broker3
  82.       KAFKA_ADVERTISED_PORT: 9092
  83.       KAFKA_ZOOKEEPER_CONNECT: zoo1:2181/kafka,zoo2:2181/kafka,zoo3:2181/kafka
  84.       JMX_PORT: 9988
  85.     external_links:
  86.     - zoo1
  87.     - zoo2
  88.     - zoo3
  89.     working_dir: /opt/kafka
  90.     networks:
  91.       default:
  92.         ipv4_address: 172.25.0.16
  94.   kafka-manager:
  95.     image: sheepkiller/kafka-manager:latest
  96.     restart: always
  97.     container_name: kafka-manager
  98.     hostname: kafka-manager
  99.     ports:
  100.       - "9090:9000"
  101.     links:            # 连接本compose文件创建的container
  102.       - broker1
  103.       - broker2
  104.       - broker3
  105.     external_links:   # 连接本compose文件以外的container
  106.       - zoo1
  107.       - zoo2
  108.       - zoo3
  109.     environment:
  110.       TZ: Asia/Shanghai
  111.       ZK_HOSTS: zoo1:2181/kafka,zoo2:2181/kafka,zoo3:2181/kafka
  112.       KAFKA_BROKERS: broker1:9092,broker2:9092,broker3:9092
  113.       APPLICATION_SECRET: letmein
  114.       KM_ARGS: -Djava.net.preferIPv4Stack=true
  115.     networks:
  116.       default:
  117.         ipv4_address: 172.25.0.10
  119. networks:
  120.   default:
  121.     external:   # 使用已创建的网络，格式为 目录名_default
  122.       name: zookeeper_default

验证

我们打开kafka-manager的管理页面，访问路径是，宿主机ip:9000；
docker部署zookeeper kafka - 图1
如果所示，填写上Zookeeper集群的地址，划到最下边点击save

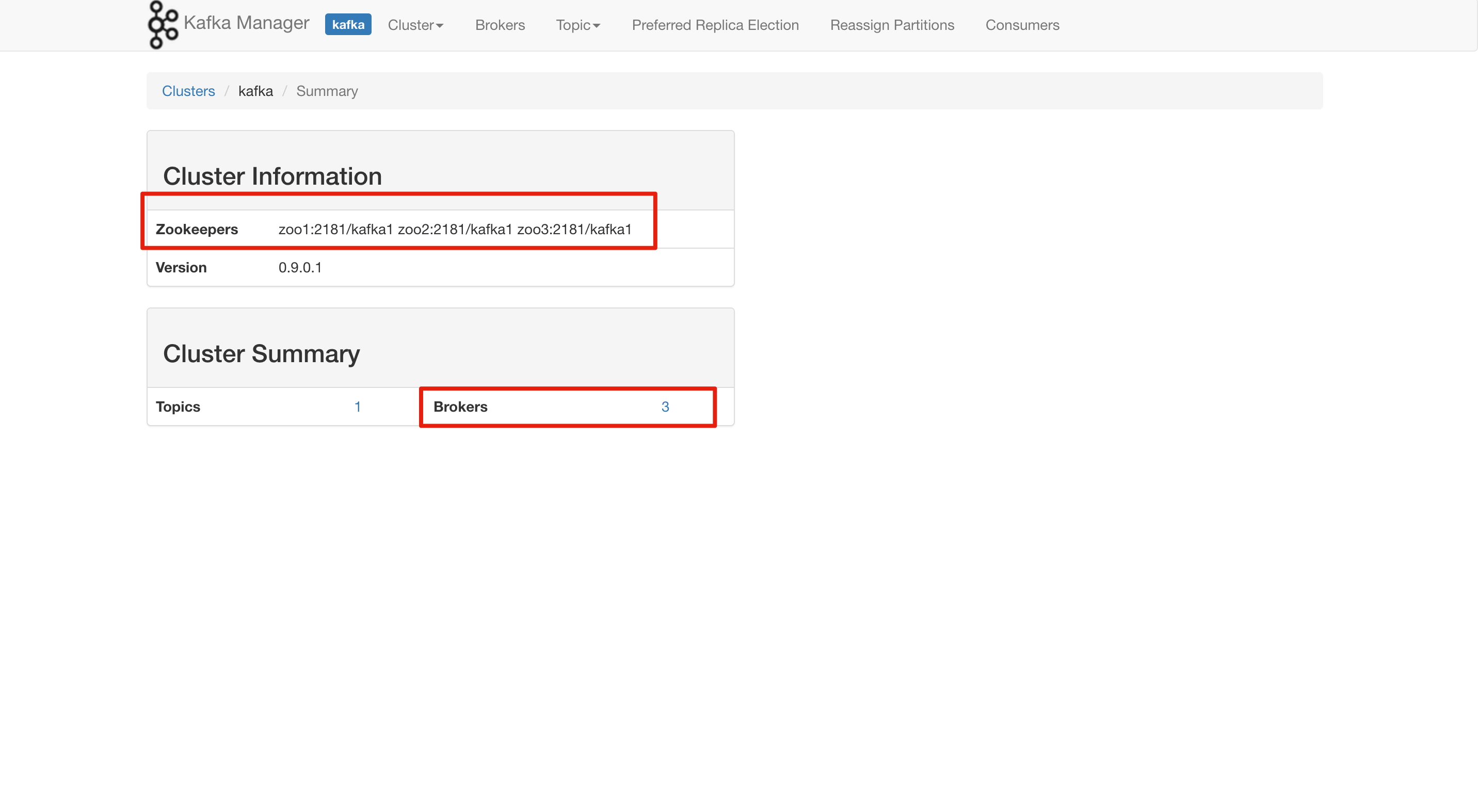

点击刚刚添加的集群，可以看到，集群中有三个节点
docker部署zookeeper kafka - 图2

查看版本

  1. root:~$ docker exec broker1 find / -name \*kafka_\* | head -1 | grep -o '\kafka[^\n]*'
  2. kafka_2.13-2.6.0
  4. root:~$ docker exec zoo1 pwd
  5. /opt/zookeeper-3.4.13

执行上面两句，就可以得到kafka版本和zookeeper版本
其中kafka_2.13-2.6.0 为：scala版本2.13，kafka版本2.6.0，zookeeper版本3.4.13

测试kafka 1

单机

  1. docker exec -it broker1 /bin/bash
  2. cd /opt/kafka_2.13-2.6.0

启动消息发送方
unset JMX_PORT; ./bin/kafka-console-producer.sh —broker-list broker1:9092 —topic mykafka

新建一个shell,启动消息接收方
unset JMX_PORT; ./bin/kafka-console-consumer.sh —bootstrap-server broker1:9092 —topic mykafka —from-beginning

在消息发送方输入123456
在消息接收方查看
如果看到123456 消息发送完成

集群

创建Replication为2，Partition为2的topic 在kafka容器中的opt/kafka_2.13-2.6.0/目录下输入

  1. unset JMX_PORT;./bin/kafka-topics.sh --create --zookeeper zoo1:2181/kafka,zoo2:2181/kafka,zoo3:2181/kafka  --replication-factor 2 --partitions 2 --topic partopic

说明: —replication-factor副本数; —partitions分区数; replication<=broker(一定); 有效消费者数<=partitions分区数(一定);

—zookeeper zoo1:2181/kafka 对应docker-compose.yml中的 KAFKA_ZOOKEEPER_CONNECT

查看集群topics：

  1.  ./bin/kafka-topics.sh --list --zookeeper zoo1:2181/kafka,zoo2:2181/kafka,zoo3:2181/kafka

查看topic的状态 在kafka容器中的opt/kafka_2.13-2.6.0/目录下输入

  1. bin/kafka-topics.sh --describe --zookeeper zoo1:2181/kafka,zoo2:2181/kafka,zoo3:2181/kafka  --topic partopic

输出结果：

  1. Topic:partopic  PartitionCount:2    ReplicationFactor:2 Configs:
  2.     Topic: partopic Partition: 0    Leader: 0   Replicas: 0,1   Isr: 0,1
  3.     Topic: partopic Partition: 1    Leader: 0   Replicas: 1,0   Isr: 0,1

显示每个分区的Leader机器为broker0，在broker0和1上具有备份，Isr代表存活的备份机器中存活的。 当停掉kafka1后，

  1. docker stop kafka1

再查看topic状态，输出结果：

  1. Topic:partopic  PartitionCount:2    ReplicationFactor:2 Configs:
  2.     Topic: partopic Partition: 0    Leader: 0   Replicas: 0,1   Isr: 0
  3.     Topic: partopic Partition: 1    Leader: 0   Replicas: 1,0   Isr: 0

生产/消费数据的kafka端可以是任意的。
生产数据

  1. ./bin/kafka-console-producer.sh --broker-list broker1:9092,broker2:9092,broker3:9092  --topic partopic

消费数据

  1. unset JMX_PORT;./bin/kafka-console-consumer.sh  --bootstrap-server broker1:9092,broker2:9092,broker3:9092   --topic partopic  --from-beginning
