Flink从1.2.0开始支持可查询状态(Queryable State)服务。可查询状态，允许用户从外部系统(如业务系统)查询Flink作业内部的状态。

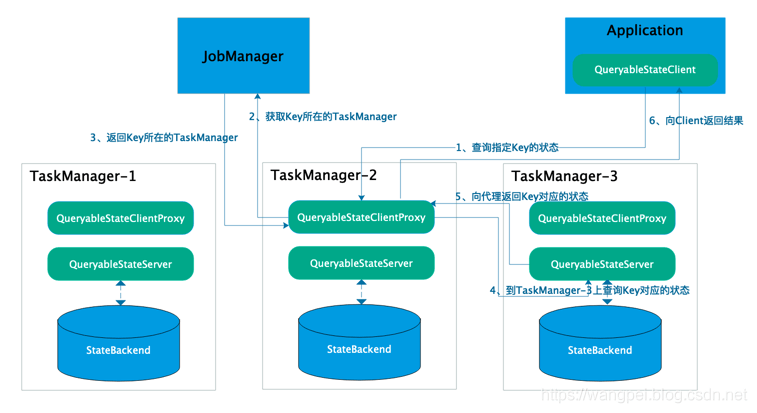

Queryable State服务架构


  1. QueryableStateClient: 客户端。运行在外部系统。提交查询请求并接收最终返回的结果。
  2. QueryableStateClientProxy: 客户端代理。运行在每个TaskManager上。接收客户端的请求，找到Key对应的TaskManager，然后将请求转发给具体的查询服务，并负责最终向客户端返回结果。

  3. QueryableStateServer: 查询服务。运行在每个TaskManager上。处理来自客户端代理的请求并返回结果。

    激活Queryable State服务

    为了在 Flink 集群上使用 queryable state，需要进行以下操作：

  4. 将 flink-queryable-state-runtime_2.11-1.11.2.jar (环境中已存在)从 Flink distribution 的 opt/ 目录拷贝到 lib/ 目录；

  5. 将参数 queryable-state.enable 设置为 true。详细信息以及其它配置可参考文档 Configuration。

为了验证集群的 queryable state 已经被激活，可以检查任意 task manager 的日志中是否包含 “Started the Queryable State Proxy Server @ …“。

Flink On Yarn模式

Flink On Yarn 集群模式可通过如下设置启动。

  1. 添加依赖

    1. cp ${FLINK_HOME}/opt/flink-queryable-state-runtime_2.11-1.11.2.jar ${FLINK_HOME}/lib/

  2. 启用Queryable State服务
    在${FLINK_HOME}/conf/flink-conf.yaml中设置queryable-state.enable: true。

  3. 查看TaskManager日志: 在TaskManager中见如下日志，即启动。

    1. Started Queryable State Server @ /x.x.x.x:9067.
    2. Started Queryable State Proxy Server @ /x.x.x.x:9069

    Flink Local模式

    Flink Local模式可通过如下设置启动。

  4. 添加依赖

    1. <dependency>
    2.  <groupId>org.apache.flink</groupId>
    3.  <artifactId>flink-queryable-state-runtime_2.11</artifactId>
    4.  <version>1.11.2</version>
    5. </dependency>

    2、启用Queryable State服务

    1. Configuration config = new Configuration();
    2. config.setInteger(ConfigOptions.key("rest.port").defaultValue(8081),8081);
    3. config.setBoolean(ConfigConstants.LOCAL_START_WEBSERVER, true);
    4. //启用Queryable State服务
    5. config.setBoolean(QueryableStateOptions.ENABLE_QUERYABLE_STATE_PROXY_SERVER, true);
    6. StreamExecutionEnvironment env = StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(config);

    3、查看TaskManager日志: 在TaskManager中见如下日志，即启动。

    1. Started Queryable State Server @ /127.0.0.1:9067
    2. Started Queryable State Proxy Server @ /127.0.0.1:9069

    使状态可查询

    通过以上设置，已在Flink集群上激活了可查询状态服务，除此之外，还需要在代码中暴露具体的可查询状态。有两种方式:

  5. 将DataStream转换为QueryableStateStream。如将KeyedStream转换为QueryableStateStream，即可设定KeyedStream中所有Key的State可查。

  6. 通过状态描述StateDescriptor的setQueryable(String queryableStateName)方法，可设定某个Key的State可查。

以下通过两个例子总结这两种方式的使用。

主要依赖

Server端

  1. <dependency>
  2.       <groupId>org.apache.flink</groupId>
  3.       <artifactId>flink-streaming-java_2.11</artifactId>
  4.       <version>1.9.0</version>
  5.     </dependency>
  6.     <dependency>
  7.       <groupId>org.apache.flink</groupId>
  8.       <artifactId>flink-runtime-web_2.11</artifactId>
  9.       <version>1.9.0</version>
  10.     </dependency>
  12.     <dependency>
  13.       <groupId>org.apache.flink</groupId>
  14.       <artifactId>flink-queryable-state-runtime_2.11</artifactId>
  15.       <version>1.9.0</version>
  16.     </dependency>

Client端

  1. <dependency>
  2.       <groupId>org.apache.flink</groupId>
  3.       <artifactId>flink-core</artifactId>
  4.       <version>1.9.0</version>
  5.     </dependency>
  7.     <dependency>
  8.       <groupId>org.apache.flink</groupId>
  9.       <artifactId>flink-queryable-state-client-java</artifactId>
  10.       <version>1.9.0</version>
  11.     </dependency>

通过Queryable State Stream使状态可查

Server端(Flink Job)

  1. package com.bigdata.flink;
  2. import org.apache.flink.api.common.functions.FlatMapFunction;
  3. import org.apache.flink.api.java.functions.KeySelector;
  4. import org.apache.flink.api.java.tuple.Tuple2;
  5. import org.apache.flink.api.java.utils.ParameterTool;
  6. import org.apache.flink.configuration.ConfigConstants;
  7. import org.apache.flink.configuration.Configuration;
  8. import org.apache.flink.configuration.QueryableStateOptions;
  9. import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
  10. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  11. import org.apache.flink.streaming.api.windowing.time.Time;
  12. import org.apache.flink.util.Collector;
  13. public class QueryableStateByQueryableStateStream {
  14.   public static void main(String[] args) throws Exception {
  15.     // 设置参数
  16.     ParameterTool parameterTool = ParameterTool.fromArgs(args);
  17.     final String host = parameterTool.get("host", "localhost");
  18.     final int port = parameterTool.getInt("port", 1234);
  19.     final int parallelism = parameterTool.getInt("parallelism", 4);
  20.     // 配置环境
  21.     Configuration config = new Configuration();
  22.     config.setBoolean(ConfigConstants.LOCAL_START_WEBSERVER, true);
  23.     config.setBoolean(QueryableStateOptions.ENABLE_QUERYABLE_STATE_PROXY_SERVER, true);
  24.     StreamExecutionEnvironment env =
  25.         StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(config);
  26.     env.setParallelism(parallelism);
  27.     // 输入数据源：每行数据格式 event,pv
  28.     SingleOutputStreamOperator<Tuple2<String, Long>> source =
  29.         env.socketTextStream(host, port)
  30.             .flatMap(
  31.                 new FlatMapFunction<String, Tuple2<String, Long>>() {
  32.                   @Override
  33.                   public void flatMap(String value, Collector<Tuple2<String, Long>> out) {
  34.                     String[] splits = value.trim().split(",");
  35.                     out.collect(new Tuple2<>(splits[0], Long.valueOf(splits[1])));
  36.                   }
  37.                 });
  38.     // 窗口统计: 最近5秒钟内，每个事件的最大pv
  39.     SingleOutputStreamOperator<Tuple2<String, Long>> result =
  40.         source
  41.             .keyBy(
  42.                 new KeySelector<Tuple2<String, Long>, String>() {
  43.                   @Override
  44.                   public String getKey(Tuple2<String, Long> value) throws Exception {
  45.                     return value.f0;
  46.                   }
  47.                 })
  48.             .timeWindow(Time.seconds(5))
  49.             .max(1);
  50.     // 输出结果
  51.     result.print();
  52.     // 使得结果的状态可查
  53.     // asQueryableState 返回QueryableStateStream
  54.     // QueryableStateStream类似于一个接收器，无法进行进一步转换
  55.     // QueryableStateStream接收传入的数据并更新状态
  56.     result
  57.         .keyBy(
  58.             new KeySelector<Tuple2<String, Long>, String>() {
  59.               @Override
  60.               public String getKey(Tuple2<String, Long> value) throws Exception {
  61.                 return value.f0;
  62.               }
  63.             })
  64.         .asQueryableState("lastFiveSecondsMaxPV");
  65.     env.execute();
  66.   }
  67. }

Client端

  1. package com.bigdata.java;
  2. import java.util.concurrent.CompletableFuture;
  3. import org.apache.flink.api.common.JobID;
  4. import org.apache.flink.api.common.state.ValueState;
  5. import org.apache.flink.api.common.state.ValueStateDescriptor;
  6. import org.apache.flink.api.common.typeinfo.BasicTypeInfo;
  7. import org.apache.flink.api.common.typeinfo.TypeHint;
  8. import org.apache.flink.api.common.typeinfo.TypeInformation;
  9. import org.apache.flink.api.java.tuple.Tuple2;
  10. import org.apache.flink.queryablestate.client.QueryableStateClient;
  11. public class QueryClient {
  12.   public static void main(String[] args) throws Exception {
  13.     if (args.length == 0) {
  14.       throw new IllegalArgumentException(
  15.           "Missing Flink Job ID ...\n"
  16.               + "Usage: ./QueryClient <jobID> [jobManagerHost] [jobManagerPort]");
  17.     }
  18.     final JobID jobId = JobID.fromHexString(args[0]);
  19.     final String jobManagerHost = args.length > 1 ? args[1] : "localhost";
  20.     final int jobManagerPort = args.length > 1 ? Integer.parseInt(args[1]) : 9069;
  21.     QueryableStateClient client = new QueryableStateClient(jobManagerHost, jobManagerPort);
  22.     /*
  23.       状态描述符
  24.       event_five_seconds_max_pv 状态名称，Server端此名称是通过UUID生成的，这里随意即可
  25.       TypeInformation.of(new TypeHint<Tuple2<String, Long>>() {})) 状态中值的类型，应和Server端相同
  26.      */
  27.     ValueStateDescriptor<Tuple2<String, Long>> stateDescriptor =
  28.         new ValueStateDescriptor<>(
  29.             "lastFiveSecondsMaxPV",
  30.             TypeInformation.of(new TypeHint<Tuple2<String, Long>>() {}));
  31.     final String key = "click";
  32.     /*
  33.      轮询执行查询
  34.      event_five_seconds_max_pv queryableStateName，应和Server端的queryableStateName相同
  35.     */
  36.     while (true) {
  37.       CompletableFuture<ValueState<Tuple2<String, Long>>> completableFuture =
  38.           client.getKvState(
  39.               jobId,
  40.               "lastFiveSecondsMaxPV",
  41.               key,
  42.               BasicTypeInfo.STRING_TYPE_INFO,
  43.               stateDescriptor);
  44.       System.out.println(completableFuture.get().value());
  45.       Thread.sleep(1000);
  46.     }
  47.   }
  48. }

通过StateDescriptor的setQueryable方法使状态可查

Server端(Flink Job)

  1. package com.bigdata.flink;
  2. import org.apache.flink.api.common.functions.FlatMapFunction;
  3. import org.apache.flink.api.common.state.ValueState;
  4. import org.apache.flink.api.common.state.ValueStateDescriptor;
  5. import org.apache.flink.api.common.typeinfo.Types;
  6. import org.apache.flink.api.java.functions.KeySelector;
  7. import org.apache.flink.api.java.tuple.Tuple2;
  8. import org.apache.flink.api.java.tuple.Tuple5;
  9. import org.apache.flink.api.java.utils.ParameterTool;
  10. import org.apache.flink.configuration.ConfigConstants;
  11. import org.apache.flink.configuration.Configuration;
  12. import org.apache.flink.configuration.QueryableStateOptions;
  13. import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
  14. import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
  15. import org.apache.flink.streaming.api.functions.windowing.ProcessWindowFunction;
  16. import org.apache.flink.streaming.api.windowing.time.Time;
  17. import org.apache.flink.streaming.api.windowing.windows.TimeWindow;
  18. import org.apache.flink.util.Collector;
  19. import org.joda.time.DateTime;
  20. import org.joda.time.DateTimeZone;
  21. public class QueryableStateByStateDescriptor {
  22.   public static void main(String[] args) throws Exception {
  23.     // 设置参数
  24.     ParameterTool parameterTool = ParameterTool.fromArgs(args);
  25.     final String host = parameterTool.get("host", "localhost");
  26.     final int port = parameterTool.getInt("port", 1234);
  27.     final int parallelism = parameterTool.getInt("parallelism", 4);
  28.     // 配置环境
  29.     Configuration config = new Configuration();
  30.     config.setBoolean(ConfigConstants.LOCAL_START_WEBSERVER, true);
  31.     config.setBoolean(QueryableStateOptions.ENABLE_QUERYABLE_STATE_PROXY_SERVER, true);
  32.     StreamExecutionEnvironment env =
  33.         StreamExecutionEnvironment.createLocalEnvironmentWithWebUI(config);
  34.     env.setParallelism(parallelism);
  35.     // 输入数据源：当前action产生时就上报一条数据，数据格式为 action,money
  36.     SingleOutputStreamOperator<Tuple2<String, Long>> source =
  37.         env.socketTextStream(host, port)
  38.             .flatMap(
  39.                 new FlatMapFunction<String, Tuple2<String, Long>>() {
  40.                   @Override
  41.                   public void flatMap(String value, Collector<Tuple2<String, Long>> out) {
  42.                     String[] splits = value.trim().split(",");
  43.                     out.collect(new Tuple2<>(splits[0], Long.valueOf(splits[1])));
  44.                   }
  45.                 });
  46.     // 窗口统计: 计算最近5秒钟内，每个action的count(money)数、sum(money)数
  47.     SingleOutputStreamOperator<Tuple5<String, String, String, Long, Long>> result =
  48.         source
  49.             .keyBy(
  50.                 new KeySelector<Tuple2<String, Long>, String>() {
  51.                   @Override
  52.                   public String getKey(Tuple2<String, Long> value) throws Exception {
  53.                     return value.f0;
  54.                   }
  55.                 })
  56.             .timeWindow(Time.seconds(5))
  57.             .process(new CustomCountSumWindowFunction());
  58.     result.print();
  59.     env.execute();
  60.   }
  61.   /** 自定义WindowFunction,统一每个Key对应的窗口的count数、sum数 */
  62.   static class CustomCountSumWindowFunction
  63.       extends ProcessWindowFunction<
  64.           Tuple2<String, Long>, Tuple5<String, String, String, Long, Long>, String, TimeWindow> {
  65.     // 定义一个ValueState，来存放状态
  66.     private transient ValueState<Tuple5<String, String, String, Long, Long>> sumCountValueState;
  67.     /**
  68.      * 算子CustomCountSumWindowFunction实例化时，只执行一次
  69.      *
  70.      * @param parameters
  71.      * @throws Exception
  72.      */
  73.     @Override
  74.     public void open(Configuration parameters) throws Exception {
  75.       ValueStateDescriptor<Tuple5<String, String, String, Long, Long>> valueStateDescriptor =
  76.           new ValueStateDescriptor<>(
  77.               "lastFiveSecondsCountSumValueState",
  78.               Types.TUPLE(Types.STRING, Types.STRING, Types.STRING, Types.LONG, Types.LONG));
  79.       // 通过ValueStateDescriptor.setQueryable 开放此状态,使此状态可查
  80.       valueStateDescriptor.setQueryable("lastFiveSecondsCountSum");
  81.       sumCountValueState = getRuntimeContext().getState(valueStateDescriptor);
  82.     }
  83.     /**
  84.      * 每个窗口都会调用一次process方法
  85.      *
  86.      * @param key 当前窗口对应的Key
  87.      * @param context 窗口上下文
  88.      * @param elements 当前窗口的所有元素
  89.      * @param out 收集输出记录
  90.      * @throws Exception
  91.      */
  92.     @Override
  93.     public void process(
  94.         String key,
  95.         Context context,
  96.         Iterable<Tuple2<String, Long>> elements,
  97.         Collector<Tuple5<String, String, String, Long, Long>> out)
  98.         throws Exception {
  99.       // 计算count数、sum数
  100.       long currentCount = 0L;
  101.       long currentSum = 0L;
  102.       for (Tuple2<String, Long> value : elements) {
  103.         currentCount += 1;
  104.         currentSum += value.f1;
  105.       }
  106.       // 获取Window开始时间、结束时间
  107.       TimeWindow window = context.window();
  108.       String windowStartTime =
  109.           new DateTime(window.getStart(), DateTimeZone.UTC).toString("yyyy-MM-dd HH:mm:ss");
  110.       String windowEndTime =
  111.           new DateTime(window.getEnd(), DateTimeZone.UTC).toString("yyyy-MM-dd HH:mm:ss");
  112.       // 得到当前值
  113.       Tuple5<String, String, String, Long, Long> currentValue =
  114.           new Tuple5<>(key, windowStartTime, windowEndTime, currentCount, currentSum);
  115.       // 更新状态
  116.       sumCountValueState.update(currentValue);
  117.       // 输出结果
  118.       out.collect(currentValue);
  119.     }
  120.   }
  121. }

Client端

  1. package com.bigdata.java;
  2. import java.util.concurrent.CompletableFuture;
  3. import org.apache.flink.api.common.JobID;
  4. import org.apache.flink.api.common.state.ValueState;
  5. import org.apache.flink.api.common.state.ValueStateDescriptor;
  6. import org.apache.flink.api.common.typeinfo.BasicTypeInfo;
  7. import org.apache.flink.api.common.typeinfo.Types;
  8. import org.apache.flink.api.java.tuple.Tuple5;
  9. import org.apache.flink.queryablestate.client.QueryableStateClient;
  10. public class QueryClient2 {
  11.   public static void main(String[] args) throws Exception {
  12.     if (args.length == 0) {
  13.       throw new IllegalArgumentException(
  14.           "Missing Flink Job ID ...\n"
  15.               + "Usage: ./QueryClient <jobID> [jobManagerHost] [jobManagerPort]");
  16.     }
  17.     final JobID jobId = JobID.fromHexString(args[0]);
  18.     final String jobManagerHost = args.length > 1 ? args[1] : "localhost";
  19.     final int jobManagerPort = args.length > 1 ? Integer.parseInt(args[1]) : 9069;
  20.     QueryableStateClient client = new QueryableStateClient(jobManagerHost, jobManagerPort);
  21.     /*
  22.      状态描述符
  23.     */
  24.     ValueStateDescriptor<Tuple5<String, String, String, Long, Long>> valueStateDescriptor =
  25.         new ValueStateDescriptor<>(
  26.             "lastFiveSecondsCountSumValueState",
  27.             Types.TUPLE(Types.STRING, Types.STRING, Types.STRING, Types.LONG, Types.LONG));
  28.     final String key = "buy";
  29.     /*
  30.      轮询执行查询
  31.      lastFiveSecondsCountSum queryableStateName，应和Server端的queryableStateName相同
  32.     */
  33.     while (true) {
  34.       CompletableFuture<ValueState<Tuple5<String, String, String, Long, Long>>> completableFuture =
  35.           client.getKvState(
  36.               jobId,
  37.               "lastFiveSecondsCountSum",
  38.               key,
  39.               BasicTypeInfo.STRING_TYPE_INFO,
  40.               valueStateDescriptor);
  41.       Tuple5<String, String, String, Long, Long> value = completableFuture.get().value();
  42.       System.out.println(
  43.           "Key: "
  44.               + value.f0
  45.               + " ,WindowStart: "
  46.               + value.f1
  47.               + " ,WindowEnd: "
  48.               + value.f2
  49.               + " ,Count: "
  50.               + value.f3
  51.               + " ,Sum: "
  52.               + value.f4);
  53.       Thread.sleep(1000);
  54.     }
  55.   }
  56. }
