官方文档
需要有公网服务器

下载 Frp 到服务器

下载

frp_0.29.1_linux_amd64.tar.gz

解压

  1. $ tar zxvf frp_0.29.1_linux_amd64.tar.gz

上传

  1. $ scp frps frps.ini root@192.168.0.124:/root/frps

配置

frpc

  1. [common]
  2. server_addr = 39.105.141.168
  3. server_port = 7000
  5. # for authentication
  6. # token = 12345678
  8. [dev1]
  9. type = tcp
  10. local_ip = 127.0.0.1
  11. local_port = 22
  12. remote_port = 6000
  14. [web]
  15. type = https
  16. local_port = 443
  17. custom_domains = abser.top

fprs

  1. # [common] is integral section
  2. [common]
  3. # A literal address or host name for IPv6 must be enclosed
  4. # in square brackets, as in "[::1]:80", "[ipv6-host]:http" or "[ipv6-host%zone]:80"
  5. bind_addr = 0.0.0.0
  6. bind_port = 7000
  8. # udp port to help make udp hole to penetrate nat
  9. bind_udp_port = 7001
  11. # udp port used for kcp protocol, it can be same with 'bind_port'
  12. # if not set, kcp is disabled in frps
  13. kcp_bind_port = 7000
  15. # if you want to support virtual host, you must set the http port for listening (optional)
  16. # Note: http port and https port can be same with bind_port
  17. vhost_http_port = 8000
  18. vhost_https_port = 4430
  20. # set dashboard_addr and dashboard_port to view dashboard of frps
  21. # dashboard_addr's default value is same with bind_addr
  22. # dashboard is available only if dashboard_port is set
  23. dashboard_addr = 0.0.0.0
  24. dashboard_port = 7500
  26. # dashboard user and passwd for basic auth protect, if not set, both default value is admin
  27. dashboard_user = admin
  28. dashboard_pwd = admin
  30. # dashboard assets directory(only for debug mode)
  31. # assets_dir = ./static
  32. # console or real logFile path like ./frps.log
  33. log_file = ./frps.log
  35. # trace, debug, info, warn, error
  36. log_level = info
  38. log_max_days = 3
  40. # disable log colors when log_file is console, default is false
  41. disable_log_color = false
  43. # max ports can be used for each client, default value is 0 means no limit
  44. max_ports_per_client = 0
  46. # if tcp stream multiplexing is used, default is true
  47. tcp_mux = true

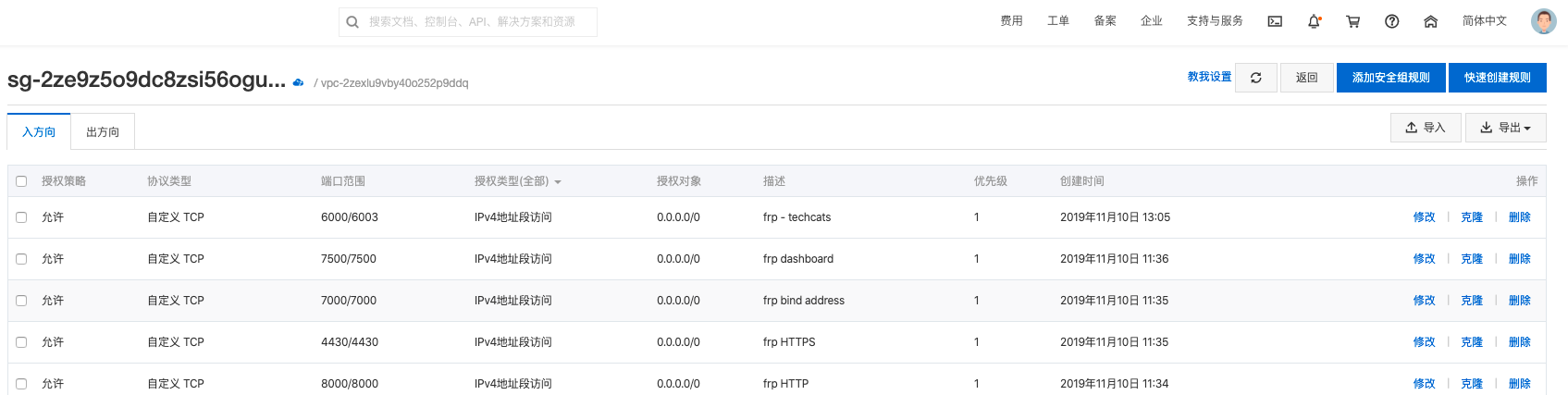

防火墙

阿里云


宝塔

或者关闭防火墙也行

启动与停止

centos 环境

运行

  1. $ nohup ./frps -c frps.ini >/dev/null 2>&1 &

或者客户端:

  1. $ nohup ./frpc -c ./frpc.ini >/dev/null 2>&1 &

停止

找到这个进程

  1. $ ps -aux|grep frp| grep -v grep
  2. root      3600  0.1  0.1 110188  9484 pts/0    Sl   15:04   0:00 ./frpc -c ./frpc.ini

kill

  1. $ kill -9 3600

运行

http://39.105.141.168:7500/static/#/proxies/tcp
