容器云技术

一、项目目的
二、项目要求
三、项目实施过程
四、项目总结

              ![image.png](https://cdn.nlark.com/yuque/0/2022/png/26240381/1654841146821-adc0bfcc-146b-4b10-b187-0bcce0017804.png#clientId=u65ce1ebf-8c91-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=101&id=fhkKZ&margin=%5Bobject%20Object%5D&name=image.png&originHeight=151&originWidth=151&originalType=binary&ratio=1&rotation=0&showTitle=false&size=40438&status=done&style=none&taskId=u04a006c7-219d-4e68-ba54-5357d8c592a&title=&width=100.66666666666667)**     江西现代职业技术学院**   <br />**容器云技术**<br />**实训报告**<br />**                      学        号:                20628670112                 **<br />**                      姓        名:                      黄文杰                         **<br />**                      学        院:                信息工程学院                                             **<br />**                      专        业:              云计算技术与应用             **<br />**                      班        级:                     2020级                         **<br />**                      指导教师:                       刘芃                             **

一、项目目的

容器技术是近几年云行业发展中不可缺少的一环。Docker和k8s的大热极大可能会推动云计算PAAS层的完善和普及。以Docker为基础，本次项目任务与目的分为五点：
1、了解Docker相关基础知识；
2、掌握DOCKER安装；
3、了解Docker镜像、容器和操作命令；
4、掌握Docker file的编写；
5、使学生养成在学习中相互配合，团结协作的习惯。

二、项目要求

综合项目的内容应该包括以下知识点：
1、安装DOCKER
2、安装并使用本地仓库
3、使用Dockerfile构建镜像
4、DockerCompose
5、Docker SWARM搭建
6、使用DOCKER STACK搭建服务栈

三、项目实施过程

3.1 docker 安装

3.1.1 准备一台最小安装的CentOS主机,保证此CentOS主机可以顺利访问Internet

[root@hwj ~]# ip add
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN qlen 1
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:a0:0d:4a brd ff:ff:ff:ff:ff:ff
    inet 192.168.20.200/24 brd 192.168.20.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::4158:b4b2:c6b4:819e/64 scope link
       valid_lft forever preferred_lft forever
[root@hwj ~]# ping -c 3 www.baidu.com
PING www.wshifen.com (45.113.192.101) 56(84) bytes of data.
64 bytes from 45.113.192.101 (45.113.192.101): icmp_seq=1 ttl=128 time=236 ms
64 bytes from 45.113.192.101 (45.113.192.101): icmp_seq=2 ttl=128 time=247 ms
64 bytes from 45.113.192.101 (45.113.192.101): icmp_seq=3 ttl=128 time=235 ms
--- www.wshifen.com ping statistics ---
3 packets transmitted, 3 received, 0% packet loss, time 2005ms
rtt min/avg/max/mdev = 235.514/240.084/247.955/5.603 ms

3.1.2 关闭防火墙、selinux和清空iptables

[root@hwj ~]# systemctl stop firewalld
[root@hwj ~]# systemctl disable firewalld
Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.
[root@hwj ~]# setenforce 0
[root@hwj ~]# vim /etc/sysconfig/selinux
[root@hwj ~]# cat /etc/sysconfig/selinux
# This file controls the state of SELinux on the system.
# SELINUX= can take one of these three values:
#     enforcing - SELinux security policy is enforced.
#     permissive - SELinux prints warnings instead of enforcing.
#     disabled - No SELinux policy is loaded.
SELINUX=disabled
[root@hwj ~]# getenforce
Permissive
[root@hwj ~]# iptables -F
[root@hwj ~]# iptables -X
[root@hwj ~]# iptables -Z
[root@hwj ~]# iptables -save
[root@hwj ~]# iptables-save
# Generated by iptables-save v1.4.21 on Thu Jun  9 08:48:05 2022
*filter
:INPUT ACCEPT [36:2196]
:FORWARD ACCEPT [0:0]
:OUTPUT ACCEPT [22:1912]
COMMIT
# Completed on Thu Jun  9 08:48:05 2022

3.1.3 修改yum源为阿里云

[root@hwj ~]# yum install wget
[root@hwj ~]# cd /etc/yum.repos.d
[root@hwj yum.repos.d]# mkdir upload
[root@hwj yum.repos.d]# mv CentOS-*.repo upload
[root@hwj yum.repos.d]# ls
upload
[root@hwj yum.repos.d]# wget -O /etc/yum.repos.d/Centos-7.repo
http://mirrors.aliyun.com/repo/Centos-7.repo
--2022-06-09 08:54:45--  http://mirrors.aliyun.com/repo/Centos-7.repo
正在解析主机 mirrors.aliyun.com (mirrors.aliyun.com)
... 106.225.243.214, 106.225.243.215, 106.225.243.216, ...
正在连接 mirrors.aliyun.com (mirrors.aliyun.com)|106.225.243.214|:80... 已连接。
已发出 HTTP 请求，正在等待回应... 200 OK
长度：2523 (2.5K) [application/octet-stream]
正在保存至: “/etc/yum.repos.d/Centos-7.repo”
100%[====================================================>] 2,523  --.-K/s 用时 0.01s
2022-06-09 08:54:46 (202 KB/s) - 已保存 “/etc/yum.repos.d/Centos-7.repo” [2523/2523])
[root@hwj yum.repos.d]# yum clean all &&yum makecache&&yum repolist
Determining fastest mirrors
* base: mirrors.aliyun.com
* extras: mirrors.aliyun.com
* updates: mirrors.aliyun.com
元数据缓存已建立
已加载插件：fastestmirror
Loading mirror speeds from cached hostfile
* base: mirrors.aliyun.com
* extras: mirrors.aliyun.com
* updates: mirrors.aliyun.com
源标识                 源名称                                    状态
base/7/x86_64         CentOS-7 - Base - mirrors.aliyun.com      10,072
extras/7/x86_64       CentOS-7 - Extras - mirrors.aliyun.com    512
updates/7/x86_64      CentOS-7 - Updates - mirrors.aliyun.com   3,863
repolist: 14,447

3.1.4 设置时间同步

[root@hwj yum.repos.d]# yum install -y ntp net-tools
[root@hwj yum.repos.d]# ntpdate cn.pool.ntp.org
 9 Jun 09:05:26 ntpdate[12069]: adjust time server 84.16.73.33 offset -0.004139 sec

3.1.5 安装Docker依赖环境(运行必备主件)

[root@hwj yum.repos.d]# yum install -y yum-utils device-mapper-persisitent-data lvm2

3.1.6 配置阿里云Docker-CE源

[root@hwj ~]# yum-config-manager --add-repo
http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
已加载插件：fastestmirror
adding repo from: http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
grabbing file http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo
to /etc/yum.repos.d/docker-ce.repo
repo saved to /etc/yum.repos.d/docker-ce.repo

3.1.7 安装Docker-CE最新版本并查看是否正常安装

[root@hwj ~]# yum install -y docker-ce
[root@hwj ~]# docker -v
Docker version 20.10.17, build 100c701
[root@hwj ~]# docker version
Client: Docker Engine - Community
 Version:           20.10.17
 API version:       1.41
 Go version:        go1.17.11
 Git commit:        100c701
 Built:             Mon Jun  6 23:05:12 2022
 OS/Arch:           linux/amd64
 Context:           default
 Experimental:      true

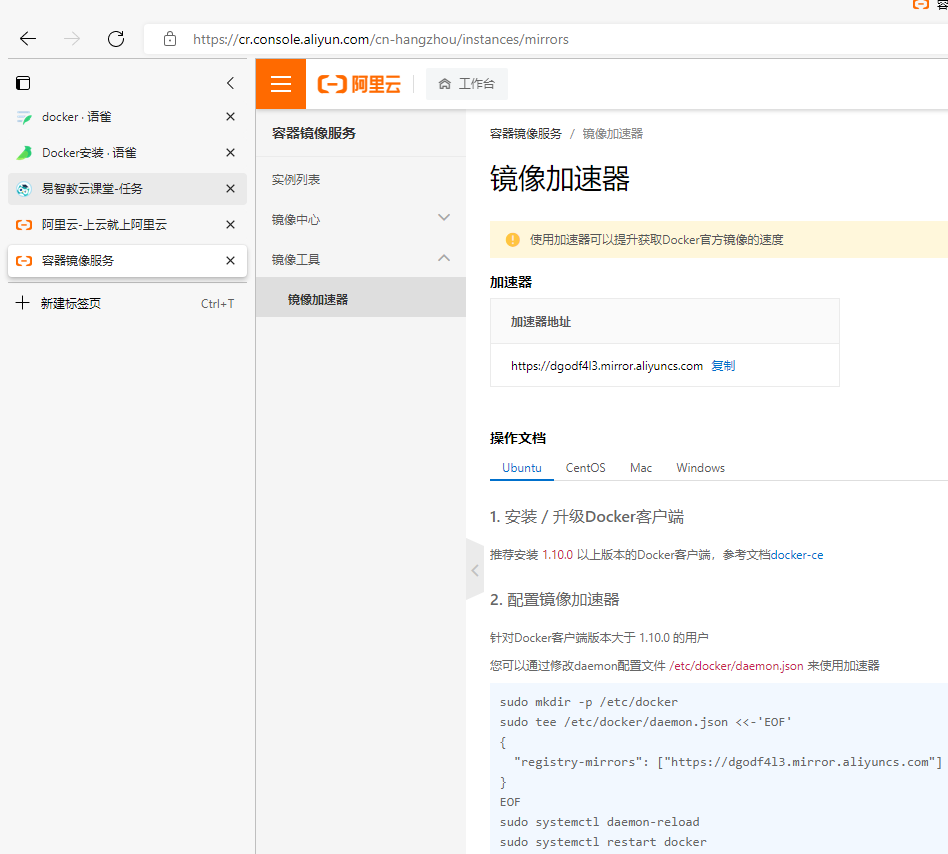

3.1.8 登录阿里云、添加docker本地镜像加速器

[root@hwj ~]#  mkdir -p /etc/docker
[root@hwj ~]# tee /etc/docker/daemon.json <<-'EOF'
> {
>   "registry-mirrors": ["https://dgodf4l3.mirror.aliyuncs.com"]
> }
> EOF
{
  "registry-mirrors": ["https://dgodf4l3.mirror.aliyuncs.com"]
}
[root@hwj ~]# systemctl daemon-reload
[root@hwj ~]# systemctl restart docker

3.1.9 启动Docker服务,并检查信息

[root@hwj ~]# systemctl start docker
[root@hwj ~]# systemctl enable docker
Created symlink from /etc/systemd/system/multi-user.target.wants/docker.service
to /usr/lib/systemd/system/docker.service
[root@hwj ~]# docker info
Client:
 Context:    default
 Debug Mode: false
 Plugins:
  app: Docker App (Docker Inc., v0.9.1-beta3)
  buildx: Docker Buildx (Docker Inc., v0.8.2-docker)
  scan: Docker Scan (Docker Inc., v0.17.0)
Server:
 Containers: 0
  Running: 0
  Paused: 0
  Stopped: 0
 Images: 0
 Server Version: 20.10.17
 Storage Driver: overlay2
  Backing Filesystem: extfs
  Supports d_type: true
  Native Overlay Diff: true
  userxattr: false
 Logging Driver: json-file
 Cgroup Driver: cgroupfs
 Cgroup Version: 1
 Plugins:
  Volume: local
  Network: bridge host ipvlan macvlan null overlay
  Log: awslogs fluentd gcplogs gelf journald json-file local logentries splunk syslog
 Swarm: inactive
 Runtimes: io.containerd.runc.v2 io.containerd.runtime.v1.linux runc
 Default Runtime: runc
 Init Binary: docker-init
 containerd version: 10c12954828e7c7c9b6e0ea9b0c02b01407d3ae1
 runc version: v1.1.2-0-ga916309
 init version: de40ad0
 Security Options:
  seccomp
   Profile: default
 Kernel Version: 3.10.0-693.el7.x86_64
 Operating System: CentOS Linux 7 (Core)
 OSType: linux
 Architecture: x86_64
 CPUs: 2
 Total Memory: 3.686GiB
 Name: hwj
 ID: GS3O:EENF:MDAA:RHSX:SAAW:DQ7A:XYVV:DC74:445I:VDR3:SQC6:ISAK
 Docker Root Dir: /var/lib/docker
 Debug Mode: false
 Registry: https://index.docker.io/v1/
 Labels:
 Experimental: false
 Insecure Registries:
  127.0.0.0/8
 Registry Mirrors:
  https://dgodf4l3.mirror.aliyuncs.com/
 Live Restore Enabled: false

3.1.10 运行镜像进行测试

[root@hwj ~]# docker run -d -p 1280:80 alexwhen/docker-2048
Unable to find image 'alexwhen/docker-2048:latest' locally
latest: Pulling from alexwhen/docker-2048
Image docker.io/alexwhen/docker-2048:latest uses outdated schema1 manifest format. Please upgrade to a schema2 image for better future compatibility. More information at https://docs.docker.com/registry/spec/deprecated-schema-v1/
c862d82a67a2: Pull complete
a3ed95caeb02: Pull complete
69dbbd8c451d: Pull complete
e9b345a0f742: Pull complete
Digest: sha256:4913452e5bd092db9c8b005523127b8f62821867021e23a9acb1ae0f7d2432e1
Status: Downloaded newer image for alexwhen/docker-2048:latest
4f15612768e00dd4059cfa02116ab526d2707cbb6a95331198e7ab69b5cae491

3.2安装并使用本地仓库

3.2.1 拉取本地仓库工具镜像registry

[root@hwj ~]# docker pull registry
Using default tag: latest
latest: Pulling from library/registry
79e9f2f55bf5: Pull complete
0d96da54f60b: Pull complete
5b27040df4a2: Pull complete
e2ead8259a04: Pull complete
3790aef225b9: Pull complete
Digest: sha256:169211e20e2f2d5d115674681eb79d21a217b296b43374b8e39f97fcf866b375
Status: Downloaded newer image for registry:latest
docker.io/library/registry:latest

3.2.2 运行一个Registry镜像仓库的容器实例

[root@hwj ~]# docker run -itd --restart=always \ #在后台运行交互模式，并给予一个伪终端
> --name hwj_registry \
> -p 12500:5000 \
> -v /hwj_registry/registry:/var/lib/registry \ #持久储存
> registry
5405c590ef0a66a445aa95c0b6b5f01e110b85386375672ffb3b20cca9d8ac3a

3.2.3 查看当前仓库下的镜像

[root@hwj ~]# curl 192.168.20.200:12500/v2/_catalog
{"repositories":[]}

3.2.4 添加本地不安全的仓库信息

[root@hwj ~]# vim /etc/docker/daemon.json
[root@hwj ~]# cat /etc/docker/daemon.json
{
  "insecure-registries": ["192.168.20.200:12500"],
  "registry-mirrors": ["https://dgodf4l3.mirror.aliyuncs.com"]
}

3.2.5 重新加载Docker服务配置文件并重新启动docker

[root@hwj ~]# systemctl daemon-reload
[root@hwj ~]# systemctl restart docker

3.2.6 修改镜像标签（重命名）

[root@hwj ~]# docker images
REPOSITORY   TAG       IMAGE ID       CREATED        SIZE
nginx        latest    605c77e624dd   5 months ago   141MB
registry     latest    b8604a3fe854   6 months ago   26.2MB
[root@hwj ~]# docker tag 605 192.168.20.200:12500/nginx:latest

3.2.7 上传镜像

[root@hwj ~]# docker push 192.168.20.200:12500/nginx:latest
The push refers to repository [192.168.20.200:12500/nginx]
d874fd2bc83b: Pushed
32ce5f6a5106: Pushed
f1db227348d0: Pushed
b8d6e692a25e: Pushed
e379e8aedd4d: Pushed
2edcec3590a4: Pushed
latest: digest: sha256:ee89b00528ff4f02f2405e4ee221743ebc3f8e8dd0bfd5c4c20a2fa2aaa7ede3
size: 1570

3.2.8 查看本次仓库镜像

[root@hwj ~]# curl 192.168.20.200:12500/v2/_catalog
{"repositories":["nginx"]}

3.3 使用Dockerfile构建镜像

3.3.1 创建上下文环境并创建首页文件(压缩)

[root@hwj ~]# mkdir httpd&&cd httpd
[root@hwj httpd]# vim index.html
[root@hwj httpd]# cat index.html

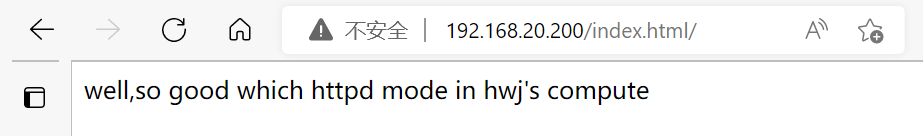

well,so good which httpd mode in hwj's compute
[root@hwj httpd]# tar -czvf index.html.tar index.html
index.html
[root@hwj httpd]# ls
index.html  index.html.tar

3.3.2 编写Dockerfile

[root@hwj httpd]# vim Dockerfile
[root@hwj httpd]# cat Dockerfile
ARG version=7
FROM centos:${version}
MAINTAINER HWJ
RUN mkdir /hwjvol
VOLUME ["vdata1","hwjvol"]
LABEL version="12" author=hwj description="This is hwj's nginx"
RUN yum install -y wget
RUN wget -O /etc/yum.repos.d/epel.repo http://mirrors.aliyun.com/repo/epel-7.repo
RUN yum clean all&&yum makecache
RUN yum install -y nginx
RUN echo "daemon off;" >> /etc/nginx/nginx.conf
ADD index.html.tar /usr/share/nginx/html/index.html
EXPOSE 80 443
CMD ["/usr/sbin/nginx"]

[root@localhost httpd]# docker build -t hwj_ng:12 -f /root/httpd/Dockerfile .
Sending build context to Docker daemon  4.096kB
Step 1/13 : ARG version=7
Step 2/13 : FROM centos:${version}
 ---> eeb6ee3f44bd
Step 3/13 : MAINTAINER HWJ
 ---> Running in 0c3164b512b5
Removing intermediate container 0c3164b512b5
 ---> 5f923fd3c365
Step 4/13 : RUN mkdir /hwjvol
 ---> Running in 381cdfc7c89f
Removing intermediate container 381cdfc7c89f
 ---> f2b8dcb77635
Step 5/13 : VOLUME ["vdata1","hwjvol"]
 ---> Running in 54a6373b9f44
Removing intermediate container 54a6373b9f44
 ---> 266371f1aa24
Step 6/13 : LABEL version="12" author=hwj description="This is hwj's nginx"
 ---> Running in cfa53128198d
Removing intermediate container cfa53128198d
 ---> d6dc212c1f18
Step 7/13 : RUN yum install -y wget
 ---> Running in bf4d940bf763
Loaded plugins: fastestmirror, ovl
Determining fastest mirrors
 * base: mirrors.huaweicloud.com
 * extras: mirrors.huaweicloud.com
 * updates: mirrors.ustc.edu.cn
Resolving Dependencies
--> Running transaction check
---> Package wget.x86_64 0:1.14-18.el7_6.1 will be installed
--> Finished Dependency Resolution
Dependencies Resolved
================================================================================
 Package        Arch             Version                   Repository      Size
================================================================================
Installing:
 wget           x86_64           1.14-18.el7_6.1           base           547 k
Transaction Summary
================================================================================
Install  1 Package
Total download size: 547 k
Installed size: 2.0 M
Downloading packages:
warning: /var/cache/yum/x86_64/7/base/packages/wget-1.14-18.el7_6.1.x86_64.rpm: Header V3 RSA/SHA256 Signature, key ID f4a80eb5: NOKEY
Public key for wget-1.14-18.el7_6.1.x86_64.rpm is not installed
Retrieving key from file:///etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
Importing GPG key 0xF4A80EB5:
 Userid     : "CentOS-7 Key (CentOS 7 Official Signing Key) <security@centos.org>"
 Fingerprint: 6341 ab27 53d7 8a78 a7c2 7bb1 24c6 a8a7 f4a8 0eb5
 Package    : centos-release-7-9.2009.0.el7.centos.x86_64 (@CentOS)
 From       : /etc/pki/rpm-gpg/RPM-GPG-KEY-CentOS-7
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : wget-1.14-18.el7_6.1.x86_64                                  1/1
install-info: No such file or directory for /usr/share/info/wget.info.gz
  Verifying  : wget-1.14-18.el7_6.1.x86_64                                  1/1
Installed:
  wget.x86_64 0:1.14-18.el7_6.1
Complete!
Removing intermediate container bf4d940bf763
 ---> 2aa125d5d77b
Step 8/13 : RUN wget -O /etc/yum.repos.d/epel.repo http://mirrors.aliyun.com/repo/epel-7.repo
 ---> Running in f51f912e28ee
--2022-06-09 06:42:30--  http://mirrors.aliyun.com/repo/epel-7.repo
Resolving mirrors.aliyun.com (mirrors.aliyun.com)... 117.167.122.240, 117.167.122.1, 117.167.122.241, ...
Connecting to mirrors.aliyun.com (mirrors.aliyun.com)|117.167.122.240|:80... connected.
HTTP request sent, awaiting response... 200 OK
Length: 664 [application/octet-stream]
Saving to: '/etc/yum.repos.d/epel.repo'
     0K                                                       100%  323M=0s
2022-06-09 06:42:30 (323 MB/s) - '/etc/yum.repos.d/epel.repo' saved [664/664]
Removing intermediate container f51f912e28ee
 ---> adfd63435aa0
Step 9/13 : RUN yum install -y nginx
 ---> Running in 7cd959c04e31
Loaded plugins: fastestmirror, ovl
Loading mirror speeds from cached hostfile
 * base: mirrors.huaweicloud.com
 * extras: mirrors.huaweicloud.com
 * updates: mirrors.ustc.edu.cn
Resolving Dependencies
--> Running transaction check
---> Package nginx.x86_64 1:1.20.1-9.el7 will be installed
--> Processing Dependency: nginx-filesystem = 1:1.20.1-9.el7 for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libcrypto.so.1.1(OPENSSL_1_1_0)(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libssl.so.1.1(OPENSSL_1_1_0)(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libssl.so.1.1(OPENSSL_1_1_1)(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: nginx-filesystem for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: openssl for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: redhat-indexhtml for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: system-logos for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libcrypto.so.1.1()(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libprofiler.so.0()(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libssl.so.1.1()(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Running transaction check
---> Package centos-indexhtml.noarch 0:7-9.el7.centos will be installed
---> Package centos-logos.noarch 0:70.0.6-3.el7.centos will be installed
---> Package gperftools-libs.x86_64 0:2.6.1-1.el7 will be installed
---> Package nginx-filesystem.noarch 1:1.20.1-9.el7 will be installed
---> Package openssl.x86_64 1:1.0.2k-25.el7_9 will be installed
--> Processing Dependency: openssl-libs(x86-64) = 1:1.0.2k-25.el7_9 for package: 1:openssl-1.0.2k-25.el7_9.x86_64
--> Processing Dependency: make for package: 1:openssl-1.0.2k-25.el7_9.x86_64
---> Package openssl11-libs.x86_64 1:1.1.1k-3.el7 will be installed
--> Running transaction check
---> Package make.x86_64 1:3.82-24.el7 will be installed
---> Package openssl-libs.x86_64 1:1.0.2k-19.el7 will be updated
---> Package openssl-libs.x86_64 1:1.0.2k-25.el7_9 will be an update
--> Finished Dependency Resolution
Dependencies Resolved
================================================================================
 Package               Arch        Version                   Repository    Size
================================================================================
Installing:
 nginx                 x86_64      1:1.20.1-9.el7            epel         587 k
Installing for dependencies:
 centos-indexhtml      noarch      7-9.el7.centos            base          92 k
 centos-logos          noarch      70.0.6-3.el7.centos       base          21 M
 gperftools-libs       x86_64      2.6.1-1.el7               base         272 k
 make                  x86_64      1:3.82-24.el7             base         421 k
 nginx-filesystem      noarch      1:1.20.1-9.el7            epel          24 k
 openssl               x86_64      1:1.0.2k-25.el7_9         updates      494 k
 openssl11-libs        x86_64      1:1.1.1k-3.el7            epel         1.5 M
Updating for dependencies:
 openssl-libs          x86_64      1:1.0.2k-25.el7_9         updates      1.2 M
Transaction Summary
================================================================================
Install  1 Package  (+7 Dependent packages)
Upgrade             ( 1 Dependent package)
Total download size: 26 M
Downloading packages:
Delta RPMs disabled because /usr/bin/applydeltarpm not installed.
^C
[root@localhost httpd]# vim Dockerfile
[root@localhost httpd]# docker build -t hwj_ng:12 -f /root/httpd/Dockerfile .
Sending build context to Docker daemon  4.096kB
Step 1/14 : ARG version=7
Step 2/14 : FROM centos:${version}
 ---> eeb6ee3f44bd
Step 3/14 : MAINTAINER HWJ
 ---> Using cache
 ---> 5f923fd3c365
Step 4/14 : RUN mkdir /hwjvol
 ---> Using cache
 ---> f2b8dcb77635
Step 5/14 : VOLUME ["vdata1","hwjvol"]
 ---> Using cache
 ---> 266371f1aa24
Step 6/14 : LABEL version="12" author=hwj description="This is hwj's nginx"
 ---> Using cache
 ---> d6dc212c1f18
Step 7/14 : RUN yum install -y wget
 ---> Using cache
 ---> 2aa125d5d77b
Step 8/14 : RUN wget -O /etc/yum.repos.d/epel.repo http://mirrors.aliyun.com/repo/epel-7.repo
 ---> Using cache
 ---> adfd63435aa0
Step 9/14 : RUN yum clean all&&yum makecache
 ---> Running in 9e48660d4870
Loaded plugins: fastestmirror, ovl
Cleaning repos: base epel extras updates
Cleaning up list of fastest mirrors
Loaded plugins: fastestmirror, ovl
Determining fastest mirrors
 * base: mirrors.dgut.edu.cn
 * extras: ftp.sjtu.edu.cn
 * updates: mirrors.ustc.edu.cn
Metadata Cache Created
Removing intermediate container 9e48660d4870
 ---> e8169943f047
Step 10/14 : RUN yum install -y nginx
 ---> Running in f31c6dda10ad
Loaded plugins: fastestmirror, ovl
Loading mirror speeds from cached hostfile
 * base: mirrors.dgut.edu.cn
 * extras: ftp.sjtu.edu.cn
 * updates: mirrors.ustc.edu.cn
Resolving Dependencies
--> Running transaction check
---> Package nginx.x86_64 1:1.20.1-9.el7 will be installed
--> Processing Dependency: nginx-filesystem = 1:1.20.1-9.el7 for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libcrypto.so.1.1(OPENSSL_1_1_0)(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libssl.so.1.1(OPENSSL_1_1_0)(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libssl.so.1.1(OPENSSL_1_1_1)(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: nginx-filesystem for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: openssl for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: redhat-indexhtml for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: system-logos for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libcrypto.so.1.1()(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libprofiler.so.0()(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Processing Dependency: libssl.so.1.1()(64bit) for package: 1:nginx-1.20.1-9.el7.x86_64
--> Running transaction check
---> Package centos-indexhtml.noarch 0:7-9.el7.centos will be installed
---> Package centos-logos.noarch 0:70.0.6-3.el7.centos will be installed
---> Package gperftools-libs.x86_64 0:2.6.1-1.el7 will be installed
---> Package nginx-filesystem.noarch 1:1.20.1-9.el7 will be installed
---> Package openssl.x86_64 1:1.0.2k-25.el7_9 will be installed
--> Processing Dependency: openssl-libs(x86-64) = 1:1.0.2k-25.el7_9 for package: 1:openssl-1.0.2k-25.el7_9.x86_64
--> Processing Dependency: make for package: 1:openssl-1.0.2k-25.el7_9.x86_64
---> Package openssl11-libs.x86_64 1:1.1.1k-3.el7 will be installed
--> Running transaction check
---> Package make.x86_64 1:3.82-24.el7 will be installed
---> Package openssl-libs.x86_64 1:1.0.2k-19.el7 will be updated
---> Package openssl-libs.x86_64 1:1.0.2k-25.el7_9 will be an update
--> Finished Dependency Resolution
Dependencies Resolved
================================================================================
 Package               Arch        Version                   Repository    Size
================================================================================
Installing:
 nginx                 x86_64      1:1.20.1-9.el7            epel         587 k
Installing for dependencies:
 centos-indexhtml      noarch      7-9.el7.centos            base          92 k
 centos-logos          noarch      70.0.6-3.el7.centos       base          21 M
 gperftools-libs       x86_64      2.6.1-1.el7               base         272 k
 make                  x86_64      1:3.82-24.el7             base         421 k
 nginx-filesystem      noarch      1:1.20.1-9.el7            epel          24 k
 openssl               x86_64      1:1.0.2k-25.el7_9         updates      494 k
 openssl11-libs        x86_64      1:1.1.1k-3.el7            epel         1.5 M
Updating for dependencies:
 openssl-libs          x86_64      1:1.0.2k-25.el7_9         updates      1.2 M
Transaction Summary
================================================================================
Install  1 Package  (+7 Dependent packages)
Upgrade             ( 1 Dependent package)
Total download size: 26 M
Downloading packages:
Delta RPMs disabled because /usr/bin/applydeltarpm not installed.
Message from syslogd@localhost at Jun  9 14:53:49 ...
 kernel:unregister_netdevice: waiting for lo to become free. Usage count = 1
--------------------------------------------------------------------------------
Total                                              563 kB/s |  26 MB  00:46
Running transaction check
Running transaction test
Transaction test succeeded
Running transaction
  Installing : centos-logos-70.0.6-3.el7.centos.noarch                     1/10
  Installing : centos-indexhtml-7-9.el7.centos.noarch                      2/10
  Installing : 1:openssl11-libs-1.1.1k-3.el7.x86_64                        3/10
  Installing : 1:make-3.82-24.el7.x86_64                                   4/10
  Installing : gperftools-libs-2.6.1-1.el7.x86_64                          5/10
  Updating   : 1:openssl-libs-1.0.2k-25.el7_9.x86_64                       6/10
  Installing : 1:openssl-1.0.2k-25.el7_9.x86_64                            7/10
  Installing : 1:nginx-filesystem-1.20.1-9.el7.noarch                      8/10
  Installing : 1:nginx-1.20.1-9.el7.x86_64                                 9/10
  Cleanup    : 1:openssl-libs-1.0.2k-19.el7.x86_64                        10/10
  Verifying  : 1:nginx-filesystem-1.20.1-9.el7.noarch                      1/10
  Verifying  : 1:nginx-1.20.1-9.el7.x86_64                                 2/10
  Verifying  : 1:openssl-libs-1.0.2k-25.el7_9.x86_64                       3/10
  Verifying  : 1:openssl-1.0.2k-25.el7_9.x86_64                            4/10
  Verifying  : gperftools-libs-2.6.1-1.el7.x86_64                          5/10
  Verifying  : 1:make-3.82-24.el7.x86_64                                   6/10
  Verifying  : 1:openssl11-libs-1.1.1k-3.el7.x86_64                        7/10
  Verifying  : centos-indexhtml-7-9.el7.centos.noarch                      8/10
  Verifying  : centos-logos-70.0.6-3.el7.centos.noarch                     9/10
  Verifying  : 1:openssl-libs-1.0.2k-19.el7.x86_64                        10/10
Installed:
  nginx.x86_64 1:1.20.1-9.el7
Dependency Installed:
  centos-indexhtml.noarch 0:7-9.el7.centos
  centos-logos.noarch 0:70.0.6-3.el7.centos
  gperftools-libs.x86_64 0:2.6.1-1.el7
  make.x86_64 1:3.82-24.el7
  nginx-filesystem.noarch 1:1.20.1-9.el7
  openssl.x86_64 1:1.0.2k-25.el7_9
  openssl11-libs.x86_64 1:1.1.1k-3.el7
Dependency Updated:
  openssl-libs.x86_64 1:1.0.2k-25.el7_9
Complete!
Removing intermediate container f31c6dda10ad
 ---> 0a73e810765b
Step 11/14 : RUN echo "daemon off;" >> /etc/nginx/nginx.conf
 ---> Running in 910d281b823f
Removing intermediate container 910d281b823f
 ---> 3d6c5271e013
Step 12/14 : ADD index.html.tar /usr/share/nginx/html/index.html
 ---> 6718e5b433de
Step 13/14 : EXPOSE 80 443
 ---> Running in c986cab88516
Removing intermediate container c986cab88516
 ---> 5e7325370764
Step 14/14 : CMD ["/usr/sbin/nginx"]
 ---> Running in 57e755be5d93
Removing intermediate container 57e755be5d93
 ---> 9a383288af3b
Successfully built 9a383288af3b
Successfully tagged hwj_ng:12

3.3.3 运行镜像

[root@localhost httpd]# docker run -d -p 1280:80  --name hwj_ng 9a3
3cb0dd0032bb399fdc393377fb987eb59e8e611b3b7882e7a1e59687c95b1994
[root@manager httpd]# curl 192.168.20.200:80
<html>
<head><title>301 Moved Permanently</title></head>
<body>
<center><h1>301 Moved Permanently</h1></center>
<hr><center>nginx/1.20.1</center>
</body>
</html>

3.4 Docker Compose搭建使用(以minio文件服务器为例)

3.4.1 安装Docker compose

docker-compose.rar
下载解压后移动为/usr/local/bin/docker-compose

[root@localhost ~]# chmod +x /usr/local/bin/docker-compose

[root@localhost ~]# ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose

[root@localhost ~]# docker-compose --version
docker-compose version 1.29.2, build 5becea4c

3.4.2 创建一个空的项目目录并切换到该项目目录

[root@localhost ~]# mkdir my_minio&&cd my_minio

3.4.3 准备所需镜像并上传本地仓库

[root@manager my_minio]# docker pull minio/minio:RELEASE.2021-06-17T00-10-46Z
Using default tag: latest
latest: Pulling from minio/minio
d46336f50433: Pull complete
be961ec68663: Pull complete
44173c602141: Pull complete
a9809a6a679b: Pull complete
df29d4a76971: Pull complete
2b5a8853d302: Pull complete
84f01ee8dfc1: Pull complete
Digest: sha256:d786220feef7d8fe0239d41b5d74501dc824f6e7dd0e5a05749c502fff225bf3
Status: Downloaded newer image for minio/minio:latest
docker.io/minio/minio:latest

[root@manager my_minio]# docker pull postgres:10.0
10.0: Pulling from library/postgres
3e17c6eae66c: Pull complete
edb9dc1cfcb8: Pull complete
7a344e5b3663: Pull complete
d619f9c5def6: Pull complete
225b82de1e67: Pull complete
10daa23c1d9a: Pull complete
4ba4a4b2d69b: Pull complete
3fc3e282a06c: Pull complete
db8508199c1a: Pull complete
99445470b9b6: Pull complete
dd01bf2076d4: Pull complete
292c6e56e62f: Pull complete
7a07813393c7: Pull complete
Digest: sha256:95e54755cb3a59a56dc2d98d8e8a0b4436537185c7b240eb140069208ec35e22
Status: Downloaded newer image for postgres:10.0
docker.io/library/postgres:10.0
[root@manager my_minio]# docker tag 486 manager:12500/postgre:10.0
[root@manager my_minio]# docker push  manager:12500/postgre:10.0
The push refers to repository [manager:12500/postgre]
fd5630d46a12: Pushed
a7081ac6936d: Pushed
f61a0d61c68d: Pushed
5b40c79cc039: Pushed
df8b904bd3d8: Pushed
9b49ef35a744: Pushed
61e70493df47: Pushed
b52d45345a58: Pushed
87838a6465f4: Pushed
d82ca2d81d59: Pushed
c5af23d9ec6a: Pushed
154fff363662: Pushed
a75caa09eb1f: Pushed
10.0: digest: sha256:061cfd1ede70e0536bc2ca69cd3dcaf0baa32e7211089b32782ba96ab7465fa1 size: 3033

[root@manager my_minio]# docker pull minio/mc
Using default tag: latest
latest: Pulling from minio/mc
d46336f50433: Already exists
be961ec68663: Already exists
61a5592daf49: Pull complete
dfba010b74b1: Pull complete
b60995d41f27: Downloading [=========>                                         ]  13.12MB/70.73MB
latest: Pulling from minio/mc
54e56e6f8572: Pull complete
4f8ddd7f5a75: Pull complete
09b72602014c: Pull complete
b38e8de6b5d9: Pull complete
c3b3b83f5fc9: Pull complete
Digest: sha256:76f22dba106471fda3c2377d6b537587b1bf5ba942d88f2e068307708203987e
Status: Downloaded newer image for minio/mc:latest
docker.io/minio/mc:latest
[root@manager my_minio]# docker tag c73 manager:12500/minio/mc:latest
[root@manager my_minio]# docker push manager:12500/minio/mc:latest
The push refers to repository [manager:12500/minio/mc]
a78878a2432b: Mounted from minio/mc/latest
80c9e3f0e4b9: Mounted from minio/mc/latest
c09fb7c93f16: Mounted from minio/mc/latest
f1ccf0afcb5e: Mounted from minio/mc/latest
235cb1df51fd: Mounted from minio/mc/latest
latest: digest: sha256:817b423528c92044b3647ee7e5ab9330cc5675705c8bb534626789c37aae03d4 size: 1367
[root@manager my_minio]# docker tag c73 manager:12500/minio/mc/latest
[root@manager my_minio]# docker push manager:12500/minio/mc/latest
Using default tag: latest
The push refers to repository [manager:12500/minio/mc/latest]
a78878a2432b: Pushed
80c9e3f0e4b9: Pushed
c09fb7c93f16: Pushed
f1ccf0afcb5e: Pushed
235cb1df51fd: Pushed
latest: digest: sha256:817b423528c92044b3647ee7e5ab9330cc5675705c8bb534626789c37aae03d4 size: 1367

[root@manager my_minio]# docker pull elasticsearch:7.6.0
7.6.0: Pulling from library/elasticsearch
ab5ef0e58194: Pull complete
c7bddb370e64: Pull complete
b477f7f946d3: Pull complete
5a7d0cebbd37: Pull complete
72685965d8ec: Pull complete
9fdbb1d5d01e: Pull complete
f96afe9ae49e: Pull complete
Digest: sha256:578266a8f2de6e1a6896c487dd45cfc901a82ddf50be13bb7c56f97ecd693f77
Status: Downloaded newer image for elasticsearch:7.6.0
docker.io/library/elasticsearch:7.6.0
[root@manager my_minio]# docker tag 5d2 manager:12500/elasticsearch:7.6.0
[root@manager my_minio]# docker push  manager:12500/elasticsearch:7.6.0
The push refers to repository [manager:12500/elasticsearch]
a18779c7c0ef: Pushed
29cf507845ab: Pushed
97e12b10a622: Pushed
d261ef39581a: Pushed
e67ea6265347: Pushed
05efe25e0619: Pushed
77b174a6a187: Pushed
7.6.0: digest: sha256:80326aed1c82da6aa25d333e934553dc2f01e3573fe21798e5a5966125d407bb size: 1785

3.4.4 创建Docker-compose文件

[root@manager my_minio]# vim docker-compose.yml
[root@manager my_minio]# cat docker-compose.yml
version: "3.7"
services:
  minio:
    container_name: hwj_minio    #运行容器的名称
    image: minio/minio:RELEASE.2021-06-17T00-10-46Z
    restart: always
    volumes:
      - /opt/data/minio/data:/data
      - /etc/localtime:/etc/localtime
    ports:
      - 12900:9000
    environment:
      MINIO_ACCESS_KEY: name         #minio的账户名称
      MINIO_SECRET_KEY: password     #minio的账户密码
    command: server /data
    networks:
      - hwj_net
  minio_init:
    container_name: hwj_minio_init
    image: manager:12500/minio/mc:latest
    entrypoint:                     #运行位置
      - /bin/bash
      - -c
    depends_on:                     #依赖关系
      - minio
    networks:
      - hwj_net
  db:
    container_name: hwj_db
    image: manager:12500/postgre:10.0
    restart: always
    environment:                    #sql数据库环境
      - POSTGRES_DB=minio
      - POSTGRES_USER=minio
      - POSTGRES_PASSWORD=P@ssw0rd
      - PGDATA=/var/lib/postgresql/data
    volumes:
      - /opt/data/postgresql/data:/var/lib/postgresql/data
    ports:
      - "5432:5432"
    networks:
      - hwj_net
  elasticsearch:
    container_name: hwj_elastic
    image: manager:12500/elasticsearch:7.6.0
    restart: always
    ports:
      - "9300:9300"
      - "9200:9200"
    environment:
      - discovery.type=single-node      #发现方式
    volumes:
      - /opt/data/elasticsearch/data:/usr/share/elasticsearch/data
    networks:
      - hwj_net
networks:
  hwj_net:
    name: hwj_net
    driver: bridge

3.4.5 运行docker-compose

[root@manager my_minio]# vim docker-compose.yml
[root@manager my_minio]# docker-compose up -d
Creating network "hwj_net" with driver "bridge"
Creating hwj_db      ... done
Creating hwj_elastic ... done
Creating hwj_minio   ... done
Creating hwj_minio_init ... done

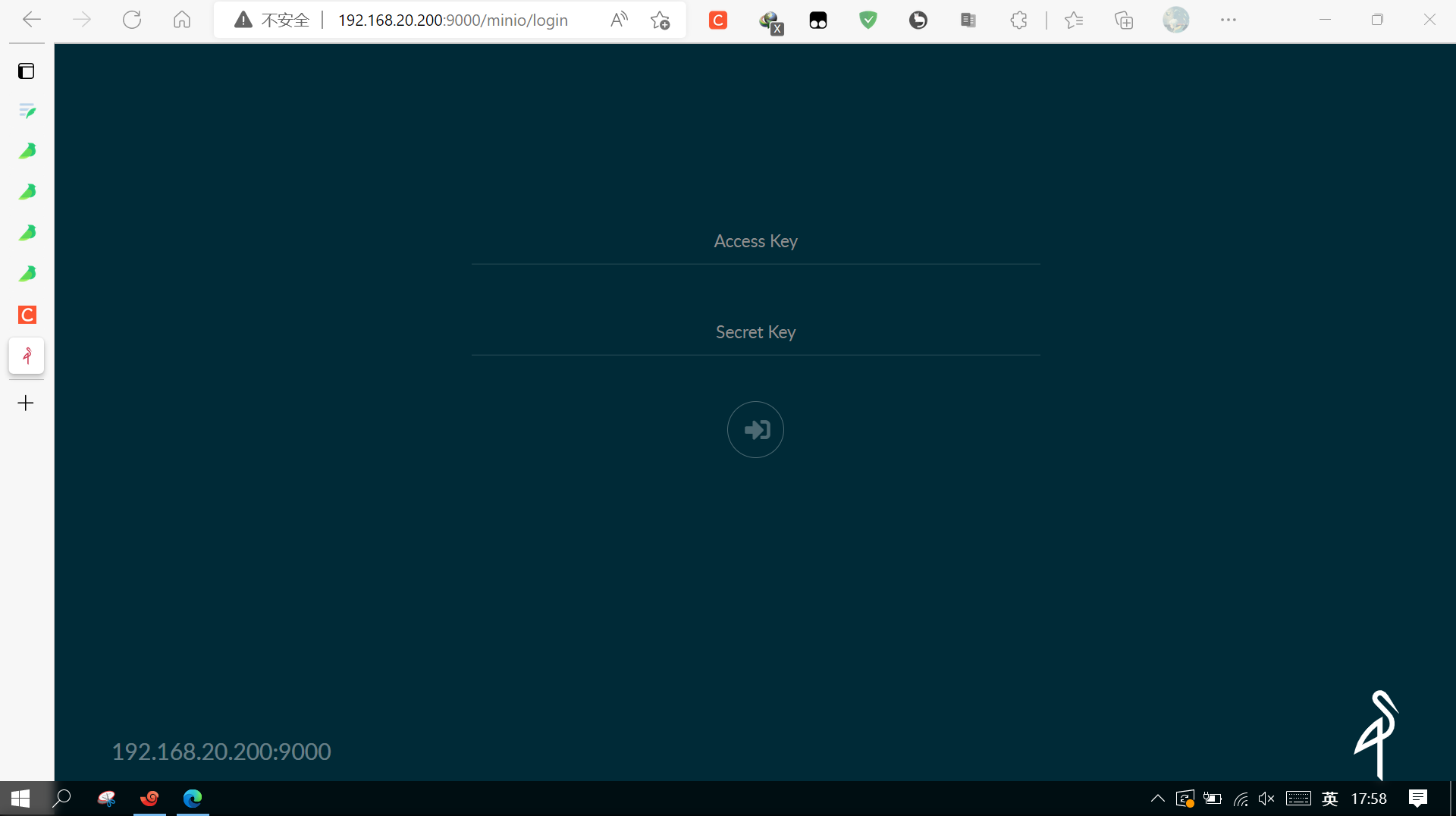

minio是一种专注于对象存储的软件，可以兼容亚马逊的s3接口，同时内置了webserver，运行主程序之后可以直接的使用网页进行连接。

通过左下角可以创建文件夹和上传文件，也可以通过安装的minio/mc客户端管理工具管理

3.4.6 mc客户端工具和下载使用方法（非友情连接）

https://blog.csdn.net/qq_42402854/article/details/121474018?ops_request_misc=&request_id=&biz_id=102&spm=1018.2226.3001.4187

3.5 搭建docker swarm集群

3.5.1 准备三台服务器

主机	操作系统	IP地址	主要软件
manager	centos 7	192.168.20.200	Docker
worker01	centos 7	192.168.20.201	Docker
worker02	centos 7	192.168.20.202	Docker

3.5.2 关闭三台主机的防火墙及SELINUX，设置系统主机名以及 Host 文件的相互解析

这里以manager为例

[root@manager ~]# vim /etc/hosts
[root@manager ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.20.200  manager
192.168.20.201 worker01
192.168.20.202 worker02

3.5.3 在manager节点执行

root@manager ~]# docker swarm init --advertise-addr 192.168.20.200
Swarm initialized: current node (bdbpqpnsphmhh3tbeum6u7jb4) is now a manager.

To add a worker to this swarm, run the following command:

    docker swarm join --token SWMTKN-1-10qmh43baxo5qp2wm6ye0kwun6g55n2hezi3p3qbd6hyytoclw-82ew9wteyw469bnrxutv9ubd7 192.168.20.200:2377

To add a manager to this swarm, run 'docker swarm join-token manager' and follow the instructions.

3.5.4 在工作节点执行上面的加入指令

[root@worker01 ~]# docker swarm join --token SWMTKN-1-10qmh43baxo5qp2wm6ye0kwun6g55n2hezi3p3qbd6hyytoclw-82ew9wteyw469bnrxutv9ubd7 192.168.20.200:2377
This node joined a swarm as a worker.

3.5.5 查看集群中的节点

[root@manager ~]# docker node ls
ID                            HOSTNAME   STATUS    AVAILABILITY   MANAGER STATUS   ENGINE VERSION
bdbpqpnsphmhh3tbeum6u7jb4 *   manager    Ready     Active         Leader           20.10.12
q64qn6q4klsdthd0pffoh1s1a     worker01   Ready     Active                          20.10.12
291f7yfi6q9889549flh6e9sp     worker02   Ready     Active                          20.10.12

3.6 使用Docker Stack 部署(home-assistant)

3.6.1 拉取homeassistant/home-assistant和mysql的镜像

[root@manager ~]# docker pull homeassistan/home-assistant
[root@manager ~]# docker pull mysql

3.6.2 将镜像全部上传本地仓库

[root@manager ~]# docker tag 773 manager:12500/homeassisant/home-assistant:latest
[root@manager ~]# docker push manager:12500/homeassisant/home-assistant:latest
The push refers to repository [manager:12500/homeassisant/home-assistant]
e5b1dd04b331: Pushed
ec542c62c153: Pushed
1d13107313ed: Pushed
77dc48b91677: Pushed
be2828812449: Pushed
9d2650ca7417: Pushed
0e51ffe3acc2: Pushed
140f8bec1872: Pushed
de7afb379aa0: Pushed
34a28ce4412c: Pushed
d7b04a5cbce5: Pushed
724086462346: Pushed
ef173cabde8b: Pushed
42322d697e88: Pushed
d0d5bda440ff: Pushed
969767cea71d: Pushed
17e0deeb402c: Pushed
5ecc7efaace6: Pushed
f532417221f4: Pushed
5b86a8d70922: Pushed
20a92118600a: Pushed
b2f43f6b25ef: Pushed
eb83beb5f4c2: Pushed
029d51f4d389: Pushed
42d768421933: Pushed
7b02b55000a2: Pushed
92e486a42e39: Pushed
e2eb06d8af82: Pushed
latest: digest: sha256:3af366423713a6144adf9081b1ede2c21d8511c0048ac4c04615da26a5caf8d6 size: 6190
[root@manager ~]# docker tag 321 manager:12500/mysql:latest
[root@manager ~]# docker push  manager:12500/mysql:latest

3.6.3 编辑yml文件

[root@manager ~]# mkdir home.app&&cd home.app
[root@manager home.app]# vim home.yml
[root@manager home.app]# cat home.yml
version: "3.2"

services:
  home:
    image: manager:12500/homeassisant/home-assistant
    ports:
      - "8123:8123"
    networks:
      - hwj_net
    depends_on:
      - database
    volumes:
      - config:/config
      - localtime:/etc/localtime:ro
    deploy:
      mode: replicated   #复制3台
      replicas: 3
      restart_policy:
        condition: on-failure
        delay: 5s
        max_attempts: 3     #环境是失败后延迟五秒 最多尝试3次
      update_config:
        parallelism: 1
        delay: 10s
  database:
    image: manager:12500/mysql:latest
    networks:
      - hwj_net
    volumes:
      - mysql_data:/var/lib/mysql
    environment:
      MYSQL_ROOT_PASSWORD: homeassisant
      MYSQL_DATABASE: homeassisant
      MYSQL_USER: homeassisant
      MYSQL_PASSWORD: homeassisant
    deploy:
      mode: global
      placement:
        constraints:
          - node.role == manager
networks:
  hwj_net:
    driver: overlay
volumes:
  mysql_data:
  config:
  localtime:

3.6.4 通过docker stack部署服务

[root@manager home.app]# docker stack deploy -c home.yml hwj_home
Creating network hwj_home_hwj_net
Creating service hwj_home_home
Creating service hwj_home_database

3.6.5 查看服务

[root@manager home.app]# docker stack ps hwj_home
ID             NAME                                          IMAGE                                              NODE       DESIRED STATE   CURRENT STATE           ERROR     PORTS
oksd01bdyu86   hwj_home_database.bdbpqpnsphmhh3tbeum6u7jb4   manager:12500/mysql:latest                         manager    Running         Running 4 minutes ago
y4bckix1dd9r   hwj_home_home.1                               manager:12500/homeassisant/home-assistant:latest   worker02   Running         Running 4 minutes ago
vfjepib2bqc3   hwj_home_home.2                               manager:12500/homeassisant/home-assistant:latest   manager    Running         Running 4 minutes ago
789lyiblqbhz   hwj_home_home.3                               manager:12500/homeassisant/home-assistant:latest   worker01   Running         Running 4 minutes ago

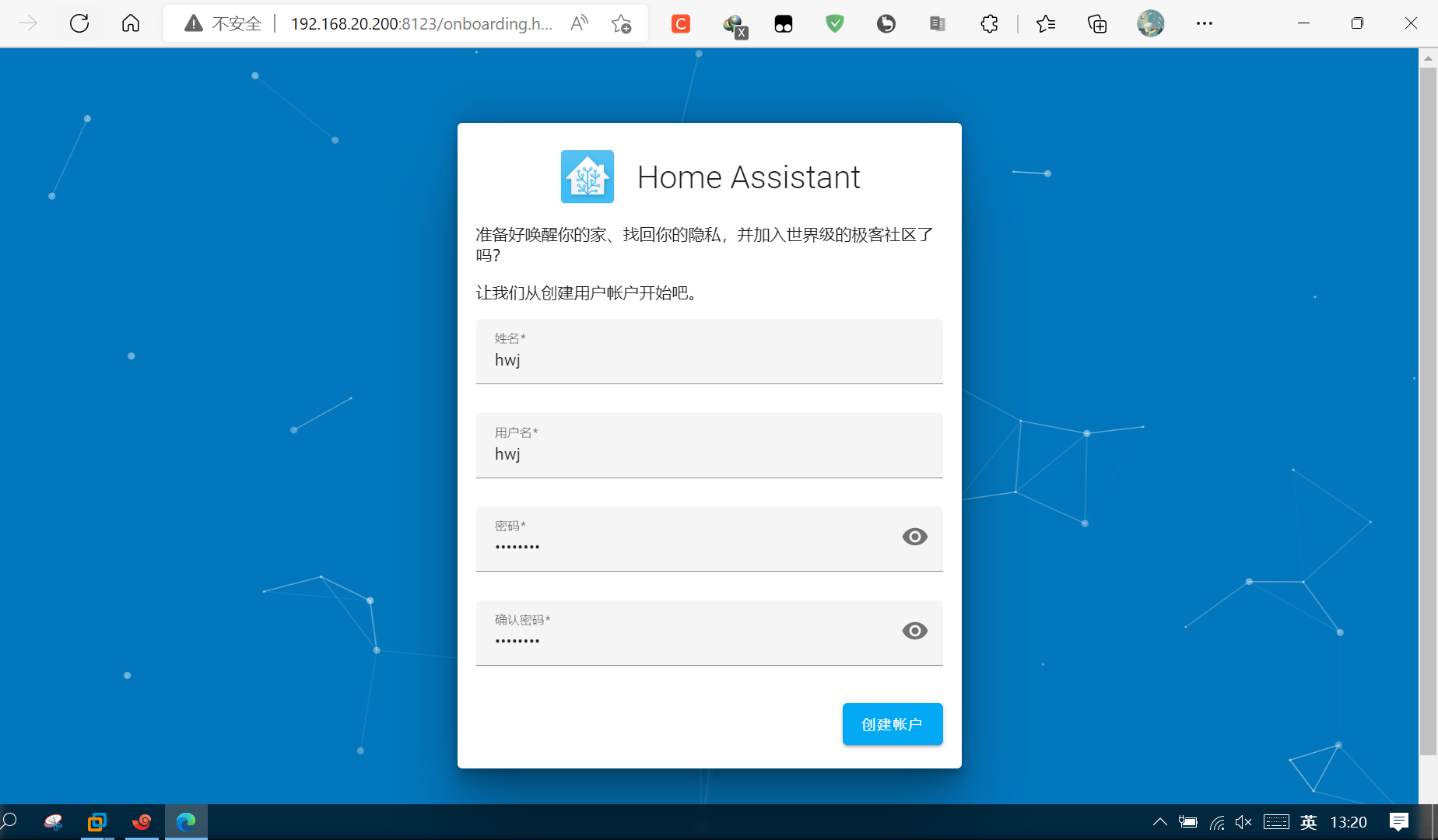

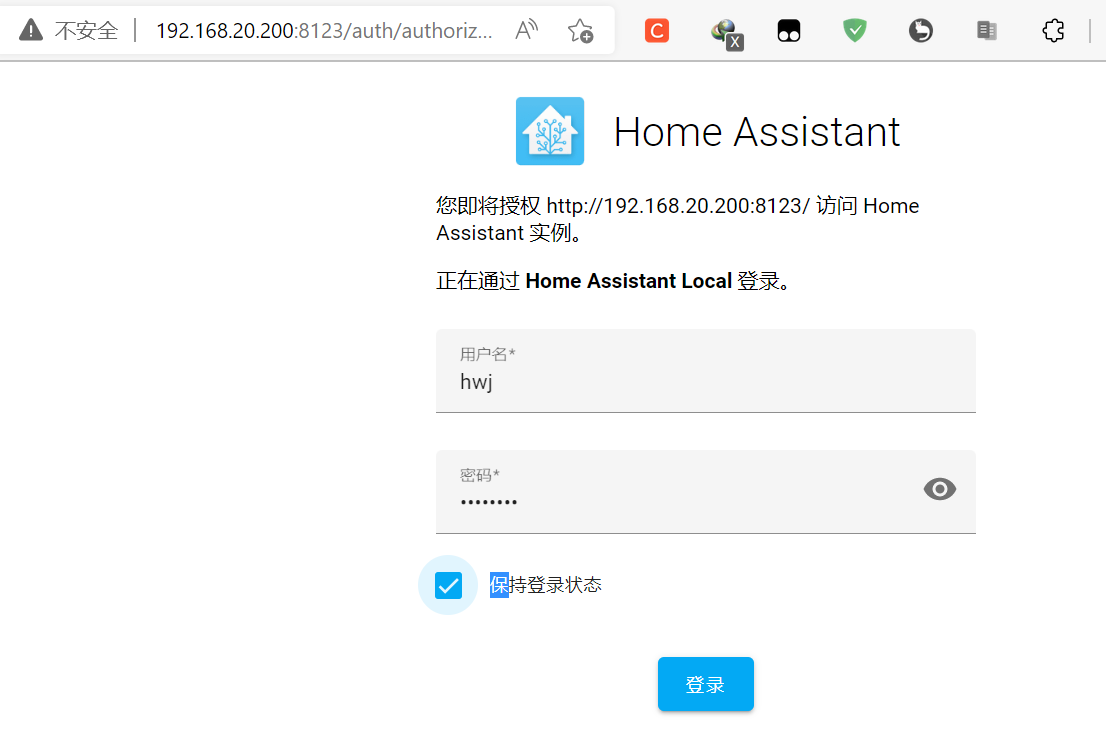

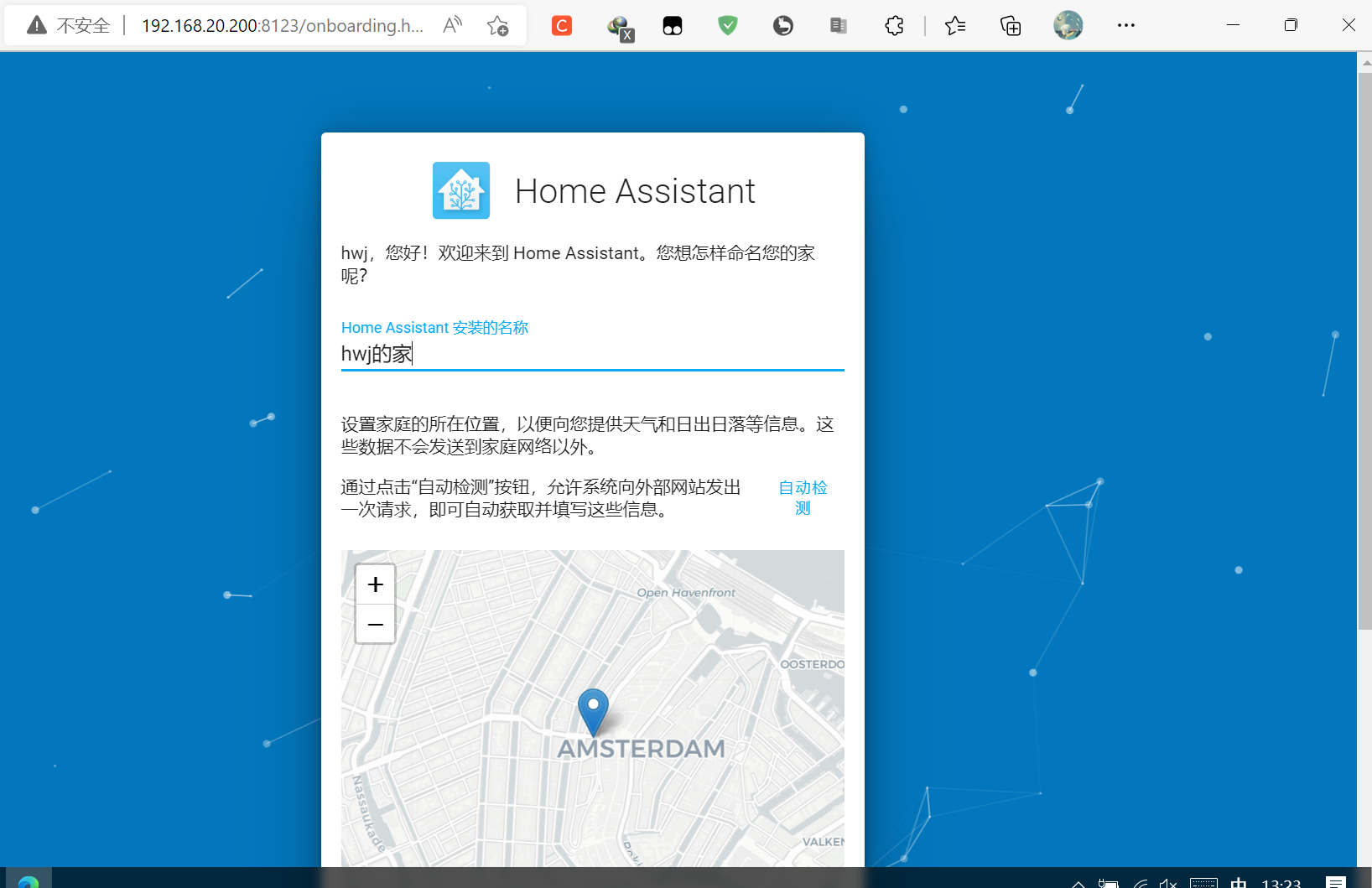

浏览器输入http://192.168.20.200:8123,可以访问居家系统

四、项目总结

通过本次项目实践,我掌握了Docker安装与基本使用，本地镜像仓库的搭建使用，Docker Compose安装与使用，DockerSWARM集群构建，熟练使用Docker stack，对这一轻量型的docker操作有了更深的见解，通过搭建minio的compose和homrassistant的集群项目，使我对“精益求精”有更深的认识，做到仔细列出拓扑规划，有条理的完成每一步过程。
