图像模糊

GPU处理版本

version1 对每个通道分别作平均

  1. __global__ void blur_gpu(unsigned char *g_input_image,unsigned char *g_output_image, int width, int height,int channels){
  2.      int col = threadIdx.x+blockIdx.x*blockDim.x;
  3.      int row =threadIdx.y+blockIdx.y*blockDim.y;
  4.      if (col<width && row < height){
  5.          int pixVal =0;
  6.          int pixels =0;
  7.          for(int i=0;i<channels;i++){   //
  8.              int rgboffset = (col+row*width)*channels+i;// dim of (r,g,b)
  9.              for(int blur_row=-BLUR_SIZE;blur_row<=BLUR_SIZE;blur_row++){
  10.                  for(int blur_col =-BLUR_SIZE;blur_col<=BLUR_SIZE;blur_col++){
  11.                      int cur_col =col+blur_col;
  12.                      int cur_row = row + blur_row;
  13.                      int offset= (cur_row*width+cur_col)*channels+i;
  14.                      if(cur_row>-1&&cur_row<height&&cur_col>-1&&cur_col<width){
  15.                          pixVal+=g_input_image[offset];
  16.                          pixels++;
  17.                      }
  18.                  }
  19.              }
  20.              g_output_image[rgboffset]=(unsigned char)(pixVal/pixels);
  21.          }
  22.      }
  23. }

这里的问题是pixVal 和 pixels的 重置应该放在遍历的通道里面，也就是 line 7里面

version 2 按照通道遍历

  1. __global__ void blur_gpu(unsigned char *g_input_image,unsigned char *g_output_image, int width, int height,int channels){
  2.      int col = threadIdx.x+blockIdx.x*blockDim.x;
  3.      int row =threadIdx.y+blockIdx.y*blockDim.y;
  4.      if (col<width && row < height){
  5.          for(int i=0;i<channels;i++){   //
  6.              int pixVal =0;
  7.              int pixels =0;
  8.              int rgboffset = (col+row*width)*channels+i;// dim of (r,g,b)
  9.              for(int blur_row=-BLUR_SIZE;blur_row<=BLUR_SIZE;blur_row++){
  10.                  for(int blur_col =-BLUR_SIZE;blur_col<=BLUR_SIZE;blur_col++){
  11.                      int cur_col =col+blur_col;
  12.                      int cur_row = row + blur_row;
  13.                      int offset= (cur_row*width+cur_col)*channels+i;
  14.                      if(cur_row>-1&&cur_row<height&&cur_col>-1&&cur_col<width){
  15.                          pixVal+=g_input_image[offset];
  16.                          pixels++;
  17.                      }
  18.                  }
  19.              }
  20.              g_output_image[rgboffset]=(unsigned char)(pixVal/pixels);
  21.          }
  22.      }
  23. }

更新后的多通道代码

  1. __global__ void blur_gpu(unsigned char *g_input_image,unsigned char *g_output_image, int width, int height,int channels){
  2.      int col = threadIdx.x+blockIdx.x*blockDim.x;
  3.      int row =threadIdx.y+blockIdx.y*blockDim.y;
  4.      int offset = (col+row*width)*channels;
  5.      if (col<width && row < height){
  6.         int pixVal [10]={0};
  7.         int pixels =0;
  8.         for(int blur_row=-BLUR_SIZE;blur_row<=BLUR_SIZE;blur_row++){
  9.             for(int blur_col =-BLUR_SIZE;blur_col<=BLUR_SIZE;blur_col++){
  10.                     int cur_col =col+blur_col;
  11.                     int cur_row = row + blur_row;
  12.                     int bluroffset= (cur_row*width+cur_col)*channels;
  13.                     if(cur_row>-1&&cur_row<height&&cur_col>-1&&cur_col<width){
  14.                         for(int c=0;c<channels;c++){
  15.                             pixVal[c]+=g_input_image[bluroffset+c];
  16.                         }
  17.                         pixels++;
  18.                     }
  19.                 }
  20.             }
  21.         for(int c =0;c<channels;c++){
  22.              g_output_image[offset+c]=(unsigned char)(pixVal[c]/pixels);
  23.         }
  25.      }
  26. }

单通道代码（灰度图）

  1. __global__ void blur_gpu(unsigned char *g_input_image,unsigned char *g_output_image, int width, int height,int channels){
  2.      int col = threadIdx.x+blockIdx.x*blockDim.x;
  3.      int row =threadIdx.y+blockIdx.y*blockDim.y;
  4.      int offset = (col+row*width);//
  5.      if (col<width && row < height){
  6.         int pixVal =0;
  7.         int pixels =0;
  8.         for(int blur_row=-BLUR_SIZE;blur_row<=BLUR_SIZE;blur_row++){
  9.             for(int blur_col =-BLUR_SIZE;blur_col<=BLUR_SIZE;blur_col++){
  10.                     int cur_col =col+blur_col;
  11.                     int cur_row = row + blur_row;
  12.                     int bluroffset= (cur_row*width+cur_col);
  13.                     if(cur_row>-1&&cur_row<height&&cur_col>-1&&cur_col<width){
  14.                         pixVal+=g_input_image[bluroffset];
  15.                         pixels++;
  16.                     }
  17.                 }
  18.             }
  19.         g_output_image[offset]=(unsigned char)(pixVal/pixels);
  20.      }
  21. }

CPU处理版本

遍历所有的行和列

  1. void blur_cpu(unsigned char *input_image, unsigned char *output_image, int width, int height,int channels)
  2. {
  3.     for(int row=0; row<height; row++)
  4.     {
  5.         for(int col=0; col<width; col++)
  6.         {
  7.             int pixVal =0;
  8.             int pixels =0;
  9.             int blur_row=-BLUR_SIZE;
  10.             int blur_col =-BLUR_SIZE;
  11.              for(int i=0;i<channels;i++){
  12.                          int rgboffset = (col+row*width)*channels+i;
  13.                          for(blur_row=-BLUR_SIZE;blur_row<=BLUR_SIZE;blur_row++){
  14.                              for(blur_col =-BLUR_SIZE;blur_col<=BLUR_SIZE;blur_col++){
  15.                                  int cur_col =col+blur_col;
  16.                                  int cur_row = row + blur_row;
  17.                                  int offset= (cur_row*width+cur_col)*channels+i;
  18.                                  if(cur_row>-1&&cur_row<height&&cur_col>-1&&cur_col<width){
  19.                                      pixVal+=input_image[offset];
  20.                                      pixels++;
  21.                                  }
  22.                              }
  23.                          }
  24.                          output_image[rgboffset]=(unsigned char)(pixVal/pixels);
  25.                      }
  26.         }
  27.     }
  28. }

主函数调用

传入输入图片，输出图片 和 运行参数

  1.  if(argc<4)
  2.     {
  3.         printf("Usage: command    input-image-name    output-image-name option   option(cpu/gpu)");
  4.         return -1;
  5.     }
  6.     char *input_image_name = argv[1];
  7.     char *output_image_name = argv[2];
  8.     char *option = argv[3];

初始化参数

加载输入图片，得到图片大小（height,width,channels）

  1.     int width, height, original_no_channels;
  2.     int desired_no_channels = 0; // Pass 0 to load the image as is
  3.     unsigned char *stbi_img = stbi_load(input_image_name, &width, &height, &original_no_channels, desired_no_channels);
  4.     if(stbi_img==NULL){ printf("Error in loading the image.\n"); exit(1);}
  5.     printf("Loaded image with a width of %dpx, a height of %dpx. The original image had %d channels, the loaded image has %d channels.\n", width, height, original_no_channels, desired_no_channels);
  6.     int channels = original_no_channels;
  7.     int img_mem_size = width * height * channels * sizeof(char);
  8.     double begin;

GPU调用

  1. if(strcmp(option, "gpu")==0){
  2.         printf("Processing with GPU!\n");
  3.  //  Todo: 1. Allocate memory on GPU
  4.         unsigned char * g_input_img = NULL;
  5.         unsigned char * g_output_img = NULL;
  6.         cudaMalloc((void**)&g_input_img,img_mem_size);
  7.         CHECK(cudaGetLastError());
  8.         cudaMalloc((void**)&g_output_img,img_mem_size);
  9.   //  Todo: 2. Copy data from host memory to device memory
  10.         cudaMemcpy(g_input_img,stbi_img,img_mem_size,cudaMemcpyHostToDevice);
  11.   //  Todo: 3. Call kernel function
  12.     //        3.1 Declare block and grid sizes
  13.         /*  dim3 block(..., ...);
  14.             dim3 grid(..., ...);  */
  15.         dim3 block_size(16,16,1);
  16.         dim3 grid_size((width-1)/16+1,(height-1)/16+1,1);
  17.         //        3.2 Record the time cost of GPU computation
  18.         begin = cpuSecond();
  19.         //  Todo: 3.3 Call the kernel function (Don't forget to call cudaDeviceSynchronize() before time recording)
  20.         blur_gpu<<<grid_size,block_size>>>(g_input_img,g_output_img,width,height,channels);
  21.         CHECK(cudaGetLastError());
  22.         cudaDeviceSynchronize();
  23.         printf("Time cost [GPU]:%f s\n", cpuSecond()-begin);
  24.         //  Todo:  4. Copy data from device to host
  25.         unsigned char *sepia_img_from_gpu = (unsigned char *)malloc(img_mem_size);
  26.         cudaMemcpy(sepia_img_from_gpu,g_output_img,img_mem_size,cudaMemcpyDeviceToHost);
  27.         //  Todo:  5. Save results as an image
  28.             stbi_write_jpg(output_image_name, width, height, channels, sepia_img_from_gpu, 100);
  29.         //  Todo:  6. Release host memory and device memory
  30.          cudaFree(g_input_img);
  31.          cudaFree(g_output_img);
  32.          free(sepia_img_from_gpu);
  33. }

Block的维度设置

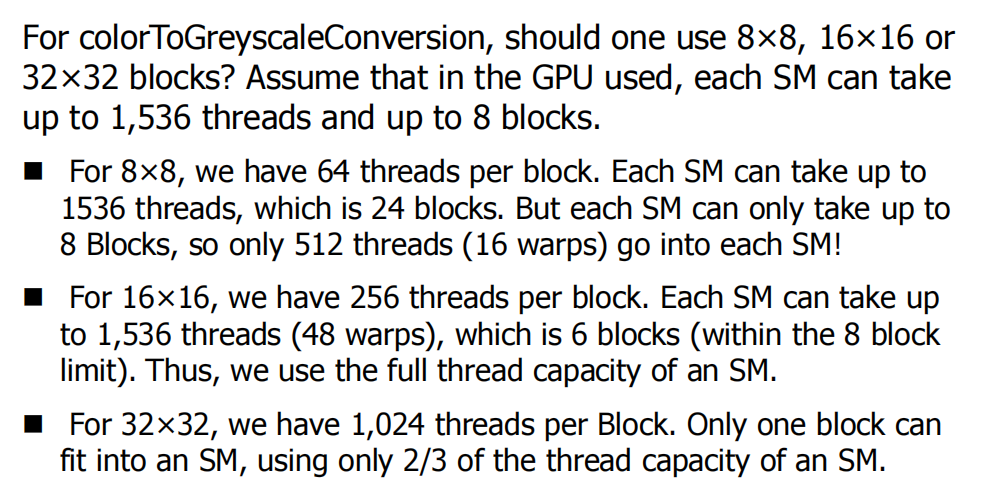

一个SM 最多只能跑8个blocks，最多48个wraps就是4832=1536个线程
一个处理模块只能调用32个wraps,最大1536个线程，使用1616的block，刚好可以让SM完全利用

CPU调用

    if(strcmp(option, "cpu")==0)
    {
        printf("Processing with CPU!\n");
        unsigned char *sepia_img = (unsigned char *)malloc(img_mem_size);
        if(sepia_img==NULL){  printf("Unable to allocate memory for the sepia image. \n");  exit(1);  }

        // Time stamp
        begin = cpuSecond();

        // C PU computation (for reference)
        rgb_to_sepia_cpu(stbi_img, sepia_img, width, height, channels);

        // Time stamp
        printf("Time cost [CPU]:%f s\n", cpuSecond()-begin);

        // Save to an image file
        stbi_write_jpg(output_image_name, width, height, channels, sepia_img, 100);

        free(sepia_img);
    }

    else
    {
        printf("Unexpected option (please use cpu/gpu) !\n");
    }

    stbi_image_free(stbi_img);

    return 0;
}
