springboot vue实现聊天业务

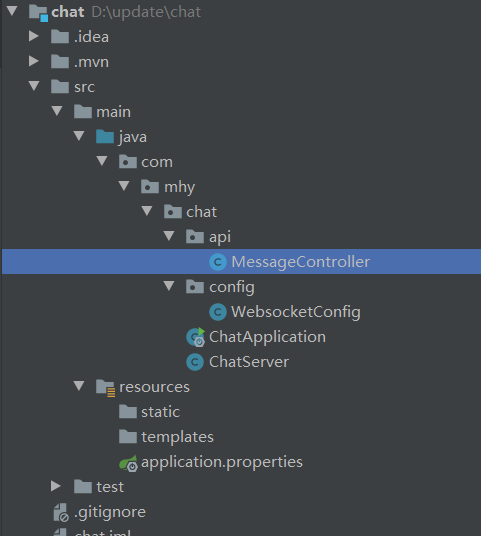

目录结构

第一步:万事第一步导包

 <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-websocket</artifactId>
        </dependency>

第二步:创建启动配置类WebsocketConfig

package com.mhy.chat.config;
//⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡖⠒⠒⠤⢄⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢸⠁⠀⠀⠀⡼⠀⠀⠀⠀ ⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢶⣲⡴⣗⣲⡦⢤⡏⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣰⠋⠉⠉⠓⠛⠿⢷⣶⣦⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢠⠇⠀⠀⠀⠀⠀⠀⠘⡇⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⡞⠀⠀⠀⠀⠀⠀⠀⢰⠇⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⡴⠊⠉⠳⡄⠀⢀⣀⣀⡀⠀⣸⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⢸⠃⠀⠰⠆⣿⡞⠉⠀⠀⠉⠲⡏⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠈⢧⡀⣀⡴⠛⡇⠀:⠃⠀⠀⡗⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⠀⣿⣱⠃⡴⠙⠢⠤⣀⠤⡾⠁⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⢀⡇⣇⡼⠁⠀⠀⠀⠀⢰⠃⠀⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⣸⢠⣉⣀⡴⠙⠀⠀⠀⣼⠀⠀⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⠀⡏⠀⠈⠁⠀⠀⠀⠀⢀⡇⠀⠀⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⢸⠃⠀⠀⠀⠀⠀⠀⠀⡼⠀⠀⠀⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⠀⠀⢸⠀⠀⠀⠀⠀⠀⠀⣰⠃⠀⠀⠀⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠀⣀⠤⠚⣶⡀⢠⠄⡰⠃⣠⣇⠀⠀⠀⠀⠀⠀⠀⠀⠀
//        ⠀⢀⣠⠔⣋⣷⣠⡞⠀⠉⠙⠛⠋⢩⡀⠈⠳⣄⠀⠀⠀⠀⠀⠀⠀
//        ⠀⡏⢴⠋⠁⠀⣸⠁⠀⠀⠀⠀⠀⠀⣹⢦⣶⡛⠳⣄⠀⠀⠀⠀⠀
//        ⠀⠙⣌⠳    小马无忧  ⡏⠀⠀⠈⠳⡌⣦⠀⠀⠀
//        ⠀⠀⠈⢳⣈⣻        ⢰⣇⣀⡠⠴⢊⡡⠋⠀⠀⠀⠀
//        ⠀⠀⠀⠀⠳⢿⡇⠀⠀⠀⠀⠀⠀⢸⣻⣶⡶⠊⠁⠀⠀
//        ⠀⠀⠀⠀⠀⢠⠟⠙⠓⠒⠒⠒⠒⢾⡛⠋⠁⠀⠀⠀⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⣠⠏⠀⣸⠏⠉⠉⠳⣄⠀⠙⢆⠀⠀⠀⠀⠀⠀⠀⠀⠀
//        ⠀⠀⠀⡰⠃⠀⡴⠃⠀⠀⠀⠀⠈⢦⡀⠈⠳⡄⠀⠀⠀⠀⠀⠀⠀
//        ⠀⠀⣸⠳⣤⠎⠀⠀⠀⠀⠀⠀⠀⠀⠙⢄⡤⢯⡀⠀⠀⠀⠀⠀⠀
//        ⠀⠐⡇⠸⡅⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠹⡆⢳⠀⠀⠀⠀⠀⠀
//        ⠀⠀⠹⡄⠹⡄⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⣇⠸⡆⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠹⡄⢳⡀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⢹⡀⣧⠀⠀⠀⠀⠀
//        ⠀⠀⠀⠀⢹⡤⠳⡄⠀⠀⠀⠀⠀⠀⠀⠀⠀⢀⣷⠚⣆⠀⠀⠀⠀
//        ⠀⠀⠀⡠⠊⠉⠉⢹⡀⠀⠀⠀⠀⠀⠀⠀⠀⢸⡎⠉⠀⠙⢦⡀⠀
//        ⠀⠀⠾⠤⠤⠶⠒⠊⠀⠀⠀⠀⠀⠀⠀⠀⠀⠀⠉⠙⠒⠲⠤⠽⠀
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.socket.server.standard.ServerEndpointExporter;
@Configuration
public class WebsocketConfig {
    @Bean
    public ServerEndpointExporter createSEE(){
        return new ServerEndpointExporter();
    }
}

第三步:创建服务类chatserver

package com.mhy.chat;
import org.springframework.context.annotation.Scope;
import org.springframework.stereotype.Component;
import sun.plugin2.os.windows.SECURITY_ATTRIBUTES;
import javax.websocket.*;
import javax.websocket.server.PathParam;
import javax.websocket.server.ServerEndpoint;
import java.io.IOException;
import java.util.concurrent.ConcurrentHashMap;
//实例化对象交由spring管理(控制反转)
@Component
//多例模式:因为每一个用户就是一个单独
@Scope(scopeName = "prototype")
@ServerEndpoint("/chat/server/{nickname}")
public class ChatServer {
    //用户昵称
    private String nickname;
    //会话对象
    private Session session;
    //记录当前用户
    public static ConcurrentHashMap<String, Session> users = new ConcurrentHashMap<>();//记录当前用户
    //连接-服务器
    @OnOpen
    public void open(@PathParam("nickname") String name, Session session) {
        if (users.contains(name)) {
            sendMsg(session, "你的昵称已被占用");
        } else {
            this.nickname = name;
            this.session = session;
            users.put(name, session);
            sendMoreMsg(name + "进入聊天室");
        }
    }
    //监听消息 接受消息
    @OnMessage
    public void message(String msg, Session session) {
        System.err.println("服务端接收" + msg);
        sendMsg(session, "已收到!over");
        sendMoreMsg(nickname+"-说:"+msg);
    }
    private static void sendMsg(Session session, String msg) {
        try {
            session.getBasicRemote().sendText(msg);
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    @OnError //异常监听，只要出错误
    public void error(Throwable throwable){
        System.err.println("出错了");
    }
    @OnClose //监听关闭
    public void close(Session session){
        users.remove(nickname);//移除
        sendMoreMsg("让我们掌声欢送 "+nickname+" 的离开！");
    }
    private static void sendMoreMsg(String msg) {
        try {
            for (String s : users.keySet()) {
                users.get(s).getBasicRemote().sendText(msg);
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
    }
    //推送消息
    public static boolean pushMsg(String msg){
        sendMoreMsg(msg);
        return true;
    }
}

第四步:开启项目进行测试
先进行线上测试:http://www.jsons.cn/websocket/
输入链接:ws:localhost:9999/chat/server/马辉远

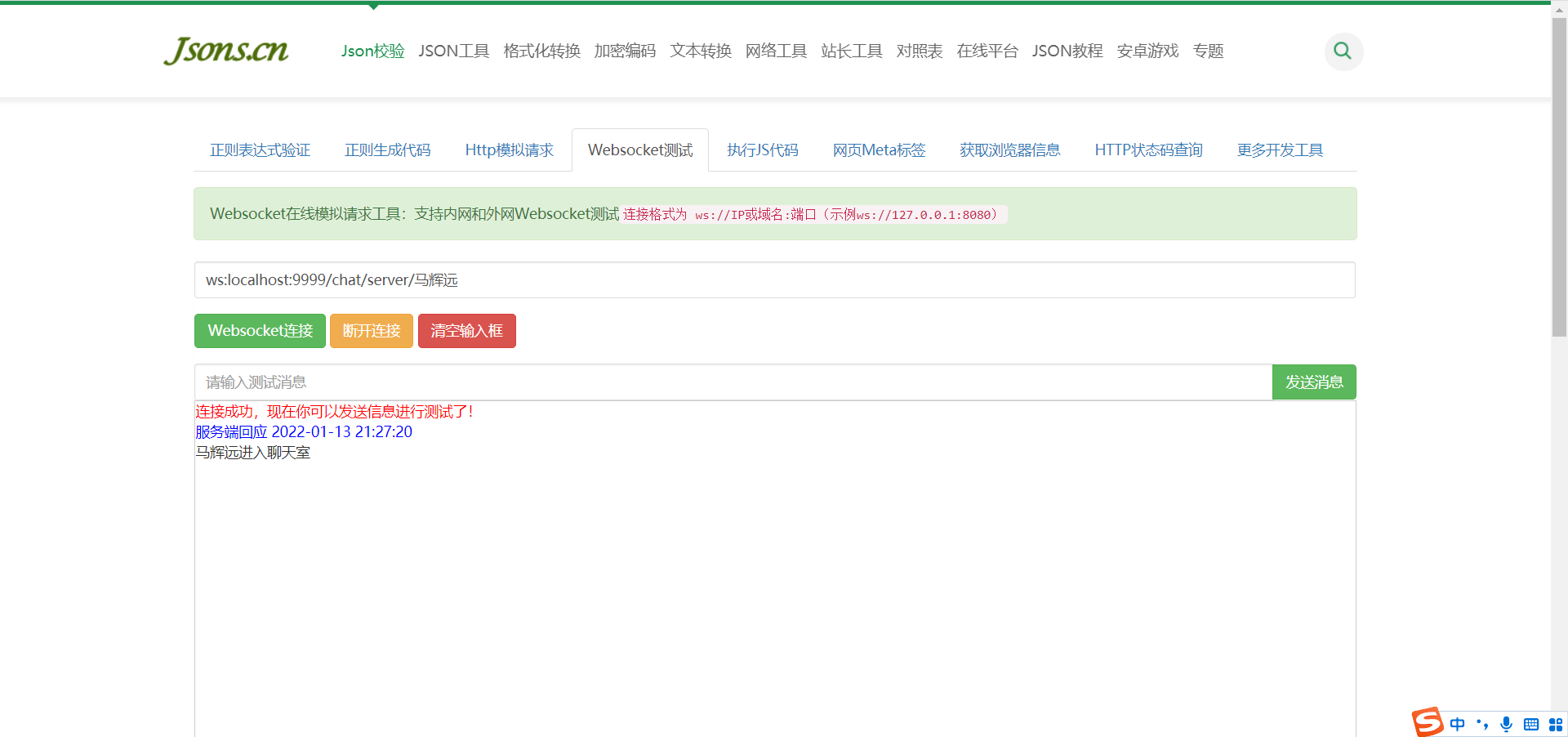

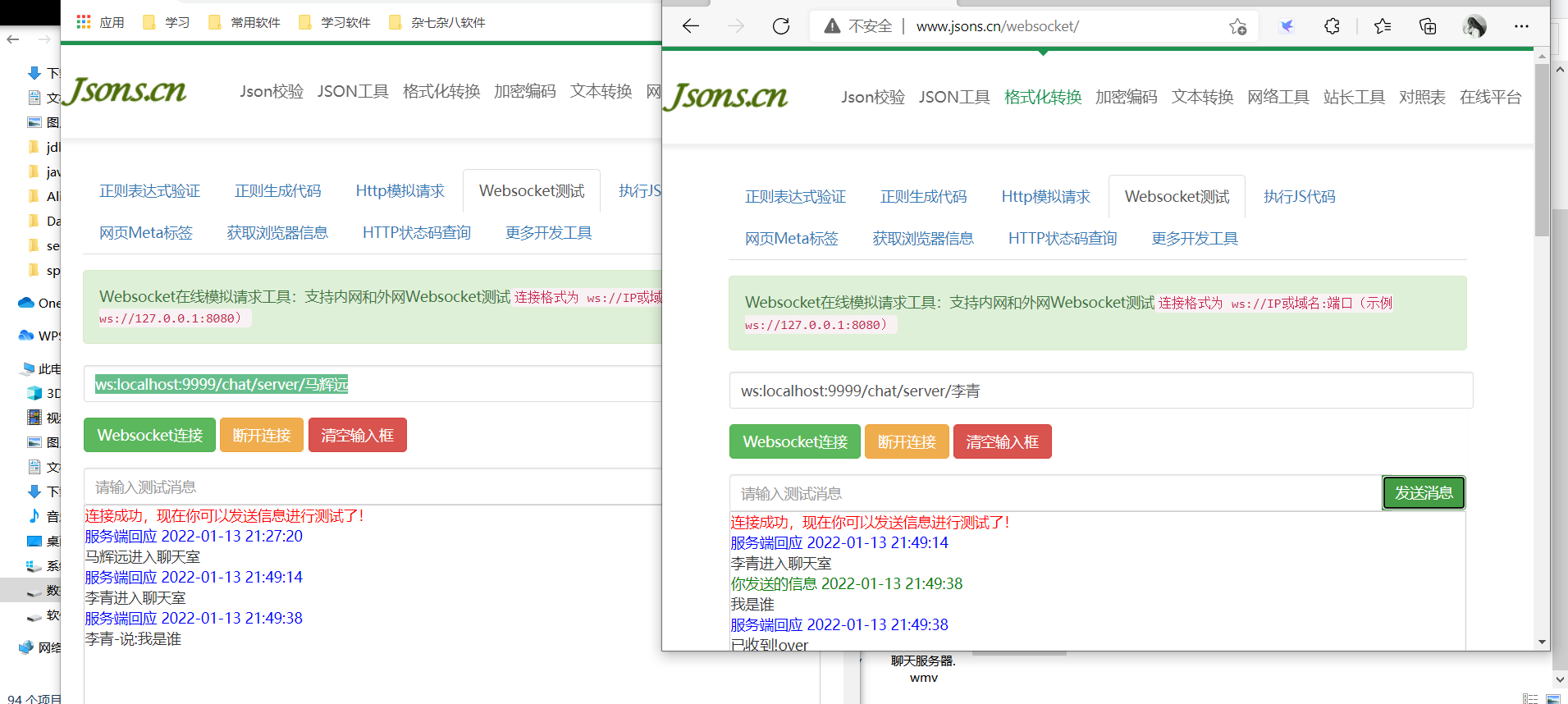

测试截图:


第五步:测试成功之后可以写一个小接口MessageController

package com.mhy.chat.api;
import com.mhy.chat.ChatServer;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
@RestController
@RequestMapping("/api/msg/")
public class MessageController {
    @GetMapping("tuisong.do")
    public String msg(String msg){
        ChatServer.pushMsg(msg);
        return "消息推送成功！";
    }
}

第六步书写vue页面:

<template>
    <div>
        <!-- 1.连接 -->
        <div>
            <van-cell-group inset>
              <van-field
                v-model="nickname"
                center
                label-width="50px"
                clearable
                label="昵称"
                placeholder="请输入昵称"
              >
                <template #button>
                  <van-button size="small" type="primary" @click="joinRoom()">连接</van-button>
                  <van-button size="small" style="margin-left: 10px;" type="info" @click="exitRoom()">退出</van-button>
                </template>
              </van-field>
            </van-cell-group>
        </div>
        <!-- 2.聊天信息 -->
        <div>
            <van-cell v-for="item in msgs" :key="item" :title="item" />
        </div>
        <!-- 3.发送消息 -->
        <div style="position: absolute; bottom: 37px;width: 100%;">
            <van-cell-group inset>
              <van-field
                v-model="msg"
                center
                clearable
                placeholder="请输入聊天信息"
              >
                <template #button>
                  <van-button size="small" type="primary" @click="sendMsg()">发送</van-button>
                </template>
              </van-field>
            </van-cell-group>
        </div>
    </div>
</template>
<script>
export default{
    data(){
        return{
            nickname:"",
            msg:"",
            msgs:[
                "测试01"
            ],
            ws:{}
        }
    },
    methods:{
        joinRoom(){
            if ('WebSocket' in window){
                //完成实例化
                this.ws = new WebSocket("ws://localhost:9999/chat/server/"+this.nickname);
                 //监听消息接收
                this.ws.onmessage = (res=>{
                        console.log("数据已接收...",res.data);
                        this.msgs.push(res.data);
                });
                //连接服务器
                this.ws.onopen=(res=>{
                   this.msgs.push("加入成功");
                });
            }
        },
        exitRoom(){
            console.log("退出");
             this.ws.close();
             this.msgs.push("退出聊天室");
             this.nickname="";
        },
        sendMsg(){//发送聊天消息
            this.ws.send(this.msg);//发送消息
            this.msgs.push("我说："+this.msg);
            this.msg="";
        }
    }
}
</script>
<style>
</style>

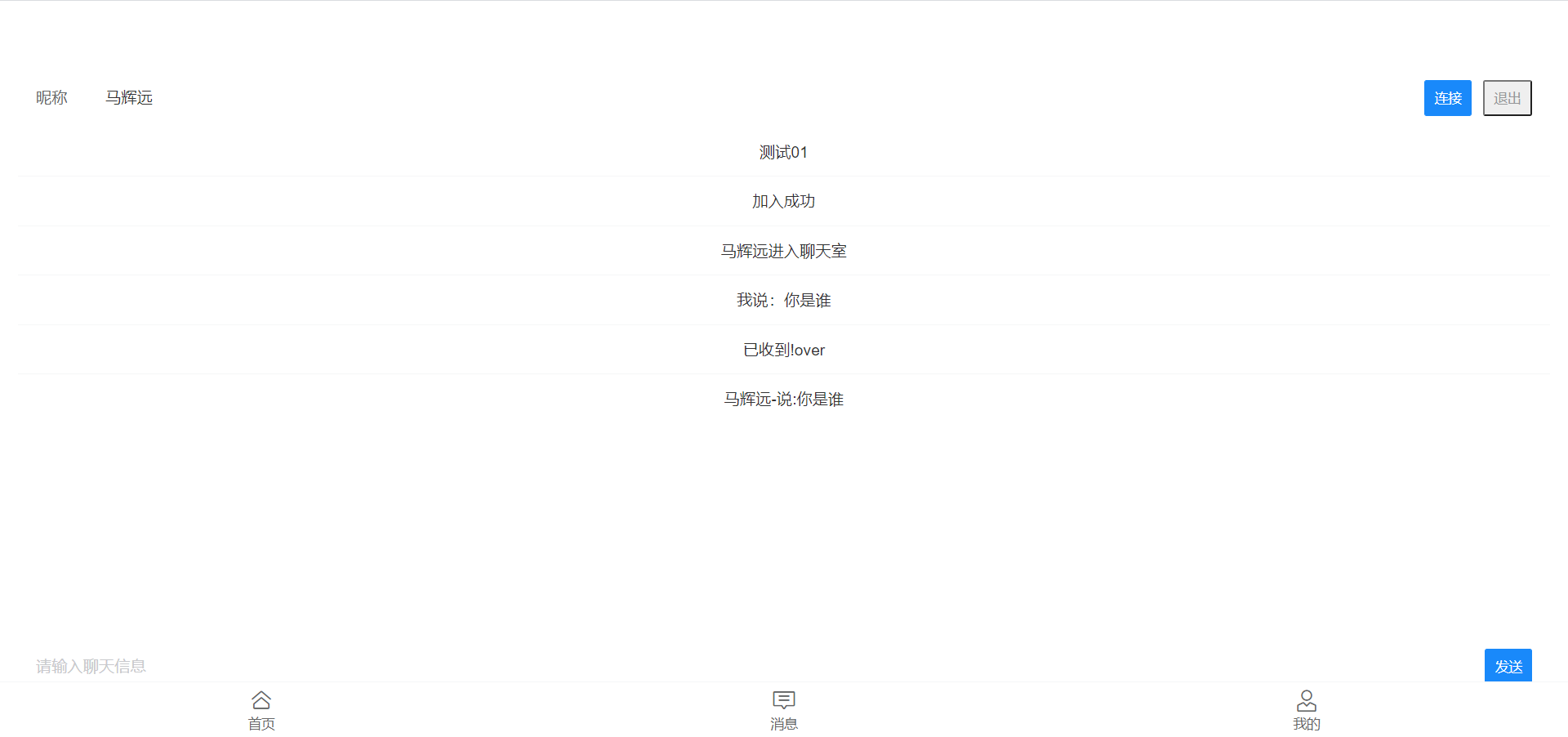

最后:运行测试
