介绍

  • 基于 redux 和 redux-saga 的数据流方案，为了简化开发体验，内置了 react-router 和 fetch，是一个轻量级的应用框架。

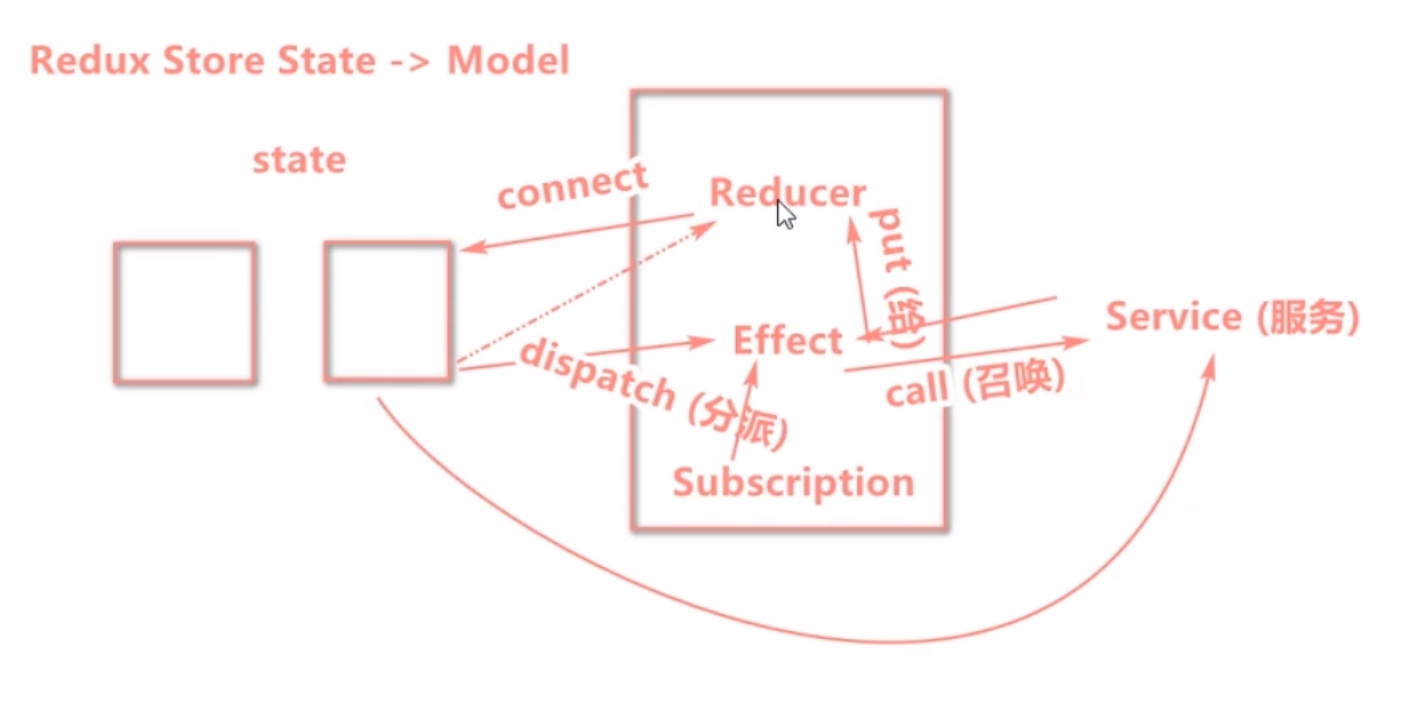

    数据流图示


    attribute

    namespace：命名空间

    state：数据

    reducers：同步操作

  • { function_name(state,{ type,payload }){return newState} }

  • 每个 reducer 接受两个参数

    • state：之前的数据
    • action
      • type：触发的函数名
      • payload：传递的参数

        effects：异步操作

  • { function_name({ type,payload },{ call,put }){return newState} }

  • 每个 effect 接受两个参数

    • action
      • type：触发的函数名
      • payload：传递的参数
    • effect
      • call：调用 servers
      • put：调用 reducers

        subscriptions：订阅

  • Subscription 用于订阅一个数据源，然后根据条件 dispatch 需要的 action。数据源可以是当前的时间、服务器的 websocket 连接、keyboard 输入、geolocation 变化、history 路由变化等等。

    1. setup({dispatch, history}) {
    2. return history.listen(({pathname}) => {
    3.   if (pathname === '/come') {
    4.     dispatch({type: 'getRemote'});
    5.   }
    6. });
    7. }

    使用

    1. servers.ts

  • 网络请求层

    1. export async function getRemoteList(){
    2.   return request('http://public-api-v1.aspirantzhang.com/users', {
    3.   method: 'GET'
    4. }).then(response => {
    5.   const  data ={"data":[{"id":7002,"name":"我哥最牛","email":"912455768@S.COM","create_time":"2021-05-19T04:24:43Z","update_time":"2021-05-19T13:03:20Z","status":0},{"id":7001,"name":"瞎","email":"912@S.COM","create_time":"2021-05-26T18:13:54Z","update_time":"2021-05-19T12:18:30Z","status":1},{"id":7000,"name":"牛顿","email":"niudun123@ZX.com","create_time":"2024-06-13T08:06:27Z","update_time":"2021-05-19T13:10:30Z","status":0},{"id":6999,"name":"漂亮","email":"123@qq.com","create_time":"2021-06-02T02:00:52Z","update_time":"2021-05-19T12:27:41Z","status":1},{"id":6996,"name":"12341324","email":"912@S.COM","create_time":"2021-05-26T06:52:04Z","update_time":"2021-05-19T12:27:35Z","status":1},{"id":6966,"name":"12341324各方面","email":"123@qq.com","create_time":"2021-05-09T02:22:37Z","update_time":"2021-05-19T12:18:50Z","status":0},{"id":6965,"name":"我二哥哥","email":"我在@119.com","create_time":"2021-05-11T17:55:39Z","update_time":"2021-05-19T12:06:09Z","status":127},{"id":6964,"name":"沃尔","email":"我在@119.com","create_time":"2021-05-11T17:55:39Z","update_time":"2021-05-19T12:05:53Z","status":1},{"id":6960,"name":"李四","email":"123@qq.com","create_time":"2021-05-09T18:22:37Z","update_time":"2021-05-18T08:27:41Z","status":1},{"id":6931,"name":"李四12","email":"996@23.com","create_time":"2021-05-19T04:18:58Z","update_time":"2021-05-19T12:19:02Z","status":1}],"meta":{"total":13,"per_page":10,"page":1}}
    6.   return  response || data;})
    7.   .catch(error => { console.log(error);});
    8. }

    2. model.ts

  • 数据管理层 ```javascript import {getRemoteList} from ‘./servers’ const userModel = { namespace: ‘users’, state: {}, reducers: { getList(state, {payload}) {

    1. return payload

    } }, effects: {

    • getRemote(action, {call,put}) { const data = yield call(getRemoteList) // 调用 servers 里的网络请求获取数据 yield put({type:’getList’,payload:data}) // 将数据推送到 reducer,同步更新 } }, subscriptions: { setup({dispatch, history}) { return history.listen(({pathname}) => { if (pathname === ‘/user’) {
      1. dispatch({type: 'getRemote'});
      } }); } }

}; export default userModel;

  1. <a name="E6xoH"></a>
  2. #### 3. index.ts
  4. - 组件层
  5. ```javascript
  6. import {connect} from 'umi';
  8. const UserTable = ({users,dispatch}) => {
  9.   const handle = () => {
  10.       dispatch({type:'users/getRemote'})               // 组件内调用前面需要加上命名空间
  11.   }
  12.   return (
  13.     <div onClick={handle}>
  14.       {JSON.stringify(users)}
  15.     </div>;
  16.   )
  17. }            // 直接使用 props 数据
  18. const mapStateToProps = ({users}) => {users};
  20. export default connect(mapStatrToProps)(UserTable)    // 将 model 里的数据放到组件 props 中
