Lifecycle

Tomcat中进行生命周期管理的接口是Lifecycle，Tomcat中的组件基本都继承了该接口。
下面来看看该接口中生命周期方法的定义：

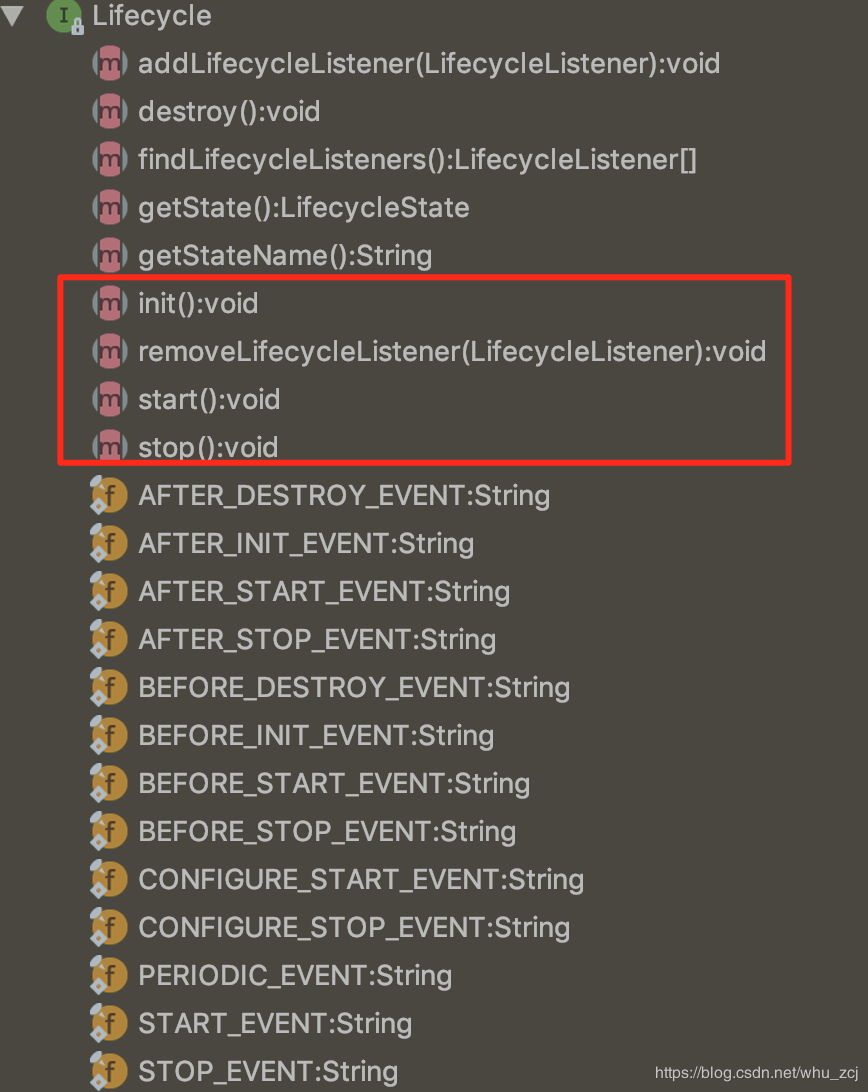

Tomcat生命周期 - 图1
Lifecycle定义了四种生命周期状态：init、start、stop、destroy，并且提供了四个方法，并且在接口中定义了关于这四个状态多包含的一些事件，整个状态流转如下图：

  1. 1. * The valid state transitions for components that support {@link Lifecycle}
  2. 2.  * are:
  3. 3.  * <pre>
  4. 4.  *            start()
  5. 5.  *  -----------------------------
  6. 6.  *  |                           |
  7. 7.  *  | init()                    |
  8. 8.  * NEW ->-- INITIALIZING        |
  9. 9.  * | |           |              |     ------------------<-----------------------
  10. 10.  * | |           |auto          |     |                                        |
  11. 11.  * | |          \|/    start() \|/   \|/     auto          auto         stop() |
  12. 12.  * | |      INITIALIZED -->-- STARTING_PREP -->- STARTING -->- STARTED -->---  |
  13. 13.  * | |         |                                                  |         |  |
  14. 14.  * | |         |                                                  |         |  |
  15. 15.  * | |         |                                                  |         |  |
  16. 16.  * | |destroy()|                                                  |         |  |
  17. 17.  * | -->-----<--       auto                    auto               |         |  |
  18. 18.  * |     |       ---------<----- MUST_STOP ---------------------<--         |  |
  19. 19.  * |     |       |                                                          |  |
  20. 20.  * |    \|/      ---------------------------<--------------------------------  ^
  21. 21.  * |     |       |                                                             |
  22. 22.  * |     |      \|/            auto                 auto              start()  |
  23. 23.  * |     |  STOPPING_PREP ------>----- STOPPING ------>----- STOPPED ---->------
  24. 24.  * |     |                                ^                  |  |  ^
  25. 25.  * |     |               stop()           |                  |  |  |
  26. 26.  * |     |       --------------------------                  |  |  |
  27. 27.  * |     |       |                                  auto     |  |  |
  28. 28.  * |     |       |                  MUST_DESTROY------<-------  |  |
  29. 29.  * |     |       |                    |                         |  |
  30. 30.  * |     |       |                    |auto                     |  |
  31. 31.  * |     |       |    destroy()      \|/              destroy() |  |
  32. 32.  * |     |    FAILED ---->------ DESTROYING ---<-----------------  |
  33. 33.  * |     |                        ^     |                          |
  34. 34.  * |     |     destroy()          |     |auto                      |
  35. 35.  * |     -------->-----------------    \|/                         |
  36. 36.  * |                                 DESTROYED                     |
  37. 37.  * |                                                               |
  38. 38.  * |                            stop()                             |
  39. 39.  * --->------------------------------>------------------------------
  40. 40.  *

LifecycleBase

LifecycleBase是对Lifecycle中的init、start、stop和destroy方法进行了实现，并且提供了四个钩子方法，用于实现自身的初始化
Tomcat生命周期 - 图2
下面主要分析下init和start方法，另外两个方法类似

  1. 1. public final synchronized void init() throws LifecycleException {
  2. 2. //1:用于状态检查等
  3. 3. if (!state.equals(LifecycleState.NEW)) {
  4. 4.             invalidTransition(Lifecycle.BEFORE_INIT_EVENT);
  5. 5.         }
  6. 6. //2:设置状态
  7. 7.         setStateInternal(LifecycleState.INITIALIZING, null, false);
  8. 8. //3:执行钩子方法，内部初始化
  9. 9. try {
  10. 10.             initInternal();
  11. 11.         } catch (Throwable t) {
  12. 12.             ExceptionUtils.handleThrowable(t);
  13. 13.             setStateInternal(LifecycleState.FAILED, null, false);
  14. 14. throw new LifecycleException(
  15. 15.                     sm.getString("lifecycleBase.initFail",toString()), t);
  16. 16.         }
  17. 17. //4:设置状态
  18. 18.         setStateInternal(LifecycleState.INITIALIZED, null, false);
  19. 19.     }
  1. 1. public final synchronized void start() throws LifecycleException {
  2. 2. //1:状态判断或状态流转
  3. 3. if (LifecycleState.STARTING_PREP.equals(state) ||
  4. 4.                 LifecycleState.STARTING.equals(state) ||
  5. 5.                 LifecycleState.STARTED.equals(state)) {
  6. 6.
  7. 7. if (log.isDebugEnabled()) {
  8. 8.                 Exception e = new LifecycleException();
  9. 9.                 log.debug(sm.getString("lifecycleBase.alreadyStarted",
  10. 10.                         toString()), e);
  11. 11.             } else if (log.isInfoEnabled()) {
  12. 12.                 log.info(sm.getString("lifecycleBase.alreadyStarted",
  13. 13.                         toString()));
  14. 14.             }
  15. 15.
  16. 16. return;
  17. 17.         }
  18. 18.
  19. 19. if (state.equals(LifecycleState.NEW)) {
  20. 20.             init();
  21. 21.         } else if (state.equals(LifecycleState.FAILED)){
  22. 22.             stop();
  23. 23.         } else if (!state.equals(LifecycleState.INITIALIZED) &&
  24. 24.                 !state.equals(LifecycleState.STOPPED)) {
  25. 25.             invalidTransition(Lifecycle.BEFORE_START_EVENT);
  26. 26.         }
  27. 27. //2:设置状态
  28. 28.         setStateInternal(LifecycleState.STARTING_PREP, null, false);
  29. 29. //3:执行钩子方法
  30. 30. try {
  31. 31.             startInternal();
  32. 32.         } catch (Throwable t) {
  33. 33.             ExceptionUtils.handleThrowable(t);
  34. 34.             setStateInternal(LifecycleState.FAILED, null, false);
  35. 35. throw new LifecycleException(
  36. 36.                     sm.getString("lifecycleBase.startFail",toString()), t);
  37. 37.         }
  38. 38. //4:设置状态
  39. 39. if (state.equals(LifecycleState.FAILED) ||
  40. 40.                 state.equals(LifecycleState.MUST_STOP)) {
  41. 41.             stop();
  42. 42.         } else {
  43. 43. // Shouldn't be necessary but acts as a check that sub-classes are
  44. 44. // doing what they are supposed to.
  45. 45. if (!state.equals(LifecycleState.STARTING)) {
  46. 46.                 invalidTransition(Lifecycle.AFTER_START_EVENT);
  47. 47.             }
  48. 48.
  49. 49.             setStateInternal(LifecycleState.STARTED, null, false);
  50. 50.         }
  51. 51.     }

生命周期这块可以参考下第二篇中 Tomcat的启动，里面就是父容器分别调用子容器进行初始化和start的
