配置监听 mycat 是否存活
在所有 Mycat server 上都需要添加检测端口 48700 的脚本，为此需要用到 xinetd，xinetd 为
linux 系统的基础服务。
安装xinetd
yum install xinetd -y
检查/etc/xinetd.conf 的末尾是否有这一句：includedir /etc/xinetd.d，没有就加上
- 检查 /etc/xinetd.d 文件夹是否存在，不存在也加上
- 增加 /etc/xinetd.d/mycat_status
``` vim /etc/xinetd.d/mycat_status
service mycat_status { flags = REUSE socket_type = stream port = 48700 wait = no user = root server = /usr/local/mycat/bin/mycat_status log_on_failure += USERID disable = no }
- 增加 /usr/local/mycat/bin/mycat_status 脚本 <br />给新增脚本赋予可执行权限：
vim /usr/local/mycat/bin/mycat_status
!/bin/bash
mycat=/usr/local/mycat/bin/mycat status | grep 'not running' | wc -l
if [ “$mycat” = “0” ];
then
/bin/echo -e “HTTP/1.1 200 OK\r\n”
else
/bin/echo -e “HTTP/1.1 503 Service Unavailable\r\n”
fi
```chmod a+x /usr/local/mycat/bin/mycat_status
- /etc/services 中加入 mycatstatus 服务
在末尾加入以下内容：
_Shift+g ： 跳转到文件末尾 ``` vim /etc/services
mycat_status 48700/tcp # mycat_status
- 重启 xinetd 服务
service xinetd restart
- 验证 mycat_status 服务是否启动成功
netstat -antup|grep 48700
tcp6 0 0 :::48700 :::* LISTEN 5406/xinetd
<a name="782f0ee7"></a># haproxy的安装
yum -y install haproxy
查看主要配置文件
$ rpm -ql haproxy /etc/haproxy /etc/haproxy/haproxy.cfg /etc/logrotate.d/haproxy /etc/sysconfig/haproxy /usr/bin/halog /usr/bin/iprange /usr/lib/systemd/system/haproxy.service /usr/sbin/haproxy /usr/sbin/haproxy-systemd-wrapper
**/etc/haproxy/haproxy.cfg 这是配置文件**<a name="9014a7f5"></a># 动手配置haproxy先备份下配置文件
cp /etc/haproxy/haproxy.cfg{,.bak}
注意: 执行haproxy服务的用户是haproxy，需要修改下文件的用户和群主
$ chown -R haproxy:haproxy /etc/haproxy/ $ ll /etc |grep haproxy
<a name="65a7a6db"></a>
## 配置下haproxy的日志
修改:/etc/rsyslog.conf
这两项的注释去掉
$ModLoad imudp $UDPServerRun 514
设置下haproxy.log的路径
local0.* /var/log/haproxy.log
修改:/etc/sysconfig/rsyslog
SYSLOGD_OPTIONS=”-r -m 0 -c 2”
vim /etc/rsyslog.d/haproxy.conf
$ModLoad imudp $UDPServerRun 514 local0.* /var/log/haproxy.log
<a name="fda40561"></a>
## 重启下rsyslog服务
systemctl restart rsyslog.service
<a name="e4bd4ed4"></a>
## 全部配置
vim /etc/haproxy/haproxy.cfg
global
设置日志
log 127.0.0.1 local0 ##记日志的功能
#定义每个haproxy进程的最大连接数 ，由于每个连接包括一个客户端和一个服务器端，所以单个进程的TCP会话最大数目将是该值的两倍。
maxconn 4096
chroot /var/lib/haproxy
# 以守护进程的方式运行
daemon
defaults
log global
#日志中不记录空连接
option dontlognull
# 定义连接后端服务器的失败重连次数，连接失败次数超过此值后将会将对应后端服务器标记为不可用
retries 3
option redispatch
maxconn 2000
# 设置成功连接到一台服务器的最长等待时间，默认单位是毫秒
timeout connect 5000
# 设置连接客户端发送数据时的成功连接最长等待时间，默认单位是毫秒
timeout client 50000
# 设置服务器端回应客户度数据发送的最长等待时间，默认单位是毫秒
timeout server 50000
统计页面
listen admin_status
bind :1080
#统计页面url
stats uri /stats
#统计页面用户名和密码设置
stats auth admin:admin
mode http
#采用http日志格式
option httplog
listen allmycat_service
##转发到 mycat 的 8066 端口，即 mycat 的服务端口
bind :8096
# 定义为tcp模式
mode tcp
#采用tcp日志格式
option tcplog
# 开启对后端服务器的健康检测
option httpchk OPTIONS * HTTP/1.1\r\nHost:\ www
# 设置haproxy的调度算法
balance roundrobin
#根据调度分配到真实的后台地址，参数解释：port 48700:检测端口48700， inter 5s:5秒检测一次，rise 2:检测成功2次表示服务器可用，fall 3:检测失败3次后表示服务器不可用
server mycat_61 192.168.1.61:8066 check port 48700 inter 5s rise 2 fall 3
server mycat_62 192.168.1.62:8066 check port 48700 inter 5s rise 2 fall 3
#设置服务器端回应客户度数据发送的最长等待时间，默认单位是毫秒
timeout server 20000
listen allmycat_admin
bind :8097 ##转发到 mycat 的 9066 端口，即 mycat 的管理控制台端口
mode tcp
option tcplog
option httpchk OPTIONS * HTTP/1.1\r\nHost:\ www
balance roundrobin
server mycat_61 192.168.1.61:9066 check port 48700 inter 5s rise 2 fall 3
server mycat_62 192.168.1.62:9066 check port 48700 inter 5s rise 2 fall 3
timeout server 20000
<a name="f6000375"></a>
## 启动haproxy
haproxy -f /etc/haproxy/haproxy.cfg
<a name="94eb6aa7"></a>
## 关闭haproxy
yum install psmisc
killall haproxy
<a name="846173e9"></a>
# 安装keepalived
<a name="e655a410"></a>
## 安装
wget http://www.keepalived.org/software/keepalived-2.0.5.tar.gz tar -zxvf keepalived-2.0.5.tar.gz cd keepalived-2.0.5 ./configure —prefix=/usr/local/keepalived make make install cp /usr/local/keepalived/sbin/keepalived /usr/sbin/ cp /usr/local/keepalived/etc/sysconfig/keepalived /etc/sysconfig/ cp ./keepalived/etc/init.d/keepalived /etc/init.d/ mkdir /etc/keepalived cd /etc/keepalived/ cp /usr/local/keepalived/etc/keepalived/keepalived.conf /etc/keepalived mkdir -p /usr/local/keepalived/var/log
<a name="cefb49e4"></a>
## keepalived的配置
cp /etc/keepalived/keepalived.conf{,.bak} vim /etc/keepalived/keepalived.conf
node1
global_defs { router_id NodeA #在当前的haproxy服务配置中有命名 }
VRRP脚本
vrrp_script chk_haproxy {
#执行的脚本
script "/etc/keepalived/scripts/check_haproxy.sh"
#脚本执行间隔
interval 5
#脚本结果导致的优先级变更：2表示优先级+10；-2则表示优先级-2
weight 2
}
vrrp实例
vrrp_instance VI_1 { state MASTER #设置为主服务器 interface ens192 #本机网卡 virtual_router_id 51 #主、备必须一样 priority 100 #(主、备机取不同的优先级，主机值较大，备份机值较小,值越大优先级越高) advert_int 1 #检查间隔，默认1秒
#调用脚本check_haproxy.sh检查haproxy是否存活
track_script {
chk_haproxy
}
#设置认证
authentication {
auth_type PASS #VRRP认证方式，主备必须一致
auth_pass 1111 #(密码)
}
#虚拟IP地址池，可以有多个IP，每个IP占一行
virtual_ipaddress {
192.168.1.180 dev ens192 scope global #VRRP HA虚拟地址
}
#指定当切换到master时，执行的脚本
notify_master /etc/keepalived/scripts/haproxy_master.sh
#指定当切换到backup时，执行的脚本
notify_backup /etc/keepalived/scripts/haproxy_backup.sh
#故障时执行的脚本
notify_fault /etc/keepalived/scripts/haproxy_fault.sh
#当Keepalived程序终止时，执行的脚本
notify_stop /etc/keepalived/scripts/haproxy_stop.sh
}
node2
global_defs { router_id NodeB } vrrp_script chk_haproxy { script “/etc/keepalived/scripts/check_haproxy.sh” interval 5 weight 2 } vrrp_instance VI_1 { state BACKUP #设置为主服务器 interface ens192 #监测网络接口 virtual_router_id 51 #主、备必须一样 priority 90 #(主、备机取不同的优先级，主机值较大，备份机值较小,值越大优先级越高) advert_int 1 #VRRP Multicast广播周期秒数 track_script { chk_haproxy } authentication { auth_type PASS #VRRP认证方式，主备必须一致 auth_pass 1111 #(密码) } virtual_ipaddress { 192.168.1.180 dev ens192 scope global #VRRP HA虚拟地址 } notify_master /etc/keepalived/scripts/haproxy_master.sh notify_backup /etc/keepalived/scripts/haproxy_backup.sh notify_fault /etc/keepalived/scripts/haproxy_fault.sh notify_stop /etc/keepalived/scripts/haproxy_stop.sh }
<a name="59281eec"></a>
## 创建配置文件和脚本
mkdir /etc/keepalived/scripts
- 创建检查haproxy是否存活的脚本
vim /etc/keepalived/scripts/check_haproxy.sh
```
#!/bin/bash
STARTHAPROXY="/usr/local/haproxy/sbin/haproxy -f /usr/local/haproxy/haproxy.cfg"
STOPKEEPALIVED="/etc/init.d/keepalived stop"
LOGFILE="/usr/local/keepalived/var/log/keepalived-haproxy-state.log"
echo "[check_haproxy status]" >> $LOGFILE
A=`ps -C haproxy --no-header |wc -l`
echo "[check_haproxy status]" >> $LOGFILE
date >> $LOGFILE
#如果没有haproxy进程存在，就启动haproxy，停止keepalived，并写入日志
if [ $A -eq 0 ];then
echo $STARTHAPROXY >> $LOGFILE
$STARTHAPROXY >> $LOGFILE 2>&1
sleep 5
fi
if [ `ps -C haproxy --no-header |wc -l` -eq 0 ];then
exit 0
else
exit 1
fi
创建切换到MASTER与BACKUP脚本
vim /etc/keepalived/scripts/haproxy_master.sh vim /etc/keepalived/scripts/haproxy_backup.sh # 在两个文件中写入以下内容#!/bin/bash STARTHAPROXY=`/usr/local/haproxy/sbin/haproxy -f /usr/local/haproxy/haproxy.cfg` STOPHAPROXY=`ps -ef | grep sbin/haproxy | grep -v grep | awk '{print $2}'| xargs kill -s 9` LOGFILE="/usr/local/keepalived/var/log/keepalived-haproxy-state.log" echo "[master]" >> $LOGFILE date >> $LOGFILE echo "Being master...." >> $LOGFILE 2>&1 echo "stop haproxy...." >> $LOGFILE 2>&1 $STOPHAPROXY >> $LOGFILE 2>&1 echo "start haproxy...." >> $LOGFILE 2>&1 $STARTHAPROXY >> $LOGFILE 2>&1 echo "haproxy stared ..." >> $LOGFILE创建故障时执行的脚本
vim /etc/keepalived/scripts/haproxy_fault.sh#!/bin/bash LOGFILE=/usr/local/keepalived/var/log/keepalived-haproxy-state.log echo "[fault]" >> $LOGFILE date >> $LOGFILE创建停止vrrp脚本
#!/bin/bash LOGFILE=/usr/local/keepalived/var/log/keepalived-haproxy-state.log echo "[stop]" >> $LOGFILE date >> $LOGFILE赋予脚本可执行权限
chmod 777 /etc/keepalived/scripts/*启动keepalived
systemctl start keepalived.service加入开机启动
systemctl enable keepalived.service
测试

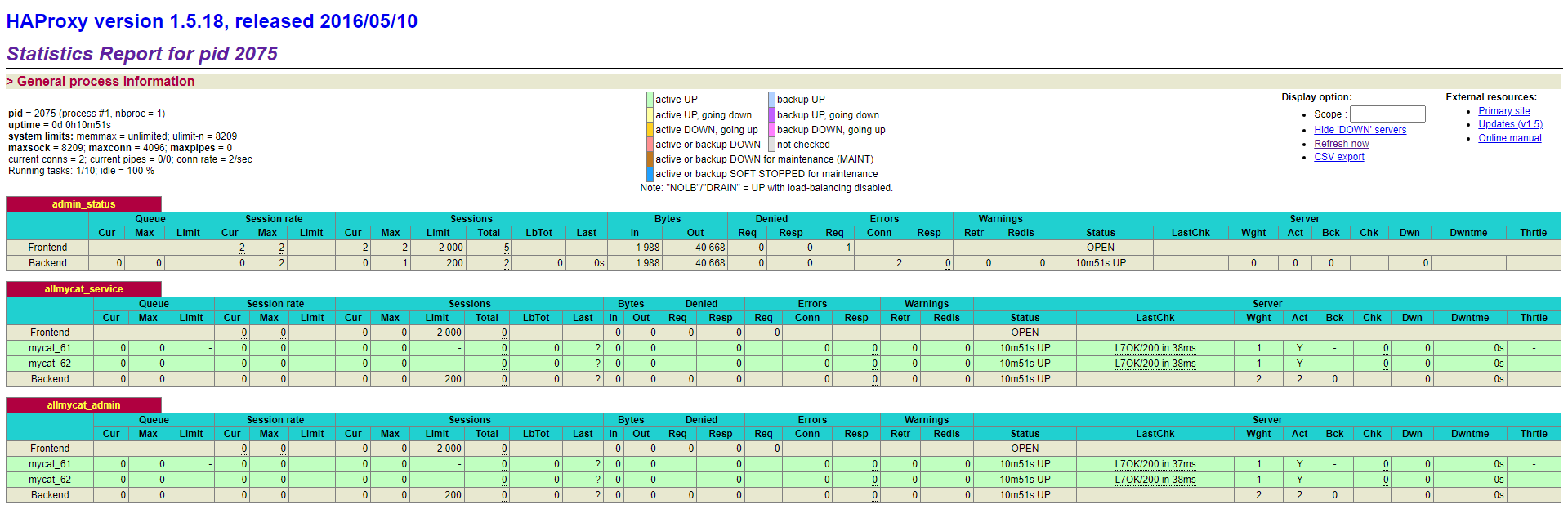

在浏览器输入:http://192.168.1.63:1080/stats
Dbeaver链接
