【FIR】用重叠保留法进行滤波

clear
clc
N=512;%分段的长度，也就是做fft的长度
h=[-0.00491000678664519,-0.0110940581309966,0.00410194747948791,0.0123959008767979,0.0260846944086577,0.0280068857178369,0.0117031929574722,-0.0282213909190478,-0.0862193226866780,-0.148431590883831,-0.196291852743501,0.785720061596288,-0.196291852743501,-0.148431590883831,-0.0862193226866780,-0.0282213909190478,0.0117031929574722,0.0280068857178369,0.0260846944086577,0.0123959008767979,0.00410194747948791,-0.0110940581309966,-0.00491000678664519];%系统冲击响应h(n)
Frequence0          = 150;       %单位：Hz
Frequence1          = 200;       %单位：Hz
Frequence2          = 2e3;       %单位：Hz
SampleFre           = 8e3;       %单位：Hz
SampleLen           = SampleFre; %采样点数
%-------------------产生三路信号
t = 0:1/SampleLen:1/SampleFre*(SampleLen-1);
SignalData0 = sin(2*pi*Frequence0*t);
SignalData0 = SignalData0(1:4096);
SignalData1 = sin(2*pi*Frequence1*t);
SignalData1 = SignalData1(1:4096);
SignalData2 = sin(2*pi*Frequence2*t);
SignalData2 = SignalData2(1:4096);
x = SignalData0+SignalData1+SignalData2;
Lenx=length(x);
M=length(h);
M1=M-1;                                     %重叠部分的长度
L=N-M1;                                     %不重叠部分的长度
h=fft(h,N);
K=floor((Lenx+M1-1)/L)+1;                   %分的段数
p=(K)*L-Lenx;                               %最后一段结尾补零数
x1=[zeros(1,M1),x,zeros(1,p)];              %总的大矩阵
Y=zeros(K,N);                               %保存结果矩阵初始化
for k=0:K-1
    xk=fft(x1(k*L+1:k*L+N));
    Y(k+1,:)=(ifft(xk.*h));
end
Z=reshape(Y(:,M:N)',1,[]);                  %将保存结果矩阵转成一个行向量

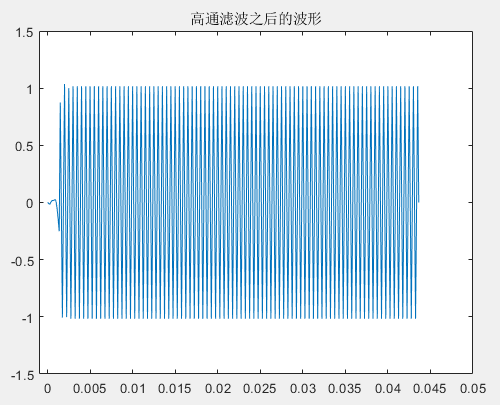

figure;plot(t(1:350),Z(1:350))
ylim([-1.5, 1.5]);
xlim([-0.001, 0.05]);
title('高通滤波之后的波形')
sound(x,SampleFre);
