Qt自定义仪表盘

instrumentpanel.h

#ifndef INSTRUMENTPANEL_H
#define INSTRUMENTPANEL_H
#include <QWidget>
#include <QTimer>
namespace Ui {
class InstrumentPanel;
}
class InstrumentPanel : public QWidget
{
    Q_OBJECT
public:
    explicit InstrumentPanel(QWidget *parent = 0);
    ~InstrumentPanel();
private:
    Ui::InstrumentPanel *ui;
protected:
    void paintEvent(QPaintEvent *);
    void drawCrown(QPainter *painter);
    void drawBackground(QPainter *painter);
    void drawScale(QPainter *painter);
    void drawScaleNum(QPainter *painter);
    void drawTitle(QPainter *painter);
    void drawIndicator(QPainter *painter);
    void drawNumericValue(QPainter *painter);
private:
    QColor m_background;
    QColor m_foreground;
    int m_maxValue;
    int m_minValue;
    int m_startAngle;
    int m_endAngle;
    int m_scaleMajor;
    int m_scaleMinor;
    double m_value;
    int m_precision;
    QTimer *m_updateTimer;
    QString m_units;
    QString m_title;
    public Q_SLOTS:
    // void UpdateAngle();
public:
    void UpdatePanelVal(double); // 用于外部设置仪表盘的值
};
#endif // INSTRUMENTPANEL_H

instrumentpanel.c

#include "instrumentpanel.h"
#include "ui_instrumentpanel.h"
#include <QPainter>
InstrumentPanel::InstrumentPanel(QWidget *parent) :
    QWidget(parent),
    ui(new Ui::InstrumentPanel)
{
    ui->setupUi(this);
    // 8.构造函数的初始化
    m_background = Qt::black;
    m_foreground = Qt::green;
    m_startAngle = 60;
    m_endAngle = 60;
    m_scaleMajor = 10;
    m_minValue = -50;
    m_maxValue = 50;
    m_scaleMajor = 10;//分度
    m_scaleMinor = 10;
    m_units = "km/h";
    m_title = "Speed Meter";
    m_precision = 0;
    m_value = 0;
    m_updateTimer = new QTimer(this);
    m_updateTimer->setInterval(50);//间隔，微妙微单位，大家可以改一下这个值看看转动速度。
    // connect(m_updateTimer, SIGNAL(timeout()), this, SLOT(UpdateAngle()));
    // m_updateTimer->start();//启动定时器
    setWindowFlags(Qt::FramelessWindowHint);//无窗体
    setAttribute(Qt::WA_TranslucentBackground);//背景透明
    resize(400, 400);
}
InstrumentPanel::~InstrumentPanel()
{
    delete ui;
}
// 1.绘制表冠
void InstrumentPanel::drawCrown(QPainter *painter) //绘制表冠
{
    painter->save();
    int radius = 100;
    QLinearGradient lg1(0, -radius, 0, radius);
    lg1.setColorAt(0, Qt::white); //设置渐变的颜色和路径比例
    lg1.setColorAt(1, Qt::gray); //只是粗略的颜色，具体的可以参考RGB颜色查询对照表
    painter->setBrush(lg1); // 创建QBrush对象,把这个渐变对象传递进去：
    painter->setPen(Qt::NoPen); //边框线无色
    painter->drawEllipse(-radius, -radius, radius << 1, radius << 1);
    painter->setBrush(m_background = Qt::black);
    painter->drawEllipse(-92, -92, 184, 184);
    painter->restore();
}
// 2.绘制刻度值
void InstrumentPanel::drawScaleNum(QPainter *painter) //绘制刻度数字
{
    painter->save();
    painter->setPen(m_foreground);
    //m_startAngle是起始角度，m_endAngle是结束角度，m_scaleMajor在一个量程中分成的刻度数
    double startRad = ( 270 - m_startAngle) * (3.14 / 180);
    double deltaRad = (360 - m_startAngle - m_endAngle) * (3.14 / 180) / m_scaleMajor;
    double sina,cosa;
    int x, y;
    QFontMetricsF fm(this->font());
    double w, h, tmpVal;
    QString str;
    for (int i = 0; i <= m_scaleMajor; i++)
    {
        sina = sin(startRad - i * deltaRad);
        cosa = cos(startRad - i * deltaRad);
       tmpVal = 1.0 * i *((m_maxValue - m_minValue) / m_scaleMajor) + m_minValue;
       // tmpVal = 50;
        str = QString( "%1" ).arg(tmpVal);  //%1作为占位符   arg()函数比起 sprintf()来是类型安全的
        w = fm.size(Qt::TextSingleLine,str).width();
        h = fm.size(Qt::TextSingleLine,str).height();
        x = 82 * cosa - w / 2;
        y = -82 * sina + h / 4;
        painter->drawText(x, y, str); //函数的前两个参数是显示的坐标位置，后一个是显示的内容，是字符类型""
    }
    painter->restore();
}
// 3.绘制刻度线
void InstrumentPanel::drawScale(QPainter *painter) //绘制刻度线
{
    painter->save();
    painter->rotate(m_startAngle);
    int steps = (m_scaleMajor * m_scaleMinor); //相乘后的值是分的份数
    double angleStep = (360.0 - m_startAngle - m_endAngle) / steps; //每一个份数的角度
    // painter->setPen(m_foreground); //m_foreground是颜色的设置
    // QPen pen = painter->pen(); //第一种方法
    QPen pen ;
    pen.setColor(Qt::green); //推荐使用第二种方式
    for (int i = 0; i <= steps; i++)
    {
    if (i % m_scaleMinor == 0)//整数刻度显示加粗
    {
    pen.setWidth(1); //设置线宽
    painter->setPen(pen); //使用面向对象的思想，把画笔关联上画家。通过画家画出来
      painter->drawLine(0, 62, 0, 72); //两个参数应该是两个坐标值
       }
       else
       {
           pen.setWidth(0);
           painter->setPen(pen);
           painter->drawLine(0, 67, 0, 72);
       }
       painter->rotate(angleStep);
    }
    painter->restore();
}
// 4.绘制标题
void InstrumentPanel::drawTitle(QPainter *painter)
{
    painter->save();
    painter->setPen(m_foreground);
    //painter->setBrush(m_foreground);
    QString str(m_title); //显示仪表的功能
    QFontMetricsF fm(this->font());
    double w = fm.size(Qt::TextSingleLine,str).width();
    painter->drawText(-w / 2, -30, str);
    painter->restore();
}
// 5.显示的单位，与数值
void InstrumentPanel::drawNumericValue(QPainter *painter)
{
    QString str = QString("%1 %2").arg(m_value, 0, 'f', m_precision).arg(m_units);
    QFontMetricsF fm(font());
    double w = fm.size(Qt::TextSingleLine,str).width();
    painter->setPen(m_foreground);
    painter->drawText(-w / 2, 42, str);
}
// 6.绘制表针，和中心点
void InstrumentPanel::drawIndicator(QPainter *painter)
{
    painter->save();
    QPolygon pts;
    pts.setPoints(3, -2, 0, 2, 0, 0, 60);    /* (-2,0)/(2,0)/(0,60) *///第一个参数是 ，坐标的个数。后边的是坐标
    painter->rotate(m_startAngle);
    double degRotate = (360.0 - m_startAngle - m_endAngle) / (m_maxValue - m_minValue)*(m_value - m_minValue);
    //画指针
    painter->rotate(degRotate);  //顺时针旋转坐标系统
    QRadialGradient haloGradient(0, 0, 60, 0, 0);  //辐射渐变
    haloGradient.setColorAt(0, QColor(60, 60, 60));
    haloGradient.setColorAt(1, QColor(160, 160, 160)); //灰
    painter->setPen(Qt::white); //定义线条文本颜色  设置线条的颜色
    painter->setBrush(haloGradient); //刷子定义形状如何填满 填充后的颜色
    painter->drawConvexPolygon(pts); //这是个重载函数，绘制多边形。
    painter->restore();
    //画中心点
    QColor niceBlue(150, 150, 200);
    QConicalGradient coneGradient(0, 0, -90.0);  //角度渐变
    coneGradient.setColorAt(0.0, Qt::darkGray);
    coneGradient.setColorAt(0.2, niceBlue);
    coneGradient.setColorAt(0.5, Qt::white);
    coneGradient.setColorAt(1.0, Qt::darkGray);
    painter->setPen(Qt::NoPen);  //没有线，填满没有边界
    painter->setBrush(coneGradient);
    painter->drawEllipse(-5, -5, 10, 10);
}
// 7.重绘函数
void InstrumentPanel::paintEvent(QPaintEvent *)
{
    QPainter painter(this);//一个类中的this表示一个指向该类自己的指针
    painter.setRenderHint(QPainter::Antialiasing);   /* 使用反锯齿(如果可用) */
    painter.translate(width() / 2, height() / 2);    /* 坐标变换为窗体中心 */
    int side = qMin(width(), height());
    painter.scale(side / 200.0, side / 200.0);       /* 比例缩放 */
    drawCrown(&painter);                             /* 画表盘边框 */
    drawScaleNum(&painter);                          /* 画刻度数值值 */
    drawScale(&painter);                             /* 画刻度线 */
    drawTitle(&painter);                             /* 画单位 */
    drawNumericValue(&painter);                      /* 画数字显示 */
    drawIndicator(&painter);                         /* 画表针 */
}
// 更新仪表盘
void InstrumentPanel::UpdatePanelVal(double num)
{
    m_value = num;
    update();
}

mainwindow.h

#ifndef MAINWINDOW_H
#define MAINWINDOW_H
#include <QMainWindow>
#include "instrumentpanel.h"
namespace Ui {
class MainWindow;
}
class MainWindow : public QMainWindow
{
    Q_OBJECT
public:
    explicit MainWindow(QWidget *parent = 0);
    ~MainWindow();
private slots:
    void on_pushButton_clicked();
private:
    Ui::MainWindow *ui;
private:
    InstrumentPanel *instrumentpanel1;
    InstrumentPanel *instrumentpanel2;
    InstrumentPanel *instrumentpanel3;
};
#endif // MAINWINDOW_H

mainwindow.c

#include "mainwindow.h"
#include "ui_mainwindow.h"
MainWindow::MainWindow(QWidget *parent) :
    QMainWindow(parent),
    ui(new Ui::MainWindow)
{
    ui->setupUi(this);

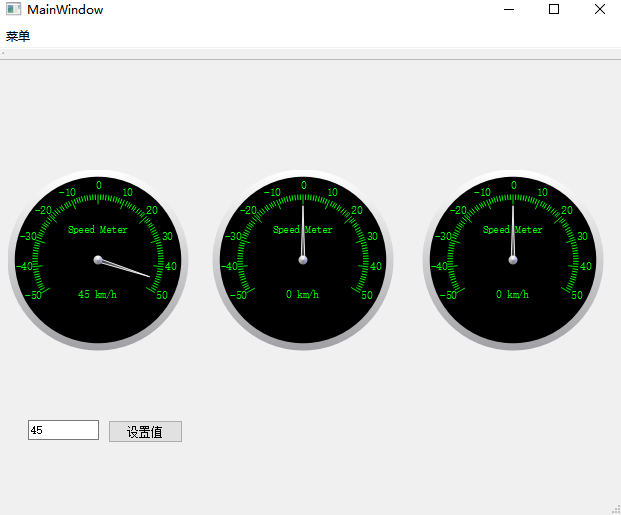

    // 创建三个仪表盘类
    instrumentpanel1 = new InstrumentPanel(this);
    instrumentpanel2 = new InstrumentPanel(this);
    instrumentpanel3 = new InstrumentPanel(this);
    // 将三个仪表盘加载到窗口上
    ui->verticalLayout1->addWidget(instrumentpanel1);
    ui->verticalLayout2->addWidget(instrumentpanel2);
    ui->verticalLayout3->addWidget(instrumentpanel3);
}
MainWindow::~MainWindow()
{
    delete ui;
}
void MainWindow::on_pushButton_clicked()
{
    double num = ui->lineEdit->text().toDouble();
    instrumentpanel1->UpdatePanelVal(num);
}

文件压缩包：ZG_Project.zip

参考资料：https://blog.csdn.net/Aidam_Bo/article/details/85266798
