1、Kubernetes网络

Kubernetes 网络解决四方面的问题：

一个 Pod 中的容器之间通过本地回路（loopback）通信。
集群网络在不同 pod 之间提供通信。Pod和Pod之间互通
Service 资源允许你对外暴露 Pods 中运行的应用程序，以支持来自于集群外部的访问。Service和Pod要通
可以使用 Services 来发布仅供集群内部使用的服务。

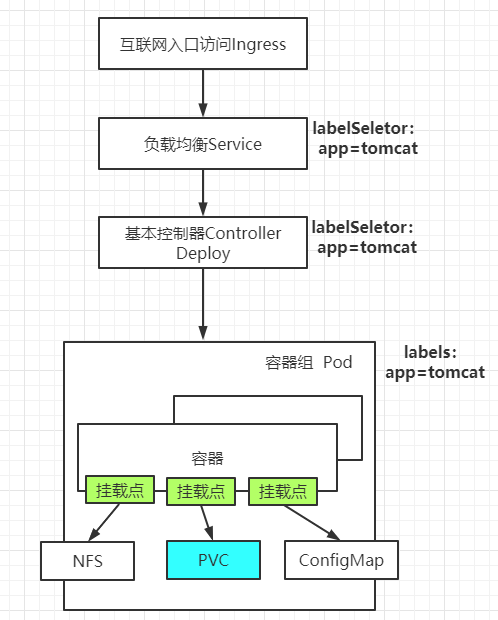

网络架构图：

网络连通原理

Container To Container

ip netns add ns1 #添加网络名称空间
ls /var/run/netns #查看所有网络名词空间
ip netns #查看所有网络名词空间

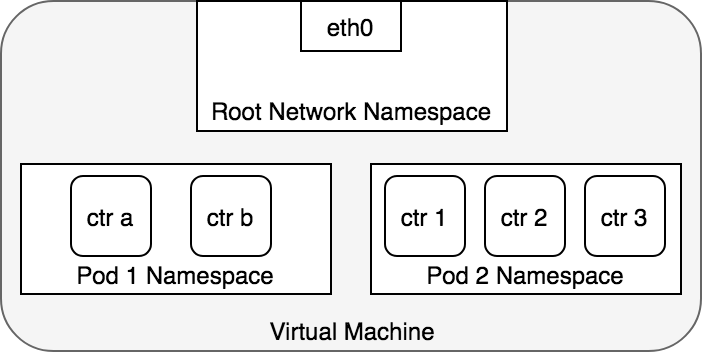

Linux 将所有的进程都分配到 root network namespace，以使得进程可以访问外部网络
Kubernetes 为每一个 Pod 都创建了一个 network namespace

2、Service

负载均衡服务。让一组Pod可以被别人进行服务发现。
Service —- >> 选择一组Pod
别人只需要访问这个Service。Service还会基于Pod的探针机制（ReadinessProbe：就绪探针）完成Pod的自动剔除和上线工作。

Service即使无头服务。别人（Pod）不能用ip访问，但是可以用service名当成域名访问。
Service的名字还能当成域名被Pod解析
1、基础概念

将运行在一组 Pods 上的应用程序公开为网络服务的抽象方法。

云原生服务发现 service中的type可选值如下，代表四种不同的服务发现类型

ExternalName
ClusterIP: 为当前Service分配或者不分配集群IP。负载均衡一组Pod
NodePort：外界也可以使用机器ip+暴露的NodePort端口访问。

nodePort端口由kube-proxy开在机器上
机器ip+暴露的NodePort 流量先来到 kube-proxy

LoadBalancer.

**ClusterIP** ：通过集群的内部 IP 暴露服务，选择该值时服务只能够在集群内部访问。这也是默认的 ServiceType。
[NodePort](https://kubernetes.io/zh/docs/concepts/services-networking/service/#nodeport)：通过每个节点上的 IP 和静态端口（NodePort）暴露服务。 NodePort 服务会路由到自动创建的 ClusterIP 服务。通过请求 <节点 IP>:<节点端口>，你可以从集群的外部访问一个 NodePort 服务。
[LoadBalancer](https://kubernetes.io/zh/docs/concepts/services-networking/service/#loadbalancer)：使用云提供商的负载均衡器向外部暴露服务。外部负载均衡器可以将流量路由到自动创建的 NodePort 服务和 ClusterIP 服务上。
[ExternalName](https://kubernetes.io/zh/docs/concepts/services-networking/service/#externalname)：通过返回 CNAME 和对应值，可以将服务映射到 externalName 字段的内容（例如，foo.bar.example.com）。无需创建任何类型代理。

apiVersion: v1
kind: Service
metadata:
  name: cluster-service-test
  namespace: default
spec:
  selector:
    app: canary-nginx
  # clusterIP: 10.96.88.99
  clusterIP: None  ## 不要给这个svc分配ip。headless service无头服务配合有状态副本集StatefulSet
  type: ClusterIP ## ClusterIP,ExternalName, NodePort, and LoadBalancer
  ## ClusterIP：指，当前Service在集群内可以被所有人发现，默认给这个service分配一个集群内的网络
  ## podcidr： Pod的子网范围   svccidr：Service的子网范围
  ports:
  - name: abc
    port: 80  ## 访问当前service 的 80
    targetPort: 80  ## 派发到Pod的8080
  # ports:
  # - name: abc
  #   port: 80  ## 访问当前service 的 80
  #   targetPort: 8080  ## 派发到Pod的8080
  # - name: redis
  #   port: 99
  #   targetPort: 6379

apiVersion: v1
kind: Service
metadata:
  name: cluster-service-222
  namespace: default
spec:
  selector:
    app: canary-nginx
  type: NodePort  ## 每一台机器都为这个service随机分配一个指定的端口
  ports:
  - name: http
    port: 80
    targetPort: 80
    protocol: TCP
    # nodePort: 不指定默认会在  30000-32765这个范围内随机分配
    nodePort: 31110

2、创建简单Service

apiVersion: v1
kind: Service
metadata:
  name: my-service
spec:
  selector:
    app: MyApp   ## 使用选择器选择所有Pod
 # type: ClusterIP  ##type很重要，不写默认是ClusterIP
  ports:
    - protocol: TCP
      port: 80
      targetPort: 9376

Service 创建完成后，会对应一组EndPoint。可以kubectl get ep 进行查看
type有四种，每种对应不同服务发现机制
Servvice可以利用Pod的就绪探针机制，只负载就绪了的Pod。自动剔除没有就绪的Pod

3、创建无Selector的Service
我们可以创建Service不指定Selector
然后手动创建EndPoint，指定一组Pod地址。
此场景用于我们负载均衡其他中间件场景。 ```yaml
无selector的svc
apiVersion: v1 kind: Service metadata: name: my-service-no-selector spec: ports:
- protocol: TCP name: http ###一定注意，name可以不写，
  但是这里如果写了name，那么endpoint里面的ports必须有同名name才能绑定
  port: 80 # service 80 targetPort: 80 #目标80

apiVersion: v1 kind: Endpoints metadata: name: my-service-no-selector ### ep和svc的绑定规则是：和svc同名同名称空间，port同名或同端口 namespace: default subsets:

addresses:
- ip: 220.181.38.148
- ip: 39.156.69.79
- ip: 192.168.169.165 ports:
- port: 80 name: http ## svc有name这里一定要有 protocol: TCP ```

4、ClusterIP

type: ClusterIP
ClusterIP: 手动指定/None/""

手动指定的ClusterIP必须在合法范围内
None会创建出没有ClusterIP的headless service（无头服务），Pod需要用服务的域名访问

5、NodePort

apiVersion: v1
kind: Service
metadata:
  name: my-service
  namespace: default
type: NodePort
ports:
  - protocol: TCP
    port: 80  # service 80
    targetPort: 80  #目标80
    nodePort: 32123  #自定义

如果将 type 字段设置为 NodePort，则 Kubernetes 将在 --service-node-port-range 标志指定的范围内分配端口（默认值：30000-32767）
k8s集群的所有机器都将打开监听这个端口的数据，访问任何一个机器，都可以访问这个service对应的Pod
使用 nodePort 自定义端口

6、ExternalName

apiVersion: v1
kind: Service
metadata:
  name: my-service-05
  namespace: default
spec:
  type: ExternalName
  externalName: baidu.com

其他的Pod可以通过访问这个service而访问其他的域名服务

但是需要注意目标服务的跨域问题

7、LoadBalancer

apiVersion: v1
kind: Service
metadata:
creationTimestamp: null
labels:
  app.kubernetes.io/name: load-balancer-example
name: my-service
spec:
ports:
- port: 80
  protocol: TCP
  targetPort: 80
selector:
  app.kubernetes.io/name: load-balancer-example
type: LoadBalancer

8、扩展 - externalIP

在 Service 的定义中， externalIPs 可以和任何类型的 .spec.type 一通使用。在下面的例子中，客户端可通过 80.11.12.10:80 （externalIP:port）访问my-service

apiVersion: v1
kind: Service
metadata:
name: my-service-externalip
spec:
selector:
  app: canary-nginx
ports:
  - name: http
    protocol: TCP
    port: 80
    targetPort: 80
externalIPs: ### 定义只有externalIPs指定的地址才可以访问这个service
  - 10.170.0.111  ### 集群内的ip都不行？
####    - 其他机器的ip

9、扩展 - Pod的DNS

apiVersion: v1
kind: Service
metadata:
  name: default-subdomain
spec:
  selector:
    name: busybox
  clusterIP: None
  ports:
  - name: foo # 实际上不需要指定端口号
    port: 1234
    targetPort: 1234
---
apiVersion: v1
kind: Pod
metadata:
  name: busybox1
  labels:
    name: busybox
spec:
  hostname: busybox-1
  subdomain: default-subdomain
  ## 指定必须和svc名称一样，才可以 podName.subdomain.名称空间.svc.cluster.local访问。否则访问不同指定Pod
  containers:
  - image: busybox:1.28
    command:
      - sleep
      - "3600"
    name: busybox
---
apiVersion: v1
kind: Pod
metadata:
  name: busybox2
  labels:
    name: busybox
spec:
  hostname: busybox-2  ### 每个Pod指定主机名
  subdomain: default-subdomain  ## subdomain等于sevrice的名
  containers:
  - image: busybox:1.28
    command:
      - sleep
      - "3600"
    name: busybox

访问 busybox-1.default-subdomain.default.svc.cluster.local 可以访问到busybox-1。
访问Service
- 同名称空间
  - ping service-name 即可
- 不同名称空间
  - ping service-name.namespace 即可
访问Pod
- 同名称空间
  - ping pod-host-name.service-name 即可
- 不同名称空间
  - ping pod-host-name.service-name.namespace 即可

busybox-1.default-subdomain.default**
Pod的hostName.service的名.名称空间的名
想要使用域名访问的模式，必须加Service网络的名字

3、Ingress

为什么需要Ingress？

Service可以使用NodePort暴露集群外访问端口，但是性能低下不安全
缺少Layer7的统一访问入口，可以负载均衡、限流等
Ingress 公开了从集群外部到集群内服务的 HTTP 和 HTTPS 路由。流量路由由 Ingress 资源上定义的规则控制。
我们使用Ingress作为整个集群统一的入口，配置Ingress规则转到对应的Service

1、ingress nginx

https://kubernetes.io/zh/docs/concepts/services-networking/ingress/#ingress-%E6%98%AF%E4%BB%80%E4%B9%88

这是k8s官方做的，适配nginx的。这个里面会及时更新一些特性，而且性能很高，也被广泛采用。https://kubernetes.github.io/ingress-nginx/deploy

## 默认安装使用这个镜像
registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/ingress-nginx-controller:v0.46.0

2、ingress nginx 安装

1、安装

自建集群使用裸金属安装方式

需要如下修改：

修改ingress-nginx-controller镜像为 registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/ingress-nginx-controller:v0.46.0
修改Deployment为DaemonSet比较好
修改Container使用主机网络，直接在主机上开辟 80,443端口，无需中间解析，速度更快
Container使用主机网络，对应的dnsPolicy策略也需要改为主机网络的
修改Service为ClusterIP，无需NodePort模式了
修改DaemonSet的nodeSelector: ingress-node=true 。这样只需要给node节点打上ingress-node=true 标签，即可快速的加入/剔除 ingress-controller的数量 ```yaml

apiVersion: v1 kind: Namespace metadata: name: ingress-nginx labels: app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx

Source: ingress-nginx/templates/controller-serviceaccount.yaml

apiVersion: v1 kind: ServiceAccount metadata: labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx namespace: ingress-nginx

automountServiceAccountToken: true

Source: ingress-nginx/templates/controller-configmap.yaml

apiVersion: v1 kind: ConfigMap metadata: labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx-controller namespace: ingress-nginx

data:

Source: ingress-nginx/templates/clusterrole.yaml

apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm name: ingress-nginx rules:

apiGroups:
- ‘’ resources:
- configmaps
- endpoints
- nodes
- pods
- secrets verbs:
- list
- watch
apiGroups:
- ‘’ resources:
- nodes verbs:
- get
apiGroups:
- ‘’ resources:
- services verbs:
- get
- list
- watch
apiGroups:
- extensions
- networking.k8s.io # k8s 1.14+ resources:
- ingresses verbs:
- get
- list
- watch
apiGroups:
- ‘’ resources:
- events verbs:
- create
- patch
apiGroups:
- extensions
- networking.k8s.io # k8s 1.14+ resources:
- ingresses/status verbs:
- update
apiGroups:
- networking.k8s.io # k8s 1.14+ resources:
- ingressclasses verbs:
- get
- list
- watch

Source: ingress-nginx/templates/clusterrolebinding.yaml

apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm name: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: ingress-nginx subjects:

kind: ServiceAccount name: ingress-nginx namespace: ingress-nginx

Source: ingress-nginx/templates/controller-role.yaml

apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx namespace: ingress-nginx rules:

apiGroups:
- ‘’ resources:
- namespaces verbs:
- get
apiGroups:
- ‘’ resources:
- configmaps
- pods
- secrets
- endpoints verbs:
- get
- list
- watch
apiGroups:
- ‘’ resources:
- services verbs:
- get
- list
- watch
apiGroups:
- extensions
- networking.k8s.io # k8s 1.14+ resources:
- ingresses verbs:
- get
- list
- watch
apiGroups:
- extensions
- networking.k8s.io # k8s 1.14+ resources:
- ingresses/status verbs:
- update
apiGroups:
- networking.k8s.io # k8s 1.14+ resources:
- ingressclasses verbs:
- get
- list
- watch
apiGroups:
- ‘’ resources:
- configmaps resourceNames:
- ingress-controller-leader-nginx verbs:
- get
- update
apiGroups:
- ‘’ resources:
- configmaps verbs:
- create
apiGroups:
- ‘’ resources:
- events verbs:
- create
- patch

Source: ingress-nginx/templates/controller-rolebinding.yaml

apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx namespace: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: ingress-nginx subjects:

kind: ServiceAccount name: ingress-nginx namespace: ingress-nginx

Source: ingress-nginx/templates/controller-service-webhook.yaml

apiVersion: v1 kind: Service metadata: labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx-controller-admission namespace: ingress-nginx spec: type: ClusterIP ports:

- name: https-webhook
  port: 443
  targetPort: webhook

selector: app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx

app.kubernetes.io/component: controller

Source: ingress-nginx/templates/controller-service.yaml：不要

apiVersion: v1 kind: Service metadata: annotations: labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx-controller namespace: ingress-nginx spec: type: ClusterIP ## 改为clusterIP ports:

- name: http
  port: 80
  protocol: TCP
  targetPort: http
- name: https
  port: 443
  protocol: TCP
  targetPort: https

selector: app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx

app.kubernetes.io/component: controller

Source: ingress-nginx/templates/controller-deployment.yaml

apiVersion: apps/v1 kind: DaemonSet metadata: labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: controller name: ingress-nginx-controller namespace: ingress-nginx spec: selector: matchLabels: app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/component: controller revisionHistoryLimit: 10 minReadySeconds: 0 template: metadata: labels: app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/component: controller spec: dnsPolicy: ClusterFirstWithHostNet ## dns对应调整为主机网络 hostNetwork: true ## 直接让nginx占用本机80端口和443端口，所以使用主机网络 containers:

    - name: controller
      image: registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/ingress-nginx-controller:v0.46.0
      imagePullPolicy: IfNotPresent
      lifecycle:
        preStop:
          exec:
            command:
              - /wait-shutdown
      args:
        - /nginx-ingress-controller
        - --election-id=ingress-controller-leader
        - --ingress-class=nginx
        - --configmap=$(POD_NAMESPACE)/ingress-nginx-controller
        - --validating-webhook=:8443
        - --validating-webhook-certificate=/usr/local/certificates/cert
        - --validating-webhook-key=/usr/local/certificates/key
      securityContext:
        capabilities:
          drop:
            - ALL
          add:
            - NET_BIND_SERVICE
        runAsUser: 101
        allowPrivilegeEscalation: true
      env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: LD_PRELOAD
          value: /usr/local/lib/libmimalloc.so
      livenessProbe:
        httpGet:
          path: /healthz
          port: 10254
          scheme: HTTP
        initialDelaySeconds: 10
        periodSeconds: 10
        timeoutSeconds: 1
        successThreshold: 1
        failureThreshold: 5
      readinessProbe:
        httpGet:
          path: /healthz
          port: 10254
          scheme: HTTP
        initialDelaySeconds: 10
        periodSeconds: 10
        timeoutSeconds: 1
        successThreshold: 1
        failureThreshold: 3
      ports:
        - name: http
          containerPort: 80
          protocol: TCP
        - name: https
          containerPort: 443
          protocol: TCP
        - name: webhook
          containerPort: 8443
          protocol: TCP
      volumeMounts:
        - name: webhook-cert
          mountPath: /usr/local/certificates/
          readOnly: true
      resources:
        requests:
          cpu: 100m
          memory: 90Mi
  nodeSelector:  ## 节点选择器
    node-role: ingress #以后只需要给某个node打上这个标签就可以部署ingress-nginx到这个节点上了
    #kubernetes.io/os: linux  ## 修改节点选择
  serviceAccountName: ingress-nginx
  terminationGracePeriodSeconds: 300
  volumes:
    - name: webhook-cert
      secret:
        secretName: ingress-nginx-admission

Source: ingress-nginx/templates/admission-webhooks/validating-webhook.yaml

before changing this value, check the required kubernetes version

https://kubernetes.io/docs/reference/access-authn-authz/extensible-admission-controllers/#prerequisites

apiVersion: admissionregistration.k8s.io/v1 kind: ValidatingWebhookConfiguration metadata: labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook name: ingress-nginx-admission webhooks:

name: validate.nginx.ingress.kubernetes.io matchPolicy: Equivalent rules:
- apiGroups:
  - networking.k8s.io apiVersions:
  - v1beta1 operations:
  - CREATE
  - UPDATE resources:
  - ingresses failurePolicy: Fail sideEffects: None admissionReviewVersions:
- v1
- v1beta1 clientConfig: service: namespace: ingress-nginx name: ingress-nginx-controller-admission path: /networking/v1beta1/ingresses

Source: ingress-nginx/templates/admission-webhooks/job-patch/serviceaccount.yaml

apiVersion: v1 kind: ServiceAccount metadata: name: ingress-nginx-admission annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook

namespace: ingress-nginx

Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrole.yaml

apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRole metadata: name: ingress-nginx-admission annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook rules:

apiGroups:
- admissionregistration.k8s.io resources:
- validatingwebhookconfigurations verbs:
- get
- update

Source: ingress-nginx/templates/admission-webhooks/job-patch/clusterrolebinding.yaml

apiVersion: rbac.authorization.k8s.io/v1 kind: ClusterRoleBinding metadata: name: ingress-nginx-admission annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook roleRef: apiGroup: rbac.authorization.k8s.io kind: ClusterRole name: ingress-nginx-admission subjects:

kind: ServiceAccount name: ingress-nginx-admission namespace: ingress-nginx

Source: ingress-nginx/templates/admission-webhooks/job-patch/role.yaml

apiVersion: rbac.authorization.k8s.io/v1 kind: Role metadata: name: ingress-nginx-admission annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook namespace: ingress-nginx rules:

apiGroups:
- ‘’ resources:
- secrets verbs:
- get
- create

Source: ingress-nginx/templates/admission-webhooks/job-patch/rolebinding.yaml

apiVersion: rbac.authorization.k8s.io/v1 kind: RoleBinding metadata: name: ingress-nginx-admission annotations: helm.sh/hook: pre-install,pre-upgrade,post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook namespace: ingress-nginx roleRef: apiGroup: rbac.authorization.k8s.io kind: Role name: ingress-nginx-admission subjects:

kind: ServiceAccount name: ingress-nginx-admission namespace: ingress-nginx

Source: ingress-nginx/templates/admission-webhooks/job-patch/job-createSecret.yaml

apiVersion: batch/v1 kind: Job metadata: name: ingress-nginx-admission-create annotations: helm.sh/hook: pre-install,pre-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook namespace: ingress-nginx spec: template: metadata: name: ingress-nginx-admission-create labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook spec: containers:

    - name: create
      image: docker.io/jettech/kube-webhook-certgen:v1.5.1
      imagePullPolicy: IfNotPresent
      args:
        - create
        - --host=ingress-nginx-controller-admission,ingress-nginx-controller-admission.$(POD_NAMESPACE).svc
        - --namespace=$(POD_NAMESPACE)
        - --secret-name=ingress-nginx-admission
      env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
  restartPolicy: OnFailure
  serviceAccountName: ingress-nginx-admission
  securityContext:
    runAsNonRoot: true
    runAsUser: 2000

Source: ingress-nginx/templates/admission-webhooks/job-patch/job-patchWebhook.yaml

apiVersion: batch/v1 kind: Job metadata: name: ingress-nginx-admission-patch annotations: helm.sh/hook: post-install,post-upgrade helm.sh/hook-delete-policy: before-hook-creation,hook-succeeded labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook namespace: ingress-nginx spec: template: metadata: name: ingress-nginx-admission-patch labels: helm.sh/chart: ingress-nginx-3.30.0 app.kubernetes.io/name: ingress-nginx app.kubernetes.io/instance: ingress-nginx app.kubernetes.io/version: 0.46.0 app.kubernetes.io/managed-by: Helm app.kubernetes.io/component: admission-webhook spec: containers:

    - name: patch
      image: docker.io/jettech/kube-webhook-certgen:v1.5.1
      imagePullPolicy: IfNotPresent
      args:
        - patch
        - --webhook-name=ingress-nginx-admission
        - --namespace=$(POD_NAMESPACE)
        - --patch-mutating=false
        - --secret-name=ingress-nginx-admission
        - --patch-failure-policy=Fail
      env:
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
  restartPolicy: OnFailure
  serviceAccountName: ingress-nginx-admission
  securityContext:
    runAsNonRoot: true
    runAsUser: 2000

<a name="rqdom"></a>
#### 2、卸载
```bash
kubectl delete -f ingress-controller.yaml 即可

3、案例实战

1、基本配置

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: lshady-ingress
  namespace: default
spec:
  rules:
  - host: lshady.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:  ## 指定需要响应的后端服务
          service:
            name: my-nginx-svc  ## kubernetes集群的svc名称
            port:
              number: 80  ## service的端口号

pathType 详细：

Prefix：基于以 / 分隔的 URL 路径前缀匹配。匹配区分大小写，并且对路径中的元素逐个完成。路径元素指的是由 / 分隔符分隔的路径中的标签列表。如果每个 p 都是请求路径 p 的元素前缀，则请求与路径 p 匹配。
Exact：精确匹配 URL 路径，且区分大小写。
ImplementationSpecific：对于这种路径类型，匹配方法取决于 IngressClass。具体实现可以将其作为单独的 pathType 处理或者与 Prefix 或 Exact 类型作相同处理。

ingress规则会生效到所有按照了IngressController的机器的nginx配置。

2、默认后端

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: lshady-ingress
  namespace: default
spec:
  defaultBackend:  ## 指定所有未匹配的默认后端
    service:
      name: php-apache
      port:
        number: 80
  rules:
  - host: lshady.com
    http:
      paths:
      - path: /abc
        pathType: Prefix
        backend:
          service:
            name: my-nginx-svc
            port:
              number: 80

效果

lshady.com 下的非 /abc 开头的所有请求，都会到defaultBackend
非lshady.com 域名下的所有请求，也会到defaultBackend

nginx的全局配置

kubectl edit cm ingress-nginx-controller -n  ingress-nginx
编辑配置加上
data:
  配置项:  配置值
  所有配置项参考  https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/configmap/
基于环境变量带去的

3、路径重写

https://kubernetes.github.io/ingress-nginx/examples/rewrite/

Rewrite 功能，经常被用于前后分离的场景

前端给服务器发送 / 请求映射前端地址。
后端给服务器发送 /api 请求来到对应的服务。但是后端服务没有 /api的起始路径，所以需要ingress-controller自动截串

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:  ## 写好annotion
  #https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/annotations/
    nginx.ingress.kubernetes.io/rewrite-target: /$2  ### 只保留哪一部分
  name: rewrite-ingress-02
  namespace: default
spec:
  rules:  ## 写好规则
  - host: lshady.com
    http:
      paths:
      - backend:
          service:
            name: php-apache
            port:
              number: 80
        path: /api(/|$)(.*)
        pathType: Prefix

4、配置SSL

https://kubernetes.github.io/ingress-nginx/user-guide/tls/
生成证书：（也可以去青云申请免费证书进行配置）

$ openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout ${KEY_FILE:tls.key} -out ${CERT_FILE:tls.cert} -subj "/CN=${HOST:itdachang.com}/O=${HOST:itdachang.com}"
kubectl create secret tls ${CERT_NAME:itdachang-tls} --key ${KEY_FILE:tls.key} --cert ${CERT_FILE:tls.cert}
## 示例命令如下
openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout tls.key -out tls.cert -subj "/CN=it666.com/O=it666.com"
kubectl create secret tls it666-tls --key tls.key --cert tls.cert

apiVersion: v1
data:
  tls.crt: LS0tLS1CRUdJTiBDRVJUSUZJQ0FURS0tLS0tCk1JSURJekNDQWd1Z0F3SUJBZ0lKQVB6YXVMQ1ZjdlVKTUEwR0NTcUdTSWIzRFFFQkN3VUFNQ2d4RWpBUUJnTlYKQkFNTUNXbDBOalkyTG1OdmJURVNNQkFHQTFVRUNnd0phWFEyTmpZdVkyOXRNQjRYRFRJeE1EVXhNREV5TURZdwpNRm9YRFRJeU1EVXhNREV5TURZd01Gb3dLREVTTUJBR0ExVUVBd3dKYVhRMk5qWXVZMjl0TVJJd0VBWURWUVFLCkRBbHBkRFkyTmk1amIyMHdnZ0VpTUEwR0NTcUdTSWIzRFFFQkFRVUFBNElCRHdBd2dnRUtBb0lCQVFDbkNYa0wKNjdlYzNjYW5IU1V2VDR6YXZmMGpsOEFPWlBtUERhdUFRTElEby80LzlhV2JPSy9yZm5OelVXV3lTRFBqb3pZVApWa2xmQTZYRG1xRU5FSWRHRlhjdExTSlRNRkM5Y2pMeTlwYVFaaDVYemZId0ZoZXZCR1J3MmlJNXdVdk5iTGdWCmNzcmRlNXlKMEZYOFlMZFRhdjhibzhjTXpxN2FqZXhXMWc1dkxmTWZhczAvd2VyVk9Qc0ZmS3RwZ1dwSWMxMXEKekx6RnlmWHNjcVNhVTV2NFo5WHFqQjRtQjhZZ043U2FSa2pzU0VsSFU4SXhENEdTOUtTNGtkR2xZak45V2hOcAp6aG5MdllpSDIrZThQWE9LdU8wK2Jla1MrS3lUS2hnNnFWK21kWTN0MWJGenpCdjFONTVobTNQTldjNk9ROTh3CkYrQk9uUUNhWExKVmRRcS9BZ01CQUFHalVEQk9NQjBHQTFVZERnUVdCQlNzSUFvMHZ4RFZjVWtIZ1V1TFlwY0wKdjBFSERqQWZCZ05WSFNNRUdEQVdnQlNzSUFvMHZ4RFZjVWtIZ1V1TFlwY0x2MEVIRGpBTUJnTlZIUk1FQlRBRApBUUgvTUEwR0NTcUdTSWIzRFFFQkN3VUFBNElCQVFDSjFEdGJoQnBacTE1ODVEMGlYV1RTdmU3Q2YvQ3VnakxZCjNYb2gwSU9sNy9mVmNndFJkWXlmRFBmRDFLN0l4bElETWtUbTVEVWEyQzBXaFY5UlZLU0poSTUzMmIyeVRGcm8Kc053eGhkcUZpOC9CU1lsQTl0Tk5HeXhKT1RKZWNtSUhsaFhjRlEvUzFaK3FjVWNrTVh6UHlIcFl0VjRaU0hheQpFWVF2bUVBZTFMNmlnRk8wc2xhbUllTFBCTWhlTDNnSDZQNlV3TVpQbTRqdFR1d2FGSmZGRlRIakQydmhSQkJKCmZjTGY5QjN3U3k2cjBDaXF2VXQxQUNQVnpSdFZrcWJJV1d5VTBDdkdjVDVIUUxPLzdhTE4vQkxpNGdYV2o1MUwKVXdTQzhoY2xodVp3SmRzckNkRlltcjhTMnk0UDhsaDdBc0ZNOGorNjh1ZHJlYXovWmFNbwotLS0tLUVORCBDRVJUSUZJQ0FURS0tLS0tCg==
  tls.key: LS0tLS1CRUdJTiBQUklWQVRFIEtFWS0tLS0tCk1JSUV2QUlCQURBTkJna3Foa2lHOXcwQkFRRUZBQVNDQktZd2dnU2lBZ0VBQW9JQkFRQ25DWGtMNjdlYzNjYW4KSFNVdlQ0emF2ZjBqbDhBT1pQbVBEYXVBUUxJRG8vNC85YVdiT0svcmZuTnpVV1d5U0RQam96WVRWa2xmQTZYRAptcUVORUlkR0ZYY3RMU0pUTUZDOWNqTHk5cGFRWmg1WHpmSHdGaGV2QkdSdzJpSTV3VXZOYkxnVmNzcmRlNXlKCjBGWDhZTGRUYXY4Ym84Y016cTdhamV4VzFnNXZMZk1mYXMwL3dlclZPUHNGZkt0cGdXcEljMTFxekx6RnlmWHMKY3FTYVU1djRaOVhxakI0bUI4WWdON1NhUmtqc1NFbEhVOEl4RDRHUzlLUzRrZEdsWWpOOVdoTnB6aG5MdllpSAoyK2U4UFhPS3VPMCtiZWtTK0t5VEtoZzZxVittZFkzdDFiRnp6QnYxTjU1aG0zUE5XYzZPUTk4d0YrQk9uUUNhClhMSlZkUXEvQWdNQkFBRUNnZ0VBTDZ0Tlp6Q0MrdnB6cWRkd2VEcjhtS1JsckpXdkVxeVFaOW5mMnI4Ynpsd3IKdi9jTHB1dWJrTnBLZWx0OWFVNmZ1RlFvcDRZVmRFOG5MRlpocGNmVXd4UjNLV1piQ0dDZWVpSXdGaFIzVFloSApHb25FaE43WkxYSlVjN3hjemh5eTFGSTFpckZ5NFpoWVNTQXltYzdFSXNORFFKRVJ5ajdsdWF1TkNnOFdtWFdPCmd0OHIzZHVTazNHV2ZZeGdWclFZSHlGTVpCbUpvNDliRzVzdGcwR01JNUZRQXord3RERlIyaWk2NkVkNzBJOUwKYXJNMHpQZkM3Tk1acmhEcHVseVdVYWNXRDY1V1g1Yys5TnpIMW15MEVrbjJGOWQzNXE1czZRakdTVElMVXlhbwpJUVl5bGU0OVdKdlV4YjN2YTZ1OTVBUHAyWFFVaFEyS09GcGxabncwTVFLQmdRRFN2cDAzYlBvQVlEb3BqWGlxCndxemxKdk9IY2M4V3ZhVytoM0tvVFBLZ1dRZWpvVnNZTFEzM2lMeXdFY0FXaWtoSzE2UjVmTkt5VUFRZ2JDNm4KNTdkcUJ3L1RqYlV2UGR6K0llMnNKN1BlSlpCQktXZUNHNjBOeGgzUDVJcSsxRHVjdExpQTBKdVZyOUlaUzdqSApJOVpUMitDMTNlNkRlZkJaajFDb0ZhemJ1UUtCZ1FESzZCaVkzSk5FYVhmWVpKUzh1NFViVW9KUjRhUURBcmlpCjFGRlEzMDFPOEF0b1A2US9IcjFjbTdBNGZkQ3JoSkxPMFNqWnpldnF4NEVHSnBueG5pZGowL24yTHE3Z2x6Q2UKbVlKZFVVVFo0MkxJNGpWelBlUk1RaGhueW9CTHpmaEFYcEtZSU1NcmpTd1JUcnYyclRpQkhxSEZRbDN6YngvKwptcjdEVWtlR053S0JnRllPdEpDUGxiOVZqQ3F2dEppMmluZkE0aTFyRWcvTlBjT0IrQlkxNWRZSXhRL1NzaW83Cks3cnJRWEg4clo0R3RlS3FFR1h6ek80M3NwZXkxWktIRXVUZklWMVlQcWFkOG9Kc1JHdktncTZ5VkNmbnluYmMKNmx2M2pQRDUrSlpZZ0VkTG5SUXRHM3VTb283bDF2eXE2N2l1enlJMUVGTHNGblBjRENtM1FERXhBb0dBSDQrdQprOGhybDg2WDk2N2RlK1huTkhMSEZwbDBlNHRtME4wWnNPeXJCOFpLMy9KV1NBTXVEVU9pUzRjMmVCZHRCb0orClNqSy9xWXRTeEhRb3FlNmh6ZU5oRkN2Nnc3Q0F2WXEvUG1pdnZ2eWhsd0dvc3I1RHpxRFJUd091cFJ2cXE0aUsKWU9ObnVGU0RNRVlBOHNQSzhEcWxpeHRocGNYNVFnOHI4UkhSVWswQ2dZQlF3WFdQU3FGRElrUWQvdFg3dk1mTwp3WDdWTVFMK1NUVFA4UXNRSFo2djdpRlFOL3g3Vk1XT3BMOEp6TDdIaGdJV3JzdkxlV1pubDh5N1J3WnZIbm9zCkY3dkliUm00L1Y1YzZHeFFQZXk5RXVmWUw4ejRGMWhSeUc2ZjJnWU1jV25NSWpnaUh2dTA3cStuajFORkh4YVkKa2ZSSERia01YaUcybU42REtyL3RtQT09Ci0tLS0tRU5EIFBSSVZBVEUgS0VZLS0tLS0K
kind: Secret
metadata:
  creationTimestamp: "2021-05-10T12:06:22Z"
  name: it666-tls
  namespace: default
  resourceVersion: "2164722"
  uid: 16f8a4b6-1600-4ded-8458-b0480ce075ba
type: kubernetes.io/tls

配置域名使用证书

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: itdachang-ingress
  namespace: default
spec:
  tls:
   - hosts:
     - itdachang.com
     secretName: itdachang-tls
  rules:
  - host: itdachang.com
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: my-nginx-svc
            port:
              number: 80

配置好证书，访问域名，就会默认跳转到https；

5、限速

https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/annotations/#rate-limiting

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: ingress-222333
  namespace: default
  annotations:  ##注解
    nginx.ingress.kubernetes.io/limit-rps: "1"   ### 限流的配置
spec:
  defaultBackend: ## 只要未指定的映射路径
    service:
      name: php-apache
      port:
        number: 80
  rules:
  - host: it666.com
    http:
      paths:
      - path: /bbbbb
        pathType: Prefix
        backend:
          service:
            name: cluster-service-222
            port:
              number: 80

6、灰度发布-Canary

以前可以使用k8s的Service配合Deployment进行金丝雀部署。原理如下

缺点：

不能自定义灰度逻辑，比如指定用户进行灰度

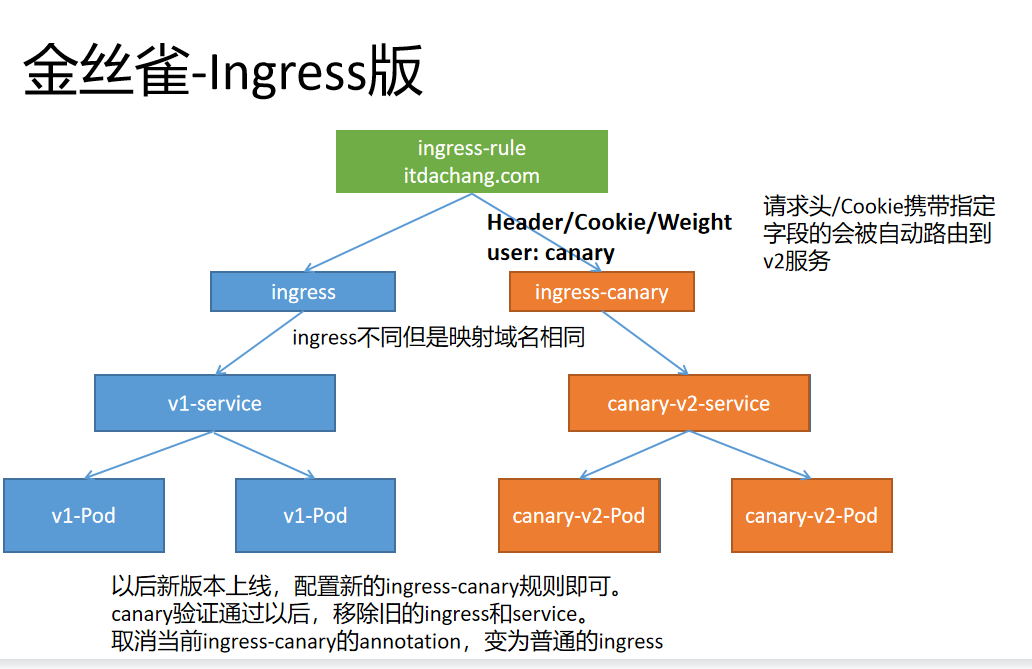

现在可以使用Ingress进行灰度。原理如下

## 使用如下文件部署两个service版本。v1版本返回nginx默认页，v2版本返回 11111
apiVersion: v1
kind: Service
metadata:
  name: v1-service
  namespace: default
spec:
  selector:
    app: v1-pod
  type: ClusterIP
  ports:
  - name: http
    port: 80
    targetPort: 80
    protocol: TCP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name:  v1-deploy
  namespace: default
  labels:
    app:  v1-deploy
spec:
  selector:
    matchLabels:
      app: v1-pod
  replicas: 1
  template:
    metadata:
      labels:
        app:  v1-pod
    spec:
      containers:
      - name:  nginx
        image:  nginx
---
apiVersion: v1
kind: Service
metadata:
  name: canary-v2-service
  namespace: default
spec:
  selector:
    app: canary-v2-pod
  type: ClusterIP
  ports:
  - name: http
    port: 80
    targetPort: 80
    protocol: TCP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name:  canary-v2-deploy
  namespace: default
  labels:
    app:  canary-v2-deploy
spec:
  selector:
    matchLabels:
      app: canary-v2-pod
  replicas: 1
  template:
    metadata:
      labels:
        app:  canary-v2-pod
    spec:
      containers:
      - name:  nginx
        image:  registry.cn-hangzhou.aliyuncs.com/lfy_k8s_images/nginx-test:env-msg

7、会话保持-Session亲和性

https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/annotations/#session-affinity
第一次访问，ingress-nginx会返回给浏览器一个Cookie，以后浏览器带着这个Cookie，保证访问总是抵达之前的Pod；

## 部署一个三个Pod的Deployment并设置Service
apiVersion: v1
kind: Service
metadata:
  name: session-affinity
  namespace: default
spec:
  selector:
    app: session-affinity
  type: ClusterIP
  ports:
  - name: session-affinity
    port: 80
    targetPort: 80
    protocol: TCP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name:  session-affinity
  namespace: default
  labels:
    app:  session-affinity
spec:
  selector:
    matchLabels:
      app: session-affinity
  replicas: 3
  template:
    metadata:
      labels:
        app:  session-affinity
    spec:
      containers:
      - name:  session-affinity
        image:  nginx

编写具有会话亲和的ingress

### 利用每次请求携带同样的cookie，来标识是否是同一个会话
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: session-test
  namespace: default
  annotations:
    nginx.ingress.kubernetes.io/affinity: "cookie"
    nginx.ingress.kubernetes.io/session-cookie-name: "itdachang-session"
spec:
  rules:
  - host: it666.com
    http:
      paths:
      - path: /   ### 如果以前这个域名下的这个路径相同的功能有配置过，以最后一次生效
        pathType: Prefix
        backend:
          service:
            name: session-affinity   ###
            port:
              number: 80

4、NetworkPolicy

网络策略（网络隔离策略）
https://kubernetes.io/zh/docs/concepts/services-networking/network-policies/
指定Pod间的网络隔离策略，默认是所有互通。

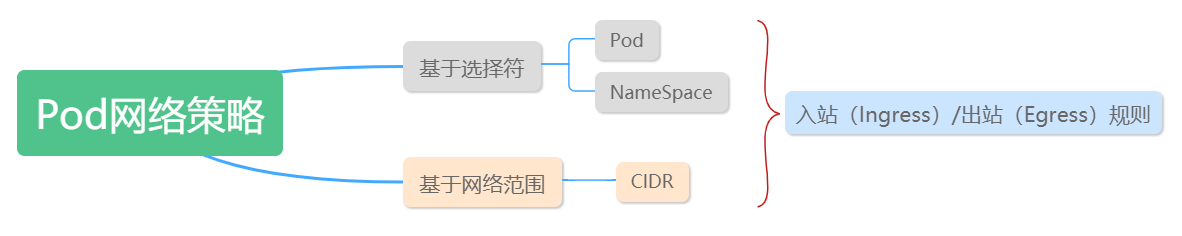

Pod 之间互通，是通过如下三个标识符的组合来辩识的：

其他被允许的 Pods（例外：Pod 无法阻塞对自身的访问）
被允许的名称空间
IP 组块（例外：与 Pod 运行所在的节点的通信总是被允许的，无论 Pod 或节点的 IP 地址）

1、Pod隔离与非隔离

默认情况下，Pod网络都是非隔离的（non-isolated），可以接受来自任何请求方的网络请求。

如果一个 NetworkPolicy 的标签选择器选中了某个 Pod，则该 Pod 将变成隔离的（isolated），并将拒绝任何不被 NetworkPolicy 许可的网络连接。

2、规约

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
name: test-network-policy
namespace: default
spec:
podSelector:  ## 选中指定Pod
 matchLabels:
   role: db
policyTypes:  ## 定义上面Pod的入站出站规则
- Ingress
- Egress
ingress:    ## 定义入站白名单
- from:
 - ipBlock:
     cidr: 172.17.0.0/16
     except:
     - 172.17.1.0/24
 - namespaceSelector:
     matchLabels:
       project: myproject
 - podSelector:
     matchLabels:
       role: frontend
 ports:
 - protocol: TCP
   port: 6379
egress:  ## 定义出站白名单
- to:
 - ipBlock:
     cidr: 10.0.0.0/24
 ports:
 - protocol: TCP
   port: 5978

基本信息： 同其他的 Kubernetes 对象一样，NetworkPolicy 需要 apiVersion、kind、metadata 字段
spec：NetworkPolicy的spec字段包含了定义网络策略的主要信息：
- podSelector： 同名称空间中，符合此标签选择器 .spec.podSelector 的 Pod 都将应用这个 NetworkPolicy。上面的 Example中的 podSelector 选择了 role=db 的 Pod。如果该字段为空，则将对名称空间中所有的 Pod 应用这个 NetworkPolicy
- policyTypes： .spec.policyTypes 是一个数组类型的字段，该数组中可以包含 Ingress、Egress 中的一个，也可能两个都包含。该字段标识了此 NetworkPolicy 是否应用到入方向的网络流量、出方向的网络流量、或者两者都有。如果不指定 policyTypes 字段，该字段默认将始终包含 Ingress，当 NetworkPolicy 中包含出方向的规则时，Egress 也将被添加到默认值。
- ingress：ingress是一个数组，代表入方向的白名单规则。每一条规则都将允许与from和ports匹配的入方向的网络流量发生。例子中的ingress包含了一条规则，允许的入方向网络流量必须符合如下条件：
  - Pod 的监听端口为 6379
  - 请求方可以是如下三种来源当中的任意一种：
    - ipBlock 为 172.17.0.0/16 网段，但是不包括 172.17.1.0/24 网段
    - namespaceSelector 标签选择器，匹配标签为 project=myproject
    - podSelector 标签选择器，匹配标签为 role=frontend
- egress：egress是一个数组，代表出方向的白名单规则。每一条规则都将允许与to和ports匹配的出方向的网络流量发生。例子中的egress允许的出方向网络流量必须符合如下条件：
  - 目标端口为 5978
  - 目标 ipBlock 为 10.0.0.0/24 网段

因此，例子中的 NetworkPolicy 对网络流量做了如下限制：

隔离了 default 名称空间中带有 role=db 标签的所有 Pod 的入方向网络流量和出方向网络流量
Ingress规则（入方向白名单规则）：
- 当请求方是如下三种来源当中的任意一种时，允许访问default名称空间中所有带role=db标签的 Pod 的6379端口：
  - ipBlock 为 172.17.0.0/16 网段，但是不包括 172.17.1.0/24 网段
  - namespaceSelector 标签选择器，匹配标签为 project=myproject
  - podSelector 标签选择器，匹配标签为 role=frontend
Egress规则（出方向白名单规则）：
- 当如下条件满足时，允许出方向的网络流量：
  - 目标端口为 5978
  - 目标 ipBlock 为 10.0.0.0/24 网段

3、to和from选择器的行为

NetworkPolicy 的 .spec.ingress.from 和 .spec.egress.to 字段中，可以指定 4 种类型的标签选择器：

podSelector 选择与 NetworkPolicy 同名称空间中的 Pod 作为入方向访问控制规则的源或者出方向访问控制规则的目标
namespaceSelector 选择某个名称空间（其中所有的Pod）作为入方向访问控制规则的源或者出方向访问控制规则的目标
namespaceSelector 和 podSelector 在一个 to / from 条目中同时包含 namespaceSelector 和 podSelector 将选中指定名称空间中的指定 Pod。此时请特别留意 YAML 的写法，如下所示：
```
...
ingress:
- from:
  - namespaceSelector:
      matchLabels:
        user: alice
    podSelector:
      matchLabels:
        role: client
...
```
该例子中，podSelector 前面没有 - 减号，namespaceSelector 和 podSelector 是同一个 from 元素的两个字段，将选中带 user=alice 标签的名称空间中所有带 role=client 标签的 Pod。但是，下面的这个 NetworkPolicy 含义是不一样的：
```
...
ingress:
- from:
  - namespaceSelector:
      matchLabels:
        user: alice
  - podSelector:
      matchLabels:
        role: client
...
```
后者，podSelector 前面带 - 减号，说明 namespaceSelector 和 podSelector 是 from 数组中的两个元素，他们将选中 NetworkPolicy 同名称空间中带 role=client 标签的对象，以及带 user=alice 标签的名称空间的所有 Pod。

前者是交集关系（且），后者是并集关系（或）

ipBlock 可选择 IP CIDR 范围作为入方向访问控制规则的源或者出方向访问控制规则的目标。这里应该指定的是集群外部的 IP，因为集群内部 Pod 的 IP 地址是临时分配的，且不可预测。

集群的入方向和出方向网络机制通常需要重写网络报文的 source 或者 destination IP。kubernetes 并未定义应该在处理 NetworkPolicy 之前还是之后再修改 source / destination IP，因此，在不同的云供应商、使用不同的网络插件时，最终的行为都可能不一样。这意味着：

对于入方向的网络流量，某些情况下，你可以基于实际的源 IP 地址过滤流入的报文；在另外一些情况下，NetworkPolicy 所处理的 “source IP” 可能是 LoadBalancer 的 IP 地址，或者其他地址
对于出方向的网络流量，基于 ipBlock 的策略可能有效，也可能无效
4、场景
https://kubernetes.io/zh/docs/concepts/services-networking/network-policies/#default-policies

3、服务
