第一章.Transformation转换算子(Key-Value类型)

1.partitionBy

  1. package com.atguigu.spark.day04
  3. import org.apache.spark.{HashPartitioner, Partitioner, SparkConf, SparkContext}
  4. import org.junit.Test
  6. class $01_Transformation extends Serializable {
  7.   //序列化忽略
  8.   @transient
  9.   val sc = new SparkContext(new SparkConf().setMaster("local[4]").setAppName("test"))
  10.   /**
  11.    * partitionBy(分区器):按照指定分区器shuffle重分区
  12.    *
  13.    */
  14.   @Test
  15.   def partitionBy():Unit={
  16.     val rdd = sc.parallelize(List(("aa",10),"bb"->20,"cc"->30,"ac"->30,"ec"->40,"cf"->50,"ad"->60))
  17.     rdd.mapPartitionsWithIndex((index,it)=>{
  18.       println(s"index=${index} data=${it.toList}")
  19.       it
  20.     }).collect()
  21.     val rdd2 = rdd.partitionBy(new HashPartitioner(3))
  22.     rdd2.mapPartitionsWithIndex((index,it)=>{
  23.       println(s"rdd2 index=${index} data=${it.toList}")
  24.       it
  25.     }).collect()
  26.     val rdd3 = rdd.groupBy(x=>x._1,p= new MyPartitioner(4))
  27.     rdd3.mapPartitionsWithIndex((index,it)=>{
  28.       println(s"rdd3 index=${index} data=${it.toList}")
  29.       it
  30.     }).collect()
  32.   }
  34.   /**
  35.    * 自定义分区器
  36.    *   1.创建class继承Partitioner
  37.    *   2.重写抽象方法
  38.    *   3.使用
  39.    */
  40.   class MyPartitioner(num:Int) extends Partitioner{
  41.     //获取分区数
  42.     override def numPartitions: Int = if(num<4) 4 else this.num
  44.     //根据key获取分区号
  45.     override def getPartition(key: Any): Int = key match {
  46.       case null => 0
  47.       case "aa" => 1
  48.       case "ac" => 2
  49.       case "ec" => 3
  50.       case _ => 0
  51.     }
  53.   }
  55. }

2.groupByKey

  1. /**
  2.    * groupByKey:按照key分组
  3.    * groupByKey结果RDD[(K,V)],K代表原RDD中key,V代表在原RDD中对应的所有的value值的集合
  4.    */
  5.   @Test
  6.   def groupByKey()={
  7.     val rdd1 = sc.parallelize(List("aa"->1,"aa"->10,"cc"->20,"cd"->40,"aa"->50,"cc"->60,"cd"->100))
  8.     val rdd2 = rdd1.groupByKey(3)
  9.     println(rdd1.getNumPartitions)
  10.     println(rdd2.getNumPartitions)
  11.     //实现groupByKey
  12.     val rdd3 = rdd1.groupBy(_._1)
  13.     println(rdd2.collect().toList)
  14.     println(rdd3.collect().toList)
  16.   }

3.reduceByKey

  1. /**
  2.    * reduceByKey(),按照key分组,之后针对每个组的所有value值聚合
  3.    * reduceByKey与groupByKey区别:
  4.    *    groupByKey只是单纯的分组,没有combiner操作
  5.    *    reduceByKey是分组+聚合,有combiner操作,整体性能上比groupByKey要高
  6.    */
  7.   @Test
  8.   def reduceByKey():Unit={
  9.     val rdd1 = sc.parallelize(List("aa"->1,"aa"->10,"cc"->20,"cd"->40,"aa"->50,"cc"->60,"cd"->100),2)
  10.     rdd1.mapPartitionsWithIndex((index,it)=>{
  11.       println(s"index=${index} data=${it.toList}")
  12.       it
  13.     }).collect()
  14.     val rdd2 = rdd1.reduceByKey((agg, curr) => {
  15.       println(s"agg=${agg}  curr=${curr}")
  16.       agg + curr
  17.     })
  18.     println(rdd2.collect().toList)
  19.   }

图解:

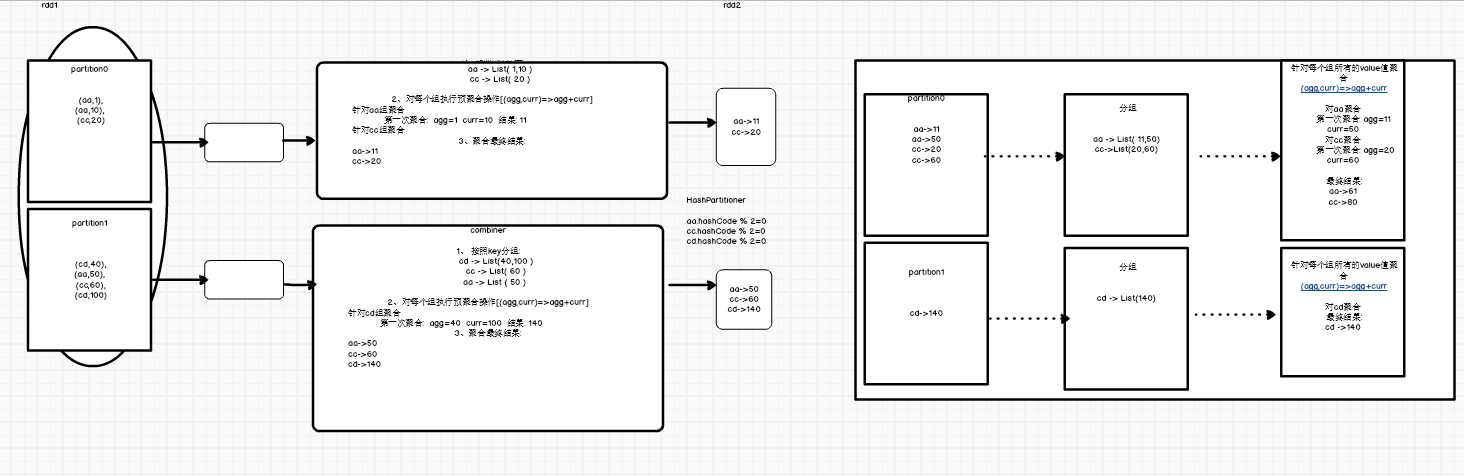

$04[SparkCore(transformation转换算子)下] - 图1

4.combineByKey

  1. /**
  2.    * combineByKey(createCombiner:RDD元素value值类型=>B,mergeValue:(B,RDD元素Value值类型)=>B,mergeCombiners:(B,B)=>B)
  3.    * createCombiner:在combiner阶段对每个分区每个组的第一个value值进行转换
  4.    * mergeValue:combiner聚合逻辑
  5.    * mergeCombiners:reduce聚合逻辑
  6.    */
  7.   @Test
  8.   def combineByKey() = {
  9.     val rdd1 = sc.parallelize(List("语文" -> 60, "数学" -> 100, "语文" -> 70, "英语" -> 80, "数学" -> 65, "英语" -> 100,
  10.       "英语" -> 70, "语文" -> 90, "数学" -> 100, "英语" -> 100), 2)
  11.     //需求:统计学科的平均分
  12.     //第一种方案
  13.     val rdd2 = rdd1.groupByKey()
  14.     val rdd3 = rdd2.map(x => {
  15.       val totalScore = x._2.sum
  16.       val count = x._2.size
  17.       (x._1, totalScore.toDouble / count)
  19.     })
  20.     println(rdd3.collect().toList)
  22.     //第二种方案
  23.     val rdd4 = rdd1.map {
  24.       case (name, score) => (name, (score, 1))
  26.     }
  27.     val rdd5 = rdd4.reduceByKey((agg, curr) => {
  28.       (agg._1 + curr._1, agg._2 + curr._2)
  29.     })
  30.     val rdd6 = rdd5.map{
  31.       case (name, (totalScore, count)) => (name, totalScore.toDouble / count)
  33.     }
  34.     println(rdd6.collect().toList)
  35.     //第三种方案
  36.     val rdd7 = rdd1.combineByKey(
  37.       x=>(x,1),(agg:(Int,Int),curr)=>{
  38.         (agg._1+curr,agg._2+1)
  39.       },(agg:(Int,Int),curr:(Int,Int))=>{
  40.         (agg._1+curr._1,agg._2+curr._2)
  41.       }
  42.     )
  43.     val result = rdd7.map{
  44.       case (name,(totalScore,count))=>(name,totalScore.toDouble/count)
  46.     }.collect()
  47.     println(result.toList)
  50.   }

图解

$04[SparkCore(transformation转换算子)下] - 图2

$04[SparkCore(transformation转换算子)下] - 图3

5.flodByKey

  1. /**
  2.    * flodByKey(默认值)(func:(value值类型,value值类型)=>value值类型)
  3.    * flodByKey在combiner阶段对每个组的第一次计算的时候,函数的第一个参数的初始值=
  4.    */
  5.   @Test
  6.   def flodByKey():Unit={
  7.     val rdd1 = sc.parallelize(List("语文" -> 60, "数学" -> 100, "语文" -> 70, "英语" -> 80, "数学" -> 65, "英语" -> 100,
  8.       "英语" -> 70, "语文" -> 90, "数学" -> 100, "英语" -> 100), 2)
  9.     rdd1.mapPartitionsWithIndex((index,it)=>{
  10.       println(s"index=${index} data=${it.toList}")
  11.       it
  12.     }).collect()
  13.     println(rdd1.foldByKey(1000)((agg, curr) => {
  14.       println(s"agg=${agg} curr=${curr}")
  15.       agg + curr
  16.     }).collect().toList)
  17.   }

图解

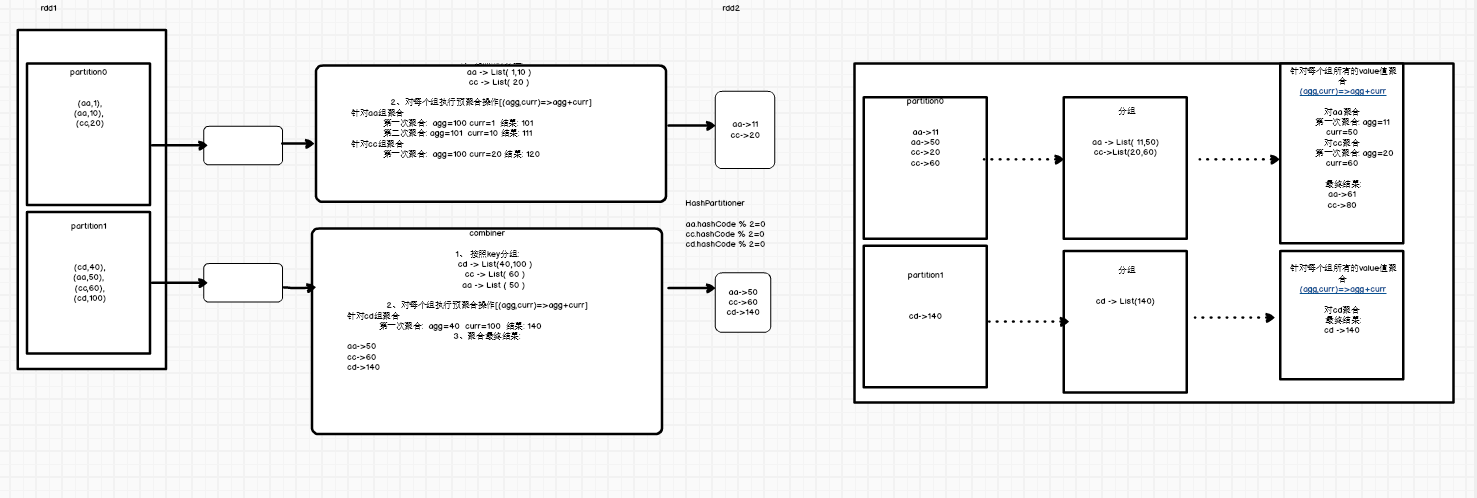

$04[SparkCore(transformation转换算子)下] - 图4

6.aggreateByKey

  1. /**
  2.    * aggreateByKey(默认值:U)(SeqOp:(U,value值类型)=>U,combOp:(U,U)=>U)
  3.    *   seqOp:combine计算逻辑
  4.    *   在combine阶段对每个组第一次聚合的时候,seqOp函数第一个参数的初始值=默认值
  5.    *   combOp:reduce计算逻辑
  6.    */
  8.   @Test
  9.   def aggreateByKey():Unit={
  10.     val rdd1 = sc.parallelize(List("语文" -> 60, "数学" -> 100, "语文" -> 70, "英语" -> 80, "数学" -> 65, "英语" -> 100,
  11.       "英语" -> 70, "语文" -> 90, "数学" -> 100, "英语" -> 100), 2)
  12.     rdd1.mapPartitionsWithIndex((index,it)=>{
  13.       println(s"index=${index} data=${it.toList}")
  14.       it
  15.     }).collect()
  16.     val rdd2 = rdd1.aggregateByKey((0,0))((agg,curr)=>{
  17.       println(s"combiner agg=${agg} curr=${curr}")
  18.       (agg._1+curr,agg._2+1)
  19.     },
  20.       (agg,curr)=>{
  21.         println(s"reducer agg=${agg} curr=${curr}")
  22.         (agg._1+curr._1,agg._2+curr._2)
  23.       }
  24.     )
  25.     println(rdd2.collect().toList)
  27.   }

reduceByKey,foldByKey,conbineByKey,aggregateByKey的区别

  • reduceByKey:reduce与combine计算逻辑一样,在combiner阶段对每个组第一次聚合的时候,函数的第一个参数的初始值=默认值
  • foldByKey:reduce与Combiner计算逻辑一样,在Combiner阶段对每个组第一次聚合的时候,函数的第一个参数的初始值=默认值
  • combineByKey:reduce与combine计算逻辑可以不一样,在Combiner阶段会对第一个value值转换,在combine阶段对每个组第一次聚合的时候,函数的第一个参数的初始值=第一个value值的转换结果
  • aggreateByKey:reduce与combine计算逻辑可以不一样,在combine阶段对每个组第一次聚合时候,函数的第一个参数的初始值=默认值

7.sortByKey

  2.   /**
  3.    * sortByKey:根据key排序
  4.    */
  6.   @Test
  7.   def sortByKey:Unit={
  8.     val rdd1 = sc.parallelize(List("aa"->10,"ac"->20,"cc"->30,"cd"->40,"ad"->50))
  9.     val rdd2 = rdd1.sortByKey(false)
  10.     //sortByKey实现
  11.     rdd1.sortBy(x=>x._1)
  12.     println(rdd2.collect().toList)
  13.   }

8.mapValues

  1. /**
  2.    * mapValues(func:RDDvalue值类型=>B):针对value值转换映射
  3.    * mapValues是针对每个元素的value值进行操作
  4.    */
  5.   @Test
  6.   def mapValues():Unit={
  7.     val rdd1 = sc.parallelize(List("aa"->10,"ac"->20,"cc"->30,"cd"->40,"ad"->50))
  8.     val rdd2 =rdd1.mapValues(x=>x/10)
  9.     //等价于 rdd1.map(x=>(x._1,x._2/10))
  10.     println(rdd2.collect().toList)
  11.   }

9.join

  1. /**
  2.    * join:两个RDD中key相同的才能连接上,相当于sql的inner join
  3.    */
  5.   @Test
  6.   def join():Unit={
  7.     val rdd1 = sc.parallelize(List("zhangsan"->"1001","lisi"->"1002","wangwu"->"1003","zhaoliu"->"1001","李磊"->"1005"))
  8.     val rdd2 = sc.parallelize(List("1001"->"开发部","1002"->"销售部","1003"->"市场部","1004"->"公关部"))
  9.     val rdd3 = rdd1.map(x=>(x._2,x._1))
  10.     val rdd4 = rdd3.join(rdd2)
  11.     val rdd5 = rdd3.leftOuterJoin(rdd2)
  12.     val rdd6 = rdd3.rightOuterJoin(rdd2)
  13.     val rdd7 = rdd3.fullOuterJoin(rdd2)
  14.     //笛卡尔积
  15.     val rdd8 = rdd3.cartesian(rdd2)
  16.     println(rdd4.collect().toList)
  17.     println(rdd5.collect().toList)
  18.     println(rdd6.collect().toList)
  19.     println(rdd7.collect().toList)
  20.     println(rdd8.collect().toList)
  21.   }

10.cogroup

  1. /**
  2.    * cogroup = groupByKey+fullOuterJoin
  3.    */
  4.   @Test
  5.   def cogroup():Unit={
  6.     val rdd1 = sc.parallelize(List("1001"->"zhangsan","1002"->"lilei","1003"->"wangwu","1001"->"zhaoliu","1005"->"lilei"))
  7.     val rdd2 = sc.parallelize(List("1001"->"开发部","1002"->"销售部","1003"->"市场部","1004"->"公关部"))
  8.     val rdd3 = rdd1.cogroup(rdd2)
  9.     println(rdd3.collect().toList)
  10.   }
