实现简单的服务端与客户端的通信的小demo

服务端

服务端启动类

package com.jili.helloword.server;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelOption;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import java.net.InetSocketAddress;
/**
 * @author: Jili
 * @date: Created on 2022/4/22 15:52
 * 服务器端启动类
 */
public class AppServerHello {
    /** netty的Reactor线程池，初始化一个NioEventLoop数组，用来处理I/O
     * boss 线程组用于处理连接工作
     */
    private EventLoopGroup boss = new NioEventLoopGroup();
    /**
     * work 线程组用于数据处理
     */
    private EventLoopGroup work = new NioEventLoopGroup();
    private int port;
    public AppServerHello(int port){
        this.port=port;
    }
    public void run() throws Exception{
        try{
            //启动NIO服务
            ServerBootstrap bootstrap = new ServerBootstrap();
            bootstrap.group(boss)
                    //通过工厂方法设计模式实例化channel
                    .channel(NioServerSocketChannel.class)
                    //设置端口
                    .localAddress(new InetSocketAddress(port))
                    //服务端可连接队列数,对应TCP/IP协议listen函数中backlog参数
                    .option(ChannelOption.SO_BACKLOG, 1024)
                    //设置TCP长连接,一般如果两个小时内没有数据的通信时,TCP会自动发送一个活动探测数据报文
                    .childOption(ChannelOption.SO_KEEPALIVE, true)
                    //将小的数据包包装成更大的帧进行传送，提高网络的负载
                    .childOption(ChannelOption.TCP_NODELAY, true)
                    .childHandler(new ChannelInitializer<SocketChannel>() {
                        //ChannelInitializer是一个特殊的类，他的目的是榜示使用者配置一个新的Channel,用于把许多自定义的处理类增加带pipline上来
                        @Override
                        protected void initChannel(SocketChannel socketChannel) throws Exception {
                            //在这里配置具体数据接收方法的处理
                            socketChannel.pipeline().addLast(new HandlerServerHello());
                        }
                    });
            //绑定服务器，该实力将提供有关的io操作结果或状态信息
            ChannelFuture channelFuture = bootstrap.bind().sync();
            System.out.println("在"+channelFuture.channel().localAddress()+"startup");
            //阻塞操作，closeFuture()开启一个channel的监听器，直到链路断开
            channelFuture.channel().closeFuture().sync();
        }finally {
            //关闭EventLoopGroup并释放所有资源，包括所有创建线程
            boss.shutdownGracefully().sync();
            work.shutdownGracefully().sync();
        }
    }
    public static void main(String[] args) throws Exception {
        new AppServerHello(18080).run();
    }
}

服务端处理类

package com.jili.helloword.server;
import io.netty.buffer.ByteBuf;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.ChannelInboundHandlerAdapter;
import io.netty.util.CharsetUtil;
/**
 * @author: Jili
 * @date: Created on 2022/4/20 16:59
 */
@ChannelHandler.Sharable
public class HandlerServerHello extends ChannelInboundHandlerAdapter {
    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        //处理收到消息数据，并反馈给客户端
        ByteBuf in = (ByteBuf)msg;
        System.out.println("收到客户端发来的消息："+in.toString(CharsetUtil.UTF_8));
        //写入并发消息给客户端
        ctx.writeAndFlush(Unpooled.copiedBuffer("我是服务端，收到消息！",CharsetUtil.UTF_8));
    }
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        //出现异常的时候执行（打印并关闭通道）
        cause.printStackTrace();
        ctx.close();
    }
}

客户端

客户端启动类

package com.jili.helloword.client;
import io.netty.bootstrap.Bootstrap;
import io.netty.buffer.Unpooled;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.sctp.nio.NioSctpChannel;
import io.netty.channel.socket.SocketChannel;
import io.netty.channel.socket.nio.NioSocketChannel;
import io.netty.util.CharsetUtil;
import java.net.InetSocketAddress;
/**
 * @author: Jili
 * @date: Created on 2022/4/20 16:03
 * 客户端启动类
 */
public class AppClientHello {
    private  final String host;
    private  final int port;
    public AppClientHello(String host,int port) {
        this.host = host;
        this.port = port;
    }
    public void run() throws Exception{
        /**
         * 配置相应的参数,提供连接到远端
         */
        EventLoopGroup group = new NioEventLoopGroup();//io线程池
        EventLoopGroup work = new NioEventLoopGroup();
        try {
            Bootstrap bs = new Bootstrap();//启动辅助对象
            bs.group(group)
                    .channel(NioSocketChannel.class)
                    .remoteAddress(new InetSocketAddress(host,port))
                    .handler(new ChannelInitializer<SocketChannel>() { //进行通道初始化配置
                        @Override
                        protected void initChannel(SocketChannel socketChannel) throws Exception {
                            socketChannel.pipeline().addLast(new HandlerClientHello()); //添加自定义handler
                        }
                    });
            //连接到远程节点，等待连接完成
            ChannelFuture future = bs.connect().sync();
            //发送消息到服务器
            future.channel().writeAndFlush(Unpooled.copiedBuffer("发送消息：hello world", CharsetUtil.UTF_8));
            //阻塞操作,closeFuture开启一个channel的监听器（这期间channel进行各种工作），直到链路断开
            future.channel().closeFuture().sync();
        } finally {
            group.shutdownGracefully().sync();
        }
    }
    public static void main(String[] args) throws Exception{
        new AppClientHello("127.0.0.1",18080).run();
    }
}

客户端处理类

package com.jili.helloword.client;
import io.netty.buffer.ByteBuf;
import io.netty.channel.ChannelHandler;
import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import io.netty.util.CharsetUtil;
/**
 * @author: Jili
 * @date: Created on 2022/4/20 15:54
 */
@ChannelHandler.Sharable
public class HandlerClientHello extends SimpleChannelInboundHandler<ByteBuf> {
    @Override
    protected void channelRead0(ChannelHandlerContext channelHandlerContext, ByteBuf byteBuf) throws Exception {
        /**
         * 处理接受到的消息
         */
        System.out.println("客户端接受到的消息"+byteBuf.toString(CharsetUtil.UTF_8));
    }
    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        /**
         * 处理异常
         */
        cause.printStackTrace();
        ctx.close();
    }
}

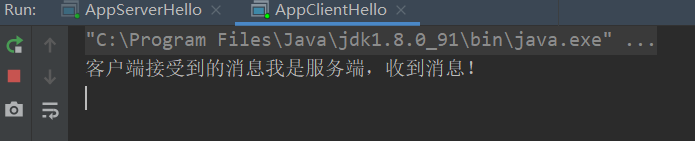

输出结果

代码：
https://gitee.com/jili_lyj/nettystudy

拓展

真实案例

污水数采仪程序

plc数采仪发送报文通过tcp协议到程序，程序通过netty进行解析存放在数据库中
https://www.yuque.com/jilige/nh4eg4/er9azu
