与4.1.1不同，本次debug的项目没有使用mybatis，为了去除第三方框架带来的源码干扰，本次采用的原生JDBC操作原生ShardingSphereAPI的读写分离+分片。
以下的Debug会深刻的了解为啥ShardingJDBC是嵌入式代码，其究竟如何复写的JDBC代码。

设置断点

随着调试，断点来到了ExecutionContext result = createExecutionContext(logicSQL, metaData, routeContext, rewriteResult);
这里是为执行语句做的一些准备工作，即执行语句的上下文获取。接下来将以这里为入口进行源码分析。

创建执行上下文

追踪源码来到：

  1.     private ExecutionContext createExecutionContext(final LogicSQL logicSQL, final ShardingSphereMetaData metaData, final RouteContext routeContext, final SQLRewriteResult rewriteResult) {
  2.         return new ExecutionContext(logicSQL.getSqlStatementContext(), ExecutionContextBuilder.build(metaData, rewriteResult, logicSQL.getSqlStatementContext()), routeContext);
  3.     }

追随build方法：

  1.     public static Collection<ExecutionUnit> build(final ShardingSphereMetaData metaData, final SQLRewriteResult sqlRewriteResult, final SQLStatementContext<?> sqlStatementContext) {
  2.         return sqlRewriteResult instanceof GenericSQLRewriteResult
  3.                 ? build(metaData, (GenericSQLRewriteResult) sqlRewriteResult, sqlStatementContext) : build((RouteSQLRewriteResult) sqlRewriteResult);
  4.     }

继续：

  1.     private static Collection<ExecutionUnit> build(final RouteSQLRewriteResult sqlRewriteResult) {
  2.         Collection<ExecutionUnit> result = new LinkedHashSet<>();
  3.         for (Entry<RouteUnit, SQLRewriteUnit> entry : sqlRewriteResult.getSqlRewriteUnits().entrySet()) {
  4.             result.add(new ExecutionUnit(entry.getKey().getDataSourceMapper().getActualName(),
  5.                     new SQLUnit(entry.getValue().getSql(), entry.getValue().getParameters(), getRouteTableRouteMappers(entry.getKey().getTableMappers()))));
  6.         }
  7.         return result;
  8.     }

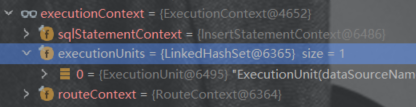

这里可以看出所有的执行路径信息都被放入到ExecutionUnit的SQLUnit中。
最后被放入到了ExecutionContext中。

准备执行环境

回到执行语句：

  1.     public int executeUpdate() throws SQLException {
  2.         try {
  3.             clearPrevious();
  4.             executionContext = createExecutionContext();
  5.             if (metaDataContexts.getDefaultMetaData().getRuleMetaData().getRules().stream().anyMatch(each -> each instanceof RawExecutionRule)) {
  6.                 Collection<ExecuteResult> executeResults = rawExecutor.execute(createRawExecutionGroups(), new RawSQLExecutorCallback());
  7.                 accumulate(executeResults);
  8.             }
  9.             Collection<ExecutionGroup<JDBCExecutionUnit>> executionGroups = createExecutionGroups();
  10.             cacheStatements(executionGroups);
  11.             return driverJDBCExecutor.executeUpdate(
  12.                     executionGroups, executionContext.getSqlStatementContext(), executionContext.getRouteContext().getRouteUnits(), createExecuteUpdateCallback());
  13.         } finally {
  14.             clearBatch();
  15.         }
  16.     }

到这里先判断是否是原生的语句，如果不是的话就要进行分组执行：
Collection<ExecutionGroup<JDBCExecutionUnit>> executionGroups = createExecutionGroups();

  1.     private Collection<ExecutionGroup<JDBCExecutionUnit>> createExecutionGroups() throws SQLException {
  2.         int maxConnectionsSizePerQuery = metaDataContexts.getProps().<Integer>getValue(ConfigurationPropertyKey.MAX_CONNECTIONS_SIZE_PER_QUERY);
  3.         DriverExecutionPrepareEngine<JDBCExecutionUnit, Connection> prepareEngine = new DriverExecutionPrepareEngine<>(
  4.                 JDBCDriverType.PREPARED_STATEMENT, maxConnectionsSizePerQuery, connection, statementOption, metaDataContexts.getDefaultMetaData().getRuleMetaData().getRules());
  5.         return prepareEngine.prepare(executionContext.getRouteContext(), executionContext.getExecutionUnits());
  6.     }

这里先获取最大的连接数，在获得执行引擎进入prepare方法准备环境：

  1.     public final Collection<ExecutionGroup<T>> prepare(final RouteContext routeContext, final Collection<ExecutionUnit> executionUnits) throws SQLException {
  2.         Collection<ExecutionGroup<T>> result = new LinkedList<>();
  3.         for (Entry<String, List<SQLUnit>> entry : aggregateSQLUnitGroups(executionUnits).entrySet()) {
  4.             String dataSourceName = entry.getKey();
  5.             List<SQLUnit> sqlUnits = entry.getValue();
  6.             List<List<SQLUnit>> sqlUnitGroups = group(sqlUnits);
  7.             ConnectionMode connectionMode = maxConnectionsSizePerQuery < sqlUnits.size() ? ConnectionMode.CONNECTION_STRICTLY : ConnectionMode.MEMORY_STRICTLY;
  8.             result.addAll(group(dataSourceName, sqlUnitGroups, connectionMode));
  9.         }
  10.         return decorate(routeContext, result);
  11.     }

这里先获取各种信息后进行分组：

  1.     protected List<ExecutionGroup<T>> group(final String dataSourceName, final List<List<SQLUnit>> sqlUnitGroups, final ConnectionMode connectionMode) throws SQLException {
  2.         List<ExecutionGroup<T>> result = new LinkedList<>();
  3.         List<C> connections = executorDriverManager.getConnections(dataSourceName, sqlUnitGroups.size(), connectionMode);
  4.         int count = 0;
  5.         for (List<SQLUnit> each : sqlUnitGroups) {
  6.             result.add(createExecutionGroup(dataSourceName, each, connections.get(count++), connectionMode));
  7.         }
  8.         return result;
  9.     }

获取连接

  1.     public List<Connection> getConnections(final String dataSourceName, final int connectionSize, final ConnectionMode connectionMode) throws SQLException {
  2.         DataSource dataSource = dataSourceMap.get(dataSourceName);
  3.         Preconditions.checkState(null != dataSource, "Missing the data source name: '%s'", dataSourceName);
  4.         Collection<Connection> connections;
  5.         synchronized (getCachedConnections()) {
  6.             connections = getCachedConnections().get(dataSourceName);
  7.         }
  8.         List<Connection> result;
  9.         if (connections.size() >= connectionSize) {
  10.             result = new ArrayList<>(connections).subList(0, connectionSize);
  11.         } else if (!connections.isEmpty()) {
  12.             result = new ArrayList<>(connectionSize);
  13.             result.addAll(connections);
  14.             List<Connection> newConnections = createConnections(dataSourceName, dataSource, connectionSize - connections.size(), connectionMode);
  15.             result.addAll(newConnections);
  16.             synchronized (getCachedConnections()) {
  17.                 getCachedConnections().putAll(dataSourceName, newConnections);
  18.             }
  19.         } else {
  20.             result = new ArrayList<>(createConnections(dataSourceName, dataSource, connectionSize, connectionMode));
  21.             synchronized (getCachedConnections()) {
  22.                 getCachedConnections().putAll(dataSourceName, result);
  23.             }
  24.         }
  25.         return result;
  26.     }

这里其实是从数据源中筛选出相对应的数据源然后获取其连接。

创建分组

程序来到了createExecutionGroup：

  1.     private ExecutionGroup<T> createExecutionGroup(final String dataSourceName, final List<SQLUnit> sqlUnits, final C connection, final ConnectionMode connectionMode) throws SQLException {
  2.         List<T> result = new LinkedList<>();
  3.         for (SQLUnit each : sqlUnits) {
  4.             result.add((T) sqlExecutionUnitBuilder.build(new ExecutionUnit(dataSourceName, each), executorDriverManager, connection, connectionMode, option));
  5.         }
  6.         return new ExecutionGroup<>(result);
  7.     }

build：

  1.     @Override
  2.     public JDBCExecutionUnit build(final ExecutionUnit executionUnit, final ExecutorJDBCManager executorManager,
  3.                                    final Connection connection, final ConnectionMode connectionMode, final StatementOption option) throws SQLException {
  4.         PreparedStatement preparedStatement = createPreparedStatement(
  5.                 executionUnit.getSqlUnit().getSql(), executionUnit.getSqlUnit().getParameters(), executorManager, connection, connectionMode, option);
  6.         return new JDBCExecutionUnit(executionUnit, connectionMode, preparedStatement);
  7.     }

这里其实获取的是真实的PrepareStatement放入到JDBCExecutionUnit中。
这里将所有环境处理好后返回结果如下：

创建缓存

通过cacheStatements方法将属性信息、参数信息存储起来，这里也对应着每次使用时的清理缓存。

  1.     private void cacheStatements(final Collection<ExecutionGroup<JDBCExecutionUnit>> executionGroups) {
  2.         for (ExecutionGroup<JDBCExecutionUnit> each : executionGroups) {
  3.             statements.addAll(each.getInputs().stream().map(jdbcExecutionUnit -> (PreparedStatement) jdbcExecutionUnit.getStorageResource()).collect(Collectors.toList()));
  4.             parameterSets.addAll(each.getInputs().stream().map(input -> input.getExecutionUnit().getSqlUnit().getParameters()).collect(Collectors.toList()));
  5.         }
  6.         replay();
  7.     }
