背景说明

容器技术具备了良好的隔离性，但针对一个项目而言经常存在多个服务，多个容器需要经过网络进行通信来完成组件间的调用。

解决方案

默认网桥

当Docker启动时会在主机上自动创建一个docker0网桥，实际上是Linux的一个bridge,可以理解为一个交换机，创建容器时，容器默认连接到此交换机，容器会挂载到网桥的网口上进行流量报文转发。

docker0网桥默认IP:172.17.0.1,网段: 172.17.0.0/16

  1. [root@vm1 ~]# ip addr
  2. 1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
  3.     link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
  4.     inet 127.0.0.1/8 scope host lo
  5.        valid_lft forever preferred_lft forever
  6.     inet6 ::1/128 scope host
  7.        valid_lft forever preferred_lft forever
  8. 2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
  9.     link/ether 00:0c:29:ac:19:5a brd ff:ff:ff:ff:ff:ff
  10.     inet 192.168.184.137/24 brd 192.168.184.255 scope global noprefixroute dynamic ens33
  11.        valid_lft 1653sec preferred_lft 1653sec
  12.     inet6 fe80::1d72:8c06:652b:cc91/64 scope link noprefixroute
  13.        valid_lft forever preferred_lft forever
  14. 3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
  15.     link/ether 02:42:ba:dc:f8:16 brd ff:ff:ff:ff:ff:ff
  16.     inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
  17.        valid_lft forever preferred_lft forever
  18.     inet6 fe80::42:baff:fedc:f816/64 scope link
  19.        valid_lft forever preferred_lft forever
  20.        valid_lft forever preferred_lft forever
  21. 6: veth6a6d3ae@if5: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP group default
  22.     link/ether 76:b1:36:2d:7e:13 brd ff:ff:ff:ff:ff:ff link-netnsid 0
  23.     inet6 fe80::74b1:36ff:fe2d:7e13/64 scope link
  24.        valid_lft forever preferred_lft forever
  25. [root@vm1 ~]# docker network ls
  26. NETWORK ID     NAME      DRIVER    SCOPE
  27. 83bb168565b4   bridge    bridge    local
  28. e28930b69a9c   host      host      local
  29. 99b918d1d66f   none      null      local
  30. [root@vm1 ~]# docker network inspect bridge
  31. [
  32.     {
  33.         "Name": "bridge",
  34.         "Id": "83bb168565b43a6aff65444d6720c64a4175b62eda0f340525bd09547a578eae",
  35.         "Created": "2022-04-09T22:42:46.362169371+08:00",
  36.         "Scope": "local",
  37.         "Driver": "bridge",
  38.         "EnableIPv6": false,
  39.         "IPAM": {
  40.             "Driver": "default",
  41.             "Options": null,
  42.             "Config": [
  43.                 {
  44.                     "Subnet": "172.17.0.0/16",
  45.                     "Gateway": "172.17.0.1"
  46.                 }
  47.             ]
  48.         },
  49.         "Internal": false,
  50.         "Attachable": false,
  51.         "Ingress": false,
  52.         "ConfigFrom": {
  53.             "Network": ""
  54.         },
  55.         "ConfigOnly": false,
  56.         "Containers": {
  57.             "c9b6b417eb2f656f0b19c92d8b7a7334e7b40121273dd7297f13e5d62febce1e": {
  58.                 "Name": "modest_goldstine",
  59.                 "EndpointID": "30266235454d3751b7c621f2bef5147cd267a8dff8c9dd81bac35558c3b58195",
  60.                 "MacAddress": "02:42:ac:11:00:02",
  61.                 "IPv4Address": "172.17.0.2/16",
  62.                 "IPv6Address": ""
  63.             }
  64.         },
  65.         "Options": {
  66.             "com.docker.network.bridge.default_bridge": "true",
  67.             "com.docker.network.bridge.enable_icc": "true",
  68.             "com.docker.network.bridge.enable_ip_masquerade": "true",
  69.             "com.docker.network.bridge.host_binding_ipv4": "0.0.0.0",
  70.             "com.docker.network.bridge.name": "docker0",
  71.             "com.docker.network.driver.mtu": "1500"
  72.         },
  73.         "Labels": {}
  74.     }
  75. ]
  76. [root@vm1 ~]#

互联原理

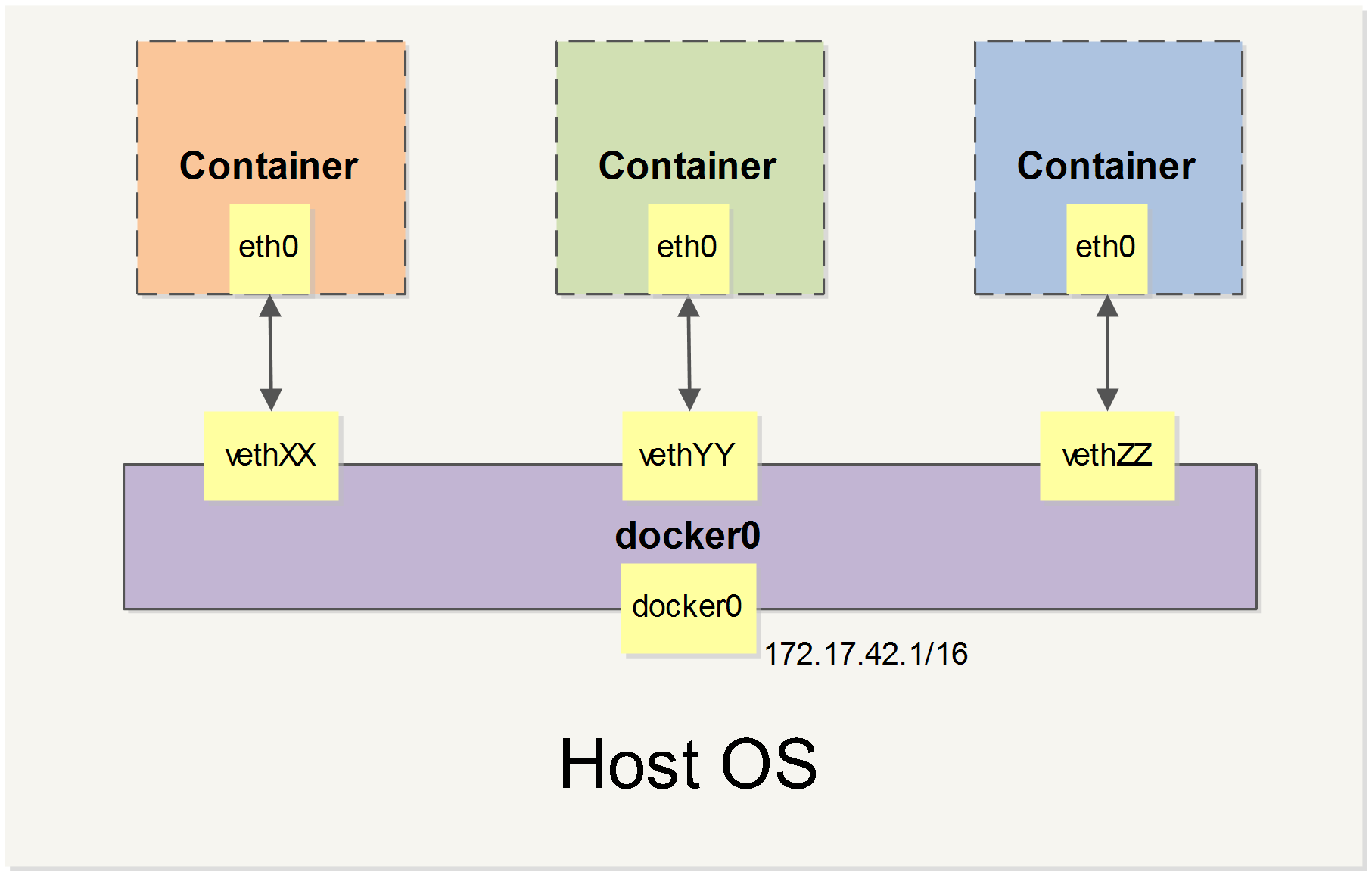

当创建一个Docker容器时，同时会创建一对veth pair接口(当数据包发送到一个接口时，另外一个接口也可以收到相同的数据包)，这对接口一端在容器内即eth0，另一端在本地并挂载到docker0网桥，名称以veth开头(例如veth6a6d3ae)。通过这张方式，主机可以和容器进行通信，容器之间也可以互相通信，Docker就创建了主机和所有容器之间的虚拟共享网络。

网络查看

  1. [root@vm1 ~]# docker network ls
  2. NETWORK ID     NAME      DRIVER    SCOPE
  3. 83bb168565b4   bridge    bridge    local
  4. e28930b69a9c   host      host      local
  5. 99b918d1d66f   none      null      local
  6. [root@vm1 ~]#

网络创建

  1. [root@vm1 ~]# docker network create -d bridge my-net

-d 参数指定 Docker网络类型，有 bridge overlay。其中 overlay 网络类型用于 Swarm mode

网络加入

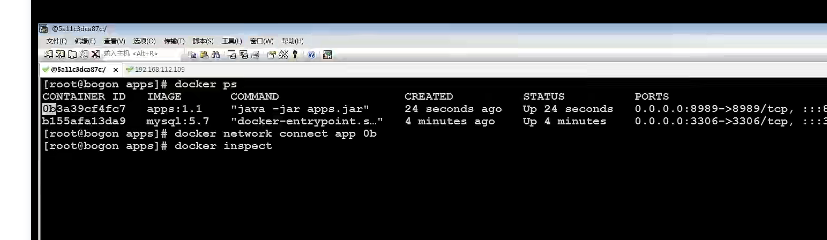

启动容器后将容器加入到某个网络中。

  1. [root@vm1 ~]# docker network connect my-net 容器标识

网络删除

  1. [root@vm1 ~]# docker network rm my-net

网络详情

  1. [root@vm1 ~]# docker network inspect my-net

网络清理

  1. [root@vm1 ~]# docker network prune
