1. 常见的容器之间通信方式
- 1.1. 同一个宿主机内部
- 1.2. 跨宿主机的容器通信
2. Docker网络模型
3. 案例

1. 常见的容器之间通信方式

1.1. 同一个宿主机内部

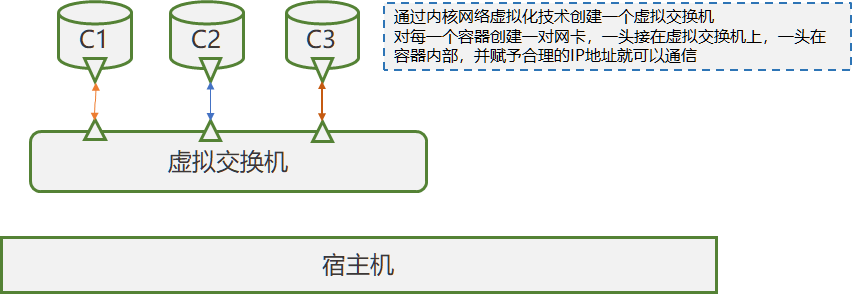

通过虚拟交换机来实现容器间通信

network - 图1

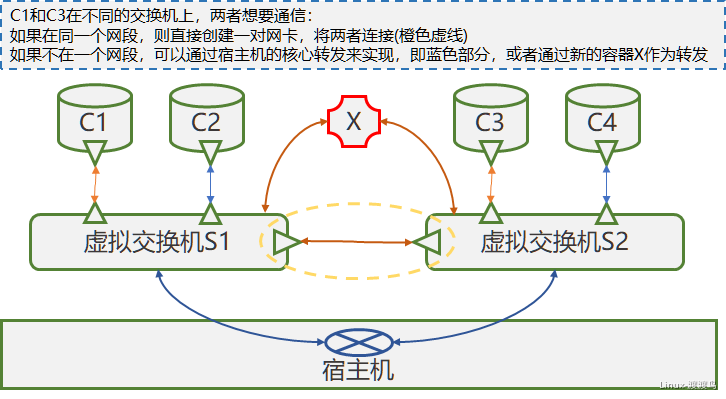

如果容器在不同的虚拟交换机上，则可以通过交换机直连或者路由转发的方式通信

network - 图2

1.2. 跨宿主机的容器通信

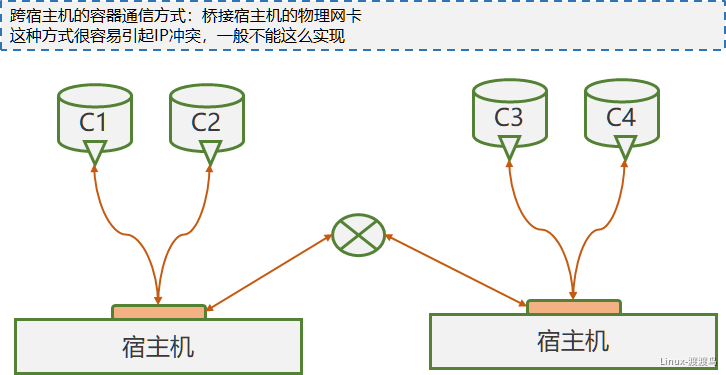

通过桥接宿主机网卡的方式通信

network - 图3

NAT转发(docker默认的方式)

network - 图4

叠加式网络(Overlay network)

network - 图5

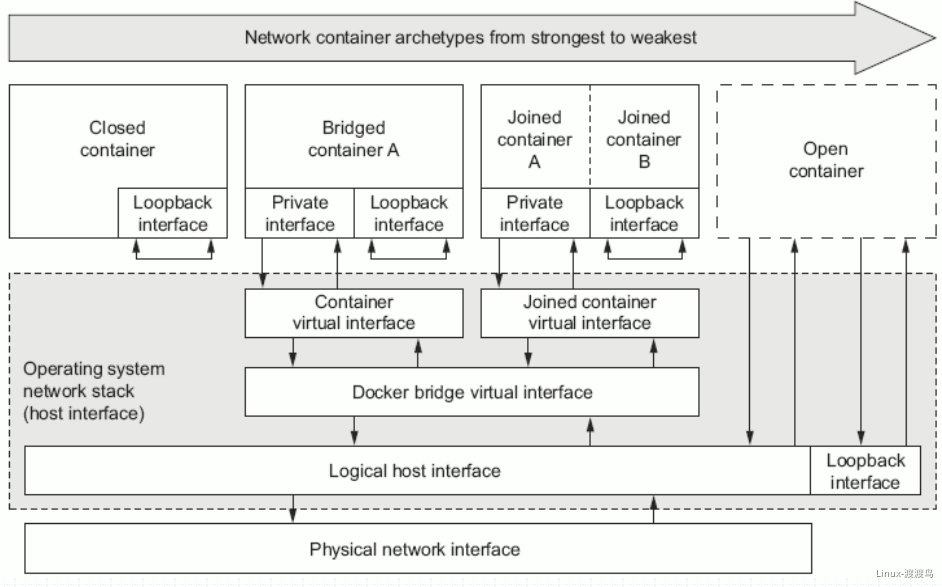

2. Docker网络模型

network - 图6

封闭式容器(none)

仅有一个lo口的容器，一般用于内部的数据处理等任务，而不需要与外界进行通信的容器。

桥接式容器(Bridge,default)

每个容器在创建之初就分配了私有地址和lo口，其中私有地址接在docker的虚拟桥上，可以通过NAT方式与外界通信，这是默认的网络模型。

联盟式容器(Joined)

多个容器共用同一个Net名称空间，而其它名称空间是私有的，这些容器内部可以通过lo口直接通信，而不需要走docker桥。

开放式容器(Open)

开放式容器是联盟式容器的一种特例，此容器共享的是宿主机的网卡

3. 案例

3.1 Docker 容器网络信息查看

[root@centos-82 ~]# ip link show

## veth3c68900@if4 一半在docker0上，一半在容器中。master接口是 docker0
......
3: docker0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP mode DEFAULT group default
    link/ether 02:42:86:d7:21:83 brd ff:ff:ff:ff:ff:ff
5: veth3c68900@if4: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue master docker0 state UP mode DEFAULT group default
    link/ether 26:62:60:c8:23:f6 brd ff:ff:ff:ff:ff:ff link-netnsid 0

[root@centos-82 ~]# docker network ls

NETWORK ID          NAME                DRIVER              SCOPE
19eb0f999458        bridge              bridge              local   ## 默认方式，桥接
b12765b5a394        host                host                local   ## 共享宿主机网络
67019894af82        none                null                local   ## 封闭式容器，仅lo口

[root@centos-82 ~]# docker network inspect bridge

        "Name": "bridge",
......
            "Driver": "default",
......
                    "Subnet": "172.17.0.0/16",  ## 子网地址池
                    "Gateway": "172.17.0.1"     ## 网关
......
        "Containers": {                         ## 包含的容器信息
            "2efec0177ae1ed1d6f3705f6357f7c99157f2a74daa2082108c87a69a6b45e8c": {
                "Name": "web01",
                "EndpointID": "ca991021b1d70462551127cc34753ba1f745ab9c592ac3be56903693759c9132",
                "MacAddress": "02:42:ac:11:00:02",
                "IPv4Address": "172.17.0.2/16",
......
            "com.docker.network.bridge.name": "docker0",  ## 网络名称
            "com.docker.network.driver.mtu": "1500"       ## MTU
......

3.2. 模拟网络名称空间

[root@centos-82 ~]# ip netns add ns1 ## 创建网络名称空间

[root[@centos-82 ](/centos-82 ) ~]# ip netns add ns2

[root@centos-82 ~]# ip netns list ## 查看当前网络名称空间

ns2
ns1

[root@centos-82 ~]# ip netns exec ns1 ip a ## 在指定的网络名称空间中执行命令

1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00

[root@centos-82 ~]# ip link add name veth1.1 type veth peer name veth1.2 ## 创建一对虚拟网卡

[root@centos-82 ~]# ip link show ## veth1.1和veth1.2是一对网卡

1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN mode DEFAULT group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP mode DEFAULT group default qlen 1000
    link/ether 00:0c:29:88:a8:40 brd ff:ff:ff:ff:ff:ff
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN mode DEFAULT group default
    link/ether 02:42:5d:21:bc:03 brd ff:ff:ff:ff:ff:ff
4: veth1.2@veth1.1: <BROADCAST,MULTICAST,M-DOWN> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
    link/ether a6:b3:2f:16:12:46 brd ff:ff:ff:ff:ff:ff
5: veth1.1@veth1.2: <BROADCAST,MULTICAST,M-DOWN> mtu 1500 qdisc noop state DOWN mode DEFAULT group default qlen 1000
    link/ether de:90:83:56:79:1a brd ff:ff:ff:ff:ff:ff

[root@centos-82 ~]# ip link set dev veth1.2 netns ns1 ## 将其中一个网卡一半接入网络名称空间

[root@centos-82 ~]# ip netns exec ns1 ip a ## 接入的网卡处于未激活状态

1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
4: veth1.2@if5: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether a6:b3:2f:16:12:46 brd ff:ff:ff:ff:ff:ff link-netnsid 0

[root@centos-82 ~]# ip netns exec ns1 ip link set dev veth1.2 name eth0 ## 对网卡设备改名

[root@centos-82 ~]# ip netns exec ns1 ip a

1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN group default qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
4: eth0@if5: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000
    link/ether a6:b3:2f:16:12:46 brd ff:ff:ff:ff:ff:ff link-netnsid 0

[root@centos-82 ~]# ip netns exec ns1 ifconfig -a

eth0: flags=4098<BROADCAST,MULTICAST>  mtu 1500
        ether a6:b3:2f:16:12:46  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
lo: flags=8<LOOPBACK>  mtu 65536
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

[root@centos-82 ~]# ifconfig veth1.1 10.154.2.2 ## 激活宿主机的网卡

[root[@centos-82 ](/centos-82 ) ~]# ip netns exec ns1 ifconfig eth0 10.154.2.3  ## 激活名称空间中的网卡

[root@centos-82 ~]# ip netns exec ns1 ifconfig -a

eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 10.154.2.3  netmask 255.0.0.0  broadcast 10.255.255.255
        inet6 fe80::a4b3:2fff:fe16:1246  prefixlen 64  scopeid 0x20<link>
        ether a6:b3:2f:16:12:46  txqueuelen 1000  (Ethernet)
        RX packets 6  bytes 508 (508.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 6  bytes 508 (508.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
lo: flags=8<LOOPBACK>  mtu 65536
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

[root@centos-82 ~]# ping -c 2 -w 1 10.154.2.3 ## 宿主机与网络名称空间中的网卡通信

PING 10.154.2.3 (10.154.2.3) 56(84) bytes of data.
64 bytes from 10.154.2.3: icmp_seq=1 ttl=64 time=0.046 ms
64 bytes from 10.154.2.3: icmp_seq=2 ttl=64 time=0.045 ms

[root@centos-82 ~]# ip link set dev veth1.1 netns ns2 ## 将宿主机中的另一半虚拟网卡移动到另一个网络名称空间中

[root@centos-82 ~]# ip netns exec ns2 ifconfig -a

lo: flags=8<LOOPBACK>  mtu 65536
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
veth1.1: flags=4098<BROADCAST,MULTICAST>  mtu 1500
        ether de:90:83:56:79:1a  txqueuelen 1000  (Ethernet)
        RX packets 12  bytes 928 (928.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 12  bytes 928 (928.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

[root@centos-82 ~]# ip netns exec ns2 ip link set dev veth1.1 name eth0

[root@centos-82 ~]# ip netns exec ns2 ifconfig eth0 10.154.2.9 ## 激活网卡

[root@centos-82 ~]# ip netns exec ns2 ifconfig -a

eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 10.154.2.9  netmask 255.0.0.0  broadcast 10.255.255.255
        inet6 fe80::dc90:83ff:fe56:791a  prefixlen 64  scopeid 0x20<link>
        ether de:90:83:56:79:1a  txqueuelen 1000  (Ethernet)
        RX packets 12  bytes 928 (928.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 18  bytes 1436 (1.4 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0
lo: flags=8<LOOPBACK>  mtu 65536
        loop  txqueuelen 1000  (Local Loopback)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

[root@centos-82 ~]# ip netns exec ns2 ping -c 1 -w 1 10.154.2.3 ## 两个名称空间实现通信

PING 10.154.2.3 (10.154.2.3) 56(84) bytes of data.
64 bytes from 10.154.2.3: icmp_seq=1 ttl=64 time=0.045 ms

3.3. 容器的网络配置

3.3.1. 容器创建时指定

[root@centos-82 ~]# docker run —name bx1 -it —rm busybox:latest ## 默认的主机名是ID

/ # hostname
d7e05d8b2fe6

[root@centos-82 ~]# docker run —name bx1 —hostname container-test-bx1 -it —rm busybox:latest ## 手动指定主机名

/ # hostname
container-test-bx1
/ # cat /etc/hosts  ## 默认hosts文件配置
127.0.0.1   localhost
::1 localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
172.17.0.2  container-test-bx1
/ # cat /etc/resolv.conf  ## 默认使用了宿主机的DNS服务器
# Generated by NetworkManager
nameserver 223.5.5.5
nameserver 114.114.114.114

[root@centos-82 ~]# docker run —name bx1 —hostname container-test-bx1 —dns 172.17.0.1 —dns 8.8.8.8 —add-host bbs.heyang.com:192.168.1.80 -it —rm busybox:latest

/ # cat /etc/hosts
127.0.0.1   localhost
::1 localhost ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters
192.168.1.80    www.heyang.com
192.168.1.80    bbs.heyang.com
172.17.0.2  container-test-bx1
/ # cat /etc/resolv.conf
nameserver 172.17.0.1
nameserver 8.8.8.8

3.3.2. 修改初始化配置

Docker 网络配置参数

{
    "bip": "192.168.1.5/24",                   # docker0桥的IP，定义这个IP后，其它非DNS的字段会自动计算
    "fixed-cidr": "10.20.0.0/16",              # IPv4 地址池
    "fixed-cidr-v6": "2001:db8::/64",          # IPv6 地址池
    "mtu": 1500,                               # MTU 数据包分片大小
    "default-gateway": "10.20.1.1",            # 默认IPv4网关
    "default-gateway-v6": "2001:db8:abcd::89", # 默认IPv6网关
    "dns": ["10.20.1.1","20.20.1.3"]           # 默认DNS地址
}

[root@centos-82 ~]# ip a show docker0

3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
    ......

[root@centos-82 ~]# vim /etc/docker/daemon.json

{
    "registry-mirrors":["https://registry.docker-cn.com"],
    "bip":"10.154.50.1/24",
    "dns":["114.114.114.114","192.168.1.99"]
}

[root@centos-82 ~]# systemctl restart docker

[root@centos-82 ~]# ip a show docker0

3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    inet 10.154.50.1/24 brd 10.154.50.255 scope global docker0
    ......

[root@centos-82 ~]# docker container run —name bx1 —rm -it busybox:latest

/ # ifconfig
eth0      Link encap:Ethernet  HWaddr 02:42:0A:9A:32:02
          inet addr:10.154.50.2  Bcast:10.154.50.255  Mask:255.255.255.0
          ......
/ # cat /etc/resolv.conf
nameserver 114.114.114.114
nameserver 192.168.1.99

3.3.3. 添加新的网络设备

[root@centos-82 ~]# docker network ls

NETWORK ID          NAME                DRIVER              SCOPE
f6fc3bdd3b71        bridge              bridge              local
b12765b5a394        host                host                local
67019894af82        none                null                local

[root@centos-82 ~]# docker network create -d bridge —subnet “10.175.0.0/16” —gateway “10.175.0.1” mybr0

3ad60ea3b43e8f1a432212f51958216cabcbab7b34679dab9af6e1139c96a0f6

[root@centos-82 ~]# docker network ls

NETWORK ID          NAME                DRIVER              SCOPE
f6fc3bdd3b71        bridge              bridge              local
b12765b5a394        host                host                local
3ad60ea3b43e        mybr0               bridge              local
67019894af82        none                null                local

[root@centos-82 ~]# ip addr show

......
4: br-3ad60ea3b43e: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:cd:97:32:bd brd ff:ff:ff:ff:ff:ff
    inet 10.175.0.1/16 brd 10.175.255.255 scope global br-3ad60ea3b43e
       valid_lft forever preferred_lft forever

[root@centos-82 ~]# docker container run —name bx1 —network mybr0 -it —rm busybox:latest

/ # ip a
......
5: eth0@if6: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue
   link/ether 02:42:0a:af:00:02 brd ff:ff:ff:ff:ff:ff
   inet 10.175.0.2/16 brd 10.175.255.255 scope global eth0
      valid_lft forever preferred_lft forever

3.4. Docker 网络模型

3.4.1. None模型(仅lo)

[root@centos-82 ~]# docker container run —name bx1 —network none -it —rm busybox:latest ## none模式

/ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever

3.4.2. Bridge模型(docker0)

3.4.2.1. 指定Bridge模式

[root@centos-82 ~]# docker container run —name bx1 -it —rm busybox:latest ## 默认bridge模式

/ # ip a
.......
6: eth0@if7: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue
    link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
       valid_lft forever preferred_lft forever

[root@centos-82 ~]# docker container run —name bx1 —network bridge -it —rm busybox:latest

/ # ip a
......
8: eth0@if9: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue
    link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
       valid_lft forever preferred_lft forever

3.4.2.2. NAT 转发

宿主机所有地址中的随机端口

[root@centos-82 ~]# docker container run —name web -p 80 —rm nginx:latest

[root@centos-82 ~]# docker container port web ## 查看容器的端口映射

80/tcp -> 0.0.0.0:32768

[root@centos-82 ~]# netstat -lntp | grep docker ##监听在随机端口 32768

tcp6       0      0 :::32768                :::*                    LISTEN      3441/docker-proxy

[root@centos-82 ~]# docker container inspect web | grep -w IPAddress ## 当前IP

            "IPAddress": "172.17.0.2",

[root@centos-82 ~]# iptables -t nat -nvL | grep 172.17.0.2 ## 自动创建DNAT规则

    0     0 MASQUERADE  tcp  --  *      *       172.17.0.2           172.17.0.2           tcp dpt:80
    1    60 DNAT       tcp  --  !docker0 *       0.0.0.0/0            0.0.0.0/0            tcp dpt:32768 to:172.17.0.2:80

[root@centos-82 ~]# curl -s -I 172.17.0.2 | grep ^HTTP ## 宿主机访问

HTTP/1.1 200 OK

[root@centos-50 ~]# curl -s -I 192.168.1.82:32768 | grep HTTP ## 外部网络访问

HTTP/1.1 200 OK

宿主机指定IP的随机端口

[root@centos-82 ~]# docker container run —name web -p 192.168.1.82::80 —rm nginx:latest

[root@centos-82 ~]# docker container port web

80/tcp -> 192.168.1.82:32768

宿主机指定IP的指定端口

[root@centos-82 ~]# docker container run —name web -p 192.168.1.82:80:80 —rm nginx:latest

[root@centos-82 ~]# docker container port web

80/tcp -> 192.168.1.82:80

[root@centos-50 ~]# curl -s -I 192.168.1.82 | grep HTTP ## 外界可以直接访问

HTTP/1.1 200 OK

宿主机所有地址中的指定端口

[root@centos-82 ~]# docker container run —name web -p 80:80 —rm nginx:latest

[root@centos-82 ~]# docker container port web

80/tcp -> 0.0.0.0:80

[root@centos-82 ~]# curl -s -I 127.0.0.1 | grep ^HTTP

HTTP/1.1 200 OK

[root@centos-50 ~]# curl -s -I 192.168.1.82 | grep HTTP

HTTP/1.1 200 OK

宿主机多个端口映射到容器

[root@centos-82 ~]# docker container run —name web -p 80:80 -p 8080:80 —rm nginx:latest

[root@centos-82 ~]# docker container port web

80/tcp -> 0.0.0.0:8080
80/tcp -> 0.0.0.0:80

3.4.3. Join 模型(联盟式)

[root@centos-82 ~]# docker run —name bx1 -it —rm busybox:latest

/ # ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
32: eth0@if33: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue
    link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
       valid_lft forever preferred_lft forever
/ # mkdir -p /data/web
/ # echo 'bx1' > /data/web/index.html
/ # httpd -h /data/web/

[root@centos-82 ~]# docker container run —name bx2 -it —rm —network container:bx1 busybox:latest

/ # ip a  ## 共享IP地址，但是其它名称空间隔离
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
32: eth0@if33: <BROADCAST,MULTICAST,UP,LOWER_UP,M-DOWN> mtu 1500 qdisc noqueue
    link/ether 02:42:ac:11:00:02 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.2/16 brd 172.17.255.255 scope global eth0
       valid_lft forever preferred_lft forever
/ # wget -O - -q 127.0.0.1 ## 可以通过lo访问bx1中的web服务
bx1
/ # ls /data/web  ## Mount名称空间隔离
ls: /data/web: No such file or directory

3.4.4. Open 模型(共享宿主机网络)

[root@centos-82 ~]# docker run —name bx1 -it —network host —rm busybox:latest

/ # ip a ## 显示的是宿主机的网络
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue qlen 1000
    link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
    inet 127.0.0.1/8 scope host lo
       valid_lft forever preferred_lft forever
    inet6 ::1/128 scope host
       valid_lft forever preferred_lft forever
2: ens32: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast qlen 1000
    link/ether 00:0c:29:88:a8:40 brd ff:ff:ff:ff:ff:ff
    inet 192.168.1.82/24 brd 192.168.1.255 scope global ens32
       valid_lft forever preferred_lft forever
    inet6 fe80::76f9:ec2b:13f3:2b18/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue
    link/ether 02:42:5d:21:bc:03 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever
    inet6 fe80::42:5dff:fe21:bc03/64 scope link
       valid_lft forever preferred_lft forever
/ # mkdir /tmp/test/
/ # echo 'bx1' > /tmp/test/index.html
/ # httpd -h /tmp/test

[root@centos-82 ~]# netstat -lntp ## 在本机上可以直接看到httpd进程

tcp6       0      0 :::80                   :::*                    LISTEN      5796/httpd

[root@centos-82 ~]# ps uax|grep http

root       5796  0.0  0.0   1272    40 ?        Ss   23:01   0:00 httpd -h /tmp/test

[root@centos-82 ~]# ls /tmp/test ## Mounts仍然是隔离的

ls: cannot access /tmp/test: No such file or directory

[root@centos-82 ~]# curl 127.0.0.1 ## 可以直接访问

bx1
