apiServer的资源请求

客户端—>API server
API Request path路径格式
http://172.16.0.11:6443/apis/apps/v1/namespaces/kube-system/deployments/myapp-deploy
HTTP request verb: http动作
get,post,put,delete
API requests verb: 对应k8s的动作
get ,list,create,update,patch,watch,proxy,redirect,delete,deletecollection

当希望通过本地curl方式获取API信息时，我们可以使用以下方式kubectl proxy方式实现

[root@master ~]# curl https://127.0.0.1/api/v1/namespaces
curl: (7) Failed connect to 127.0.0.1:443; Connection refused
[root@master ~]# kubectl proxy --port=8080 &
[1] 7760
[root@master ~]# curl http://127.0.0.1:8080/api/v1/namespaces
{
"kind": "NamespaceList",
"apiVersion": "v1",
"metadata": {
  "resourceVersion": "323168"
},
.....

1 认证

1.1 k8s集群上的两种账户

k8s集群上面的用户按照使用的对象分类可以分为两种：

普通用户：即日常工程师登录k8s平台使用的账户，给人使用的

ServiceAccount：给pod等资源类型使用的，如pod要访问apiServer，此时的用户就叫serviceaccount，在k8s集群上也是一种资源类型

1.2 ServiceAccount定义

我们可以通过命令创建相应的sa账号，当我们使用命令创建好sa账号之后，同时也会自动创建好对应的token信息，即secret存储卷

[root@master ~]# kubectl create sa sa-xsc
serviceaccount/sa-xsc created
[root@master ~]# kubectl describe sa sa-xsc
Name:                sa-xsc
Namespace:           default
Labels:              <none>
Annotations:         <none>
Image pull secrets:  <none>
Mountable secrets:   sa-xsc-token-g7p8g
Tokens:              sa-xsc-token-g7p8g
Events:              <none>
查看自动创建的secret
[root@master ~]# kubectl get secret
NAME                                 TYPE                                  DATA   AGE
default-token-wcbv6                  kubernetes.io/service-account-token   3      60d
mysql-root-password                  Opaque                                1      7d
nfs-client-provisioner-token-6vwzq   kubernetes.io/service-account-token   3      58d
sa-xsc-token-g7p8g                   kubernetes.io/service-account-token   3      8m32s

1.3 pod使用自定义的sa账号

   在创建pod时，我们可以使用ServiceAccount字段指定pod使用的账户，当该pod以该账户启动之后，该pod也就具有了该账户所具有的权限

使用自定义的sa账号
[root@master ~]# cat sa-pod-demo.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
  app: sa-demo
name: sa-demo
spec:
replicas: 1
selector:
  matchLabels:
    app: sa-demo
strategy: {}
template:
  metadata:
    labels:
      app: sa-demo
  spec:
    containers:
    - image: nginx
      name: nginx
      resources: {}
    serviceAccount: sa-xsc
查看pod使用的token信息
[root@master ~]# kubectl describe pod sa-demo-d877998d-mr8lk
Name:         sa-demo-d877998d-mr8lk
Namespace:    default
Priority:     0
Node:         node02/10.0.0.12
Start Time:   Fri, 25 Jun 2021 16:50:35 +0800
Labels:       app=sa-demo
            pod-template-hash=d877998d
Annotations:  cni.projectcalico.org/podIP: 10.244.140.124/32
            cni.projectcalico.org/podIPs: 10.244.140.124/32
Status:       Running
IP:           10.244.140.124
IPs:
IP:           10.244.140.124
Controlled By:  ReplicaSet/sa-demo-d877998d
Containers:
nginx:
  Container ID:   docker://499ea018a47990fc47c1eaf6efbf07caa1ead80dda826c5f84ed5f0c7e317ec7
  Image:          nginx
  Image ID:       docker-pullable://nginx@sha256:47ae43cdfc7064d28800bc42e79a429540c7c80168e8c8952778c0d5af1c09db
  Port:           <none>
  Host Port:      <none>
  State:          Running
    Started:      Fri, 25 Jun 2021 16:50:56 +0800
  Ready:          True
  Restart Count:  0
  Environment:    <none>
  Mounts:
    /var/run/secrets/kubernetes.io/serviceaccount from sa-xsc-token-g7p8g (ro)
Conditions:
Type              Status
Initialized       True
Ready             True
ContainersReady   True
PodScheduled      True
Volumes:
sa-xsc-token-g7p8g:
  Type:        Secret (a volume populated by a Secret)
  SecretName:  sa-xsc-token-g7p8g
  Optional:    false
QoS Class:       BestEffort
Node-Selectors:  <none>
Tolerations:     node.kubernetes.io/not-ready:NoExecute op=Exists for 300s
               node.kubernetes.io/unreachable:NoExecute op=Exists for 300s
Events:
Type    Reason     Age   From               Message
----    ------     ----  ----               -------
Normal  Scheduled  55s   default-scheduler  Successfully assigned default/sa-demo-d877998d-mr8lk to node02
Normal  Pulling    54s   kubelet            Pulling image "nginx"
Normal  Pulled     34s   kubelet            Successfully pulled image "nginx" in 19.693135511s
Normal  Created    34s   kubelet            Created container nginx
Normal  Started    34s   kubelet            Started container nginx

2 kubeconfig

```yaml [root@master ~]# kubectl config view apiVersion: v1 clusters:

cluster: certificate-authority-data: DATA+OMITTED server: https://10.0.0.10:6443 name: kubernetes contexts:
context: cluster: kubernetes user: kubernetes-admin name: kubernetes-admin@kubernetes current-context: kubernetes-admin@kubernetes kind: Config preferences: {} users:

name: kubernetes-admin user: client-certificate-data: REDACTED client-key-data: REDACTED ```

2.1 创建自签证书

```yaml [root@master pki]# (umask 077; openssl genrsa -out scxiang.key 2048) Generating RSA private key, 2048 bit long modulus ….+++ …………………………………………………+++ e is 65537 (0x10001) [root@master pki]# openssl req -new -key scxiang.key -out scxiang.csr -subj “/CN=scxiang” You have new mail in /var/spool/mail/root [root@master pki]# openssl x509 -req -in scxiang.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out scxiang.crt -days 3650 Signature ok subject=/CN=scxiang Getting CA Private Key [root@master pki]# openssl x509 -in scxiang.crt -text -noout Certificate: Data:

  Version: 1 (0x0)
  Serial Number:
      f4:69:d5:a5:6f:5a:d1:6f

Signature Algorithm: sha256WithRSAEncryption

  Issuer: CN=kubernetes
  Validity
      Not Before: Jun 26 09:47:45 2021 GMT
      Not After : Jun 24 09:47:45 2031 GMT
  Subject: CN=scxiang
  Subject Public Key Info:
      Public Key Algorithm: rsaEncryption
          Public-Key: (2048 bit)
          Modulus:
              00:bc:64:b7:c5:f5:c4:4c:53:b9:49:db:ab:17:37:
              77:51:3e:42:a6:5f:7c:30:d4:12:14:26:24:af:c1:
              fb:1b:0e:4a:da:54:19:e8:11:db:f3:4a:93:35:69:
              b3:cf:4e:13:1f:a2:94:da:39:e6:60:9d:19:c2:b4:
              ea:1c:76:04:74:94:bc:99:78:ed:8d:e3:30:59:b5:
              2e:70:3f:00:df:07:8f:43:81:fa:30:9f:4b:13:11:
              9a:de:c5:9d:fb:2f:b8:46:93:e1:40:a7:ba:b2:15:
              69:93:87:6b:79:16:44:22:e1:14:90:69:18:d0:10:
              01:ae:46:47:68:58:08:21:5a:01:89:b3:81:c0:cd:
              f5:99:34:94:a5:60:0b:8c:30:5d:de:8a:4f:c0:69:
              54:92:37:d3:2e:30:87:46:24:1f:1e:ec:78:1d:35:
              1e:19:80:7f:f1:f9:c5:99:08:ac:a0:f1:ab:89:9f:
              ea:c6:e1:4d:35:6a:de:b0:72:f5:98:f9:73:f6:f3:
              5b:49:d8:c4:65:13:89:66:a5:c0:90:74:04:7a:cc:
              17:a5:a2:70:2d:46:ac:e7:88:10:e2:70:bc:f9:bf:
              1d:94:a8:94:a1:bf:70:64:d7:e8:48:4c:fb:51:60:
              59:aa:3a:e8:d2:1c:b1:48:7d:be:f3:68:87:d6:c9:
              cd:5f
          Exponent: 65537 (0x10001)

Signature Algorithm: sha256WithRSAEncryption

   82:30:96:46:f4:52:7e:9d:28:23:cb:53:f3:ff:d7:d5:62:e5:
   db:f0:cb:14:02:c9:e0:d9:fa:3c:e3:cb:b9:5a:53:da:9a:41:
   2e:75:96:3d:e2:5f:1d:e9:ad:f9:0c:0d:71:4a:55:c8:cd:bd:
   82:95:eb:8a:8d:24:f6:dd:d4:4a:26:3e:fe:99:43:78:9f:69:
   30:ca:ed:5b:89:e0:9d:c4:bd:dc:72:0d:33:3f:7a:31:20:4a:
   20:de:8f:74:46:ce:c5:44:6b:e5:ae:6c:e7:99:39:81:2b:8d:
   08:5b:29:49:8f:28:e2:a3:d2:30:f2:53:3d:8b:3e:fb:37:b5:
   1b:2b:cb:50:6d:d0:9f:7c:64:a4:da:11:e0:e2:77:64:8c:8c:
   13:d2:54:0b:ea:16:d2:dc:ad:0e:65:bc:74:85:31:a0:0c:7f:
   52:f4:bf:b5:f7:2e:69:80:76:18:99:aa:e5:e5:60:cb:ee:ab:
   5c:f5:33:d0:8e:9c:ea:63:d2:6a:79:6a:94:3f:b8:d4:89:85:
   71:3b:a3:08:5c:20:4c:a4:7e:41:bb:c7:97:68:d9:bf:15:cd:
   f7:b9:7c:63:4d:b5:26:e1:c8:db:ee:3d:d6:b2:8e:fe:0c:e2:
   5e:8c:7b:0c:54:82:25:7c:a6:28:83:f5:e3:21:95:67:52:71:
   cb:b5:a8:e8

[root@master pki]# kubectl get pods Error from server (Forbidden): pods is forbidden: User “scxiang” cannot list resource “pods” in API group “” in the namespace “default” 自定义kubeconfig配置文件 [root@master ~]# kubectl config set-cluster my-cluster —kubeconfig=/tmp/test.conf —server=”https://10.0.0.10:6443“ —certificate-authority=/etc/kubernetes/pki/ca.crt —embed-certs=true Cluster “my-cluster” set. [root@master ~]# kubectl config view —kubeconfig=/tmp/test.conf apiVersion: v1 clusters:

cluster: certificate-authority-data: DATA+OMITTED server: https://10.0.0.10:6443 name: my-cluster contexts: null current-context: “” kind: Config preferences: {} users: null ```
2.2 添加账号到config文件
```yaml [root@master pki]# kubectl config set-credentials scxiang —client-key=scxiang.key —client-certificate=scxiang.crt —embed-certs=true User “scxiang” set. [root@master pki]# kubectl config view apiVersion: v1 clusters:
cluster: certificate-authority-data: DATA+OMITTED server: https://10.0.0.10:6443 name: kubernetes contexts:
context: cluster: kubernetes user: kubernetes-admin name: kubernetes-admin@kubernetes current-context: kubernetes-admin@kubernetes kind: Config preferences: {} users:
name: kubernetes-admin user: client-certificate-data: REDACTED client-key-data: REDACTED
name: scxiang user: client-certificate-data: REDACTED client-key-data: REDACTED ```
2.3 设置set-context并切换至指定用户
```yaml [root@master pki]# kubectl config set-context scxiang@kubernetes —cluster=kubernetes —user=scxiang Context “scxiang@kubernetes” created. [root@master pki]# kubectl config view apiVersion: v1 clusters:
cluster: certificate-authority-data: DATA+OMITTED server: https://10.0.0.10:6443 name: kubernetes contexts:
context: cluster: kubernetes user: kubernetes-admin name: kubernetes-admin@kubernetes
context: cluster: kubernetes user: scxiang name: scxiang@kubernetes current-context: kubernetes-admin@kubernetes kind: Config preferences: {} users:
name: kubernetes-admin user: client-certificate-data: REDACTED client-key-data: REDACTED
name: scxiang user: client-certificate-data: REDACTED client-key-data: REDACTED 切换到指定账号账号

<a name="vAGJO"></a>
## 2.4 切换账号
```yaml
[root@master pki]# kubectl config use-context scxiang@kubernetes
Switched to context "scxiang@kubernetes".

3 授权

格式Object URl:
/apis///namespaces//[/OBJECT_ID]/

授权插件：Node,ABAC ,RBAC ,Webhook
RBAC：Role based Access Controle
角色（Role）
许可（peimission）
role

operations
objects

rolebinding

user account OR service account
role

clusterole

3.1 基于名称空间内的角色创建与绑定

创建角色role
[root@master role]# kubectl create role pods-reader --verb=get,list,watch  --resource=pods --dry-run -o yaml >role-demo.yaml
[root@master role]# cat role-demo.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  creationTimestamp: null
  name: pods-reader
rules:
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - get
  - list
  - watch
[root@master role]# kubectl apply -f role-demo.yaml
role.rbac.authorization.k8s.io/pods-reader created
查看角色的描述
[root@master role]# kubectl describe role pods-reader
Name:         pods-reader
Labels:       <none>
Annotations:  <none>
PolicyRule:
  Resources  Non-Resource URLs  Resource Names  Verbs
  ---------  -----------------  --------------  -----
  pods       []                 []              [get list watch]
将角色与用户进行绑定
[root@master ~]# kubectl create rolebinding scxiang-to-pods-reader --role=pods-reader --user=scxiang
rolebinding.rbac.authorization.k8s.io/scxiang-to-pods-reader created
[root@master ~]# kubectl describe rolebinding scxiang-to-pods-reader
Name:         scxiang-to-pods-reader
Labels:       <none>
Annotations:  <none>
Role:
  Kind:  Role
  Name:  pods-reader
Subjects:
  Kind  Name     Namespace
  ----  ----     ---------
  User  scxiang
切换到scxiang账户
[root@master ~]# kubectl config use-context scxiang@kubernetes
Switched to context "scxiang@kubernetes".
基于scxiang账户查看默认名称空间的pods信息
[root@master ~]# kubectl get pods
NAME                     READY   STATUS    RESTARTS   AGE
sa-demo-d877998d-mr8lk   1/1     Running   0          27h
web01-bbc5667-8h944      1/1     Running   0          28h
web01-bbc5667-l2dvl      1/1     Running   0          28h
web01-bbc5667-rk9ng      1/1     Running   0          28h
scxiang账户无权限查看kube-system名称空间的信息
[root@master ~]# kubectl get pods -n kube-system
Error from server (Forbidden): pods is forbidden: User "scxiang" cannot list resource "pods" in API group "" in the namespace "kube-system"

3.2 创建集群角色并绑定

[root@master ~]# kubectl create clusterrole cluster-reader --verb=get,list,watch --resource=pods -o yaml --dry-run >/root/role/clusterrole-demo.yaml
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: cluster-reader
rules:
- apiGroups:
  - ""
  resources:
  - pods
  verbs:
  - get
  - list
  - watch
[root@master ~]# kubectl apply -f role/clusterrole-demo.yaml
clusterrole.rbac.authorization.k8s.io/cluster-reader created
[root@master ~]# kubectl describe clusterrole cluster-reader
Name:         cluster-reader
Labels:       <none>
Annotations:  <none>
PolicyRule:
  Resources  Non-Resource URLs  Resource Names  Verbs
  ---------  -----------------  --------------  -----
  pods       []                 []              [get list watch]
[root@master ~]# kubectl create clusterrolebinding  scxiang-to-cluster-reader --clusterrole=cluster-reader --user=scxiang -o yaml --dry-run >/root/role/clusterrolebinding-demo.yaml
[root@master ~]# kubectl apply -f /root/role/clusterrolebinding-demo.yaml
clusterrolebinding.rbac.authorization.k8s.io/scxiang-to-cluster-reader created
[root@master ~]# kubectl describe clusterrolebinding scxiang-to-cluster-reader
Name:         scxiang-to-cluster-reader
Labels:       <none>
Annotations:  <none>
Role:
  Kind:  ClusterRole
  Name:  cluster-reader
Subjects:
  Kind  Name     Namespace
  ----  ----     ---------
  User  scxiang
此clusterrolebinding可以查看集群的所有名称空间的POD,但是无法做其它操作
[root@master ~]# kubectl config use-context scxiang@kubernetes
Switched to context "scxiang@kubernetes".
[root@master ~]# kubectl get pod
NAME                     READY   STATUS    RESTARTS   AGE
sa-demo-d877998d-mr8lk   1/1     Running   0          29h
web01-bbc5667-8h944      1/1     Running   0          29h
web01-bbc5667-l2dvl      1/1     Running   0          29h
web01-bbc5667-rk9ng      1/1     Running   0          29h
[root@master ~]# kubectl get pod -n kube-system
NAME                                      READY   STATUS                 RESTARTS   AGE
calico-kube-controllers-97769f7c7-xf2f7   1/1     Running                5          58d
calico-node-bw7sd                         1/1     Running                14         62d
calico-node-ndv7l                         1/1     Running                14         62d
calico-node-vbxsz                         1/1     Running                14         62d
coredns-7f89b7bc75-7lslf                  1/1     Running                6          58d
coredns-7f89b7bc75-msr7c                  1/1     Running                6          58d
etcd-master                               1/1     Running                6          62d
kube-apiserver-master                     1/1     Running                7          58d
kube-controller-manager-master            0/1     CreateContainerError   11         29h
kube-proxy-jpqkp                          1/1     Running                5          58d
kube-proxy-nrtxj                          1/1     Running                5          58d
kube-proxy-pnbdz                          1/1     Running                6          58d
kube-scheduler-master                     0/1     CreateContainerError   11         29h
metrics-server-84f9866fdf-wh47t           1/1     Running                5          58d
[root@master ~]# kubectl get deploy
Error from server (Forbidden): deployments.apps is forbidden: User "scxiang" cannot list resource "deployments" in API group "apps" in the namespace "default"

4 Dashboard的部署与认证、分级授权

4.1 部署

上github可以查看其部署方式：
[root@master ~]# kubectl apply -f https://raw.githubusercontent.com/kubernetes/dashboard/v2.3.1/aio/deploy/recommended.yaml
修改svc的类型为NodePort

[root@master ~]# kubectl patch svc kubernetes-dashboard -p '{"spec":{"type":"NodePort"}}' -n kube-system
service/kubernetes-dashboard patched
[root@master-01 ~]# kubectl get svc  -n kubernetes-dashboard
NAME                        TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)         AGE
dashboard-metrics-scraper   ClusterIP   10.111.129.21   <none>        8000/TCP        5h22m
kubernetes-dashboard        NodePort    10.111.186.10   <none>        443:31477/TCP   5h22m

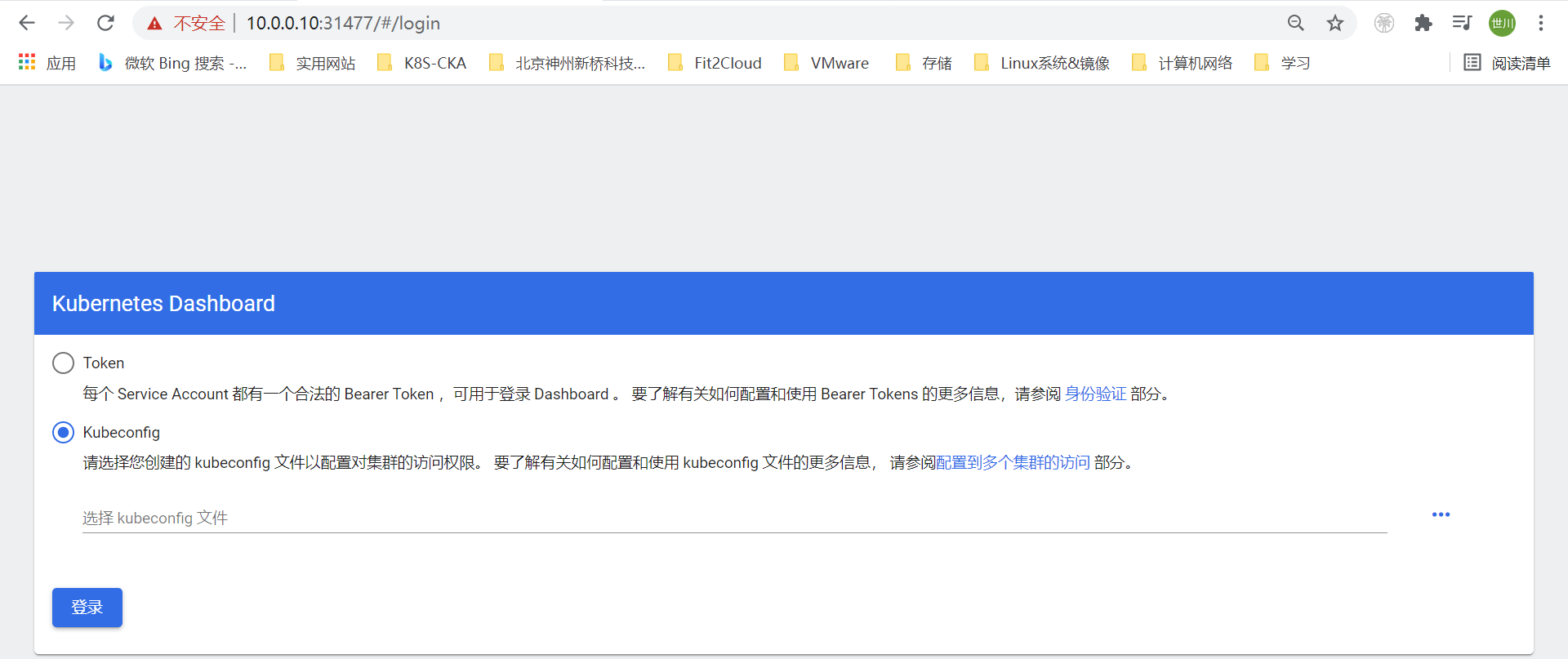

可以看到如下登录界面

4.2 Token方式登录

创建一个sa账户，并绑定集群角色

[root@master ~]# kubectl create serviceaccount dashboard-admin -n kube-system
[root@master ~]# kubectl get sa  -n kube-system | grep dashboard-admin
dashboard-admin                      1         30m
[root@master ~]# kubectl create clusterrolebinding dashboard-cluster-admin --clusterrole=cluster-admin --serviceaccount=kube-system:dashboard-admin
[root@master ~]# kubectl get clusterrolebinding -n -kube-system  | grep dashboard-cluster-admin
dashboard-cluster-admin                                ClusterRole/cluster-admin                                                          27m
查看其token
[root@master ~]# kubectl get secret -n kube-system | grep dashboard-admin
dashboard-admin-token-nhp2t                      kubernetes.io/service-account-token   3      32m
[root@master ~]# kubectl describe secret dashboard-admin-token-nhp2t -n kube-system
Name:         dashboard-admin-token-nhp2t
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: dashboard-admin
              kubernetes.io/service-account.uid: f9fe0cef-4717-49a8-a203-17198a8f38d9
Type:  kubernetes.io/service-account-token
Data
====
ca.crt:     1066 bytes
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6InItd0k3Vk10SXVKTHRiQms2TVlYUFZNV0s4WGVZRnBVMXF1Z2VBWFNvQU0ifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tbmhwMnQiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiZjlmZTBjZWYtNDcxNy00OWE4LWEyMDMtMTcxOThhOGYzOGQ5Iiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.WnwviGbRPKCbj0xTrFrE0psy3sPpy72jW0GIrYNQMVp6MwYPLST-rxrKqA4GQfYt7BsK-Nu_TVHANPJYo9MsKEuhm_P57aIDpiGJB-n7fv0BzjJFS0_pHi6HMoGco4qGbsqCBM6zMQ-v521yc0X26GPNl3HT6wRX10VD-EODpyvAiJd5d5j7WGboI22S1_CB4cDQgNHUdtrfQ4wQ7Sr_aWX-E9Id7S0fNeaFRRVzo28wadZ8wuHsCIErMUYSSj1TOelVSWHNUhRPipT6MaNdx8RwS3GZ0VHWz3oTFNWSyU8vVgeR-hN7EjOZsmL9hXtuHCipFTCTPbF6P3nJYNK4Rg

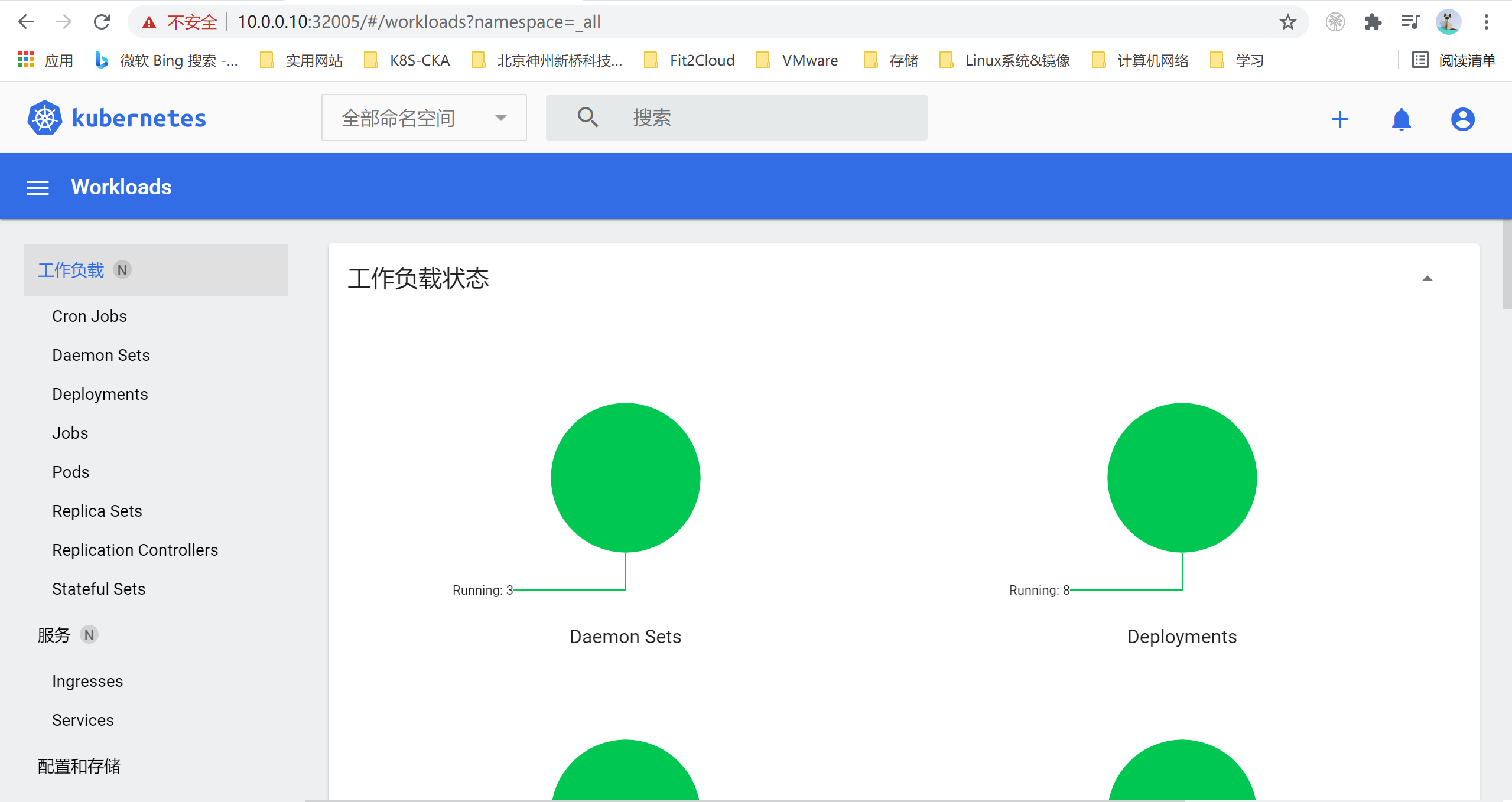

通过上面的token就可以直接访问了

4.3 kubeconfig认证方式登录

[root@master-01 ~]# kubectl config set-cluster kubernetes --certificate-authority=/etc/kubernetes/pki/ca.crt --server="https://10.0.0.10:6443" --embed-certs=true --kubeconfig=/root/dashboard-admin.conf
Cluster "kubernetes" set.
[root@master-01 ~]# kubectl config view --kubeconfig=/root/dashboard-admin.conf
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: DATA+OMITTED
    server: https://10.0.0.10:6443
  name: kubernetes
contexts: null
current-context: ""
kind: Config
preferences: {}
users: null
添加用户
[root@master-01 ~]# dashboard_admin_token=`kubectl get secret dashboard-admin-token-hlxj4 -o jsonpath={.data.token} | base64 -d`
[root@master-01 ~]# kubectl config set-credentials dashboard-admin --token=$dashboard_admin_token --kubeconfig=/root/dashboard-admin.conf
User "cluster-dashboard-admin" set.
[root@master-01 ~]# kubectl config view --kubeconfig=/root/dashboard-admin.conf
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: DATA+OMITTED
    server: https://10.0.0.10:6443
  name: kubernetes
contexts: null
current-context: ""
kind: Config
preferences: {}
users:
- name: dashboard-admin
  user:
    token: REDACTED
[root@master-01 ~]# kubectl config set-context dashboard-admin@kubernetes --cluster=kubernetes --user=dashboard-admin --kubeconfig=/root/dashboard-admin.conf
Context "dashboard-admin@kubernetes" created.
[root@master-01 ~]# kubectl config view --kubeconfig=/root/dashboard-admin.conf
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: DATA+OMITTED
    server: https://10.0.0.10:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: dashboard-admin
  name: dashboard-admin@kubernetes
current-context: ""
kind: Config
preferences: {}
users:
- name: dashboard-admin
  user:
    token: REDACTED
[root@master-01 ~]# kubectl config use-context dashboard-admin@kubernetes --kubeconfig=/root/dashboard-admin.conf
[root@master-01 ~]# kubectl config view --kubeconfig=/root/dashboard-admin.conf
apiVersion: v1
clusters:
- cluster:
    certificate-authority-data: DATA+OMITTED
    server: https://10.0.0.10:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: dashboard-admin
  name: dashboard-admin@kubernetes
current-context: dashboard-admin@kubernetes
kind: Config
preferences: {}
users:
- name: dashboard-admin
  user:
    token: REDACTED

kubeconfig方式登录

Docker与K8S

k8s认证与授权&Dashboard部署
