介绍

    LDAP（Light Directory Access Portocol），它是基于[X.500标准](https://blog.csdn.net/starboybenben/article/details/48244661)的轻量级目录访问协议。是一个为查询、浏览和搜索而优化的数据库，它成树状结构组织数据，类似文件目录一样。不需单独定制，只需要通过LDAP做简单的配置就可以与服务器做认证交互。可以大大降低重复开发和对接的成本。

专业术语

接入

服务端安装

使用docker的方式进行安装openLdap服务端，可参照docker安装openldap

运行镜像

docker run -p 389:389 -p 636:636 --name myopenldap --network bridge --hostname openldap-host --env LDAP_ORGANISATION="mylitboy" --env LDAP_DOMAIN="mylitboy.com" --env LDAP_ADMIN_PASSWORD="ldap123" --detach osixia/openldap

命令解释：

• -p ： 指定端口映射，格式为：主机(宿主)端口:容器端口
• —name ： 为容器指定一个名称
• —network ： 指定容器的网络连接类型，支持 bridge/host/none/container四种类型
• —hostname : 指定容器的hostname
• —env : 设置环境变量，有以下几项
  • —env LDAP_ORGANISATION=”xxx” ：设置LDAP的组织者为“xxx”，本例配置为mylitboy
  • —env LDAP_DOMAIN=”xxx.com” ：设置LDAP域为“xxx.com”，本例配置为mylitboy.com
  • —env LDAP_ADMIN_PASSWORD=”xxx” ：设置LDAP的管理密码为“xxx”，本例为ldap123
• —detach : 后台运行容器，并返回容器ID


  客户端安装

使用docker 安装 PHPLdapAdmin

运行镜像

docker run -d --privileged -p 10004:80 --name myphpldapadmin --env PHPLDAPADMIN_HTTPS=false --env PHPLDAPADMIN_LDAP_HOSTS=192.168.1.100 --detach osixia/phpldapadmin

命令解释：

• -privileged ： 使用该参数，容器内的root拥有真正的root权限。否则，container内的root只是外部的一个普通用户权限。
• -p : 指定端口映射，格式为：主机(宿主)端口:容器端口
• —name ： 为容器指定一个名称
• —env : 设置环境变量，有以下几项
  • —env PHPLDAPADMIN_HTTPS=false ： false为设置不开启https（默认是true），如果开启HTTPS，需要设置443端口映射：-p 8443:443，并采用https访问
  • —env PHPLDAPADMIN_LDAP_HOSTS=192.168.1.100 ：设置LDAP服务端地址，端口默认是389
  • —env LDAP_ADMIN_PASSWORD=”xxx” ：设置LDAP的管理密码为“xxx”，本例为ldap123

• —detach : 后台运行容器，并返回容器ID


  访问

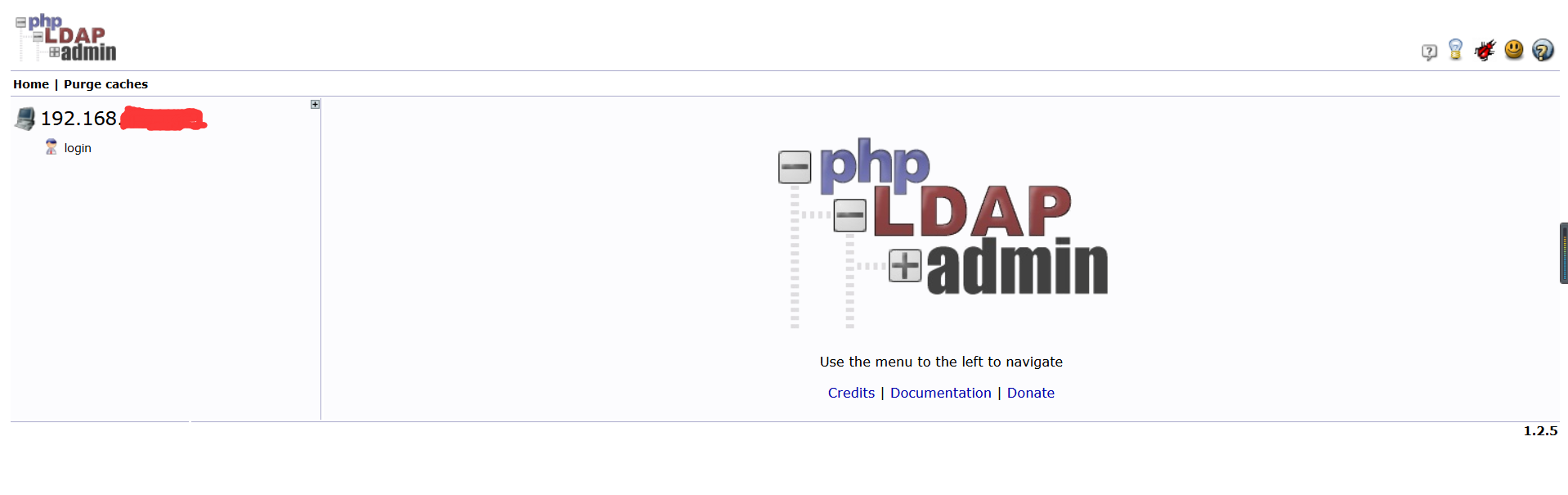

  通过访问http://192.168.1.100:10004 来管理，登陆界面:用户名：cn=admin,dc=xxx,dc=com

• 用户名 ：cn=admin,dc=xxx,dc=com，本例为cn=admin,dc=mylitboy,dc=com

• 密码：xxx，本例为ldap123

  配置用户

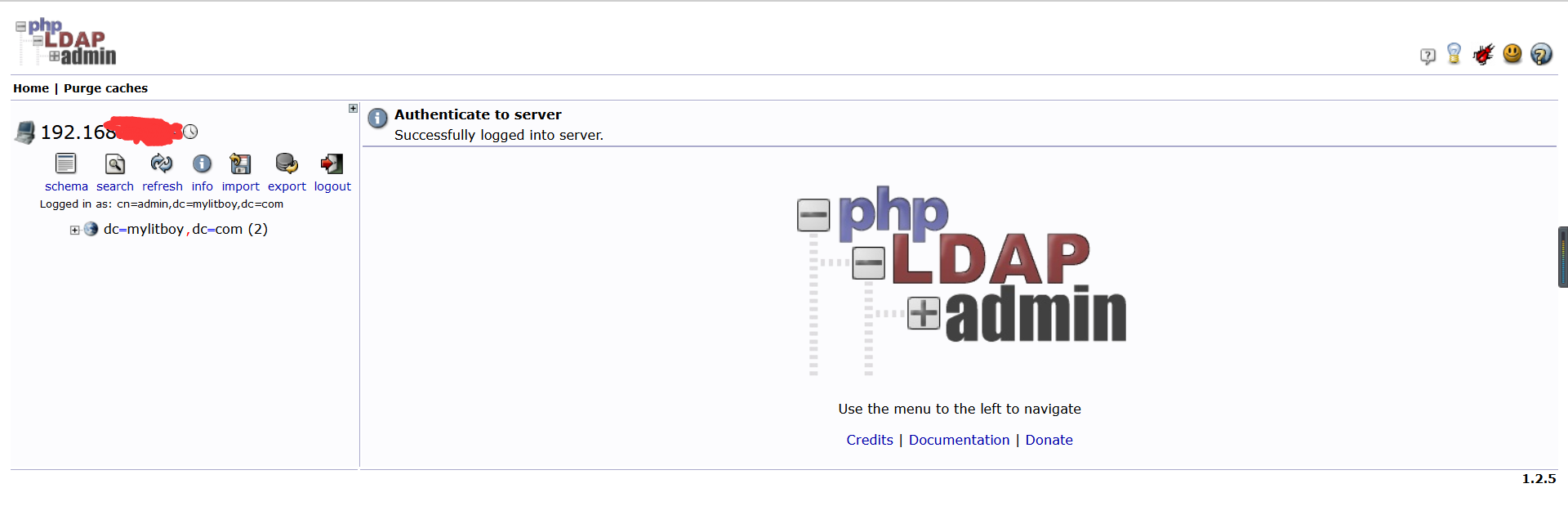

  登录管理界面
  管理员登录客户端地址:http://192.168.1.100:10004 ，用户名（本例为cn=admin,dc=mylitboy,dc=com），密码（本例为ldap123），如下图所示


  新建用户

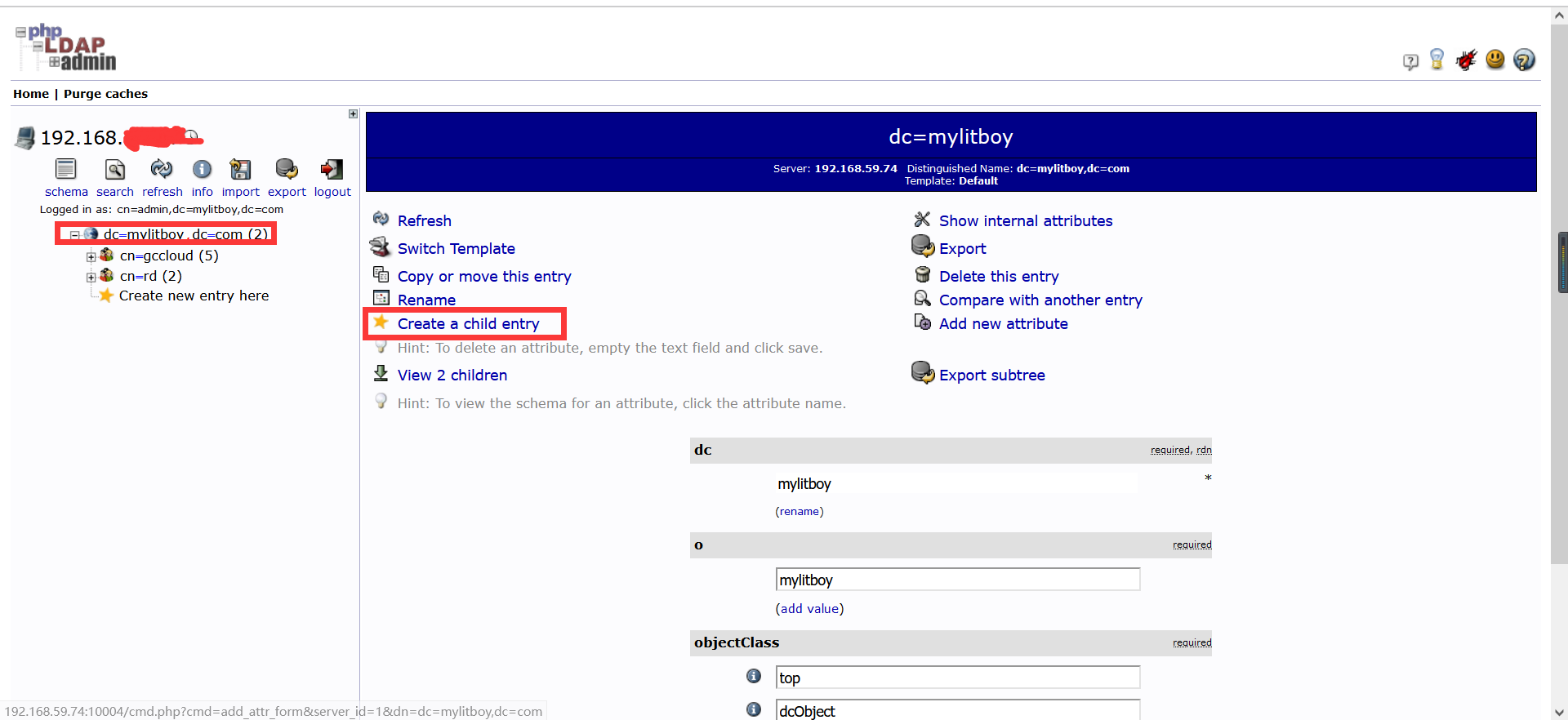

  选择管理域，点击右侧【Create a child entry】
  点击【Generic::Postix Group】

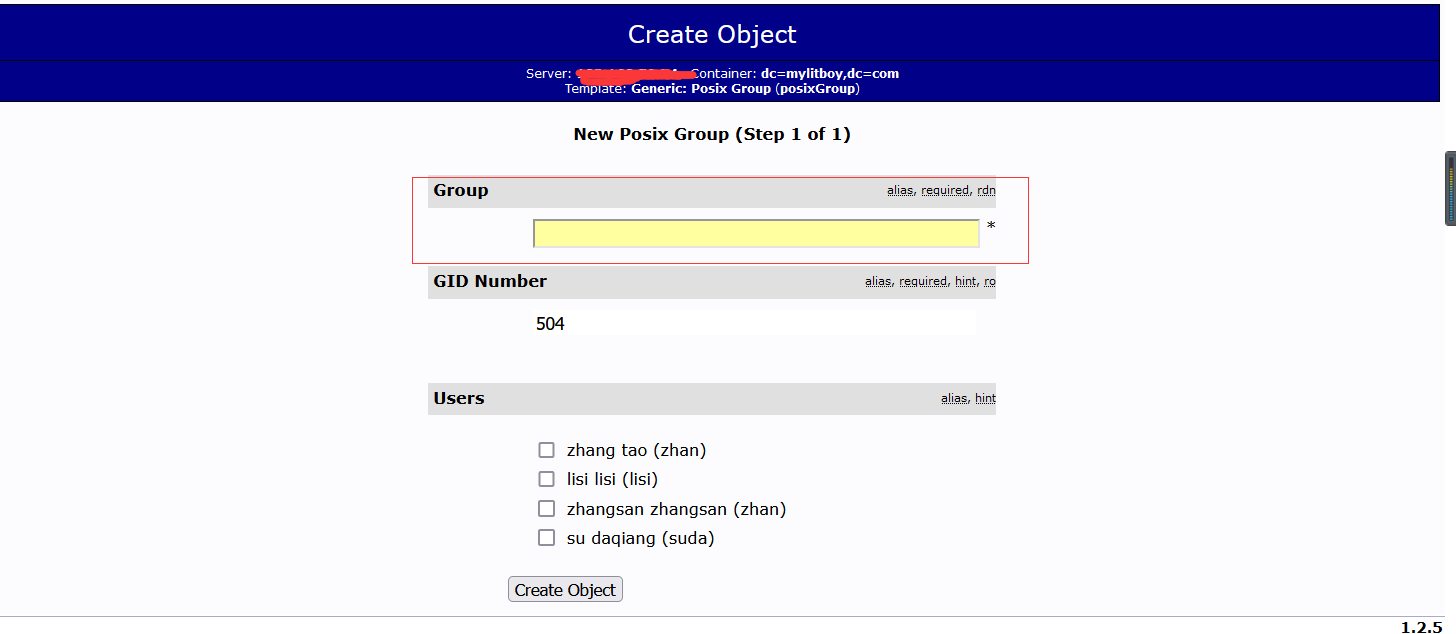

  填写【Group】，点击【Create Object】

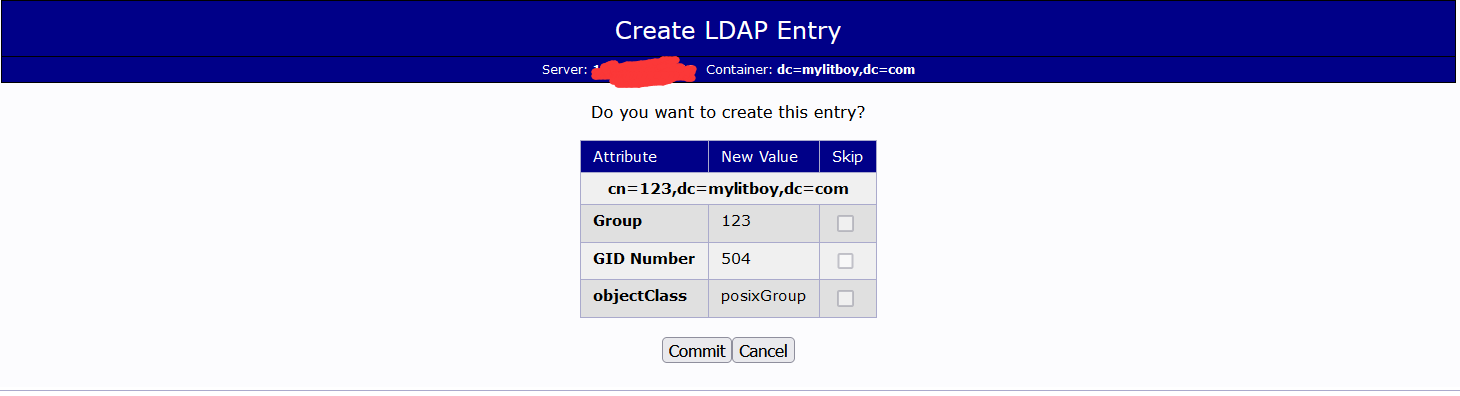

  点击【commit】

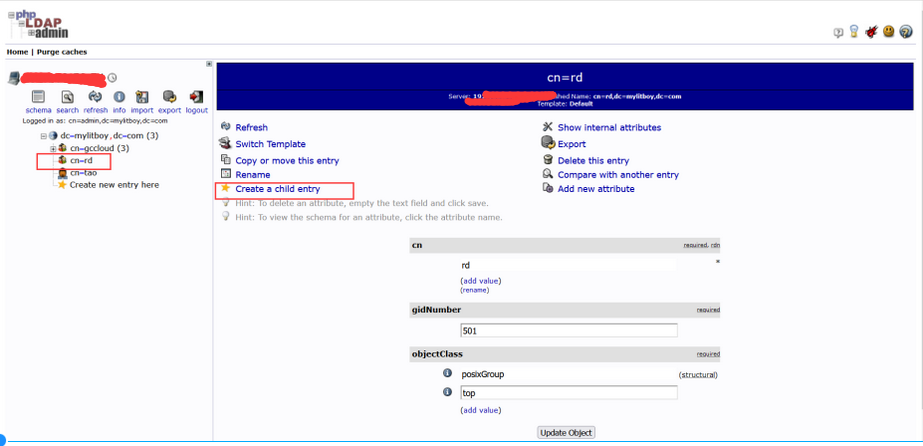

  选择已添加的Group，点击右侧【Create a child entry】

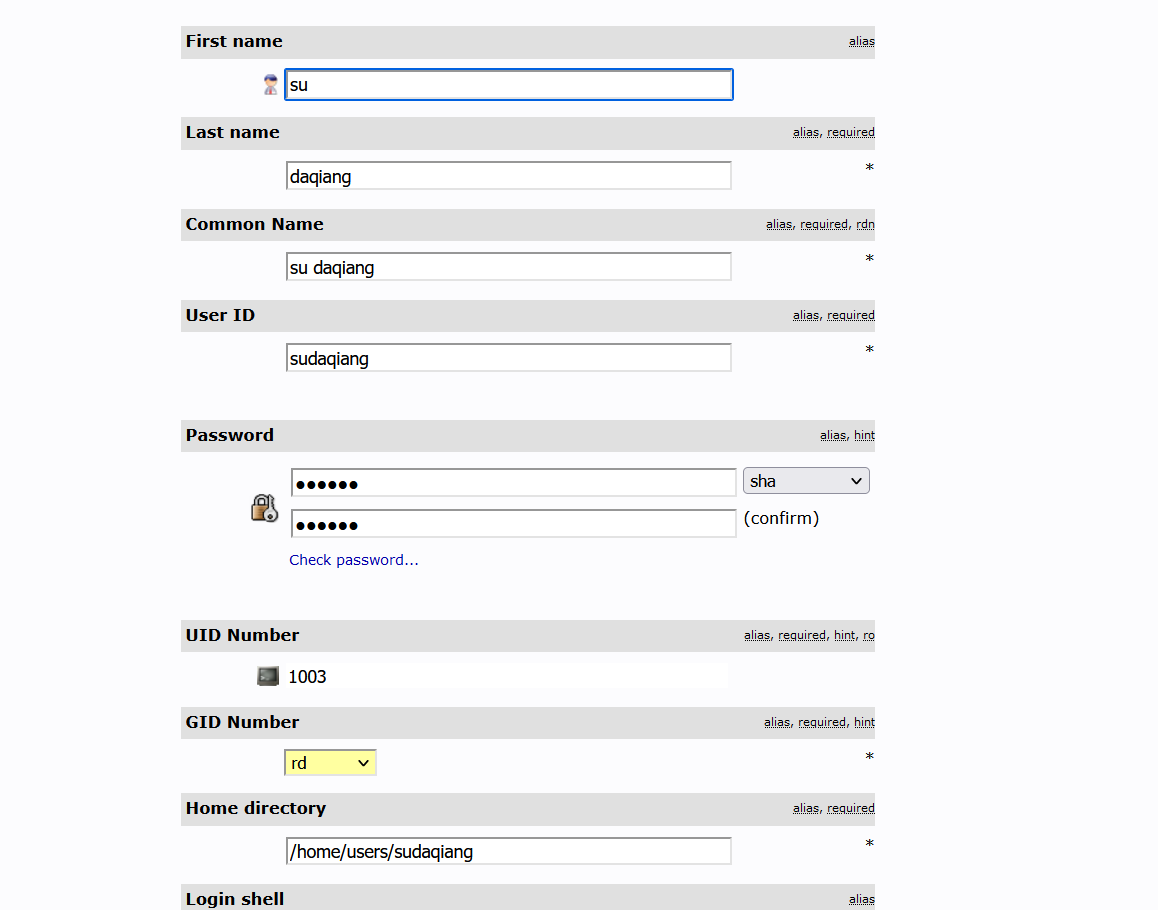

  点击【Generic:User Account】填写相关信息，其中User ID即为登录的用户名，Password选择sha,填写完成，点击【Create Object】

  点击【commit】

  认证中心集成ldap用户名和密码示例

• 用户名：sudaqiang

• 密码：123456

  增加用户属性

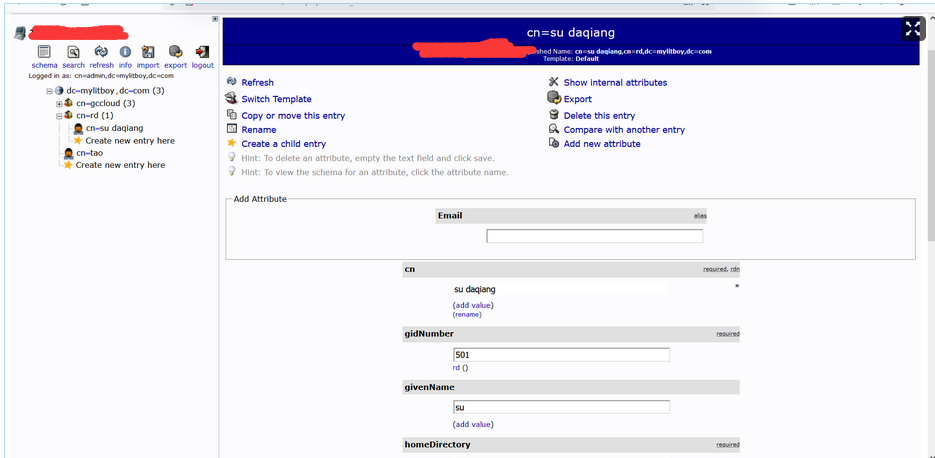

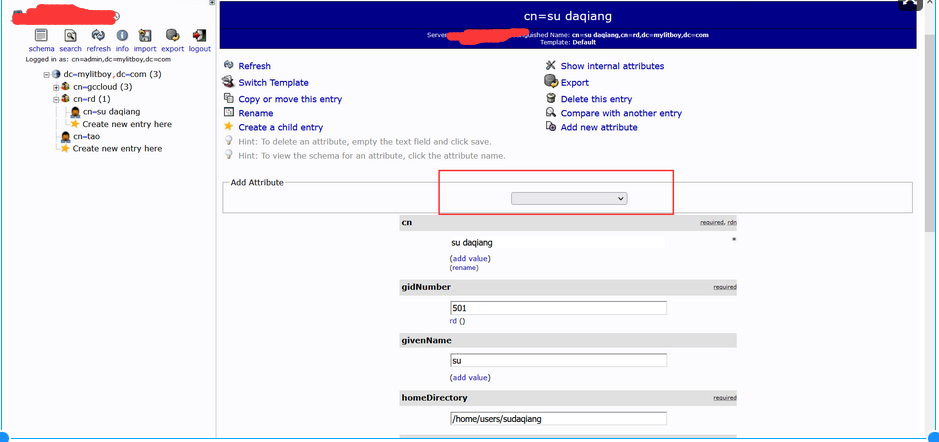

• 选择已有用户，点击【Add new attribute】

• 示例选择【Email】

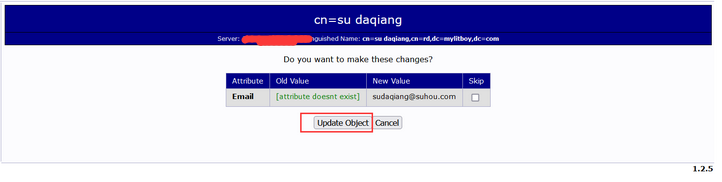

填写邮箱地址，点击【update Object】

千行接入ldap

引入依赖

<dependency>
  <groupId>org.springframework.boot</groupId>
  <artifactId>spring-boot-starter-data-ldap</artifactId>
</dependency>

yaml文件配置

spring:
  ldap:
    # ldap服务端地址
    urls: ldap://192.168.1.100:389
    # 跟目录
    base: dc=mylitboy,dc=com
    # 管理用户
    username: cn=admin,dc=mylitboy,dc=com
    # 密码
    password: ldap123

构建实体

• 组织 ```java package com.gccloud.ldap.entity;

import com.alibaba.fastjson.JSONObject; import lombok.Data; import org.springframework.ldap.odm.annotations.Attribute; import org.springframework.ldap.odm.annotations.Entry; import org.springframework.ldap.odm.annotations.Id; import org.springframework.ldap.support.LdapUtils;

import javax.naming.Name;

/**

• @Copyright 版权归科大国创技术中台所有
• @ClassName LdapOrg
• @Description 组织实体类
• @Author zhangtaozhir

• @Date 2022/1/24 17:20 **/ @Data @Entry( base=”dc=mylitboy,dc=com”,objectClasses = “posixGroup”) public final class LdapOrgEntity { @Id //主键 private Name id; // 组织编码 @Attribute(name=”entryDN”) private String orgCode; // 组织名称 @Attribute(name = “cn”) private String orgName; // 组织编号,自动生成的属性 @Attribute(name = “gidNumber”) private String orgNum; public LdapOrgEntity(){

   this.id = LdapUtils.emptyLdapName();


  } public LdapOrgEntity(String id){

   this.id = LdapUtils.newLdapName(id);


  } public String getId() {

   return id.toString();


  } public Name setId(String id){

   return LdapUtils.newLdapName(id);


  }

  @Override public String toString(){

   return JSONObject.toJSONString(this);


  } }

- **用户**
```java
package com.gccloud.ldap.entity;

import com.alibaba.fastjson.JSONObject;
import lombok.Data;
import org.springframework.ldap.odm.annotations.Attribute;
import org.springframework.ldap.odm.annotations.Entry;
import org.springframework.ldap.odm.annotations.Id;
import org.springframework.ldap.support.LdapUtils;

import javax.naming.Name;

/**
 * @Copyright 版权归科大国创技术中台所有
 * @ClassName LdapUserEntity
 * @Description 用户实体类
 * @Author zhangtaozhir
 * @Date 2022/1/24 17:40
 **/
@Data
@Entry( base="cn=admin,dc=mylitboy,dc=com",objectClasses = "inetOrgPerson")
public class LdapUserEntity {
    @Id
    private Name id;
    //用户登录名
    @Attribute(name="uid")
    private String username;
    //用户真实姓名
    @Attribute(name = "cn")
    private String realName;
    // 用户的姓
    @Attribute(name = "sn")
    private String surname;
    // 邮箱
    @Attribute(name="mail")
    private String email;
    // 用户的目录
    @Attribute(name = "homedirectory")
    private String homedirectory;
    //组织号码
    @Attribute(name = "gidnumber")
    private String orgNum;
    // 用户号码
    @Attribute(name = "uidnumber")
    private String userNum;
    // 手机号
    @Attribute(name = "mobile")
    private String phone;
    public LdapUserEntity(){
        this.id = LdapUtils.emptyLdapName();
    }
    public LdapUserEntity(String id){
        this.id = LdapUtils.newLdapName(id);
    }
    public String getId() {
        return id.toString();
    }
    public Name setId(String id){
        return LdapUtils.newLdapName(id);
    }
    @Override
    public String toString(){
        return JSONObject.toJSONString(this);
    }
}

构建DTO对象

• 组织 ```java package com.gccloud.ldap.dto;

import com.alibaba.fastjson.JSONObject; import lombok.Data;

import java.io.Serializable;

/**

• @Copyright 版权归科大国创技术中台所有
• @ClassName LdapOrgDTO
• @Description 组织传输对象
• @Author zhangtaozhir
• @Date 2022/1/24 17:47 **/ @Data public class LdapOrgDTO implements Serializable { // 组织主键 private String id; //组织编码 private String orgCode; // 组织名称 private String orgName; //组织编号 private String orgNum; @Override public String toString(){

   return JSONObject.toJSONString(this);


  } }

- **用户**
```java
package com.gccloud.ldap.dto;

import com.alibaba.fastjson.JSONObject;
import lombok.Data;
import org.springframework.ldap.odm.annotations.Attribute;
import org.springframework.ldap.odm.annotations.Id;
import org.springframework.ldap.support.LdapUtils;

import javax.naming.Name;
import java.io.Serializable;

/**
 * @Copyright 版权归科大国创技术中台所有
 * @ClassName LdapUserDTO
 * @Description 用户传输对象
 * @Author zhangtaozhir
 * @Date 2022/1/24 17:50
 **/
@Data
public class LdapUserDTO implements Serializable {
    // 用户主键
    private String id;
    //用户登录名
    private String username;
    //用户真实姓名
    private String realName;
    // 用户的姓
    private String surname;
    // 邮箱
    @Attribute(name="mail")
    private String email;
    // 用户的目录
    private String homedirectory;
    //组织号码
    private String orgNum;
    // 用户号码
    private String userNum;
    // 手机号
    private String phone;

    @Override
    public String toString(){
        return JSONObject.toJSONString(this);
    }
}

返回对象类R

package com.gccloud.ldap.vo;

import com.fasterxml.jackson.annotation.JsonIgnore;
import lombok.Data;
import lombok.NoArgsConstructor;
import lombok.experimental.Accessors;

import java.io.Serializable;

/**
 * 定义Json响应数据
 *
 * @param <T>
 */
@Data
@Accessors(chain = true)
@NoArgsConstructor
public class R<T> implements Serializable {

    private Integer code;

    private String msg;

    private T data;

    public R(Integer code, String msg, T data) {
        this.code = code;
        this.msg = msg;
        this.data = data;
    }

    /**
     * 成功
     *
     * @return
     */
    public static <E> R<E> success(E data) {
        return new R<E>(200, null, data);
    }

    public static <E> R<E> success() {
        return new R<E>(200, null, null);
    }


    /**
     * 失败
     *
     * @param msg
     * @return
     */
    public static R error(String msg) {
        R result = new R();
        result.setCode(500);
        result.setMsg(msg);
        return result;
    }

    /**
     * 失败
     *
     * @param code
     * @param msg
     * @return
     */
    public static R error(Integer code, String msg) {
        R result = new R();
        result.setCode(code);
        result.setMsg(msg);
        return result;
    }

    /**
     * 失败
     *
     * @return
     */
    public static R error() {
        R result = new R();
        result.setCode(500);
        result.setMsg("未知异常，请联系管理员");
        return result;
    }

    /**
     * 添加返回的数据
     *
     * @param data
     * @return
     */
    public R<T> put(T data) {
        this.data = data;
        return this;
    }

    /**
     * 是否正常
     *
     * @return
     */
    @JsonIgnore
    public boolean isSuccess() {
        return this.code == 200;
    }

    @JsonIgnore
    public boolean isError() {
        return this.code != 200;
    }
}

构建用户组织管理

• 构建组织接口
  • 接口类 ```java package com.gccloud.ldap.service;

import com.gccloud.ldap.dto.LdapOrgDTO; import com.gccloud.ldap.entity.LdapOrgEntity;

import java.util.List;

/**

• @Copyright 版权归科大国创技术中台所有
• @ClassName ILdapOrgSerevice
• @Description 组织接口类
• @Author zhangtaozhir
• @Date 2022/1/24 18:29 **/ public interface ILdapOrgService { List getAll(); LdapOrgEntity getByOrgCode(String orgCode); List getByOrgNameMatch(String orgNameMatchStr); void add(LdapOrgDTO ldapOrgDTO); void update(LdapOrgDTO ldapOrgDTO); void delete(LdapOrgDTO ldapOrgDTO); }

   - **接口实现类**
```java
package com.gccloud.ldap.service.impl;

import com.gccloud.ldap.dto.LdapOrgDTO;
import com.gccloud.ldap.entity.LdapOrgEntity;
import com.gccloud.ldap.service.ILdapOrgService;
import org.springframework.beans.BeanUtils;
import org.springframework.ldap.core.LdapTemplate;
import org.springframework.ldap.query.LdapQueryBuilder;
import org.springframework.stereotype.Service;

import javax.annotation.Resource;
import java.util.ArrayList;
import java.util.List;

/**
 * @Copyright 版权归科大国创技术中台所有
 * @ClassName LdapOrgServiceImpl
 * @Description 组织接口实现类
 * @Author zhangtaozhir
 * @Date 2022/1/24 18:31
 **/
@Service
public class LdapOrgServiceImpl implements ILdapOrgService {
    @Resource
    private LdapTemplate template;
    @Override
    public List<LdapOrgEntity> getAll() {
        Iterable<LdapOrgEntity> ldapOrgEntityIterable = template.findAll(LdapOrgEntity.class);
        if(ldapOrgEntityIterable == null){
            return null;
        }
        List<LdapOrgEntity> ldapOrgEntities = new ArrayList<>();
        ldapOrgEntityIterable.forEach(p->ldapOrgEntities.add(p));
        return ldapOrgEntities;
    }

    @Override
    public LdapOrgEntity getByOrgCode(String orgCode) {
        LdapOrgEntity ldapOrgEntity = template.findOne(LdapQueryBuilder.query().where("entryDN").is(orgCode), LdapOrgEntity.class);
        return ldapOrgEntity;
    }

    @Override
    public List<LdapOrgEntity> getByOrgNameMatch(String orgNameMatchStr) {
        List<LdapOrgEntity> ldapOrgEntities =template.find(LdapQueryBuilder.query().where("cn").like(orgNameMatchStr), LdapOrgEntity.class);
        return ldapOrgEntities;
    }

    @Override
    public void add(LdapOrgDTO ldapOrgDTO) {
        LdapOrgEntity entity = new LdapOrgEntity(ldapOrgDTO.getId());
        BeanUtils.copyProperties(ldapOrgDTO,entity);
        entity.setId(ldapOrgDTO.getId());
        template.create(entity);
    }

    @Override
    public void update(LdapOrgDTO ldapOrgDTO) {
        LdapOrgEntity entity = new LdapOrgEntity(ldapOrgDTO.getId());
        BeanUtils.copyProperties(ldapOrgDTO,entity);
        entity.setId(ldapOrgDTO.getId());
        template.update(entity);
    }

    @Override
    public void delete(LdapOrgDTO ldapOrgDTO) {
        LdapOrgEntity entity = new LdapOrgEntity(ldapOrgDTO.getId());
        BeanUtils.copyProperties(ldapOrgDTO,entity);
        entity.setId(ldapOrgDTO.getId());
        template.delete(entity);
    }
}

• 构建组织controller ```java package com.gccloud.ldap.controller;

import com.gccloud.ldap.dto.LdapOrgDTO; import com.gccloud.ldap.entity.LdapOrgEntity; import com.gccloud.ldap.service.ILdapOrgService; import com.gccloud.ldap.vo.R; import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource; import java.util.List;

/**

• @Copyright 版权归科大国创技术中台所有
• @ClassName LdapUserController
• @Description 组织controller
• @Author zhangtaozhir

• @Date 2022/1/24 18:55 **/ @RestController @RequestMapping(“/ldap/org”) public class LdapOrgController { @Resource private ILdapOrgService ldapOrgService; @GetMapping( “/getAll”) public R> getAll(){

   List<LdapOrgEntity> ldapOrgEntities = ldapOrgService.getAll();
   return R.success(ldapOrgEntities);


  }

  @GetMapping(“/getAllMatch/{orgName}”) public R> getAllMatch(@PathVariable String orgName){

   List<LdapOrgEntity> ldapOrgEntities = ldapOrgService.getByOrgNameMatch(orgName);
   return R.success(ldapOrgEntities);


  } @GetMapping(“/getOne/{orgCode}”) public R getOne(@PathVariable String orgCode){

   LdapOrgEntity ldapOrgEntity = ldapOrgService.getByOrgCode(orgCode);
   return R.success(ldapOrgEntity);


  }

  @PostMapping(value = “/add”,consumes = “application/json”, produces = “application/json”) public R add(@RequestBody LdapOrgDTO ldapOrgDTO){

   ldapOrgService.add(ldapOrgDTO);
   return R.success("成功");


  }

  @PostMapping(value = “/update”,consumes = “application/json”, produces = “application/json”) public R update(@RequestBody LdapOrgDTO ldapOrgDTO){

   ldapOrgService.update(ldapOrgDTO);
    return R.success("成功");


  } @PostMapping(value = “/delete”,consumes = “application/json”, produces = “application/json”) public R delete(@RequestBody LdapOrgDTO ldapOrgDTO){

   ldapOrgService.delete(ldapOrgDTO);
   return R.success("成功");


  } }

<a name="Rp6n1"></a>
### 构建用户管理

- **构建用户接口**
   - **接口类**
```java
package com.gccloud.ldap.service;

import com.gccloud.ldap.dto.LdapUserDTO;
import com.gccloud.ldap.entity.LdapUserEntity;

import java.util.List;

/**
 * @Copyright 版权归科大国创技术中台所有
 * @ClassName ILdapUserService
 * @Description 用户接口类
 * @Author zhangtaozhir
 * @Date 2022/1/24 18:41
 **/
public interface ILdapUserService {
    List<LdapUserEntity> getAll();
    LdapUserEntity getByUsername(String username);
    List<LdapUserEntity> getByUsernameMatch(String usernameMatchStr);
    List<LdapUserEntity> getLdapUserEntityByOrgId(String orgId);
    void add(LdapUserDTO ldapUserDTO);
    void update(LdapUserDTO ldapUserDTO);
    void delete(LdapUserDTO ldapUserDTO);
}

• 接口实现类 ```java package com.gccloud.ldap.service.impl;

import com.gccloud.ldap.dto.LdapUserDTO; import com.gccloud.ldap.entity.LdapUserEntity; import com.gccloud.ldap.service.ILdapUserService; import org.springframework.beans.BeanUtils; import org.springframework.ldap.core.LdapTemplate; import org.springframework.ldap.query.LdapQueryBuilder; import org.springframework.ldap.support.LdapUtils; import org.springframework.stereotype.Service;

import javax.annotation.Resource; import javax.naming.Name; import javax.naming.directory.SearchControls; import java.util.ArrayList; import java.util.List;

/**

• @Copyright 版权归科大国创技术中台所有
• @ClassName LdapUserServiceImpl
• @Description 用户接口实现类
• @Author zhangtaozhir

• @Date 2022/1/24 18:44 **/ @Service public class LdapUserServiceImpl implements ILdapUserService { @Resource private LdapTemplate template; @Override public List getAll() {

   Iterable<LdapUserEntity> ldapUserIterable = template.findAll(LdapUserEntity.class);
   if(ldapUserIterable == null){
       return null;
   }
   List<LdapUserEntity> ldapUserEntities = new ArrayList<>();
   ldapUserIterable.forEach(p->ldapUserEntities.add(p));
   return ldapUserEntities;


  }

  @Override public LdapUserEntity getByUsername(String username) {

   LdapUserEntity ldapUserEntity = template.findOne(LdapQueryBuilder.query().where("entryDN").is(username), LdapUserEntity.class);
   return ldapUserEntity;


  }

  @Override public List getByUsernameMatch(String usernameMatchStr) {

   List<LdapUserEntity> ldapUserEntities =template.find(LdapQueryBuilder.query().where("uid").like(usernameMatchStr), LdapUserEntity.class);
   return ldapUserEntities;


  }

  @Override public List getLdapUserEntityByOrgId(String orgId) {

   Name groupName = LdapUtils.newLdapName(orgId);
   List<LdapUserEntity> ldapUserEntities =template.findAll(groupName, new SearchControls(),LdapUserEntity.class);
   return ldapUserEntities;


  }

  @Override public void add(LdapUserDTO ldapUserDTO) {

   LdapUserEntity entity = new LdapUserEntity(ldapUserDTO.getId());
   BeanUtils.copyProperties(ldapUserDTO,entity);
   entity.setId(ldapUserDTO.getId());
   template.create(entity);


  }

  @Override public void update(LdapUserDTO ldapUserDTO) {

   LdapUserEntity entity = new LdapUserEntity(ldapUserDTO.getId());
   BeanUtils.copyProperties(ldapUserDTO,entity);
   entity.setId(ldapUserDTO.getId());
   template.update(entity);


  }

  @Override public void delete(LdapUserDTO ldapUserDTO) {

   LdapUserEntity entity = new LdapUserEntity(ldapUserDTO.getId());
   BeanUtils.copyProperties(ldapUserDTO,entity);
   entity.setId(ldapUserDTO.getId());
   template.delete(entity);


  } }

- **构建用户controller**
```java
package com.gccloud.ldap.controller;

import com.gccloud.ldap.dto.LdapUserDTO;
import com.gccloud.ldap.entity.LdapUserEntity;
import com.gccloud.ldap.service.ILdapUserService;
import com.gccloud.ldap.vo.R;
import org.springframework.web.bind.annotation.*;

import javax.annotation.Resource;
import java.util.List;
/**
 * @Author zhangtaozhir
 * @Description 用户controller
 * @Date 19:07 2022/1/24
 * @Param
 * @return
 **/
@RestController
@RequestMapping("/ldap/user")
public class LdapUserController {
    @Resource
    private ILdapUserService ldapUserService;
    @GetMapping( "/getAll")
    public R<List<LdapUserEntity>> getAll(){
        List<LdapUserEntity> ldapUserEntities = ldapUserService.getAll();
        return R.success(ldapUserEntities);
    }

    //    @GetMapping(value = "/getAll/{username}",consumes = "application/json", produces = "application/json")
    @GetMapping("/getAllMatch/{username}")
    public R<List<LdapUserEntity>> getAllMatch(@PathVariable String username){
        List<LdapUserEntity> ldapUserEntities = ldapUserService.getByUsernameMatch(username);
        return R.success(ldapUserEntities);
    }
    @GetMapping("/getAllByOrgId/{orgId}")
    public R<List<LdapUserEntity>> getAllByOrgId(@PathVariable String orgId){
        List<LdapUserEntity> ldapUserEntities = ldapUserService.getLdapUserEntityByOrgId(orgId);
        return R.success(ldapUserEntities);
    }
    @GetMapping("/getOne/{username}")
    public R<LdapUserEntity> getOne(@PathVariable String username){
        LdapUserEntity ldapUserEntity = ldapUserService.getByUsername(username);
        return R.success(ldapUserEntity);
    }

    @PostMapping(value = "/add",consumes = "application/json", produces = "application/json")
    public R<String> add(@RequestBody LdapUserDTO ldapUserDTO){
        ldapUserService.add(ldapUserDTO);
        return R.success("成功");
    }

    @PostMapping(value = "/update",consumes = "application/json", produces = "application/json")
    public R<String> update(@RequestBody LdapUserDTO ldapUserDTO){
        ldapUserService.update(ldapUserDTO);
        return R.success("成功");
    }
    @PostMapping(value = "/delete",consumes = "application/json", produces = "application/json")
    public R<String> delete(@RequestBody LdapUserDTO ldapUserDTO){
        ldapUserService.delete(ldapUserDTO);
        return R.success("成功");
    }
}

调用示例

增加组织

• 接口地址：/ldap/org/add
• 请求方式： post

• 示例报文：

  • 请求示例

    {"id": "cn=qianxing1,cn=gccloud","orgName": "qianxing1","orgNum": "1505"}


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": "成功"
    }


    更新组织

• 接口地址：/ldap/org/update

• 请求方式： post

• 示例报文：

  • 请求示例

    {"id": "cn=qianxing1,cn=gccloud","orgName": "qianxing1","orgNum": "1506"}


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": "成功"
    }


    查询单个组织

• 接口地址：/ldap/org/getOne/{orgCode}

• 请求方式： get

• 示例报文：

  • 请求示例

    http://localhost:8080/ldap/org/getOne/cn=qianxing1,cn=gccloud,dc=mylitboy,dc=com


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": {
       "id": "cn=qianxing1,cn=gccloud",
       "orgCode": "cn=qianxing1,cn=gccloud,dc=mylitboy,dc=com",
       "orgName": "qianxing1",
       "orgNum": "1506"
    }
    }


    带条件查询组织

• 接口地址：http://localhost:8080/ldap/org/getAllMatch/{orgName}

• 请求方式： get

• 示例报文：

  • 请求示例

    http://localhost:8080/ldap/org/getAllMatch/qianxing*


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": [
       {
           "id": "cn=qianxing,cn=gccloud",
           "orgCode": "cn=qianxing,cn=gccloud,dc=mylitboy,dc=com",
           "orgName": "qianxing",
           "orgNum": "505"
       },
       {
           "id": "cn=qianxing1,cn=gccloud",
           "orgCode": "cn=qianxing1,cn=gccloud,dc=mylitboy,dc=com",
           "orgName": "qianxing1",
           "orgNum": "1506"
       }
    ]
    }


    查询所有组织

• 接口地址：http://localhost:8080/ldap/org/getAll

• 请求方式： get
• 响应示例报文：

  {
    "code": 200,
    "msg": null,
    "data": [
        {
            "id": "cn=gccloud",
            "orgCode": "cn=gccloud,dc=mylitboy,dc=com",
            "orgName": "gccloud",
            "orgNum": "500"
        },
        {
            "id": "cn=rd",
            "orgCode": "cn=rd,dc=mylitboy,dc=com",
            "orgName": "rd",
            "orgNum": "501"
        },
        {
            "id": "cn=jszt,cn=gccloud",
            "orgCode": "cn=jszt,cn=gccloud,dc=mylitboy,dc=com",
            "orgName": "jszt",
            "orgNum": "502"
        },
        {
            "id": "cn=jszt,cn=rd",
            "orgCode": "cn=jszt,cn=rd,dc=mylitboy,dc=com",
            "orgName": "jszt",
            "orgNum": "503"
        },
        {
            "id": "cn=qianxing,cn=gccloud",
            "orgCode": "cn=qianxing,cn=gccloud,dc=mylitboy,dc=com",
            "orgName": "qianxing",
            "orgNum": "505"
        },
        {
            "id": "cn=qianxing1,cn=gccloud",
            "orgCode": "cn=qianxing1,cn=gccloud,dc=mylitboy,dc=com",
            "orgName": "qianxing1",
            "orgNum": "1506"
        }
    ]
  }


删除组织

• 接口地址：/ldap/org/delete
• 请求方式： post

• 示例报文：

  • 请求示例

    {"id": "cn=qianxing1,cn=gccloud"}


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": "成功"
    }


    增加用户

• 接口地址：/ldap/user/add

• 请求方式： post

• 示例报文：

  • 请求示例

    {"id": "cn=zhang san,cn=qianxing,cn=gccloud","username": "zhangsan","realName": "张三","surname": "zhang","email": "123456@163.com","phone":"12345678901"}


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": "成功"
    }


    更新用户

• 接口地址：/ldap/user/update

• 请求方式： post

• 示例报文：

  • 请求示例

    {"id": "cn=zhang san2,cn=qianxing,cn=gccloud","username": "zhangsan2","realName": "zhang san2","surname": "zhang","email": "123456@163.com","phone":"12345678901"}


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": "成功"
    }


    查询单个用户

• 接口地址：/ldap/user/getOne/{username}

• 请求方式： get

• 示例报文：

  • 请求示例

    http://localhost:8080/ldap/user/getOne/cn=zhang san2,cn=qianxing,cn=gccloud,dc=mylitboy,dc=com


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": {
       "id": "cn=zhang san2,cn=qianxing,cn=gccloud",
       "username": "zhangsan2",
       "realName": "zhang san2",
       "surname": "zhang",
       "email": "123456@163.com",
       "homedirectory": null,
       "orgNum": null,
       "userNum": null,
       "phone": "12345678901"
    }
    }


    带条件查询用户

• 接口地址：http://localhost:8080/ldap/user/getAllMatch/{username}

• 请求方式： get

• 示例报文：

  • 请求示例

    http://localhost:8080/ldap/user/getAllMatch/zhang*


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": [
       {
           "id": "cn=zhang tao,cn=gccloud",
           "username": "zhangtao",
           "realName": "zhang tao",
           "surname": "tao",
           "email": null,
           "homedirectory": "/home/users/zhangtao",
           "orgNum": "500",
           "userNum": "1000",
           "phone": null
       },
       {
           "id": "cn=zhangsan zhangsan,cn=gccloud",
           "username": "zhangsan",
           "realName": "zhangsan zhangsan",
           "surname": "zhangsan",
           "email": null,
           "homedirectory": "/home/users/zhangsan",
           "orgNum": "500",
           "userNum": "1002",
           "phone": null
       },
       {
           "id": "cn=zhang san,cn=qianxing,cn=gccloud",
           "username": "zhangsan",
           "realName": "zhang san",
           "surname": "zhang",
           "email": null,
           "homedirectory": null,
           "orgNum": null,
           "userNum": null,
           "phone": null
       },
       {
           "id": "cn=zhang san2,cn=qianxing,cn=gccloud",
           "username": "zhangsan2",
           "realName": "zhang san2",
           "surname": "zhang",
           "email": "123456@163.com",
           "homedirectory": null,
           "orgNum": null,
           "userNum": null,
           "phone": "12345678901"
       }
    ]
    }


    查询所有用户

• 接口地址：http://localhost:8080/ldap/user/getAll

• 请求方式： get

• 响应示例报文：

  {
    "code": 200,
    "msg": null,
    "data": [
        {
            "id": "cn=zhang tao,cn=gccloud",
            "username": "zhangtao",
            "realName": "zhang tao",
            "surname": "tao",
            "email": null,
            "homedirectory": "/home/users/zhangtao",
            "orgNum": "500",
            "userNum": "1000",
            "phone": null
        },
        {
            "id": "cn=lisi lisi,cn=gccloud",
            "username": "lisi",
            "realName": "lisi lisi",
            "surname": "lisi",
            "email": null,
            "homedirectory": "/home/users/lisi",
            "orgNum": "500",
            "userNum": "1001",
            "phone": null
        },
        {
            "id": "cn=zhangsan zhangsan,cn=gccloud",
            "username": "zhangsan",
            "realName": "zhangsan zhangsan",
            "surname": "zhangsan",
            "email": null,
            "homedirectory": "/home/users/zhangsan",
            "orgNum": "500",
            "userNum": "1002",
            "phone": null
        },
        {
            "id": "cn=su daqiang,cn=rd",
            "username": "sudaqiang",
            "realName": "su daqiang",
            "surname": "daqiang",
            "email": "sudaqiang@suhou.com",
            "homedirectory": "/home/users/sudaqiang",
            "orgNum": "501",
            "userNum": "1003",
            "phone": "13013013013"
        },
        {
            "id": "cn=zhang san,cn=qianxing,cn=gccloud",
            "username": "zhangsan",
            "realName": "zhang san",
            "surname": "zhang",
            "email": null,
            "homedirectory": null,
            "orgNum": null,
            "userNum": null,
            "phone": null
        },
        {
            "id": "cn=zhang san2,cn=qianxing,cn=gccloud",
            "username": "zhangsan2",
            "realName": "zhang san2",
            "surname": "zhang",
            "email": "123456@163.com",
            "homedirectory": null,
            "orgNum": null,
            "userNum": null,
            "phone": "12345678901"
        }
    ]
  }


  根据组织查询用户

• 接口地址：http://localhost:8080/ldap/user/getAllByOrgId/{orgId}

• 请求方式： get

• 示例报文：

  • 请求示例

    http://localhost:8080/ldap/user/getAllByOrgId/cn=qianxing,cn=gccloud


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": [
       {
           "id": "cn=zhang san,cn=qianxing,cn=gccloud",
           "username": "zhangsan",
           "realName": "zhang san",
           "surname": "zhang",
           "email": null,
           "homedirectory": null,
           "orgNum": null,
           "userNum": null,
           "phone": null
       },
       {
           "id": "cn=zhang san2,cn=qianxing,cn=gccloud",
           "username": "zhangsan2",
           "realName": "zhang san2",
           "surname": "zhang",
           "email": "123456@163.com",
           "homedirectory": null,
           "orgNum": null,
           "userNum": null,
           "phone": "12345678901"
       }
    ]
    }


    删除用户

• 接口地址：/ldap/user/delete

• 请求方式： post

• 示例报文：

  • 请求示例

    {"id": "cn=zhang san,cn=qianxing,cn=gccloud"}


  • 响应示例

    {
    "code": 200,
    "msg": null,
    "data": "成功"
    }


    常见问题

    接入可能会遇到的一些问题以及解决办法
