钉钉开发文档：https://developers.dingtalk.com/document/app/custom-robot-access
微信机器人：https://work.weixin.qq.com/api/doc/90000/90136/91770

1. 钉钉通知

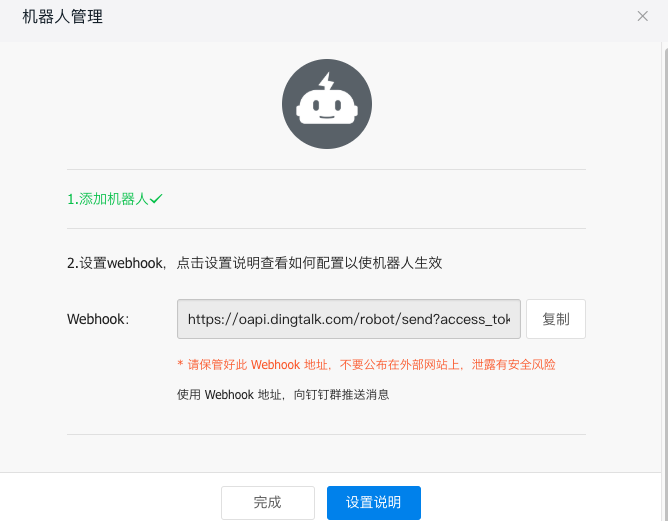

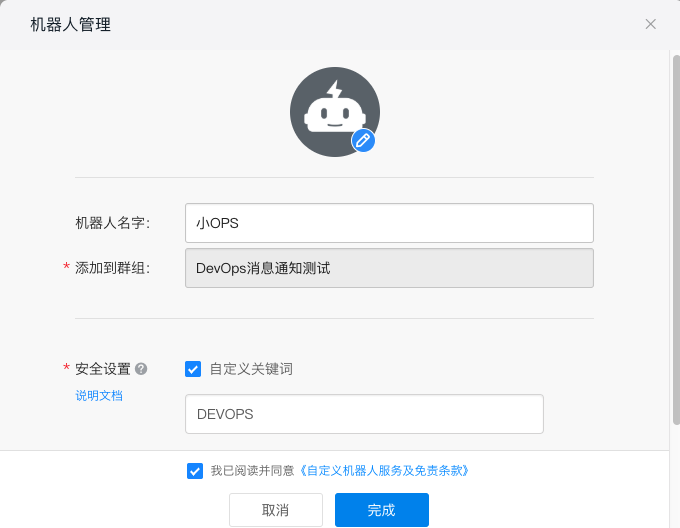

1.1 创建群机器人

  • 自定义关键词：最多可以设置10个关键词，消息中至少包含其中1个关键词才可以发送成功。例如添加了一个自定义关键词：监控报警，则这个机器人所发送的消息，必须包含监控报警这个词，才能发送成功。
  • IP地址（段）：设定后，只有来自IP地址范围内的请求才会被正常处理。支持两种设置方式：IP地址和IP地址段，暂不支持IPv6地址白名单，格式如下。 | 格式 | 说明 | | —- | —- | | 1.1.1.1 | 开发者的出口公网IP地址（非局域网地址） | | 1.1.1.0/24 | 用CIDR表示的一个网段 |


webhook：https://oapi.dingtalk.com/robot/send?access_token=e7c8e633c9d305b4a6bdc67297f956f43f9c2966b30d3b500eb1c49d8cbb80a1

测试：

  1. curl 'https://oapi.dingtalk.com/robot/send?access_token=e7c8e633c9d305b4a6bdc6729c49d8cbb80a1'  -H 'Content-Type: application/json'  -d '{"msgtype": "text","text": {"content":"构建通知我就是我, 是不一样的烟火"}}'

1.2 消息通知

其他演示使用postman测试……

文本消息通知

  1. {
  2.     "at": {
  3.         "atMobiles": [
  4.             "15011495602"
  5.         ],
  6.         "atUserIds": [
  7.             ""
  8.         ],
  9.         "isAtAll": false
  10.     },
  11.     "text": {
  12.         "content": "DEVOPS我就是我, @kkobe 是不一样的烟火"
  13.     },
  14.     "msgtype": "text"
  15. }

超链接消息

  1. {
  2.     "msgtype": "link",
  3.     "link": {
  4.         "text": "DEVOPS 这是我们训练营的课程链接",
  5.         "title": "第一期JenkinsCI/CD实践训练营",
  6.         "picUrl": "http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png",
  7.         "messageUrl": "https://www.idevops.site/detail/term_6054ad6b126c2_MTE8oq/25"
  8.     }
  9. }

MarkDown格式消息

  1. {
  2.     "msgtype": "markdown",
  3.     "markdown": {
  4.         "title": "明天的DEVOPS课程安排",
  5.         "text": "## 《Jenkins实践扩展》 \n  ### 1.内容1 \n   ### 2.内容1 \n  ### 3.内容1 \n  ### 4.内容1 \n>  ![screenshot](http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png)\n> ###### 更多详细信息点击 [课程链接](https://www.idevops.site/detail/term_6054ad6b126c2_MTE8oq/25) \n"
  6.     },
  7.     "at": {
  8.         "atMobiles": [
  9.             "158115965723"
  10.         ],
  11.         "atUserIds": [
  12.             "user123"
  13.         ],
  14.         "isAtAll": true
  15.     }
  16. }

actionCard

  1. {
  2.     "actionCard": {
  3.         "title": "DEVOPS第一期JenkinsCI/CD实践训练营",
  4.         "text": "![screenshot](http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png) ### 第一期JenkinsCI/CD实践训练营",
  5.         "btnOrientation": "0",
  6.         "singleTitle" : "阅读全文",
  7.         "singleURL" : "https://www.idevops.site/detail/term_6054ad6b126c2_MTE8oq/25/"
  8.     },
  9.     "msgtype": "actionCard"
  10. }

feedCard

  1. {
  2.     "msgtype":"feedCard",
  3.     "feedCard": {
  4.         "links": [
  5.             {
  6.                 "title": "第一期实践训练营",
  7.                 "messageURL": "https://www.dingtalk.com/",
  8.                 "picURL": "http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png"
  9.             },
  10.             {
  11.                 "title": "DEVOPS第二期实践训练营",
  12.                 "messageURL": "https://www.dingtalk.com/",
  13.                 "picURL": "http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png"
  14.             },
  15.               {
  16.                 "title": "DEVOPS第三期实践训练营",
  17.                 "messageURL": "https://www.dingtalk.com/",
  18.                 "picURL": "http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png"
  19.             }
  20.         ]
  21.     }
  22. }

actionCard

  1. {
  2.     "msgtype": "actionCard",
  3.     "actionCard": {
  4.         "title": "第一期DevOpsCI/CD实践培训课程",
  5.         "text": "DEVOPS![screenshot](http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png) \n\n #### 第一期DevOpsCI/CD实践培训课程 \n\n ",
  6.         "hideAvatar": "0",
  7.         "btnOrientation": "0",
  8.         "btns": [
  9.             {
  10.                 "title": "内容不错",
  11.                 "actionURL": "https://www.dingtalk.com/"
  12.             },
  13.             {
  14.                 "title": "不感兴趣",
  15.                 "actionURL": "https://www.dingtalk.com/"
  16.             }
  17.         ]
  18.     }
  19. }

2. 企业微信通知

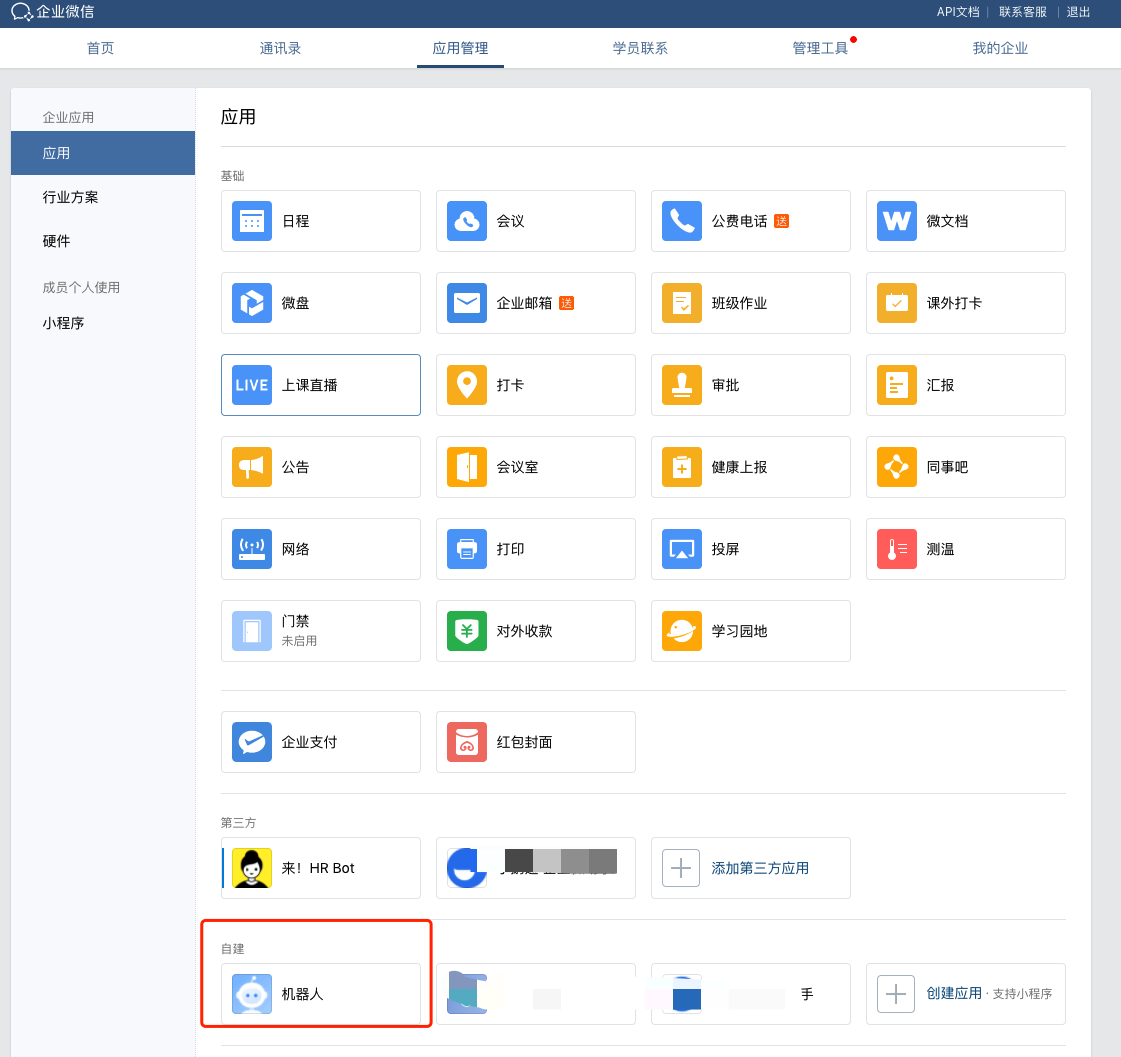

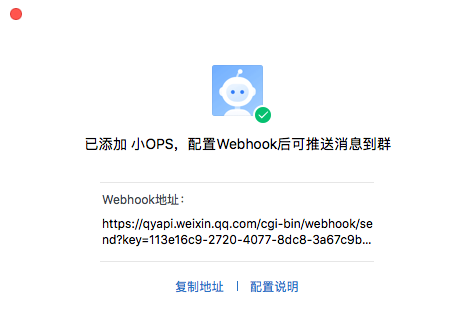

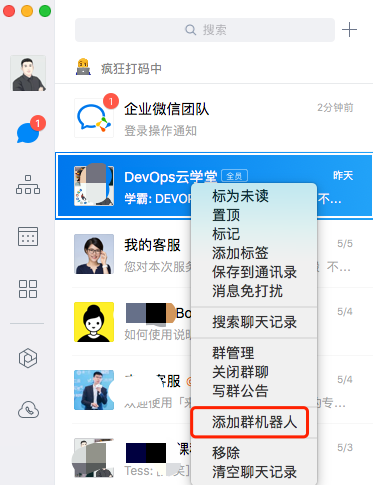

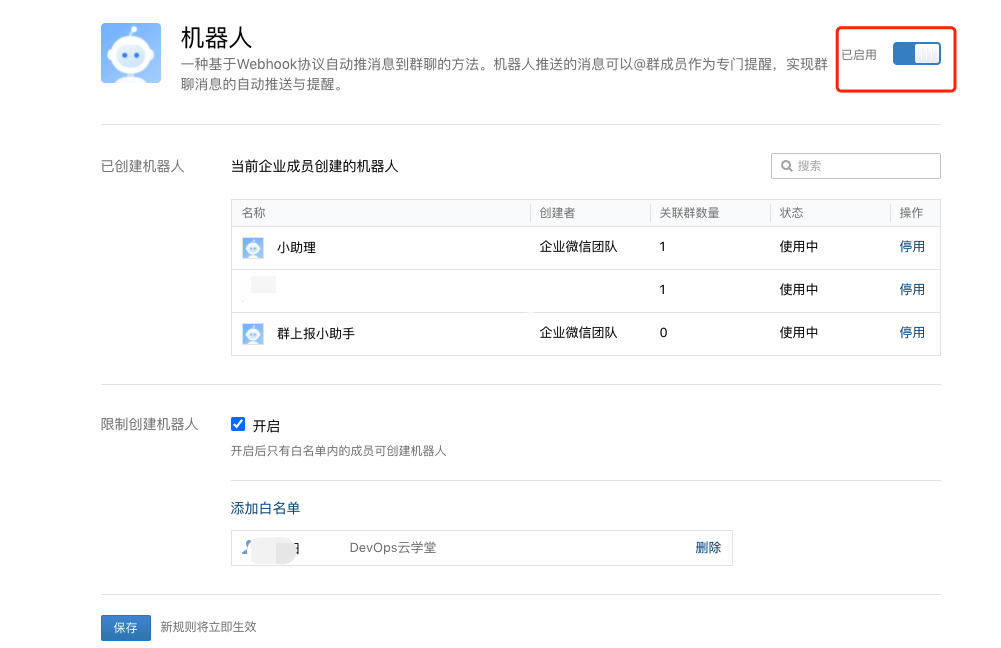

2.1 添加群机器人

https://work.weixin.qq.com/wework_admin/frame#apps




2.2 消息通知

文本消息

  1. {
  2.     "text": {
  3.         "content": "DEVOPS我就是我, @kkobe 是不一样的烟火",
  4.         "mentioned_list":["wangqing","@all"],
  5.         "mentioned_mobile_list":["13800001111","@all"]
  6.     },
  7.     "msgtype": "text"
  8. }

图文消息

  1. {
  2.     "msgtype": "news",
  3.     "news": {
  4.        "articles" : [
  5.            {
  6.                "title" : "第一期CICD实践",
  7.                "description" : "第一期CICD实践-jenkins",
  8.                "url" : "https://www.idevops.site/detail/term_6054ad6b126c2_MTE8oq/25",
  9.                "picurl" : "http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png"
  10.            }
  11.         ]
  12.     }
  13. }

markdown格式消息

  1. {
  2.     "msgtype": "markdown",
  3.     "markdown": {
  4.         "content": "## 《Jenkins实践扩展》 \n  ### 1.内容1 \n   ### 2.内容1 \n  ### 3.内容1 \n  ### 4.内容1 \n>  ![screenshot](http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png)\n> ###### 更多详细信息点击 [课程链接](https://www.idevops.site/detail/term_6054ad6b126c2_MTE8oq/25) \n"
  5.     }
  6. }

3. Jenkins 集成实践消息通知

  2. pipeline {
  4.     agent {
  5.         node {
  6.             label "master"
  7.         }
  8.     }
  10.     stages{
  11.         stage("Dingding"){
  12.             steps{
  13.                 script{
  15.                     mdText = "## DEVOPS《Jenkins实践扩展》 \n  ### 1.内容1 \n   ### 2.内容1 \n  ### 3.内容1 \n  ### 4.内容1 \n>  ![screenshot](http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png)\n> ###### 更多详细信息点击 [课程链接](https://www.idevops.site/detail/term_6054ad6b126c2_MTE8oq/25) \n"
  16.                     DingTalk("DEVOPS第一期Jenkins训练营", mdText, true)
  18.                     picurl = "http://wechatapppro-1252524126.file.myqcloud.com/app7x5jejrv6551/image/compress/640480598kmgc1v610gr1.png"
  19.                     WeiXin("DEVOPS第一期Jenkins训练营", "DEVOPS第一期Jenkins训练营", "${JOB_URL}", picurl)
  21.                 }
  22.             }
  23.         }
  24.     }
  26. }
  28. /*
  29. def DingTalk(mdTitle, mdText, atAll, atUser = '' ){
  31.     //
  32.     webhook = "https://oapi.dingtalk.com/robot/send?access_token=e7c8e633c9d305b4a6bdc67297f956f43f9c2966b30d3b500eb1c49d8cbb80a1"
  34.     sh """
  36.         curl --location --request POST ${webhook} \
  37.         --header 'Content-Type: application/json' \
  38.         --data  '{
  39.             "msgtype": "markdown",
  40.             "markdown": {
  41.                 "title": "${mdTitle}",
  42.                 "text": "${mdText}"
  43.             },
  44.             "at": {
  45.                 "atMobiles": [
  46.                     "${atUser}"
  47.                 ],
  48.                 "isAtAll": "${atAll}"
  49.             }
  50.         }'
  51.     """
  52. }*/
  56. def DingTalk(title, text, atAll, atUser = '' ){
  58.     //
  59.     webhook = "https://oapi.dingtalk.com/robot/send?access_token=e7c8e633c9d305b4a6bdc67297f956f43f9c2966b30d3b500eb1c49d8cbb80a1"
  61.     sh """
  63.         curl --location --request POST ${webhook} \
  64.         --header 'Content-Type: application/json' \
  65.         --data  '{
  66.             "msgtype": "text",
  67.             "text": {
  68.                 "content": "${text}"
  69.             },
  71.             "at": {
  72.                 "atMobiles": [
  73.                     "${atUser}"
  74.                 ],
  75.                 "isAtAll": "${atAll}"
  76.             }
  77.         }'
  78.     """
  79. }
  84. def WeiXin(title, desc, url, picurl){
  86.     webhook = "https://qyapi.weixin.qq.com/cgi-bin/webhook/send?key=64aa7589-290a-45ef-8d8a-bcb9650cba9c"
  88.     sh """
  89.         curl --location --request POST ${webhook} \
  90.             --header 'Content-Type: application/json' \
  91.             --data '{
  92.                 "msgtype": "news",
  93.                 "news": {
  94.                    "articles" : [
  95.                        {
  96.                            "title" : "${title}",
  97.                            "description" : "${desc}",
  98.                            "url" : "${url}",
  99.                            "picurl" : "${picurl}"
  100.                        }
  101.                     ]
  102.                 }
  103.             }'
  104.         """
  105. }
