【本次课程总结】
本次课程主要讲解基于Kubernetes的应用发布流水线的实现：

了解Docker的基础知识，完成CI流水线中的docker镜像上传步骤。
学习Kubernetes的基础知识，手动编写Deployment模板，完成应用的发布。
将部署文件存储在Git仓库，复用上次课程的”生成版本文件”步骤，来完成对该部署文件的版本更新。
学习k8s的发布策略，实践完成基于service的蓝绿部署和基于ingress的灰度发布（手动）。
使用kubectl完成对应用的发布，调试并生成CD流水线。
学习Helm基础知识，手动编写helm chart完成打包和发布更新回滚。
调试完成基于Helm的CI/CD GitOps流水线。

课程直播与回看

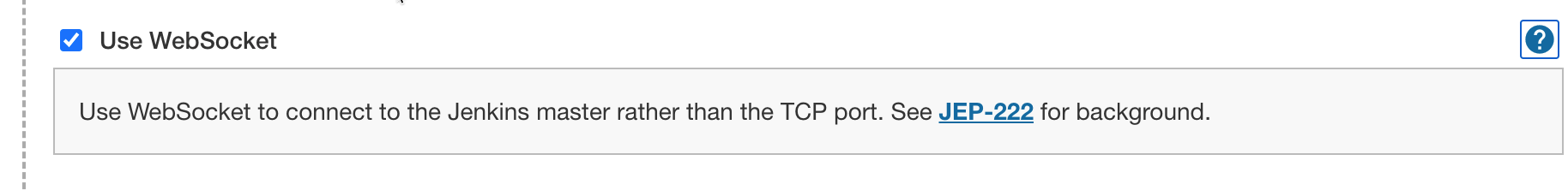

注意：上午在创建jenkins slave 的时候遇到了坑点，花费了40多分钟排错，还好最后学习到了新的方式方法解决了此类存在已久的bug。下午在编写sed 和awk 命令时花费了很多时间， sed 中默认使用 ‘/‘分割在jenkins中要换一下，换成”#”没问题测试通过。 awk 中的位置参数 “$” 要用反斜杠转义”‘{ print \$1}’”。

实验与素材：

做实验用的前端项目： anyops-devops-ui-master.zip
蓝绿部署测试代码： blue-green-demo.tar.gz
ingress-canary灰度测试代码： ingress-canary-weight-header-cookie-demo.tar.gz
Jenkins共享库和Jenkinsfile: devops-library-service-day6-init-version.zip
最终kubectl 环境库： anyops-k8senv-master.zip
最终helm chart库： anyops-helmcharts-master.zip

1. 基于Kubectl的GitOps CI/CD

1.1 CI流水线设计与实现

此次项目我们使用了jenkins共享库来完成最佳实践。 jenkinsfile第一行就是要导入我们的共享库。@Library("devopslib@master") _

我们在共享库中编写了一些特定的处理类:

src/org/devops/mytools.groovy 存放小工具（代码下载，邮件通知）
src/org/devops/builds.groovy 构建类工具
src/org/devops/sonarqube.groovy 代码扫描工具
src/org/devops/artifacts.groovy 制品管理工具
src/org/devops/gitlab.groovy 版本控制系统接口操作工具

在Jenkinsfile中导入这些类

def mytools = new org.devops.mytools()
def builds  = new org.devops.builds()
def sonar   = new org.devops.sonarqube()
def artifacts = new org.devops.artifacts()
def gitlab = new org.devops.gitlab()

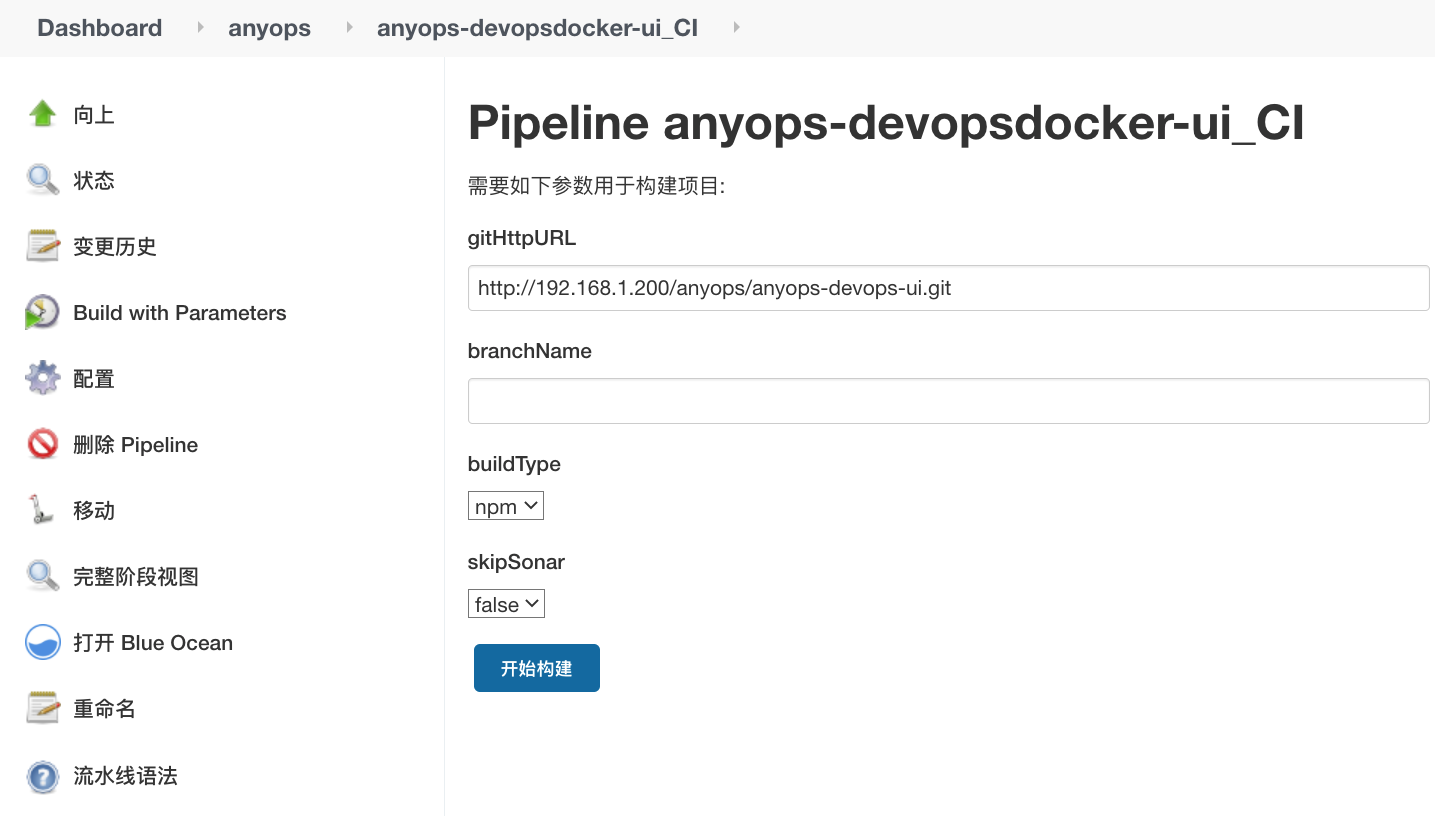

有些参数需要用户在Jenkins页面构建前填写的：

用户需要在jenkins作业中配置好要构建的代码仓库的地址。（一般不需要改，可以使用选项参数）
每次构建需要输入此代码库要构建的代码分支。（字符串参数）
选择本次构建要使用的构建工具（选项参数maven、ant、gradle、npm）
用户自行选择是否跳过代码扫描（选项参数 true、false）

//UI上面的参数
String branchName = "${env.branchName}"     // 分支名称
String gitHttpURL = "${env.gitHttpURL}"            // 仓库地址
String buildType  = "${env.buildType}"            // 构建类型
String skipSonar  = "${env.skipSonar}"            // 是否跳过扫描

为了适配不同的构建工具，专门维护了一个map用于管理不同的构建工具的path。标准化标准化标准化，也就是后期所有的agent节点都要安装这些工具的时候，要使用约定好的目录位置。

def buildTools = [  "maven" : "/usr/local/apache-maven-3.8.1",
                    "gradle": "/usr/local/gradle-6.8.3/",
                    "golang": "/usr/local/go",
                    "npm"   : "/usr/local/node-v14.16.1-linux-x64/",
                    "sonar" : "/usr/local/sonar-scanner-4.6.0.2311-linux/"]

我们在流水线中定义一些全局变量：

通过作业的名称拿到我们的制品库名称（anyops）
通过作业名称拿到业务简称（anyops）
通过作业名称拿到应用名称（anyops-devops-service/ anyops-devops-ui）

通过分支名称拿到对应的版本号（release-1.1.1 对应 1.1.1 ）

// 业务名称、应用名称、版本
String repoName   = "${JOB_NAME.split('/')[0]}"
String buName = "${JOB_NAME.split('/')[0]}"
String appName = "${JOB_NAME.split('/')[1].split("_")[0]}"
String releaseVersion = "${branchName.split('-')[1]}"

流水线运行信息

此条流水线运行在标签为”build”的节点上，跳过默认的checkout步骤。

agent { label  "build" }
    options {
        skipDefaultCheckout true
    }

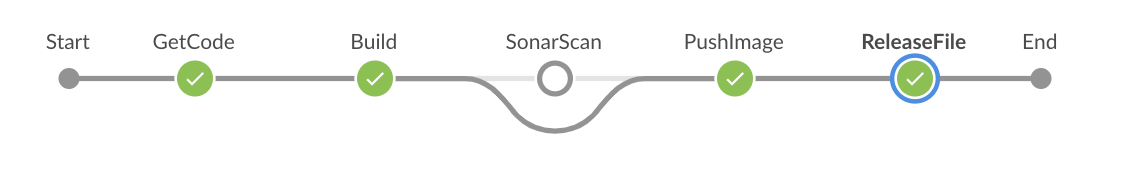

阶段与节点

下载代码

stage("GetCode"){
    steps{
        script{
            mytools.GetCode("git",branchName,gitHttpURL)
        }
    }
}

构建代码

stage("Build"){
    steps {
        script {
            builds.Build(buildTools, buildType)
        }
    }
}

代码扫描

    stage("SonarScan"){
            when {
                environment name: 'skipSonar', value: 'false'
            }
            steps{
                script{
                    projectName = "${appName}"
                    sonar.SonarScan(projectName, buildType, buildTools)
                }
            }
      }

构建上传镜像

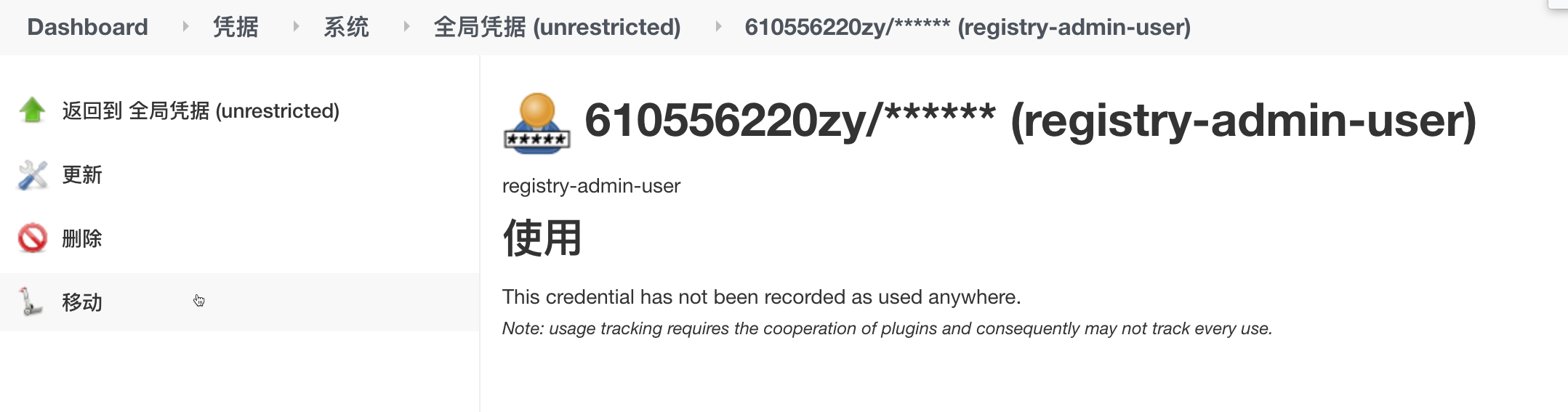

需要将docker镜像仓库的用户认证信息，以用户名和密码类型的凭据在Jenkins中存储；
docker仓库：registry.cn-beijing.aliyuncs.com/${buName}/${appName}；
镜像标签： ${releaseVersion}-${nowDate} 即版本号-日期；
步骤：登录镜像仓库> 构建镜像 > 上传镜像 > 删除本地镜像（节省空间）；

stage("PushImage"){
            steps{
                script{
                    withCredentials([usernamePassword(credentialsId: '6ed6e3ef-fdca-493f-a8a4-613f70aca281', passwordVariable: 'password', usernameVariable: 'username')]) {
                         env.nowDate = sh  returnStdout: true, script: 'date  +%Y%m%d%H%M%S'
                         env.nowDate = env.nowDate - "\n"
                         env.releaseVersion = "${env.branchName}"
                         env.imageTag = "${releaseVersion}-${nowDate}"
                         env.dockerImage = "registry.cn-beijing.aliyuncs.com/${buName}/${appName}:${env.imageTag}"
                         sh """
                             docker login -u ${username} -p ${password}  registry.cn-beijing.aliyuncs.com
                             docker build -t ${dockerImage} -f ./Dockerfile  .
                             sleep 1
                             docker push ${dockerImage}
                             sleep 1
                             docker rmi ${dockerImage}
                          """
                    }
                }
            }
        }

更新生成版本文件

步骤：拿到 env仓库中的default.yaml模板文件，然后替换内容，更新到版本库。

更新对象：

APPNAME（应用名称）对应Jenkins作业名称；
VERSION (发布版本) 对应版本分支中的版本号；
NAMESPACE (名称空间) 对应业务名称；

INAGENAME(镜像名称) ```groovy stage(“ReleaseFile”){

   steps {
       script {
           //下载版本库文件 anyops-devops-service/release.yaml
           response = gitlab.GetRepoFile(13,"default.yaml", "master")
           sh "rm -fr default.yaml"
           writeFile  file: 'default.yaml', text: """${response}"""
           sh """
               ## 替换APPNAME
               sed -i 's#__APPNAME__#${appName}#g' default.yaml
               sed -i 's#__VERSION__#${env.releaseVersion}#g' default.yaml
               sed -i 's#__NAMESPACE__#${buName}#g' default.yaml
               sed -i 's#__IMAGENAME__#${env.dockerImage}#g' default.yaml
           """
           newYaml = sh returnStdout: true, script: 'cat default.yaml'
           println(newYaml)
           //更新gitlab文件内容
           base64Content = newYaml.bytes.encodeBase64().toString()
           // 会有并行问题，同时更新报错
           try {
               gitlab.UpdateRepoFile(13,"${appName}%2f${branchName}.yaml",base64Content, "master")
           } catch(e){
               gitlab.CreateRepoFile(13,"${appName}%2f${branchName}.yaml",base64Content, "master")
           }
       }
   }

}

<a name="G7A4i"></a>
###

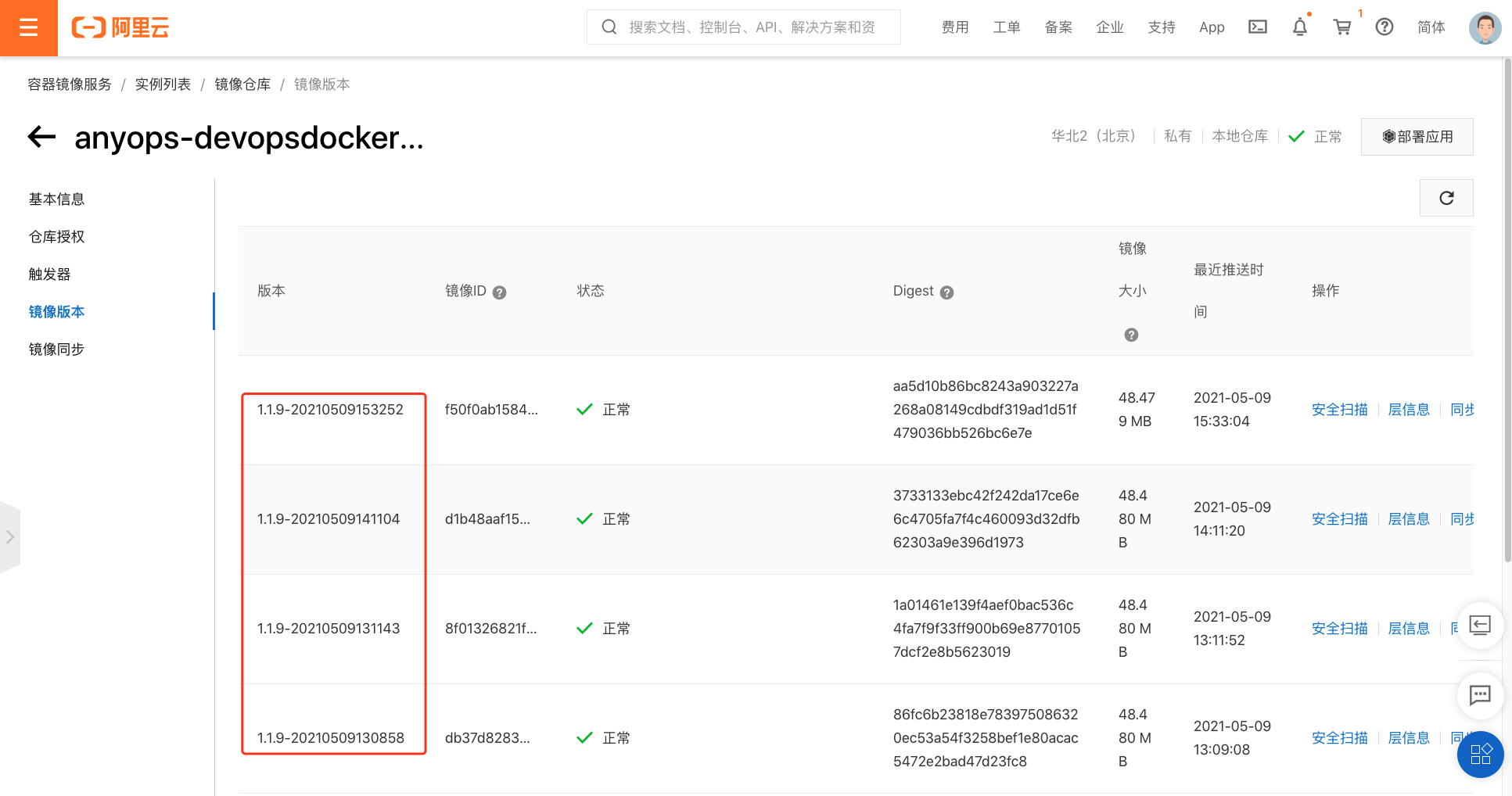

镜像仓库截图：<br />![image.png](https://cdn.nlark.com/yuque/0/2021/png/2584012/1620564080420-859ef974-54fc-44c1-a743-a6846febc088.png#clientId=u313b3434-a091-4&from=paste&height=509&id=u9230562f&originHeight=1018&originWidth=1933&originalType=binary&size=215034&status=done&style=none&taskId=u04a3e9b1-02f0-4695-b669-9078de903bb&width=966.5)
---
<a name="VBHhT"></a>
## 1.2 CD流水线设计与实现
此次项目我们使用了jenkins共享库来完成最佳实践。  `jenkinsfile`第一行就是要导入我们的共享库。`@Library("devopslib@master") _`
我们在共享库中编写了一些特定的处理类:
- src/org/devops/mytools.groovy     存放小工具（代码下载， 邮件通知）
- src/org/devops/gitlab.groovy         版本控制系统接口操作工具
在Jenkinsfile中导入这些类
```bash
def mytools = new org.devops.mytools()
def gitlab = new org.devops.gitlab()

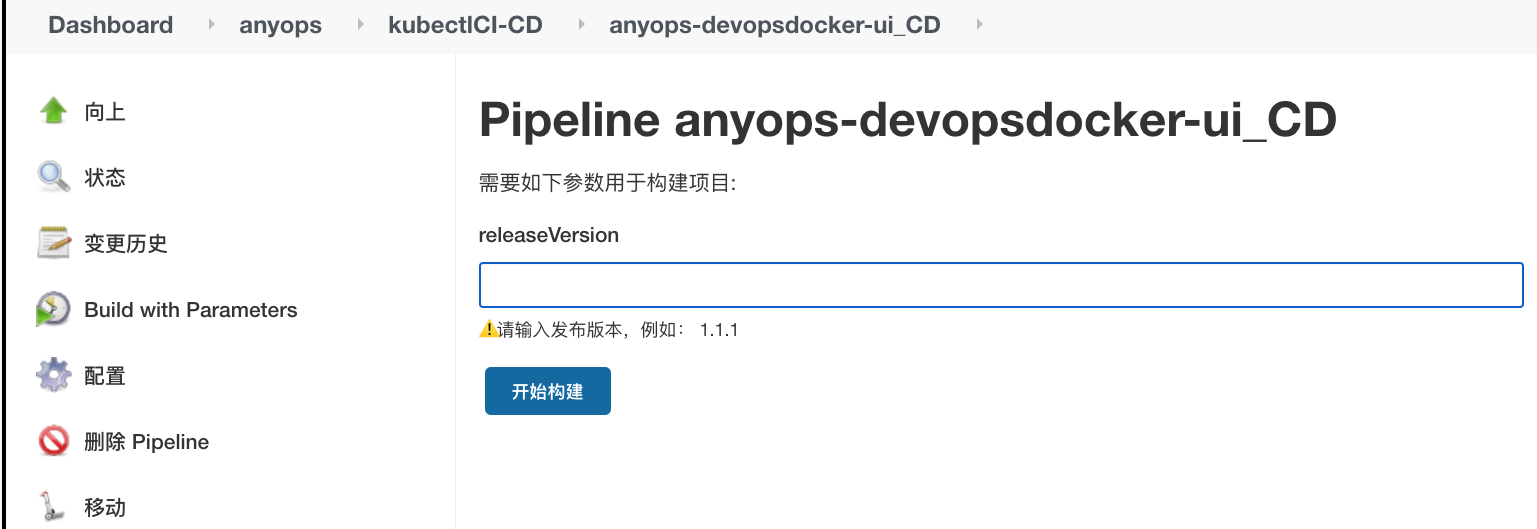

只有一个参数需要用户在Jenkins页面构建前填写的：

用户在页面输入发布版本： releaseVersion，例如 1.1.1

//UI上面的参数
String releaseVersion = "${env.releaseVersion}" // 发布版本

我们在流水线中定义一些全局变量：

通过作业名称拿到业务简称（anyops）

通过作业名称拿到应用名称（anyops-devops-service/ anyops-devops-ui）

// 业务名称、应用名称
String buName = "${JOB_NAME.split('/')[0]}"
String appName = "${JOB_NAME.split('/')[1].split("_")[0]}"

流水线运行信息

此条流水线运行在标签为”k8snode”的节点上，跳过默认的checkout步骤。（课程中是在k8s的master节点启动了一个jnlp的Jenkins Slave）

    agent { label "k8snode"}
    options {
        skipDefaultCheckout true
    }

阶段与节点

获取发布文件

下载CI流水线生成的版本文件到本地； ```groovy stage(“GetEnvFile”){

      steps{
          script{
              //下载版本库文件 anyops-devopsdocker-ui/release-1.1.9.yaml
              response = gitlab.GetRepoFile(13,"${appName}%2frelease-${releaseVersion}.yaml", "master")
              sh "rm -fr release-${releaseVersion}.yaml"
              writeFile  file: "release-${releaseVersion}.yaml", text: """${response}"""
          }
      }
  }

<a name="oQgp3"></a>
###
应用发布
- 创建名称空间，更新应用，查看REVISION历史。
```groovy
       stage("Deploy"){
            steps {
                script {
                    sh """
                        kubectl create ns  ${buName} || echo true
                        kubectl apply -f ./release-${releaseVersion}.yaml
                        kubectl rollout history deployment/${appName} -n ${buName}
                    """
                }
            }
        }

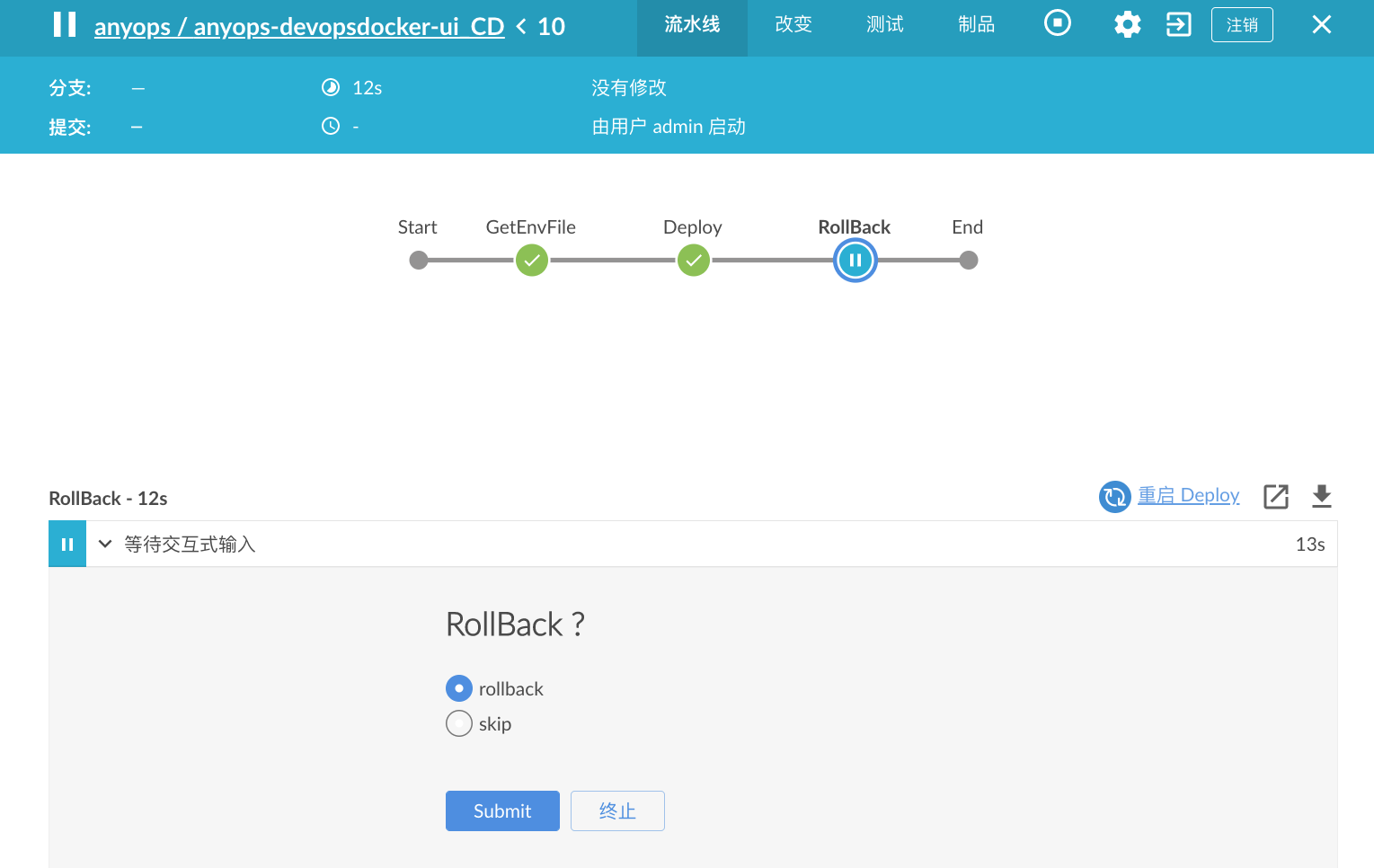

回滚步骤（交互）

给用户提供两个选项：rollback执行回滚，skip跳过;

使用kubectl rollout undo 默认回滚上个版本； ```groovy stage(‘RollBack’) {

      input {
          message "RollBack ? "
          ok "Submit"
          submitter "zeyang,aa"
          parameters {
              choice(choices: ["rollback", "skip"], description: '', name: 'actions')
          }
      }
      steps {
          script {
              echo "Actions is  ${actions}, doing......."
              if ( "${actions}" == "rollback"){
                  sh """ kubectl rollout undo deployment/${appName} -n ${buName} """
              } else {
                  println("Skip rollback .....")
              }
          }
      }
  }


---
<a name="FSayr"></a>
# 2. 基于Helm的GitOps CI/CD
<a name="N1H1v"></a>
## 2.1 CI流水线设计与实现
此部分可以参考上面“基于kubectl发布”阶段， 相同的阶段代码。
<a name="S2KXB"></a>

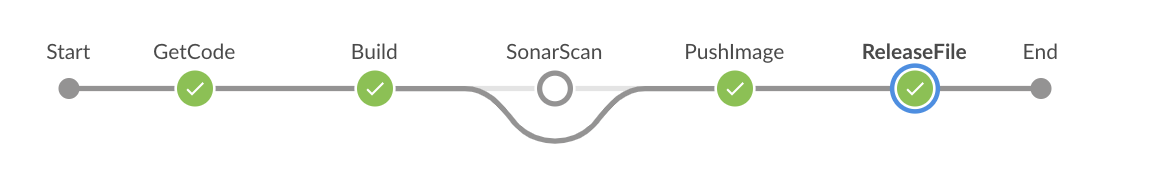

### 阶段与节点
![image.png](https://cdn.nlark.com/yuque/0/2021/png/2584012/1620565418202-2b90ac90-a34e-4199-81b3-efcfc3758928.png#clientId=u313b3434-a091-4&from=paste&height=124&id=uc012d19c&originHeight=192&originWidth=1155&originalType=binary&size=17401&status=done&style=none&taskId=uc1e184b4-df6e-443a-97f5-d7bf8f6d27e&width=743.5)<br />此部分可以参考上面“基于kubectl发布”阶段， 相同的阶段代码。
更新生成版本文件
此处的版本文件不再是一个文件了， 而是一个chart包。如何生成：
```groovy
helm create "${appName}"
cd "${appName}"
git push 到版本库

步骤：拿到 helm chart仓库中的values.yaml模板文件，然后替换镜像，更新到版本库。

更新对象：

image.repository (镜像仓库名称)

image.tag （镜像标签） ```groovy stage(“ReleaseFile”){

   steps {
       script {
           //下载版本库文件 anyops-devopshelm-ui/values.yaml
           response = gitlab.GetRepoFile(14,"${appName}%2fvalues.yaml", "master")
           yamlData = readYaml text: """${response}"""
           println(yamlData)
           yamlData.image.repository   = "${env.repository}"
           yamlData.image.tag  = "${env.imageTag}"
           sh "rm -fr default.yaml"
           writeYaml charset: 'UTF-8', data: yamlData, file: 'default.yaml'
           newYaml = sh returnStdout: true, script: 'cat default.yaml'
           println(newYaml)
           //更新gitlab文件内容
           base64Content = newYaml.bytes.encodeBase64().toString()
           // 会有并行问题，同时更新报错
           try {
               gitlab.UpdateRepoFile(14,"${appName}%2fvalues.yaml",base64Content, "master")
           } catch(e){
               gitlab.CreateRepoFile(14,"${appName}%2fvalues.yaml",base64Content, "master")
           }
       }
   }

}


---
<a name="JmGlw"></a>

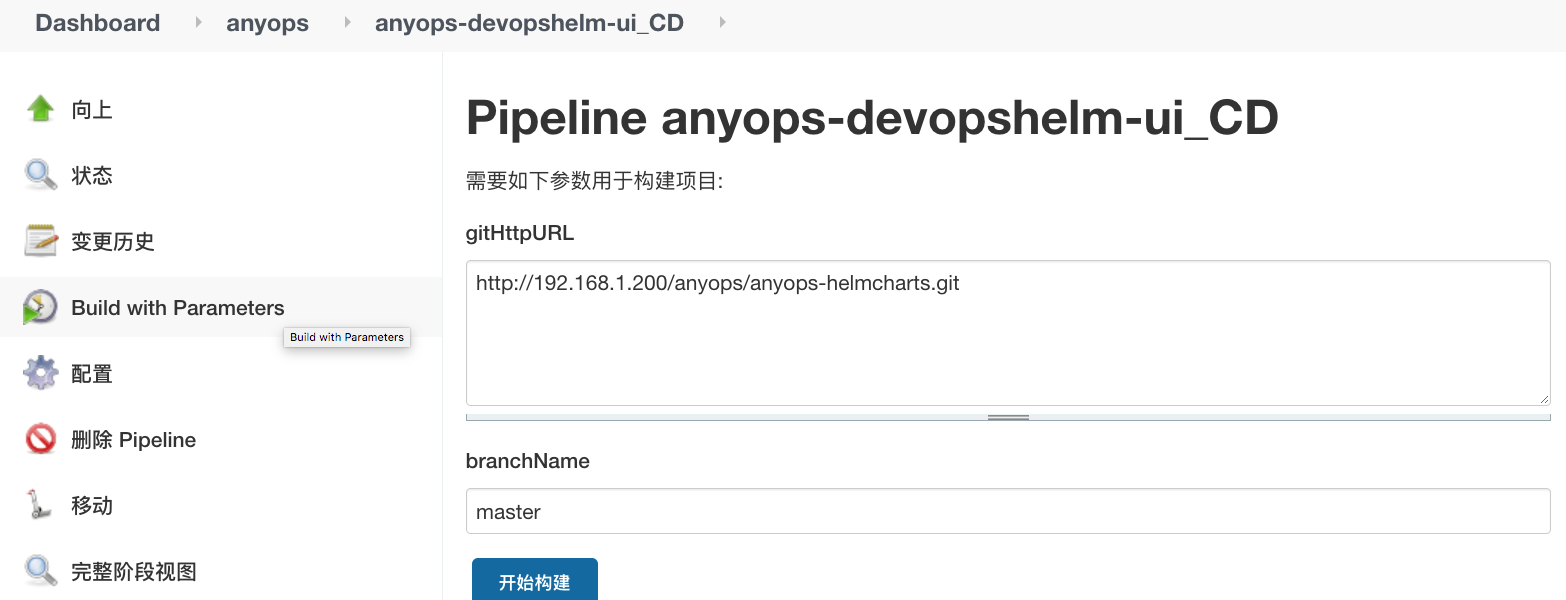

## 2.2 CD流水线设计与实现
![image.png](https://cdn.nlark.com/yuque/0/2021/png/2584012/1620566060144-5970bcd5-06d3-4574-aa34-f81d8f2688eb.png#clientId=u313b3434-a091-4&from=paste&height=300&id=u2541d993&originHeight=600&originWidth=1566&originalType=binary&size=102853&status=done&style=none&taskId=ubea2268e-0651-4bc4-9427-e6357de3bb8&width=783)
![image.png](https://cdn.nlark.com/yuque/0/2021/png/2584012/1620565850507-e81eadbd-1d7a-48c5-8928-1fe743b6ca3a.png#clientId=u313b3434-a091-4&from=paste&height=475&id=u19741f0d&originHeight=950&originWidth=1523&originalType=binary&size=86062&status=done&style=none&taskId=u0f9e73d3-674c-470c-81e7-517b01064eb&width=761.5)
下载chart仓库
```groovy
      stage("GetEnvFile"){
            steps{
                script{
                    mytools.GetCode("git",branchName,gitHttpURL)
                }
            }
        }

helm发布应用

创建名称空间，打包，获取REVISION历史（便于回滚） ```groovy stage(“Deploy”){

      steps {
          script {
              sh """
                  kubectl create ns  ${buName} || echo true
                  helm package "${appName}/"
                  helm install "${appName}" ./"${appName}"-*.tgz -n ${buName} || helm upgrade "${appName}" ./"${appName}"-*.tgz -n ${buName}
                  helm history "${appName}"  -n ${buName}
              """
              env.revision = sh returnStdout: true, script: """helm history ${appName} -n ${buName} | grep -v 'REVISION' | awk '{print \$1}' """
              println("${env.revision}")
              println("${env.revision.split('\n').toString()}")
              env.REVISION = "${env.revision.split('\n').toString()}"
              println("${env.REVISION}")
          }
      }
  }

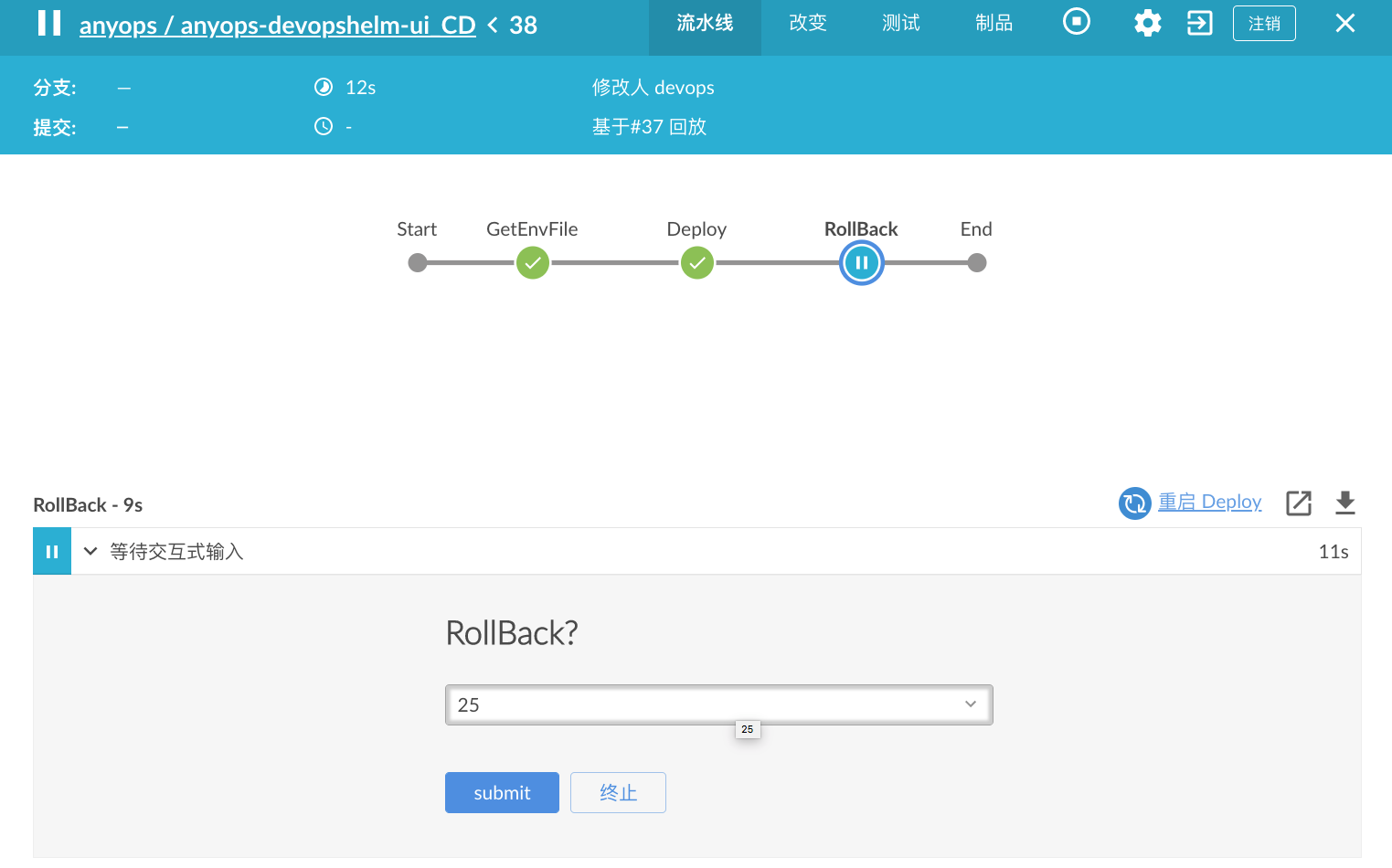

回滚步骤
- 交互式用户选择REVISION， 触发Helm rollback；
```groovy
        stage('RollBack') {
            steps {
                script {
                    def result = input message: 'RollBack?', ok: 'submit', parameters: [choice(choices: "${env.REVISION}", description: '', name: 'revision')]
                    env.result = result - "\n"
                    echo "Actions is  ${env.result}, doing......."
                    if ( "${env.result}" != ""){
                        sh """ helm rollback ${appName} ${env.result} -n ${buName}  """
                    } else {
                        println("Skip rollback .....")
                    }
                }
            }
        }

3. 核心技术点讲解

3.1 Docker基础

Docker官网: https://www.docker.com/
Docker中文社区: http://www.docker.org.cn/
Docker HUB: https://hub.docker.com/

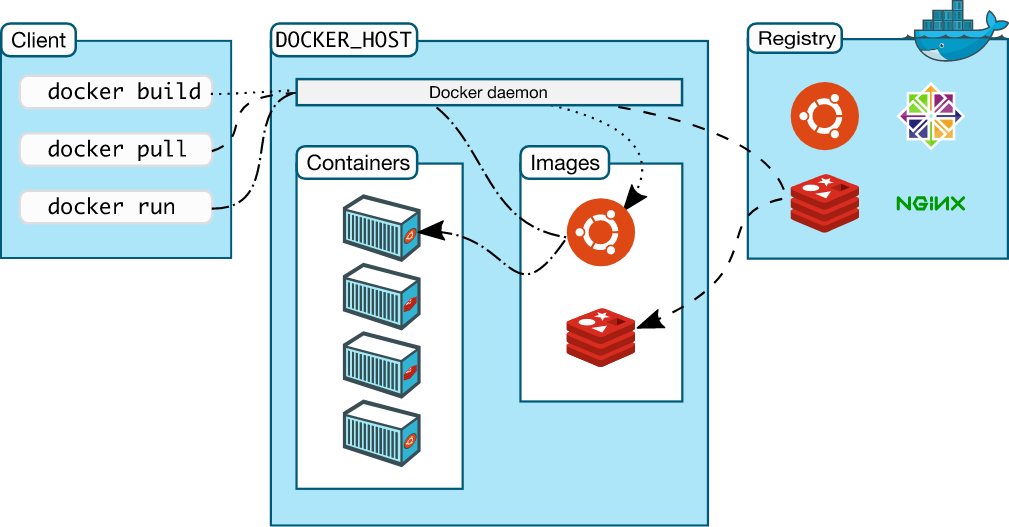

Docker 使用客户端-服务器 (C/S) 架构模式。Docker 客户端会与 Docker 守护进程进行通信。Docker 守护进程会处理复杂繁重的任务，例如建立、运行、发布Docker 容器。Docker 客户端和守护进程可以运行在同一个系统上，当然也可以使用 Docker 客户端去连接一个远程的 Docker 守护进程。Docker 客户端和守护进程之间通过 socket 或者 RESTful API 进行通信。

Docker守护进程: Docker 守护进程运行在一台主机上。用户并不直接和守护进程进行交互，而是通过Docker 客户端间接和其通信。
Docker客户端: 实际上是 docker 的二进制程序，是主要的用户与 Docker 交互方式。它接收用户指令并且与背后的 Docker 守护进程通信，
Docker 镜像: Docker 容器运行时的只读模板，每一个镜像由一系列的层 (layers) 组成
Docker 仓库: 仓库用来保存镜像，可以理解为代码控制中的代码仓库。同样的，Docker 仓库也有公有和私有的概念。
Docker 容器: 一个Docker容器包含了所有的某个应用运行所需要的环境。每一个 Docker 容器都是从 Docker 镜像创建的。

特性

灵活：复杂的应用程序也可以容器化。
轻量级：容器利用并共享了主机内核，在系统资源方面比虚拟机更加有效。
可移植性：可以在本地构建，部署到云并在任何地方运行。
松散耦合：容器是高度自给自足并封装的容器，使在不破坏其他容器的情况下更换或升级。
可扩展：在数据中心内增加并自动分布容器副本。
安全：容器将积极的约束和隔离应用于流程，而无需用户方面的任何配置。

Docker安装

yum源：https://mirrors.tuna.tsinghua.edu.cn/docker-ce/linux/centos/docker-ce.repo

可以替换文件中的url，这样下载速度更快。

:%s/download.docker.com/mirrors.tuna.tsinghua.edu.cn\/docker-ce/g

Docker version 19.03.12, build 48a66213fe

dnf config-manager --add-repo=https://download.docker.com/linux/centos/docker-ce.repo
dnf list docker-ce
dnf install docker-ce --nobest -y
systemctl start docker
systemctl enable docker
docker -v

Docker指令

[root@myserver ~]# docker -h
Flag shorthand -h has been deprecated, please use --help
Usage:    docker [OPTIONS] COMMAND
A self-sufficient runtime for containers
Options:
      --config string      Location of client config files (default "/root/.docker")
  -c, --context string     Name of the context to use to connect to the daemon (overrides
                           DOCKER_HOST env var and default context set with "docker context
                           use")
  -D, --debug              Enable debug mode
  -H, --host list          Daemon socket(s) to connect to
  -l, --log-level string   Set the logging level ("debug"|"info"|"warn"|"error"|"fatal")
                           (default "info")
      --tls                Use TLS; implied by --tlsverify
      --tlscacert string   Trust certs signed only by this CA (default "/root/.docker/ca.pem")
      --tlscert string     Path to TLS certificate file (default "/root/.docker/cert.pem")
      --tlskey string      Path to TLS key file (default "/root/.docker/key.pem")
      --tlsverify          Use TLS and verify the remote
  -v, --version            Print version information and quit
Management Commands:
  builder     Manage builds
  config      Manage Docker configs
  container   Manage containers
  context     Manage contexts
  engine      Manage the docker engine
  image       Manage images
  network     Manage networks
  node        Manage Swarm nodes
  plugin      Manage plugins
  secret      Manage Docker secrets
  service     Manage services
  stack       Manage Docker stacks
  swarm       Manage Swarm
  system      Manage Docker
  trust       Manage trust on Docker images
  volume      Manage volumes
Commands:
  attach      Attach local standard input, output, and error streams to a running container
  build       Build an image from a Dockerfile
  commit      Create a new image from a container's changes
  create      Create a new container
  import      Import the contents from a tarball to create a filesystem image
  load        Load an image from a tar archive or STDIN
  login       Log in to a Docker registry
  logout      Log out from a Docker registry
  push        Push an image or a repository to a registry
  rmi         Remove one or more images
  save        Save one or more images to a tar archive (streamed to STDOUT by default)
  tag         Create a tag TARGET_IMAGE that refers to SOURCE_IMAGE
  update      Update configuration of one or more containers

info 系统信息

[root@myserver ~]# docker info
Client:
 Debug Mode: false
Server:
 Containers: 0
  Running: 0
  Paused: 0
  Stopped: 0
 Images: 0
 Server Version: 18.09.1
 Storage Driver: overlay2
  Backing Filesystem: xfs
  Supports d_type: true
  Native Overlay Diff: true
 Logging Driver: json-file
 Cgroup Driver: cgroupfs

version 版本信息

 [root@myserver ~]# docker version
Client: Docker Engine - Community
 Version:           19.03.12
 API version:       1.39
 Go version:        go1.13.10
 Git commit:        48a66213fe
 Built:             Mon Jun 22 15:46:54 2020
 OS/Arch:           linux/amd64
 Experimental:      false
Server: Docker Engine - Community
 Engine:
  Version:          18.09.1
  API version:      1.39 (minimum version 1.12)
  Go version:       go1.10.6
  Git commit:       4c52b90
  Built:            Wed Jan  9 19:06:30 2019
  OS/Arch:          linux/amd64
  Experimental:     false
  wait        Block until one or more containers stop, then print their exit codes

search 查找镜像

docker search hello-world

pull 下载镜像(docker hub)

[root@myserver ~]# docker pull hello-world
Using default tag: latest
latest: Pulling from library/hello-world
0e03bdcc26d7: Pull complete
Digest: sha256:d58e752213a51785838f9eed2b7a498ffa1cb3aa7f946dda11af39286c3db9a9
Status: Downloaded newer image for hello-world:latest
docker.io/library/hello-world:latest

images 查看本地的镜像

[root@myserver ~]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
hello-world         latest              bf756fb1ae65        6 months ago        13.3kB

run 运行容器

-i : 交互模式
-t：分配一个终端
-d：后台运行
—name：指定容器的名称
-p: 端口绑定

docker run [options] IMAGE
docker run hello-world
docker run --name mywebserver -it nginx
[root@myserver ~]# docker run --name mywebserver -itd nginx
8d485b358cc693c1e2b2d9b5c1d1a8092265d79bdcf1ee54d3d2f615f4f22064
[root@myserver ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
8d485b358cc6        nginx               "/docker-entrypoint.…"   6 seconds ago       Up 5 seconds        80/tcp              mywebserver

ps 查看容器进程（ -a 所有的，正在运行、已经停止的）

[root@myserver ~]# docker ps
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES
[root@myserver ~]# docker ps -a
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS                     PORTS               NAMES
01bdedde3725        hello-world         "/hello"            2 minutes ago       Exited (0) 2 minutes ago                       hopeful_mendel

rm 删除容器（-f 强制）

## 指定容器的名称
[root@myserver ~]# docker rm mywebserver
mywebserver
[root@myserver ~]# docker ps -a
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS                     PORTS               NAMES
01bdedde3725        hello-world         "/hello"            9 minutes ago       Exited (0) 9 minutes ago                       hopeful_mendel
## 指定容器的ID删除
[root@myserver ~]# docker rm 01bdedde3725
01bdedde3725
[root@myserver ~]# docker ps -a
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES
[root@myserver ~]#

start/restart/stop/ 容器控制

[root@myserver ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
8d485b358cc6        nginx               "/docker-entrypoint.…"   20 minutes ago      Up 20 minutes       80/tcp              mywebserver
[root@myserver ~]# docker stop mywebserver
mywebserver
[root@myserver ~]# docker ps
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES
[root@myserver ~]# docker start  mywebserver
mywebserver
[root@myserver ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
8d485b358cc6        nginx               "/docker-entrypoint.…"   21 minutes ago      Up 3 seconds        80/tcp              mywebserver
[root@myserver ~]# docker restart  mywebserver
mywebserver

stats 显示容器使用的资源（CPU）

docker stats mywebserver
[root@myserver ~]# docker stats mywebserver
CONTAINER ID        NAME                CPU %               MEM USAGE / LIMIT     MEM %               NET I/O             BLOCK I/O           PIDS
8d485b358cc6        mywebserver         0.00%               2.309MiB / 3.664GiB   0.06%               3.44kB / 0B         0B / 0B             2
CONTAINER ID        NAME                CPU %               MEM USAGE / LIMIT     MEM %               NET I/O             BLOCK I/O           PID

logs 查看容器日志（-f 动态更新）

[root@myserver ~]# docker logs -f  mywebserver
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Configuration complete; ready for start up
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: IPv6 listen already enabled, exiting
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Configuration complete; ready for start up
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: IPv6 listen already enabled, exiting
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Configuration complete; ready for start up

pause/unpause 暂停状态

[root@myserver ~]# docker pause mywebserver
mywebserver
[root@myserver ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS                  PORTS               NAMES
8d485b358cc6        nginx               "/docker-entrypoint.…"   27 minutes ago      Up 5 minutes (Paused)   80/tcp              mywebserver
[root@myserver ~]# docker unpause mywebserver
mywebserver
[root@myserver ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
8d485b358cc6        nginx               "/docker-entrypoint.…"   27 minutes ago      Up 6 minutes        80/tcp              mywebserver
[root@myserver ~]#

rename 重命名

docker rename CONTAINER NEW_NAME
[root@myserver ~]# docker rename mywebserver webserver
[root@myserver ~]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
8d485b358cc6        nginx               "/docker-entrypoint.…"   29 minutes ago      Up 8 minutes        80/tcp              webserver

inspect 显示容器的详细属性信息

[root@myserver ~]# docker inspect webserver
[
    {
        "Id": "8d485b358cc693c1e2b2d9b5c1d1a8092265d79bdcf1ee54d3d2f615f4f22064",
        "Created": "2020-07-09T01:55:08.20199984Z",
        "Path": "/docker-entrypoint.sh",
        "Args": [
            "nginx",
            "-g",
            "daemon off;"
        ],
        "State": {
            "Status": "running",
            "Running": true,
            "Paused": false,
            "Restarting": false,
            "OOMKilled": false,
            "Dead": false,
            "Pid": 6429,
            "ExitCode": 0,
            "Error": "",
            "StartedAt": "2020-07-09T02:16:41.996582526Z",
            "FinishedAt": "2020-07-09T02:16:40.968627884Z"
        },

kill 关闭容器进程

[root@myserver ~]# docker kill webserver
webserver
[root@myserver ~]# docker ps
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES
[root@myserver ~]# docker ps -a
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS                       PORTS               NAMES
8d485b358cc6        nginx               "/docker-entrypoint.…"   33 minutes ago      Exited (137) 7 seconds ago                       webserver
[root@myserver ~]#

top 查看容器进程

[root@myserver ~]# docker top webserver
UID                 PID                 PPID                C                   STIME               TTY                 TIME                CMD
root                7153                7136                0                   22:30               pts/0               00:00:00            nginx: master process nginx -g daemon off;
101                 7211                7153                0                   22:30               pts/0               00:00:00            nginx: worker process
[root@myserver ~]# docker top webserver 7153
PID                 TTY                 STAT                TIME                COMMAND
7153                pts/0               Ss+                 0:00                nginx: master process nginx -g daemon off;
[root@myserver ~]#

exec 进入容器执行命令

[root@myserver ~]# docker exec -it webserver bash
root@8d485b358cc6:/# ls
curl 访问服务器nginx  成功

port 显示容器端口绑定信息

[root@myserver ~]# docker port webserver
80/tcp -> 0.0.0.0:8000

cp 文件复制

[root@myserver ~]# docker cp /etc/hosts webserver:/tmp
[root@myserver ~]# docker exec -it webserver ls /tmp
hosts
[root@myserver ~]# docker cp webserver:/tmp/hosts ./
[root@myserver ~]# ls hosts
hosts

diff 容器文件系统发生的变化

[root@myserver ~]# docker diff webserver
C /etc
C /etc/nginx
C /etc/nginx/conf.d
C /etc/nginx/conf.d/default.conf
C /run
A /run/nginx.pid
C /tmp
A /tmp/hosts
C /var
C /var/cache
C /var/cache/nginx
A /var/cache/nginx/fastcgi_temp
A /var/cache/nginx/proxy_temp
A /var/cache/nginx/scgi_temp
A /var/cache/nginx/uwsgi_temp
A /var/cache/nginx/client_temp

export 导出容器文件系统到本地归档

[root@myserver ~]# docker export -o test.tar  webserver
[root@myserver ~]# mkdir docker
[root@myserver ~]# mv test.tar  docker/
[root@myserver ~]# cd docker/
[root@myserver docker]# ls
test.tar
[root@myserver docker]# tar xf test.tar
l[root@myserver docker]# ls
bin   dev                  docker-entrypoint.sh  home  lib64  mnt  proc  run   srv  test.tar  usr
boot  docker-entrypoint.d  etc                   lib   media  opt  root  sbin  sys  tmp       var
[root@myserver docker]# cd tmp/
[root@myserver tmp]# ls
hosts

import 导入压缩文件到镜像

[root@myserver docker]# ls
bin   dev                  docker-entrypoint.sh  etc   lib    media  opt   root  sbin  sys       tmp  var
boot  docker-entrypoint.d  Dockerfile            home  lib64  mnt    proc  run   srv   test.tar  usr
[root@myserver docker]# docker import  test.tar  webserver:v2
sha256:5aa7a154ce2f07e8dc94d331d8809ea40ea5fab4ffa8935e2092771f863e3c0f
[root@myserver docker]# docker history webserver:v2
IMAGE               CREATED             CREATED BY          SIZE                COMMENT
5aa7a154ce2f        15 seconds ago                          130MB               Imported from -
[root@myserver docker]#

history 查看镜像的更新历史

[root@myserver ~]# docker history nginx
IMAGE               CREATED             CREATED BY                                      SIZE                COMMENT
2622e6cca7eb        4 weeks ago         /bin/sh -c #(nop)  CMD ["nginx" "-g" "daemon…   0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  STOPSIGNAL SIGTERM           0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  EXPOSE 80                    0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  ENTRYPOINT ["/docker-entr…   0B
<missing>           4 weeks ago         /bin/sh -c #(nop) COPY file:cc7d4f1d03426ebd…   1.04kB
<missing>           4 weeks ago         /bin/sh -c #(nop) COPY file:b96f664d94ca7bbe…   1.96kB
<missing>           4 weeks ago         /bin/sh -c #(nop) COPY file:d68fadb480cbc781…   1.09kB
<missing>           4 weeks ago         /bin/sh -c set -x     && addgroup --system -…   62.9MB
<missing>           4 weeks ago         /bin/sh -c #(nop)  ENV PKG_RELEASE=1~buster     0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  ENV NJS_VERSION=0.4.1        0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  ENV NGINX_VERSION=1.19.0     0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  LABEL maintainer=NGINX Do…   0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  CMD ["bash"]                 0B
<missing>           4 weeks ago         /bin/sh -c #(nop) ADD file:4d35f6c8bbbe6801c…   69.2MB

login /logout Docker registry

[root@myserver ~]# docker login
Login with your Docker ID to push and pull images from Docker Hub. If you don't have a Docker ID, head over to https://hub.docker.com to create one.
Username: devopsvip
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store
Login Succeeded
[root@myserver ~]#
[root@myserver ~]# docker logout
Removing login credentials for https://index.docker.io/v1/

search 查找镜像

docker search hello-world

pull 下载镜像(docker hub)

[root@myserver ~]# docker pull hello-world
Using default tag: latest
latest: Pulling from library/hello-world
0e03bdcc26d7: Pull complete
Digest: sha256:d58e752213a51785838f9eed2b7a498ffa1cb3aa7f946dda11af39286c3db9a9
Status: Downloaded newer image for hello-world:latest
docker.io/library/hello-world:latest

images 查看本地的镜像

[root@myserver ~]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
hello-world         latest              bf756fb1ae65        6 months ago        13.3kB

tag重命名

[root@myserver ~]# docker tag hello-world:latest devopsvip/docker:latest
[root@myserver ~]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
nginx               latest              2622e6cca7eb        4 weeks ago         132MB
centos              7                   b5b4d78bc90c        2 months ago        203MB
devopsvip/docker    latest              bf756fb1ae65        6 months ago        13.3kB
hello-world         latest              bf756fb1ae65        6 months ago        13.3kB

push 上传镜像到镜像仓库

[root@myserver ~]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
nginx               latest              2622e6cca7eb        4 weeks ago         132MB
centos              7                   b5b4d78bc90c        2 months ago        203MB
devopsvip/docker    latest              bf756fb1ae65        6 months ago        13.3kB
hello-world         latest              bf756fb1ae65        6 months ago        13.3kB
[root@myserver ~]# docker push devopsvip/docker:latest
The push refers to repository [docker.io/devopsvip/docker]
9c27e219663c: Preparing
denied: requested access to the resource is denied
[root@myserver ~]# docker login
Login with your Docker ID to push and pull images from Docker Hub. If you don't have a Docker ID, head over to https://hub.docker.com to create one.
Username: devopsvip
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store
Login Succeeded
[root@myserver ~]# docker push devopsvip/docker:latest
The push refers to repository [docker.io/devopsvip/docker]
9c27e219663c: Mounted from library/hello-world
latest: digest: sha256:90659bf80b44ce6be8234e6ff90a1ac34acbeb826903b02cfa0da11c82cbc042 size: 525

rmi 删除镜像

[root@myserver ~]# docker rmi devopsvip/docker:latest
Untagged: devopsvip/docker:latest
Untagged: devopsvip/docker@sha256:90659bf80b44ce6be8234e6ff90a1ac34acbeb826903b02cfa0da11c82cbc042
[root@myserver ~]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
nginx               latest              2622e6cca7eb        4 weeks ago         132MB
centos              7                   b5b4d78bc90c        2 months ago        203MB
hello-world         latest              bf756fb1ae65        6 months ago        13.3kB
[root@myserver ~]#

commit 将容器变化为镜像

[root@myserver ~]# docker commit -a "devopsvipxx" -m "hhahh" webserver webserver:v1
sha256:d315f2bb406067262798358e85aaef06f2d99dfc1adbc8380dd9cc5d0f809e76
[root@myserver ~]# docker history webserver:v1
IMAGE               CREATED             CREATED BY                                      SIZE                COMMENT
d315f2bb4060        2 seconds ago       nginx -g daemon off;                            1.39kB              hhahh
2622e6cca7eb        4 weeks ago         /bin/sh -c #(nop)  CMD ["nginx" "-g" "daemon…   0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  STOPSIGNAL SIGTERM           0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  EXPOSE 80                    0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  ENTRYPOINT ["/docker-entr…   0B
<missing>           4 weeks ago         /bin/sh -c #(nop) COPY file:cc7d4f1d03426ebd…   1.04kB
<missing>           4 weeks ago         /bin/sh -c #(nop) COPY file:b96f664d94ca7bbe…   1.96kB
<missing>           4 weeks ago         /bin/sh -c #(nop) COPY file:d68fadb480cbc781…   1.09kB
<missing>           4 weeks ago         /bin/sh -c set -x     && addgroup --system -…   62.9MB
<missing>           4 weeks ago         /bin/sh -c #(nop)  ENV PKG_RELEASE=1~buster     0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  ENV NJS_VERSION=0.4.1        0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  ENV NGINX_VERSION=1.19.0     0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  LABEL maintainer=NGINX Do…   0B
<missing>           4 weeks ago         /bin/sh -c #(nop)  CMD ["bash"]                 0B
<missing>           4 weeks ago         /bin/sh -c #(nop) ADD file:4d35f6c8bbbe6801c…   69.2MB

build 构建镜像

Dockerfile
FROM nginx
docker build .
docker build -f aa/Dockerfile .
[root@myserver docker]# docker build .
Sending build context to Docker daemon  269.2MB
Step 1/1 : FROM webserver:v1
 ---> d315f2bb4060
Successfully built d315f2bb4060
[root@myserver docker
[root@myserver docker]# docker build -t webserver:v2  .
Sending build context to Docker daemon  269.2MB
Step 1/1 : FROM webserver:v1
 ---> d315f2bb4060
Successfully built d315f2bb4060
Successfully tagged webserver:v2

load 通过归档文件加载镜像

save 将镜像制作归档文件

[root@myserver docker]# docker save -o webserver-v2.tar webserver:v2
[root@myserver docker]# docker rmi webserver:v2
Untagged: webserver:v2
Deleted: sha256:5aa7a154ce2f07e8dc94d331d8809ea40ea5fab4ffa8935e2092771f863e3c0f
Deleted: sha256:eef9ee7ccbdfd908b67057aa17a6d7292bbc0e7cb04a57896d25ce24a6e115b7
[root@myserver docker]# docker load -i webserver-v2.tar
eef9ee7ccbdf: Loading layer  134.6MB/134.6MB
Loaded image: webserver:v2
[root@myserver docker]# docker images
REPOSITORY          TAG                 IMAGE ID            CREATED             SIZE
webserver           v2                  5aa7a154ce2f        18 hours ago        130MB
webserver           v1                  d315f2bb4060        18 hours ago        132MB
<none>              <none>              46a71bf11111        18 hours ago        132MB
<none>              <none>              5ab53db1229d        18 hours ago        132MB
nginx               latest              2622e6cca7eb        4 weeks ago         132MB
centos              7                   b5b4d78bc90c        2 months ago        203MB
devopsvip/docker    latest              bf756fb1ae65        6 months ago        13.3kB
hello-world         latest              bf756fb1ae65        6 months ago        13.3kB
[root@myserver docker]#

create 创建一个容器

[root@myserver docker]# docker create --name webnewserver nginx
bbc81d2c72831167da41a6ccda4e06e6efe51eba81cf6daace0f49e5815e88db
[root@myserver docker]# docker ps
CONTAINER ID        IMAGE               COMMAND             CREATED             STATUS              PORTS               NAMES
[root@myserver docker]# docker ps  -a
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS                        PORTS                  NAMES
bbc81d2c7283        nginx               "/docker-entrypoint.…"   17 seconds ago      Created                                              webnewserver
d2813b963195        nginx               "/docker-entrypoint.…"   19 hours ago        Created                                              youthful_ramanujan
4fe81888bdd1        nginx               "/docker-entrypoint.…"   24 hours ago        Exited (255) 11 minutes ago   0.0.0.0:8000->80/tcp   webserver
[root@myserver docker]# docker start  webnewserver
webnewserver
[root@myserver docker]# docker ps
CONTAINER ID        IMAGE               COMMAND                  CREATED             STATUS              PORTS               NAMES
bbc81d2c7283        nginx               "/docker-entrypoint.…"   41 seconds ago      Up 4 seconds        80/tcp              webnewserver
[root@myserver docker]#

update 更新容器的配置

[root@myserver docker]# docker update --memory 1G --memory-swap 1G  webaserver
[root@myserver docker]# docker stats webaserver
CONTAINER ID        NAME                CPU %               MEM USAGE / LIMIT   MEM %               NET I/O             BLOCK I/O           PIDS
bd8375d39858        webaserver          0.00%               2.445MiB / 1GiB     0.24%               3.69kB / 0B

Dockerfile构建镜像

Dockerfile: 用来构建镜像的文件，文件中包含指令。docker build

docker build -t image:v1.0  .
docker build -t image:v1.0 -f /opt/dockerfile .

-f 指定dockerfile
-t 指定镜像名称

3.2 Kubernetes基础

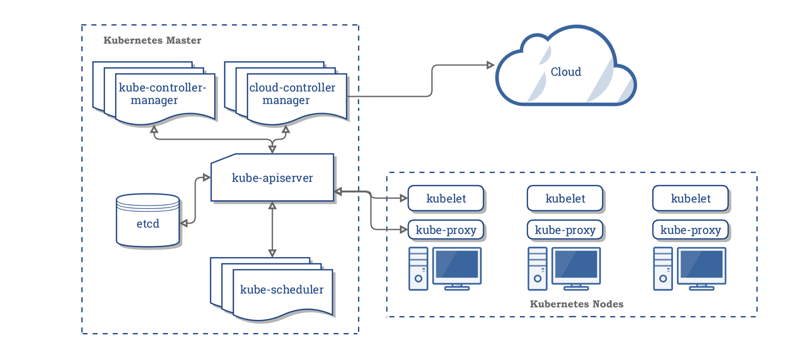

master：控制节点 node: 工作节点

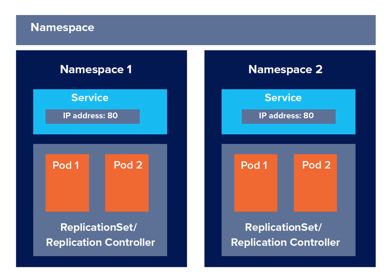

Namespace
Kubernetes 支持多个虚拟集群，它们底层依赖于同一个物理集群。这些虚拟集群被称为命名空间。Kubernetes中默认的Namespace是default。

kubectl get namespace 可以查看当前集群的所有名称空间

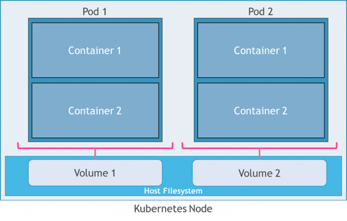

Volume

emptyDir：空目录
hostPath：本地目录
nfs：网络存储

Deployment

一个部署控制器提供声明更新pod。在Deployment对象中描述所需的状态，然后Deployment控制器将实际状态以受控的速率更改为所需的状态。可以定义部署以创建新的副本集，或删除现有部署并在新部署中采用其所有资源。

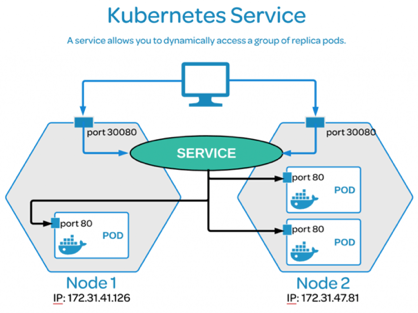

Service
服务发现机制。 Kubernetes为Pods提供自己的IP地址和一组Pod的单个DNS名称，并且可以在它们之间进行负载平衡。

3.3 部署与发布策略

滚动更新

apiVersion: apps/v1beta2
kind: Deployment
metadata:
  name: nginx
  labels:
    app: nginx
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1    ## 最多1个pod处于不可工作状态
      maxSurge: 2                     ## 升级时可以比预期多出2个pod
  minReadySeconds: 5       ## 容器启动后等待5秒

蓝绿发布

创建新的部署，然后修改service的标签来将流量指向新的部署。

[root@master b-g]# kubectl get pod
NAME                                    READY   STATUS    RESTARTS   AGE
nginxapp-1.19-bdb8dc6c4-2jfsw           1/1     Running   0          12m
nginxapp-1.19-bdb8dc6c4-79qrh           1/1     Running   0          12m
nginxapp-1.19-bdb8dc6c4-hbwkx           1/1     Running   0          12m
nginxapp-1.20-786464458-4zh5t           1/1     Running   0          91s
nginxapp-1.20-786464458-5bfwq           1/1     Running   0          91s
nginxapp-1.20-786464458-fwgxb           1/1     Running   0          91s

v1.19-blue.yaml

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: nginxapp
    version: "1.19"
  name: nginxapp-1.19
  namespace: default
spec:
  replicas: 3
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: nginxapp
      version: "1.19"
  template:
    metadata:
      labels:
        k8s-app: nginxapp
        version: "1.19"
      namespace: default
      name: nginxapp
    spec:
      containers:
        - name: nginxapp
          image: nginx:1.19
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: web

service.yaml

kind: Service
apiVersion: v1
metadata:
  name: nginxapp
  namespace: default
spec:
  ports:
    - name: web
      port: 80
      targetPort: 80
  selector:
    k8s-app: nginxapp
    version: "1.19"

v1.20-green.yaml

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: nginxapp
    version: "1.20"
  name: nginxapp-1.20
  namespace: default
spec:
  replicas: 3
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: nginxapp
      version: "1.20"
  template:
    metadata:
      labels:
        k8s-app: nginxapp
        version: "1.20"
      namespace: default
      name: nginxapp
    spec:
      containers:
        - name: nginxapp
          image: nginx:20
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: web

启动busybox容器调试

kubectl run --restart=Never -it --image \
       infoblox/dnstools dnstools

灰度发布

https://kubernetes.github.io/ingress-nginx/user-guide/nginx-configuration/annotations/#canary

nginx-1.19

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: nginxapp
    version: "1.19"
  name: nginxapp-1-19
  namespace: default
spec:
  replicas: 3
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: nginxapp
      version: "1.19"
  template:
    metadata:
      labels:
        k8s-app: nginxapp
        version: "1.19"
      namespace: default
      name: nginxapp
    spec:
      containers:
        - name: nginxapp
          image: nginx:1.19
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: web
---
kind: Service
apiVersion: v1
metadata:
  name: nginxapp-1-19
  namespace: default
spec:
  ports:
    - name: web
      port: 80
      targetPort: 80
  selector:
    k8s-app: nginxapp
    version: "1.19"

nginx-1.20

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: nginxapp
    version: "1.20"
  name: nginxapp-1-20
  namespace: default
spec:
  replicas: 3
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: nginxapp
      version: "1.20"
  template:
    metadata:
      labels:
        k8s-app: nginxapp
        version: "1.20"
      namespace: default
      name: nginxapp
    spec:
      containers:
        - name: nginxapp
          image: nginx:1.20
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: web
---
kind: Service
apiVersion: v1
metadata:
  name: nginxapp-1-20
  namespace: default
spec:
  ports:
    - name: web
      port: 80
      targetPort: 80
  selector:
    k8s-app: nginxapp
    version: "1.20"

创建资源：

[root@master ingress-gray]# kubectl get pod
NAME                                    READY   STATUS      RESTARTS   AGE
nginxapp-1-19-bdb8dc6c4-6pd66           1/1     Running     0          4s
nginxapp-1-19-bdb8dc6c4-8fqj6           1/1     Running     0          4s
nginxapp-1-19-bdb8dc6c4-txvwp           1/1     Running     0          4s
nginxapp-1-20-786464458-2hp6p           1/1     Running     0          5s
nginxapp-1-20-786464458-6t4sv           1/1     Running     0          5s
nginxapp-1-20-786464458-psmwf           1/1     Running     0          5s
[root@master ingress-gray]# kubectl get service
NAME             TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)                         AGE
kubernetes       ClusterIP   10.1.0.1       <none>        443/TCP                         266d
nginxapp-1-19    ClusterIP   10.1.215.94    <none>        80/TCP                          13s
nginxapp-1-20    ClusterIP   10.1.163.181   <none>        80/TCP                          14s
spinnaker-demo   NodePort    10.1.86.122    <none>        80:30010/TCP                    226d
waypoint         NodePort    10.1.5.220     <none>        9701:37798/TCP,9702:17531/TCP   168d

创建ingress

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginxapp-ingress
  namespace: default
spec:
  rules:
  - host: nginxapp.devops.com
    http:
      paths:
      - path: /
        backend:
          serviceName: nginxapp-1-19
          servicePort: 80

测试：

## 编辑hosts文件
192.168.10.100 nginxapp.devops.com
for i in {1..10};do curl nginxapp.devops.com;done

基于权重的发布

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginxapp-canary
  namespace: default
  annotations:
    kubernetes.io/ingress.class: nginx
    nginx.ingress.kubernetes.io/canary: "true"
    nginx.ingress.kubernetes.io/canary-weight: "10"
spec:
  rules:
  - host: nginxapp.devops.com
    http:
      paths:
      - path: /
        backend:
          serviceName: nginxapp-1-20
          servicePort: 80

Header报头流量分发

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginxapp-canary
  namespace: default
  annotations:
    kubernetes.io/ingress.class: nginx
    nginx.ingress.kubernetes.io/canary: "true"
    nginx.ingress.kubernetes.io/canary-by-header: "Region"
    nginx.ingress.kubernetes.io/canary-by-header-value: "bj"
spec:
  rules:
  - host: nginxapp.devops.com
    http:
      paths:
      - path: /
        backend:
          serviceName: nginxapp-1-20
          servicePort: 80

for i in {1..10};do curl -H "region: bj" nginxapp.devops.com;done

根据cookie流量分发

apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginxapp-canary
  namespace: default
  annotations:
    kubernetes.io/ingress.class: nginx
    nginx.ingress.kubernetes.io/canary: "true"
    nginx.ingress.kubernetes.io/canary-by-cookie: "from"
spec:
  rules:
  - host: nginxapp.devops.com
    http:
      paths:
      - path: /
        backend:
          serviceName: nginxapp-1-20
          servicePort: 80

[root@master ingress-gray]# curl nginxapp.devops.com --cookie "from=always"
<h1>Welcome to nginx!</h1>
[root@master ingress-gray]# curl nginxapp.devops.com --cookie "from=a"
green
[root@master ingress-gray]# curl nginxapp.devops.com --cookie "from=a"
green

3.4 Kubectl

参考：https://kubernetes.io/zh/docs/reference/kubectl/overview/

升级

kubectl create -f xxx.yaml
kubectl apply -f xxx.yaml

回滚

## 查看历史
kubectl rollout history deployment/anyops-devopsdocker-ui
## 查看具体某一个历史版本信息
kubectl rollout history deployment/anyops-devopsdocker-ui --revision=2
## 回滚上个版本
kubectl rollout undo deployment/anyops-devopsdocker-ui -n anyops
## 回滚指定版本
kubectl rollout undo deployment/nginx --to-revision=2

3.5 Helm

下载连接：https://github.com/helm/helm/releases 一旦你成功安装了Helm客户端，就可以继续使用Helm管理chart和添加稳定的仓库。

使用Nexus配置helm chart仓库 https://cloud.tencent.com/developer/article/1647771

基本概念

Chart 代表着 Helm 包。它包含在 Kubernetes 集群内部运行应用程序，工具或服务所需的所有资源定义。
Repository（仓库）是用来存放和共享 charts 的地方。
Release 是运行在 Kubernetes 集群中的 chart 的实例。

Helm 安装 charts 到 Kubernetes 集群中，每次安装都会创建一个新的 release。你可以在 Helm 的 chart repositories 中寻找新的 chart。

常用命令

## 查找chart
helm search hub      从 artifact hub中搜索
helm search repo     从本地的仓库搜索
## 仓库管理
helm repo list
helm repo add
helm repo add dev https://example.com/dev-charts
helm search repo dev
## 安装chart
helm install RELEASE_NAME    CHART_NAME
helm install happy-panda bitnami/wordpress
### 本地 chart 压缩包
helm install foo foo-0.1.1.tgz
### 解压后的 chart 目录
helm install foo path/to/foo
### 完整的 URL
helm install foo https://example.com/charts/foo-1.2.3.tgz
## 追踪release的状态
helm status happy-panda
## 查看chart中的可配置选项
helm show values CHART_NAME
helm install -f values.yaml bitnami/wordpress --generate-name
数据传递：
   --values /-f  指定yaml文件
   --set 命令行方式对值进行覆盖
## 升级
helm upgrade -f panda.yaml happy-panda bitnami/wordpress
## 回滚
helm history [RELEASE] 命令来查看一个特定 release 的修订版本号。
helm rollback
helm rollback [RELEASE] [REVISION]

自定义charts
helm create RELEASE_NAME
helm package nginxapp
helm install nginxapp ./nginxapp-0.1.0.tgz

工作流设计：前端项目演示

CI流水线：
- 构建docker镜像
- 上传到镜像仓库
- 更新values.yaml 文件
CD流水线：
- 下载chart代码
- helm package
- helm install || helm upgrade
- helm rollback || helm deploy

V1 旧版本正常运行中，用户请求流量都在V1
V2 新版本开始发布， ingress控制，通过header/cookie/weight 将一部分流量引到V2 10%
更新Ingress ，流量扩大到30%
更新Ingress ，流量扩大到60%
更新Ingress ，流量扩大到90%
更新Ingress ，流量扩大到100%
此时测试没问题，用V2 helm chart 部署替换V1旧版本。

FAQs

DevOps学习路径【开源版本】

Day6-基于K8S的持续部署实践

1. 基于Kubectl的GitOps CI/CD

1.1 CI流水线设计与实现

流水线运行信息

阶段与节点

流水线运行信息

阶段与节点

3. 核心技术点讲解

3.1 Docker基础

3.2 Kubernetes基础

3.3 部署与发布策略

滚动更新

蓝绿发布

灰度发布

基于权重的发布

Header报头流量分发

根据cookie流量分发

3.4 Kubectl

3.5 Helm
