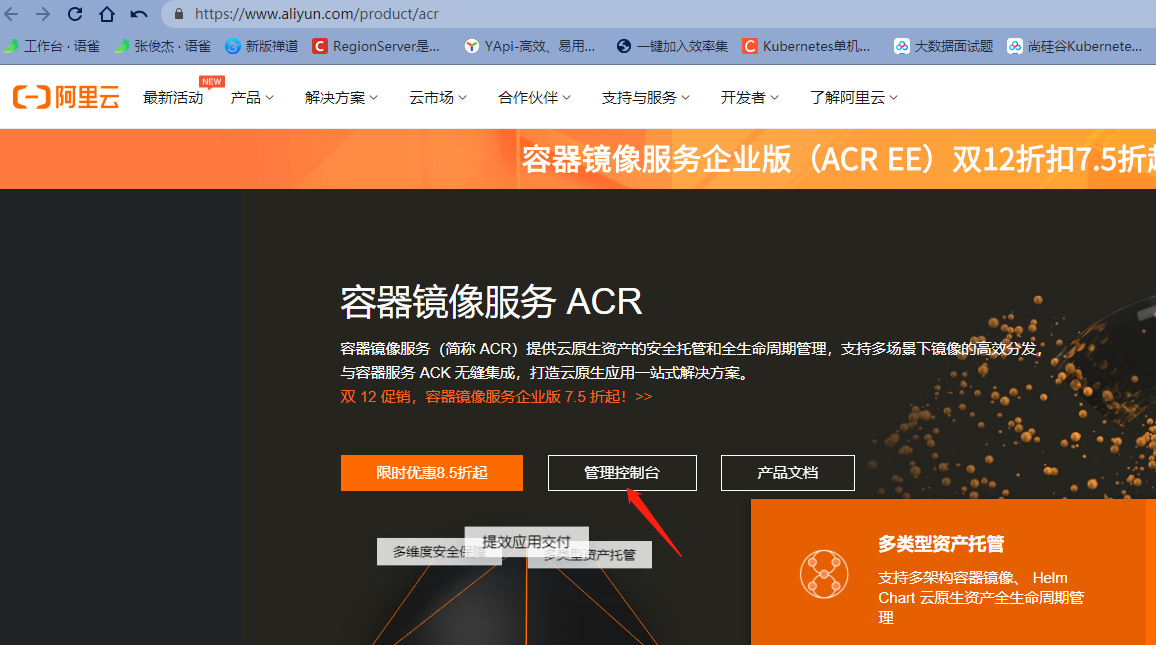

阿里云镜像

https://www.aliyun.com/product/acr
docker 将镜像上传到阿里云镜像仓库,再拉取到本地 - 图1
如果没有镜像和命名空间就创建一个,自己弄一下很简单的.

创建一个仓库

如果没有命名空间的话自己去创建一个,很容易很快,

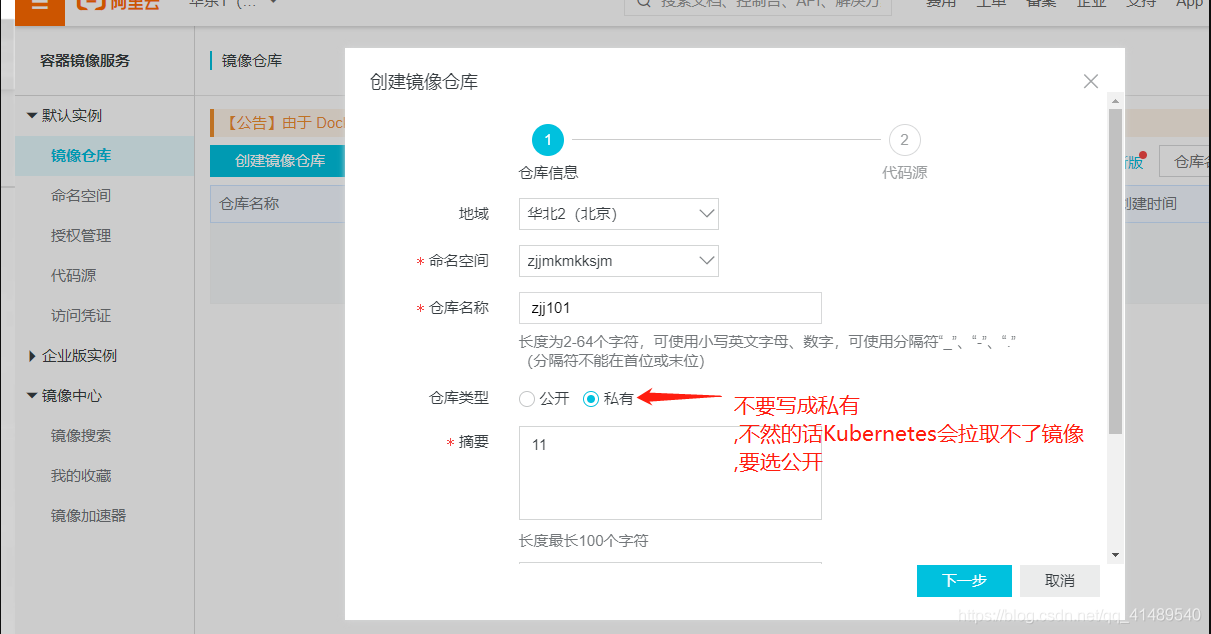

注意!!!!!!!!!仓库类型不要写成私有,不然kubernetes会无法拉取镜像..

https://developer.aliyun.com/mirror/

docker 将镜像上传到阿里云镜像仓库,再拉取到本地 - 图2

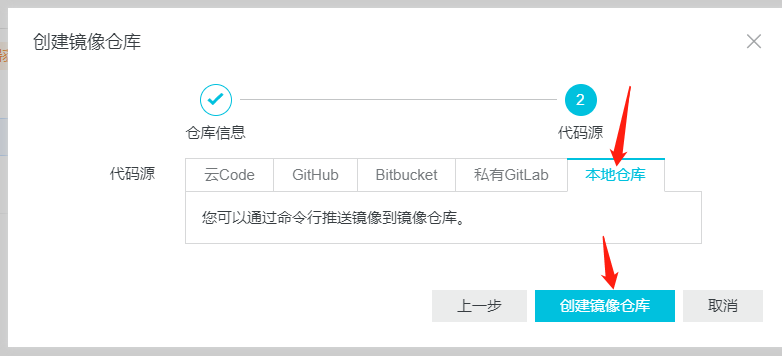

选本地仓库 ,通过命令推送到阿里云镜像仓库
docker 将镜像上传到阿里云镜像仓库,再拉取到本地 - 图3
docker 将镜像上传到阿里云镜像仓库,再拉取到本地 - 图4
docker 将镜像上传到阿里云镜像仓库,再拉取到本地 - 图5

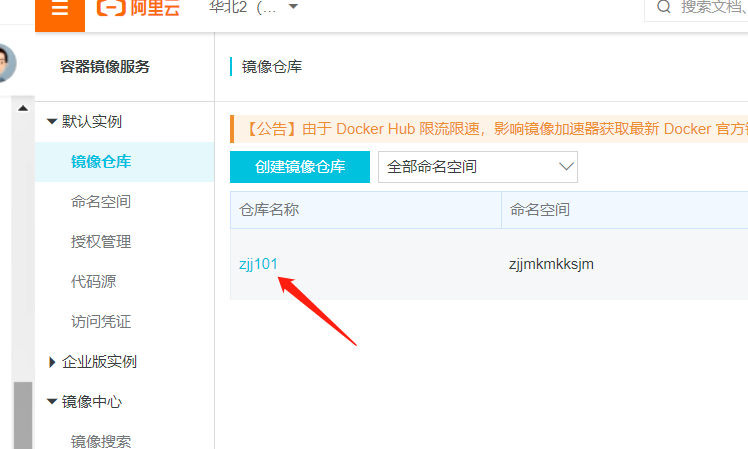

点进去

docker 将镜像上传到阿里云镜像仓库,再拉取到本地 - 图6

docker登录阿里云

sudo docker login —username=你的用户名 registry.cn-beijing.aliyuncs.com
输入你设置的密码

  1. [root@zjj101 ~]# sudo docker login --username=你的用户名 registry.cn-beijing.aliyuncs.com
  2. Password:
  3. WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
  4. Configure a credential helper to remove this warning. See
  5. https://docs.docker.com/engine/reference/commandline/login/#credentials-store
  7. Login Succeeded

将Java项目的镜像上传到docker仓库

  1. [root@zjj101 dockerdemo]# docker images
  2. REPOSITORY                                                        TAG                 IMAGE ID            CREATED             SIZE
  3. zjjdemohello                                                      latest              3e63062a76cc        3 minutes ago       677MB

如果没有Java镜像的项目自己去创建一个
这是创建方法
https://blog.csdn.net/qq_41489540/article/details/108670793

给镜像id添加个版本号

注意命令别写错了…
命令: sudo docker tag [ImageId] registry.cn-beijing.aliyuncs.com/[命名空间名字]/[仓库名字]:[镜像版本号]
版本号随便写

  1. [root@zjj101 dockerdemo]# sudo docker tag 3e63062a76cc registry.cn-beijing.aliyuncs.com/zjjmkmkksjm/zjj101:1.0
  2. [root@zjj101 dockerdemo]#

给镜像上传到阿里云docker仓库

命令
sudo docker push registry.cn-beijing.aliyuncs.com/[命名空间名字]/[仓库名字]:[镜像版本号]
需要耐心等待完成

  1. [root@zjj101 dockerdemo]# sudo docker push registry.cn-beijing.aliyuncs.com/zjjmkmkksjm/zjj101:1.0
  2. The push refers to repository [registry.cn-beijing.aliyuncs.com/zjjmkmkksjm/zjj101]
  3. 1788b64716cc: Pushed
  4. 976034da0dcf: Pushed
  5. 35c20f26d188: Pushed
  6. c3fe59dd9556: Pushed
  7. 6ed1a81ba5b6: Pushed
  8. a3483ce177ce: Pushed
  9. ce6c8756685b: Pushed
  10. 30339f20ced0: Pushed
  11. 0eb22bfb707d: Pushed
  12. a2ae92ffcd29: Pushed
  13. 1.0: digest: sha256:fc86112b28dfafd11e027e9ff4e5b600e424b78f0e408fcfaf43c53b5d5f1920 size: 2424

在阿里云镜像仓库控制台就能看到刚刚推送的镜像了

docker 将镜像上传到阿里云镜像仓库,再拉取到本地 - 图7

从镜像地址拉取镜像

sudo docker pull registry.cn-beijing.aliyuncs.com/[命名空间名字]/[仓库名字]:[镜像版本号]

  1. [root@zjj101 soft]# sudo docker pull registry.cn-beijing.aliyuncs.com/zjjmkmkksjm/zjj101:1.0
  2. 1.0: Pulling from zjjmkmkksjm/zjj101
  3. Digest: sha256:fc86112b28dfafd11e027e9ff4e5b600e424b78f0e408fcfaf43c53b5d5f1920
  4. Status: Image is up to date for registry.cn-beijing.aliyuncs.com/zjjmkmkksjm/zjj101:1.0
  5. registry.cn-beijing.aliyuncs.com/zjjmkmkksjm/zjj101:1.0

查看拉取的镜像

发现多了个镜像,

  1. [root@zjj101 soft]# docker images
  2. REPOSITORY                                                        TAG                 IMAGE ID            CREATED             SIZE
  3. registry.cn-beijing.aliyuncs.com/zjjmkmkksjm/zjj101               1.0                 3e63062a76cc        21 minutes ago      677MB
