下载安装

下载Sharding-Proxy最新的安装包

添加MySQL的Driver

下载mysql-connector-java-5.1.48.jar，将其放到Sharding-Proxy的lib文件夹里

修改配置文件

conf文件夹下，具体修改后内容如下：

配置账号密码

server.yaml

  1. authentication:
  2.   users:
  3.     root:
  4.       password: root
  5. #    sharding:
  6. #      password: sharding
  7. #      authorizedSchemas: sharding_db
  8. #
  9. #props:
  10. #  max.connections.size.per.query: 1
  11. #  acceptor.size: 16  # The default value is available processors count * 2.
  12. #  executor.size: 16  # Infinite by default.
  13. #  proxy.frontend.flush.threshold: 128  # The default value is 128.
  14. #    # LOCAL: Proxy will run with LOCAL transaction.
  15. #    # XA: Proxy will run with XA transaction.
  16. #    # BASE: Proxy will run with B.A.S.E transaction.
  17. #  proxy.transaction.type: LOCAL
  18. #  proxy.opentracing.enabled: false
  19. #  query.with.cipher.column: true
  20. #  sql.show: false

配置读写分离

config-master_slave.yaml

  1. schemaName: master_slave_db
  3. dataSources:
  4.  master_ds:
  5.    url: jdbc:mysql://localhost:3306/demo_1?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai
  6.    username: root
  7.    password: 654321@qq.com
  8.    connectionTimeoutMilliseconds: 30000
  9.    idleTimeoutMilliseconds: 60000
  10.    maxLifetimeMilliseconds: 1800000
  11.    maxPoolSize: 50
  12.  slave_ds_0:
  13.    url: jdbc:mysql://localhost:3308/demo_1?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai
  14.    username: root
  15.    password: 654321@qq.com
  16.    connectionTimeoutMilliseconds: 30000
  17.    idleTimeoutMilliseconds: 60000
  18.    maxLifetimeMilliseconds: 1800000
  19.    maxPoolSize: 50
  21. masterSlaveRule:
  22.  name: ms_ds
  23.  masterDataSourceName: master_ds
  24.  slaveDataSourceNames:
  25.    - slave_ds_0

注意：实现读写分离的前提是配置的数据库首先要实现主从复制的功能，否则读写分离不能实现

配置数据分片

config-sharding.yaml

  1. schemaName: sharding_db
  3. dataSources:
  4.  ds_0:
  5.    url: jdbc:mysql://localhost:3306/sharding_master_1?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai
  6.    username: root
  7.    password: 654321@qq.com
  8.    connectionTimeoutMilliseconds: 30000
  9.    idleTimeoutMilliseconds: 60000
  10.    maxLifetimeMilliseconds: 1800000
  11.    maxPoolSize: 50
  12.  ds_1:
  13.    url: jdbc:mysql://localhost:3306/sharding_master_2?useUnicode=true&characterEncoding=UTF-8&useSSL=false&serverTimezone=Asia/Shanghai
  14.    username: root
  15.    password: 654321@qq.com
  16.    connectionTimeoutMilliseconds: 30000
  17.    idleTimeoutMilliseconds: 60000
  18.    maxLifetimeMilliseconds: 1800000
  19.    maxPoolSize: 50
  20. shardingRule:
  21.  tables:
  22.    t_user:
  23.      actualDataNodes: ds_0.user
  24.    t_student:
  25.      actualDataNodes: ds_1.student
  26.  bindingTables:
  27.    - t_user,t_student
  28.  defaultTableStrategy:
  29.    none:

运行

命令行运行bin里面的start.bat，默认端口号是3307，可以在start.bat后面带上其他端口号

  1. D:\sharding-proxy\bin>start.bat 3308

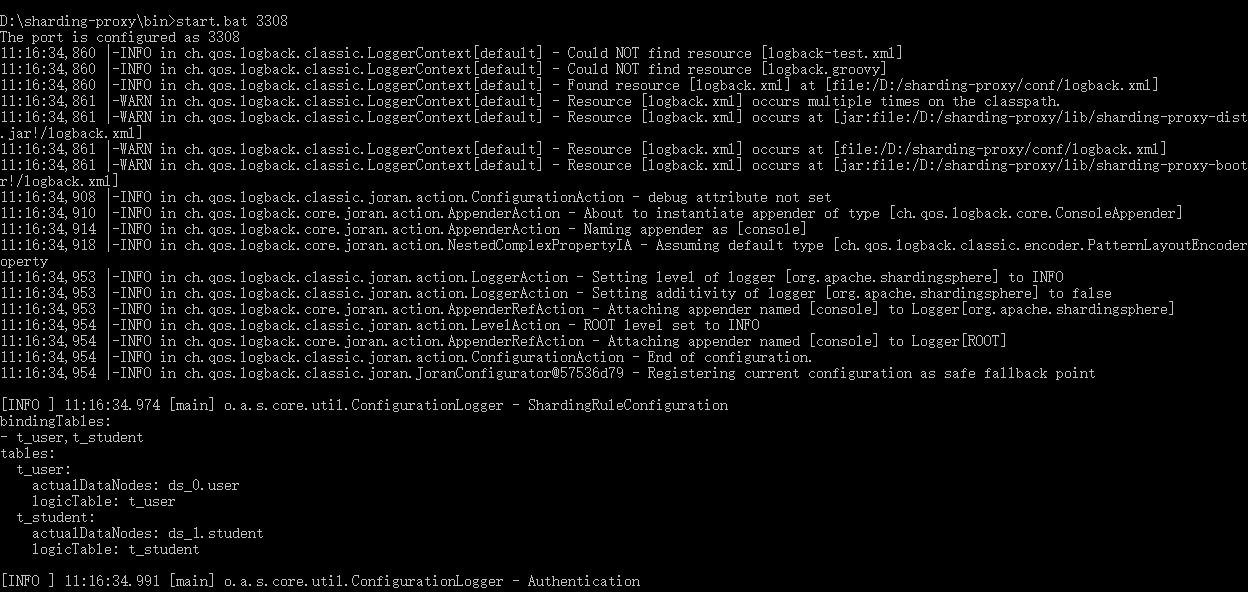

运行结果如下：
