线程间传递上下文信息 - 《Java 高并发编程之路》

1.复制父线程变量到子线程
2.解决无法使用线程池的问题
3.源码
4.自己写一个轻量级的

1.复制父线程变量到子线程

只有父线程里面创建一个线程的时候才会去调用init才会有inheritableThreadLocals的拷贝动作。

public class InheriableThreadLocalTest {
    private static ThreadLocal<Integer> context = new InheritableThreadLocal<>();
    private static ExecutorService pool = Executors.newFixedThreadPool(2);
    static class MainThread extends Thread {
        private int index;
        public MainThread(int index) {
            this.index = index;
        }
        @Override
        public void run() {
            context.set(index);
            //用线程池的线程就会出现传递信息错乱
            //pool.execute(() -> System.out.println(Thread.currentThread().getName()+":" + context.get()));
            new Thread(()->System.out.println(Thread.currentThread().getName()+":" + context.get())).start();
        }
    }
    /**
     * 当使用线程池来运行我们的子线程的任务的时候，
     * 采用InheriableThreadLocal是无法解决变量传递的问题的
     */
    public static void main(String[] args) {
        for (int i = 0; i < 10; i++) {
            new MainThread(i).start();
        }
        pool.shutdown();
    }
}

注意：要求必须是new的线程，不能使用线程池的线程，线程复用会导致信息传递出错。

2.解决无法使用线程池的问题

/**
 * @author 二十
 * @since 2021/9/14 11:15 上午
 */
public class TransmittableTest {
    private static TransmittableThreadLocal<String> context = new TransmittableThreadLocal<>();
    private static ExecutorService pool = TtlExecutors.getTtlExecutorService(Executors.newFixedThreadPool(5));
    static class MainThread extends Thread {
        private int index;
        public MainThread(int index) {
            this.index = index;
        }
        @Override
        public void run() {
            context.set(String.valueOf(index));
            pool.execute(() -> System.out.println(Thread.currentThread().getName()+":" + context.get()));
            // new Thread(()->System.out.println(Thread.currentThread().getName()+":" + context.get())).start();
        }
    }
    public static void main(String[] args) {
        for (int i = 0; i < 10; i++) {
            new MainThread(i).start();
        }
        pool.shutdown();
    }
}

3.源码

TransmittableThreadLocal继承了InheritableThreadLocal，先点一下InheritableThreadLocal瞅瞅。

public class InheritableThreadLocal<T> extends ThreadLocal<T> {
    /**
     * 新建线程时，如果当前inheritableThreadLocals非空，则会获取当前inheritableThreadLocals传递给新线程
     */
    protected T childValue(T parentValue) {
        return parentValue;
    }
    /**
     * InheritableThreadLocal变量的set/get/remove操作都是在inheritableThreadLocals上
     */
    ThreadLocalMap getMap(Thread t) {
       return t.inheritableThreadLocals;
    }
    /**
     * 创建inheritableThreadLocals
     */
    void createMap(Thread t, T firstValue) {
        t.inheritableThreadLocals = new ThreadLocalMap(this, firstValue);
    }
}

对TL进行了一层包装和增强。

Thread类中有两个ThreadLocal相关的ThreadLocalMap属性，如下：

ThreadLocal.ThreadLocalMap threadLocals：ThreadLocal变量使用
ThreadLocal.ThreadLocalMap inheritableThreadLocals：InheritableThreadLocal变量使用

新建线程时，将当前线程的inheritableThreadLocals传递给新线程，这里的传递是对InheritableThreadLocal变量的数据做浅拷贝（引用复制），这样新线程可以使用同一个InheritableThreadLocal变量查看上一个线程的数据。

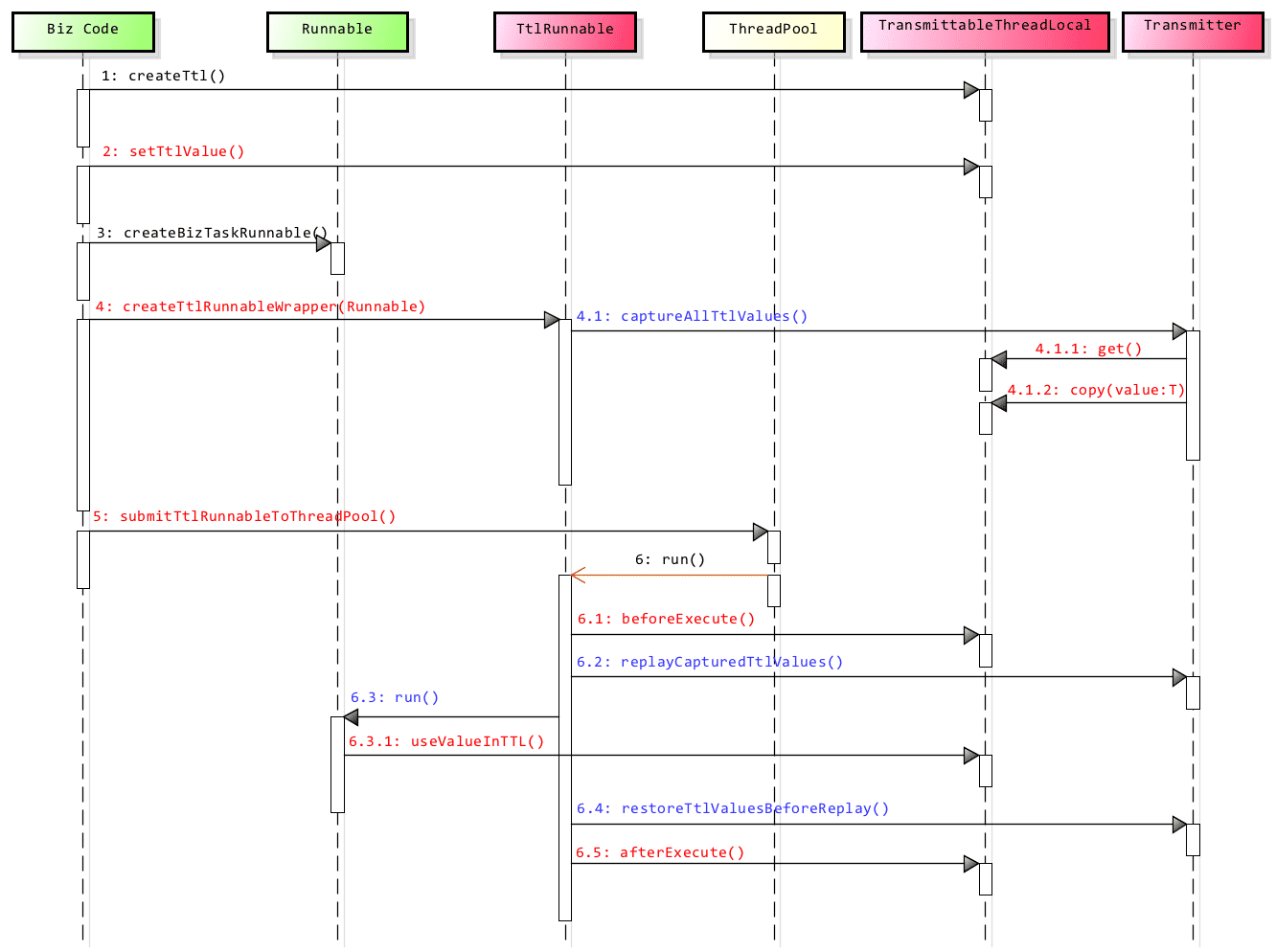

下面以TtlRunnable.get()为起点分析TTL的设计实现，TtlRunnable.get源码如下（TtlRunnable.get流程对应的初始化时capture操作，保存快照。TtlCallable和TtlRunnable流程类似）：

public static TtlRunnable get(@Nullable Runnable runnable) {
    return get(runnable, false, false);
}
public static TtlRunnable get(@Nullable Runnable runnable, boolean releaseTtlValueReferenceAfterRun, boolean idempotent) {
    if (runnable instanceof TtlEnhanced) {
        // 幂等时直接返回，否则执行会产生问题，直接抛异常
        if (idempotent) return (TtlRunnable) runnable;
        else throw new IllegalStateException("Already TtlRunnable!");
    }
    return new TtlRunnable(runnable, releaseTtlValueReferenceAfterRun);
}
private TtlRunnable(@Nonnull Runnable runnable, boolean releaseTtlValueReferenceAfterRun) {
    this.capturedRef = new AtomicReference<Object>(capture());
    this.runnable = runnable;
    this.releaseTtlValueReferenceAfterRun = releaseTtlValueReferenceAfterRun;
}
public static Object capture() {
    Map<TransmittableThreadLocal<?>, Object> captured = new HashMap<TransmittableThreadLocal<?>, Object>();
    // 从holder获取所有threadLocal，存到captured，这里相当于对当前线程holder做一个快照保存
    // 到TtlRunnable实例属性中，在执行TtlRunnable时进行回放
    for (TransmittableThreadLocal<?> threadLocal : holder.get().keySet()) {
        captured.put(threadLocal, threadLocal.copyValue());
    }
    return captured;
}

在新建TtlRunnable过程中，会保存下TransmittableThreadLocal.holder到captured，记录到TtlRunnable实例中的capturedRef字段，TransmittableThreadLocal.holder类型是：

// Note about holder:
// 1. The value of holder is type Map<TransmittableThreadLocal<?>, ?> (WeakHashMap implementation),
//    but it is used as *set*. 因为没有WeakSet的原因
// 2. WeakHashMap support null value.
private static InheritableThreadLocal<Map<TransmittableThreadLocal<?>, ?>> holder =
        new InheritableThreadLocal<Map<TransmittableThreadLocal<?>, ?>>() {
            @Override
            protected Map<TransmittableThreadLocal<?>, ?> initialValue() {
                return new WeakHashMap<TransmittableThreadLocal<?>, Object>();
            }
            @Override
            protected Map<TransmittableThreadLocal<?>, ?> childValue(Map<TransmittableThreadLocal<?>, ?> parentValue) {
                return new WeakHashMap<TransmittableThreadLocal<?>, Object>(parentValue);
            }
        };

从上面代码我们知道初始化TtlRunnable时已经将TransmittableThreadLocal保存下来了，那么什么时候应用到当前线程ThreadLocal中呢，这是就需要看下TtlRunnable.run方法：

public void run() {
    Object captured = capturedRef.get();
    // captured不应该为空，releaseTtlValueReferenceAfterRun为true时设置capturedRef为null，防止当前Runnable重复执行
    if (captured == null || releaseTtlValueReferenceAfterRun && !capturedRef.compareAndSet(captured, null)) {
        throw new IllegalStateException("TTL value reference is released after run!");
    }
    // captured进行回放，应用到当前线程中
    Object backup = replay(captured);
    try {
        runnable.run();
    } finally {
        restore(backup);
    }
}

注意，TTL中的replay操作是以captured为当前inheritableThreadLocals的（处理逻辑是在TtlRunable run时，会以TtlRunnable.get时间点获取的captured（类似TTL快照）为准，holder中不在captured的先移除，在的会被替换）。回放captured和执行完runnable.run之后，再restore恢复到原来inheritableThreadLocals的状态。

4.自己写一个轻量级的

/**
 * @author 二十
 * @since 2021/9/14 3:13 下午
 */
public class EsThreadLocal<T> extends InheritableThreadLocal<T> {
    private static InheritableThreadLocal<WeakHashMap<EsThreadLocal<Object>, ?>> holder = new InheritableThreadLocal<WeakHashMap<EsThreadLocal<Object>, ?>>() {
        @Override
        protected WeakHashMap<EsThreadLocal<Object>, ?> childValue(WeakHashMap<EsThreadLocal<Object>, ?> parentValue) {
            return new WeakHashMap<>(parentValue);
        }
        @Override
        protected WeakHashMap<EsThreadLocal<Object>, ?> initialValue() {
            return new WeakHashMap<>();
        }
    };
    @Override
    public int hashCode() {
        return super.hashCode();
    }
    @Override
    public boolean equals(Object obj) {
        return super.equals(obj);
    }
    @Override
    public T get() {
        T value = super.get();
        if (null != value)
            addToHolder();
        return value;
    }
    @Override
    public void set(T value) {
        if (null == value) {
            removeFromHolder();
            super.remove();
        } else {
            super.set(value);
            addToHolder();
        }
    }
    private void removeFromHolder() {
        holder.get().remove(this);
    }
    private void addToHolder() {
        if (!holder.get().containsKey(this))
            holder.get().put((EsThreadLocal<Object>) this, null);
    }
    static class SnapShot {
        final WeakHashMap<EsThreadLocal<Object>, Object> ctlValue;
        private SnapShot(WeakHashMap<EsThreadLocal<Object>, Object> ctlValue) {
            this.ctlValue = ctlValue;
        }
    }
    static class Transmitter {
        public static SnapShot capture() {
            return new SnapShot(captureCtlValues());
        }
        private static WeakHashMap<EsThreadLocal<Object>, Object> captureCtlValues() {
            return holder.get().keySet().stream().collect(Collectors.toMap(ctlItem -> ctlItem, EsThreadLocal::get, (a, b) -> b, WeakHashMap::new));
        }
        public static SnapShot replay(SnapShot snapShot) {
            WeakHashMap<EsThreadLocal<Object>, Object> capture = snapShot.ctlValue;
            WeakHashMap<EsThreadLocal<Object>, Object> backValue = new WeakHashMap<>();
            /*
             * 从holder中获取当前线程持有的threadLocal的Map,进行迭代保存
             */
            Iterator<EsThreadLocal<Object>> iterator = holder.get().keySet().iterator();
            while (iterator.hasNext()) {
                EsThreadLocal<Object> threadLocal = iterator.next();
                backValue.put(threadLocal, threadLocal.get());
                if (!capture.containsKey(threadLocal)) {
                    iterator.remove();
                    threadLocal.remove();
                }
            }
            /*
             设置上capture
             */
            setThreadLocal(capture);
            return new SnapShot(backValue);
        }
        public static void setThreadLocal(WeakHashMap<EsThreadLocal<Object>, Object> ctlValues) {
            ctlValues.forEach(EsThreadLocal::set);
        }
        public static void restore(EsThreadLocal.SnapShot backUp) {
            Iterator<EsThreadLocal<Object>> iterator = holder.get().keySet().iterator();
            while (iterator.hasNext()) {
                EsThreadLocal<Object> threadLocal = iterator.next();
                if (!backUp.ctlValue.containsKey(threadLocal)) {
                    iterator.remove();
                    threadLocal.remove();
                }
            }
            setThreadLocal(backUp.ctlValue);
        }
    }
    static class EsRunnable implements Runnable {
        private AtomicReference<SnapShot> captureRef;
        private Runnable runnable;
        public EsRunnable(Runnable runnable) {
            this.runnable = runnable;
            captureRef = new AtomicReference<>(Transmitter.capture());
        }
        @Override
        public void run() {
            SnapShot capture = captureRef.get();
            SnapShot backUp = Transmitter.replay(capture);
            try {
                runnable.run();
            } finally {
                Transmitter.restore(backUp);
            }
        }
        public static EsRunnable getRunnable(Runnable runnable) {
            return new EsRunnable(runnable);
        }
    }
}
class Test {
    private static ThreadLocal<String> context = new EsThreadLocal<>();
    private static ExecutorService pool = Executors.newFixedThreadPool(5);
    public static void main(String[] args)throws Exception {
        for (int i = 1; i <=10; i++) {
            context.set(String.valueOf(i));
            pool.execute(new EsThreadLocal.EsRunnable(()->System.out.println(Thread.currentThread().getName()+" : " + context.get() )));
            TimeUnit.SECONDS.sleep(1);
        }
        pool.shutdown();
    }
}

运行结果：
