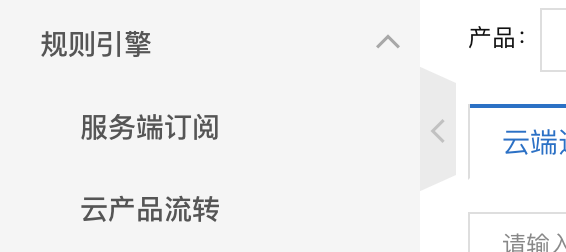

你看阿里云把“服务端订阅”和“云产品流转”都划分在”规则引擎“这个业务下面，证明两者属于同意类型的业务场景。
比如你只有阿里云物联网产品没有其他云产品无法做云产品流转，但是于此同时你又需要获取这些上报的数据你会怎么办？那这就是“服务端订阅”。https://help.aliyun.com/document_detail/89225.html

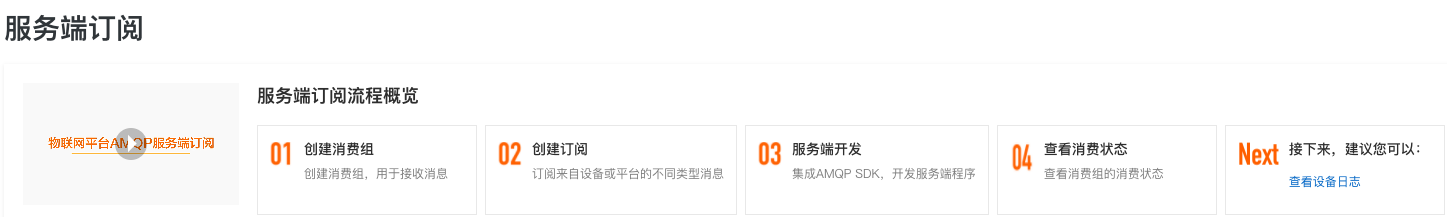

1-创建消费组

2-创建订阅

3-服务端开发

https://help.aliyun.com/document_detail/175270.html

# encoding=utf-8
import time
import sys
import hashlib
import hmac
import base64
import stomp
import ssl
import schedule
import threading
def connect_and_subscribe(conn):
    accessKey = " "
    accessSecret = " "
    consumerGroupId = " "
    # iotInstanceId：实例ID。
    iotInstanceId = " "
    clientId = "12345678"#这个客户端id自定义
    # 签名方法：支持hmacmd5，hmacsha1和hmacsha256。
    signMethod = "hmacsha1"
    timestamp = current_time_millis()
    # userName组装方法，请参见AMQP客户端接入说明文档。
    # 若使用二进制传输，则userName需要添加encode=base64参数，服务端会将消息体base64编码后再推送。具体添加方法请参见下一章节“二进制消息体说明”。
    username = clientId + "|authMode=aksign" + ",signMethod=" + signMethod \
               + ",timestamp=" + timestamp + ",authId=" + accessKey \
               + ",iotInstanceId=" + iotInstanceId \
               + ",consumerGroupId=" + consumerGroupId + "|"
    signContent = "authId=" + accessKey + "&timestamp=" + timestamp
    # 计算签名，password组装方法，请参见AMQP客户端接入说明文档。
    password = do_sign(accessSecret.encode("utf-8"), signContent.encode("utf-8"))
    conn.set_listener('', MyListener(conn))
    conn.connect(username, password, wait=True)
    # 清除历史连接检查任务，新建连接检查任务
    schedule.clear('conn-check')
    schedule.every(1).seconds.do(do_check, conn).tag('conn-check')
class MyListener(stomp.ConnectionListener):
    def __init__(self, conn):
        self.conn = conn
    def on_error(self, frame):
        print('received an error "%s"' % frame.body)
    def on_message(self, frame):
        print('received a message "%s"' % frame.body)
    def on_heartbeat_timeout(self):
        print('on_heartbeat_timeout')
    def on_connected(self, headers):
        print("successfully connected")
        conn.subscribe(destination='/topic/#', id=1, ack='auto')
        print("successfully subscribe")
    def on_disconnected(self):
        print('disconnected')
        connect_and_subscribe(self.conn)
def current_time_millis():
    return str(int(round(time.time() * 1000)))
def do_sign(secret, sign_content):
    m = hmac.new(secret, sign_content, digestmod=hashlib.sha1)
    return base64.b64encode(m.digest()).decode("utf-8")
# 检查连接，如果未连接则重新建连
def do_check(conn):
    print('check connection, is_connected: %s', conn.is_connected())
    if (not conn.is_connected()):
        try:
            connect_and_subscribe(conn)
        except Exception as e:
            print('disconnected, ', e)
# 定时任务方法，检查连接状态
def connection_check_timer():
    while 1:
        schedule.run_pending()
        time.sleep(10)
#  接入域名，请参见AMQP客户端接入说明文档。这里直接填入域名，不需要带amqps://前缀
conn = stomp.Connection([('xxxx.amqp.iothub.aliyuncs.com', 61614)])
conn.set_ssl(for_hosts=[('xxxx.amqp.iothub.aliyuncs.com', 61614)], ssl_version=ssl.PROTOCOL_TLS)
try:
    connect_and_subscribe(conn)
except Exception as e:
    print('connecting failed')
    raise e
# 异步线程运行定时任务，检查连接状态
thread = threading.Thread(target=connection_check_timer)
thread.start()

4-mqtt.fx模拟设备上报

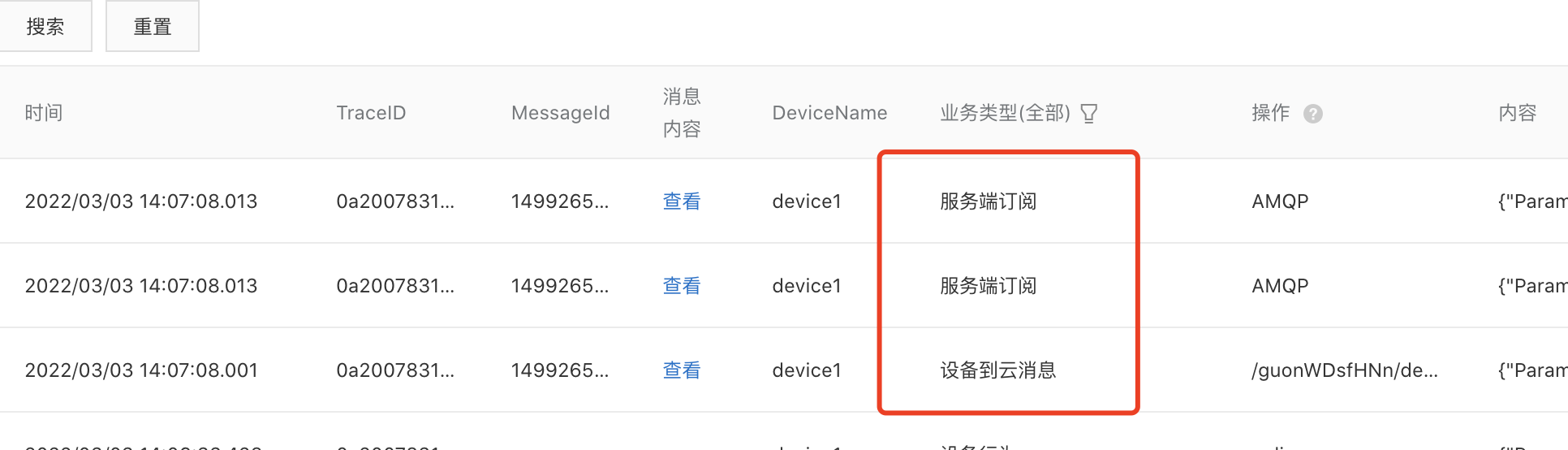

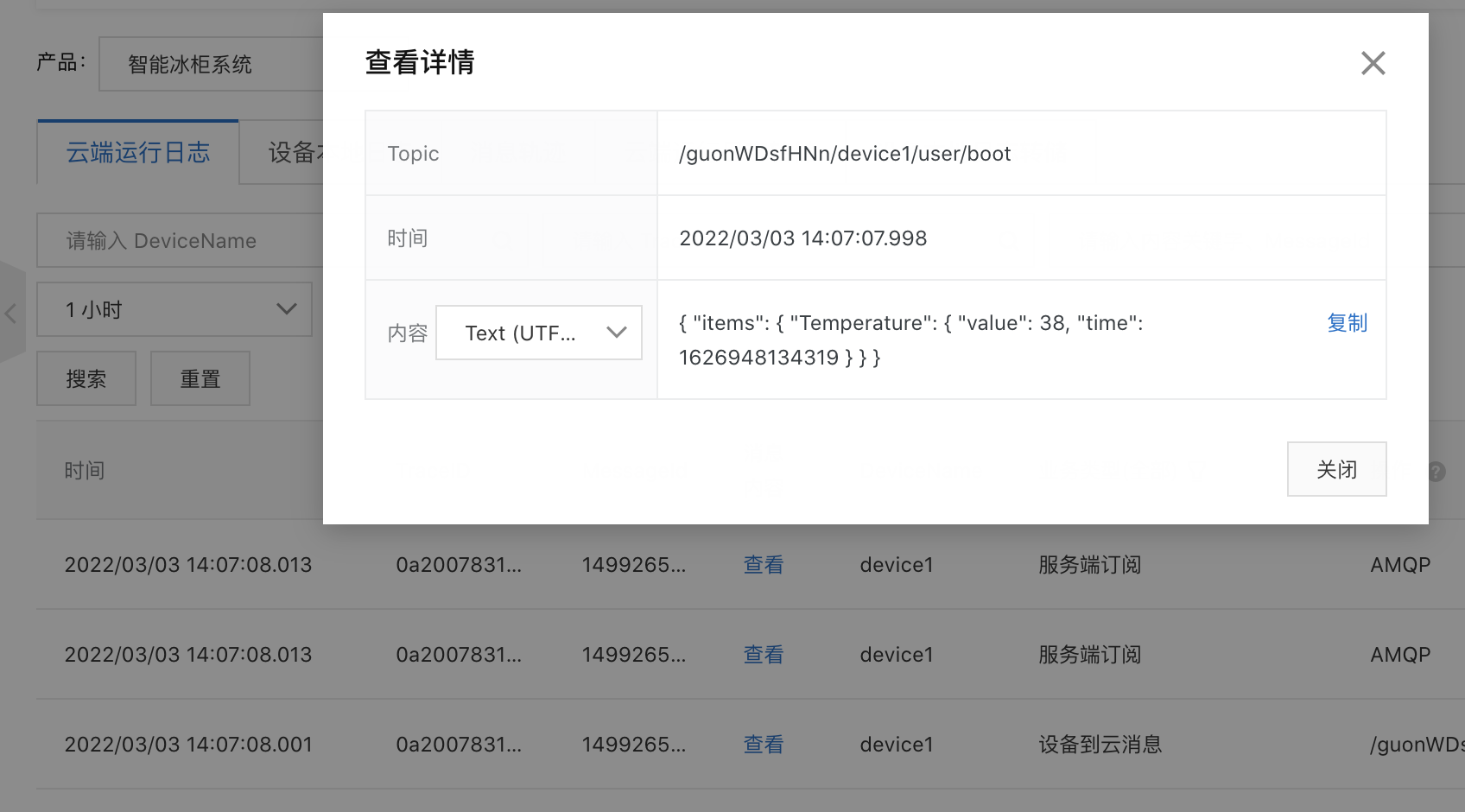

5-日志查看

6-云产品流转实现amqp

在云产品流转的时候也可以选择流转到服务端订阅，感觉这种方式可以可无，非要说的话可以用云产品流转的数据脚本解析的功能等。
