1. ByteArray 类封装测试

目的：测试写入、读出数据能否正常进行

1. 对定长和压缩变长数据进行读写操作

每一个写入、读出函数都是固定的步骤：

  1. 生成一个随机数组，创建Bytearray对象（开辟一块动态内存空间）
  2. 依次将数组内容写入内存空间
  3. 手动将内存指针置为开头ba->setPosition(0)，开始读取。
  4. 显示一下内存空间开辟的总容量，已经实际使用的空间大小，内存结点个数等信息
  • test_bytearray.cpp： ```cpp static Logger::ptr g_logger = KIT_LOG_ROOT();

void test() {

define XX(type, len, write_func, read_func, base_len){\

  1. std::vector<type> mv;\
  2. for(int i = 0;i < len;++i)\
  3. {\
  4.     mv.push_back(rand());\
  5. }\
  6. ByteArray::ptr ba(new ByteArray(base_len));\
  7. for(auto &x : mv)\
  8. {\
  9.     ba->write_func(x);\
  10. }\
  11. ba->setPosition(0);\
  12. for(size_t i = 0; i < mv.size();++i)\
  13. {\
  14.     type v = ba->read_func();\
  15.     KIT_ASSERT(v == mv[i]);\
  16. }\
  17. KIT_ASSERT(ba->getReadSize() == 0);\
  18. KIT_LOG_INFO(g_logger) << #write_func  "/" #read_func "(" #type ")" << ",len=" << len\
  19.     << ",base_len=" << base_len << ",size=" << ba->getSize() << ", node count=" << ba->getNodeSum();\

}

  1. /*固定大小*/
  2. XX(int8_t, 100, writeFint8, readFint8, 1);
  3. XX(uint8_t, 100, writeFuint8, readFuint8, 1);
  4. XX(int16_t, 100, writeFint16, readFint16, 1);
  5. XX(uint16_t, 100, writeFuint16, readFuint16, 1);
  6. XX(int32_t, 100, writeFint32, readFint32, 1);
  7. XX(uint32_t, 100, writeFuint32, readFuint32, 1);
  8. XX(int64_t, 100, writeFint64, readFint64, 1);
  9. XX(uint64_t, 100, writeFuint64, readFuint64, 1);
  11. /*变长大小*/
  12. XX(int32_t, 100, writeInt32, readInt32, 1);
  13. XX(uint32_t, 100, writeUint32, readUint32, 1);
  14. XX(int64_t, 100, writeInt64, readInt64, 1);
  15. XX(uint64_t, 100, writeUint64, readUint64, 1);

undef XX

}

int main() { KIT_LOG_INFO(g_logger) << “tesdt begin”;

  1. test();
  3. KIT_LOG_INFO(g_logger) << "test end";
  6. return 0;

}

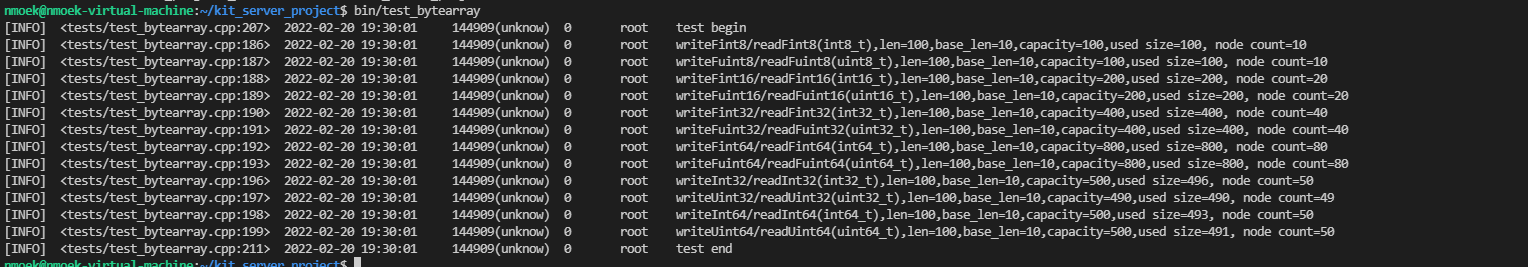

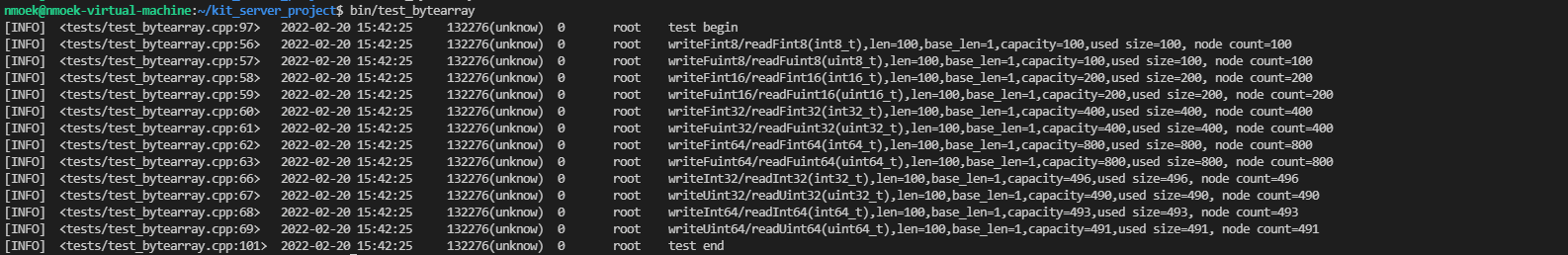

  1. ![image.png](https://cdn.nlark.com/yuque/0/2022/png/25460685/1645342977243-b866303f-47ee-4dd8-882b-a3c1f419fbac.png#clientId=ucb08377b-08bb-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=258&id=ued83ca46&margin=%5Bobject%20Object%5D&name=image.png&originHeight=258&originWidth=1586&originalType=binary&ratio=1&rotation=0&showTitle=false&size=72549&status=done&style=none&taskId=u0b908856-8ab5-41ec-a7da-a3d13073889&title=&width=1586)
  3. <a name="uXjz3"></a>
  4. ### BUG：跨节点存储时写入和读取不一致

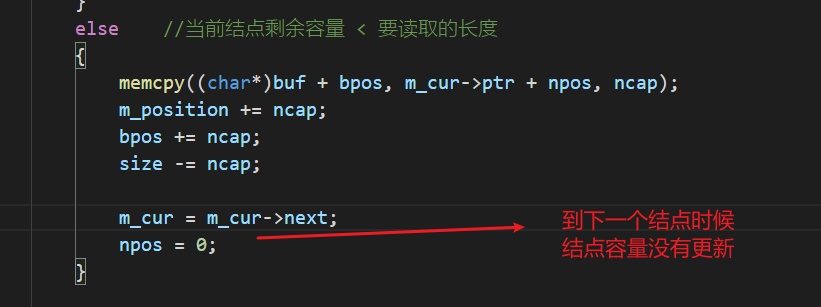

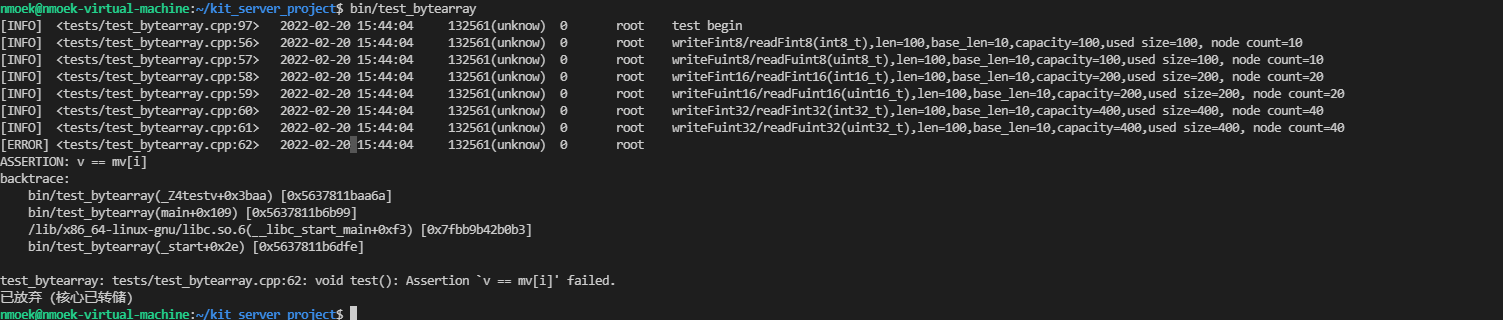

  5. 现象：改变结点大小base_len = 10，让其能跨节点存储，发生`KIT_ASSERT(v == mv[i]);`断言，说明写入和读取出来的数据不一致。该情况发生在`writeFint64()/readFint64()`两个函数间。<br />间接说明：跨节点写入和读取有问题。<br />![image.png](https://cdn.nlark.com/yuque/0/2022/png/25460685/1645343069053-7db19c2b-d472-404a-b4a1-219a10ceda74.png#clientId=ucb08377b-08bb-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=320&id=u1419d846&margin=%5Bobject%20Object%5D&name=image.png&originHeight=320&originWidth=1503&originalType=binary&ratio=1&rotation=0&showTitle=false&size=64457&status=done&style=none&taskId=u45118e93-98a0-4fc0-8d24-047d8b65b84&title=&width=1503)
  7. - 将写入和读取的数据全部打印一下 `test_bytearray.cpp`:
  8. ```cpp
  9. static Logger::ptr g_logger = KIT_LOG_ROOT();
  12. void test()
  13. {
  14. #define XX(type, len, write_func, read_func, base_len){\
  15.     std::vector<type> mv;\
  16.     std::cout << "写入:";\
  17.     for(int i = 0;i < len;++i)\
  18.     {\
  19.         mv.push_back(rand());\
  20.         std::cout << mv[i] << " ";\
  21.     }\
  22.     std::cout << std::endl << std::endl;\
  23.     ByteArray::ptr ba(new ByteArray(base_len));\
  24.     for(size_t i = 0; i < mv.size();++i)\
  25.     {\
  26.         ba->write_func(mv[i]);\
  27.     }\
  28.     ba->setPosition(0);\
  29.     std::cout << "读取:";\
  30.     for(size_t i = 0; i < mv.size();++i)\
  31.     {\
  32.         type v = ba->read_func();\
  33.         std::cout << v << " ";\
  34.         KIT_ASSERT(v == mv[i]);\
  35.     }\
  36.     std::cout << std::endl;\
  37.     KIT_ASSERT(ba->getReadSize() == 0);\
  38.     KIT_LOG_INFO(g_logger) << #write_func  "/" #read_func "(" #type ")" << ",len=" << len\
  39.         << ",base_len=" << base_len << ",capacity=" << ba->getTotalCapacity() << ",used size=" << ba->getSize() << ", node count=" << ba->getNodeSum();\
  40.     std::cout << std::endl;\
  41. }
  43.     /*固定大小*/
  44.     XX(int8_t, 100, writeFint8, readFint8, 10);
  45.     XX(uint8_t, 100, writeFuint8, readFuint8, 10);
  46.     XX(int16_t, 100, writeFint16, readFint16, 10);
  47.     XX(uint16_t, 100, writeFuint16, readFuint16, 10);
  48.     XX(int32_t, 100, writeFint32, readFint32, 10);
  49.     XX(uint32_t, 100, writeFuint32, readFuint32, 10);
  50.     XX(int64_t, 100, writeFint64, readFint64, 10);
  51.     XX(uint64_t, 100, writeFuint64, readFuint64, 10);
  53.     /*变长大小*/
  54.     XX(int32_t, 100, writeInt32, readInt32, 10);
  55.     XX(uint32_t, 100, writeUint32, readUint32, 10);
  56.     XX(int64_t, 100, writeInt64, readInt64, 10);
  57.     XX(uint64_t, 100, writeUint64, readUint64, 10);
  58. #undef XX
  61. }
  63. int main()
  64. {
  65.     KIT_LOG_INFO(g_logger) << "test begin";
  67.     test();
  69.     KIT_LOG_INFO(g_logger) << "test end";
  72.     return 0;
  73. }
  • 不一致数据如下： ```cpp 写入：
  1. 1635550270 = 0110 0001 0111 1100 1000 0100 0011 1110
  2. 2069110699 = 0111 1011 0101 0100 0001 1111 1010 1011

读取： 1.1635550270 2.712582607 = 0010 1010 0111 1001 0010 0101 1100 1111

  1. ![image.png](https://cdn.nlark.com/yuque/0/2022/png/25460685/1645343451468-182b8d7f-57c9-4c73-9d2e-648c25553f11.png#clientId=ucb08377b-08bb-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=307&id=u2655550d&margin=%5Bobject%20Object%5D&name=image.png&originHeight=307&originWidth=821&originalType=binary&ratio=1&rotation=0&showTitle=false&size=33517&status=done&style=none&taskId=u79d82d23-609e-4d09-a786-8d65f1fab7b&title=&width=821)
  2. <a name="wid0z"></a>

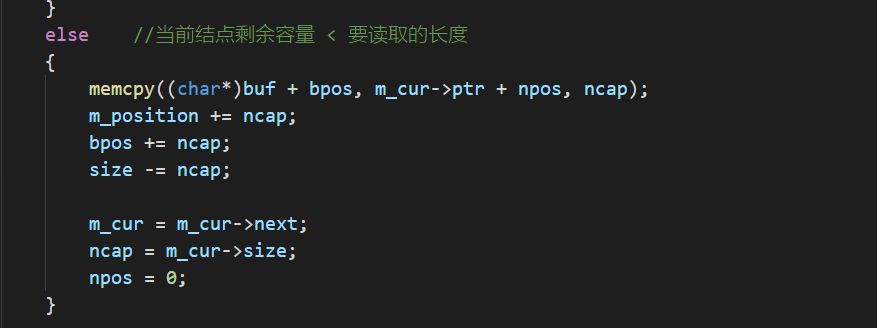

  3. ### 更正：能够正常跨节点写入和读取

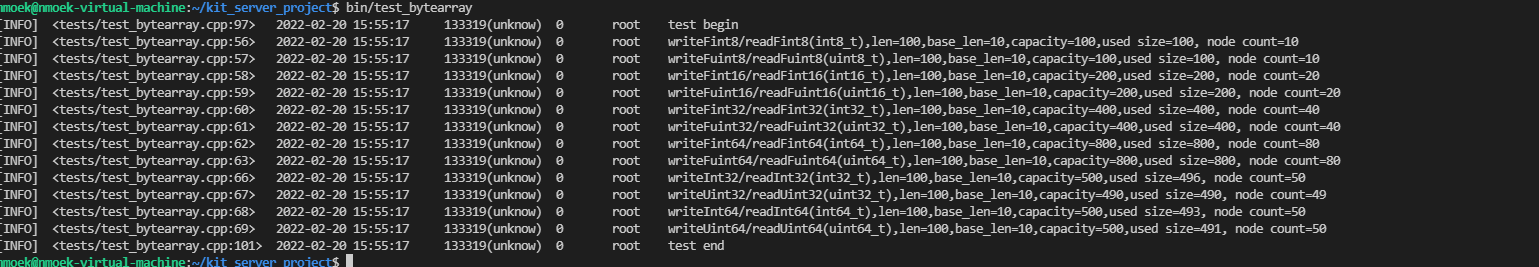

  4. 可以看到实际总容量和已经使用的空间大小，有时候不一定是对等的，可能存在一部分的冗余。<br />![image.png](https://cdn.nlark.com/yuque/0/2022/png/25460685/1645343753293-a8a5d2af-257f-4c51-a061-fa953fe61620.png#clientId=ucb08377b-08bb-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=328&id=u2ebab72f&margin=%5Bobject%20Object%5D&name=image.png&originHeight=328&originWidth=877&originalType=binary&ratio=1&rotation=0&showTitle=false&size=26986&status=done&style=none&taskId=u2c2013cb-32c7-44d1-b85d-ae4674a99a1&title=&width=877)<br />![image.png](https://cdn.nlark.com/yuque/0/2022/png/25460685/1645343735922-e143072d-3989-43eb-a065-46c6c93dd60f.png#clientId=ucb08377b-08bb-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=267&id=ucf501fd0&margin=%5Bobject%20Object%5D&name=image.png&originHeight=267&originWidth=1539&originalType=binary&ratio=1&rotation=0&showTitle=false&size=75257&status=done&style=none&taskId=ufb47a5b1-ab20-4ff2-860d-ac0818d7c14&title=&width=1539)
  6. <a name="bZjgu"></a>
  7. ## 2. 单独测一下浮点型数据
  9. - `test_bytrarray.cpp`:
  10. ```cpp
  11. static Logger::ptr g_logger = KIT_LOG_ROOT();
  14. void test()
  15. {
  16.     #if 1
  17. #define XX(type, len, write_func, read_func, base_len){\
  18.     std::vector<type> mv;\
  19.     std::cout << "写入:";\
  20.     for(int i = 0;i < len;++i)\
  21.     {\
  22.         mv.push_back((type)(1.2 + rand()));\
  23.         std::cout << mv[i] << " ";\
  24.     }\
  25.     std::cout << std::endl << std::endl;\
  26.     ByteArray::ptr ba(new ByteArray(base_len));\
  27.     for(size_t i = 0; i < mv.size();++i)\
  28.     {\
  29.         ba->write_func(mv[i]);\
  30.     }\
  31.     ba->setPosition(0);\
  32.     std::cout << "读取:";\
  33.     for(size_t i = 0; i < mv.size();++i)\
  34.     {\
  35.         type v = ba->read_func();\
  36.         std::cout << v << " ";\
  37.         KIT_ASSERT(v == mv[i]);\
  38.     }\
  39.     std::cout << std::endl;\
  40.     KIT_ASSERT(ba->getReadSize() == 0);\
  41.     KIT_LOG_INFO(g_logger) << #write_func  "/" #read_func "(" #type ")" << ",len=" << len\
  42.         << ",base_len=" << base_len << ",capacity=" << ba->getTotalCapacity() << ",used size=" << ba->getSize() << ", node count=" << ba->getNodeSum();\
  43.     std::cout << std::endl;\
  44. }
  47.     XX(float, 100, writeFloat, readFloat, 10);
  48.     XX(double, 100, writeDouble, readDouble, 10);
  49. #undef XX
  50. }
  52. int main()
  53. {
  54.     KIT_LOG_INFO(g_logger) << "test begin";
  56.     test();
  58.     KIT_LOG_INFO(g_logger) << "test end";
  61.     return 0;
  62. }


BUG：读写不一致问题

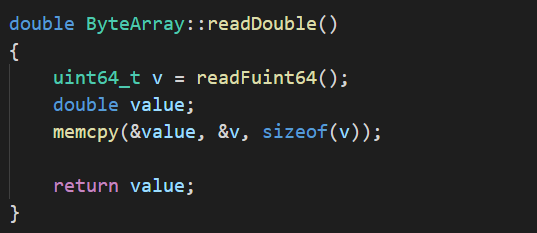

现象：写入、读取的float型数据不一致。writeFloat()/readFloat()函数有问题。
本质上：float就是使用32位型数据存储的，double使用64位型存储。不管写入定长还是变长都应该读写一致。

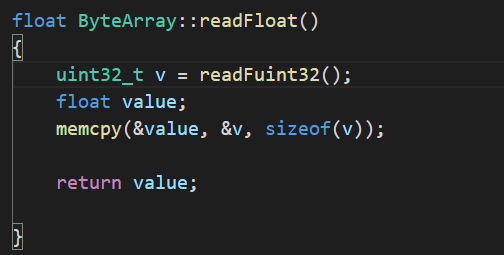

更正：全部读写都是定长或变长


3. 对定长和变长字符串进行读写

  • 写一个能够生成指定长度的随机字符串函数

    1. static std::string rand_str(uint32_t len)
    2. {
    3.   std::string s;
    4.   s.resize(len);
    6.   for(int i = 0; i < (int)len;++i)
    7.   {
    8.       switch (rand() % 3)
    9.       {
    10.       case 0: s[i] = 'a'  + rand() % 26; break;
    11.       case 1: s[i] = 'A'  + rand() % 26; break;
    12.       case 2: s[i] = '0'  + rand() % 9; break;
    13.       }
    14.   }
    16.   return s;
    17. }

  • test_bytearray.cpp: ```cpp void test2() {

define XX(type_len, len, write_func, read_func, base_len){\

  1. std::vector<std::string> mv;\
  2. for(int i = 0; i < len;++i)\
  3. {\
  4.     mv.push_back(rand_str(type_len));\
  5. }\
  6. ByteArray::ptr ba(new ByteArray(base_len));\
  7. for(auto &x : mv)\
  8.     ba->write_func(x);\
  9. ba->setPosition(0);\
  10. for(int i = 0; i < len;++i)\
  11. {\
  12.     std::string v = ba->read_func();\
  13.     KIT_ASSERT(v == mv[i]);\
  14. }\
  15. KIT_LOG_INFO(g_logger) << #write_func  "/" #read_func << "("  << type_len * 8  << ")" << ",len=" << len\
  16.     << ",base_len=" << base_len << ",capacity=" << ba->getTotalCapacity() << ",used size=" << ba->getSize() << ", node count=" << ba->getNodeSum();\

}

  1. XX(2, 100, writeStringF16, readStringF16, 10);
  2. XX(4, 100,writeStringF32, readStringF32, 10);
  3. XX(8, 100, writeStringF64, readStringF64, 10);
  4. uint64_t t = rand() % 1000;    //随机长度为1000 以内的字符串
  5. XX(t, 100, writeStringVint, readStringVint, 100);

undef XX

}

int main() { KIT_LOG_INFO(g_logger) << “test begin”;

  1. test2();
  3. KIT_LOG_INFO(g_logger) << "test end";
  6. return 0;

}

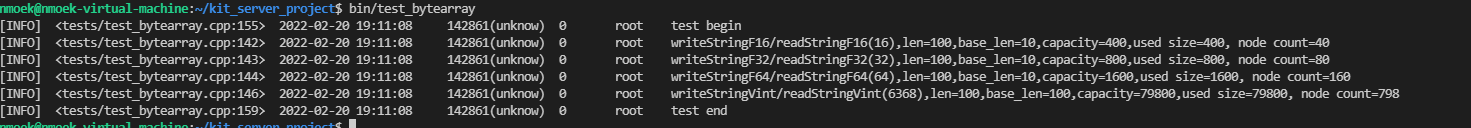

  1. ![image.png](https://cdn.nlark.com/yuque/0/2022/png/25460685/1645355590577-81920abd-9072-43c3-99f9-1f87e11ee1b1.png#clientId=ucb08377b-08bb-4&crop=0&crop=0&crop=1&crop=1&from=paste&height=128&id=u97d13fff&margin=%5Bobject%20Object%5D&name=image.png&originHeight=128&originWidth=1471&originalType=binary&ratio=1&rotation=0&showTitle=false&size=35530&status=done&style=none&taskId=u73b3667d-cb5a-450f-b078-1618eebd9d9&title=&width=1471)
  3. <a name="ZOf4W"></a>

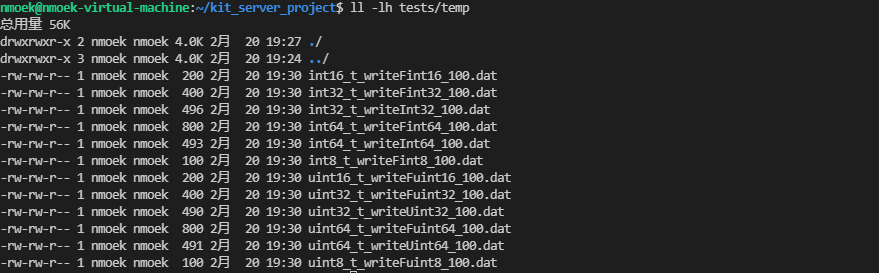

  4. ## 4. 将内存数据写入文件、从文件读取数据到内存
  6. - `test_bytearray.cpp`:
  8. 读写文件时候加入断言，来判断从文件中读取的数据是否和写入前的数据完全一样
  9. ```cpp
  10. void test3()
  11. {
  12. #define XX(type, len, write_func, read_func, base_len){\
  13.     std::vector<type> mv;\
  14.     for(int i = 0;i < len;++i)\
  15.     {\
  16.         mv.push_back(rand());\
  17.     }\
  18.     ByteArray::ptr ba(new ByteArray(base_len));\
  19.     for(size_t i = 0; i < mv.size();++i)\
  20.     {\
  21.         ba->write_func(mv[i]);\
  22.     }\
  23.     ba->setPosition(0);\
  24.     for(size_t i = 0; i < mv.size();++i)\
  25.     {\
  26.         type v = ba->read_func();\
  27.         KIT_ASSERT(v == mv[i]);\
  28.     }\
  29.     KIT_ASSERT(ba->getReadSize() == 0);\
  30.     KIT_LOG_INFO(g_logger) << #write_func  "/" #read_func "(" #type ")" << ",len=" << len\
  31.         << ",base_len=" << base_len << ",capacity=" << ba->getTotalCapacity() << ",used size=" << ba->getSize() << ", node count=" << ba->getNodeSum();\
  32.     ba->setPosition(0);\
  33.     KIT_ASSERT(ba->writeToFile("./tests/temp/" #type "_" #write_func "_" #len ".dat"));\
  34.     ByteArray::ptr ba2(new ByteArray(base_len * 2));\
  35.     KIT_ASSERT(ba2->readFromFile("./tests/temp/" #type "_" #write_func "_" #len ".dat"));\
  36.     ba2->setPosition(0);\
  37.     KIT_ASSERT(ba->toString() == ba2->toString());\
  38.     KIT_ASSERT(ba->getPosition() == 0);\
  39.     KIT_ASSERT(ba2->getPosition() == 0);\
  40. }
  42.     /*固定大小*/
  43.     XX(int8_t, 100, writeFint8, readFint8, 10);
  44.     XX(uint8_t, 100, writeFuint8, readFuint8, 10);
  45.     XX(int16_t, 100, writeFint16, readFint16, 10);
  46.     XX(uint16_t, 100, writeFuint16, readFuint16, 10);
  47.     XX(int32_t, 100, writeFint32, readFint32, 10);
  48.     XX(uint32_t, 100, writeFuint32, readFuint32, 10);
  49.     XX(int64_t, 100, writeFint64, readFint64, 10);
  50.     XX(uint64_t, 100, writeFuint64, readFuint64, 10);
  52.     /*变长大小*/
  53.     XX(int32_t, 100, writeInt32, readInt32, 10);
  54.     XX(uint32_t, 100, writeUint32, readUint32, 10);
  55.     XX(int64_t, 100, writeInt64, readInt64, 10);
  56.     XX(uint64_t, 100, writeUint64, readUint64, 10);
  58. #undef XX
  60. }
  62. int main()
  63. {
  64.     KIT_LOG_INFO(g_logger) << "test begin";
  66.     test3();
  68.     KIT_LOG_INFO(g_logger) << "test end";
  71.     return 0;
  72. }
